YANGZI YZ-S5 User manual

YZ-S5
Floor Sweeper
operation instructions

YZ-S5
Yangzi.Make cleaning easier

YZ-S5
1
Content
Content......................................................................................................... 1
Parts..............................................................................................................2
Performance parameters.............................................................................. 2
Chapter 1 Description.................................................................................. 3
1.1 Content and Purpose..............................................................................3
1.2 General Instructions...............................................................................3
1.3 Safety requirements for batteries...........................................................4
1.4 General safety regulations..................................................................... 4
Chapter 2 Use of the Machine..................................................................... 4
2.1 Buttons/pedals of the machine...............................................................4
2.1.1 The core control keys of the machine......................................... 4
2.2 The operation process of the machine...................................................6
3.3 Precautions for machine operation........................................................ 7
Chapter 3 Routine Maintenance and Replacement of Wearing Parts.........8
3.1 Periodic Inspection................................................................................ 8
3.2 Replacement and installation of main brush......................................... 8
Chapter 4 Sweeper Troubleshooting......................................................... 11
Chapter 5 Maintenance..............................................................................13
Chapter 6 Battery Maintenance Guide...................................................... 14
Warranty card.......................................................................................... 15

YZ-S5
2
Parts
①Seat ⑥Dust suppression nozzle ⑪Dust box
②Steering wheel ⑦Left brush ⑫Water tank
③Center control panel ⑧Tire ⑬Brake pedal
④Leather lift pedal ⑨Warning light ⑭Accelerator pedal
⑤Headlights ⑩Tail light ⑮Right brush
Performance parameters
Category
Parameters
Category
Parameters
Cleaning width
1350mm
Side brush motor
90w*2
Roller brush width
590mm
Fan motor power
145w
Side brush width
260mm*2
Drive motor power
800w
Dust box capacity
120L
Vibrating motor power
60w
Charging time
8-10h
Maximum gradeability
15%
Working time
2-3h
Working speed
0-10km/h
Battery type
Lead-acid/lithium battery
Machine weight
363kg
Battery capacity
48V/67Ah
Product size
1600*1350*1260mm
Roller brush motor
700w
/
/

YZ-S5
3
Chapter 1 Description
1.1 Content and Purpose
The following content points out potentially hazardous situations, please read
these instructions carefully and take necessary precautions. The essence of this
machine operator's manual is to prevent injuries, and most accidents are caused at
work by not heeding basic safety rules. A careful and careful user is the best
guarantee against accidents, even stronger than some other precautions. When using
the machine, be sure to pay attention to your surroundings and people nearby,
especially children.
1.2 General Instructions
●Before any maintenance and repair, please turn the start switch to the off
position, and please remove the key from the main power switch.
●The machine must be used by qualified and authorized personnel. Children and
disabled persons are not allowed to use the machine.
●Keep the battery away from sparks, flames and smoke.
●Do not use it in a place where dangerous, flammable or explosive gas, liquid or
water vapor is present.
●This machine can clean general garbage. It is strictly forbidden to clean silk
ropes, belts, high-temperature sundries, accumulated water, flammable or toxic and
harmful substances, so as to avoid entanglement, burning the main brush and side
brush, and making them unable to work normally.
●Please keep loose clothing, hair, fingers, etc. any part of the body away from the
air outlet of the machine and any moving parts.
●When the machine stops, remember to turn off the power.
●Do not use the machine where the inclination exceeds the rated value of the
machine.
●Please do not smoke while charging the battery.
●Do not use the machine in a very dirty area. If the road garbage is thick, please
repeat the sweeping work twice or more.
●The machine should be in temperature between -10℃to 40℃.
●When using the machine, the temperature should be between -10°C and 40°C,
and the humidity should be between 30% and 95%.
●Do not use the machine as a means of transportation.
●When the machine is not moving forward, do not let the brush continue to rotate
to avoid damage to the ground.
●In case of fire, please remember to use powder fire extinguisher instead of
water.
●When the machine operation fails, make sure that the failure is not caused by
lack of regular maintenance.
●If some parts need to be replaced, you can buy spare parts from the original
manufacturer or authorized dealer.
●Confirming that the machine is in proper operation and safe condition,
professionals or service center must work in accordance with the maintenance
section of this manual.

YZ-S5
4
●Even if the machine is to be dismantled and scrapped, someone should be
there to pay attention. Because some harmful substances (such as batteries, waste
oil, etc.) have met the standards, they should be sent to a specific center for
processing.
1.3 Safety requirements for batteries
●The battery must be kept in a low voltage state, and it should be charged as
soon as possible.
●To avoid leakage of electricity, please keep the battery dry and clean, especially
to remove contaminants such as metal dust.
●It is forbidden to place metal parts (such as tools) on the battery to prevent the
battery from being short-circuited and burnt out.
●The charging room should be well ventilated.
●Do not connect or remove the battery when the key switch is in the ON position.
●Before removing or installing batteries, disconnect the negative (-) battery wire
first and then the positive (+) battery wire. When rewiring, be sure to pay attention to
the polarity of the battery, as wrong connection will damage electrical components.
●Avoid direct contact between the positive electrode and the negative electrode,
because it will cause a large current short circuit, high heat and even fire.
1.4 General safety regulations
In addition to the provisions made in this manual, the required general safety
regulations and accident prevention guidelines must also be observed. Even if you
have used a similar sweeper before, please read the instructions carefully. Reading
the instructions beforehand will save you a lot of time in the future. It is vital that you
become familiar with all accessories and controls and their functions before you start
using them. Read through this manual so you don't get scrambled when you turn it on.
Chapter 2 Use of the Machine
2.1 Buttons/pedals of the machine
2.1.1 The core control keys of the machine
●①Power/Voltmeter (the display device can display the
current power, battery voltage, please charge when the
voltage is lower than 42V).

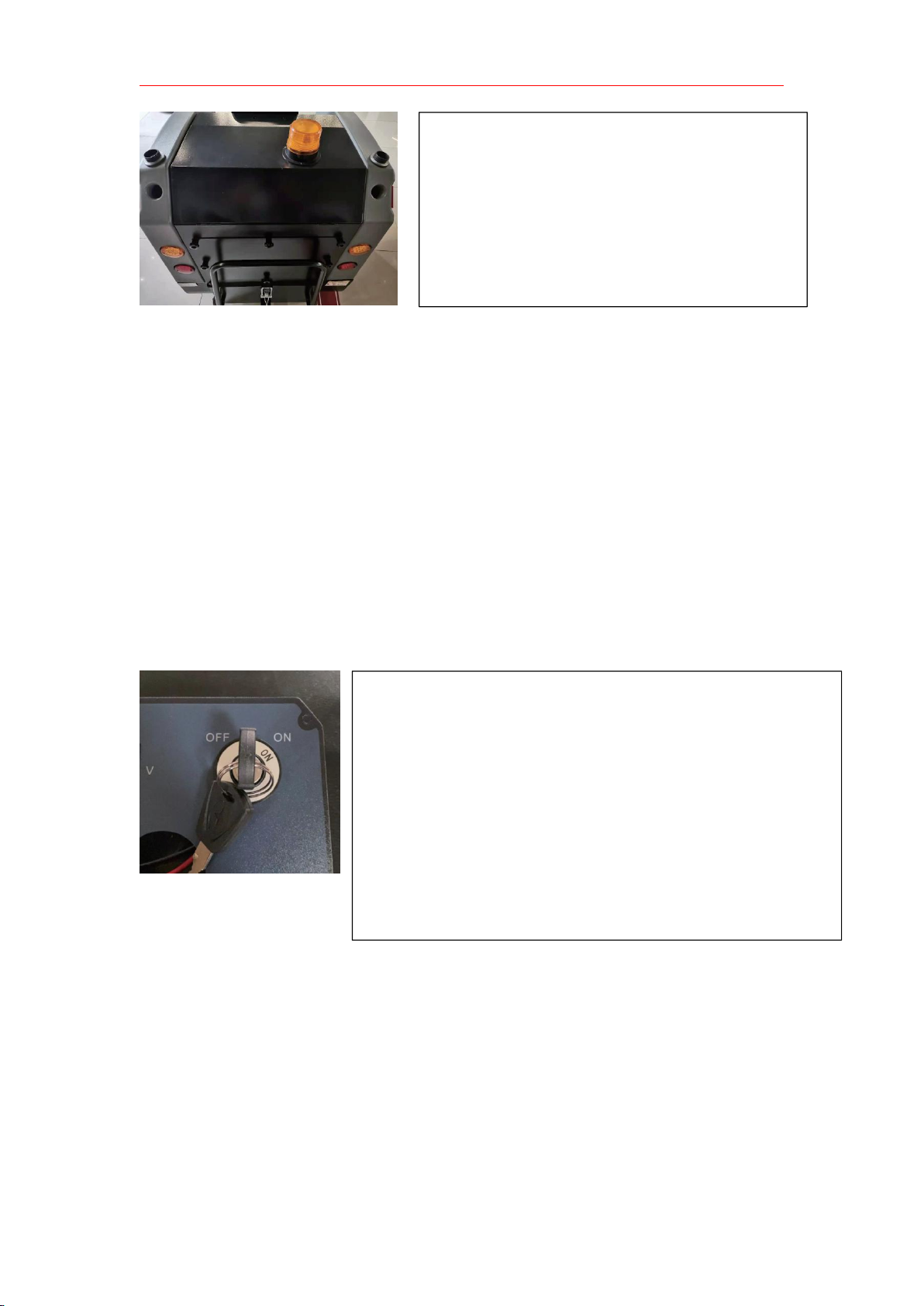

●②Key switch
●③Sweep button
●④Forward and backward buttons
●⑤Speaker button
●⑥Headlight button
●⑦Sprinkler button
●⑧Dust vibration button

YZ-S5
5
pay attention:
(1) The sweeping button is divided into three gears:
The main brush, side brush and fan in the front block can be started with one key, and
the main brush and the side brush are automatically lowered, and the cleaning
operation can be performed;
Intermediate gear (debugging gear) The main brush, side brush and fan stop rotating,
the main brush side brush does not rise, the height of the main brush side brush can
be adjusted; in the reset gear, the main brush side brush is raised.
(2) Dust vibrating button, the dust vibrating function can be used only after the main
brush side brush is raised after the sweeping button is turned off
●Sprinkler mechanical valve (be sure to open the sprinkler mechanical valve after the
sprinkler button is turned on; after the sprinkler function is turned off, close the mechanical
valve to prevent the sprinkler from dripping).
2.1.2 Charging the battery
●The cable of the charging socket needs a power cable with a diameter of at
least 6mm. If you need to stop charging during the charging process, directly power
off.
2.1.3 Adding water to the water tank
●①Accelerator pedal, to control the running speed of the
machine, the greater the pressure, the faster the running
speed.
●②Brake pedal, control the function of machine parking
and emergency stop.
③Front fender lift bracket pedal [If you need to clean large
garbage (such as cans, cigarette boxes, etc.), step on the
front fender lift bracket pedal, and the main brush can
sweep the large garbage into the trash can]

YZ-S5
6
2.2 The operation process of the machine
before start
● Under normal operating conditions of the machine, make sure that the door or lid is
not opened, and that the hopper is properly closed. If the machine cannot be used
after shipping, check each part first.
Power display
●Insert the start key in the steering wheel console, and turn the start switch clockwise
to the "ON" position. After three seconds, the display shows the battery voltage value.
If the voltage is lower than 42V, please charge it before use.
●The sweeper implements automatic and one-button operation. When the sweeping
function button is pressed, all sweeping motors (including the main brush motor, side
brush motor, and fan motor) will automatically work, and the main brush and side
brush will automatically descend.
stop of the machine
● Release the accelerator pedal to stop the machine.
●Press the sweeping stop button. All sweeping functions are stopped, and the main
brush and side brush are raised.
●Turn the start switch to the "OFF" position.
●Unscrew the cover of the water tank before
using the machine, and pour clean clean water
into the water tank.Water, pay attention to the
water quality to be clean to prevent clogging of
the waterway.
start the machine
●Sit in the driver's seat;
● Gently step on the brake pedal and turn the start key to the
"ON" position;
● Move the machine to the work area with the steering wheel
and the forward/reverse buttons (forward for forward,
backward for backward). The driving speed is adjusted from 0
to the maximum value by the pressure of the accelerator
pedal;
●Press the sweeping function button to start sweeping, and
use the steering wheel, accelerator pedal and
forward/backward buttons to move the machine.
●The dustbin must be closed when sweeping.

YZ-S5
7
3.3 Precautions for machine operation
●Avoid stopping the machine and rolling the brush in the same place for a long time;
this will leave unnecessary marks on the ground.
●If you need to collect large light garbage, you can lift the front cover by stepping on
the pedal to allow the large light garbage to pass through the machine. Please
remember that when the front cover is raised, the amount of dust in the machine will
be reduced
●In order to clean the machine well, be sure to clean the filter screen, stop the
machine, press the dust vibration switch, and start the dust vibration motor to vibrate
the filter within 1 minute. After cleaning the filter, restart the sweeping operation.
●When working, the filter needs to be vibrated every 30 minutes on average.
(depending on the garbage in the area to be cleaned)
●When the filter screen is blocked or the garbage bin is full, the machine cannot
collect garbage and should not work on wet ground to avoid damage to the filter
screen.
●The rubbish bin must be emptied every time the work is completed or the rubbish bin
is full.
Push/drag of the machine
●Push/drag the machine when the machine is off, or when there is a malfunction
Drive the machine to ensure that the speed is not more than 5km/h. Press the button
to forward gear when going forward
position, press the button to reverse when reversing.
After using the machine
●Press the reset button to raise the main and side brushes.
Empty the trash
●Release the pedal to stop the machine.

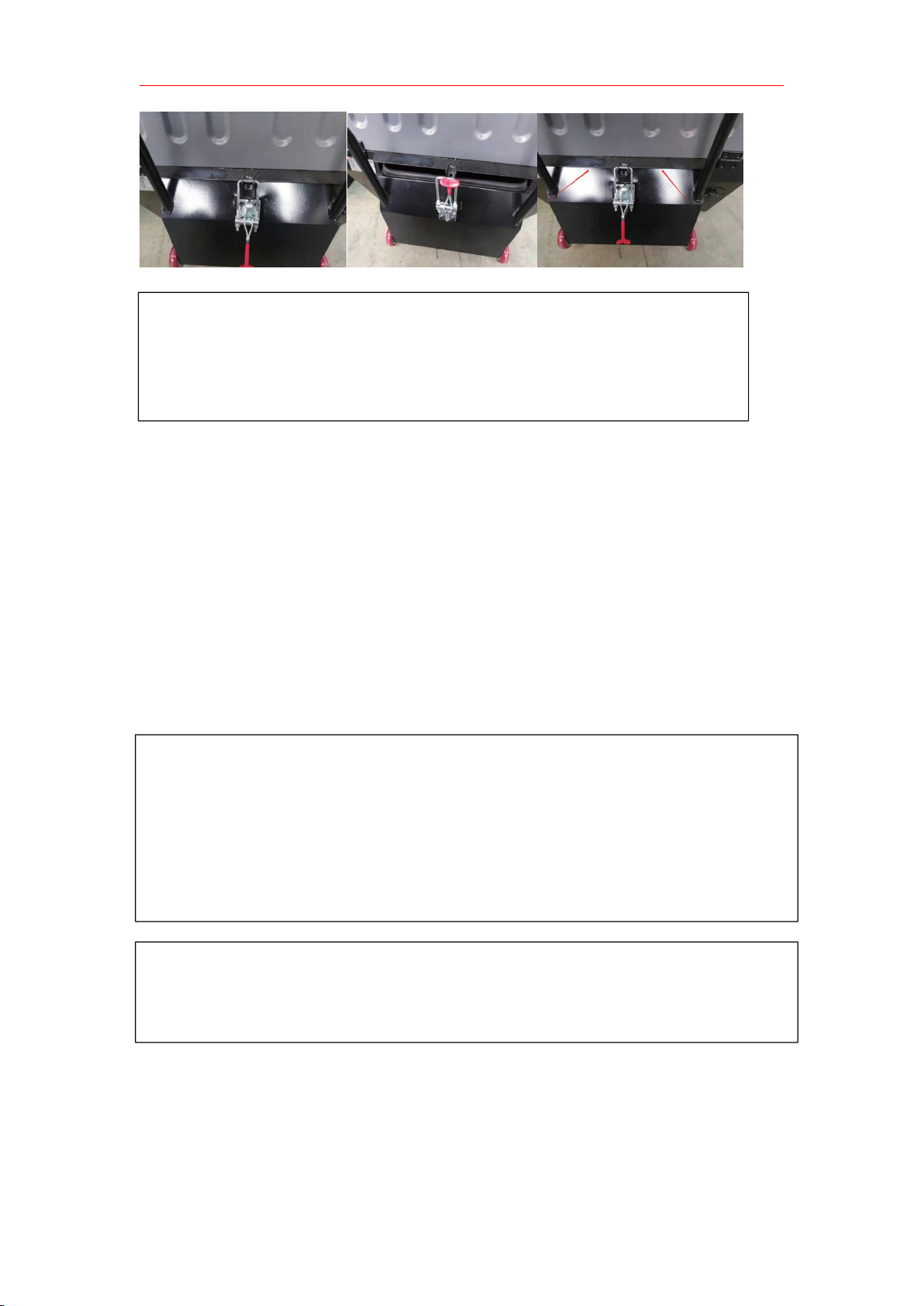

●The trash can hasp is opened.
●Pull the trash can down and then pull it out to
dump the trash.
●Put the trash can back into the machine and
fasten the hasp of the trash can. Note: The sealing
strip of the dustbin is tightly fitted with the box body.
●The machine is ready to work again.

YZ-S5
8
●Press the dust vibrating button to vibrate the filter.
●Empty the trash
●Remove the key from the power switch.
●When the machine stops working, the brush must be lifted to prevent the brush from
being deformed.
Machine storage and maintenance
●If the machine will not be used within 30 days, store the machine in a clean and dry
place and disconnect the battery connector.
Chapter 3 Routine Maintenance and
Replacement of Wearing Parts
3.1 Periodic Inspection
Regular maintenance and inspection
Intervals（h）
4
50
100
200
500
1
Battery level detection
2
Motor carbon brush inspection
3
Whetherthemainbrushiswired,thesilkisentangled
4
Check for debris in the tank
5
Check the buttons and electronics on the
control panel
6
Check the brush for wear
7
Check the filter for impurities
8
Check the sprinkler joint for leaks
3.2 Replacement and installation of main brush
● Ensure that the machine is in a stationary state;

YZ-S5
9
●Open the right side panel of the machine, use an open-end wrench to remove the
rocker arm of the main brush, the cover plate and the fixing nut of the fender bracket;
● Pull out the worn main brush, replace the new main brush, install the sealing plate
nut first, then install the fender support nut, and finally install the rocker arm nut;
●Turn to the top of the sweeping button switch, the main brush motor, the side brush
motor, the suction motor,The push rod motor starts working at the same time; observe
whether the rotation of the main brush is abnormal, if the vibration is abnormal, It can
be adjusted through the bolt on the rocker arm until it does not vibrate. If it is normal,
close the right side panel and carry out cleaning work.

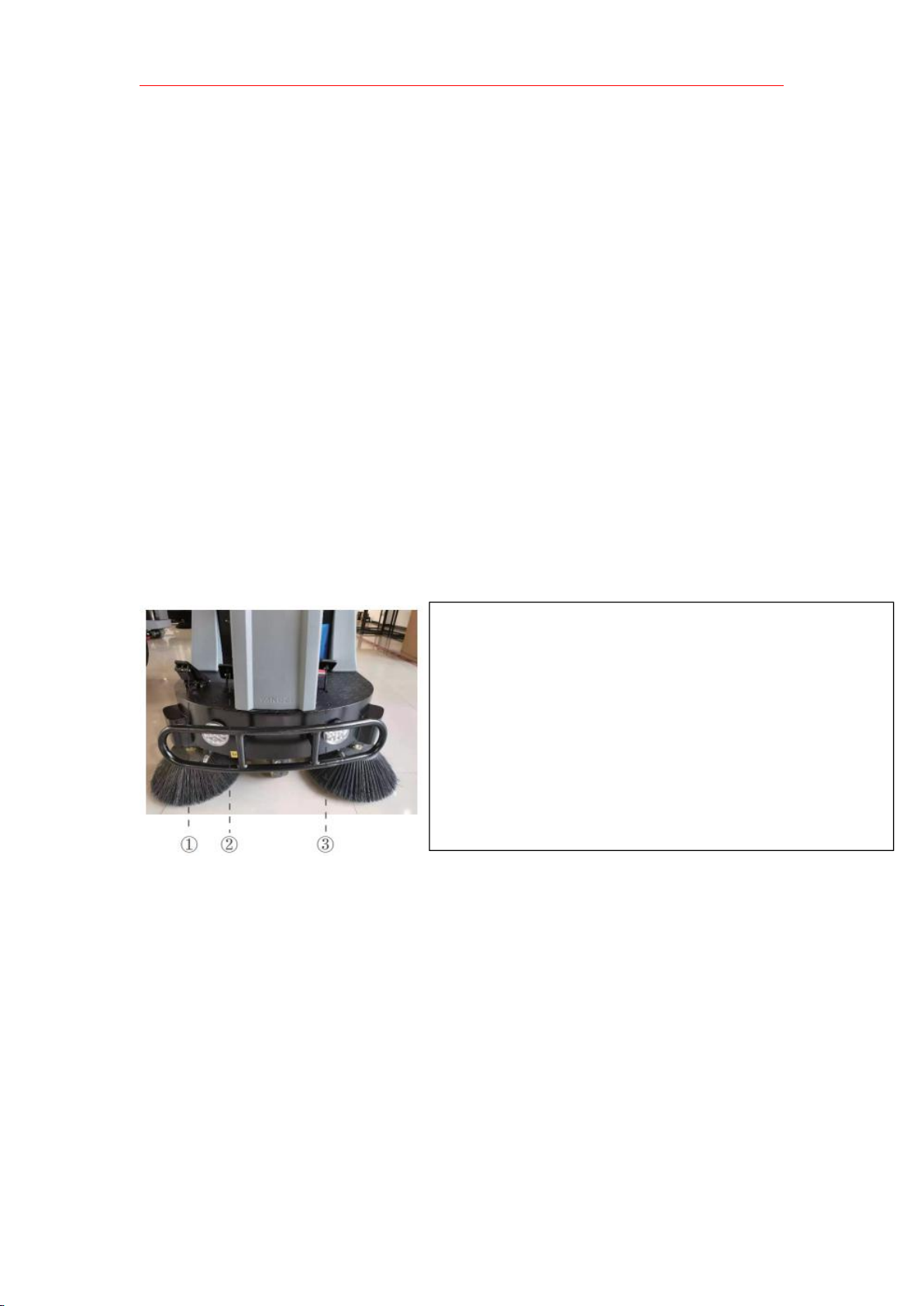

3.3 Side brush replacement and installation

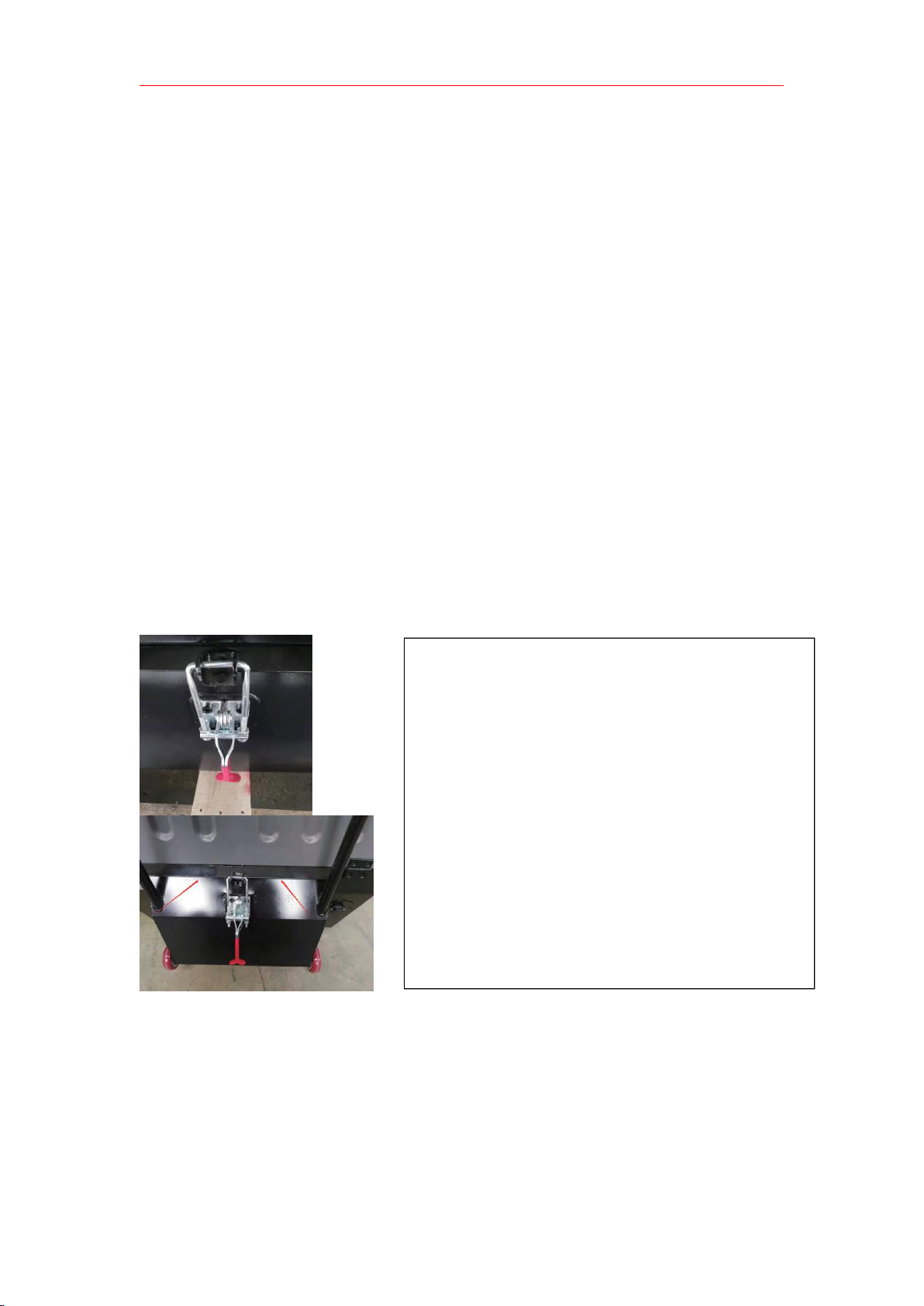

3.4 Removal and installation of garbage can
● Ensure that the machine is in a stationary state;
●Loosen the rubbish bin lock, pull out the rubbish bin, and dump the rubbish in the rubbish
bin;
●After the garbage is dumped, align the opening of the garbage can with the correct
position of the sweeper, and slowly push it forward.
●Push it all the way and then press the buckle down firmly to put the trash can back in
place. Note: The sealing strip of the dustbin is tightly fitted with the box body.

YZ-S5
10
3.5 Battery Maintenance
The power system of this sweeper is powered by four 12V maintenance-free lead-acid
batteries in series, and the system voltage is 48V.
●When the machine works for a period of time, the battery power drops, and when the
last bar of the power display meter is flashing, it indicates that the power is insufficient
and needs to be charged in time;
●When maintaining the battery, please wear protective gloves to avoid contact with
the acid substance of the battery;
●Check whether the battery connecting wire is worn and the contact parts are loose,
and replace it if necessary;
●The terminal of the battery should be kept clean and dry, and there should be no
sundries and dust covering it, which is extremely unfavorable to the battery, and will
burn the battery in severe cases.
3.6 Cleaning of the water valve filter element
! ! Hint
The waste bin is inserted into the slot, and the sealing strip on the waste bin
should be tightly fitted with the machine. If it doesn't fit, loosen the lock and
reinsert it.
! ! Hint
◆In order to make the battery have a long service life, it should be charged in time
after the machine operation is completed, and deep discharge is strictly prohibited.
◆The correct charging method of lead-acid battery: first insert the battery, then plug
in the mains; when fully charged, first cut off the mains, and then pull out the battery
plug.
◆If the machine is not used for a long time, please fully charge the battery,
disconnect the positive pole of the battery, and store it.
! ! Warn
◆During the use of the battery, the capacity of the deeply discharged battery will
decrease and the life span will be shortened.

YZ-S5
11
3.7 Replacing the dust filter
Chapter 4 Sweeper Troubleshooting
Problem
Reason
Approach
Main brush not working
Main brush fuse blown
Replace the main brush fuse
Main brush motor burned out
Replace the main brush motor
Motor thermal overload start
Wait 5-10 minutes, after the motor cools down, you can
reset the start
DC contactor burned out
Replacing the DC Contactor
Side brush not working
Side brush fuse blown
Replace the side brush fuse
Side brush motor burned out
Replace the side brush motor
Motor thermal overload start
Wait 5-10 minutes, after the motor cools down, you can
reset the start
DC contactor burned out
Replacing the DC Contactor
Fan not working
blower fuse blown
Replace fan fuse
Unscrew the upper
screw cap of the filter,
take out the filter
screen inside, and
clean it with clean
water.
Open the machine case
as shown on the right,
unscrew the mounting
screws of the dust
vibrating baffle, and pull
out the dust vibrating
filter element.

YZ-S5
12
Fan motor burned out
Replace the fan motor
DC contactor burned out
Replacing the DC Contactor
Motor thermal overload start
Wait 5-10 minutes, after the motor cools down, you can
reset the start
Mainbrush, side brush, fan
not working at the same
time
DC contactor burned out
Replacing the DC Contactor
Motor thermal overload start
Wait 5-10 minutes, after the motor cools down, you can
reset the start
Spray not working
Water pump fuse blown
Replace the water pump fuse
Water pump motor burned out
Replace the water pump motor
The pump works, the
spray effect is not obvious
Nozzle is clogged
Remove the nozzle and rinse the nozzle with clean
water
Filter clogged
Remove the filter and rinse the filter with clean water
Pump works, no spray
Electric water valve burnt
Replace Electric Water Valve
DC48V/DC24V converter burned out
Replace the converter
Problem
Reason
Approach
Alarm light does not
show
The key switch is not turned on
Turn the key switch from "OFF" to "ON"
Fuse key switch burnt
Replacing the key switch fuse
The battery is depleted
Use a multimeter to measure whether the total battery
voltage is 48V (42-52.8V)
Damaged key switch
Replace the key switch
walking not working
Controller is damaged
Replace the controller (announce controller failure)
Damaged accelerator pedal
Replace the accelerator pedal (announces a handlebar
error)
Damaged travel motor
Replace travel motor (announces hall error)
The whole machine
does not work, the
key switch, the
switch has a sound
The battery is depleted
Use a multimeter to measure whether the total battery
voltage is 48V (42-52.8V)
Main DC contactor burned out
Replace the main DC contactor
The whole machine does
not work
Damaged key switch
Replace the key switch
The battery is depleted
Use a multimeter to measure whether the total battery
voltage is 48V (42-52.8V)
Main DC contactor burned out
Replace the main DC contactor

YZ-S5
13
Chapter 5 Maintenance
Machine life and operational safety must be ensured by proper and routine
maintenance of the machine. The routine maintenance requirements are tabulated
below. Under suitable operating conditions, the maintenance interval can be changed
and must be determined by the professional responsible for the maintenance.
To perform maintenance operations, the machine must be stopped (remove the
start switch key), so please read the safety section of the manual carefully.
Conditions of Use
●Ambient temperature ℃: -10℃～40℃;
●The relative humidity of air ℃: 5%～70%;
●No conductive dust, no explosion hazard environment;
● An environment that does not contain gases or vapors that corrode metals;
●Indoor use, ventilated, non-vibration environment, front and rear space at least
300mm;
Maintenance schedule
Warranty
maintenance operation
On handover
Every 10h
Every 50h
Every 100h
Every 200h
Every 500h
Side brush and main brush high ℃
adjustment check
Whetherthemainandsidebrushesare
wiredorentangled
Complete inspection of garbage
filter cleaning
High ℃ of stopper and operation
inspection
refueling hole
Vibration filter inspection
Main brush drive belt visual
inspection
Screw and nut tightening inspection
Follow-up stop brake pedal check
adjustment
Checkthe main andside brushes for
wear
Main brush drive belt replacement
Main brush and drive system motor
carbon brush inspection and
replacement

YZ-S5
14
Warranty is not covered under the following conditions of use:
● Failure to perform maintenance in accordance with the maintenance manual
may result in mechanical damage or failure.
●The mechanical appearance or structure is obviously damaged due to
improper operation.
●Disassembly or modification not approved by the original factory.
●Damage due to weather or force majeure.
●More than 1 year of warranty or more than 1500 hours of use.
Chapter 6 Battery Maintenance Guide
This product uses a lead-acid maintenance-free battery, which has the functions of
maintenance-free, maintenance-free, and automatic pressure relief. If it will not be
used for a long time, please disconnect the positive pole of the battery and store it.
1) Why lead-acid battery life is short?
The battery is undercharged for a long time, and it is not charged for a long time after
discharge. During the use process, there is often an overdischarge phenomenon. The
standard charger is not selected during charging, resulting in overcharge
phenomenon. The voltage is different, and a low-voltage working state is formed for a
long time.
2) After the battery is used up, how should it be stored?
The battery is a sensitive product. If it is not used for a long time, it is best to take the
battery out of the machine and put it in a dry place at room temperature; because the
battery is placed inside the machine and is not disconnected from electrical
appliances and circuit boards, it will form a battery Continuous maintenance
discharge.
3) What is overdischarge and how does it affect the performance of the battery?
It refers to the phenomenon that the electricity stored in the battery continues to
discharge after reaching the minimum working voltage. After the battery is
over-discharged, the voltage drops sharply in a very short period of time, and the
entire internal reaction system of the battery is disordered. Reduces battery usage
time and extends battery charging time.
! ! Deep discharge is strictly prohibited
◆When the battery is used up every day, please make up the power in time. No
matter how much the remaining power is, the battery needs to be fully charged
and stored.

YZ-S5
15
Warranty card
Warranty Conditions
1. Within the day when the user purchases this product, the motor is guaranteed for
one year (more than 7 days from the date of purchase, no replacement, only
warranty);
2. Before using the equipment, you must understand the instructions and safety
instructions;
3. Man-made damage to the warranty parts will not be guaranteed within the
warranty;
4. During the warranty period, users who do not follow the operating instructions or
those who dismantle and repair by themselves will not be covered by the warranty (if
repair is required, a cost will be charged);
5. The buyer can go to the designated point of the seller for maintenance with the
invoice, or send the machine back to our company for repair (return freight and
insurance premiums are paid by themselves).
Name
Tell
Postal address
Bill No
Purchase time
Number
Product model
Date
Replace
Fault description

YZ-S5
1
