YANGZI YZ-S320 User manual
安徽扬子工业科技有限公司
ANHUI YANGZI INDUSTRIAL TECHNOLOGY CO., LTD.
YZ-S320
Floor Sweeper
instruction manual
1
2
YZ-S320
Instruction Manual Instruction Manual
catalog
1.Notice to users
2.Brief introduction of vehicle parts and technical parameters
3.Schematic diagram of operation console
4.Operation guide
5.Maintenance and protection
6.Appearance and elimination of general faults
7.After sales service notice
3
I. Notice to users
1.Please read the manual carefully before using the sweeper for the first time; please
keep the manual for reference by other users.
2.Before using the sweeper, please check whether all parts are in good condition. If
there is any problem, please contact the dealer in time.
3.This machine can't wade in water, wash directly or without protection in heavy rain
and snow to avoid damage caused by water entering internal electrical components.
4.This machine uses DC power, but
(1) Do not touch the charging socket with wet hands;
(2) Do not touch the positive and negative electrodes of the charging socket with
hands or metal objects at the same time.
5. Please do not use the battery energy to the lowest voltage (under voltage recovery
value) when using it every time. If the battery is often used, the deep discharge in
this situation will seriously affect the service life of the battery. In addition, we should
try our best to avoid the phenomenon of insufficient electricity or charging, as well as
long-term storage without charging after use. It is hoped that the user can fully charge
the battery in time and charge it as soon as it is used. If it is not used for a long time,
the battery should be stored after being fully charged and replenished regularly
(generally no more than 30 days).
6. All batteries will be affected by temperature. When the temperature is high, the
discharge performance of the battery is good and the capacity is high. When the
temperature is below 0 ℃ , the capacity of the battery will decrease by more than
1 / 3. In all severe cold weather, the mileage of the battery will be reduced after one-
time charging, which is a normal phenomenon; when the temperature rises, the
battery function will naturally return to normal.
7. In summer, it is necessary to prevent the machine from being exposed to the sun for
a long time, otherwise, if the temperature exceeds 60 ℃ , the electrical appliances of
the machine may not work normally.
8. If the machine is suddenly cooled from cold to hot, the electronic components will
be dewed. The condensation should be eliminated before the machine is installed.
9. For the safety of others, please do not lend the sweeper to people who can't operate
it, especially minors.
10. The machine should be used correctly. Attention should be paid to the use
conditions and traffic safety
11. Please do not disassemble the machine by yourself. If there is any problem, please
contact the dealer
4
YZ-S320
Instruction Manual Instruction Manual

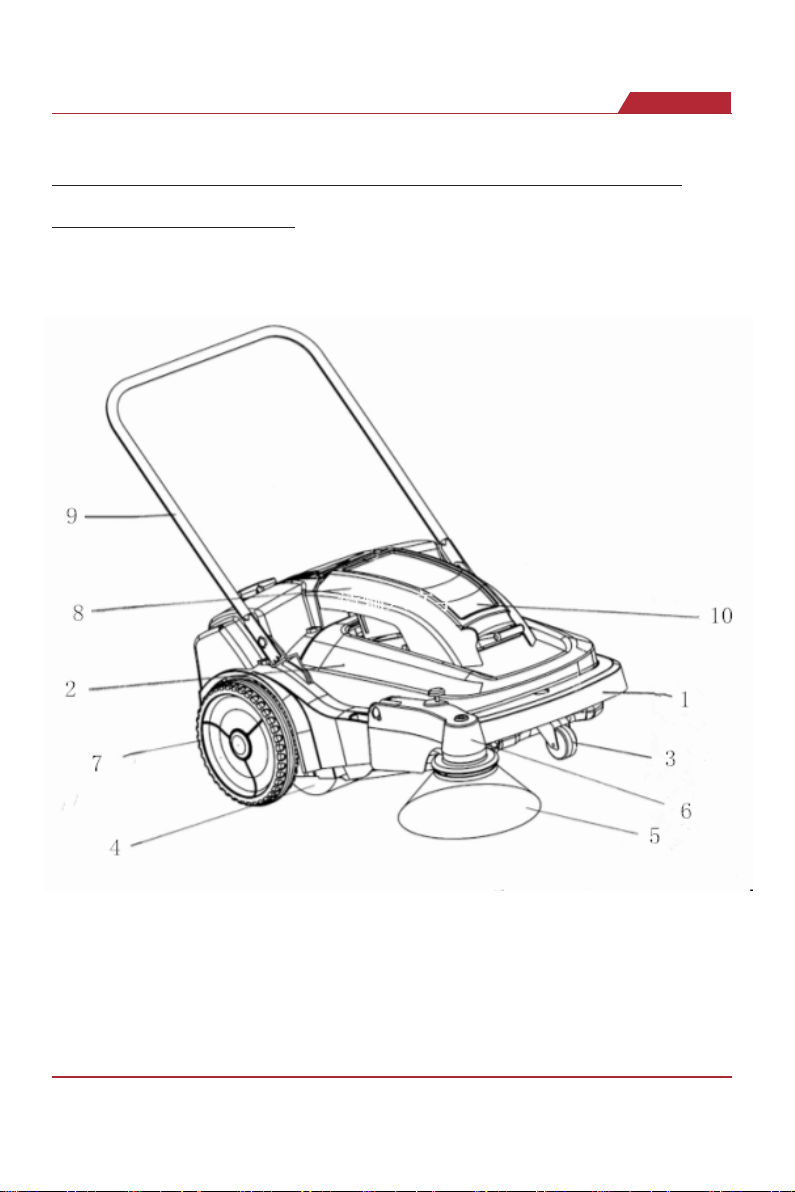

1. Fuselage underframe; 2. Dustbin; 3. Front wheel; 4. Rolling brush; 5. Disc brush
6. Disc brush bracket; 7. Rear wheel; 8. Air lter; 9. Push rod;
II. Brief introduction of parts and technical parameters
of the whole machine
A. Machine name:machine:
5
Instruction Manual
YZ-S320

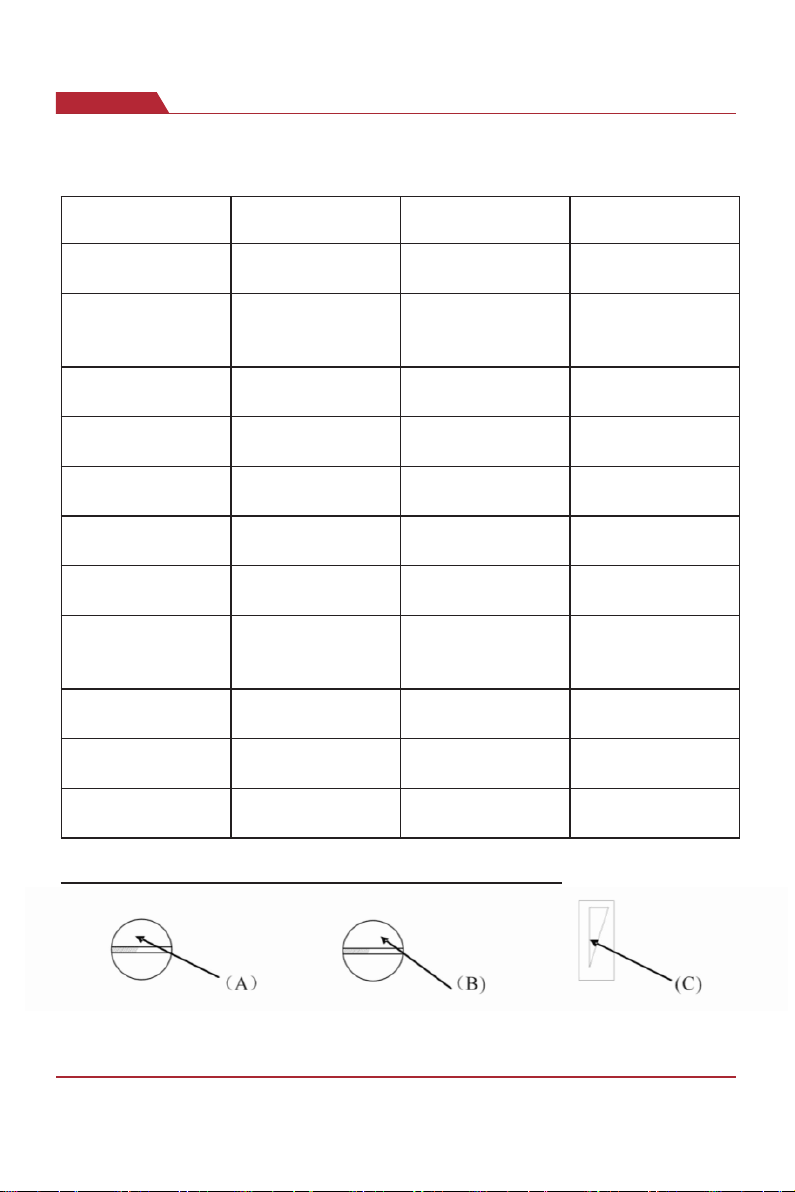

B. Technical parameters:
III. Schematic diagram of operation console
project YZ-S320
Working dimensions
(w × h)
Roller brush
diameter 700mm
Rated voltage 24V
Minimum size
of roller brush
replacement
/
Battery capacity 24Ah Cleaning width of
main brush 700mm
Fan specification 95W Maximum effective
sweeping area 3000m2/h
Main motor
specification
120W，450 rpm/
min
Volume of waste
tank 56L
Fan working current 2.4A Maximum suction
height 3cm
Working current of
main motor 1.5A charging time 8h
working hours 4-5h
Maximum power
consumption of one
charge
0.5kwh
Charger
specifications
24V2.5AThree stage
form Working noise 58db(A)
Vehicle mass 48kg Undervoltage
protection point 21±0.5V
Diameter of disc
brush 350mm Over current
protection point 10.5±0.5A
(A) Rolling brush, rolling
brush switch (B) Fan switch (C) Voltage indication
6
YZ-S320
Instruction Manual Instruction Manual
IV. Operation guide
1. Charging operation
Due to the delivery, transportation and storage of the new machine, a certain period
of time is required, which may cause the battery to be insucient. Please make sure
that the battery is fully charged before using electric drive. You must use the special
charger congured or designated by our company for charging, otherwise it will
damage the battery and even cause re hazard.
(1) Carefully check whether the rated input voltage of charger is consistent with the
grid voltage
(2) e battery is charged directly on the car.
(3) Please connect the output plug of the charger with the charger hole of the
battery, and then connect the input plug of the charger to the AC power supply.
(4) At this time, the power supply and charging indicator red light on the charger,
indicating that the power has been connected and charging has started.
(5) If the battery is not used for a long time, please be sure to store it with sucient
electricity. If the battery is stored for more than one month, it needs to be
recharged once a month.
(6) Generally, the charging indicator will be delayed, that is, when charging, the
indicator will be on for several seconds after the power supply is connected;
after charging, the indicator light will turn o several seconds after the power
supply is disconnected, which is a normal phenomenon.
(7) e charger shall be used in dry and ventilated environment to facilitate heat
dissipation of electronic components. Do not cover the charger.
(8) When not charging, do not connect the charger to the handover power supply
for a long time to avoid aecting the charger life or other hazards.
(9) e charger is a precision electronic product. It is better not to carry the charger
along with the vehicle to avoid bumping and vibration when driving, so as to
avoid damage to the charger
(10) It takes about 3-10 hours to charge. When the charging indicator changes
from red to green, it indicates that the battery is fully charged.
(11) e maximum continuous charging time shall not exceed 15 hours
(12) After charging, the plug on the DC power supply should be pulled out rst,
and then the plug connected to the battery side should be pulled out.
7
YZ-S320 Instruction Manual
2. Cleaning operation
(1) Rolling brush and disc brush switch (as shown in Fig. 1)
Switch position
A.ON
In this position, the circuit of rolling brush and disc brush is
connected, and the electricity meter indicates that the rolling
brush and disc brush work
B.OFF
In this position, the circuit of rolling brush and disc brush is
cut off, the electricity meter has no indication, and the rolling
brush and disc brush cannot work
e charging device and battery should be placed in a safe place.
Children and people unfamiliar with the operation are forbidden to
contact.
(2) Fan switch device (as shown in Fig. 2)
Switch position
C.ON
In this position, the fan circuit is connected and the fan
works
D.OFF
In this position, the fan circuit is cut off and the fan
cannot work
8
YZ-S320
Instruction Manual Instruction Manual

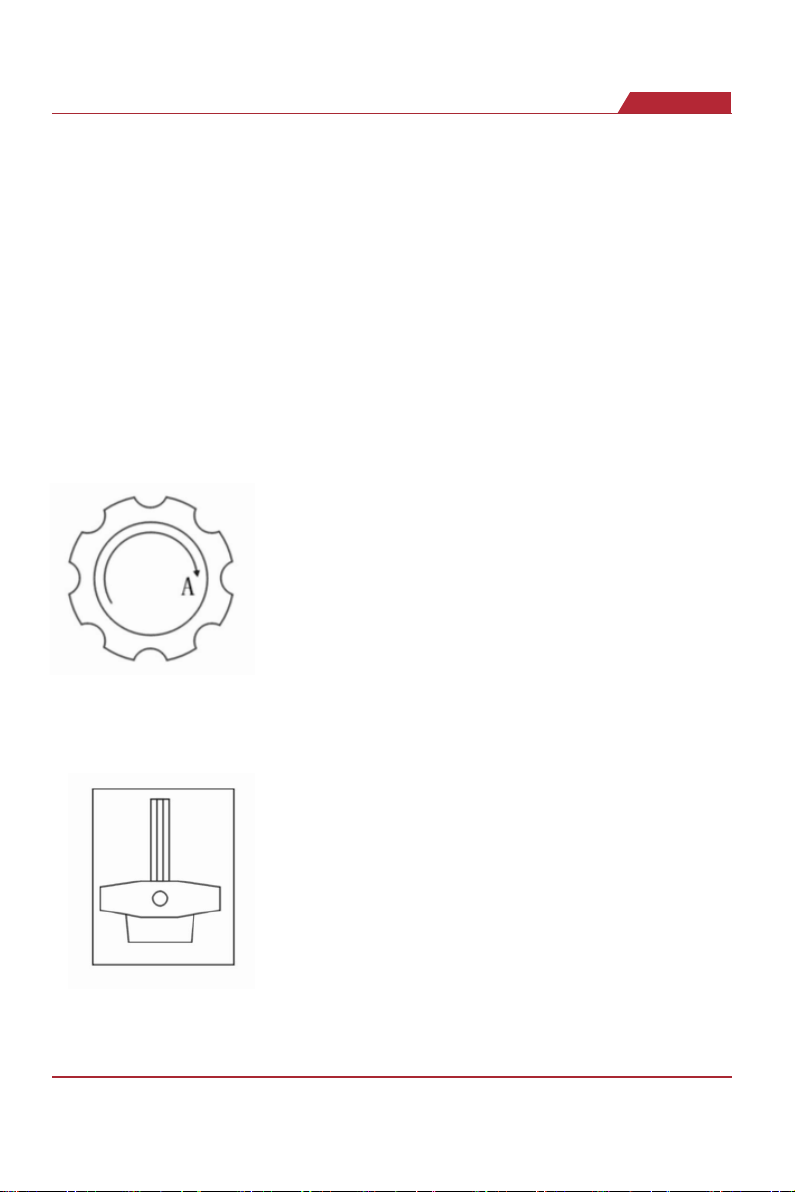

(4) Brush disc height adjustment (as shown in the figure)
(5) Roller brush height adjustment (as shown in the figure)
Adjust the brush height in clockwise direction;
Please adjust the disc brush to a reasonable height. If it
is too low, it will increase the power consumption and
accelerate the wear of the disc brush
(3) Instructions for use:
A. Before use, please check whether the tire rotation is flexible, whether the fasteners are
fastened reliably, and whether the disc brush belt rotates normally.
B. Please adjust the height of roller brush and disc brush to proper position before use.C.
Do not reverse the car when the roller brush works, so as to avoid damage to the motor
and controller.
D. When the power is insufficient, the control circuit of the machine will automatically
stop the work of rolling brush and disc brush, but it can work after restarting. Do not
turn on and off repeatedly to avoid damaging the battery.brushes, but it can work after
restarting; do not switch on the machine repeatedly to avoid damaging the battery.
9
YZ-S320 Instruction Manual
V. Maintenance
1. In the process of using the machine, it is not necessary to carry out maintenance and
repair, generally once a week.
1) Check the electrical plug and cable for damage.
(2) Check the estimated fasteners for looseness.
2. Regular inspection and maintenance
The front axle, rear axle and other transmission parts should be regularly filled with
lubricating oil.
A. Motor maintenance
The motor adopts high efficiency rare earth permanent magnet motor. It has high
efficiency, high output power, low noise, high starting torque, good dust-proof,
waterproof and shockproof performance. However, attention should be paid to the
maintenance.
B. Battery maintenance
The company adopts high quality alloy plate, ultra pure electrolyte, small self discharge
rate, less water loss, high sealing reaction rate, long service life, high energy, fully sealed,
maintenance free lead-acid battery. Do not use the battery for a long time or do not
charge after use. In this way, the inner electrode of the battery will produce sulfation,
reduce the battery capacity and shorten the service life. Avoid deep discharge. When
the energy display is insufficient, it is better to turn off the power supply and do not
start it repeatedly, so as to avoid damaging the battery. The battery will be affected by
the temperature. When the temperature drops to ℃ , the power of the battery may
decrease. Therefore, when winter comes or in cold areas, it is normal to reduce the
driving distance after one charge. When the temperature rises above 20 ℃ , its function
will recover naturally.
C. Controller
The controller adopts microcomputer chip and peripheral digital circuit design. It has
many control points, fast response and high reliability. Stable start-up, fast acceleration,
no speed regulation, can arbitrarily design the voltage range of speed regulation, easy to
operate and comfortable. It has the function of under voltage and over protection.
(1) Avoid rain and short circuit of controller.
(2) Avoid covering articles and affect the heat dissipation of the controller.
10
YZ-S320
Instruction Manual Instruction Manual
When the disc brush is worn to seriously affect the cleaning effect,
please replace the disc brush. When replacing, remove the three
screws as shown in the figure
D. Brush disc replacement
E. Disc brush replacement:
When the roller brush is worn to seriously affect the cleaning effect, please replace the
disc brush. When replacing, take down the dustbin as shown in the figure, and then
remove the fixing screw on the roller brush to replace it
11
VI. Maintenance
Serial
number
Fault
phenomenon Cause of failure Exclusion method
1
The whole
machine is out
of power
(1)The safety tube is
damaged
(2) Line fault;
(3) Poor contact of power
line.
(1)Replace the safety tube;
(2) Send for repair or
replacement
(3) Check and connect.
2
Turn on the
power, the
motor doesn't
work
(1)The contact wiring is
loose or damaged;
(2) The control system is
damaged.
(1)Repair and
reconnection;
(2)Send for repair or
replacement
3
Insufficient
mileage after
one charge
(1) Insufficient voltage or
charger failure;
(2) Battery aging or
damage;
(3) The position of roller
brush or disc brush is too
low;
(4) The dustbin is too
heavy.
(1) Sufficient battery or
check whether the charger is
fully charged
(2) Replace the battery;
(3) Adjust the position of
roller brush and disc brush;
(4) Clean the dustbin.
4Charger does
not charge
(1) Charger socket falls
off or socket connection
is loose
(2) The wiring of battery
pack falls off;
(3) The charger is
damaged.
(1) Fasten the socket and
connector;
(2) Welding connection
line
(3)Send to a professional
store for repair or
replacement.
5
The cleaning
effect is not
good
(1)The position of roller
brush is high;
(2) The belt is loose;
(3) Insufficient voltage.
(1)Adjust the position of
roller brush;
(2) Adjust or replace the
belt;
(3) Charge.
12
YZ-S320
Instruction Manual Instruction Manual
VII. After sales service notice
Dear users, welcome to use the electric sweeper produced by our company. In order
to protect your legal rights, improve the civil liability system for product quality, and
facilitate the fulfillment of the three guarantees obligations and responsibilities, please
keep the warranty card properly. With the warranty card and purchase invoice, you
can get three guarantees service to the sales unit.
1. Three guarantees strict principle
1. When you purchase the machine, you should check it on the spot and debug it
correctly. You have the right to ask the sales staff to provide the correct use method and
maintenance items, as well as the valid invoice, warranty card, repair unit, address and
contact number.
2. The user should operate correctly according to the product instruction. In case of
performance failure due to manufacturing quality, the company shall perform the
three guarantees obligations uniformly in accordance with the "product quality law
of the people's Republic of China", "the law of the people's Republic of China on the
protection of consumers' rights and interests" and "provisions on the responsibility for
the repair, replacement and delivery of some goods" of the state.
2、Free service during the three guarantees period
1. If the frame and other parts of the machine break naturally, they should be replaced
within one year.
2. If large pieces of paint layer are found to fall off, they shall be replaced within one
month (artificial damage and scratch are not included in this scope).
3. Electroplated parts shall be replaced within one month in case of blistering and falling
off.
4. If the electrical components of the whole machine fail and cannot be repaired, they
shall be replaced within six months (artificial damage is not included in this scope).
5. If the inner bearing of the motor is broken, the shell seat of the motor is cracked, and
the line group is damaged, it should be replaced within one year (the artificial damage is
not included in this scope)
6. The battery should be replaced or repaired within six months if it is found that the
shell of the battery is cracked, leaked, cracked, etc., and its capacity is less than 60%.
7. In principle, the rest of the items not covered, which affect riding due to parts
damage, shall be replaced within three months in principle, and after more than three
months. Charge cost to replace. The free service period of appeal is subject to the date
13
YZ-S320 Instruction Manual
Part name The motor The charger The controller battery
3 bag period One year One year One year half a year
of purchase.
3.Scope and contents not included in "ree Guarantees"
1. Accidents caused by the use, maintenance and adjustment of the user's manual.
2. Failure caused by the user's own disassembly and modification, and failure to comply
with the use regulations.
3. The user is only caused by improper or accident.
4. No warranty card, invoice or ticket card is not inconsistent.
5. Vulnerable parts such as safety pipes, consumables and parts that are not disassembled
according to regulations.
6. The cost of self repair without the consent of the special maintenance unit.
4. Principle warranty
For services beyond the scope of "Three Guarantees" and after the "Three Guarantees"
period, the company is responsible for maintenance, and charges for repair and
replacement parts according to the specific situation.
5.Recycling methods of waste batteries
In order to prevent environmental pollution caused by old batteries, our company has
signed an agreement with battery manufacturers on the recycling of used batteries. The
used batteries replaced by users are recycled by the company's product agent dealers. (for
details, please consult our company's product distributor).
Instruction Manual
Warranty Card
Inspection Certificate
Model Motor Accessories
Power cable Switch Shell
Suction Control Fuselage
Function Manual Package
Number：
Number：
Name Tell
Mailing address
Purchase time Bill
number
Product number Fuselage
number
Replacement
parts Date
Fault description:
Warranty conditions:
1. Within the date of purchase, the motor is guaranteed for one year (if it is more than 7 days from the date of
purchase, no replacement, only warranty).
2. Before using the equipment, you must understand the instructions and safety instructions.
3. During the warranty period, the artificial damage of warranty accessories will not be guaranteed.
4. During the warranty period, users who do not follow the operation instructions or dismantle and repair by
themselves will not be guaranteed. (if repair is needed, the cost of production will be charged)
5. The buyer shall take the invoice to the place designated by the seller for repair, or send the machine back to our
company for repair. (return freight, insurance paid by yourself)
Table of contents
Other YANGZI Blower manuals
