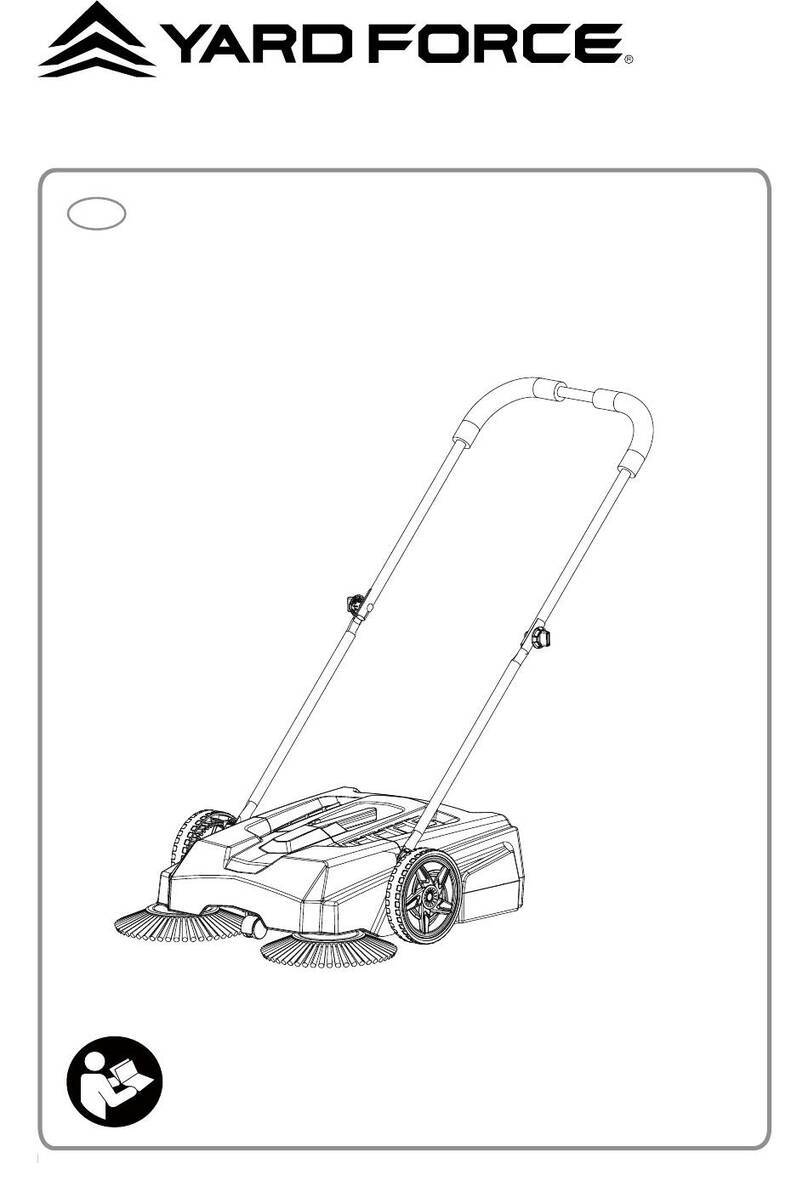

Yard force HW FS68 User manual

1
MANUAL SWEEPER
Original Instructions
GB
HW FS68
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.

2 3
A
B
11
22
33
44
5566
77
88
aa
ddee
bbcc

4 5
HW FS68 Original Instructions
CONTENT
INTENDED USE
The one hand power saw has been exclusively designed for cutting branches. The saw is not
intended for continuous commercial use.
The intended use also includes an operation following the operating instructions.
In conjunction with the extension handle ,the One hand power saw can be used as a pruner
for cutting branches.
Any use beyond these parameters (different media. applying force) or any changes
(reconstruction, no original accessory) can lead to serious risks and is regarded as use that is
contrary to the intended purpose.
1. The machine is designed and built according to the state-of-the-art and the safety-
related standards. Nevertheless, the use of the machine might involve risks such as
personal injury, danger to life for the user or third parties, or damage to the machine
and other material property.
2. The machine is to be used only in a technically awless condition as well as in
accordance with the manufacturer’s instructions and in a safety and risk-conscious
manner while adhering to the oper-ating instructions! In particular, failures which may
impair the safety must be resolved immediately (by you or an expert)!
3. Sweeping of at and dry surfaces – e.g. entries, terraces, courtyards, etc.
4. The machine may be operated only with original parts and original accessories of the
manufacturer.
5. Any other use above or beyond this is considered improper use. The manufacturer is
not liable for damages resulting from this. The user shall bear this risk alone.
6. The safety, work and maintenance instructions of the manufacturer as well as the
dimensions indicat-ed in the Technical Data section must be adhered to.
7. The relevant accident prevention regulations and other generally recognised safety
standards must be observed.
8. The machine may be used, maintained or repaired only by persons who are familiar
with the machine and the risks involved. Unauthorised modications on the machine
exclude any liability of the manu-facturer for resulting damages.
Please note that our equipment has not been de-signed for use in commercial, trade or
industrial ap-plications.
Our warranty will be voided if the equipment is used in commercial, trade or industrial
businesses or for equivalent purposes.
We recommend:
Read through the complete text in the operating instructions before installing and
commission-ing the device. If you give the equipment to any oth-er person, give them these
operating instructions as well. The operating instructions are intended to help the user to
become familiar with the machine and take advantage of its application possibilities in ac-
cordance with the recommendations. The operating instructions contain important information
Intended use 05
General safety warnings 06
Symbols 07
Technical data 08
Description of product 09
Operation 10
Maintenance and storage 10

6 7
GENERAL SAFETY WARNINGS
on how to operate the machine safely, professionally and eco-nomically, how to avoid danger,
costly repairs, re-duce downtimes and how to increase reliability and service life of the
machine. In addition to the safety regulations in the operating instructions, you have to meet
the applicable regulations that apply for the operation of the machine in your country. Keep
the operating instructions package with the machine at all times and store it in a plastic cover
to protect it from dirt and moisture. Read the instruction manual each time before operating
the machine and care-fully follow its information. The machine can only be operated by
persons who were instructed concerning the operation of the machine and who are informed
about the associated dangers. The minimum age re-quirement must be complied with.
Safety information
1. Take suitable measures to prevent children from
accessing the appliance.
2. Immediately replace any faulty components.
3. We are not liable for any damage caused as a re-sult
of any unauthorised repair and unauthorised handling
or use contrary to the use as designated.
Warning: Sweeping of any gel, liquid, combustible,
explosive, hot and unhealthy substances prohibited.
Attention! If metal, glass or sharp objects have been
swept, it is necessary to use firm working gloves when
emptying the dirt collecting container.
SYMBOLS
Safety symbols
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them require your careful attention
and full understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this operator’s manual,
including all safety alert symbols such as
“DANGER,” “WARNING,” and “CAUTION” before
using this tool. Failure to follow all instructions
listed below may result in electric shock, re and/
or serious personal injury.
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in conjunction
with other symbols or pictographs.
Symbol meaning
This page depicts and describes safety symbols that may
appear on this product. Read, understand and follow
all instructions on the machine before attempting to
assemble and operate.

8 9
SYMBOLS
Read the instructions for use before use!
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
TECHNICAL DATA
Model HW FS68
Drive funtion Manual
Max. working width with side
brushes (mm) 650
ca. Sweeping capacity (m2/h) 2000
Container content (l) 22
Parts description (Fig. A)
1. Handle
2. Sliding handle
3. Mounting screw sliding handle
4. Lower push bar
5. Dirt collecting container
6. Transport wheels
7. Feeder brushes
8. Sweeping brushes
Delivery contents (Fig. B)
Carefully unpack the appliance and check that it is complete. Dispose of the packaging
material correctly.
a. Sweeper
b. Feeder brushes
c. Sliding handle
d. Lower push bar
e. Mounting screw sliding handle
f. Operation manual
g. Enclosed accessories bag
• Flat round screw M8 x 25mm
• Fillister head screw (self-tapping) 4,2 x 15 mm
WARNING: If any parts are damaged or missing, do not operate this tool until these
parts are replaced. Failure to heed this warning could result in serious personal
injury.
NOTE: Always recycle the packaging in accordance with local recycling guidelines.
DESCRIPTION OF PRODUCT

10 11
OPERATION
Attachment
About packaging used requires your machine is not completely assembled.
First, remove the accessories from the collection container and examine it for completeness.
• Mount the feeder brushes to the intended axis and fasten it with 3 screws (b).
• Attach the lower part of the push handle to the des-ignated assembly points with the
clamping thumb-screw on both sides.
• Attach the upper part of the push handle (2) as shown in Figure 6.
MAINTENANCE AND STORAGE
Operation
When the sweeper is moved, the feeder brushes (7) and sweeping brushes (9) start rotating,
helped by the belt drive. Rotating feeder brushes (7) drive the dirt to the centre. It is then
collected by sweeping brush and taken to the dirt collecting container (5).
Emptying the dirt collecting container
If you want to take out the dirt collecting container to empty it, take it by its handle and pull
up.
Maintenance
Use a wet cloth for plastic parts cleaning. Do not use any cleaning agents, solvents or sharp
objects. After every use - Remove the appliance off dust and dirt.
If the brush is not rotating it can be that the storage of the brushes is dirty or the belt isn´t
good. Clean and lubricate the bearing of the brush or replace the belt.
Service information
Please note that the following parts of this product are subject to normal or natural wear and
that the fol-lowing parts are therefore also required for use as consumables.
Wear parts*: Brushes, drive belts, wheels
* Not necessarily included in the scope of delivery!
Storage
For any longer storage the appliance must be thor-oughly cleaned and stored so as
unauthorised per-sons could not access it.
• Empty the dirt collecting container
• Adjust the brushes to relieve them
• Store the appliance when it is dry
To save spaces, the sliding handle can be folded. Loosen the screws, pull the sliding handle
out and fold forward.
b
7
3
2
3
4
4
c
