Yard force YF60VRX600-BL User manual

SAVE THIS MANUAL FOR REFERENCE
You will need this manual for safety
instructions, operating procedures, and Warranty.
The original sales receipt is required for warranty service.
YF60VRX600-BL
600CFM Cordless Blower
OPERATOR’S MANUAL
Our Customer Service staff is ready to provide assistance.
In the case of a damaged or missing part, most replacement parts ship directly from
Merotec USA in Atlanta or from one of our service partners in the US.
For immediate help with assembly, or for additional product information, email support@
MerotecUSA.com or call 866-902-9690 M-F 8:30am – 5:00pm ET. More information can be
found on www.YardForceUSA.com.

2
TABLE OF CONTENTS
Description of Product Parts ....................................................................................................................5
Technical Specications……………........................................................................................…………....5
Intended use………………………………...................................................................................................5
Safety Information………...................................................................................................………………...5
Assembly …………...........................................................................................……………………………10
Adjustment ………............................................................................................……………………………10
Operation……………………………...........................................................................................…………10
Maintenance and Storage ...............................………………..........................................................……11
Troubleshooting ..................................................................................................………………………12
Warranty ...............................................................................................................................................13
WARNING
1. To reduce the risk of electric shock- Do not expose to water.
2. Do not use in rain. Store indoors only. Replace damaged battery pack immediately.
3. Disconnect battery pack before cleaning or servicing. Use proper eye protection. Keep away
from rotating line.
4. Do not operate without guard in place.
5. Use only 60V Li-ion battery YF60VRX4.0-BAT & YF60VRX2.5-BAT and battery charger
YF60VRX4A-CHG & YF60VRX2A-CHG.

3
Fig. 1
Fig. 2
C
DE
BA
F
10

4

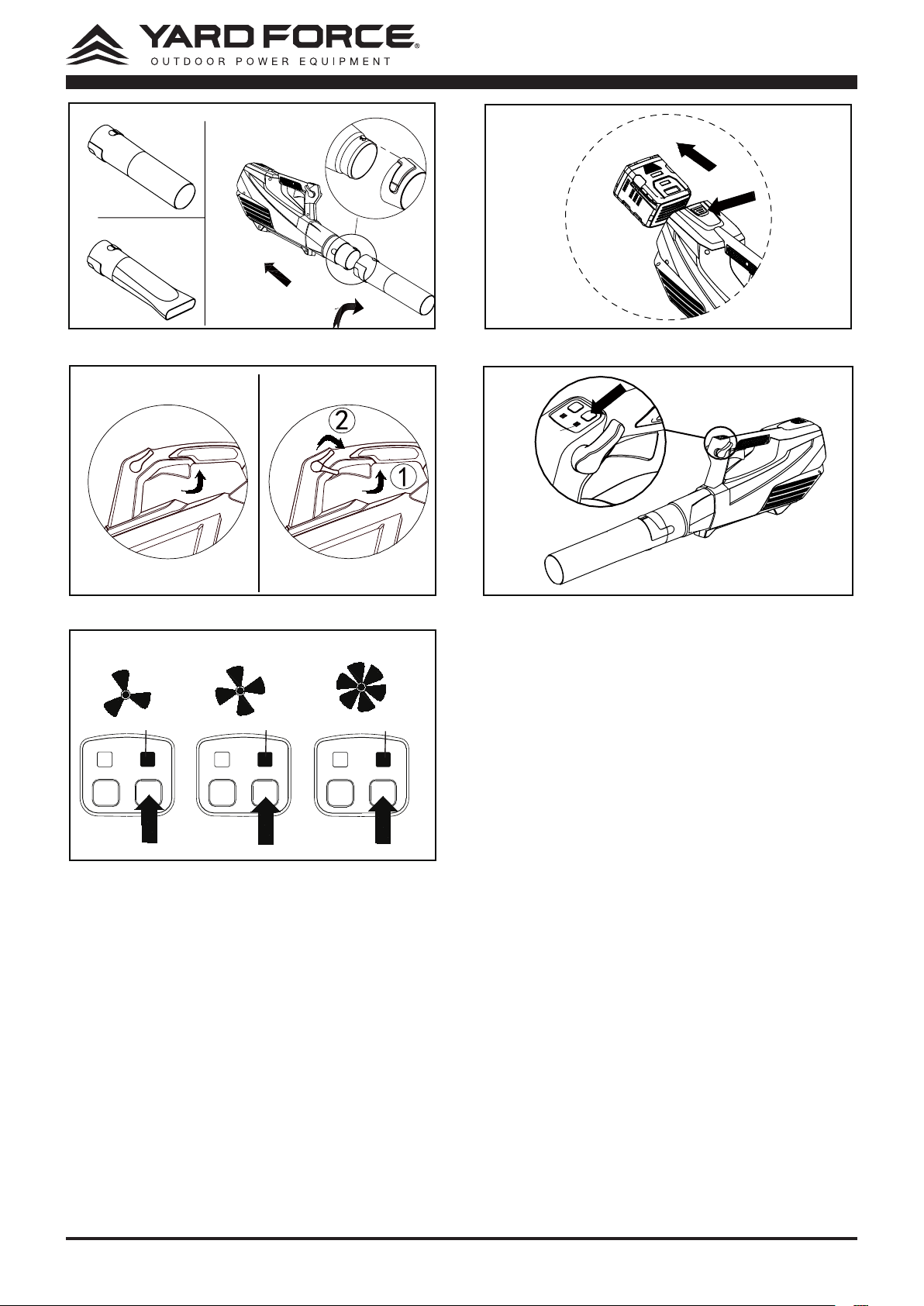

Fig. 3
Fig. 5
Fig. 7
Fig. 4
Fig. 6
1
2
B
A
1
2
white color
blue color white color
green color

5
DESCRIPTION OF PRODUCT PARTS

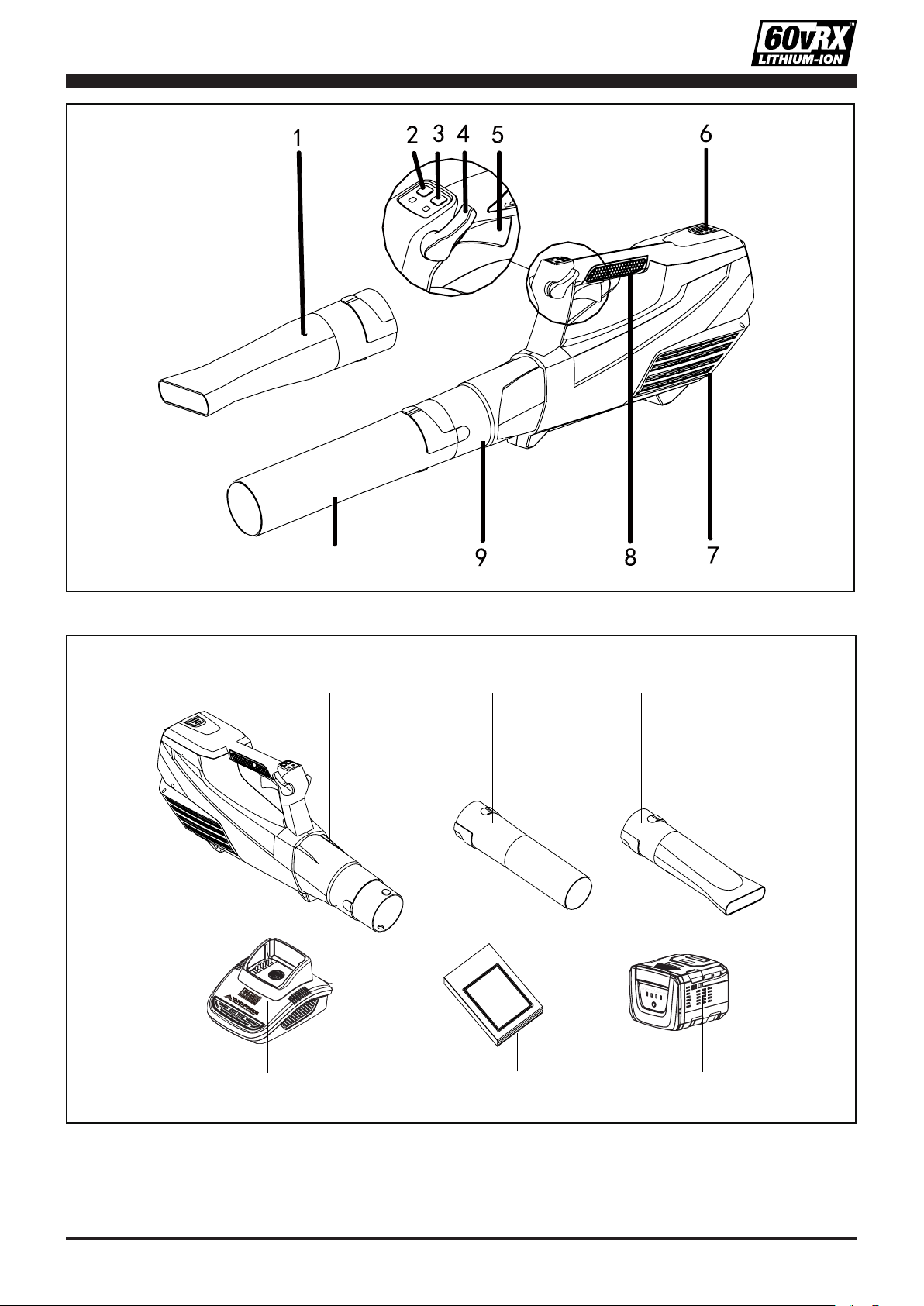

Parts list (See Fig. 1)
1. Flat nozzle
2. Speed adjustment button
3. Turbo button
4. Speed/Cruiser lock lever
5. Trigger switch
6. Battery pack release button
7. Air inlet
8. Main handle
9. Upper tube
10. Lower round nozzle
Carefully remove the machine and parts from its
packaging. Identify all the parts packaged in the
carton against the parts list. Please contact our
customer service center (Monday - Friday 8:30AM
- 5:00PM ET) at [phone] if anything is
missing.
Delivery parts (See Fig. 2)
A. Main machine x 1
B. Lower round nozzle x 1
C. Lower flat nozzle x 1
D. Battery pack x 1
E. Manual x 1
F. Charger x 1
WARNING: If any parts are damaged or
missing, do not operate this tool until the missing
parts are replaced. Failure to heed this warning
could result in serious personal injury.
NOTE! Always recycle the packaging in
accordance with local recycling schemes.
TECHNICAL SPECIFICATIONS
Item No. YF60VRX600-BL
Voltage/Capacity 60 v d.c. / 2.5 Ah Li-ion
Running Speed 3 Speed settings
Max. Air Speed 150 MPH
Max. Air Volume 600 CFM
Motor Brushless
Charger
Input: 100~240 V, 50/60 Hz,
Output: 63 v d.c. 2.5 A
Charging Time 60 Minutes
Weight 15.4 lbs
Battery pack type YF60VRX2.5-BAT
Charger type YF60VRX2A-CHG
INTENDED USE
The blower is intend for use for blow-sweeping
leave grass, paper and similar materials, e. g.
in gardens, sports stadiums, car parks and
driveways. Do not operate your blower indoors.
Do not use the blower for any other purpose
because of the increased risk or accidents and
damage to the blower. Never attempt to modify
the blower in any way.
The machine is to be used only for its prescribed
purpose. any other use is deemed to be a
case of misuse. The user/operator and not the
manuafacturer will be liable for any damage or
injuries of any kind caused as a result of this.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols
and the explanations with them deserve your
careful attention and understanding. The symbol
warnings do not, by themselves, eliminate any
danger. The instructions and warnings they give
are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and
understand all safety instructions in this
Operator’s Manual, including all safety alert
symbols such as “DANGER,” “WARNING,”
and“CAUTION” before using this tool. Failure to
following all instructions listed below may result in
electric shock, re, and/or serious personal injury.
DAMAGE PREVENTION AND INFORMATION
MESSAGES
These inform the user of important information
and/or instructions that could lead to equipment
or other property damage if they are not
followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage
may result if these instructions are not followed.

6
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols
that may appear on this product. Read,
understand, and follow all instructions on the
machine before attempting to assemble and
operate.
This symbol, before a safety
comment, indicates a precaution,
a warning or a danger. Ignoring
this warning can lead to an
accident for yourself or for others.
To limit the risk of injury, re, or
electrocution always apply the
recommendations indicated.
Wear ear protection and eye
protection when using the product.
Do not expose and operate the
tool in rain.
Keep bystanders away
The fan rotates for several
seconds after the Leaf Blower/
Vacuum is switched o󰀨. Keep
hands away from the fan.
Warning symbols on the charger
The charger is for indoor use only.
Pole orientation
Protective 5A limited
Do not expose and operate the
tool in rain.
+-
Do not expose and operate the
tool in rain.
Wait until all machine components
have completely stopped before
touching them. The blades
continue to rotate after the
machine is switched o󰀨, a rotating
blade can cause injury.
Warning symbols on the battery pack
Batteries contain Li-ion. Waste
batteries should be sorted for eco-
friendly. Do not dispose of waste
batteries as unsorted municipal
waste.
Do not throw into water
Do not litter to re.
Do not subject the battery to
strong sunlight over long periods
and do not leave it on a heater
(max. 113 ˚F).
max. 113 ˚F
T5A

7
GENERAL POWER TOOL SAFETY
WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING BLOWER
WARNING - To reduce the risk of re,
electric shock, or injury:
a) Do not leave appliance when operating.
Unplug battery pack when not in use and
before servicing.
b) Do not use on wet surfaces. Do not expose to
rain. Store indoors. For household use only.
c) Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
d) Use only as described in this manual.
Use only manufacturer's recommended
attachments.
e) Do not use with damaged battery pack. If
appliance is not working as it should, has
been dropped, damaged, left outdoors, or
dropped into water, return it to a service
center.
f) Do not handle appliance, charger, including
charger plug, and charger terminals with wet
hands.
i) Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air ow.
j) Keep hair, loose clothing, ngers, and all
parts of body away from openings and
moving parts.
k) Turn o󰀨 all controls before unplugging.
l) Use extra care when cleaning on stairs.
m) Do not use to pick up ammable or
combustible liquids, such as gasoline, or use
in areas where they may be present.
n) Do not charge the unit outdoors.
o) Do not incinerate the appliance even if it is
severely damaged. The batteries can explode
in a re.
SAVE THESE INSTRUCTIONS
Personal safety
1. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you
are tired or under the inuence of drugs,
alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for
appropriate conditions will reduce personal
injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your nger on the switch or energising
power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power
tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
6. Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught
in moving parts.
Power tool use and care
1. Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch
does not turn it on and o󰀨. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the battery pack
from the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may a󰀨ect the
power tool’s operation. If damaged, have

8
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations di󰀨erent from
those intended could result in a hazardous
situation.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of re when used with another battery pack.
2. Use power tools only with specically
designated battery packs. Use of any other
battery packs may create a risk of injury and
re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns
or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, ush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
5. Use only with the battery packs and chargers
listed below:
Battery pack Charger
YF60VRX2.5-BAT YF60VRX2A-CHG
Service
- Have your power tool serviced by a
qualied repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
CORDLESS LEAF BLOWER SAFETY
WARNINGS
1. Training
- Read the instructions carefully. Be familiar
with the controls and the proper use of the
appliance.
- Never allow children to use the appliance.
- Never allow people unfamiliar with these
instructions to use the appliance. Local
regulations may restrict the age of operator.
- Never operate the appliance while people,
especially children, or pet are nearby.
- The operator or user is responsible for
accidents or hazards occurring to other
people or the property.
2. Preparation
- While operating the appliance, always wear
substantial footwear and long trousers.
- Do not wear loose clothing or jewellery
that can be drawn into the air inlet. Keep
long air away from the air inlet.
- Wear protective goggles while operating.
- To prevent dust irritation the wearing of face
mask is recommended.
- Before using, always visually inspect the
rotating parts. Replace worn or damaged part
in sets.
- Never operate the appliance with defective
guards or shields, or without safety
devices.
3. Operation
- Switch the motor o󰀨 and remove the battery
pack
- whenever you leave the machines;
-before clearing a blockage;
-before checking, cleaning or working on the
appliance;
-if the appliance starts to vibrate abnormally
- Operate the appliance only in daylight or in
good articial light.
- Do not overreach and keep your balance at
all times.
- Always be sure of your footing on slopes.
- Walk, never run.
- Keep all cooling air inlets clear of debris.
- Never blow debris in the direction of
bystanders.
- Operate the machine only at reasonable
hours – not early in the morning or late
at night when people might be disturbed.
Comply with times listed in local ordinance.
- Operate the machine at the lowest possible
engine speed to do the job.
- Use rakes and brooms to loosen debris
before blowing.
- In dusty conditions, slightly dampen surfaces
or use mister attachment if available.
- Use the full blower nozzle extension so the
air stream can work close to the ground.
- Watch out for children, pets, open windows
etc. and blow debris safely away.
- Do not start the tool when it is upside down

9
or when it is not in the operating position.
- Switch the motor o󰀨 and remove the battery
pack when the tool is not being used. Left
unattended, being cleaned, being moved
from one place to another.
- Do not handle the tool with wet hands and do
not use the tool in the rain.
- Do not switch on the tool in enclosed or
poorly ventilated spaces or in the presence
of inammable and/or explosive substances
such as liquids, gasses and powders.
- Do not get distracted and always concentrate
on what you are doing. Use common sense.
Never operate the tool when you are tired,
sick or under the inuence of alcohol or other
drugs.
4. Maintenance and storage
- Keep all nuts, bolts and screws tight to
be sure the appliance is in safe working
condition.
- Check the debris collector frequently for wear
or deterioration.
- Do not try to repair the tool or access internal
parts. Contact authorised service centers
only.
- Replace worn or damaged parts.
- Use only genuine replacement parts and
accessories.
- Store the appliance only in a dry place.
Special Operation safety for the charger
1. Recharge only with the charger specied by
the manufacturer. Do not use the original
charger on other li-ion batteries or on any
other type of battery—re or explosion may
occur.
2. Check the battery charger, cable and plug
each time before using. Do not use the
battery charger when defects are detected.
Do not open the battery charger yourself and
have it repaired only by qualied personnel
using original spare parts.
3. The charger is designed to use standard
household 100-240 V, 50/60 Hz power
source. The charger’s plug must match the
outlet. Never modify the plug in any way.
Unmodied plugs and matching outlets will
reduce risk of electric shock.
4. Do not abuse the cord of charger. Never use
the cord for carrying, pulling or unplugging
the charger. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
5. Make sure the charger cord is located so
that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
6. Keep the battery charger clean.
Contamination may cause the danger of
electric shock.
7. Protect the battery charger from rain and
moisture. The penetration of water in a
battery charger increases the risk of electric
shock.
8. Do not operate the battery charger on easily
inammable surfaces (e.g. paper, textiles,
etc.) or in combustible environments. There
is danger of re due to the heating of the
battery charger during charging.
9. The temperature range over which the
battery pack can be charged is typically 41 ˚F
- 113 ˚F. Therefore, charging e󰀨orts outside
the prescribed temperature range may
automatically be blocked by the protection
circuitry of the battery pack. Longest life and
best performance can be obtained if the
battery pack is charged in the normal room
condition.
10. Disconnect charger from the power supply
when not in use. This will reduce the risk of
electric shock or damage to the charger if
metal items should fall into the opening.
11. The charger is for indoor use only.
Special Operation safety for the battery pack
1. The Li-ion battery pack is not fully charged
at the factory. Before attempting to use it ,it
must be fully charged rstly.
2. The battery pack should be recharged when
it fails to produce su󰀩cient power on jobs
which were easily done previously. DO NOT
CONTINUE using product with its battery in a
depleted condition.
3. Do not charge the battery in an air
temperature below 41 ˚F or above 113 ˚F.
This is important and will prevent serious
damage to the battery. Longest life and best
performance can be obtained if the battery is
charged when air temperature is about 68 ˚F.
4. When the machine continues to be used and
the battery temperature is above 113 ˚F, the
battery can not be charged, even you put on
the charger. Let the machine cool for some
times and wait the temperature reduced, it
can be charged again .
5. Protect the battery pack against heat, e.g.
including against continuous sun irradiation
and re. There is a danger of explosion.
6. Do not carry individual battery packs in your

10
pockets or bags, as they could short-circuit
against other metal items.
7. If an exposed li-ion battery pack dose start a
re, it wll burn even more violently if it comes
into contact with water or even the moisture
in the air. DO NOT throw water on a burning
li-ion battery! A re extinguisher must be
used.
8. If the battery pack becomes too hot to the
touch during charging, disconnect and switch
o󰀨 immediately. Contact Service Centre
directly.
9. Do not open the battery yourself. There is
danger of a short circuit.
10. When battery pack is not in use, keep it away
from other metal objects, lie paperclips,
coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns
or a re.
WARNING: Battery posts, terminals
and related accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and birth defects
or other reproductive harm. Wash hands after
handling.For more information, go to www.
P65Warnings.ca.gov.
ASSEMBLY
Assembling the lower tube to upper tube
(See Fig. 3)
WARNING: Before performing any
assembly. Always ensure that the battery pack
has been removed.
1. Select the lower tube nozzle type – round or
at.
- Round nozzle for general blowing.
- Flat nozzle for concentrated blowing
2. Aligning the slot on the lower nozzle you
chosen with raised post on the upper tube.
3. Push them against each other.
4. Twist the lower nozzle clockwise.
5. Make sure that the nozzle is securely tted
with upper tube.
OPERATION
Inserting and removing the battery pack
To insert the battery pack
1. Align the groove on the battery pack with the
corresponding mounting ribs and press the
battery pack down until you hear a “click”.
2. Check to make sure the battery pack is rmly
secured into position.
To remove the battery pack from the tool (See
Fig. 4)
1. Depress the releasing/locking button on the
housing.
2. The battery pack will pop up automatically.
3. Lift and hold the battery pack while pressing
the releasing/locking button again, and then
remove the battery pack.
Note! The second operation that needs to be
performed when removing the battery pack is
to avoid any misoperations at work, especially
for the 60VRX hand-held tools, in case the
battery pack falls and hurts consumers.
Switch ON/OFF
To switch ON
1. Depress the switch trigger on the underside
of the main handle. (See Fig. 5-A)
To switch OFF
1. Release the switch trigger.
NOTE: You can not pull out the switch trigger
when lock on cruiser lock lever is at
downward position. Make sure that the
cruiser lock lever is at default position
before you switch on the blower.
Usage of the cruiser lever (See Fig. 5-B)
The cruise control feature allows you to lock the
blower on continuously for extended periods of
time.
Turbo function (See Fig. 6)
1. Press the turbo button on the control panel can
start the turbo function, When the turbo function
is activated, the LED above the corresponding
button will light up, and the color of the light will
be white.
2. The turbo function will last for 30 seconds then
automatic turned o󰀨, if continue use the turbo

11
function, press again.
Speed adjustment (See Fig. 7)
Three speed settings allow to be changed with a
touch of the button on the control panel.
1. Press the speed adjustment button and set to
your selected blow speed.
2. If the speed is set to the highest, press the
speed adjust button again and this will reduce
the speed.
3. When adjusting the speed, the LED above the
corresponding buttons will change to di󰀨erent
colors. The blue LED indicates the lowest
speed, the white LED indicates the medium
speed, and the green LED indicates the
maximum speed.
NOTE: This blower has the speed memory
function, with the battery pack was kept in
position. The speed setting of next use
can be kept the same as previous use.
STORING AND MAINTENANCE
WARNING ！
Before performing any repair work, always
remove the battery pack and wait until the motor
has come to a standstill.
1 . Do not spray the blower with water. Ingress
of water may destroy the battery pack and
the electric motor.
2. Clean the blower with a cloth, hand brush,
etc.
3. Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
4. Replace worn or damaged parts for safety.
Storage:
1. Clean the exterior of the blower thoroughly
using a soft brush and cloth, Do not use
water, solvents or polishes.
2. Store the machine in a dry place. Do not
place other objects on top of the machine.
Transport
Use the original packaging to ship whenever
possible.

12
TROUBLE SHOOTING
WARNING ！
Before performing any repair work, always ensure that the battery pack/safety key has been removed
and wait until the tool has stopped completely.
WARNING ！
Always wear heavy duty gloves when adjusting or cleaning.
Fault/malfunction Cause Remedy
Blower fails to operate
Battery.
Battery discharged? Charge battery.
Battery pack not tted correctly. Remove and re install the battery pack.
Garden tool is too hot. Allow tool to cool and try again.
Device defective. Contact service partner.
Tube cannot be assembled
on the machine.
Incorrect assembly . remove the tube and re assemble
correctly.
AIR Speed is low.
Debris blocking air inlet vents. Remove the battery and then check/
clear debris from tube and vents.
Battery pack has low charge. Recharge battery.

13
WARRANTY
Product Warranty
Please keep your original purchase receipt in a safe place as proof of purchase.
Warranty coverage for this product must be veried by the original purchase receipt.
The warranty period begins on the day that the product was purchased from an authorized retailer of
Yard Force products. Warranty coverage only applies to the original purchaser and is not transferrable.
Warranty coverage is only provided on products purchased from authorized Yard Force retailers.
Warranty only applies to products purchased and OPERATED in the USA. Any product purchased or
operated outside of the USA is not covered by any warranty.
(1) Five-Year Warranty on Yard Force Outdoor Power Equipment and
Three- Year Warranty on 60vRX Battery Pack and Charger
The Yard Force Outdoor Power Equipment has a Five-Year Limited Warranty and 60vRX Battery Pack
and Charger has a Three-Year Limited Warranty from the date of purchase against manufacturer defects
for residential use only. Commercial use voids the warranty. This warranty does not cover accidental
damage, unreasonable use, normal wear and tear, neglect or non-compliance with the Operating, Safety
and Maintenance Instructions. All service, outside of normal maintenance as described in this manual,
must be done by an authorized service technician. Any unauthorized service or changes to the original
conguration of this product will void the warranty. All parts and accessories used on and with this
product must be manufactured and/or authorized by Merotec Inc.
(2) Ninety-Day Warranty – Accessories
The accessories included with the machine including the tube and other similar parts are warranted
against manufacturer defects for residential use only for a period of 90 days from date of purchase.
Warranty does not cover loss of use or other consequential damages arising from any of the above, nor
does it cover repairs made or attempted by unauthorized persons.
This warranty is void if the product is used for commercial, rental or industrial purposes.
Certain parts, attachments and accessories are subject to normal wear and tear and are excluded from
the warranty.
Service and Warranty Claims Process
Contact the Yard Force Support Center toll-free at [phone] Monday-Friday between 8:30 AM
and 5:00 PM Eastern Time for service and warranty support.
Yard Force Service Support agents can help you troubleshoot problems over the phone to get you back
up and running as quickly as possible. In the situation where service or warranty inspection is needed,
please follow these steps:
1. Call Yard Force at [phone] Monday-Friday between 8:30 AM and 5:00 PM Eastern Time.
2. Send in proof-of-purchase and serial number (if applicable) to conrm warranty Coverage as directed
by Yard Force.
3. If service or a warranty evaluation is requested, Yard Force will provide an RGA number that should be
used in all communications with Yard Force and is required to be indicated on the product itself and on
the outside of the box.
4. All shipments to Yard Force must have an RGA number. Any shipment received that does not have an
RGA number clearly marked on the outside of the box will be refused.
5. All shipments must be sent pre-paid, Yard Force does not pay for any shipping costs for service or
warranty evaluation. Yard Force is not responsible for any packages that are lost by carrier. We recom-
mend that shipments are made by a carrier that provides tracking and delivery conrmation.
For more information or to ask questions, please call toll-free [phone] Monday-Friday between
8:30 AM and 5:00 PM Eastern Time.
SAVE THESE INSTRUCTIONS

Need Help?
Please do not return the product to the place of purchase yet.
We’re here to help and take care of all your needs.
Contact our Customer Care Center in
Atlanta, GA for help with:
Product assembly or use
Missing or damaged parts
Troubleshooting
You can also visit our website to download
owner's manuals and get additional product information.
Visit www.YardForceUSA.com, or call our
toll free hotline: [phone] M-F 8:30am – 5:00pm ET
1-866-902-9690 [email protected]
Merotec Inc.
3655 Kennesaw NorthIndustrial Parkway, Kennesaw, GA30144
© Copyright 2020 Merotec Inc.
Made in China at a SUMEC manufacturing facility.
MADE IN CHINA
