Yard Works 060-0194-4 User manual

Lawn Tractor Lift
model number / nºde modèle 060-0194-4 | contact us / communiquez avec nous au: 1.866.523.5218
IMPORTANT:
Read and understand all safety rules and operating
instructions before using this product.
Instruction
Manual
Élévateur pour tracteur de jardin
IMPORTANT :
Lisez et comprenez toutes les règles de sécurité et les
instructions de fonctionnement avant d'utiliser ce produit.
Guide
d’utilisation

DD
For problems or questions, DO
NOT RETURN TO STORE. Please
contact one of our Customer
Service Agents who would be
happy to assist you.
En cas de problèmes ou si vous avez des questions, NE
RETOURNEZ PAS L’ARTICLE AU MAGASIN. Contactez
plutôt un de nos agents du service à la clientèle, qui se
fera un plaisir de vous aider.
For Customer Assistance Please Call:
Pour le service à la clientèle, veuillez composer :
CANADA: 1-866-523-5218

model number 060-0194-4 | contact us: 1.866.523.5218
2
SPECIFICATIONS 2
KNOW YOUR TRACTOR LIFT 3
EXPLODED VIEW 4
PARTS LIST 5
ASSEMBLY 6
ATTACHING THE HANDLE 8
CUTTING HEIGHT ADJUSTMENTS 9
OPERATION 9
CHECKING THE ADJUSTMENT 10
SAFETY AND MAINTENANCE 11
WARRANTY 1 2
Table of Contents
Max. front load lift: 550 lb (249 kg)
Max. lift front of tractor: 26" (66 cm)
Lift adjustment: 18” (46 cm), 21” (53 cm), 26”(66 cm)
Width Adjustment: 18 1/2–47 1/2" (47–121 cm)
Weight: 61 Ib (28 kg)
Specifications

model number 060-0194-4 | contact us: 1.866.523.5218
3

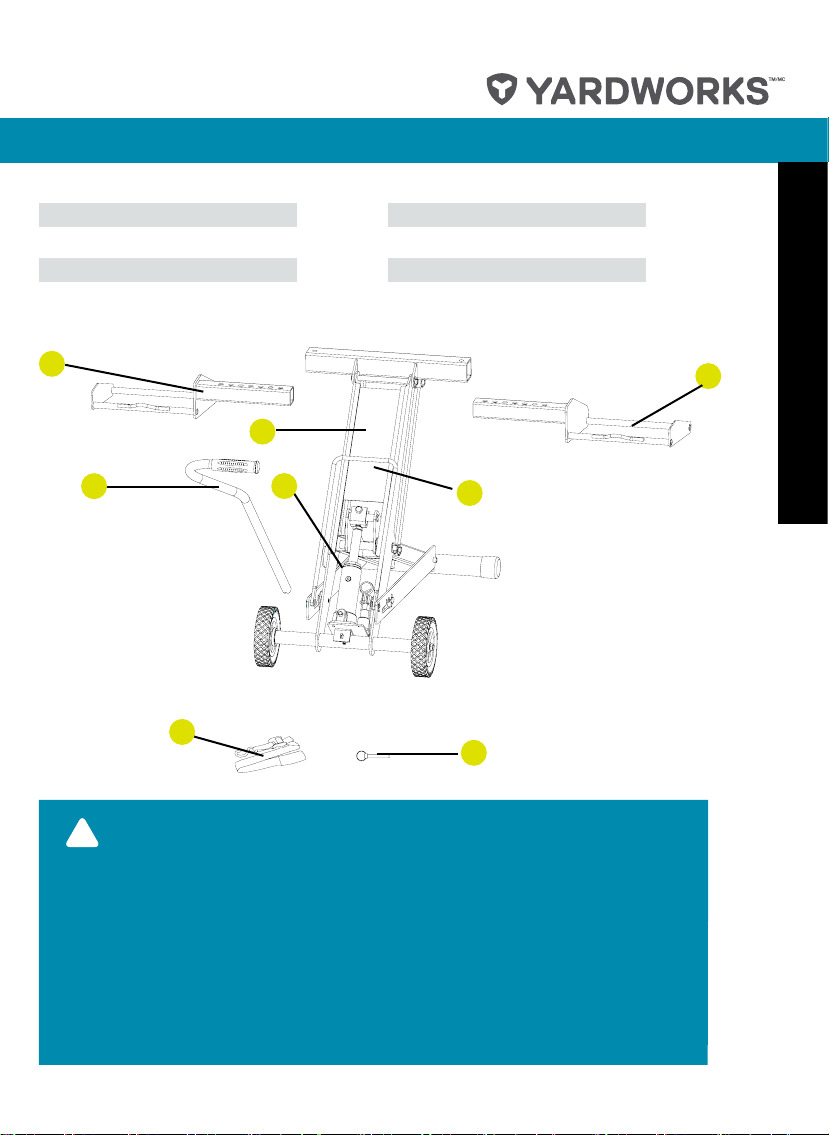

Know Your Tractor Lift
KNOW YOUR TRACTOR LIFT
Before attempting to assemble, empty carton and compare parts with
parts list above.
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage occurred
during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1.866.523.5218
for assistance.
• Be sure to tighten the knobs when assembled to prevent the
handle from rocking.
4
1
32
5
8
6
1. Tractor Lift
2. Hydraulic cylinder 2-ton
3. Handle
4. Left wheel holder
5. Right wheel holder
6. Lifting handle
7. Safety belt
8. Push pin
7
!

model number 060-0194-4 | contact us: 1.866.523.5218
4

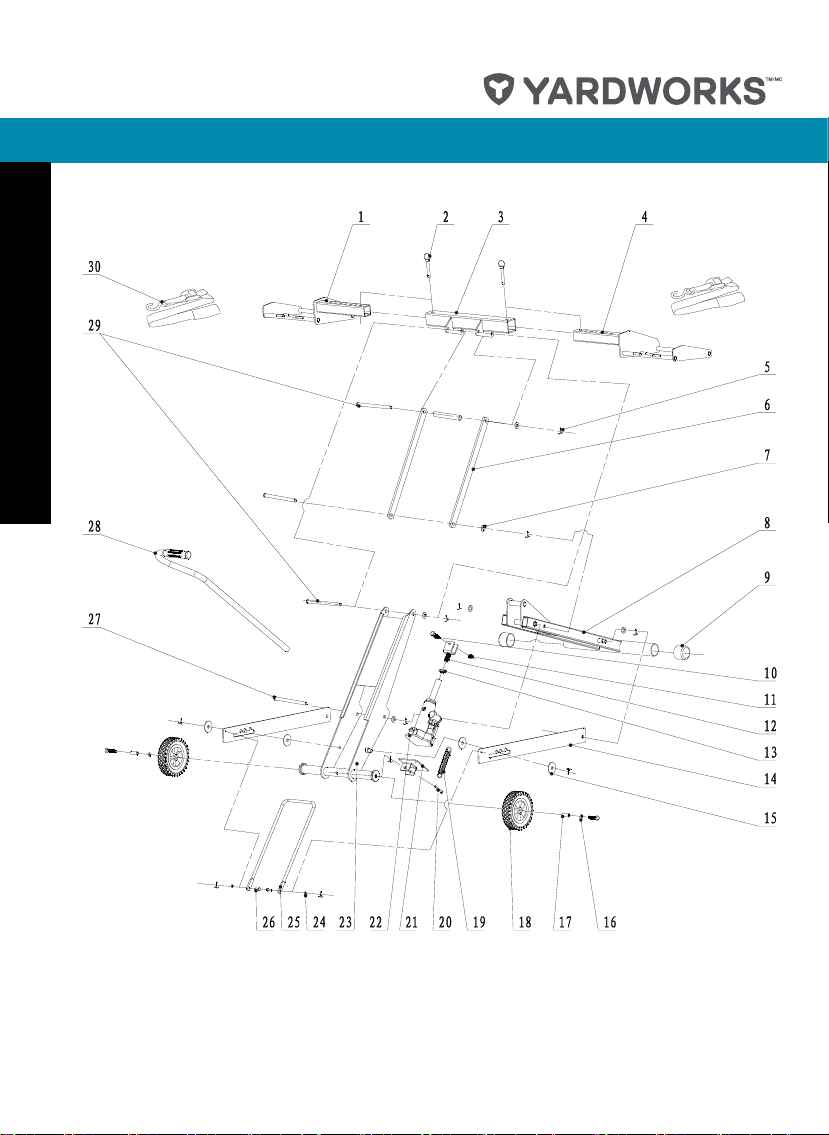

Exploded View

model number 060-0194-4 | contact us: 1.866.523.5218
5
Parts List
Item Description Qty. Item Description Qty.
1 Left Wheel Holder 1
2 Push Pin 2
3 T- Bar 1
4 Right Wheel Holder 1
5 C-Clip 11
6 Connecting Rod 2
7 Washer D12 6
8 Back Holding Assembly 1
9 Sleeve 2
10 Hexagon Bolts M10x40 3
11 Hex Nut M8 1
12 Holder Assembly 1
13 Hex Nut M14 1
14 Safety Bar 2
15 Washer 4
16 Spring Washer 2
17 Axle Sleeve 2
18 Wheel 2
19 Spring 1
20 Pin 1
21 Jack Holder 1
22 Hydraulic Cylinder 2-Ton 1
23 Main Holder Assembly 1
24 Washer D18 3
25 Locking Bar 1
26 Pin D6x18.5 2
27 Pin L153 2
28 Handle 1
29 Pin L163 2
30 Safety Belt 2

model number 060-0194-4 | contact us: 1.866.523.5218
6
Remove tractor lift out of package.
Carefully remove the tractor lift from the box and identify the right and left
wheel holders.
!IMPORTANT: The wheel holders are side specific.
Assembly

model number 060-0194-4 | contact us: 1.866.523.5218
7
Slide the wheel holders into the T-bar.
Line up the wheel holders to the front tires of the mower.
The multiple holes allow for adequate adjustment to fit the front tires of
the mowers.
NOTE: Inside to outside wheel pad expansion is 18 1/2–47 1/2” (47–121
cm).
Secure the wheel holders to the T-bar with the push pins. Make sure the
push pins are securely inserted into the holes.
NOTE: Wheel pads must be equal distance from the T-bar to maintain
proper balance.
Assembly
T-Bar
Push Pin

model number 060-0194-4 | contact us: 1.866.523.5218
8

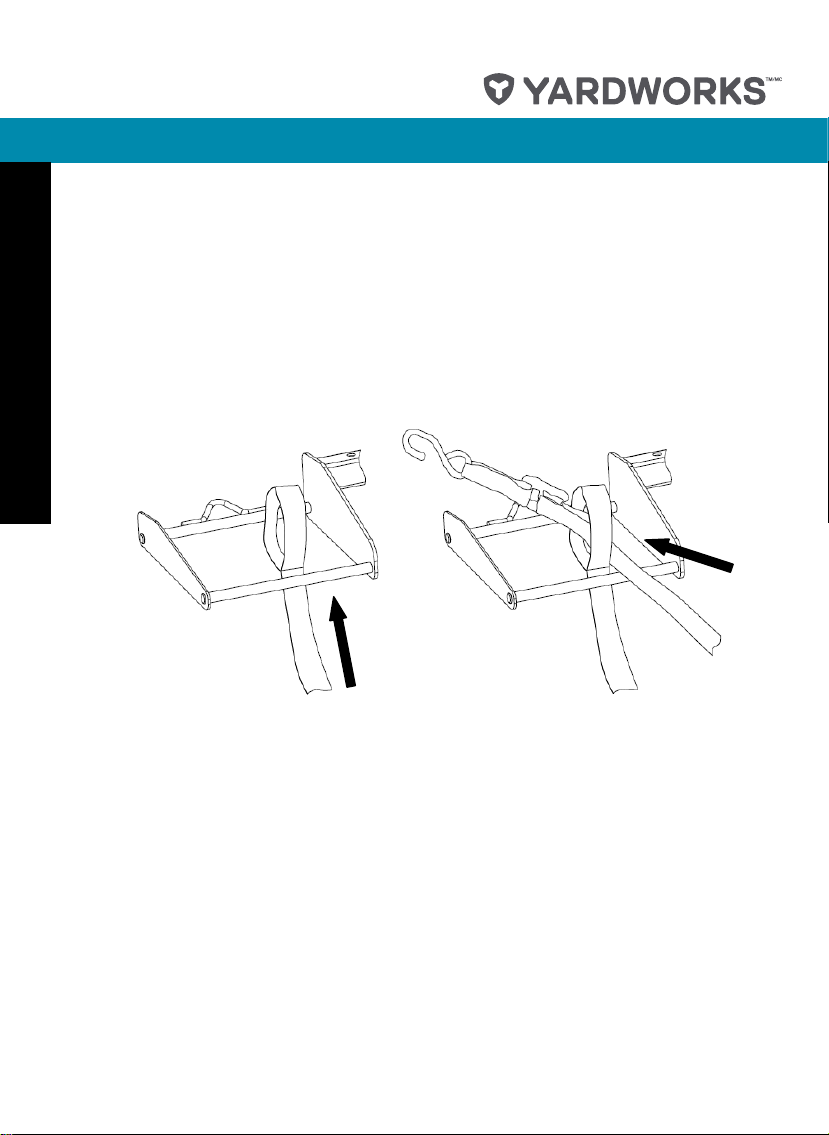

Attach the safety straps to the wheel holders.
Insert the strap loop through the wheel holder around the smaller wheel
holder tube. Thread strap hook and buckle through the strap loop and pull
until tight. Repeat with the other safety strap and wheel holder.
Assembly

model number 060-0194-4 | contact us: 1.866.523.5218
9
Reverse front tires of ZTR mower (optional – if not applicable,
skip to next step).
In some cases, the mower deck or anti-scalping wheels will hit the lift arm
while the mower is being raised. This is often the case if part of the deck
(including the anti-scalping wheels) protrudes past the centre line of the
front wheels of the mower. If this happens:
• Rotate the front tires 180° so that they are in the reverse position.
Slide the lift as close to the wheels as possible.
Assembly

model number 060-0194-4 | contact us: 1.866.523.5218
10
Move the mower onto the wheel holders.
Wheel holders. must be properly aligned with the mower’s front tires and
secured with push pins.
NOTE: Wheel holders will accommodate 10 to 17" (25 to 43 cm) tire
sizes.
NOTE: If the lift slides when moving the mower onto the wheel holders,
place wheel chocks behind the lift’s wheels to prevent it from sliding.
Operation
!IMPORTANT: Tractor lift MUST be on a hard solid
level surface.

model number 060-0194-4 | contact us: 1.866.523.5218
11

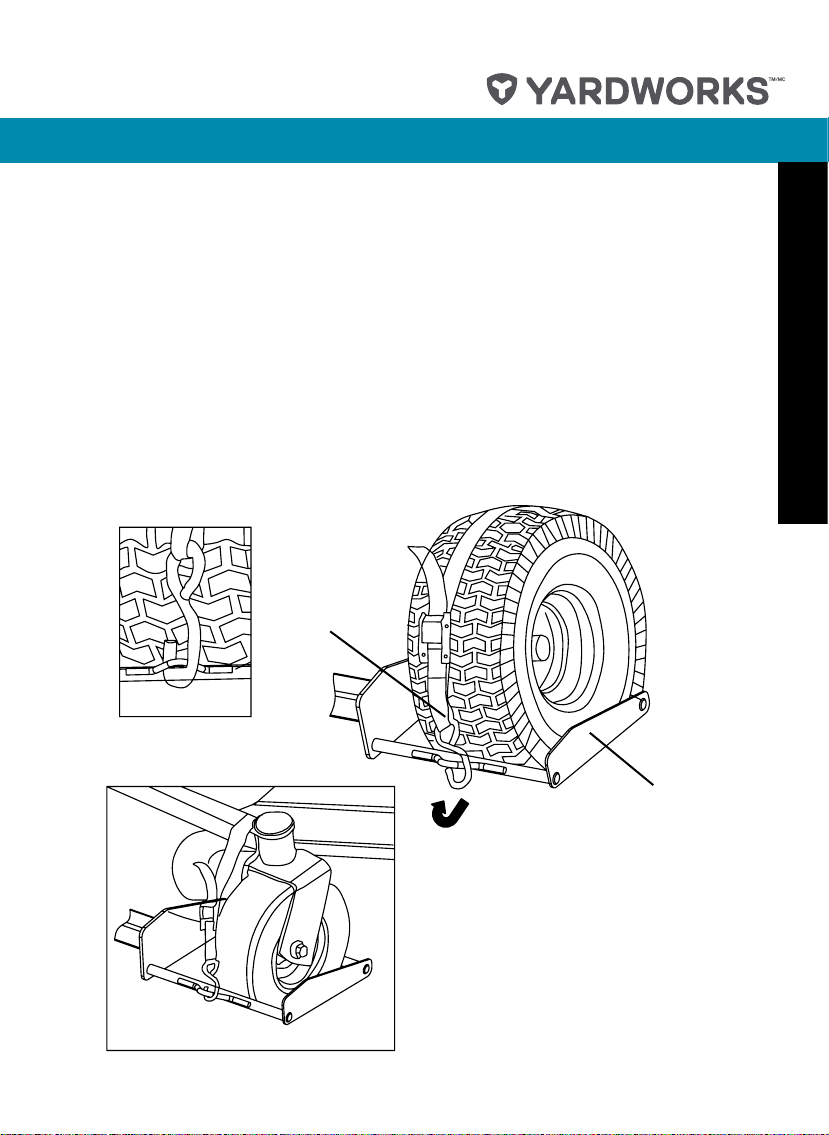

Secure the front mower tire
Extend the safety belt over the top of tire or over the top of mower wheel
arm and secure the T-hook into the loop on the wheel pad.
NOTE: Wheel pads accommodate wheel sizes from 10 to 17" (25 to 43
cm).
NOTE: Inspect safety belt for wear before each use.
Operation
Safety Belt
Wheel Holder

model number 060-0194-4 | contact us: 1.866.523.5218
12
Operation

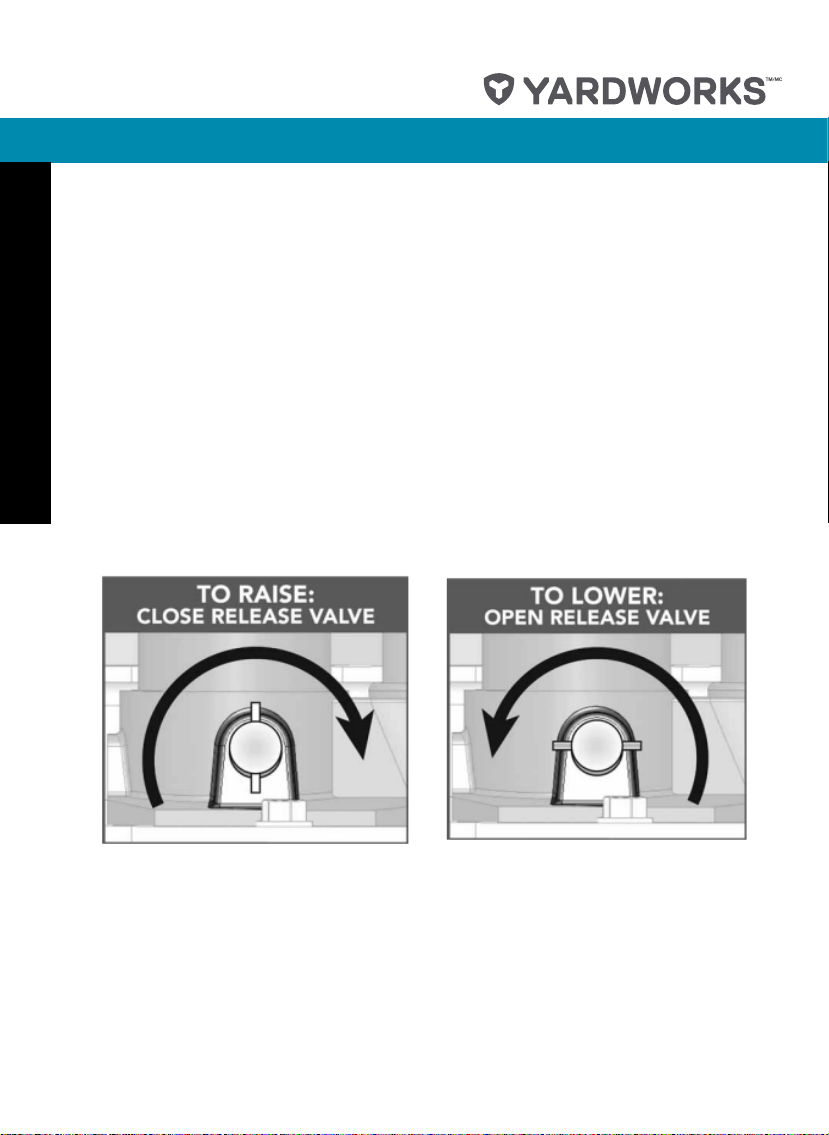

Operating the hydraulic cylinder.
To raise the lift: Close the release valve.
Turn release valve clockwise to CLOSE. Rotate clockwise until the
release valve stops turning without effort. DO NOT over tighten the
release valve.
To lower the lift: Open the release valve.
Turn release valve counter-clockwise to OPEN.
NOTE: Please refer to the Maintenance page of this manual if hydraulic
fluid spills from the cylinder.

model number 060-0194-4 | contact us: 1.866.523.5218
13
Operation
To raise the mower:
Make sure the cylinder valve is closed by turning the valve clockwise.
If yes, proceed to insert the handle into the cylinder handle opening.
Proceed to pump the handle up and down to raise the lift to the desired
height. The cylinder will use pumping action of the handle to raise the lift.
The automatic locking mechanism will engage at three different lift
heights.
!IMPORTANT: The 3 locking positions are: 18, 21 and 26"
(46, 53 and 66 cm).
!WARNING: Only requires 1/2 a turn before pressure begins to
release. DO NOT overturn the release valve or the valve screw
will come out and spill hydraulic fluid.

model number 060-0194-4 | contact us: 1.866.523.5218
14
To raise the mower:

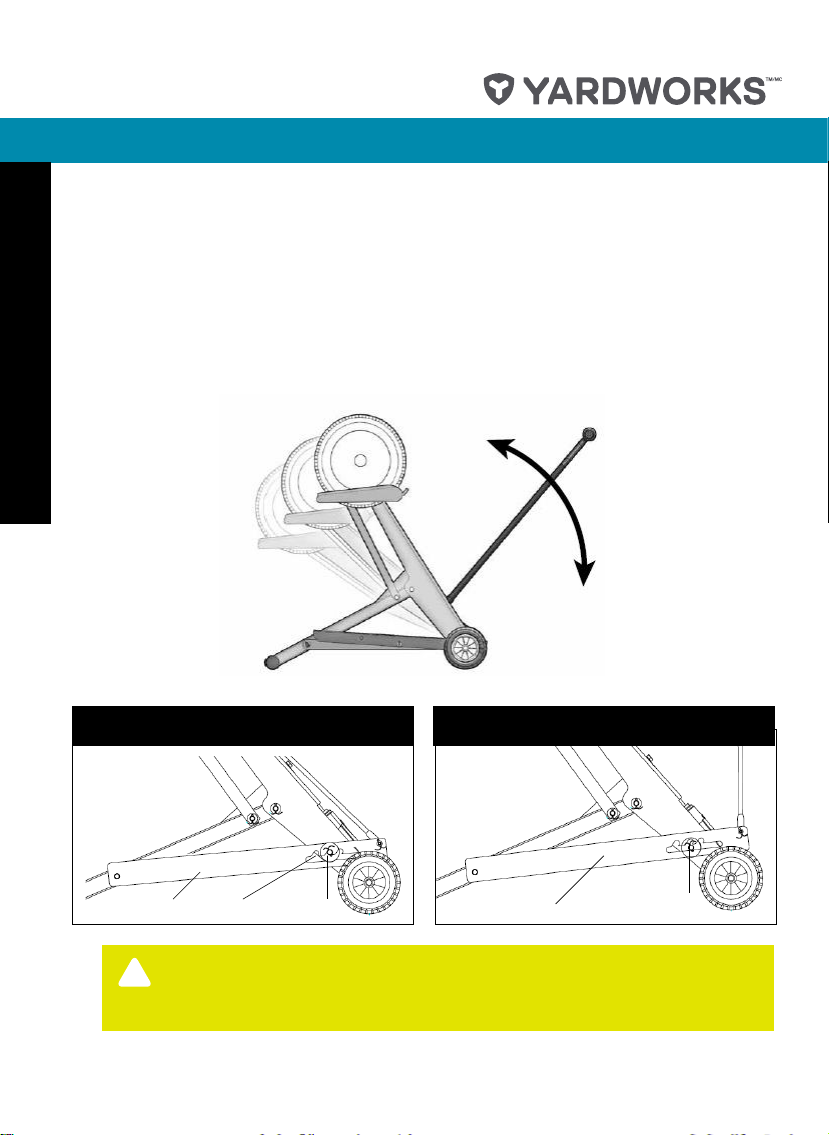

As you pump the handle to raise the lift you will hear a click sound at
each of the locking positions indicating the locking bar is fully secured.
See below diagram of the locking bar function.
NOTE: Make sure your tractor is in neutral before you raise your mower.
The mower wheels need to move freely as the mower raises.
LOCKED NOT LOCKED
The locking
pin run into the
fillister means
locked
Safety Bar Safety Bar Locking Pin Fillister Locking Pin
The locking pin
not run into the
fillister means
not locked
Operation
!WARNING: The automatic locking mechanism must be
engaged in one of the three lock position notches on the locking
bar before proceeding to service mower.

model number 060-0194-4 | contact us: 1.866.523.5218
15
Preparing the mower for service.
Place wheel chocks (not included) behind the back tires of the mower and
apply the parking brake on the mower.
YOU MAY NOW SERVICE THE MOWER.
!IMPORTANT: WHEN LOWERING MUST USE
HANDLE TO OPERATE CYLINDER.
Wheel chocks
Lift locking bar
Operation
To lower the mower
1. Before lowering the lift, remove the wheel chocks and parking brake.
2. Pump handle twice or more to release pressure from locking position.
3. Keep lifting the locking bar with your one hand, at the same time, slowly
turn the cylinder release valve with the handle counter-clockwise. Only
1/2 turn is required to release the pressure. Do not overturn the release
valve.

model number 060-0194-4 | contact us: 1.866.523.5218
16
Safety and Maintenance
IMPORTANT SAFETY INFORMATION
1. Read and understand all safety and operating instructions before
using the tractor lift. Never allow anyone unfamiliar with the safety or
operating instructions to use the lift.
2. Follow all safety and servicing instructions provided by the lawn
mower’s manufacturer before using the lift.
3. Do not modify the lift in any way. Any modifications will void any and
all warranties and could compromise your personal safety.
4. When using the lift, keep ALL bystanders at a safe distance away
from the mower lift. The lift must be used on a solid, level surface.
5. Only lift the FRONT end of the mower.
6. Do not lift the front end and back end of the mower at the same time.
7. Do not exceed the lifting capacity of 550 lb (249 kg) front end weight.
If you have a question regarding weight of your machine, please
contact Customer Service at 1.866.523.5218.
8. Only use the lift for mowers that properly fits in the provided wheel
pads [ ie. 10 to 17" (25 to 43 cm) diameter and within the inside to
outside wheel measurements of 18 1/2 to 47 1/2” (47 to 121 cm)].
9. Both left and right wheel pads must be equal distance from the T-bar
to maintain proper balance. Always stop engine and remove key
before beginning any work on the mower.
10. Always place wheel chocks (not included) behind the back tires of the
mower before beginning maintenance. For additional safety, you may
apply the parking brake after the wheel chocks are in place.
11. Never operate the engine while using the mower lift. Do not remove
safety warnings or decals from lift.
12. Please make sure that the space below the mower is big enough to
work safely under the mower. Please make sure that the mower is
stable enough for work.
13. Failure to follow these warnings may result in property damage and
serious bodily injury or death.

model number 060-0194-4 | contact us: 1.866.523.5218
17
!
IMPORTANT: The mower lift is intended for use with mowers
only. Do not exceed 550 lb (249 kg) front end weight. It should
never be used to service other types of machinery.
MAINTENANCE
Important: Use only a good grade hydraulic jack oil. Avoid mixing different
types of fluid and NEVER use brake fluid, turbine oil, transmission fluid,
motor oil or glycerin. Improper fluid can cause premature failure of the jack
and the potential for sudden and immediate loss of load.
HOW TO REPLACE THE HYDRAULIC CYLINDER
• To remove the cylinder, remove the bolts
holding the cylinder in place.
• Remove old cylinder and install new cyclinder
Using the same hardware.
ADDING OIL TO HYDRUALIC CYLINDER
• With saddle fully lowered and pump piston
fully depressed, set jack in its upright, level
position. Remove oil filler plug.
• Fill until oil is level with the filler plug hole,
reinstall oil filler plug.
CHANGING OIL IN HYDRUALIC CYLINDER
For best performance and longest life, replace
the complete fluid supply at least once per year.
• With saddle fully lowered and pump piston fully depressed, remove the oil
filler plug.
• Lay the jack on its side and drain the fluid into a suitable container.
Safety and Maintenance

model number 060-0194-4 | contact us: 1.866.523.5218
18
NOTE: Dispose of hydraulic fiuid in accordance with local regulations.
• Fill with good quality jack oil. Reinstall oil filler plug. We recommend
Mobil DTE 13 or equivalent.
LUBRICATION
• A coating of light lubricating oil to pivot points, axles and hinges will help
to prevent rust and assure that wheels, castors and pump assemblies
move freely.
• Periodically check the pump piston and ram for signs of rust or corrosion.
Clean as needed and wipe with a clean, oil-soaked rag.
NOTE: Never use sandpaper or abrasive material on these surfaces.
STORAGE
When not in use, store the bottle jack with pump piston and ram fully
retracted.
Safety and Maintenance

model number 060-0194-4 | contact us: 1.866.523.5218
19
Troubleshooting
TROUBLESHOOTING
Symptom Possible Causes Corrective Action
Jack will not lift load. Release valve not tightly
closed.
Overload condition.
Ensure release valve is
tightly closed. Remedy
overload condition.
Jack bleeds off after lift. Release valve not tightly
closed.
Overload condition.
Hydraulic unit
malfunction.
Ensure release valve is
tightly closed.
Remedy overload
condition.
Contact Customer
Service.
Jack will not lower after
releasing the valve.
Make sure you have
disengaged the parking
brake and removed the
wheel chocks.
Make sure you are
releasing the locking bar.
Contact Customer
Service.
Poor lift performance. Fluid level low.
Air trapped in system.
Ensure proper fluid level.
With ram fully retracted,
remove oil filler plug to let
pressurized air escape,
reinstall oil filler plug.
Will not lift to full
extension. Fluid level low. Ensure proper fluid level.
