YARDMAX~ Q-5
Gas Log Splitter
Operator's Manual
MODEL NUMBER
DYS2565
DYS2865
DYS3065
DYS3567
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label.
You should record
both
ofthem in asafe place for
future use.
FOR YOUR SAFETY
Save This Manual for Future Reference
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
Tame the Great Outdoors·

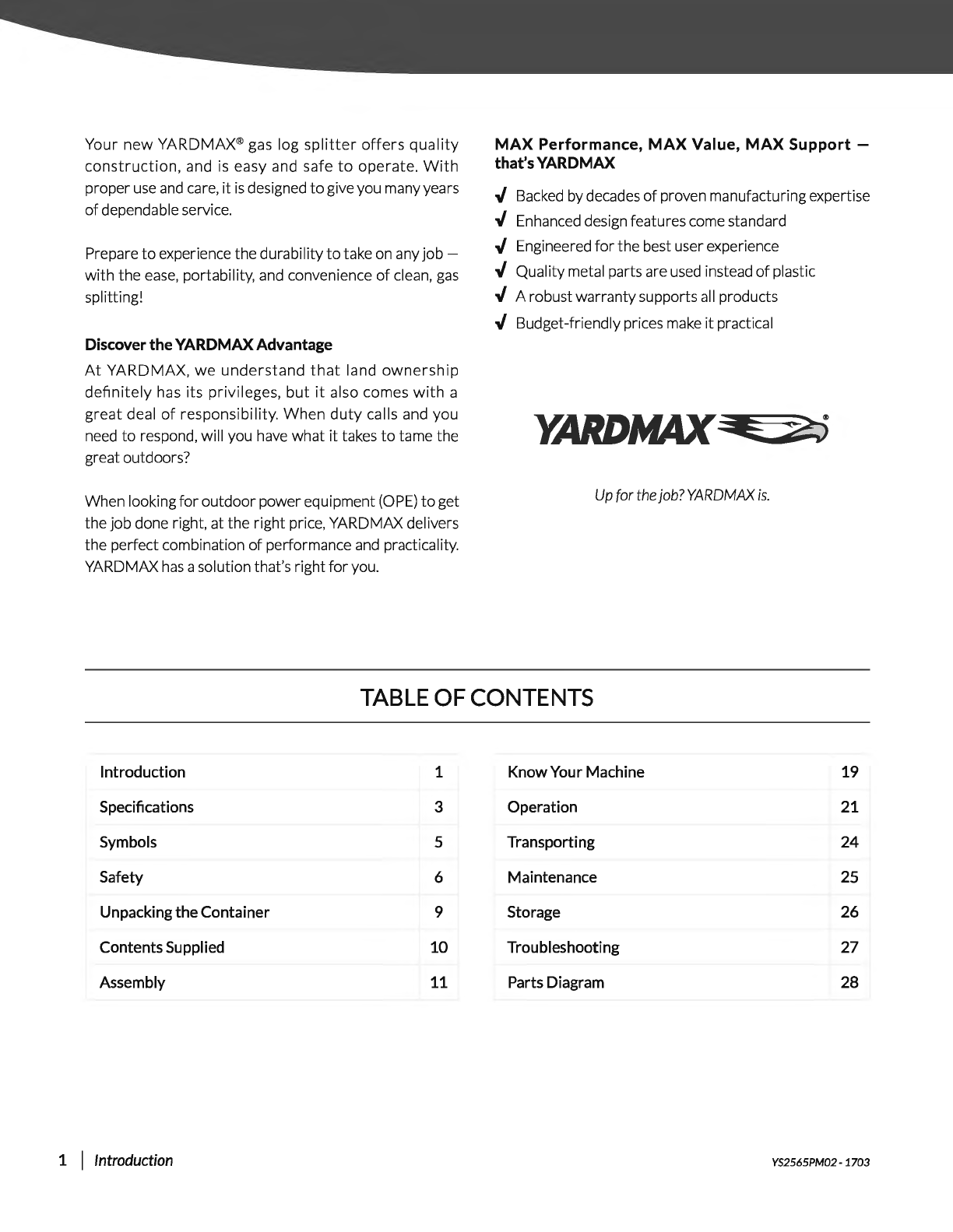

Your new YARDMAX® gas log splitter offers quality
construction, and is easy and safe to operate. With
proper use and care, it is designed to giveyou manyyears
of dependable service.
Prepare
to experience the durability to take on any job-
with the ease, portability, and convenience of clean, gas
splitting!
Discover theYARDMAXAdvantage
At YARDMAX, we understand that land ownership
definitely has its privileges, but it also comes with a
great deal of responsibility. When duty calls and you
need
to respond, will you have what it takes to tame the
greatoutdoors?
When looking
for outdoorpower equipment (OPE) to get
the job done right, at the right price, YARDMAXdelivers
the perfect combination
of performance and practicality.
YARD MAX has asolution that's right for you.
MAX Performance, MAX Value, MAX Support -
that's
YARD MAX
J Backed by decades of proven manufacturingexpertise
J Enhanced design features come standard
J Engineered for the best user experience
J Quality metal parts are used instead of plastic
J A robustwarrantysupports all products
J Budget-friendly prices make it practical
YARDMAX~
Up for the job? YARDMAX is.
TABLE OF CONTENTS
Introduction 1 Know Your Machine 19
Specifications
3 Operation 21
Symbols
5
Transporting
24
Safety
6 Maintenance 25
Unpacking the Container 9
Storage 26
Contents Supplied
10
Troubleshooting
27
Assembly
11
Parts Diagram
28
1 I Introduction
YS2565PM02- 1703

SUPPORT
Have questions aboutyour YARD MAXequipment?
Call
us at 847-327-0566 or 844-YARDMAX, email
us at[email protected], or contact us via your
favorite social media site.
SPEC IF I CAT/ ONS
Model# YS2565 YS2865
SplittingForce* 25Ton 28Ton
Log Capacity 25.5" 25.5"
Engine Briggs &Stratton
Displacement
208cc
GrossTorque@ 2600rpm 9.5 ft-lb
Fuel Capacity 0.80Gallon
Engine Oil Capacity 0.16Gallon
StartingSystem
YS3065 YS3567
30Ton 35Ton
25.5" 26"
Briggs &Stratton
306cc
14.5 ft-lb
1.40Gallon
0.29Gallon
Recoil
Control Valve
Auto Return with Adjustable Detent
3 I Introduction & Specifications
YS2565PM02 •1703

Gas Log Splitter » Operator's Manual
Model# YS2565 YS2865 YS3065 YS3567
Pump
Size
14GPM 14GPM 17GPM 17GPM
HydraulicCylinder Bore
4" 4.5" 4.5" 5"
HydraulicCylinderStroke 23.5" 23.5" 23.5" 23.5"
Hydraulic Rod Diameter 1.75" 1.75" 1.75" 2"
CylinderCycle Time* 9.7 seconds 13.2seconds 10.9seconds 12.8seconds
HydraulicCapacity 4.0Gallon 4.3Gallon 4.3Gallon 4.7Gallon
HydraulicOil Included Pre-filled with premium hydraulicfluid
Replacement Filters Built-in,Sealed, Return Filter, Suction Screen
Hoses High pressure
w/wire braid; Coil-wrapped
Beam Heavy
duty U-shapeformed construction
Wedge Size 7.50"
Wedge Style 2-way
Rear Wheels 4.80-8, DOTApproved 16" O.D.
Road Tires
Hitch Coupler 2" ball
with SafetyChains
SafetyChains Standard
MaxTowing
Speed 45mph
HorizontaiNerticalSplitting Standard
Open OperatingZone Standard
CentrallyLocated Controls Standard
Wheel Fenders Standard
Log Cradle Standard
Log Table Optional
Weight(lbs) 474.51bs 488.0 lbs 515.51bs 552.01bs
Dimensions (LxWxH) Inches 82"x36.25"x48.50"
*Splitting force and cycle times may vary dependingon mechanical and environmental conditions.
YS2565PM02 -1703 Specifications I 4

SYMBOLS
The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use.
5 I Symbols
Read these instructions carefully.
Wear
eye protection.
Wear hearing protection.
Wear protective gloves.
Wear safetyfootwear.
Do not remove or tamper with the
protection and safetydevices.
Don'tstand
or siton the log splitter.
Operatethe log splitteron level surfaces.
Stay
off slopes and slipperysurfaces.
Do not touch parts that are hot from
operation. Serious burns may result.
No smoking, sparks,
or flames.
Properlydispose
of waste oil!
Keep
children and bystanders off and
away.
Be sure the engine's switch is off before
transporting the machine
or performing
any maintenance.
Keep hands and fingers away
from all
pinch points.
"'0'" ....
FORWARD -
Never remove partially split wood from
the wedge with your hands. Fingers may
become trapped between the splitwood.
Keep
hands and feet away from
moving parts. Moving parts can crush
or cut.
Keep hands awayfrom the log stripper.
Always keep body
and hands away from
pin holes or nozzles that eject hydraulic
fluid under pressure. Escaping hydraulic
fluid
can puncture skin and cause blood
poisoning.
Thrown objects.
Check
and fill hydraulicoil.
Follow the direction indicated
to use the
control lever.
For logs that are not cut square, the
longest portion of the log should be
rotated down
and the most square end
placed toward the end plate.
Do
not transportwith objects on the machine.
~MAX.45NFH ~
·s.c@l~
e o ~
Maximum towing speed of 45 mph. YS2565PM02- 1703

Gas Log Splitter » Operator's Manual
SAFETY
GENERAL SAFETY RULES
UNDERSTAND YOUR MACHINE
Read this manual and labels affixed to the machine to understand
its limitations and potential hazards.
Be thoroughly familiar with the controls and their proper
operation. Know how to stop the machine and disengage the
controlsquickly.
Make sure
to read and understand all the instructions and safety
precautions
as outlined in the Engine Manufacturer's manual
packed separately
with your unit. Do not attempt to operate the
machine until you fully understand how
to properlyoperate and
maintain the engine and how to avoid accidental injuries and/or
property
damage.
If the unit is to be used bysomeone otherthan original purchaser
or loaned, rented, or sold, always provide this manual and any
needed safety training before operation. The user
can prevent
and is responsible
for accidents or injuries that may occur to
themselves, otherpeople, and property.
Do
not force the machine. Use the correct machine for your
application. The correct machine will do the job more efficiently
and saferatthe rate it was designed.
PERSONAL SAFETY
Do notpermitchildren to operatethis machine atanytime.
Keep children, pets, and
other people not using the unit away
from the
work area. Be alert and shut off unit if anyone enters
work area. Keep children underthewatchful care of aresponsible
adult.
Do
not operate the machine while under the influence of drugs,
alcohol,
or any medication that could affect your ability to use it
properly.
Dress properly. Wear heavy long pants, boots,
and gloves. Do not
wear loose clothing, short pants,
or jewelry of any kind. Secure
long hair
so it is above shoulder level. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes, jewelry,
or
long hair can be caught in moving parts.
Protect eyes, face, and head
from objects that may be thrown
from the unit. Always wear safety goggles or safety glasses with
side shieldswhen operating.
YS2565PM02 -1703
Wear appropriate hearing protection.
Always keep hands
and feet away from all moving parts during
operation. Movingparts
can cutorcrush bodyparts.
Always keep hands
and feetawayfrom all pinch points.
Do nottouch parts that might be hotfrom operation. Allow parts to
cool before attempting to maintain,adjust, or service.
Stay alert, watch what you are doing, and use common sense
when operatingthe machine.
Do
not overreach. Do not operate the machine while barefoot
or when wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and improve
your footing on slippery surfaces. Keep proper footing and
balance at all times. This enables bettercontrol
of the machine in
unexpected situations.
INSPECT YOUR MACHINE
Check your machine before starting it. Keep guards in place and
in working order. Make sure all nuts, bolts, etc., are securely
tightened.
Never operate
the machine when it is in need of repair or is in
poor mechanical condition. Replace damaged, missing,
or failed
parts before using it. Check
for fuel leaks. Keep the machine in
safe workingcondition.
Do not
use the machine if the engine's switch does not turn it on
or off. Any gasoline powered machine that can't be controlled
with theengine switch is dangerous and must be replaced.
Regularly check
to see that keys and adjusting wrenches are
removed from the machine area before starting it. A wrench
or
a key that is left attached to a rotating part of the machine may
result in personal injury.
Avoid accidental starting.
Be sure theengine's switch is off before
transporting the machine or performing any maintenance or
service on the unit. Transporting or performing maintenance or
service on amachine with itsswitch on invites accidents.
If the machine should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause. Vibration is
generallyawarningsign of trouble.
Safety I 6

ENGINE SAFETY
This machine is equipped with an internal combustion engine.
Do
not use on or near any unimproved, forest covered, or brush
covered land unless the exhaust system
is equipped with aspark
arrestermeetingapplicable local, state,
or federal laws.
In
the state of California, a spark arrester is required by law.
Other states have similar laws. A spark arrester, if used, must be
maintained in effectiveworking
order bytheoperator.
Never
start or run the engine inside a closed area. The exhaust
fumes are dangerous, containing carbon monoxide,
an odorless
and
deadly gas. Operate this unit only in a well-ventilated
outdoorarea.
Do
not tamper with the engine to run it at excessive speeds. The
maximum engine speed is
preset by the manufacturer and is
within safetylimits. See engine manual.
Keep a Class Bfire extinguisher on hand when operating this log
splitterin
dry areas as aprecautionary measure.
FUEL SAFETY
Fuel is highly flammable, and its vapors can explode if ignited.
Take precautions
when using to reduce the chance of serious
personal injury.
When refilling or draining the fuel tank, use an approved fuel
storage container while in a clean, well-ventilated
outdoor area.
Do
not smoke, or allow sparks, open flames, or other sources of
ignition near the area while adding fuel or operating the unit.
Neverfill thefuel tankindoors.
Keep grounded
conductive objects, such as tools, away from
exposed, live electrical parts and connections to avoid sparking or
arcing. These eventscould ignitefumes or vapors.
Always stop
the engine and allow it to cool before filling the fuel
tank. Never remove
the cap of the fuel tank or add fuel while the
engine
is running or when the engine is hot. Do not operate the
machine with known leaks in thefuel system.
Loosen thefuel tank cap slowly to relieve anypressure in thetank.
Never overfill
the fuel tank. Fill the tank to no more than 1/2"
belowthe bottom of thefiller neck to providespace for expansion
as the heat of the engine can cause fuel to expand.
Replace all fuel tank and container caps securely and wipeupspilled
fuel. Neveroperatethe unit
without thefuel cap securelyin place.
7 I Safety
Avoid creatingasource of ignition for spilled fuel. If fuel is spilled,
do
not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition
until fuel vapors have dissipated.
When fuel
is spilled on yourself or your clothes, wash your skin
and change clothes immediately.
Store fuel in containers specifically designed and approved
for
this purpose.
Storefuel in acool, well-ventilated area, safely away from sparks,
open flames,
or other sources of ignition.
Never store fuel or a machine with fuel in the tank inside a
buildingwherefumes may reach aspark, open flame,
or any other
source of ignition, such as a water heater, furnace, or clothes
dryer.
Allow theengine to cool beforestoring in anyenclosure.
HYDRAULIC SYSTEM SAFETY
The hydraulic system of the machine requires careful inspection
along
with the mechanical parts. Be sure to replacefrayed, kinked,
cracked,
or otherwise damaged hydraulic hoses or hydraulic
components.
Hydraulic fluid
can result in severe burns. Fluid in the hydraulic
system can penetrate skin and result in serious
injury or death.
Be sure to stop the engine and relieve hydraulic pressure before
doingany
work on hydraulicparts.
Keep body and hands away
from pin holes or nozzles that expel
hydraulicfluid when under pressure.
Use paper or cardboard, not
hands, to search for leaks.
Ensure all hydraulic fluid connections are
tight and all hydraulic
hoses and lines are ingood condition before applying pressure
to
thesystem.
Do
not remove thecap from the hydraulictank or reservoir while
the machine is running. The tank could contain hot oil under
pressure, which could result in serious injury.
Do
not adjust the pressure setting on the hydraulic pump or
valve.
If injured byescapingfluid, no matter how small thewound is, see
a doctor at once. A typical injection injury may be a small wound
that does not lookserious. However, severe infection or reaction
can
result if proper medical treatment is not administered
immediatelyby adoctor who is familiar with injection injuries.
YS2565PM02- 1703

Gas Log Splitter » Operator's Manual
SPECIFIC SAFETY RULES
PREPARATION OF THE LOG
Both ends of the log should be cut as square as possible to
preventthe logfrom rotating out of the splitterduringoperation.
Neversplit logs greaterthan thespecified log capacity.
Do
not operate the log splitter on icy, wet, muddy, or slippery
ground. Onlyoperateyourlogsplitteron level ground.
Operating on a slope could cause the log splitter
to roll over or logs to (all off the equipment, which
could result in injury.
Do not move the log splitter over hilly or uneven terrain without
a tow vehicle or adequate help.
Keep
the work area free of clutter. Remove split wood from
around the log splitter immediately after each use to avoid
potential tripping.
OPERATOR ZONE
This unit is designed to be operated by one person located in the
operatorzone
as shown in thefollowing diagrams.
Operatethe unitonlywhen standing in theoperatorzone.
Always
stop the unit and allow moving parts to stop before
leavingoperation zone. Do notleave arunning unitunattended.
Many accidents occur when more than one person
operates the log splitter.
The adult who loads and stabilizes the log must be
the person who operates the control handle.
HORIZONTAL OPERATING POSITION
YS2565PM02 -1703
VERTICAL OPERATING POSITION
MACHINE
USE AND CARE
Neveroperate the machine without good visibility or light.
Never attempt
to splitwood across the grain. The log splitterwas
notdesigned
for cross-grain splitting.
Always
block the front and back of both wheels to prevent
unintended movement.
Hold the bark side of the logs when loading or positioning,
never the ends. Never place your hands or any part of your body
between alog
and anypart of the logsplitter.
Do notstraddle
or stepoverthe log splitterduringoperation.
Do notreach
or bend overthe logsplitter to pick upa log.
When stabilizinga log with the left hand, remove your hand when
thewedge contactsthe log
or serious injurymayoccur.
Never attempt
to splitmore than one log at atime.
Do notattempt
to load yourlogsplitterwhen the ram or wedge is
in motion.
Use your hand to operate the control lever on the valve. Do not
use yourfoot, arope, or any extension device.
Do notmove the log splitterwhilethe engine
is running.
TOWING SAFETY
Check all local and state regulations regarding towing, licensing,
and lights beforetowingyour log splitter.
Beforetowingthe logsplitter,check tires
for excessive wear, cuts,
or damage. Check for proper tire inflation. Add air as required.
Do notover inflatetires. Serious injury
can result if tires explode.
Safety I 8

UNPACKING THE CONTAINER
Use the screwdriver and hammer to open all the side locks. Remove all the polywood plates. Remove all the loose parts on the bottom
pallets. Use scissors or a knife to cut all the straps. (See Figure 1a)
1 2 3 4
Check before towing to make sure the log splitter is correctly and
securely attached to the towing vehicle and the safety chains are
secured to the hitch or bumper of the vehicle with enough slack
to allow turning. Always use a class I, 2" ball with this log splitter.
Make sure the coupler is tight before towing and after towing 50 miles.
Never transport cargo on the log splitter.
Never allow anyone to ride or sit on the log splitter.
Always stop the engine, lock the beam in the horizontal position,
and close the fuel shut-off valve when transporting the unit.
Use extra care when towing the log splitter. Do not exceed 45
mph. Towing the log splitter at a speed greater than 45 mph could
result in loss of control, damage to the equipment, serious injury,
or death.
Avoid sharp turns and steep angles. Avoid large holes or ditches
when towing the equipment. Always be careful when backing
up with your log splitter when towing; it could jackknife. Use
caution when backing up; a spotter outside the vehicle is highly
recommended. Disconnect the log splitter from the towing
vehicle before operating it.
YS2565PM02 - 1703
9
|
Safety & Unpacking the Container Figure 1a

Gas Log Splitter , Operator's Manual
flgure1b
CONTENTS SUPPLIED
YourYARDMAXlogsplittercomes partiallyassembled and containsthefollowing:
~ . :
:~ '"'~~~
"'Cr~~~ ""C'~~
OPTIONAL
~-~---
Handware Kit
, ----~----T---- T ---- - ,
1. Beamand Reservoir with Engine
2. Fender (Left)
3. Fender (Right)
Y52565PM02 -1703
~
I I I I I
I I I I I
I I I I I
1- ----t---+- --+ : --+T ; ---
1 I I I I
I I I I I
\. l L L )
4. WheelAxle
5. Wheels
6. ManualTube
Unpacking the Container&Contents Supplied I 10

7. TowBar
~@
M22 X1
8. LogStripper 4XSO
X1
9.
Log Cradle (Left) a)
X1
10.Log Cradle (Right)
~ @@@
M12X30 X4
11.Beam Lock Bracket
12. Muffler (YS2565 and YS2865 only)
~@
M22 X1
13.Operator's Manual and Engine Manual 4XSO
X1
14.Tools for Spark PlugAssembly (YS2565 and YS2865 only) a)
X1
15.Engine Oil
(]d (@)@ M10X25 X2
16.Log Table (Optional) b
17.Hardware Kit, Including:
X1
@~
X1
[
0>@
18X135 X1
II
=
6X40 X2
~
Bridge Pin
X1
Qo @@
M8X20 xs
(t:::::D~@
Q;o @
M8X20 X2
1~·1
M10X35 X6
P@@@
M12X35 XB
IIIII
(t::::::D~@
M10X35 X4
II
(t:::D ~@
OPTIONAL
M10X20 X2
rt===o @ @@@
•II
Qo @H~ ©fJ
M10X25
M12X80 X2
ASSEMBLY
This log splitter was partiallyassembled at the factory. To assemble your machine follow the belowinstructions.
BEAM PIVOT BRACKET
1. Disassemble the triangle bracket from the left beam mount of
unit.(Remove the bolts and nuts, See Figure 2a.)
Figure2a
11 I Contents Supplied & Assembly
2. Follow the same procedure to disassemble the triangle bracket
from the right beam mount of unit.
3. Slowly pull the beam in a straight line until the pivot casing
in the tank pivot mount is locked by the U-shaped bracket in
the beam. Then make sure the hole in the beam pivot bracket
aligns with the pivot hole in the tank pivot mount. (See Figure
2b.)
If beam is pulled left or to the right, this could cause
instability of the product and could result in injury.
4. Insert the pivot bolt and secure with the bridge pin.
YS2565PM02- 1703

Figure2b
Xl ll
Xl
18X135
Bridge Pin
5. Disassemble the support leg from the unit. (Remove the bolts
and nuts, see figure 2c.)
Figure2c
YS2565PM02 -1703
Gas Log Splitter » Operator's Manual
SPLIT CONTROL LEVER
1. Holding the hydraulic cylinder handle, pull out the cylinder
slowly
and in a straight line until the output shaft in the
cylinder
is against the trunnion mount and locked in the
U-shaped groove.
2. The control handle is shipped hanging from the valve on the
handle link.
Remove the pin and cotter pin from the control
handle. Move the control lever
to the vertical Neutral positon
(shown in circle on illustration
Fipre 3.)
3. Reinstall the pin and cotterpin to thecontrol handle.
Figure3
HYDRAULIC CYLINDER HANDLE
Loosen two M10nutsbyusing a16mmwrench. Changethe handle
from the vertical position
to the horizontal position. Secure and
tighten the two M10 nuts. (See Flpre4)
Vertical Position
~:.iii~~;... HydraulicCylinderHandle
Horizontal Position
Figure4
Assembly I 12

LOG STRIPPER (YS2565,YS2865, and YS3065 ONLY)
1. Align holes in the log stripper with the holes in the trunnion
mount.
2. Install the log stripper by tighteningthe M10x35 bolts, spring
washers,
and flat washers. (See Figure So)
FigureSa
M10X35 X6
LOG STRIPPER (YS3567 ONLY)
1. Align holes in the log stripper with the holes in the trunnion
mount.
2. Install the logstripperbytighteningthe M10x35 and M10x20
bolts,springwashers, and flatwashers.
(See Ffsure Sb)
(!C::::::D@@
~@@
13 I Assembly
Figure5b
M10X35
M10X20
TOW BAR
Insert the tow bar into the tank bracket and align the holes.
Connect
and tighten the tow bar to thetank byusing the M12x80
bolts,
flat washers, springwashers, and nuts. (See Figure 6)
~X2
- ~
TankAssembly
Bracket
Figure6
~ @ @@ @J M12X80
X2 -=·
WHEEL
1. Remove the two anti-dustsleeves fromthewheel axle.
..
Anti-dust Sleeve(x2)
Figure7a
2. Remove the anti-dust sleeves from the two wheels. Take the
anti-dustwashers
and roller bearings from thewheels and set
aside
for later use.
RollerBearing(x4)
Figure7b
YS2565PM02- 1703

3. Slide the anti-dustwasherand one roller bearing onto the axle.
Use a soft-faced hammer to tap the roller bearing lightly to
makesure the bearingis in the right position.
4. Slide
the wheel with the valve stem facing out to the wheel
axle and
the other roller bearing, then put the wheel washer
against
the bearing. Use a32mm socket to tightenthe axle nut
completely. (See Figure 7c)
5. Turn thewheel to ensure proper bearingseating.
6. Loosen the axle nut until loose enough to turn the wheel with
your fingers.
7. Retighten
the axle nut until "fingertight."
8. Insert the cotter pin through the holeinaxle. Bend and spread
the prongs inopposite directions
so theaxle nut will not come
off (make sure the tire spins freely).
Installation of the cotterpin is importantand
required. Failure to install the cotterpin can result in
loss of wheel retention. Always assemble using a new
cotter pin. Do not reuse.
9. Use a soft-faced hammer to tap the anti-dust washer in the
right position.
10.Align the wheel cap against the wheel hub. Using a soft-faced
hammer, tap lightly
to make sure to install thewheel cap onto
the wheel hub properly. (Onlyassemble one side of the wheel
assembly.The
other side will be assembled when mountingthe
entireassembly
to theunit.)
~
•
~ RollerBearing(x2)
r' CotterPin(x1l
~:reo)@ ·. \
~"" .... -d,L,~,., .77.
~ ValveStem(x1)
Whee1Washer(x1)
Wheel Cap(x1l
Figure7c
M22 X1
4XSO X1
[)
X1
YS2565PM02 -1703
Gas Log Splitter » Operator's Manual
11. Remove the two M8x45 bolts, flat washers, and nuts.
Figure7d
12. Hold the beam and move the unit untiltheupperbracket of the
wheel axle is againstthewooden block.
Figure7e
13. Holdthehydrauliccylinderhandleandslowlystandtheassembled
beam on the end platein thevertical position.
Figure7f
Assembly I 14

14. Move the bridge pin and lock pin from the upper hole to the
lowerhole. Make sure the bridge pin
is connected to the wire
rope first and then insertthe lockpin. (See figure 7g)
LowerHole
C:-~,
~
Bridge Pin ., '
L~
Figure7g
15.Put the axle with one wheel below the upper bracket. Make
sure the wheel
is on the engine side. Align the holes in the
lowerbracketand upper bracket. Insert and tighten bolt 1 and
bolt2first,then tighten
bolt 3 and bolt4.
UpperBracket
of Axle ~
~
LowerBracket of Axle
Figure7h
M12X30
X4 ----
15 I Assembly
16. Rotate the bottom pallet slowlyuntil there is enough space to
assemble the other wheel.
Figure7i
17.Use one hand to lift the tow barslightly. Use the other hand to
move the wooden support blockunder the hydraulic tankand
engine,
so it sits level.
Figure7j
YS2565PM02- 1703

18.Follow the same procedure to assemble the other wheel.
(Followsteps 3 - 10 underwheel assembly.)
Figure7k
M22 Xl
4X50 Xl
Xl
HORIZONTAL BEAM LOCK
When mounting the lock latch assembly, make sure the latch rod
side of the bracket is opposite the engine. Install the horizontal
beam lock to the beam by using beam lock M10x25 bolts, spring
washers, and
flat washers. (See Fisure8)
FigureS
C'iJ=J ©J@
M10X25 X2
YS2565PM02 -1703
Gas Log Splitter » Operator's Manual
SUPPORT LEG
1. Align the support leg to the upper hole on the unit. Insert the
U-shaped lockpin to hold the support leg in place.
2. Slightlyliftthe machine by the tow bar while rotating it so that
the support leg can drop to the down position supporting the
machine on the ground
3. Fullyinsert the U-shaped lockpin. Makesure the short-end go
through
the lower hole.
4. To secure the U-Shaped lock pin. Insert the roll pin thru
the location hole at the top of the support leg and into the
U-shaped lockpin hole.
5. Slide the spring and flat washer over the end of the U-shaped
lockpin. Secure
them in place with the other roll pin.
b
@m~®
-
I, Roll Pin (x1)
U-shaped LockPin Hole
Figure9
Xl
Xl
6X40 X2
Assembly
1 16

FENDER
Align the left fender to the tank assembly. Insertthe M8x20 bolts,
springwashers,
flat washers, and tightenbyusinga13mmwrench.
(See Figure 10)
Followthesame procedure
to assemble the right fender.
Figure 10
M8X20
xa M#M
MANUAL TUBE
1. Remove the cap of the manual tube. Align the holes in the
manual tube with the holes in the tow bar, insert and tighten
boltsand washers.
(See Fipre 11)
2. Reattach the cap.
~
(Jp @
17 I Assembly
Cap
Figure 11
M8X20
X2 1[·1
MUFFLER (YS2565/YS2865 ONLY)
1. Remove the plastic sheet by loosening and removing the nuts
and washers, usinga 13mmwrench.
Figure 12a
2. Install the muffler byaligning the screwholes on the muffler to
the screw holes on the engine. Reinstall the washer and nuts,
using a13mmwrench.
Figure12b
VERTICALPOSITION TO HORIZONTALPOSITION
1. Remove the bridge pin and lockpin from the lowerhole.
Upper
Hole
Lower Hole
Figure 13a
2. Holdthe hydrauliccylinder handle and slowlylowerthe beam.
Insertthe lock pin
into the upper hole. Make sure the beam is
locked in
the horizontal position.
A\ Do not let the beam suddenly drop. Keep hands and
~ (mgers clear of pinch or crush points at all times.
3. Attach the bridge pin in the lockpin. YS2565PM02- 1703

Figure 13b
LOG CRADLES
1. Align theholes on the left logcradle to the inside and lowerholes
on the beam mounts. Insertthe M12x35 bolts, flat washers, nuts
and securelytighten.
2. Followstep 1
to assemble the rightlogcradle. (See figure 14)
Figure 14
M12X35
xa MIM
YS2565PM02 -1703
Gas Log Splitter » Operator's Manual
LOG TABLE (OPTIONAL)
Refertofigures15aand 15bto install the worktable. Remove
the bolts, flat washers, and nuts from the inside holes. Move
the log cradle from the incline position to the horizontal
position. Align holes on the logcradle with the outside holes
on the beam mount. Reinstall bolts, flat washers, and nuts.
Figure 15a
Place the work tableover the holes in the logcradle and align
the 4 holes from the work table plate and log cradle. Insert
and tighten the M10x25 bolts, spring washers, flat washers,
and nuts.
M10x25(x4)
~ --r--t--1(--++___,
~
Figure 15b
M10X25
X4 1111
Assembly I 18

KNOW YOUR MACHINE
FEATURES AND CONTROLS
LogTable (Optional)
LogSpinnerFootPlate
2-Position LogCradle
HydraulicPump
Vertical Beam Lock
Control Valve
19 I Know Your Machine
YS2565PM02- 1703
