YASKAWA J1000 CIMR-JC series User manual

MANUAL NO. TOBP C730600 34A
形式 AI-V3/J
取扱説明書
周波数設定ボリューム
ユニット
J1000オプションユニット
製品を安全にお使い頂くために，この取扱説明書を必ずお読みください。
また，本書をお手元に保管していただくとともに，最終的に本製品をご使用になる
ユーザー様のお手元に確実に届けられるよう，お取り計らい願います。
Type AI-V3/J
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
Technical Manual
Potentiometer
YASKAWA AC Drive-J1000 Option
J1000
Min Max

TOBPC73060034A Potentiometer Technical Manual 3
Contents
1 PREFACE AND SAFETY . . . . . . .5
2 RECEIVING . . . . . . . . . . . . . . . . . .9
3 PRODUCT OVERVIEW . . . . . . . .10
4 OPTION COMPONENTS. . . . . . .11
5 INSTALLATION PROCEDURE . .12
6 OPERATING INSTRUCTIONS . .15
7 RELATED DRIVE PARAMETERS . . .16
8 TROUBLESHOOTING. . . . . . . . .17
9 OPTION SPECIFICATIONS . . . .18
10 YASKAWA LOCATIONS. . . . . .19
11 REVISION HISTORY . . . . . . . . .20

4YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
Copyright © 2008 YASKAWA ELECTRIC CORPORATION
All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted, in any form or by any
means, mechanical, electronic, photocopying, recording, or
otherwise, without the prior written permission of Yaskawa. No
patent liability is assumed with respect to the use of the
information contained herein. Moreover, because Yaskawa is
constantly striving to improve its high-quality products, the
information contained in this manual is subject to change without
notice. Every precaution has been taken in the preparation of this
manual. Yaskawa assumes no responsibility for errors or
omissions. Neither is any liability assumed for damages resulting
from the use of the information contained in this publication.

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 5
1 Preface and Safety
1 Preface and Safety

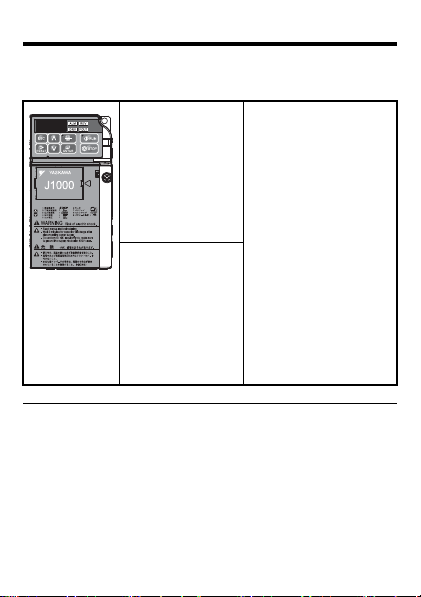

◆Applicable Documentation
The following manuals are available for the Potentiometer Option:
Option Unit
Yaskawa AC Drive - J1000 Option
Potentiometer Technical Manual
Read this manual first.
The Technical Manual is packaged with the
Potentiometer Option and contains a basic
overview of wiring, settings, functions, and
fault diagnoses.
J1000
Min Max

1 Preface and Safety
6YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
◆Terms
Note: Indicates a supplement or precaution that
does not cause drive damage.
Yaskawa Drive
U.S and Europe:
Yaskawa AC Drive-
J1000 Quick Start
Guide
Other areas:
Yaskawa AC Drive-
J1000 Installation &
Start up Manual
To obtain instruction
manuals for Yaskawa
products access these
sites:
U.S.: http://
www.yaskawa.com
Europe: http://
www.yaskawa.eu.com
Japan: http://www.e-
mechatronics.com
Other areas: Contact a
Yaskawa representative.
For questions, contact the
local Yaskawa sales
office or the nearest
Yaskawa representative.
Yaskawa AC Drive-
J1000
Technical Manual
Drive: Yaskawa AC Drive -J1000 Series
Option: Yaskawa AC Drive -J1000 Potentiometer Option

1 Preface and Safety
YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 7
◆Registered Trademarks
Company names and product names listed in this manual are
registered trademarks of those companies.
◆Supplemental Safety Information
Read and understand this manual before installing, operating, or
servicing this option unit. The option unit must be installed
according to this manual and local codes.
The following conventions are used to indicate safety messages in
this manual. Failure to heed these messages could result in serious
or possibly even fatal injury or damage to the products or to related
equipment and systems.
DANGER
Indicates a hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation, which, if not avoided, could
result in death or serious injury.

1 Preface and Safety
8YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
CAUTION
Indicates a hazardous situation, which, if not avoided, could
result in minor or moderate injury.
NOTICE
Indicates an equipment damage message.

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 9
2 Receiving
2 Receiving
◆Receiving
Confirm the packaging after receiving the Potentiometer Option. If
the wrong model is received or the Potentiometer Option does not
function properly, contact your supplier.
Components packaged with the option:
• The Potentiometer Option (AI-V3/J)
• Technical Manual
◆Tool Requirements
Use a flat-blade screwdriver with the dimensions below for
installation or removal of the option cover and Potentiometer
Option.
Blade width
3.0 mm max.
0.6 mm max.
Blade thickness

10 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
3 Product Overview
3 Product Overview
◆About Product
The Potentiometer Option allows the user to adjust the frequency
reference by rotating a potentiometer dial. Turning the
potentiometer changes the frequency reference making it easier to
adjust the motor speed.
◆Applicable Models
Potentiometer Option can be used with these Yaskawa drive
models.
Drive Drive Software Version <1>
<1> See “PRG” on the drive nameplate for software version
number.
CIMR-JABA≥1010

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 11
4 Option Components
4 Option Components
◆Dimensions
The installed option adds 21 mm (0.83 in) to the total depth of the
drive.
A – Potentiometer
Dial
C–Drive
Connector
B – Option Model
Number
D – Connection
Tabs
J1000
Min Max
A
B
D
C
6 (0.24)
15 (0.60) mm (in)

12 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
5 Installation Procedure
5 Installation Procedure
◆Section Safety
DANGER
Electrical Shock Hazard
Disconnect all power to the drive, before servicing.
Failure to comply will result in death or serious injury.
Wait at least one minute after all indicators are off. The drive
has internal capacitors that remain charged even after the option
is disconnected. The drive charge LED will extinguish when
the DC bus voltage is below 50Vdc. Measure drive DC bus
voltage to confirm safe level.
NOTICE
Damage to Equipment
Properly connect the connectors.
Failure to comply may prevent proper operation and possibly
damage equipment.

5 Installation Procedure
YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 13

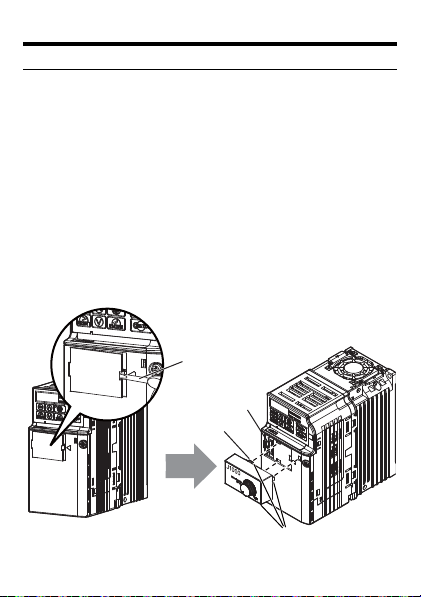

◆Attaching the Option
1. Insert a flat-blade screwdriver into the
opening as shown in the diagram below to
remove the option cover from the drive.
2. Insert the connector on the back of the
option into the CN5 port on the drive, and
click it into place.
NOTICE: Damage to equipment. Make necessary parameter
adjustments after installing the Potentiometer Option. Failing
to follow these installation instructions may damage the
drive.
Connection tabs
Tab
CN5 port
Flat-blade
screwdriver

5 Installation Procedure
14 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual

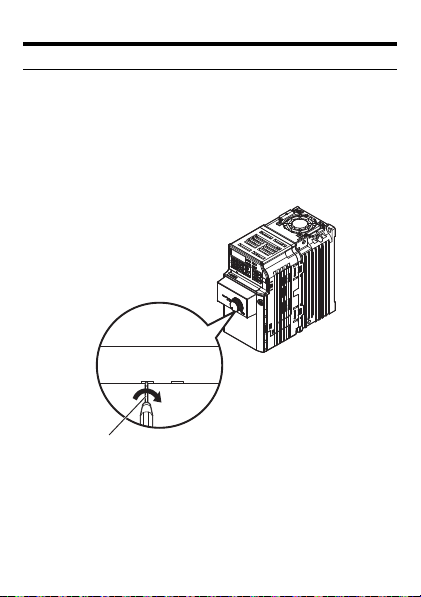

◆Removing the option interface
1. Insert a flat-blade screwdriver into the
small opening between the drive and the
option. Gently apply pressure to the
connection tabs to disconnect the option
as shown.
J1000
Underside of
option
Flat-blade
screwdriver

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 15
6 Operating Instructions
6 Operating Instructions
◆Using the Option
1. Assign the frequency reference source for the
drive to the potentiometer. Set drive parameter
(b1-01=3 ).
2. Adjust the frequency reference by turning the
potentiometer dial.
NOTICE: Damage to equipment. Use caution when setting
the frequency reference by adjusting the potentiometer dial
slowly. Sudden changes to the frequency reference can
damage the drive and connected machinery.

16 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
7 Related Drive Parameters
7 Related Drive Parameters
No. Name Description Default
b1-01
Frequency
Reference
Selection 1
Selects the frequency
reference input source.
0: Operator - Digital preset
speed d1-01 to d1-17.
1: Terminals - Analog input
terminal A1.
2: MEMOBUS/Modbus
communications
3: Option PCB
1
H3-13
Analog Input
Filter Time
Constant
Sets the primary delay filter
time constant for terminal A1.
Used for noise filtering.
0.03 s

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 17
8 Troubleshooting
8 Troubleshooting
Problems with the option interface may trigger an operator error.
Refer to the J1000 Technical Manual for errors not listed in this
manual.
◆Fault
LED Operator
Display Fault Name
oFA01 Option Unit Fault
Cause Possible solution
The option unit is not
properly connected
to the drive
Turn the power off and reconnect the
option unit
LED Operator
Display Fault Name
oPE05 Run Command Selection Error
Cause Possible solutions
Frequency reference
is assigned to an
option (b1-01 = 3)
that is not connected
to the drive
• Make sure that parameter b1-01 is set
properly
• Reconnect the option unit to the drive

18 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
9 Option Specifications
9 Option Specifications
◆Drive Specification
Item Specification
Model
Number AI-V3/J
Storage/
Installation
Area
Indoors (an area free from oil mist and dust)
Ambient
Temperature -10 to +50°C
Humidity 95% RH or less with no condensation
Storage
Temperature
-20 to +60°C allowed for short-term transport of
the product
Altitude 1000 m or less

YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual 19
10 Yaskawa Locations
10 Yaskawa Locations
IRUMA BUSINESS CENTER (SOLUTION CENTER)
480, Kamifujisawa, Iruma, Saitama 358-8555, Japan
Phone [phone] Fax [phone]
YASKAWA ELECTRIC AMERICA, INC.
2121 Norman Drive South, Waukegan, IL 60085, U.S.A.
Phone [phone] Fax [phone]
YASKAWA ELETRICO DO BRASIL LTDA.
Avenida Fagundes Filho, 620 Sao Paulo-SP CEP 04304-000, Brazil
Phone [phone] Fax [phone]
YASKAWA ELECTRIC EUROPE GmbH
Hauptstraβe 185, 65760 Eschborn, Germany
Phone [phone] Fax [phone]
YASKAWA ELECTRIC UK LTD.
1 Hunt Hill Orchardton Woods Cumbernauld, G68 9LF, United Kingdom
Phone [phone] Fax [phone]
YASKAWA ELECTRIC KOREA CORPORATION
7F, Doore Bldg. 24, Yeoido-dong, Youngdungpo-Ku, Seoul 150-877, Korea
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SINGAPORE) PTE. LTD.
151 Lorong Chuan, #04-01, New Tech Park 556741, Singapore
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SHANGHAI) CO., LTD.
No.18 Xizang Zhong Road. Room 1702-1707, Harbour Ring Plaza Shanghai 200001, China
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SHANGHAI) CO., LTD. BEIJING OFFICE
Room 1011A, Tower W3 Oriental Plaza, No.1 East Chang An Ave.,
Dong Cheng District, Beijing 100738, China
Phone [phone] Fax [phone]
YASKAWA ELECTRIC TAIWAN CORPORATION
9F, 16, Nanking E. Rd., Sec. 3, Taipei, Taiwan
Phone [phone] Fax [phone]
(Address revision No.: 08-5-3)

20 YASKAWA ELECTRIC TOBPC73060034A Potentiometer Technical Manual
11 Revision History
11 Revision History
Document revision dates and revision numbers are provided on the
bottom of the back cover.
Date of
Publication
Rev.
No. Section Revised Content
February 2008 – – First edition
July 2008 Chapter 10 Revision: Address
MANUAL NO. TOBP C730600 34A
Published in Japan July 2008 08-2
Date of
publication Date of original
publication
1
Revision number
1
