YBIKE Explorer User manual

Owners Manual

1
º
º
º
º
º
º
IMPORTANT SAFETY NOTICE
WARNING
The use of a go-kart can be a hazardous activity and precautions should be taken to avoid dan-
gerous situations. Be sure to read the entire manual before riding. Please pay close attention to
the following notices in particular:
SAFETY PRECAUTIONS:
WARNING! This ride-on is intended to be assembled by an adult.
For ages 4+, max. weight 70kg. Children riding Explorer should have constant adult supervi-
sion. A responsible adult must inspect Explorer prior to use, to ensure that all parts are fully
assembled and tightened to prevent accidents.
Always wear proper protective gear such as a helmet, wrist pads, elbow pads and kneepads
as well as appropriate clothing such as a long sleeve shirt, gloves, long pants and trainers or
closed footwear. Do not ride barefoot or in sandals.
DO NOT use the Explorer on slippery, wet or uneven ground with gravel. Never use near
swimming pools or other bodies of water.
DO NOT ride the Explorer with one or no hands. Hold the handlebars tightly with two hands.
Ride Explorer only on flat and level ground. DO NOT ride Explorer on slopes. DO NOT go
down a long descending slope, driveway or hill. Please be careful when passing these areas.
Keep your child away from doors, windows and furniture to avoid collision with glass. Block
stairs/steps securely to avoid injury.

2
º
º
º
º
º
º
º
º
ºKeep the child away from hot places, radiators, space heaters and fireplaces to avoid burns.
Avoid direct, high impact collisions into walls, sidewalks and other objects.
Ensure that the steering system is securely fixed and that the back wheel moves smoothly
by turning it left and right before riding the Explorer.
DO NOT use attachments not included in packaging or attempt to do any modifications
yourself, as this may compromise the safety of the ride-on.
Make sure all components are assembled correctly and secured properly before riding.
Never use near cars, motor vehicles, roadways, near streets or trac. DO NOT use in trac.
Never allow more than one child to ride on Explorer at any time. Not to be used by children
weighing more than 70kgs due to insucient strength.
Always steer using both hands, one hand per handlebar. Explain to your child how to brake
and stop the go-kart by using his/her feet on the pedals.
One time assembly only. This product should only be assembled once.
WARNING: Chocking Hazards—Small parts. Not for children younger than 3 years old.
Injury may occur if these precautions are not observed.
NOTE: Any photos of the YBIKE Explorer or decals in the owner’s manual are
Intended to be used as a reference only, and there may be some dierences
to the unit you purchased.
WARNING

YBIKE EXPLORER PARTS LIST & COMPONENTS
3
4
3
5
6
7
8
9
10
11
12
13
1
2
x 2
x 2
x 2
x 2
x 9
x 6
x 1
x 2
x 2

4
Open the box and take out the parts. Below is a parts lists.
Please check whether all parts and components are included:
YBIKE EXPLORER PARTS LIST & COMPONENTS
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
NAME
Rear Frame
Front Frame
Clamps
Clamps Cover x 2
Rear Wheel
Plastic Spacer x 2
Metal Bush x 2
Washer x 2
Bolts x 9 (For shafts No. 9, 10, 11)
These bolts may be inserted into the shafts already.
Clamp Shaft x 6
Rear Wheel Shaft
Steering Handlebar Shaft x 2
Allen Keys Set x 2

5
ASSEMBLY INSTRUCTIONS
1. Rear Wheel Assembly
Place the rear wheel (No. 5) onto the
Rear Frame (No. 1) . Align the wheel
with the hole on the Rear Frame, and
insert the Rear Wheel Shaft (No. 11).
Tighten with bolt (No. 9) using the
Allen Keys (No. 13).
(WARNING: Make sure shaft sets are tightened and not loose)
1
11
5
9
9

6
2. Attach the clamps
Take 2 Clamps (No. 3), and
place each clamp on either
side of the Front Frame (No.
2) tube to align with the
holes provided as shown in
this picture. Use the clamp
shaft (No. 10) and bolt (No.
9) and insert into the second
hole. Only slightly tighten to
hold the clamps in place,
ready for the next step in
assembly.
1 3 52 4
Clamp Hole Numbers
Front Wheel Back
To shorten the frame for smaller riders insert the Clamp
Shafts (No. 10) into clamp holes 2 & 3.
For the longer length frame insert Clamp Shafts (No. 10)
into clamp holes 1 & 2.
9
3
3
10
3
9
3
2
10

7
3. Body Assembly A
Take the Rear Frame (No. 1) and place it between your legs
so that the frame faces forward as in the picture below. Take
the Front Frame (No. 2) with both hands slide the loose tube
clamps (No. 3) onto the rear frame until it fits together
tightly and the holes align.
Use the clamp shaft (No. 10) and bolt (No. 9) and insert into the
4th hole. Only slightly tighten. Do not insert the 5th hole shaft yet,
as this will be done in the next step (4).
21

8
4. Body Assembly B
(WARNING: Make sure shaft sets are tightened and not loose)
Handlebar: Align the fifth open
hole on the clamp with Plastic
Spacer (No. 6), a Washer (No.
8) and with the hole on the
steering handlebar as in the
picture .
Now insert a metal bush (No.
7) into the hole, and then
insert a steering handlebar
shaft (No. 12). Use Allen Key
(No. 13) to fasten the bolt (No.
9) into the end of the steering
handlebar shaft (No. 12). Use
the Clamp shaft (No. 10) and
bolt (No. 9) and insert into the
fourth open hole on the clamp,
and tighten with Allen Key
(No. 13).
10 6
87
12
1
9
4
To Prevent fingers getting into small holes, clip
the Clamp cover (No. 4) over the open hole in
the Clamps (No. 3).

9
Bolts
Shafts

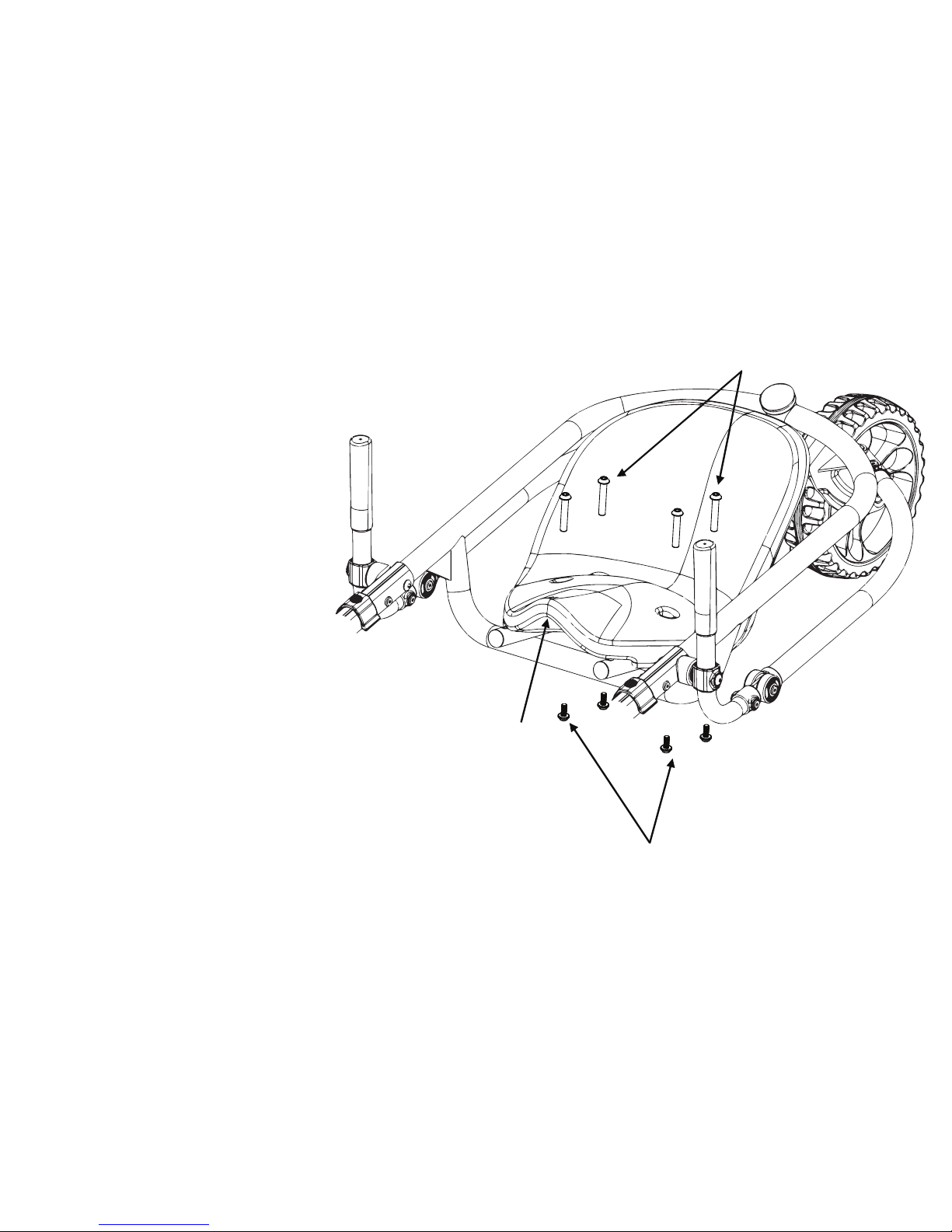

5. To Adjust the Seat
6. To Adjust the Frame
Remove the four shafts and
bolts from the seat using the
set of Allen Keys (No. 12).
Now align the 4 holes on the
Seat with the extra 4 holes
provided on the rear frame
(No. 1) to change the seat
position. Now insert the four
shaft and bolt sets again and
tighten.
Seat
(WARNING: Make sure shaft sets are tightened and not loose)
The Frame size can be adjusted by removing
the first 2 bolts from the Clamps (No. 3) and
moving them to holes 2 & 3 on the Clamps, for
the Short Frame, or holes 1 & 2 for the Long
Frame.
Shortest to longest pedal to seat distances are as follows:
19 inches - Seat Forward, Short Frame
20.8 inches - Seat Forward, Long Frame
21.5 inches - Seat Back, Short Frame
23 inches - Seat Forward, Long Frame

1 0
7. Caring for your Explorer
1. Please clean the wheels regularly after playing. Use a wet cloth to wipe the wheels. Dry the wheels
thoroughly after cleaning.
2. Clean handle and seat regularly.
3. Regularly check to see if all parts are securely fastened.
4. Check that all parts work and are in good condition.
This product is covered by a 90 day
manufacturers warranty which does
not cover normal wear and tear.
90 DAY WARRANTY

Visit
11
CHECK BEFORE RIDING
1. Check that all the bolt and shaft sets are tightened.
2. Check that the steering system is securely fastened and turns smoothly.
3. Check that the wheels and pedal system can spin smoothly and each part is securely xed.
4. Finally after checking the above points, you can now start to ride.
WARNING!
This product must be assembled by an adult. Read the manufacturer’s instructions before using. Keep
the instructions safe for future reference. For children age group 4+ years. Maximum weight 70kgs.
Avoid direct, high impact collisions into walls, sidewalks and other objects.
www.YBIKE.co.za
www.YBIKEUSA.com
CUSTOMER SERVICE
National Sporting Goods
376 Hollywood Ave., Suite 202
Fairfield, NJ 07004
T: 800-242-7476, F: 973-276-8419
[email protected]
