YELLOWRIVER YR-S4001 User manual

LED MINI SPOT MOVING
Model: YR-S4001

Contents
Section 1.Getting Started
Unpacking
Safety Instruction
Section 2. Set Up
Installation
Controlling Board
Machine Connection
Section 3. Troubleshooting
Troubleshooting
Section 4. Reference
Control Menu
DMX Protocol
Specification

本公司有权对此份产品说明书进行修改，恕不另行通知。
Our company reserve right to revise this user manual without notice!
Innovation | Efficiency | Dedication | Harmonious
Section 1. Getting Started
Unpacking
Safety Instruction
Unpacking
1pc Fixture
1pc User Manual
1pc Signal Cable
Thanks for using our MINI range. Carefully unpack the box and check the contents to ensure
that all parts are present and in good conditions. If anything looks as if it has been damaged in
transit, notify the shipper immediately and keep the packing material for inspection. Again,
please save the carton and all packing materials. If a fixture must be returned to manufacturer,
it is important that the fixture be returned in the original manufacturer box and packing.

Safety Instruction
Please
conserve this manual as operation guidance. If you sell this product to other user, please
make sure that they also receive this user manual.
Always make sure that you are connecting to the proper voltage and that the line voltage you
are connecting to is not higher than that stated on the decal or rear panel of the fixture.
The fixture is intended to indoor use only. To prevent risk of fire or shock, do not expose
fixture to rain or moisture. Make sure there are no flammable, explosive or corrosive
materials surrounded in 1.5 meter while operating.
The unit must be installed in a location with adequate ventilation, at least 50CM away from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Do not operate at ambient temperatures higher than 95℉(35℃).
Safe wire should be used to install machine. Bearing of safe wire should be 3 times of the
machine weight. Complimentary signal cable transmits signals to 20 unit fixtures at most
within 20meters. Signal amplifier is a must to connect more fixtures. Sectional area of
complimentary power cable is 1㎡. In daisy chain model, it allows to connect to 4 fixtures at
most.
Always disconnect from the power source before servicing or replacing fuse/lamp and be
sure to replace with same fuse/lamp size and type. Cut off power before moving, repairing
and cleaning the machine.
Secure fixture using a safety chain and carrying handles. Never carry the fixture by its cord.
In case of failure or misfunction occurred, stop using the unit immediately.
Repairs carried out by unskilled people can lead to damage or malfunction. Buy the same
spare parts/components from manufacturer directly.
To avoid electric shock, all fixtures must be connected to circuits with a suitable ground.
Make sure the power cord is never crimped or damaged. Do not power on and power off the
fixture in a short time. For your safety, do not touch fixture when running.
When use DMX controller, please make sure that there is no interference sources(e.g.
intercom, high frequency radio waves and radiation source)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service, please contact
your local distribution or after-sale service center.
For your safety，please read this user manual carefully before
operation. The machine should be operated by qualified engineer！

Specification:
Voltage：AC110V-240V
Frequency：50/60Hz
Rated Power：80W
LED: 40W white
Strobe: 1-10 times / second
PAN: 540° (Electronic correction)
TILT: 220° (Electronic correction)
GOBO Wheel: 9 fixed gobo+ white beam, two ways flowage effect, gobo shaking,
electronic position
Color wheel: 7 color + white, rainbow effect, electronic position
Beam angle: 9°
Control：DMX512
Channel: 11 channels
Control Mode：DMX/sound active/auto/ master-slave/manual
Level of Protection: IP20
Stock: Clean and Dry place
Running Temp.: 0°C~35°C
Weight: 3.5kg
Size: 201.4X196X317.4MM
Section 2. Set Up
Installation
Controlling Board
Machine Connection
Installation
This machine should be mounted through the screw holes of truss. Safety wire is a must to
fix fixture well. Make sure truss and safety wire have strong load capacity to bear 3 times
weight than fixture at least. This machine should be installed by qualified technician.


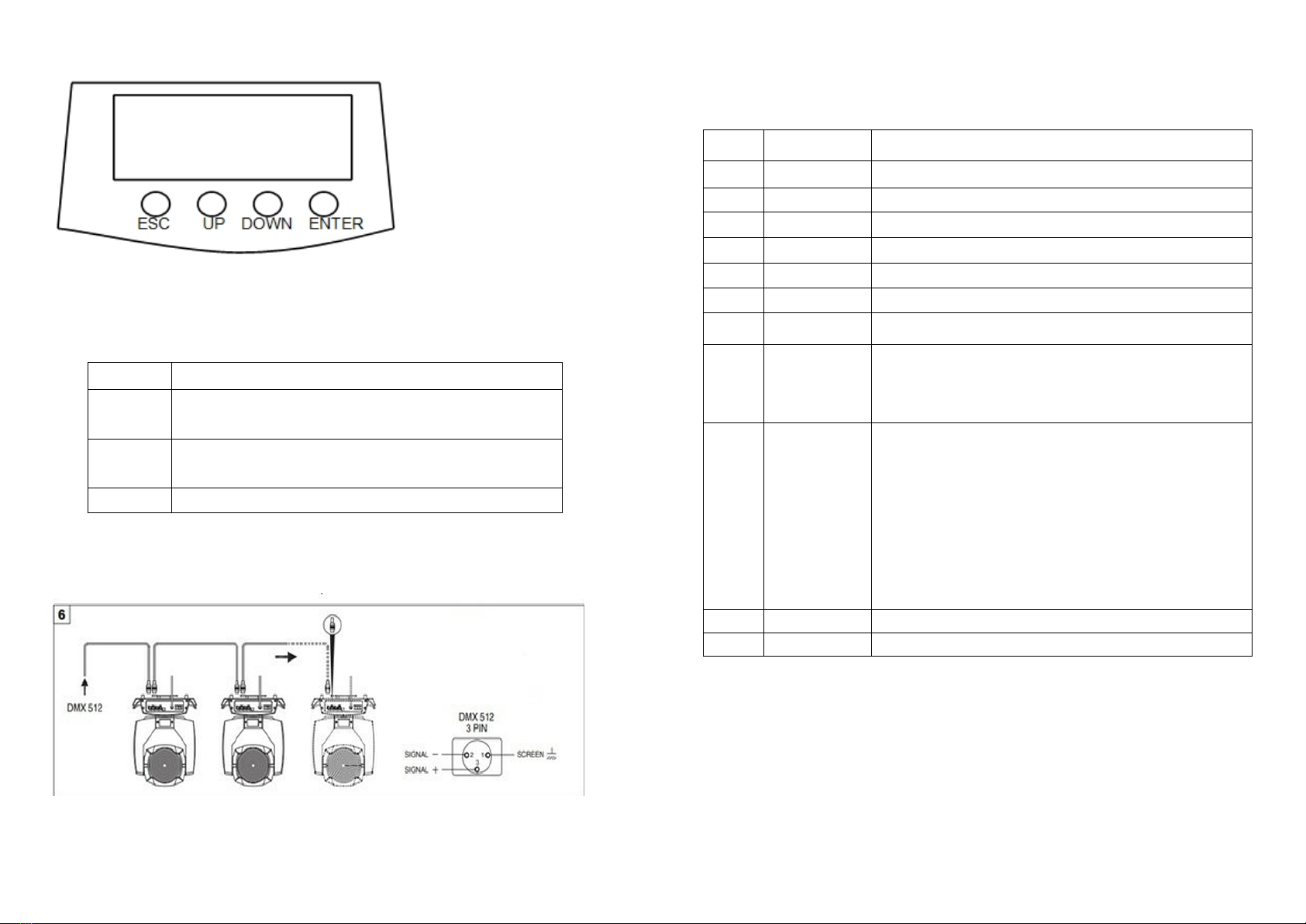

Controlling Board
1. Display
LCD Display menu and selected function.
Button
ESC
switch menu function
UP
On function: page up
On numerical value: increase value
DOWN
On function: page down
On numerical value: reduce value
ENTER
Settle selected function and value
Machine Connection
DMX CHART
CH
Function
Description
CH1
X
0-255 0-540°
CH2
Y
0-255 0-220°
CH3
X 16bit
0-255
CH4
Y 16bit
0-255
CH5
XY speed
0-255 from fast to slow
CH6
dimmer
0-255 from dark to bright
CH7
strobe
0-255 strobe from slow to fast
CH8
color
0-19 white，20-39 pink，40-59 green, 60-79
blue, 80-99 yellow, 100-119 purple, 120-139 blue,
140-159 orange, 160-207 rainbow effect with
clockwise run, 208-255 rainbow effect with
anti-clockwise run
CH9
gobo
0-9 beam，10-19 gobo 1，20-29 gobo 2，30-39
gobo 3，40-49 gobo 4，50-59 gobo 5, 60-69 gobo
6，70-79 gobo 7，80-89 gobo 8，90-99 gobo 9；
100-109 gobo 9 shaking，110-119gobo 8 shaking，
120-129 gobo 7 shaking，130-139gobo 6 shaking，
140-149 gobo 5 shaking，150-159 gobo 4shaking，
160-169 gobo 3 shaking，170-179 gobo 2
shaking，180-189 gobo 1 shaking；
190-222 gobo wheel in flowage run with clockwise
direction from slow to fast, 223-255 gobo wheel in
flowage run with anti-clockwise direction from slow
to fast
CH10
Auto/Sound
1-128 Auto, 129-255 Sound
CH11
reset
0-254 no work，255 reset （wait for 3 seconds）

Remarks: enter into each menu, please always remember to press ENTER to
save settings. Press ESC button is to go back previous menu.

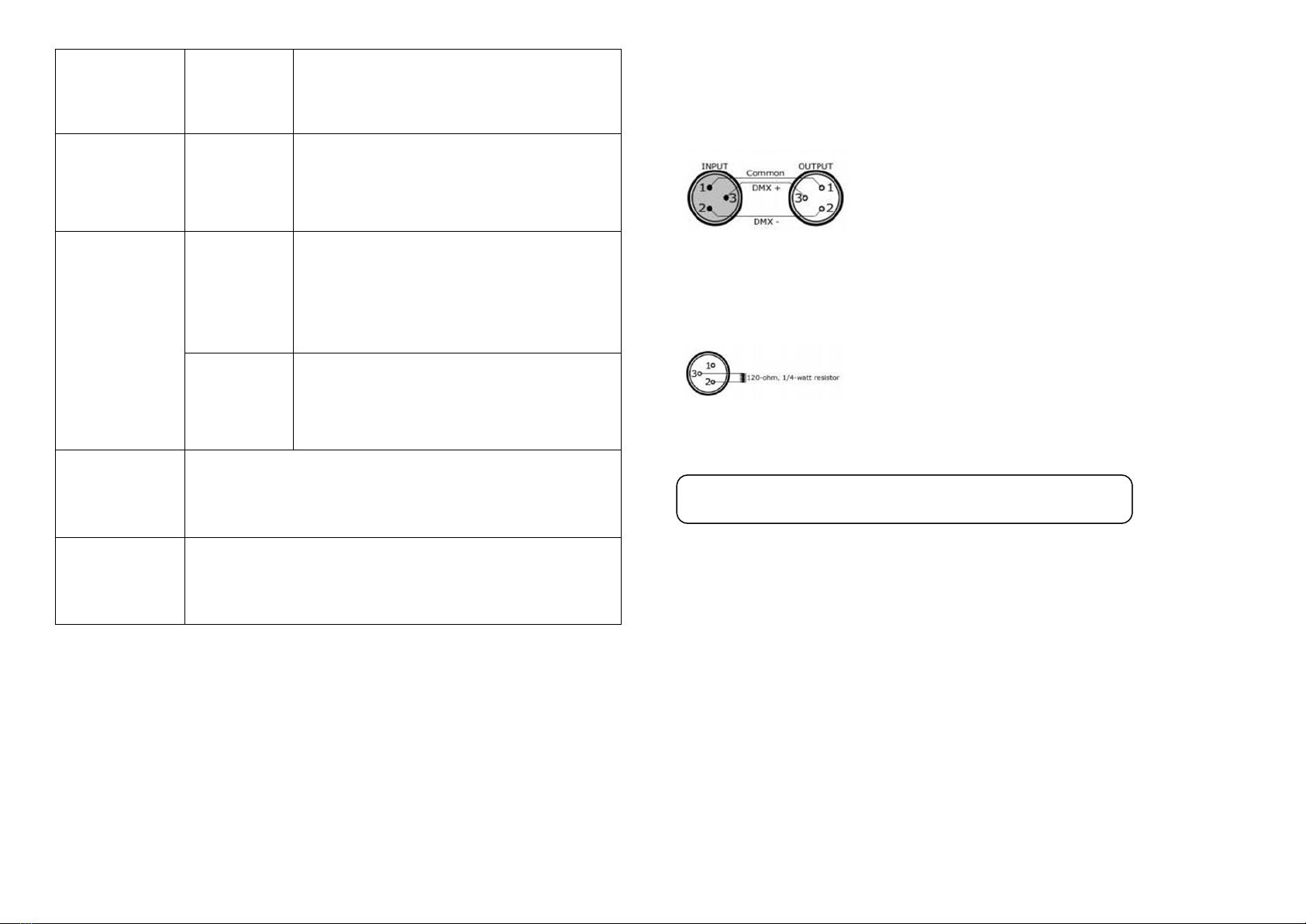

Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the
other end.
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal errors, and therefore best
practices include use of a terminator in all circumstances. If you are experiencing problems
with erratic fixture behavior, especially over long signal cable runs, a terminator may help
improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt
resistor, and wire it between pins 2&3 of the last fixture. They are also readily available from
specialty retailers.
Master-Slave control model：
Set up one fixture as Master fixture(triggering),other fixtures as slave fixtures(receiving trigger
signals).Set up all fixtures same address value or following DMX controller
performance(Attention: all fixtures use the same DMX channel-11)
Option
Gobo:xxx
Gobo wheel reset finer adjust setting: UP/DOWN
adjust value 0-255, press enter to save.
MENU4:
Option
(PRESS ENTER)
Option
Sound:xxx
Sound active sensitivity adjust setting:
UP/DOWN adjust value 0-255, press
ENTER to save. value 0 is minimum
sensitivity, 255 is maximum
PassWord
UnLock
Password unlock: press ENTER,
UP/DOWN to choose three-digit-password
(default password is 988), press ENTER to
unlock password. power on after power
off, no need password.
MENU5:
PassWord
(PRESS ENTER)
PassWord
Lock
Password lock: press ENTER, UP/DOWN
to choose three-digit-password (lock password is
988), press ENTER to lock password. power
on after power off, need password.
MENU6:
Re- Def-
(PRESS ENTER)
Restore system default: press ENTER then fixture restore
factory default and reset.
MENU7:
Reset
(PRESS ENTER)
Fixture reset: press ENTER then fixture reset.
Maximum 20 PCS fixtures connected by Daisy chain connection.

Section 3. Troubleshooting Section 4. Reference
Control Menu
DMX Protocol
Specification
Control Menu
MENU1:
Dmx:11CH
(PRESS ENTER)
Dmx:11CH
Add:xxx
DMX512: Press UP/DOWN to set up 1-512 add value,
always remember press ENTER to save your settings.
Test
Auto
AUTO: Press ENTER to active auto running and to
save the settings.
MENU2:
Test
(PRESS ENTER)
Test
Sound
SOUND: Press ENTER to active auto running and to
save the settings.
MENU3:
Manual
(PRESS ENTER)
Manual
CH01：xxx
…
Manual
CH11:xxx
Manual: UP/ DOWN adjust value 0-255, press ENTER
to save. (CH01-CH11 stands for 11 channels, SAME
function as DMX console.)
Option
Pan:Yes
X/Pan clockwise and anti-clockwise setting: UP/DOWN
to choose Yes/No, press ENTER to choose and save.
Choose Yes than X anti-clockwise running.
Option
Tilt:Yes
Y/Tilt clockwise and anti-clockwise setting: UP/DOWN to
choose Yes/No, press ENTER to choose and save.
Choose Yes than Y anti-clockwise running.
Option
YSet:xxx
Y/Tilt reset fine setting: UP/DOWN to adjust 0-255,
press ENTER to save.
MENU4:
Option
(PRESS ENTER)
Option
Color:xxx
Color wheel reset finer adjust setting: UP/DOWN adjust
value 0-255, press enter to save.
Probable cause(s)
Remedy
No power to fixture
Check power cables
Primary fuse blown
Replace fuse
No response from
fixture when power
is applies
Secondary fuse
blown
Replace fuse
Controller not
connected
Connect controller
Incorrect
addressing of the
fixtures
Check address setting on fixture and controller
Bad data link
connection
Inspect cables and correct poor connections
and/or broken cables.
Conflict between
tracking and vector
control
Eliminate scene cross-fade on controller
Data link not
terminated
Insert termination plug in output of last fixture
Fixture resets but
does not respond
correctly to
controller(DMX
mode operation)
Defective fixture or
2 devices
transmitting on link
Bypass fixtures one at a time until normal
operation is regained:unplug both connectors
and connect them directly together
Colors cannot be
mixed
Random color
mixing is on
Turn off random color mixing
Fixture does not
reset correctly
Electronic or
mechanical failure
Contact service technician
Lamp missing or
blown
Disconnect fixture and replace lamp
No light, lamp cuts
out intermittently,or
burns out too
quickly
Fixture or lamp is
too hot
Allow fixture to cool. If problem persists,contact
service technician
