Yeswelder TIG-205DS User manual

TIG-205DS
TIG/STICK WELDING MACHINE
Jan, 2022

SPECIFICATION ...............................................................................................................01
CONTROLS .......................................................................................................................02
OPERATING INSTRUCTIONS...........................................................................................04
WELDING TIPS .................................................................................................................09
MAINTENANCE AND SERVICE........................................................................................13
WARRANTY ......................................................................................................................14

Standard Voltage/Frequency
220V±10% 50/60Hz
110V±10% 50/60Hz
-01-
INPUT-SINGLEPHASEONLY
Input Current
I1 max=26A, I1 leff=20A
I1 max=45A, I1 leff=34.8A
RATEDOUTPUT –DCONLY
VoltsatRatedCurrent
18.2V
16.3V
26.2V
24.8V
16.4V
14.9V
25.2V
24V
Current
205A
158A
155A
120A
160A
124A
130A
100A
DutyCycle
60%
100%
60%
100%
60%
100%
60%
100%
Mode
GTAW
SMAW
GTAW
SMAW
Voltage
220V
110V
OUTPUT RANGE
Mode
GTAW
SMAW
GTAW
SMAW
Voltage WeldingVoltageRange
10.6V~18.2V
20.6V~26.2V
10.6V~16.2V
20.6V~25.2V
WeldingCurrentRange
15A~205A
15A~155A
15A~160A
15A~130A
OpenCircuitVoltage
75V
110V
220V
PHYSICALDIMENSIONS
Machine
TIG-205DS
Length
15.0 in.
Width
6.3 in.
Height
10.2 in.
Weight
23 lbs
TEMPERATURERANGE
OperatingTemperatureRange
StorageTemperatureRange
-10°C~+40°C(14°F~104°F)
-25°C~+55°C(-13°F~131°F)

Digital Display
Electrode Holder
Connection
Current Output Knob
Overload/Overheat Light
Power Supply Light
Ground Cable
Connection
Grounding Clamp
Connection
Electrode Holder
Adapter
Brush/Hammer
Foot Pedal
Power Input
Gas Inlet
Cooling Fan
Stick/TIG Switch
TIG Control/Foot Pedal
Connection
TIG Torch Connection
Power Switch
-02-
Gas Hose
CONTROLS
TIG Torch
Consumables
TIG Torch
Grounding

Power Switch: Powers the Welder. When“ON”, the Power Supply Light will light up and the Cooling Fan will turn on.
Stick/TIG Switch: Switch to top for TIG welding, to bottom for Stick welding.
Current Output Knob: Sets the welding amperage.
Digital Display: Displays the welding settings or current output.
Ground Cable Connection: Connects Grounding Clamp to Welder.
TIG Control/Foot Pedal Connection: Connects Torch Control Cable or Foot Pedal, depending on which one will be
used.
Electrode Holder Connection: Connect Electrode holder Cable To Welder
TIG Torch Connection: Connects either TIG Torch to Welder.
Gas Inlet: Attach argon cylinder via gas regulator, flow gauge, and hose (all not included) here.
Foot Pedal: Press pedal to turns arc on and off.
-03-

-04-
OPERATING INSTRUCTIONS

-05-

-06-

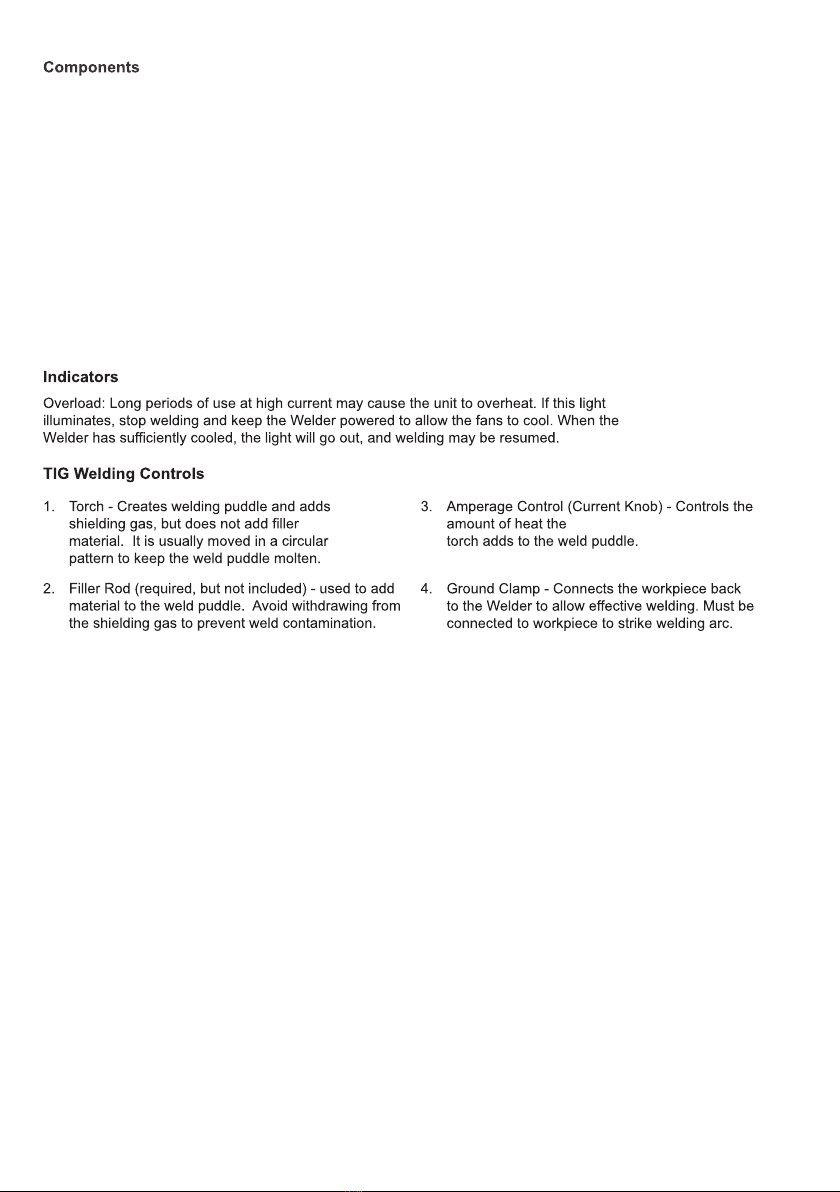

-07-

-08-

-09-
WELDING TIPS

-10-

-11-

-12-

-13-

-14-
Effective January 1, 2020
