YISEELE YX-700 User manual

【User Manual】
Model:YX-700
Alarm System

Contents
Preface ...........................................................................................................................................2
1. Parts ...........................................................................................................................................4
1.1 HUB .....................................................................................................................................4
1.2 Remote Control ................................................................................................................4
1.3 oor/Window etector .....................................................................................................5
2. Connect to the Wi-Fi ................................................................................................................6
2.1 The first type: Bluetooth Connection ...........................................................................6
2.2 The second type: Hotspot connection method .........................................................6
3. Installation steps .......................................................................................................................9
4. Add ...........................................................................................................................................12
4.1 Add etectors and Remote control ...........................................................................12
4.2 Add Alexa and Google Home .........................................................................12
5. APP menu explanation ........................................................................................13
6. Maintenance and Troubleshooting .......................................................................14
7. Appendix of Technical Parameters .....................................................................................16
7.1 Hub .....................................................................................................................................16
7.2 Remote ..............................................................................................................................16
7.3 oor/Window etector ...................................................................................................16

Preface:
First of all, thank you for choosing our wireless intelligent security burglar alarm
system!
This wireless intelligent security burglar alarm system will provide round-the-
clock protection for your house and property all year.
The reliable wireless electronic burglar alarm uses the most advanced Israel digital
security technology with a low false alarm rate. Although it is a simple design, it is
powerful: fireproofing, burglary prevention, anti-gas leakage, indoor robbery
prevention, SOS for sudden illness, and other functions. At the same time, wired or
wireless detectors are optional with user-friendly control modes, including anti-
interference, anti-false alarm, or anti-missing alarm. It has been widely used for
families, shops, convenience stores, financial offices, villas, residential quarters, and
urban networking alarms.
To protect your safety and enable the alarm system to achieve the best results,
it is recommended that you read the user manual in detail before installation and
use. If you need further consultation and services in the installation or operation
process, please contact us through our technical service email.
Note: To ensure that you can enjoy the perfect “Three Guarantees” after-sales
service, don’t open the cover of the alarm system, and do not repair or change it
yourself. If you do our company won’t provide free warranty services for any
unauthorized tampering with the products. All losses and adverse consequences
shall be borne by the user.
Please take good care of the manual so you can refer to it later.

1. Parts：

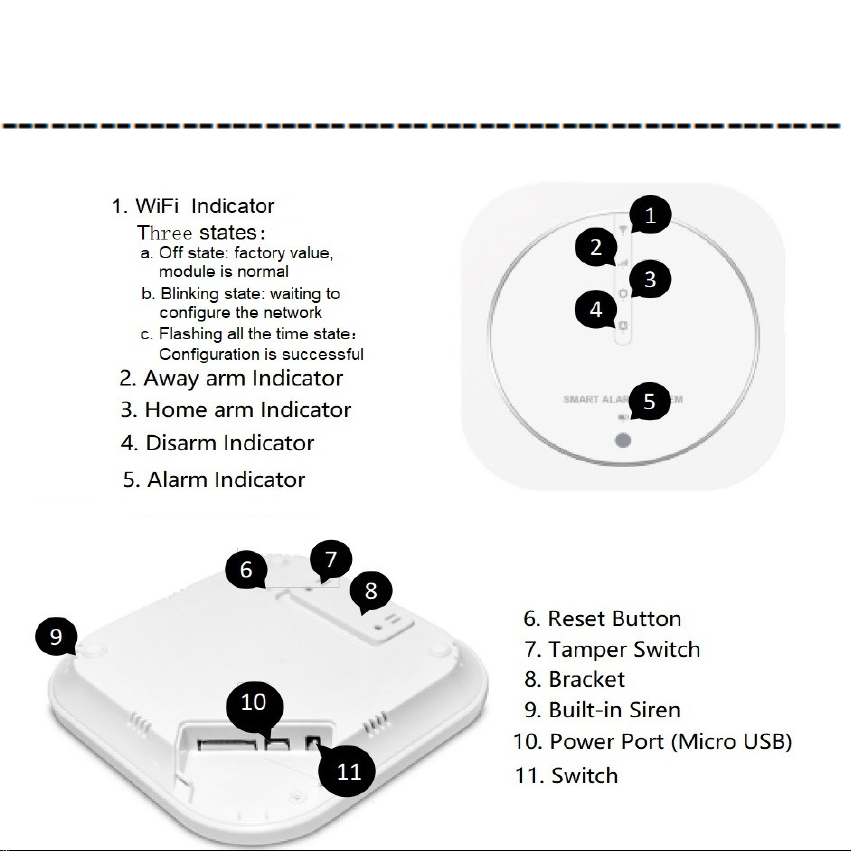

1.1 HUB:

1.2 Remote Control：
1.3 Door/Window Detector:

2. Connect to the Wi-Fi (Choose one of the following methods):
2.1 T e first type: Bluetoot Connection （You can search "YISEELE Smart
Alarm System (Englis ) - How to connect Wi-Fi to APP" on YouTube to view the
connection video).
Step 1: Adjust the Wi-Fi indicator light to blinking state;
(Method: press and hold the reset button until the
HUB has a "prompt tone" and release it).

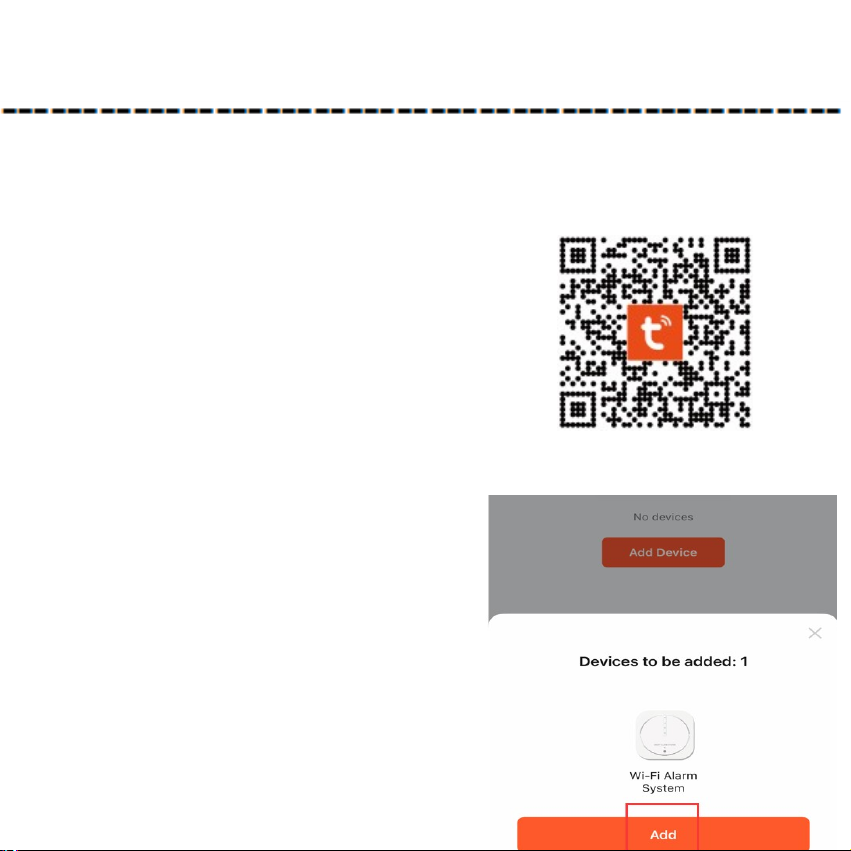

Step 2: ownload the “Tuya Smart” APP
(Scan the QR code on the right, or search
for "Tuya Smart" in the app store),
register an account, and enter the main interface.
Step 3: Turn on the "Bluetooth" function
of the Mobile Phone, enter the main
interface of the APP, a dialog box will
pop up immediately (as shown
in the right picture), click " Add ".
Step 4: Select 2.4G Wi-Fi,
enter the user password,
click " Next ",

and wait for the connection to succeed.
2.2 T e second type: Hotspot connection met od （When your mobile phone
does not have Bluetooth function, or the connection interface cannot automatically
pop up, please use this method）.
Step 1: Adjust the Wi-Fi indicator light to blinking (Method: Press and hold the reset
button until the HUB displays a "prompt tone" and release it).
Step 2: ownload the " Tuya Smart " APP (Scan the QR code above, or search for
" Tuya Smart " in the app store), register an account, and enter the main interface.
Step 3: Click " + " in the upper right corner,click ”Add evice” → Sensors → Alarm
(Wi-Fi) →select 2.4G Wi-Fi, and enter the password, click "Next"→click "Next",
select "Blink Slowly" →click "Go to Connect"→Select SmartLife-XXXX→Click "Tuya
Smart" in the upper right corner.

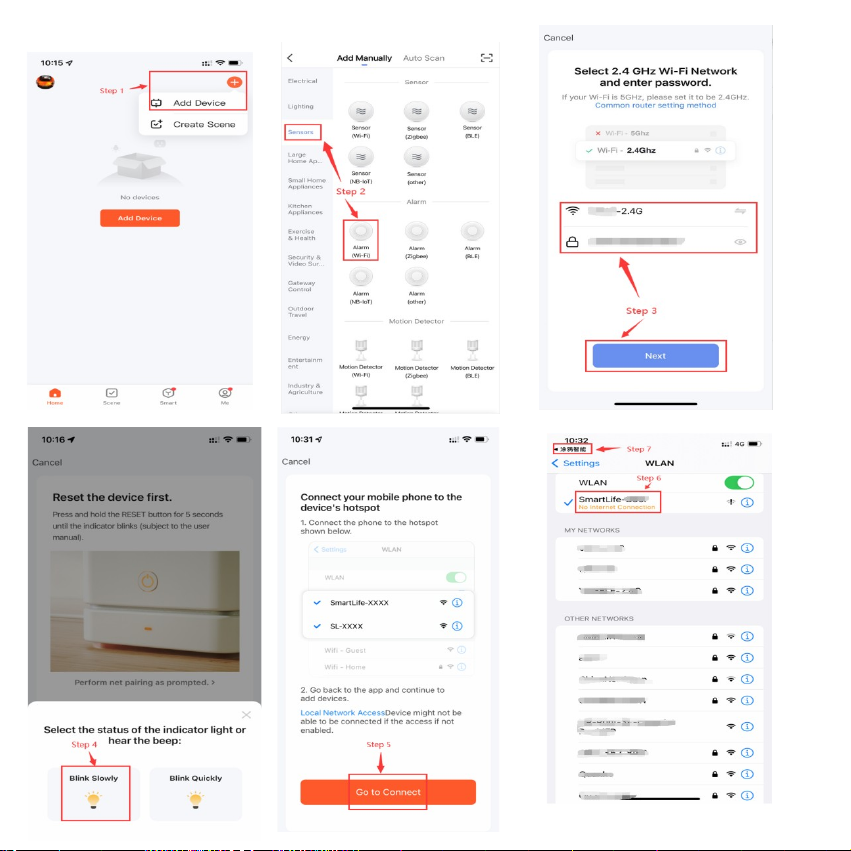

Please refer to t e diagram below for specific steps:

3. Installation steps：
Step 1: Plug in t e power, and insert t e wired siren and turn on t e
switc （YX-700 is not equipped with wired siren, need to purchase separately）;
Step 2: Refer to “Connect to t e Wi-Fi”.
Connect the alarm system to Wi-Fi. After the
connection is successful, the Wi-Fi Indicator is always on.

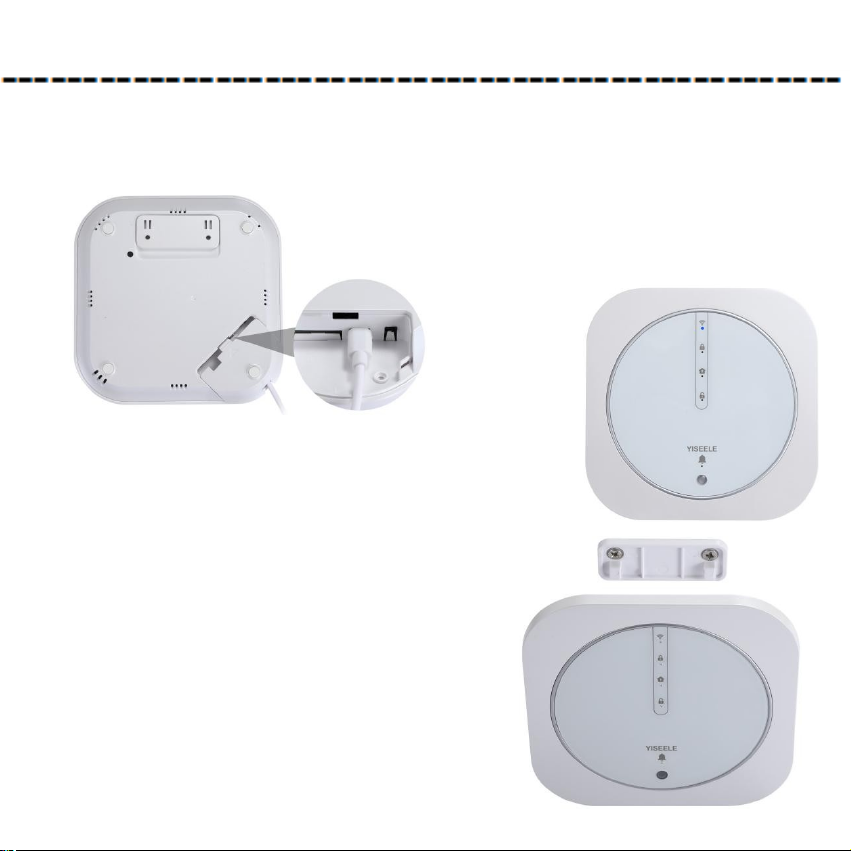

Step 3: Install t e HUB.
1) . Take off the mounting bracket on the
back of the HUB;
2) . Screw the mounting bracket to the
wall with screws;
3) . Hang the HUB on the mounting bracket
and plug the power adapter into the socket.
Step 4: Install t e Door/Window detector .

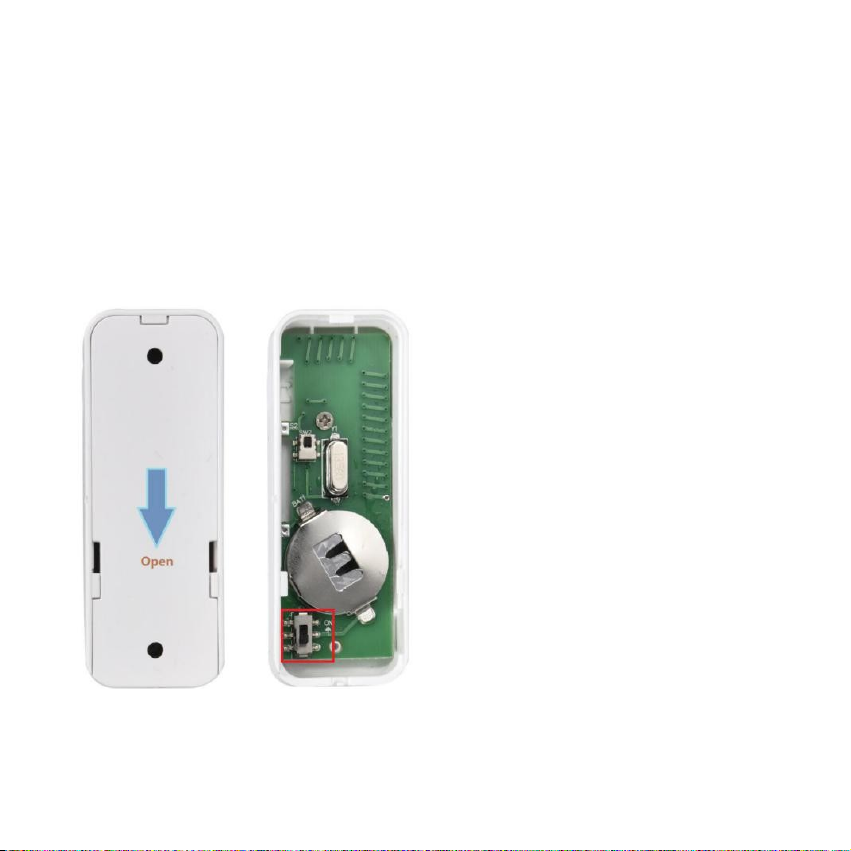

1) . Open the back of the door/window detector, and then turn on the switch on the
HUB (switch to the "ON");
2) . Paste the double-side adhesive tape to the wireless transmitter and magnetic
block.
3) . According to the mounting diagram, mount the door/window detector on the
position of the door, window, counter, safe box or drawer, etc.
When the door/window detector is
triggered, the indicator light flashes
quickly: the battery of the door/window
detector is low and needs to be replaced.
Steps to replace the battery:
1. Unscrew the screw and take out the
circuit board;
2. Replace with a new battery (the
door/window detector uses a
CR2032 battery)

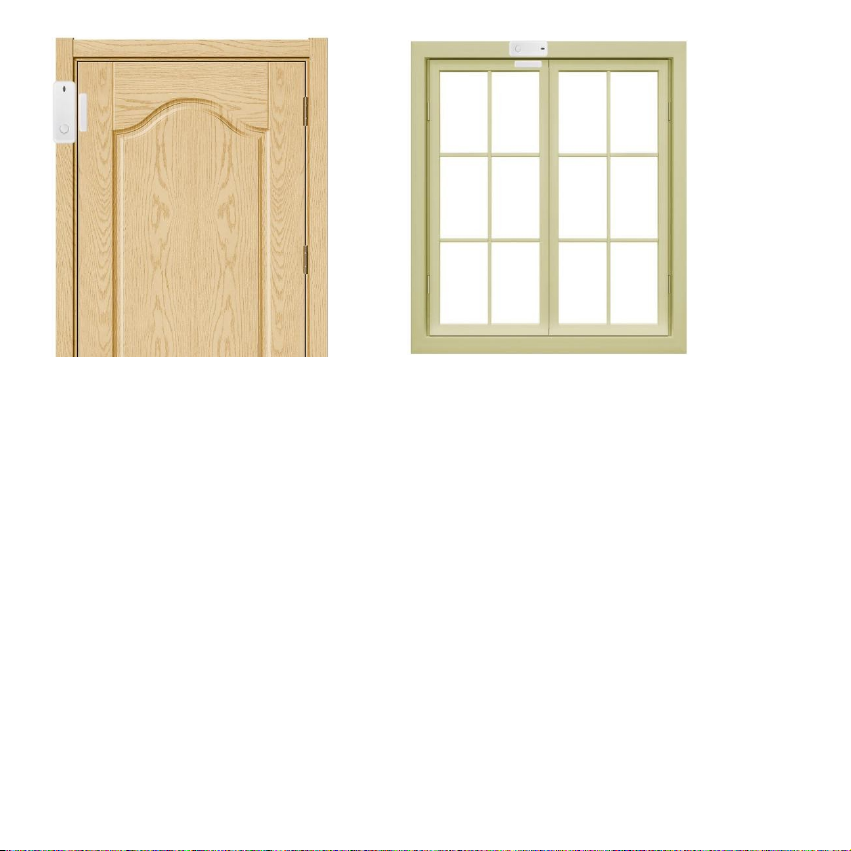

Mounting diagram:

The wireless transmitter is mounted on
the door frame and the magnetic block
is mounted on the door. In this way,
when the user opens the door, the door
will separate them and will transmit the
alarm signal.
The wireless transmitter is
mounted on the window frame and
the magnetic block is mounted on
the window. In this way, when the
user opens the window, the
window will separate them and will
transmit the alarm signal.
The installation method should conform to the working principles. It is suggested that the
position should be tested to confirm that it is correct before mounting it. Not only does the door
magnet fit the door and window, but also fits a counter, safe box, and drawer, etc. The user should
mount the transmitter somewhere stable as much as possible (door frame and window frame) and
mount the magnet patch on the movable part (the door and window) to reduce the chance of it
falling off or a shock to the transmitter. The maximum distance is 15MM between the wireless
transmitter and the magnetic block. Over this distance, it with either be an alarm or invalid.

4. Add：
4.1 Add Detector and Remote control:
Enter the control interface of the
alarm system, select "Accessories",
and click the upper right corner "+",
enter the countdown and then trigger
the detector or the remote control
(the indicator light is on, indicating
that the trigger is successful),
the addition is successful.
Note: T e alarm system automatically
distinguis es t e detector and t e
remote control, and t ere is no need to distinguis t e interface w en adding.
4.2 Add Alexa and Google Home：
Enter "Tuya Smart" APP, click "Me",
and select the service you need in
"Third-Party Voice Services".

5. APP menu explanation：
First-level
Menu
Second-level
Menu
T ree-level
menu
Features
Accessories Including detectors, remote controls and other
accessories are edited in this category.
etector
etectors include oor/window detector, Motion
etectors, smoke etectors, water etectors,
emergency buttons, etc. One alarm system can
add up to 100 etectors.
Accessory
name
Customize the name of the etector.
Zone mode
The etector's defense zone attributes can be
Ordinary, Home, 24 Hours; for specific functions,
please refer to the "Remote Control" above.
Equipment
Type
The alarm system can automatically identify the
detector of this brand (detectors of other brands
need to be selected manually).
Remote
control
Remote control interface: An alarm system can
be configured with up to 10 remote controls.
Name Customize the name of the remote control.
Settings Function setting interface of alarm system.
Exit delay
When the system is armed, the HUB starts to
count down, and any etector that is triggered
during the countdown will not trigger an alarm.
When the countdown is completed, the system
starts to arm itself.
Scheduled
arm/disarm
The system automatically arm or disarm within
the set time (multiple groups can be set).
Alarm
duration
When the alarm system sounds an alarm, then
set the "Alarm duration" to control the ringing
time. The factory value is 3 minutes.

Alarm
indicator
Turn on/off the alarm light on the panel of the
HUB. After it is turned on, when the alarm system
sounds an alarm, the red indicator light on the
panel of the HUB will flash.
Arm/disarm
notifications
Turn on/off push messages for arming/disarming
the alarm system. After closing, there will be no
APP push message for the arming and disarming
of the alarm system, but the HUB of the alarm
system will have voice prompts for
arming/disarming.
etector
event
notifications
Turn on/off the push messages of all etectors.
After turning off, the etector will be triggered
and there will be no APP push messages, but the
HUB of the alarm system will have an alarm
sound.
Entry delay
After the detector is triggered, the system starts
to count down. uring the countdown, the HUB
will not sound an alarm; when the countdown is
completed, the siren starts to sound an alarm.
Ticking and
voice
prompts
Turn on/off the voice and countdown sound of
the alarm system. When it turned off, the alarm
system will not emit any sound (except for the
alarm sound).
Alarm
sound
volume
Set the volume of the alarm sound: You can set
three levels: High, Low, Mute. When set to Mute,
there will be no alarm sound.
Factory reset Restore factory settings: All detectors and
remote controls will be deleted.
Hub language
The voice switch of the alarm system can switch
different national languages according to
different countries. Support 11 languages.
Virtual
password
Only used for Google Home; when the alarm
system is disarmed, Google Home will ask for
this password.

6. Maintenance and Troubleshooting：
Keep this product and accessories out of children's reach.
Keep the product and accessories dry. Rainwater, moisture and liquids are
likely to contain minerals that will corrode electronic circuits.
o not use or store the system in dusty or dirty places, other wise it may
damage the electronic components.
o not expose the system to high temperature. High temperatures can shorten
the life of electronic components, damage batteries, and cause melting
deformation of plastic parts.
o not store the system in cold areas. Otherwise, when the temperature of the
alarm system rises to the normal level, moisture appears inside, damaging
PCB.
The hub doesn't respond to APP operation.
a). Check whether the local network is working.
b). Make sure the smart phone is connected to internet.
Remote control doesn't work.
a). Check if the remote control has been paired to the smart hub.
b). The distance between the smart hub and remote control is too far away.
The hub cannot respond to detector.
a). Check whether the system is armed; b). Check if the detector has been paired
to the hub; c). Check if the detector is far away from the hub.
Fail to connect the hub to the router.
a). Make sure the hub is under AP mode and you smart phone is connected to
the hub during Wi-Fi setting.

b).Reset the hub and try it again.
7. Appendix of Technical Parameters:
7.1 Hub:
Power Supply Backup Battery Consumption Siren Output
Micro USB 110/220VAC
to 5V, 1000mA
3.7V, 500mAh Rechar-
geable Battery
<55mA@normal <500mA
Radio Frequency WiFi Standard Operation
Temperatur
e
Alarm loudness
433Mhz 2.4GHz 0~55℃100 B
7.2 Remote：
Power Supply Standby Current Alarm Current Radio Frequency
C 3V (CR2025 Lithium
Battery x1)
<5uA <15mA 433Mhz
Transmitting Distance Operation Temperature
<80m (Open Area and No Interference) 0~55℃
7.3 Door/Window detector:
Power Supply Standby Current Alarm Current Radio Frequency
C 3V (CR2032 Lithium
Battery x1)
<8uA <15mA 433Mhz
Transmitting Distance Operation Temperature
<80m (Open Area and No Interference) 0~55℃

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:(1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Any Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between
the equipment and receiver.
- Connect the equipment into an
outlet on a circuit different from that to
which the receiver is connected.
FCC Warning

- Consult the dealer or an
experienced radio/TV technician for
help.
FCC RF exposure statement:
The equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This
equipment should be installed and
operated with minimum distance
between 20cm the radiator your body.
