YitaHome RS-U19001 User manual

ASSEMBLY INSTRUCTIONS
ANS Z21.97-2017·CSA 2.41-2017
Outdoor Decorative Gas Appliances
1.Follow the installation instructions. Please confirm all accessories are present before installation.
2.Do not fully tighten the screws at first. Fully tighten screws until all pieces are correctly assembled.
3.If you encounter any problems during installation, please contact our customer service.
RISHENG
RS-U19001

Verify that all parts are included with your gas fire pit BEFORE you begin assembling by
checking the parts and hardware list. For your convenience, some parts may be pre-
assembled or attached to heater components.
Leave installed hardware HALF-TIGHTENED on the gas fire pit during assembly. Tighten
all installed hardware until the unit is completely assembled.
Keep and store this owner’s manual for future reference - It contains important
instructions
and procedures for safety and maintenance.
• Warning and Caution.............................................................................3-6
•Lighting Operation. ...............................................................................7-8
•Maintenance and Storage. ..................................................................9-10
•Trouble Shooting...................................................................................11

Installer: Leave the manual with
the appliance.
Consumer: Please keep this
manual for future
reference.
IF YOU SMELL GAS:
·Shut off gas to the app liance.
· Extinguish any open flame.
· If odor continues,keep away from
the appliance and immediately call
your gas supplier or fire department.
Never leave a fire pit unattended
when it is hot or in use.
Keep it out of reach of children.
Do not try to light this appliance
without reading the "LIGHTING"
instructions section of this manual.
Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance. Any LP cylinder
unrelated to use must not be
stored in the vicinity of this or any
other appliance. If the information
in this manual is not followed
exactly, a fire or explosion may
result in property damage,
personal injury or death.
LIQUEFIED PROPANE GAS APPLIANCES,
AND THE PRODUCTS OF COMBUSTIONOF
SUCH FUELS, CAN EXPOSE YOU TO
CHEMICALS INCLUDING BENZENE, WHICH
IS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS OR
OTHER REPRODUCTIVE
HARM. For more information go to:
www.P65Warnings.ca.gov.

You must prepare propane gas and a propane cylinder. Please use a standard 20 lbs
propane cylinder only.
Use this appliance only with a propane vapor withdrawal supply system. See Chapter 5 of
the Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA 58. Your
local library or fire department generally have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National
Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked
by your cylinder supplier. Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S.
Department of Transportation (D.O.T) Specifications for LP-Gas Cylinders,or the standard
for Cylinders,Spheres and Tubes for Transportation of Dangerous Good and Commission,
CAN/CSA -8339,as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device
compatible with the connection to the appliance.
The cylinder used must include a collar to protect
the cylinder valve.
The LP-gas supply cylinder must be provided
with a listed overfill protection device (OPD).
Do not store a spare LP Gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
This appliance is designed to use a CGA
No. 791 QCC connection.
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use.
Other types of caps or plugs may result in
leakage of propane.
Note: Gas supply pressure: 25 to 250 PSl. Standard 20 lbs tank

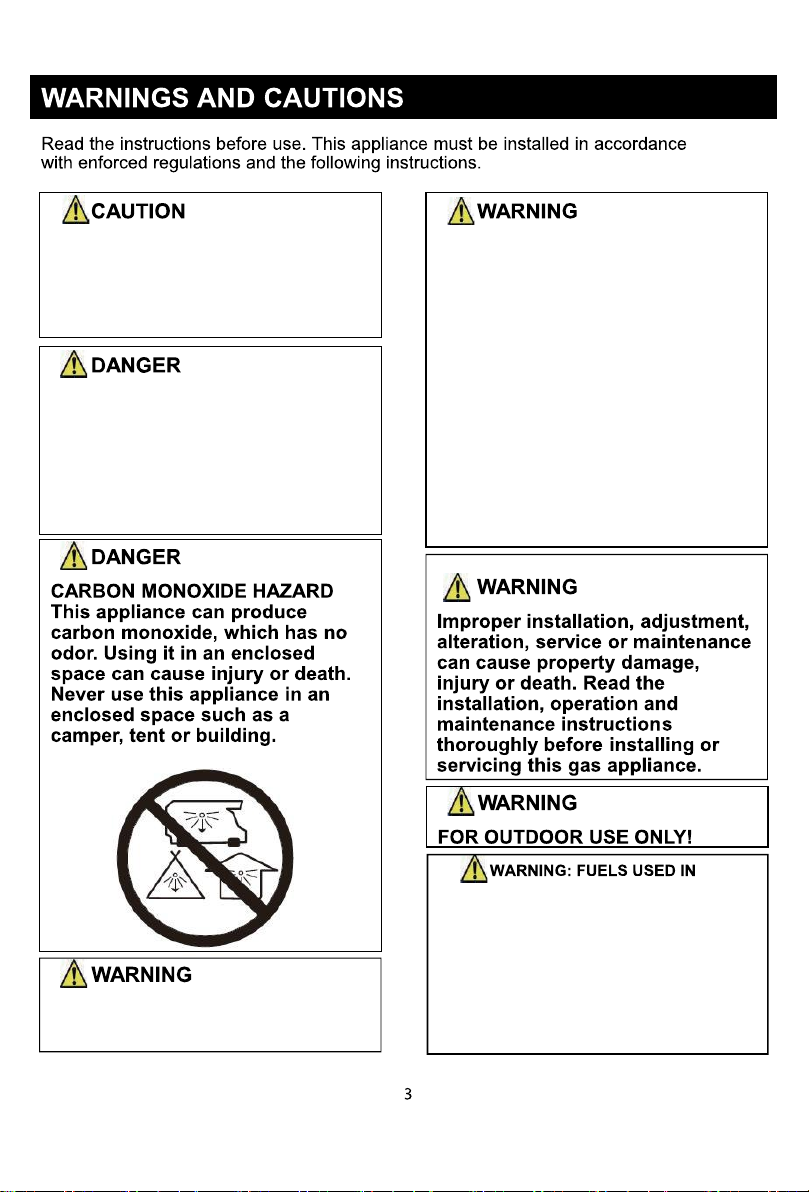

PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
The appliance is not for use with solid fuels.
The installation must conform with local
codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI
Z223. 1/ NFPA 54, NFPA58 Natural Gas
and Propane Installation Code,
CSA B149.1, or Propane Storage and
Handling CODE, B149.2.
The appliance, when installed, must be
electrically grounded in accordance with local
codes or, in the absence of local codes, with
the National Electrical Code, ANSI/ NFPA 70,
or the Canadian Electrical Code, CSA C22.1.
Before use, check whether damaged parts
exist or not, such as hoses, regulators, pilot,
or
burner.
Inspect the fuel supply connection for signs
of leakage (including the hose for LP
models) before each use of the appliance.
All leak tests should be done with a soapy
solution. NEVER USE AN OPEN FLAME TO
CHECK LEAKAGE.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully
supervised when they are around the
appliance.
Clothing or other flammable materials
should not be hung, or placed on or near
the appliance.
Any guard or other protective device
removed for servicing the appliance
must be replaced prior to operating the
appliance.
Installation and repair should be done
by a qualified service person. The
appliance should be inspected before
use and at least annually by a qualified
service person.
More frequent cleaning may be required
when necessary. It is imperative that
control compartment, burners, and
circulating air passageways of the
appliance be kept clean.
Keep the appliance area clean with no
combustible materials, gasoline and
other flammable vapors and liquids.
DO NOT OBSTRUCT the flow of
combustion and ventilation air.
Keep the ventilation opening(s) of
the cylinder enclosure clean with no
debris.
The appliance shall be used only in a
well-ventilated space and shall not be
used in a building, garage or any
other enclosed areas.
When the appliance is installed in
an enclosed area, please ensure
there is no overhead cover.
When the appliance is installed in an
area with an overhead cover, please
ensure the two walls keep parallel or
perpendicular to keep the area airy.

LOW
OFF
HIGH

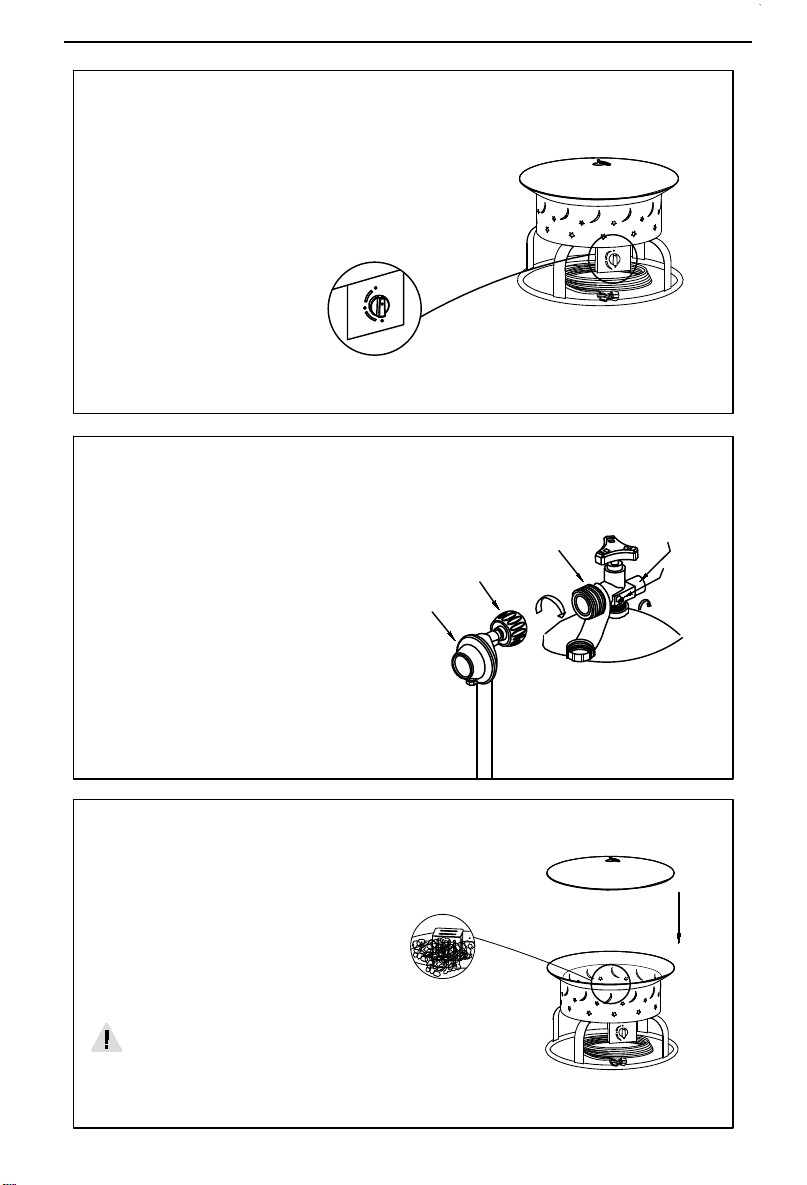

Assembly instructions
1. Check that the control knobfor the gas supply system
is turned to the "OFF" position before starting any
assembly.
3. Pour the box of lava rocks to the firebowl.The lid
must be removed when the burner is in operation. Wait
until the unit cools completely before placing the lid .
CAUTION
To ensure proper function , the guard on this
burner should be free of lava rocks at all times.
6
Pressure
reliefvalve
Cylinder valve
Black coupling nut
turn clockwise to connect
Regulator
Bleed-off
valve
turn clockwise
to reseal
LOW
OFF
HIGH
Checking the gas control
Attaching the regulator
2.Turn the ylinder valve on the tank
clockwise to close the propane tank.
Attach the preassembled regulator from
the table to the cylinder valve by turning
the regulator coupling nut clockwise.
Make sure it is fastened securely and
tighten connections by hand only.
Volcanic rock placement
LOW
OFF
HIGH

WARNING: This appliance is only used for intended purposes. Do not use this
appliance to prepare food.
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is a
normal,temporary condition caused by the "burn-in" of the internal paints and lubricants
used in the manufacturing process and will not occur again. Turn on the main burner to
“HIGH” position and let it burn for about half an hour.
WARNING:
• Children and adults should be alerted to the hazards of high surface temperatures
and should stay away from the appliance to avoid burns or clothing ignition.
• Children should be carefully supervised when they are around the appliance.
• Clothing or other flammable materials should not be hung, or placed on or near the
appliance. The area above the enclosure may be extremely hot. Direct contact with these
surfaces should be avoided in order to prevent burns or clothing ignition.
• Any guards or protective devices removed for servicing the appliance must be replaced
prior to operating the appliance.
• Installation and maintenance should be done by a qualified service person.
• The appliance should be inspected before each use and at least annually by a qualified
service person. More frequent cleaning may be required when necessary. It is imperative
that the control compartment, burners, and circulating air passageways of the appliance
be kept clean.
WARNING:
• Never use the appliancewhile it is raining.Always turn the appliance off when raining.
• Never use the appliance if the burner is damaged. Inspect the burner before each use.
• Ensure that there is no debris such as leaves, grass or other objects in the appliance. If
the burner is damaged, it must be replaced by a manufacturer's specified burner before
using the equipment.
• Inspect the hose assembly before each use. If there is evidence of excessive abrasion
or wear, or if the hose is damaged, it must be replaced by a manufacturer's specified
hose assembly prior to using the appliance.
WARNING: Any modification to the appliance may compromise the safety
of this appliance. Special concerns are as follows:
Do not bypass thermocouple safety.
Do not operate the appliance if any parts have been underwater. Call a qualified service
technician immediately to check the equipment and replace any flooded control systems
and gas control components.
7

Press and hold he electronic
igniter buttton.
Turn the burner control to the
HIGH position. Keep pressing
the electronic igniter button
until the burner is lit.
Continue to press the burner
control knob for 30 seconds and
then release. If the flame goes
out, repeat the procedure.
Adjust the flame to the desired
height with the burner control
knob.
If the burner is not lit by the
electronic ignite,put a lit long
match or lit long butane lighter
near the ignition area of the
burner and continue with step 2.
To turn off the burner, please
turn the burner control knob
clockwise to the OFF position.
Then turn the gas off at the
source (propane cylinder valve
or natural gas supply valve).
1.
2.
3.
4.
5.
6.
FOR YOUR SAFETY:
Keep your face and body away
from burner area when lighting.
Ensure burner controls are in the
OFF position. Slowly turn on the
gas supply valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped
with an excess flow device.
Do not press the igniter button
prior to turning on the propane
cylinder.
WARNING
FOR YOUR SAFETY:
If the burner is not lit within 10
seconds, turn the valve off and
wait for 5 minutes for any gas to
dissipate before repeating the
procedure.
WARNING
I
8

MAINTENANCE：
For enjoying years of outstanding performance of your appliance, make sure you adopt
the following maintenance tips on a regular basis:
• At least once a year, the unit should be inspected for spiders, cobwebs, or other
insects.
• Air flow must be unobstructed. Keep controls, burner, and circulating air passageways
clean. Signs of possible blockage include:
Gas odor with extremely tilted yellow flames.
Appliance does NOT reach the desired temperature.
Excessive unevenness of heat.
Popping sounds when heating.
• Spiders and insects can nest in burner or orifices. This dangerous condition can
damage appliance and render it unsafe for use. Clean burner holes using the liquid clog
remover.
Compressed air may help clear away smaller particles.
• Carbon deposits may cause a fire hazard. Clean reflector, thermocouple, and emitter
screen with a dry cloth if any carbon deposits develop.
• The burner is made of stainless steel, but extreme heat and a corrosive environment
can cause surface corrosion. Inspect the burner at least annually for cracks, insect nests,
excessive corrosion, or any other damage. If the burner is damaged, it must be replaced
by a burner specified by the manufacturer before the appliance is put into operation.
9

• Turn the control knob to the "OFF" position.
• Disconnect the LP source.
• Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow and dust ).
• Cover the appliance to protect exterior surfaces and to help prevent building up dust.
NOTE: Wait until the appliance has cooled down before covering it.
When not use for a long time or during transportation.
• Turn the control knob to the "OFF" position.
• Disconnect the LP source and move the appliance to a secure, well-ventilated,and
outdoor location. DO NOT store in a location that will exceed 125°F.
• Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow and dust).
• Cover the appliance to protect exterior surfaces and to help prevent building up dust.
NOTE: Wait until the appliance has cooled down before covering it.
10

SOLUTION
Low heat / Low flame
when the valve is turned
to HIGH position.
PROBLEM PROBABLE CAUSE
Incorrect lighting operation. Ensure the lighting procedure is followed carefully. The valve
must be in the OFF position when the tank valve is turned on.
Turn the tank on slowly to allow the pressure to equalize. See
lighting instructions.
Pipe must be sized according to installation code.
Burners burn with yellow
flame, accompanied by
the smell of gas.
Possible cobwebs or other debris. Thoroughly clean the burner venturi. See general maintenance
instructions.
Burners are not lit by the
igniter, but are lit with a
match.
Loose electrode wire or switch
terminal wires.
Check whether the electrode wire is firmly pushed onto the
terminal on the back of the igniter. Check that the lead wires
from the module to the ignition switch (if equipped) are firmly
pushed onto their respective terminals.
Burners do not keep
burning when the control
knob is released.
The knob is not pressed long enough.
Too windy.
Lava glass or debris in ignition area of
the burner prevents thermocouple
from being fully engulfed in flame.
Dirty thermocouple or thermocouple
connection.
Incorrect thermocouple or valve.
Thermocouple needs time to heat up - Keep pressing the knob
for 30 seconds until the burner is lit, then release.
If the wind speed is faster than 10 mph (16 km/h), the unit will
shut off automatically. Either use it in another area where the
wind speed is low.
Ensure that there are no lava glass or other debris in the
ignition area, and that the small hole below the thermocouple is
unobstructed.
Clean the thermocouple and the connection between the valve
and thermocouple. Ensure the connection is properly tightened.
Replace thermocouple and / or valve.
Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by internal vibrations in the
regulator and does not affect the performance or safety of the
appliance.
Humming regulators need not be replaced.
Burner output on "HIGH"
setting is too low.
(Rumbling noise and
fluttering blue flame at
burner surface.)
Lack of gas.
Supply hose is pinched.
Dirty or clogged orifice.
Cobwebs or other substances
in the venturi tube.
Propane regulator in "low flow”
state.
Check the gas level of propane cylinder.
Reposition the supply hose to suit needs.
Clean the burner orifice.
Clean out the venturi tube.
Ensure the lighting procedure is followed carefully. All
valves must be in the OFF position when the tank valve
is turned on. Turn the tank on slowly to allow pressure
to equalize. See lighting instructions.
11

If you have any questions about the installation of YITAHOME® products，just e-mail us at:
Alternative method to contact us(amazon.com orders only)
1.Log into your amazon account
2.Go to "Your Orders" and find the purchase
3.Click on "Contact Seller"
RISHENG
