Yolink YS4906-UC User manual

User Guide
Garage Door Controller
YS4906-UC
Garage Door Sensor
YS7705-UC
O/C
SET
DC5V+ D C5V- SIGNA L
SET
Garage Door Kit

Contents
WARNING····································································1
Set Up Garage Door Kit·····················································5
YoLink Control·····························································17
Maintaining the Garage Door Kit········································20
Using YoLink App with Garage Door Kit································15
Specifications···························································· ·2· 2
Installation··························· ·····11···································
Troubleshooting····························································23
Introduction············································· ····· 2·············· ··
Features······································································4
Product Requirements······················································1
Customer Service and Warranty········································25

WARNING
To prevent severe injury to persons,
1
Do not let the children use this kit without adult supervision.
Always wait until the garage door or gate to be completely closed.
Please visit www.yosmart.com to check compatibility for your garage door opener from
the garage door opener list.
Product Requirements
A YoLink Hub.
The smartphone or tablet able to run iOS 9 or higher; Android 4.4 or higher.
A Garage Door Opener.

Green once
Open/Close the garage door.
Blinking Green
Connecting to cloud.
Fast Blinking Green
Paring with other devices (YoLink Control).
Fast Blinking Red
Unparing with other devices (YoLink Control).
Blinking Red and Green Alternately
Factory resetting.
Slow Blinking Green
Updating.
OPEN/CLOSE
SET BUTTON
O/C
SET
DC5V+ DC5V- SIGNAL
Introduction
YoLink Garage Door Controller can open or close your Garage Door anywhere, anytime.
LED light can show you the current status. See the explanation below:s
Garage Door Controller
2

3

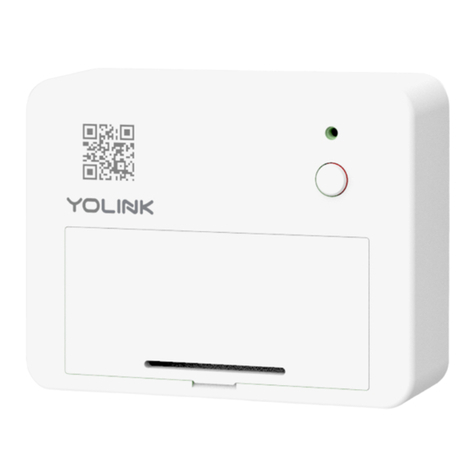

YoLink Garage Door Sensor can detect opening and closing of your Garage Door and send
alert or trigger action.
LED light can show you the current status. See the explanation below:s
Garage Door Sensor
SET BUTTON
Red once
Alert.
Blinking Green
Connecting to cloud.
Fast Blinking Green
Paring with other devices (YoLink Control).
Fast Blinking Red
Unparing with other devices (YoLink Control).
Blinking Red and Green
Factory resetting.
Slow Blinking Green
Updating.
SET

Features
Check Status Anywhere - Check device status.
Easy to Control - CONVENIENTLY OPEN AND CLOSE your garage door with your mobile
device anywhere, anytime.
Open Alert - Remind you while the door is open for a set up time.
Long Range - Up to 1,000 Feet between Hub and device.
Battery Status - Update surplus of battery power and send low battery alert.
Real-time Status - Monitor the real-time state of door via YoLink App.
YoLink Control - Trigger an action of certain YoLink devices without internet.
Automation - Set up rules for “If this then that” function.
4

Set Up Garage Door Kit
Follow the steps below to set up your garage door kit via YoLink App.
5
Step 1: Set up YoLink App
Get the YoLink App from the Apple App Store or Google Play.

If you don’t have a YoLink account, tap Sign up for an account and follow the steps
to sign up an account.
Open the App. Use your YoLink account to log in.
Step 2: Log in or sign up with YoLink account
6

Step 3: Add controller to YoLink App
b. Room - Choose a room for Garage Door Controller.
a. Name - Name Garage Door Controller.
You can customize the name, set the room, add to/remove from favourite.
Tap the “ ” in YoLink App. Scan the QR Code on the device.
Tap the “Bind Device” to add the device to your YoLink account.
c. Favourite - Click “ ” icon to add/remove from Favourite.
a
b
c
7

Step 4: Add sensor to YoLink App
b. Room - Choose a room for Garage Door Sensor.
a. Name - Name Garage Door Sensor.
You can customize the name, set the room, add to/remove from favourite.
Tap the “ ” in YoLink App. Scan the QR Code on the device.
c. Favourite - Click “ ” icon to add/remove from Favourite.
Tap the “Bind Device” to add the device to your YoLink account.
8
SET
a
b
c
Pair with a controller.

Step 5: Connect controller to the cloud
Follow the Installation to install the device first.
Power on the controller using the supplied power adapter and your device will connect to the
cloud automatically.
Note
Make sure you hub is connected to internet.
Cloud
Internet
O/C
SET
DC5 V+ DC5 V- SIG NAL
9

Step 6: Connect sensor to the cloud
Follow the Installation to install the device first.
Press the set button once and your device will connect to the cloud automatically.
Note
Make sure you hub is connected to internet.
Cloud
Internet
SET BUTTON
SET
10

Garage Door Controller
Locate the 2 power terminals at the left of the controller. You will see “5V+”and “5V-” on
it. Find your adapter and put the red wire of it in the “5V+” terminal. Put the black wire in
the “5V-” terminal. Now there are 2 terminals named “signal” to be connected. First,
put two wires in these two terminals.
Locate the 2 terminals on the back of your garage opener that your button panel wires
connect to. Take out the existing button panel wires from the opener, twist it with one
fro m the c onne cter. Then put the twi sted wire b ack in the terminal of the op ener.
Repeat the steps to the other wire. It doesn't matter which wire goes to which terminal.
Installation
Note
Please add Garage Door Controller and Sensor to YoLink App before you set them up.
Wiring diagram is shown the next page.
You can also connect your controller with your button panel. You will just to do the same
thing as it is in step 2.
11

Wiring Diagram:
Locate the 2 terminals on the back of your garage opener.
O/C
SET
DC5V+ DC5V- SIGNAL
From
Button Panel
12

O/C
SET
DC5V+ DC5V- SIGNAL
W
R
Wiring Diagram:
Locate the 2 terminals on the back of your button panel.
13

Garage Door Sensor
Note
Please dry clean the area first.
Please stick the sensor at the inside top panel of the Garage Door.
Please keep the arrow on the battery cover pointing to the right.
Please use the double-side tape to
stick the sensor to your garage
door and make sure the sensor is
stuck tightly.
GROUND
TOP
PANEL
SET
14

Using YoLink App with Garage Door Kit
Details
a. Name - Name your Garage Door Controller.
b. Room - Choose a room for your garage door device.
You can customize the name, set the room, set the open alert, add to/ remove from favourite,
check device history, set pairing with sensor.
Tap the “Garage Door” in App to go to its controls.
Tap the icon for each of the setting you want to
personalize.
g. Delete - The two device will be removed from your
account.
c. Open Alert - Set a time which you will able to receive
an alert once your door has been open for that long.
e. History - Check the history log for the garage door.
d. Favourite - Click Add/Remove the device from Favourite.
f. Sensor - Tap to go to garage door sensor’s details.
a
b
c
d
e
f
g
Tap “ ” icon at the top-right corner.the
15

Automation allows you to set up “If this then that” rules so the devices can act automatically.
Automation
Tap “Smart” to switch to Smart screen and tap
“Automation”.
To set an Automation, you will need to set a
trigger time, local weather condition, or choose
a device with certain stage as a triggered
condition. Then, select the response devices or
Scenes.
Tap “ ” to create an automation.
16

YoLink Control
YoLink Control is our unique “device to device” control technology. Under YoLink Control,
the devices can be controlled without internet or Hub.
You will need to set it up physically.
Devices which send out command is called controller(Master). Devices which receive
command and act accordingly is called responder(Receiver).
Find a garage door sensor as controller(Master).
Hold the set button for 5-10 seconds, the light
will flash green quickly.
After pairing is done, the light will stop flashing.
Find an action device as responder(Receiver).
Hold the set button for 5-10 seconds, the device
will enter pairing mode.
Whe n t he door is detected to be opened, th e
res pond er will be turned on as w ell.
Pairing
SET BUTTON
SET
17

Find the controller(Master) garage door sensor.
Hold the set button for 10-15 seconds, the light
will flash red quickly.
The above two devices will unpair by themselves
and the light stops flashing.
Find the responder(Receiver) action device.
Hold the set button for 10-15 seconds, the
device will enter unpairing mode.
When the garage door sensor is detected to be
opened, the responder will no longer turn on.
Unpairing
YS6602-UC YoLink Plug
Responder List
YS6604-UC YoLink Plug Mini
YS5705-UC In-wall Switch
YS6704-UC In-wall Outlet
Continuously ..updating
YS6801-UC YoLink Power Strip
SET BUTTON
SET
18
