DESCRIPTION
This unique modular system allows the flexibility to handle any
application. These versatile coils and blowers may be used for
upflow, down-flow, or horizontal left or right applications. They
may be combined to function as a cooling only unit or with a
heat pump including electric heat for 1 and 3 phase applica-
tions. The blower and electric heater could be used as stand
alone electric furnaces.
FEATURES
Blowers - Models to match any air flow or voltage requirement.
The compact size allows easy installation. Blowers are sized to
deliver design air quantity both efficiently and quietly. The
direct-drive, multi-speed blower motors provide a selection of
air quantities to match any application. All models include a
one-minute blower off delay as standard to enhance system
efficiency ratings. The durable, pre-painted steel protects the
unit against rust and corrosion. All models have 1 inch foil face
fiber glass insulation, providing a thermal insulation value of R-
4.2.
Coils - Staggered rows of rifled copper tubes are mechanically
expanded into enhanced surface aluminum fins to provide high
heat transfer and long-lasting quality. The MC multi-position
coils may be used for upflow, downflow, and horizontal left or
right applications. Coil cabinets are insulated with 3/4" foil face
insulation to prevent sweating.
Thermal Expansion Valves - Available with R-22 or R-410A
factory installed TXV’s. Air Handlers maybe ordered as “Flex-
coil” unit without a factory installed mertering device. Flex-coil
models allow for field installed R-22 or R-410A TXV’s for added
flexibility to meet refrigerant system choice.
Electric Heaters - Both single and three phase electric heater
models are available to match any requirement. All heaters
include nickel-chromium elements with a 5-year limited war-
ranty on 1 Ø heating elements and 1 year limited warranty on 3
Ø heating elements. Sequential operation is provided to control
heaters in all models. Circuit breakers are used in 208/230 volt,
single-phase heaters of 15 KW and larger.
Models equipped with circuit breakers may be altered in the
field to use multi-source power supply. Over-temperature limit
switches provide protection from airflow loss with fusible link
backup protection.
NOTE: No heat kits are available for 115 Volt models.
Accessories - A full line of matching accessories available for
use with the blower and coils to allow any type application.
LIMITATIONS
These units must be wired and installed in accordance with all
national and local safety codes.
Voltage limits are as follows:
BLOWER VOLTAGE VOLTAGE CODE NORMAL OPERATING
VOLTAGE RANGE*
115-1-60 11 104-126
208/230-1-60 21 187-253
460-3-60 41 432-504
* Rated in accordance with ARI Standard 110, utilization range “A”.
Air flow must be within the minimum and maximum limits approved for electric
heat, evaporator coils and outdoor units.

253462-BTG-N-1010
2Johnson Controls Unitary Products

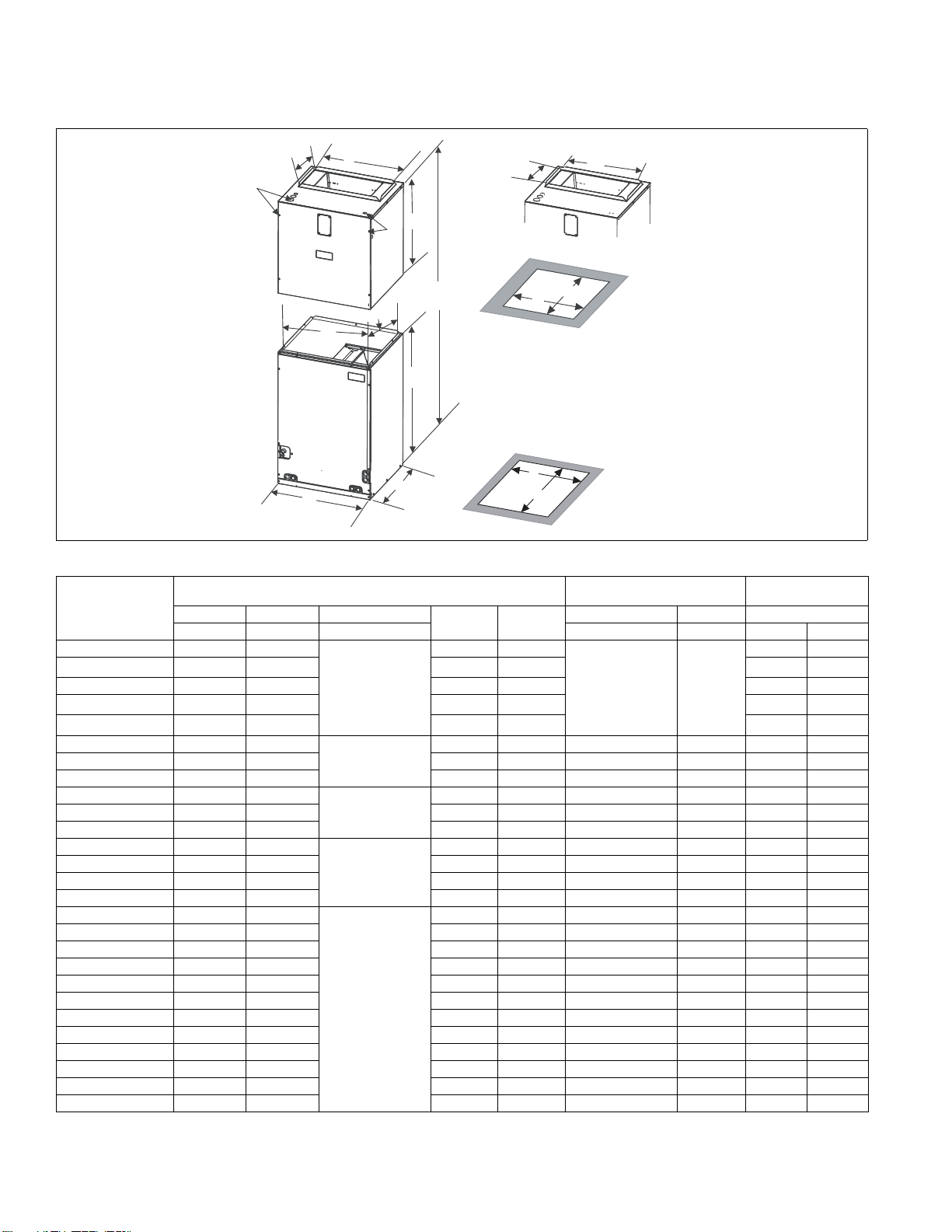

DIMENSIONS - (BLOWER WITH MC COILS)
NOTE: Power wiring may be brought into the unit through one of the knockouts in either the top or the left side panel. Multiple knockouts are provided to accommodate all
of the electric heat and transformer accessories that are available. Use the knockouts that provide the best wire routing for the accessory being used.
DIMENSIONS
Models Dimensions Wiring K.O.’s1Refrigerant
Connections
AB C DE J K Line Size
Height Width Total Height Power Control Liquid Vapor
MA08B 25 17-1/2
47 to 57
Depending
on combination
16-1/2 14-19/32
7/8 (1/2), 1-3/8(1)
1-23/32, (1-1/4)
1-31/32, (1-1/2) 7/8 (1/2)
––
MA12B225 17-1/2 16-1/2 14-19/32 – –
MA14D 25 24-1/2 23-1/2 21-19/32 – –
MA16C225 21 20 18-3/32 – –
MA20D225 24-1/2 23-1/2 21-19/32 – –
MC18B2AH1 22 17.5 47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 3/4
MC18B3XH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC18B4EH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC24B2AH1 26.5 17.5 47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 3/4
MC24B3XH1 26.5 17.5 16.5 16 3/8 – – 3/8 3/4
MC24B4FH1 26.5 17.5 16.5 16 3/8 – – 3/8 3/4
MC30B2AH1 26.5 17.5 47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 3/4
MC30B3XH1 26.5 17.5 16.5 16 3/8 – – 3/8 3/4
MC30B4EH1 26.5 17.5 16.5 16 3/8 – – 3/8 3/4
MC30B4FH1 26.5 17.5 16.5 16 3/8 – – 3/8 3/4
MC35B2AH1 22 17.5
47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 3/4
MC35B3XH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC35B4FH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC35B4GH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC35B4HH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC35B4MH1 22 17.5 16.5 16 3/8 – – 3/8 3/4
MC35C2AH1 22 21 20 19 7/8 – – 3/8 3/4
MC35C3XH(1,2) 26.5/22 21 20 19 7/8 – – 3/8 3/4
MC35C4FH1 22 21 20 19 7/8 – – 3/8 3/4
MC35C4GH1 22 21 20 19 7/8 – – 3/8 3/4
MC35C4HH1 22 21 20 19 7/8 – – 3/8 3/4
MC35C4MH1 22 21 20 19 7/8 – – 3/8 3/4
For notes, see Page 3.
AIR HANDLER
MA / MV
COIL
MC
21.5”
B
A
C
(TOTAL HEIGHT)
E
20-3/8”
J
KA
E
10-3/8”
10-3/8” E
D
20-1/4”
D
20-1/2”
AIR HANDLER TOP (All Models)
AIR HANDLER BOTTOM OPENING
COIL BOTTOM OPENING

253462-BTG-N-1010
Johnson Controls Unitary Products 3
** Thermal Expansion Device Indicators - “2” indicates R-22 TXV is factory installed, “3X” indicates unit is a flex-coil model with a field installed R-22 or R-
410A TXV, and “4” indicates R-410A TXV is factory installed. Letter indicates TXV size as required, see outdoor unit technical information for proper
matches and requirements.
"H" models are available with a factory installed horizontal drain pan.
MC36B2AH1 26.5 17.5
47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 7/8
MC36B3XH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC36B4EH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC36B4FH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC36B4GH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC36B4HH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC36C2AH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC36C3XH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC36C4EH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC36C4GH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC36C4HH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC42B2CH1 32 17.5
47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 7/8
MC42B3XH1 32 17.5 16.5 16 3/8 – – 3/8 7/8
MC42B4FH1 32 17.5 16.5 16 3/8 – – 3/8 7/8
MC42B4HH1 32 17.5 16.5 16 3/8 – – 3/8 7/8
MC42C2CH1 32 21 20 19 7/8 – – 3/8 7/8
MC42C3XH1 32 21 20 19 7/8 – – 3/8 7/8
MC42C4FH1 32 21 20 19 7/8 – – 3/8 7/8
MC42C4HH1 32 21 20 19 7/8 – – 3/8 7/8
MC43B2CH1 26.5 17.5
47 to 57
Depending
on combination
16.5 16 3/8 – – 3/8 7/8
MC43B3XH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC43B4GH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC43B4KH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC43B4MH1 26.5 17.5 16.5 16 3/8 – – 3/8 7/8
MC43C2CH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC43C3XH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC43C4GH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC43C4KH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC43C4MH1 26.5 21 20 19 7/8 – – 3/8 7/8
MC48C2CH1 32 21
47 to 57
Depending
on combination
20 19 7/8 – – 3/8 7/8
MC48C3XH1 32 21 20 19 7/8 – – 3/8 7/8
MC48C4FH1 32 21 20 19 7/8 – – 3/8 7/8
MC48C4HH1 32 21 20 19 7/8 – – 3/8 7/8
MC48C4JH1 32 21 20 19 7/8 – – 3/8 7/8
MC48C4KH1 32 21 20 19 7/8 – – 3/8 7/8
MC48D2CH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC48D3XH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC48D4FH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC48D4HH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC48D4JH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC48D4KH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC60D2CH1 32 24.5
47 to 57
Depending
on combination
23.5 23 3/8 – – 3/8 7/8
MC60D3XH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC60D4GH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC60D4HH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC60D4JH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC60D4KH1 32 24.5 23.5 23 3/8 – – 3/8 7/8
MC62D2CH1 36 24.5
61
23.5 23 3/8 – – 3/8 7/8
MC62D3XH1 36 24.5 23.5 23 3/8 – – 3/8 7/8
MC62D4HH1 36 24.5 23.5 23 3/8 – – 3/8 7/8
MC62D4JH1 36 24.5 23.5 23 3/8 – – 3/8 7/8
MC62D4KH1 36 24.5 23.5 23 3/8 – – 3/8 7/8
All MC coils include a factory installed horizontal drain pan.
(3X) = Models require field installed metering device.
1. Parenthesis indicate conduit size.
2. May be either 115-1-60, 208/230-1-60 or 460-3-60.
DIMENSIONS
Models Dimensions Wiring K.O.’s1Refrigerant
Connections
AB C DE J K Line Size
Height Width Total Height Power Control Liquid Vapor

253462-BTG-N-1010
4Johnson Controls Unitary Products
COOLING CAPACITY - Coil Only
Blower
Models Coil Models Rated CFM Entering
Air °F
(Dry/Wet Bulb)
MBH @ Evaporator Temperature and
Corresponding Pressure °F/PSIG
35/61.5 40/68.5 45/76.0 50/84.0
Multi-Position - Upflow/Downflow/Horizontal
MA08B
MC18B**H 650
85/72 28.7 26.1 23.3 20.2
80/67 26.4 23.9 21.1 18.2
75/62 21.6 19.2 16.6 14.0
70/57 17.5 15.2 12.8 10.0
MC24B**H 850
85/72 36.3 33.0 29.5 25.6
80/67 33.4 30.2 26.7 23.1
75/62 27.4 24.3 21.0 17.7
70/57 22.2 19.3 16.2 12.6
MA12B
MC30B**H 1025
85/72 41.5 37.8 33.7 29.5
80/67 36.2 32.4 28.6 24.5
75/62 29.1 25.3 24.0 19.2
70/57 24.1 21.5 18.7 15.8
MC35B**H 1200
85/72 59.9 51.5 42.9 33.9
80/67 48.0 40.3 32.8 25.1
75/62 37.4 29.8 24.3 20.3
70/57 32.1 28.1 22.9 19.2
MC36B**H
MC43B**H 1250
85/72 52.0 47.3 42.3 37.3
80/67 41.7 36.8 32.3 27.4
75/62 32.5 27.3 29.8 22.2
70/57 27.9 25.8 23.8 22.2
MA14D
MC48D**H 1125
85/72 46.8 42.4 37.6 33.0
80/67 37.4 33.3 29.4 24.3
75/62 28.9 24.6 21.7 19.6
70/57 25.1 23.3 21.7 19.6
MC60D**H 1275
85/72 53.7 48.4 43.5 37.5
80/67 43.0 38.0 33.3 27.7
75/62 33.1 28.1 24.5 22.4
70/57 28.8 26.5 24.5 22.4
MC62D**H 1450
85/72 84.8 71.4 57.9 43.9
80/67 67.9 56.0 44.2 32.4
75/62 52.9 41.4 32.6 26.2
70/57 45.4 39.1 31.4 25.9
MA16C
MC35C**H 1200
85/72 59.9 51.5 42.9 33.9
80/67 48.0 40.3 32.8 25.1
75/62 37.4 29.8 24.3 20.3
70/57 32.1 28.1 22.9 19.2
MC42C**H 1400
85/72 88.4 76.0 63.3 50.0
80/67 70.8 59.4 48.4 37.0
75/62 55.2 43.9 35.8 29.9
70/57 47.4 41.5 35.8 29.9
MC43C**H 1400
85/72 78.3 67.4 56.1 44.3
80/67 62.7 52.6 42.9 32.8
75/62 48.9 38.9 31.7 26.5
70/57 42.0 36.8 29.9 25.1
MC48C**H 1650
85/72 83.9 72.1 60.1 47.4
80/67 67.2 56.4 45.9 35.1
75/62 52.4 41.7 33.9 28.4
70/57 45.0 39.4 33.0 27.0
MA20D
MC48D**H 1650
85/72 83.9 72.1 60.1 47.4
80/67 67.2 56.4 45.9 35.1
75/62 52.4 41.7 33.9 28.4
70/57 45.0 39.4 33.0 27.0
MC60D**H 1825
85/72 102.9 86.7 70.3 53.3
80/67 82.4 68.0 53.7 39.4
75/62 64.2 50.3 39.6 31.8
70/57 55.1 47.5 38.1 30.3
MC62D**H 2000
85/72 107.0 90.2 73.1 55.5
80/67 85.7 70.7 55.8 40.9
75/62 66.7 52.3 41.2 33.1
70/57 57.4 49.4 39.7 31.6

253462-BTG-N-1010
Johnson Controls Unitary Products 5
Physical & Electrical Data
MA Models MA08BN21 MA12BN11 MA12BN21 MA12BN41 MA14DN21
Blower - Diameter x Width 10 x 9 10 x 9 10 x 9 10 x 9 10 x 10
Motor HP 1/4 HP 3/4 HP 3/4 HP 3/4 HP 1/2 HP
Nominal RPM 1075 1075 1075 1075 1075
Voltage 208/230 115 208/230 460 208/230
Amps Full Load 1.5 9.8 3.5 2.3 2.4
Permanent Filter1Type DISPOSABLE OR PERMANENT
Size 16 x 20 x 1 16 x 20 x 1 16 x 20 x 1 16 x 20 x 1 24 x 20 x 1
Filter Bulk Pack 1PF0601BK 1PF0601BK 1PF0601BK 1PF0601BK 1PF0604BK
Shipping/Operating Weight (lbs.) 75/71 82/78 82/78 82/78 94/88
MA Models MA16CN11 MA16CN21 MA16CN41 MA20DN11 MA20DN21 MA20DN41
Blower - Diameter x Width 10 x 10 10 x 10 10 x 10 11 x 10 11 x 10 11 x 10
Motor HP 1 HP 1 HP 1 HP 1 HP 1 HP 1 HP
Nominal RPM 1075 1075 1075 1075 1075 1075
Voltage 115 208/230 460 115 208/230 460
Amps Full Load 11.4 4.0 2.6 11.2 7.4 3.7
Permanent Filter1
1. Field Supplied.
Type DISPOSABLE OR PERMANENT
Size 20 x 20 x 1 20 x 20 x 1 20 x 20 x 1 24 x 20 x 1 24 x 20 x 1 24 x 20 x 1
Filter Bulk Pack 1PF0602BK 1PF0602BK 1PF0602BK 1PF0604BK 1PF0604BK 1PF0604BK
Shipping/Operating Weight (lbs.) 90/84 90/84 90/84 97/91 97/91 97/91
Full Cased “A” Type Multi-Postion
Model Application Refrig. Conn.
Types
Face
Area
(Sq. Ft.) Rows
Deep Fin Per In. Coil Size Tube Geometry Tube Dia. Fin Type TXV Operating
Weight
(Lbs.)
MC18B3XH1 Cooling/Heat
Pump Sweat 3.40 2 14 (2) 14 x 17.5 1 x 0.866 3/8 Enhanced None 53
MC18B3XH1 Cooling/Heat
Pump Sweat 3.40 2 14 (2) 14 x 17.5 1 x 0.866 3/8 Enhanced None 53
MC18B2AH1 2A 53
MC18B4EH1 4E 53
MC24B3XH1 Cooling/Heat
Pump Sweat 4.38 2 14 (2) 18 x 17.5 1 x 0.866 3/8 Enhanced None 56
MC24B2AH1 2A 56
MC24B4FH1 4F 56
MC30B3XH1 Cooling/Heat
Pump Sweat 4.38 2 14 (2) 18 x 17.5 1 x 0.866 3/8 Enhanced
None 56
MC30B2AH1 2A 56
MC30B4EH1 4E 56
MC30B4FH1 4F 56
MC35B3XH2
Cooling/Heat
Pump Sweat 3.9 3 12 (2) 16 x 17.5 1 x 0.866 3/8 Enhanced
None 65
MC35B2AH1 2A 67
MC35B4FH1 4F 67
MC35B4GH1 4G 67
MC35B4HH1 4H 67
MC35B4MH1 4M 67
MC35C3XH(1,2)
Cooling/Heat
Pump Sweat 3.9 3 12 (2) 16 x 17.5 1 x 0.866 3/8 Enhanced
None 67
MC35C2AH1 2A 69
MC35C4FH1 4F 69
MC35C4GH1 4G 69
MC35C4HH1 4H 69
MC35C4MH1 4M 69
MC36B3XH1
Cooling/Heat
Pump Sweat 4.86 2 14 (2) 20 x 17.5 1 x 0.866 3/8 Enhanced
None 65
MC36B2AH1 2A 65
MC36B4EH1 4E 65
MC36B4FH1 4F 65
MC36B4GH1 4G 65
MC36B4HH1 4H 65
For notes, see Page 6.

253462-BTG-N-1010
6Johnson Controls Unitary Products
MC36C3XH1
Cooling/Heat
Pump Sweat 4.86 2 14 (2) 20 x 17.5 1 x 0.866 3/8 Enhanced
None 65
MC36C2AH1 2A 65
MC36C4EH1 4E 65
MC36C4GH1 4G 65
MC36C4HH1 4H 65
MC42B3XH1 Cooling/Heat
Pump Sweat 5.83 2 14 (2) 24 x 17.5 1 x 0.866 3/8 Enhanced
None 72
MC42B2CH1 2C 72
MC42B4FH1 4F 72
MC42B4HH1 4H 72
MC42C3XH1 Cooling/Heat
Pump Sweat 5.83 2 14 (2) 24 x 17.5 1 x 0.866 3/8 Enhanced
None 72
MC42C2CH1 2C 72
MC42C4FH1 4F 72
MC42C4HH1 4H 72
MC43B3XH1
Cooling/Heat
Pump Sweat 4.86 3 12 (2) 20 x 17.5 1 x 0.866 3/8 Enhanced
None 73
MC43B2CH1 2C 73
MC43B4GH1 4G 73
MC43B4KH1 4K 73
MC43B4MH1 4M 73
MC43C3XH1
Cooling/Heat
Pump Sweat 4.86 3 12 (2) 20 x 17.5 1 x 0.866 3/8 Enhanced
None 75
MC43C2CH1 2C 75
MC43C4GH1 4G 75
MC43C4KH1 4K 75
MC43C4MH1 4M 75
MC48C3XH1
Cooling/Heat
Pump Sweat 5.35 3 12 (2) 22 x 17.5 1 x 0.866 3/8 Enhanced
None 82
MC48C2CH1 2C 82
MC48C4FH1 4F 82
MC48C4HH1 4H 82
MC48C4JH1 4J 82
MC48C4KH1 4K 82
MC48D3XH1
Cooling/Heat
Pump Sweat 5.35 3 12 (2) 22 x 17.5 1 x 0.866 3/8 Enhanced
None 82
MC48D2CH1 2C 82
MC48D4FH1 4F 82
MC48D4HH1 4H 82
MC48D4JH1 4J 82
MC48D4KH1 4K 82
MC60D3XH1
Cooling/Heat
Pump Sweat 5.83 3 12 (2) 24 x 17.5 1 x 0.866 3/8 Enhanced
None 86
MC60D2CH1 2C 86
MC60D4GH1 4G 86
MC60D4HH1 4H 86
MC60D4JH1 4J 86
MC60D4KH1 4K 86
MC62D3XH1
Cooling/Heat
Pump Sweat 6.80 3 12 (2) 28 x 17.5 1 x 0.866 3/8 Enhanced
None 98
MC62D2CH1 2C 98
MC62D4HH1 4H 98
MC62D4JH1 4J 98
MC62D4KH1 4K 98
Note: MC coils available with a factory installed horizontal drain pan option (H).
Full Cased “A” Type Multi-Postion (Continued)
Model Application Refrig. Conn.
Types
Face
Area
(Sq. Ft.) Rows
Deep Fin Per In. Coil Size Tube Geometry Tube Dia. Fin Type TXV Operating
Weight
(Lbs.)

253462-BTG-N-1010
Johnson Controls Unitary Products 7
* May be 0 (no breaker) or 1 (with breaker).
ELECTRICAL DATA - 208/230-1-60
MA
Models Heater Models*
Max.
Static Min.
Speed
Tap
Total Heat1
1. See conversion Page 10.
KW Staging
KW MBH W1 Only W2 Only W1 + W2
Static Tap 208V 240V 208V 240V 208V 240V 208V 240V 208V 240V
MA08BN2
4HK*6500206 0.5 Lo 1.9 2.5 6.4 8.5 1.9 2.5 1.9 2.5 1.9 2.5
4HK*6500506 0.5 Lo 3.6 4.8 12.3 16.4 3.6 4.8 3.6 4.8 3.6 4.8
4HK*6500806 0.5 Med 5.6 7.5 19.2 25.6 2.8 3.75 5.6 7.5 5.6 7.5
4HK*6501006 0.5 Hi 7.2 9.6 24.6 32.8 3.6 4.8 7.2 9.6 7.2 9.6
4HK16501306 0.5 Hi 9.8 13.0 33.3 44.4 3.3 4.3 6.5 8.6 9.8 13.0
MA12BN2
4HK*6500506 0.5 Lo 3.6 4.8 12.3 16.4 3.6 4.8 3.6 4.8 3.6 4.8
4HK*6500806 0.5 Med 5.6 7.5 19.2 25.6 2.8 3.75 5.6 7.5 5.6 7.5
4HK*6501006 0.5 Med 7.2 9.6 24.6 32.8 3.6 4.8 7.2 9.6 7.2 9.6
4HK16501306 0.5 Med 9.8 13.0 33.3 44.4 3.3 4.3 6.5 8.6 9.8 13.0
4HK165N1506 0.5 Med 10.8 14.4 36.9 49.1 3.6 4.8 7.2 9.6 10.8 14.4
MA14DN2
4HK*6500506 0.5 Lo 3.6 4.8 12.3 16.4 3.6 4.8 3.6 4.8 3.6 4.8
4HK*6500806 0.5 Lo 5.6 7.5 19.2 25.6 2.8 3.75 5.6 7.5 5.6 7.5
4HK*6501006 0.5 Med 7.2 9.6 24.6 32.8 3.6 4.8 7.2 9.6 7.2 9.6
4HK16501506 0.5 Med 10.8 14.4 36.9 49.1 3.6 4.8 7.2 9.6 10.8 14.4
4HK16501806 0.5 Hi 13.2 17.6 45.1 60.1 3.3 4.4 6.6 8.8 13.2 17.6
4HK16502006 0.5 Hi 14.4 19.2 49.2 65.5 3.6 4.8 7.2 9.6 14.4 19.2
MA16CN2
4HK*6500506 0.5 Lo 3.6 4.8 12.3 16.4 3.6 4.8 3.6 4.8 3.6 4.8
4HK*6500806 0.5 Lo 5.6 7.5 19.2 25.6 2.8 3.75 5.6 7.5 5.6 7.5
4HK*6501006 0.5 Med 7.2 9.6 24.6 32.8 3.6 4.8 7.2 9.6 7.2 9.6
4HK16501306 0.5 Med 9.8 13 33.3 44.4 3.3 4.3 6.5 8.7 9.8 13
4HK16501506 0.5 Med 10.8 14.4 36.9 49.1 3.6 4.8 7.2 9.6 10.8 14.4
4HK16501806 0.5 Hi 13.2 17.6 45.1 60.1 3.3 4.4 6.6 8.8 13.2 17.6
4HK16502006 0.5 Hi 14.4 19.2 49.2 65.5 3.6 4.8 7.2 9.6 14.4 19.2
MA20DN2
4HK*6500806 0.5 Lo 5.6 7.5 19.2 25.6 2.8 3.75 5.6 7.5 5.6 7.5
4HK*6501006 0.5 Lo 7.2 9.6 24.6 32.8 3.6 4.8 7.2 9.6 7.2 9.6
4HK16501306 0.5 Med 9.8 13 33.3 44.4 3.3 4.3 6.5 8.7 9.8 13
4HK16501506 0.5 Med 10.8 14.4 36.9 49.1 3.6 4.8 7.2 9.6 10.8 14.4
4HK16501806 0.5 Med 13.2 17.6 45.1 60.1 3.3 4.4 6.6 8.8 13.2 17.6
4HK16502006 0.5 Med 14.4 19.2 49.2 65.5 3.6 4.8 7.2 9.6 14.4 19.2
4HK16502506 0.5 Med 18.0 24.0 61.5 81.9 3.6 4.8 10.8 14.4 18.0 24.0
ELECTRICAL DATA - 208/230-3-60
MA
Models Heat Kit - Three Phase Max. Static
Min.
Speed
Tap
Total Heat1
1. See conversion Page 10.
KW Staging
KW MBH W1 Only W2 Only W1 + W2
208V 240V 208V 240V 208V 240V 208V 240V 208V 240V
MA08BN2 4HK06501025 0.5 Hi 7.2 9.6 24.6 32.8 7.2 9.6 7.2 9.6 7.2 9.6
MA12BN2 4HK06501025 0.5 Med 7.2 9.6 24.6 32.8 7.2 9.6 7.2 9.6 7.2 9.6
4HK065N1525 0.5 Hi 10.8 14.4 36.9 49.1 10.8 14.4 10.8 14.4 10.8 14.4
MA14DN2 4HK06501025 0.5 Med 7.2 9.6 24.6 32.8 7.2 9.6 7.2 9.6 7.2 9.6 4HK06501525 0.5 Med 10.8 14.4 36.9 49.1 10.8 14.4 10.8 14.4 10.8 14.4
4HK06501825 0.5 Hi 12.9 17.2 44.7 58.7 12.9 17.2 12.9 17.2 12.9 17.2
MA16CN2 4HK06501025 0.5 Med 7.2 9.6 24.6 32.8 7.2 9.6 7.2 9.6 7.2 9.6 4HK06501525 0.5 Med 10.8 14.4 36.9 49.1 10.8 14.4 10.8 14.4 10.8 14.4
4HK06501825 0.5 Hi 12.9 17.2 44.7 58.7 12.9 17.2 12.9 17.2 12.9 17.2
MA20DN2
4HK06501025 0.5 Lo 7.2 9.6 24.6 32.8 7.2 9.6 7.2 9.6 7.2 9.6
4HK06501525 0.5 Med 10.8 14.4 36.9 49.1 10.8 14.4 10.8 14.4 10.8 14.4
4HK16501825 0.5 Med 12.9 17.2 44.7 58.7 12.9 17.2 12.9 17.2 12.9 17.2
4HK16502525 0.5 Med 18.0 24.0 61.4 81.4 9.0 12.0 18.0 24.0 18.0 24.0

253462-BTG-N-1010
8Johnson Controls Unitary Products
ELECTRICAL DATA - 460-3-60
MA
Models Heater Models MAX. STATIC & MIN. CFM Total Heat1 KW Staging
KW MBH W1 Only W2 Only W1 + W2
Static Taps 480V 480V 480V 480V 480V
MA12BN41 4HK06501046 0.5” Med 9.6 3.28 9.6 9.6 9.6
MA16CN41 4HK06501046 0.5” Med 9.6 3.28 9.6 9.6 9.6
4HK06501546 0.5” Med 14.4 4.92 14.4 14.4 14.4
MA20DN41 4HK06501046 0.5” Med 9.6 3.28 9.6 9.6 9.6 4HK06501546 0.5” Med 14.4 4.92 14.4 14.4 14.4
4HK06502946 0.5” Med 28.8 9.84 14.4 28.8 28.8
ELECTRICAL DATA (For Single Source Power Supply) - Copper Wire 208/230-1-60
MA
Models Heater Models*
Field Wiring
Heater Amps Ampacity Min. Circuit Max. O.C.P.1 Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
* May be 0 (no breaker) or 1 (with breaker).
Wire Size - AWG 75°C
240V 208V 240V 208V 240V 208V 240V
MA08B
4HK*6500206 10.4 13.03 14.88 15 15 14 14
4HK*6500506 20.0 23.42 26.88 30 30 10 10
4HK*6500806 31.3 35.60 41.00 40 45 8 8
4HK*6501006 40.0 45.08 51.88 50 60 8 6
4HK16501306 54.2 60.4 69.6 70 70 4 4
MA12B
4HK*6500506 20.0 25.79 29.38 30 30 10 10
4HK*6500806 31.3 37.98 43.50 40 45 8 8
4HK*6501006 40.0 47.46 54.38 50 60 8 6
4HK16501306 54.2 61.3 72.1 70 90 4 3
4HK165N1506 60.0 69.13 79.38 70 90 4 3
MA14D
4HK*6500506 20.0 24.29 28.00 30 30 8 10
4HK*6500806 31.3 36.48 42.13 40 45 8 8
4HK*6501006 40.0 45.96 53.00 50 60 8 6
4HK16501506 60.0 67.63 78.00 70 90 4 3
4HK16501806 73.3 82.07 94.63 90 100 4 3
4HK16502006 80.0 89.29 103.00 100 110 3 2
MA16C
4HK*6500506 20.0 26.17 30.00 30 30 8 8
4HK*6500806 31.3 38.35 44.13 40 45 8 8
4HK*6501006 40.0 47.83 55.00 50 60 8 6
4HK16501306 54.2 65.2 74.80 70 80 4 2
4HK16501506 60.0 69.50 80.00 70 90 4 3
4HK16501806 73.3 83.94 96.63 90 100 4 3
4HK16502006 80.0 91.17 105.00 100 110 3 2
MA20D
4HK*6500806 31.3 42.60 48.38 45 50 8 8
4HK*6501006 40.0 52.08 59.25 60 60 8 6
4HK16501306 54.2 67.7 77.00 70 80 4 2
4HK16501506 60.0 73.75 84.25 90 90 3 3
4HK16501806 73.3 88.19 100.88 90 110 3 2
4HK16502006 80.0 95.42 109.25 100 125 3 2
4HK16502506 100.0 117.08 134.25 125 150 1 1/0

253462-BTG-N-1010
Johnson Controls Unitary Products 9
ELECTRICAL DATA (For Single Source Power Supply) - Copper Wire 208/230-3-60
MA
Models Heat Kit -
Three Phase 1
1. Heaters are 3 Phase.
Heater
Amps
240V
Field Wiring
Min. Circuit Ampacity Max. O.C.P.2 Amps/Type
2. O.C.P. = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
75°C Wire Size - AWG
208V 240V 208V 240V 208V 240V
MA08B 4HK06501025 23.1 26.8 30.8 30 35 10 8
MA12B 4HK06501025 23.1 27.6 31.9 30 35 10 8
4HK065N1525 34.7 40.1 47.8 45 50 8 8
MA14D 4HK06501025 23.1 29.1 33.3 30 35 10 8 4HK06501525 34.7 41.6 46.4 45 50 8 8
4HK06501825 41.4 48.9 56.1 50 60 8 6
MA16C 4HK06501025 23.1 29.5 33.9 30 35 10 8 4HK06501525 34.7 42.0 48.4 45 50 8 8
4HK06501825 41.4 49.3 56.8 50 60 6 6
MA20D 4HK06501025 23.1 33.8 38.1 35 40 8 8
4HK06501525 34.7 43.5 52.6 45 60 8 6
ELECTRICAL DATA (For Single Source Power Supply) - Copper Wire 460-3-60
MA
Models Heater Models
Field Wiring
Min. Circuit Ampacity Max. O.C.P.1 Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
Wire Size - AWG 75°C
480V 480V 480V
MA12BN41 4HK06501046 17.4 20 12
MA16CN41 4HK06501046 17.8 25 10
4HK06501546 24.9 25 10
MA20DN41 4HK06501046 19.1 25 10 4HK06501546 26.3 30 8
4HK06502946 48.0 50 8
ELECTRICAL DATA (For Multi Source Power Supply) - Copper Wire 208/230-1-60
MA
Models Heater Models
Min. Circuit Ampacity Max. O.C.P.1 Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
75°C Wire Size - AWG
Circuit Circuit Circuit
1st 2nd 3rd 1st 2nd 3rd 1st 2nd 3rd
208/240 208/240 208/240 208/240 208/240 208/240 208/240 208/240 208/240
MA12BN2 4HK16501306 41.8/49.5 19.5/22.5 – 45/50 20/25 – 8/8 10/10 –
4HK165N1506 47.5/54.4 21.7/25.0 – 50/60 25/25 – 8/6 10/10 –
MA14DN2 4HK16501506 47.8/55.0 21.7/25.0 – 50/60 25/25 – 8/6 10/10 – 4HK16501806 44.2/50.8 39.7/45.8 – 50/60 40/50 – 8/6 8/8 –
4HK16502006 47.8/55.0 43.3/50.0 – 50/60 45/50 – 8/6 8/8 –
MA16CN2
4HK16501306 42.2/48.9 22.9/26.0 – 50/50 30/30 – 6/6 12/10 –
4HK16501506 47.8/55.0 21.7/25.0 – 50/60 25/25 – 8/6 10/10 –
4HK16501806 44.2/50.8 39.7/45.8 – 50/60 40/50 – 8/6 8/8 –
4HK16502006 47.8/55.0 43.3/50.0 – 50/60 45/50 – 8/6 8/8 –
MA20DN2
4HK16501306 43.5/49.9 24.2/27.0 – 50/50 30/30 – 6/6 10/10 –
4HK16501506 49.3/56.5 21.7/25.0 – 50/60 25/25 – 8/6 10/10 –
4HK16501806 45.7/52.3 39.7/45.8 – 50/60 40/50 – 8/6 8/8 –
4HK16502006 49.3/56.5 43.3/50.0 – 50/60 45/50 – 8/6 8/8 –
4HK16502506 49.3/56.5 43.3/50.0 21.7/25.0 50/60 45/50 25/25 8/6 8/8 10/10

253462-BTG-N-1010
10 Johnson Controls Unitary Products
ELECTRICAL DATA (For Multi Source Power Supply) - Copper Wire 208/230-3-60
MA
Models Heater Model
Minimum Circuit Ampacity Max OCP1Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
75°C Wire Size - AWG
Circuit
1st 2nd 3rd 1st 2nd 3rd 1st 2nd 3rd
208/240 208/240 208/240 208/240 208/240 208/240 208/240 208/240 208/240
MA20DN2 4HK16501825 31.1/35.1 22.4/25.9 – 35/40 25/30 – 8/8 10/10 –
4HK16502525 40.0/45.4 31.3/36.1 – 40/50 35/40 – 8/8 8/8 –
KW & MBH Conversions
FOR 208-VOLT OPERATION MULTIPLY 240-VOLT TABULATED KW & MBH BY .751 230-VOLT 240-VOLT .918
220-VOLT 240-VOLT .840
ELECTRICAL DATA - Cooling Only (60 Hz) - 208/230 - (Copper Wire)
Models
MA
Total Motor Amps Minimum Circuit Ampacity Max. O.C.P.1
Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
Minimum Wire
Size A.W.G.
60 Hertz 60 Hertz
208V230V208V230V
MA08BN21 1.4 1.5 1.8 1.9 15 14
MA12BN21 2.1 3.5 2.6 3.0 15 14
MA14DN21 3.3 2.4 4.1 4.4 15 14
MA16CN21 3.6 4.0 4.5 5.0 15 14
MA20DN21 4.8 7.4 6.0 6.5 15 14
ELECTRICAL DATA - Cooling Only (60 Hz)- 115 - (Copper Wire)
Models
MA
Total Motor Amps Minimum Circuit Ampacity
Max. O.C.P.1 Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
Minimum Wire Size
A.W.G.
60 Hertz 60 Hertz
115V 115V
MA12BN11 9.8 12.3 15 14
MA16CN11 11.4 14.0 15 14
MA20DN11 11.2 14.3 15 14
ELECTRICAL DATA - Cooling Only (60 Hz) - 460 - (Copper Wire)
Models
MA Total Motor Amps Minimum Circuit Ampacity Max. O.C.P.1
Amps/Type
1. OCP = Over Current Protection device, must be HACR type Circuit Breaker or Time Delay fuse.
Minimum Wire
Size A.W.G.
60 Hertz 60 Hertz
MA12BN41 2.3 3.5 15 14
MA16CN41 2.6 3.9 15 14
MA20DN41 3.7 5.6 15 14
APPLICATION FACTORS - Rated CFM vs. Actual CFM
% OF RATED AIR FLOW 80% 90% RATED CFM 110% 120%
CAPACITY FACTOR 0.96 0.98 1.00 1.02 1.03

253462-BTG-N-1010
Johnson Controls Unitary Products 11
POWER WIRING
BLOWER SPEED CONNECTIONS
Line Connection
460V Line connections
ELECTRIC HEAT
WITHOUT CIRCUIT BREAKER
SINGLE SOURCE (2.5 - 10 KW)
GND. LUG
POWER
SUPPLY
GND.
LUG
ELECTRIC HEAT
WITHOUT CIRCUIT BREAKER
3 PHASE (10 - 15 KW)
GND. LUG
POWER
SUPPLY
GND.
LUG
1 PHASE ELECTRIC HEAT
WITH CIRCUIT BREAKER
AS SHIPPED FROM FACTORY
SINGLE SOURCE
(2.5 - 25 KW) - 25 KW SHOWN
GND. LUG
POWER
SUPPLY
GND.
LUG
1 PHASE ELECTRIC HEAT
WITH CIRCUIT BREAKER
& BREAKER BAR REMOVED
MULTI-SOURCE (15 - 25 KW) - 25 KW SHOWN
GND. LUG
POWER
SUPPLY 1
GND.
LUG
POWER
SUPPLY 2
POWER
SUPPLY 3
TYPICAL WIRING WITHOUT ELECTRIC HEAT
GND. LUG
POWER
SUPPLY
GND.
LUG
POWER WIRING (208/230-1-60)
NOTE: USE ONLY COPPER CONDUCTORS
TERMINAL
BLOCK
TERMINAL
BLOCK
MAYBE1,2,OR3
CIRCUIT BREAKERS
MAYBE1,2,OR3
CIRCUIT BREAKERS
(JUMPER BAR)
CONNECT LEADS WITH WIRE NUTS
(TYPICAL ALL HEAT KITS)
ELECTRIC HEAT
WITHOUT CIRCUIT BREAKER
3 PHASE (10 - 15 KW)
GND. LUG
POWER
SUPPLY
GND.
LUG
3 PHASE ELECTRIC HEAT
WITH CIRCUIT BREAKER
MULTI-SOURCE - 25 KW
GND. LUG
POWER
SUPPLY 1
GND.
LUG
POWER
SUPPLY 2 TERMINAL
BLOCK
CONNECT TRANSFORMER LEADS WITH WIRE NUTS
(TYPICAL ALL HEAT KITS)
(2) 3-PHASE
BREAKERS
FACTORY WIRED TO
TRANSFORMER
FACTORY WIRED TO
FAN MOTOR RELAY
TERMINAL ON
CONTROL BOARD
YEL
PUR
PUR
HIGH
MED
LOW
GND.
115 or 230 VOLT
BLOWER MOTOR
CAP
BRN
ORG TAPE END & CAP
WITH WIRE NUT
L1
460 VOLT
BLOWER
MOTOR
L2
HIGH
HIGH
MED
LOW
PUR
BRN
460 VOLT BLOWER MOTOR
ORG
L1
460 VOLT
BLOWER
MOTOR
L2
MEDIUM
HIGH
MED
LOW
PUR
BRN
ORG
460 VOLT
BLOWER
MOTOR
L2
LOW
HIGH
MED
LOW
PUR
BRN
L1

253462-BTG-N-1010
12 Johnson Controls Unitary Products
ACCESSORIES
Refer to Price Manual for specific model numbers.
Electric Heaters - Models shown under Electrical Data include
sequencers and temperature limit switches and fusible links for
safe, efficient operation. Circuit breakers are provided where
shown. Not for 115 Volt models.
Suspension Kit - Suspension Kit Model 1BH0601 is designed
specifically for upflow application of the units contained in this
technical guide. For suspension of these units in horizontal
applications, it is recommended to use angle support brackets
with threaded rods at locations shown in air handler installation
instructions.
Filter Rack - One of the following external filter rack accesso-
ries; 1FR0717, 1FR0721, 1FR0724 must be used when unit is
installed in a downflow application.
Combustible Floor Base - If an electric heat accessory which
is rated for greater than zero clearance to combustible surfaces
is installed in these air handlers in the downflow operating posi-
tions on a combustible floor, one of the following combustible
floor base accessories is required: 1FB1817, 1FB1821, or
1FB1824.
Filter Rack Accessory
DIMENSIONS
Filter Rack
Models Used With Rack Dimensions Inches Filter Dimensions Inches
Multi-PositionHorizontalOnly ABCDWidthLengthThickness
1FR0817 1FR0717 MA08B, MA12B 17-1/2 16-3/8 15-1/2 21 16 20 1
1FR0821 1FR0721 MA16C 21 19-7/8 19 21 20 20 1
1FR0824 1FR0724 MA14D, MA20D 24-1/2 23-3/8 22-1/2 21 24 20 1
1/2”
22”
C
19-7/8”
B
D
1-1/2”
3-1/2”
A
22”
21”
1/2”
(All four sides)
2” Max
Thick
Filter
3/4” 1/2”
3-1/2”
1/2”
7/8”
NOTE: Maybe used with up to a 2” filter.
Required for downflow application.
Mayalso be used in upflow application.
Comes with 1” permanent filter.
All dimensions are inches. Theyare subject to change
without notice. Certified dimensions will be provided upon
request.
1”
A
16-1/2”
20”
23-1/2”
ACCESSORY FOOTPRINT

253462-BTG-N-1010
Johnson Controls Unitary Products 13
COOLING MODELS WITH/WITHOUT ELECTRIC HEAT WIRING
Combustible Floor Base Accessory
Floor Base
Models Used with Dimensions
ABCD
1FB1817 MA08B, MA12B 19.9 18.0 14.9 16.9
1FB1821 MA16C 23.4 21.5 18.4 20.4
1FB1824 MA14D, MA20D 26.9 25.0 21.9 23.9
Air flow data shown above 0.50” W.C. external static pressure is for REFERENCE ONLY. Maximum allowable external static when electric heat
is used is limited to 0.50” W.C. Maximum allowable external static pressure may also be limited by minimum CFM requirements for proper Heat
Pump operation.
DOWNFLOW
AIR HANDLER
WARM AIR PLENUM
WITH 1” FLANGES
FIBERGLASS
INSULATION
FIBERGLASS TAPE
UNDER FLANGE
COMBUSTIBLE FLOOR
BASE ACCESSORY
AB
BA
AIR HANDLER
DEPTH
FRONT
FLOOR
1
10-47/64
PLENUM
12-1/2
FLOOR OPENING
APPROX. 1/2”
CLEARANCE
ALL AROUND
FLOOR
A
AIR HANDLER
WIDTH
COMBUSTIBLE
FLOOR BASE
11
APPROX. 1/2”
CLEARANCE
ALL AROUND
C
FLOOR OPENING
B
PLENUM
All dimensions are in inches. Theyare subject to change without notice.
Certified dimensions will be provided upon request.
NOTICE
Air Handler Control Wiring
Typical A/C - Cooling only Applications
THERMOSTAT AIR HANDLER
BOARD 1-STAGE
AIR CONDITIONING
RR
G
Y
W1
W2
C
G
W1
W2
Y
C
Y/Y2
Y1
O
HUM
X/L
COM
HUMIDISTAT
*
THERMOSTAT AIR HANDLER
BOARD 1-STAGE
AIR CONDITIONING
RR
G
Y
W1
W2
C
G
W1
W2
Y
C
Y/Y2
Y1
O
HUM
X/L
COM
HUMIDISTAT
*
Air Handler Control Wiring
Typical A/C with Electric Heat Applications

253462-BTG-N-1010
14 Johnson Controls Unitary Products
CONTROL WIRING
* Optional dehumidification humidistat switch contacts open on rise.
** Maybe required.
Note: Not applicable to 115 volt models.
1. “Y” Terminal on Air Handler Control Board must be connected for full CFM and applications requiring 60 second blower off delay for SEER enhancement.
2. Move HUM STAT Jumper on AH Control Board to YES position if Humidistat is used.
3. MODE Jumper on AH control board should be set to HP for heat pumps.
4. To change quantity of heat during HP defrost cycle - Reverse connections at W1 & W2 on Air Handler Control Board.
TYPICAL APPLICATIONS WITH MC MULTI-POSITION COILS
THERMOSTAT
AIR HANDLER
BOARD HEAT PUMP
RRR
GG
Y
W/W1
O
W
O
O
C
X/L X/L
C
Y/Y2
Y1
Y
W1 66
W2
W1
HUM
COM
HUMIDISTAT
*
W2
E
X/L
And Newer UPG Single Stage HP Systems
CONTROL WIRING - Air Handler
Single Stage H/P with Standard Demand Defrost Control Board
**
UPFLOW DOWNFLOW
HORIZONTAL RIGHT
HORIZONTAL LEFT

253462-BTG-N-1010
Johnson Controls Unitary Products 15
All AH, AV, MA, MV, SHP, SV series air handler units are UL Listed up to 0.50" w.c. external static pressure, including air filter, wet coil, and largest KW size
heater.
EXTENDED AIRFLOW DATA1- MA Models - 115/230/460 Volt - 60 Hz
1. Includes Return Air Filter and Largest Electric Heater.
MA
Models MC Models Blower Motor Speed CFM1 @ External Static Pressure - IWC
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
MA08B
MC18B High 1102 986 870 754 638 521 405 289 173 57
Med. 831 737 644 551 457 364 271 178 84 N/A
Low 615 537 458 379 300 221 142 63 N/A N/A
MC24B High 1112 1001 890 780 669 558 447 336 225 114
Med. 851 759 667 576 484 392 300 208 116 25
Low 643 562 480 399 317 236 154 73 N/A N/A
MA12B
MC30B
MC35B
High 1429 1363 1290 1212 1133 1037 929 670 534 375
Med. 1213 1153 1097 1037 977 896 697 549 453 220
Low 1075 1032 990 927 873 770 611 494 405 212
MC36B High 1607 1533 1463 1395 1319 1044 851 725 673 673
Med. 1308 1258 1197 1146 1097 887 742 648 608 609
Low 1148 1108 1061 1017 976 807 690 613 582 582
MC43B High 1462 1396 1322 1254 1172 1067 941 693 585 464
Med. 1205 1154 1102 1046 980 897 704 560 441 220
Low 1075 1020 969 906 842 735 592 470 364 190
MA14D
MC48D High 1715 1671 1608 1547 1460 1338 1232 1003 727 508
Med. 1471 1438 1367 1318 1263 1180 920 824 587 503
Low 1379 1330 1276 1227 1157 1047 866 681 567 392
MC60D High 1763 1713 1649 1581 1511 1407 1276 995 852 N/A
Med. 1487 1462 1412 1356 1280 1210 1087 795 726 N/A
Low 1381 1353 1292 1225 1186 1057 863 780 669 N/A
MC62D High 1746 1699 1655 1579 1486 1399 1264 1093 796 581
Med. 1486 1442 1393 1333 1270 1189 1081 776 628 450
Low 1392 1336 1285 1226 1158 1061 882 740 680 445
MA16C
MC42C High 1959 1874 1802 1708 1606 1486 1408 1264 953 810
Med. 1631 1587 1542 1473 1395 1315 1218 967 821 533
Low 1447 1431 1401 1363 1304 1241 1098 844 751 712
MC43C
MC35C
High 1825 1742 1660 1578 1486 1396 1306 1187 802 577
Med. 1637 1572 1507 1431 1361 1276 1171 1043 722 493
Low 1510 1456 1403 1341 1278 1202 1088 785 684 456
MC48C High 2018 1895 1772 1649 1525 1402 1279 1156 1033 910
Med. 1684 1595 1506 1417 1328 1240 1151 1062 973 884
Low 1561 1476 1392 1308 1223 1139 1055 970 896 801
MA20D
MC48D High 2226 2190 2103 2035 1931 1845 1683 1541 1465 1328
Med. 2115 2087 2017 1951 1851 1744 1542 1466 1406 1254
Low N/A N/A N/A 1716 1643 1554 1451 1379 1292 1151
MC60D High 2326 2235 2192 2107 2027 1906 1786 1538 1469 1368
Med. 2150 2089 2036 2008 1944 1852 1692 1499 1416 1295
Low 2012 1923 1834 1718 1676 1600 1447 1389 1311 1200
MC62D High 2357 2321 2254 2191 2139 1951 1859 1656 1556 1472
Med. 2212 2144 2111 2069 1986 1862 1727 1566 1498 1369
Low 2066 1934 1910 1817 1723 1646 1514 1442 1381 1245
NOTE: Air flow data shown above 0.50” W.C. external static pressure is for REFERENCE ONLY. Maximum allowable external static when
electric heat is used is limited to 0.50” W.C. Maximum allowable external static pressure may also be limited by minimum CFM require-
ments for proper Heat Pump operation.

Subject to change without notice. Published in U.S.A. 253462-BTG-N-1010
Copyright © 2009 by Johnson Controls, Inc. All rights reserved. Supersedes: 253462-BTG-M-0909
Johnson Controls Unitary Products
5005 York Drive
Norman, OK 73069
All AH, AV, MA, MV, SHP, SV series air handler units are UL Listed up to 0.50" w.c. external static pressure, including air filter, wet coil, and largest KW size
heater.
EXTENDED AIRFLOW DATA1- MA Models
1. Includes Return Air Filter and Largest Electric Heater.
MA
Models MC Models Blower Motor Speed
208 Volt - 60 Hz
CFM1 @ External Static Pressure - IWC
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
MA08B
MC18B High 1080 964 848 732 615 499 383 267 150 34
Med. 712 628 544 461 377 293 210 126 42 N/A
Low 529 452 376 299 223 146 70 N/A N/A N/A
MC24B High 1039 932 825 717 610 502 395 288 180 73
Med. 743 659 575 491 407 323 239 156 72 N/A
Low 532 460 387 315 242 169 97 24 N/A N/A
MA12B
MC30B
MC35B
High 1399 1339 1267 1192 1098 1023 915 673 534 377
Med. 1080 1039 994 943 876 778 639 525 415 211
Low 932 895 868 829 776 656 543 447 351 214
MC36B High 1434 1267 1099 932 764 597 430 262 95 N/A
Med. 1083 955 827 699 571 443 315 187 59 N/A
Low 933 818 703 588 473 359 244 129 14 N/A
MC43B High 1444 1377 1311 1247 1172 1091 971 721 573 442
Med. 1086 1047 1005 959 905 819 647 534 438 220
Low 942 920 887 827 768 655 536 477 366 209
MA14D
MC48D High 1549 1498 1448 1383 1325 1235 1125 936 658 548
Med. 1275 1269 1225 1181 1115 997 811 684 548 392
Low 1190 1162 1112 1074 975 817 737 625 493 358
MC60D High 1545 1490 1463 1378 1337 1231 1115 850 739 572
Med. 1266 1248 1207 1140 1101 1005 839 687 564 469
Low 1192 1186 1126 1067 992 842 740 638 507 347
MC62D High 1564 1520 1455 1400 1336 1257 1154 813 755 549
Med. 1303 1262 1225 1165 1117 1028 827 744 590 398
Low 1204 1161 1104 1060 1001 870 745 554 532 462
MA16C
MC42C High 1782 1712 1619 1524 1435 1323 1213 985 798 557
Med. 1468 1415 1355 1298 1233 1144 1005 791 669 493
Low 1310 1278 1239 1185 1125 1045 934 725 561 424
MC35C
MC43C
High 1771 1705 1619 1528 1450 1361 1261 1102 721 504
Med. 1486 1445 1393 1325 1265 1198 1041 791 663 457
Low 1314 1300 1258 1214 1164 1108 891 753 550 410
MC48C High 1983 1865 1747 1629 1511 1393 1275 1157 1039 921
Med. 1529 1446 1363 1280 1197 1114 1031 948 865 782
Low 1312 1249 1185 1122 1059 995 932 868 805 742
MA20D
MC48D High 2250 2180 2139 2062 1971 1855 1683 1553 1461 1342
Med. 1953 1956 1905 1858 1755 1649 1528 1440 1355 1245
Low N/A N/A 1544 1538 1455 1401 1346 1285 1195 1081
MC60D High 2251 2186 2144 2073 2003 1921 1809 1574 1478 1370
Med. 1987 1945 1926 1887 1836 1761 1643 1472 1387 1213
Low 1492 1517 1521 1523 1507 1436 1379 1308 1213 1128
MC62D High 2208 2123 2092 2054 1910 1762 1595 1496 1435 1298
Med. 1959 1945 1913 1862 1766 1661 1513 1420 1315 1182
Low N/A N/A N/A 1546 1491 1407 1354 1258 1184 1088
NOTE: Air flow data shown above 0.50” W.C. external static pressure is for REFERENCE ONLY. Maximum allowable external static when
electric heat is used is limited to 0.50” W.C. Maximum allowable external static pressure may also be limited by minimum CFM require-
ments for proper Heat Pump operation.
