York SB9000 Indoor Training Cycle
Item #53097
www.yorktness.com
February 12, 2015

www.yorkfitness.com
2
Congratulations on
purchasing your exercise
equipment from
You have chosen a high quality, safe and innovative
piece of equipment. The Training Cycle is designed
to be used as a “spin” cycle in commercial gyms. It
has a xed wheel driven ywheel and suggest to be
used under professional supervision.
It is important that the bike is correctly assembled.
We recommend that installation and assembly be
carried out by suitable qualied personnel.
Please ask your supplier York Commercial Reseller or
your local York Store if they oer this service. They
may be able to oer you a maintenance service
as well. Please take the time to read this owner’s
manual as it will help you to get the most of your
new equipment.
Please take the time to read this owner’s manual
as it will help you to get the most out of your new
exercise equipment.
For more information visit www.yorktness.com
CONTENTS
Safety information 03
Assembly instructions 04
Maintenance Chart 07
Exploded drawing 08
Part list 09
Customer Support 10
Guarantee and Service 11
Protect the environment by not disposing
of this product or batteries with household
waste. Check your local authority for
recycling advice and facilities.
Table of Contents

www.yorkfitness.comwww.yorkfitness.com
3
Please read this instruction manual before you begin
assembly. Great care has been taken to design these
instructions and following them will help you with
quicker assembly and minimize the risk of injury.
It is important that you keep these instructions for
future reference.
This list is not exhaustive - You are responsible for
your own safety!
• Always assemble and operate the equipment on a
level surface.
• Ensure the equipment is stable before use.
• Always ensure that the equipment has adequate
space around it.
• The safety level of this equipment can only be
maintained if it is regularly examined for wear and
tear.
• Replace defective components immediately and
keep the equipment out of use until it is repaired.
• Use only the adjustment setting as described in
the instructions. Always use the correct adjustment
pin / xing.
• Always check that any pins / xings are tight and
secure before use and after adjustment.
• Never leave any adjustment devices projecting
from the equipment.
• Never overload the equipment. (See maximum
user weight)
• Never use the equipment in any other manner
other than the ways explained in these
instructions.
• Injuries to health may result from incorrect or
excessive training.
• If children are allowed to use the equipment, their
mental and physical development and above all
their temperament should be taken into account.
They should be controlled and instructed in the
correct use of the equipment.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• This product is not suitable for therapeutic
purposes.
• Due to our continuous policy of product
development, York Barbell reserves the right to
change specications without notice.
• This product is has been tested for Commercial
Use and is guaranteed for this environment. Please
check full details under guarantee.
CAUTION! The instructions must be followed carefully
in the assembly, use and maintenance of your
equipment. The guarantee does not cover damage
due to negligence of the assembly, adjustment and
maintenance instructions described herein.
Maximum user weight: 130kg
Safety Information

www.yorkfitness.com
4
Prepare your work area - It is important you assemble the product in a clean and
uncluttered space.
Work with a friend - We recommend you have someone assist you with the assembly as
some of the components are quite heavy.
Open the carton - Check any warnings on the carton and make sure you have it the right
way up.
Unpack the carton - Remove all the parts and lay them out on the floor.
Care & Maintenance
• This equipment should not be placed outdoors, in a garage or an outbuilding. Keep the equipment in a dry place
with as little temperature variation as possible.
• We recommend placing a mat beneath the equipment to protect both the equipment and your ooring.
• Always place the equipment in a dry environment.
• Use a warm, damp cloth to keep the product clean.
• No wet cleaning of electrical components. Unplug before any care and maintenance.
• The safety level of the equipment can be maintained only if it is regularly examined for damage and wear. This
includes any ropes, pulleys, nuts, bolts, moving parts, bushes, chains, wheels, bearings & connection points etc.
• Ensure that you inspect the product regularly - at least once a week is recommended.
• Ensure that all xings are tight before use.
• Always replace damaged / worn components with original parts from the manufacturer.
Pre-Caution
1. The model bike has a xed wheel driven ywheel and should only be used under professional supervision.
2. Installation – it is important that the bike is correctly assembled and we recommend that suitably qualied personnel
carry out installation and assembly.
3. Handlebar and seat adjustment. It is important that the handlebar and seat are set at the correct height for your body.
Ask your instructor for assistance. Adjusting the handlebar height - Undo the release lever that is located where the
handlebar post ts into the frame. Slide the handlebar post up or down to the required height and retighten the
release lever. Make sure it is securely tightened and that there is no lateral or vertical movement of the handlebar. The
handlebar position can also be adjusted forwards or backwards. Undo the release lever located below the handlebar
slider. Slide the handlebar assembly forwards and backwards until you reach the required position. Then securely re-
tighten the release lever.
4. Adjusting the seat height - Undo the release lever located where the seat post ts into the frame. Adjust the seat to the
required height. Then retighten the release lever. Make sure it is tight enough to prevent the seat from twisting side to
side. The seat position can be adjusted forwards and backwards. Undo the release lever located directly side of the seat
slider. Loosen the release lever then slide the seat to the required position. Then made sure the release lever tighten.
5. Pedals and toe straps- your feet should be securely positioned in the toe clips during the exercise. Put your foot as far
forwards as you can into the toe-clip and then pull the strap tight.
6. The bike should operate on a level surface with no lateral movement. There is height adjuster caps located on either side
underneath the rear foot. Turn these caps clockwise or anti-clockwise until the bike is totally stable on the ground.
7. Emergency brake – Press down brake system (46) for stop.
8. Maintenance – It may be unsafe when loosen bolt on the parts or noise on the ywheel, please contact your supplier.
Like any other mechanical cycling device, the bike should be regularly maintained. Ask your supplier for a detailed
maintenance program.
Assembly Instructions

www.yorktness.com 5
1
Attach the front (18) and rear feet (14) to
the frame using the nuts (8), washer (9) and
bolts (10).
14
10 x 4
18
8x 4
9x 4
2
Attach the handlebar post (22) by inserting
it into the head tube on the frame. Use the
release lever to adjust and tighten the
height to the desired position. Attach the
handlebar slider (23) on the handlebar
post (22), use release lever (17) to adjust
and tighten the handlebar into position.
23
17
22

www.yorktness.com6
3
Insert the seat post (43) into the seat tube
on the frame. Attach the saddle (1) into
seat slider (42). Make sure the saddle clamp
screw tighten securely. Insert the seat
Using release lever (6) adjusts and tightens
the height in the desired position.
1
42
43
6
4
Attach the pedals (11) into the crank arms
(20)(21), each pedal is marked with L (left)
or R (right) to denote the side of the spin-
ning bike they are on. Note - the right hand
crank is on the same side as the chain
guard (19). Be careful to align the threads
correctly to avoid damaging them. Apply-
ing a little grease on the threads will help
the pedals to screw in easily and correctly,
tighten using a 15mm spanner; both
pedals should tighten towards the front of
the bike.
20
11
11
19
21
Assembly Instructions

www.yorkfitness.comwww.yorkfitness.com
7
NO DESCRIPTION DAILY WEEKLY MONTHLY QUARTERLY
1Keep machine clean: Wipe dirt & sweat after use. X
2Wipe anti-rust oil on handle bar post & seat post
set to avoid rust. X
3Visual check X
4Check security of handlebar post & seat clamp X
5Check security of saddle X
6Remove handlebar post and clean tube X
7Remove seat post and clean tube X
8Check brake pads for wear- alignment X
9Check brake adjustment X
10 Check security of all clamps , adjuster knob,
adjustment. X
11 Check toe straps for signs of wear X
12 Check crank bolts and re-tighten X
13 Make sure pedals are screwed In X
14 Wipe the anti-rust oil on the ywheel X
15 Check chain tension X
16 Oil chain X
17 Check bottom bracket X
18 Check ywheel bearings X
Adjusting The Resistance
1. Adjust the exercise resistance on the spinning bike using the brake knob (24) to loosen (-) or tighten (+).
2. The ywheel should rotate freely without resistance when you loosen (-) the brake system fully.
3. More experienced riders may wish to increase the overall resistance by tightening (+) the brake system.
Maintenance Chart

www.yorktness.com8
Exploded Drawing
14
10 9
8
10
18
16
19
23
22
-
-
-
32
32
1
8
9
11
12
13
24
7 33 34
21
3938
20
25 26
2 3 4 5 6
40 41
44
17
43
42
36 35 37 3637
15
30
29 28
31
27
30-1
46
-
-
-
50
47
49
48
24
45
52
51
54
53

www.yorktness.com 9
YORKREF. REF. DESCRIPTION QTY.
53097-001 1 SADDLE 1
53097-002 2 ALLOY BIND CLAMP ( R ) 3
53097-003 3 SPRING FOR RELEASE LEVER 3
53097-004 4 ALLOY BIND CLAMP ( L ) 3
53097-005 5 WASHER FOR RELEASE LEVER 3
53097-006 6 RELEASE LEVER 3
53097-007 7 CRANK BOLT 2
53097-008 8 FOOT TUBE NUT 4
53097-009 9 FOOT TUBE WASHER 4
53097-010 10 FOOT FIXING BOLT 4
53097-011 11 PEDAL 1
53097-012 12 FOOT TUBE END CAP 4
53097-013 13 FOOT TUBE ADJUSTER PAD 4
53097-014 14 REAR FOOT TUBE 1
53097-015 15 FLYWHEEL FIXED SPROCKET 1
53097-016 16 FLYWHEEL ADJUSTER BOLT 2
53097-017 17 HANDLE BAR RELEASE LEVER W/WASHER 1
53097-018 18 FRONT FOOT TUBE 1
53097-019 19 OUTER CHAIN GUARD 1
53097-020 20 LEFT CRANK ARM1
53097-021 21 RIGHT CRANK ARM W/CHAINING
53097-022 22 HANDLE BAR POST 1
53097-023 23 HANDLE BAR W/SLIDER 1
53097-024 24 BRAKE SYSTEM 1
53097-025 25 BOLT W/WASHER FOR BOTTLE CAGE 2
53097-026 26 BOTTLE CAGE 1
53097-027 27 BOLT FOR SPRING PLATE 2
53097-028 28 SPRING PLATE 1
53097-029 29 BRAKE PAD HOLDER 1
YORKREF. REF. DESCRIPTION QTY.
53097-030 30 BRAKE PAD (CONSUMABLE ITEM) 1
53097-031 30-1BOLT FOR BRAKE PAD 2
53097-032 31 NUT & SCREW 1
53097-033 32 AXLE COVER WITH BOLT 1
53097-034 33 BB BEARING 2
53097-035 34 BB AXLE 1
53097-036 35 FLYWHEEL AXLE
1
53097-037 36 FLYWHEEL SECURITY NUT
53097-038 37 FLYWHEEL BEARING
53097-039 15 FIXED WHEEL SPROCKET
53097-040 38 AXLE BOLT FOR MOVING WHEEL 2
53097-041 39 MOVING WHEEL 2
53097-042 40 SPRING FOR RELEASE LEVER 3
53097-043 41 FIXED BOLT FOR RELEASE LEVER 3
53097-044 42 SEAT SLIDER 1
53097-045 43 SEAT POST 1
53097-046 44 WASHER FOR RELEASE LEVER 3
53097-047 45 CHAIN 1
53097-048 46 BRAKE HANDLE 1
53097-049 47 STAINLESS WASHER 2
53097-050 48 SPRING 1
53097-051 49 LOCK WASHER 1
53097-052 50 BOLT 1
53097-053 51 RUBBER SLEEVES 3
53097-054 52 FLYWHEEL W/MAGNET 1
53097-055 53 M5 SCREW 3
53097-056 54 M6 SCREW 4
53097-057 55 YORK DECALS -
Part List

www.yorkfitness.com
10
Should you require any assistance regarding this product
please contact the York Commercial Reseller or your local York
Store who supplied you this equipment.
Please have following information available before you
contact the York Commercial Reseller or your local York Store.
• York Product Code/ Serial number
• York Product Name
• Your Gym Address / Location
• Your Gym/Company Name
• Your Gym Environment (light/full commercial)
• Your Proof of Purchase
• Product Problem (What is not working / what is the machine doing/not doing)
• Photographs of Issue (will help faster diagnosis and resolving the problem)
• Which Part is Required (part number can be found in the manual, see parts list section)
Use only on a level surface
Not suitable for therapeutic purpose
Manufacturer: YORK BARBELL
Contact: York Way, Daventry, England, NN11 4YB
Product Name: York SB9000 Indoor Training Cycle
Max User Weight: 130KG
Safety Standards: EN957-1,-10
SERIAL NO: 53097-

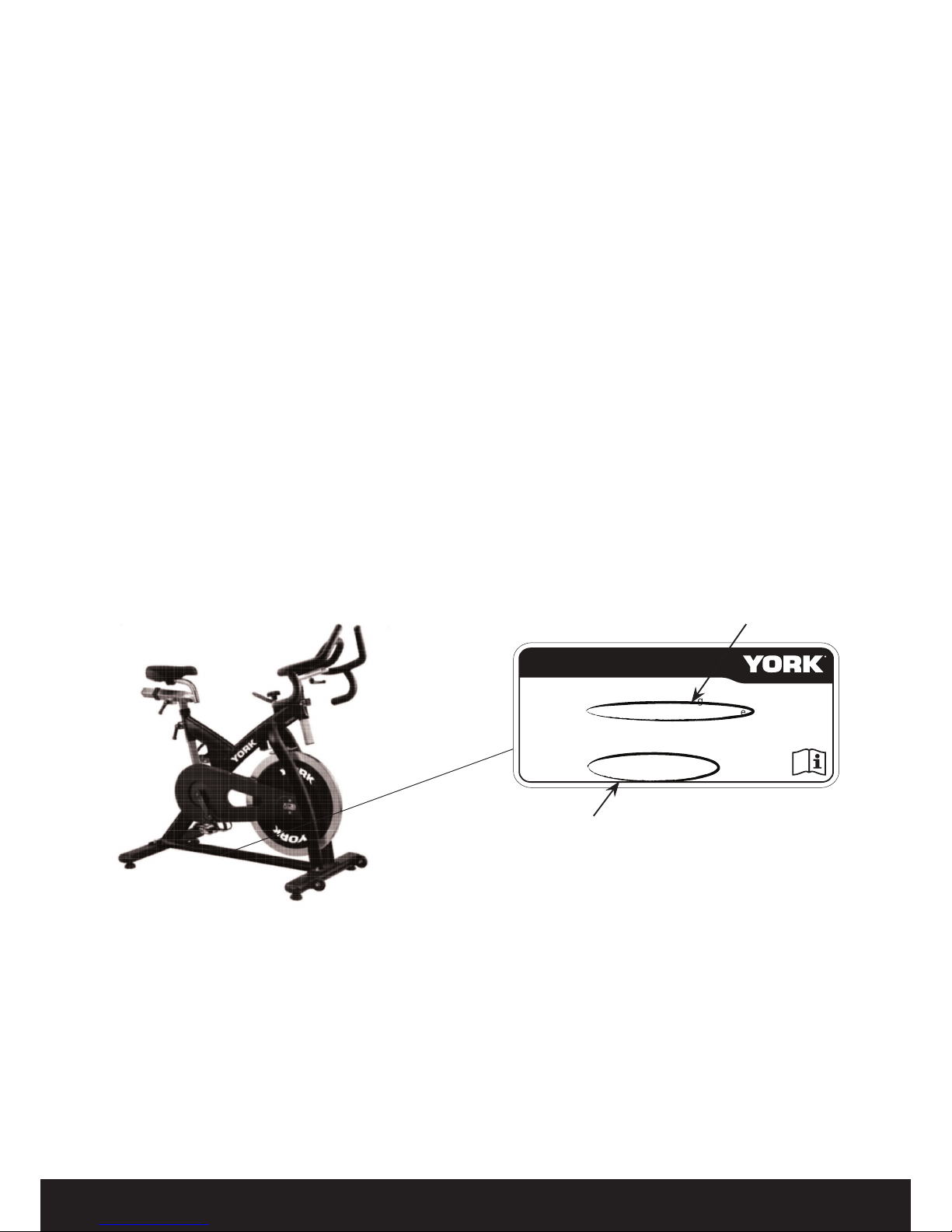

Product’s Name
Serial Number
This product label is an example only, it is not the real
product name and serial number of the item you
have bought.
Underside of the
main body.
IMPORTANT - Please retain your sales receipt, York Commercial Reseller (your supplier) will need
to present proof of purchase to York Barbell (UK) Ltd to validate eligibility for product guarantee.
Guarantee starts from the date shown on the proof of purchase/sales receipt.
Customer Support

www.yorkfitness.comwww.yorkfitness.com
11
This York Product has 2 years Full Commercial parts and labour guarantee. Below you will nd all guarantee details and
guarantee exclusions.
1. Guarantee is only valid for the original purchaser.
2. Normal wear is not within guarantee
3. Brake Pads (part 53097-030) is consumable so not within the guarantee.
You may have to replace brake pads as often as 3-6 months depending how much you use them.
We recommend you hold a small stock of basic spare parts, as well as a tool kit and anti-rust oil (WD-40 or similar) to
cover the regular maintenance routines.
4. Maintenance chart will help you to maintain your equipment. (see page 07)
5. You need to oil the equipment daily and wipe o the sweat. Failing to do this will result of product rusting. Rust on the
product is not within the guarantee.
6. You need to check alignment/parallel screw the pedals into crank of pedals and tighten pedals weekly.
Failing to do this will result in damage to the crank threading. Damage on the pedal/crank thread is not within the
guarantee.
7. Improper assembly or maintenance or the installation of part or accessories not compatible with the original intended
use of the training cycle, as sold, are not covered by the guarantee.
Time
Guarantee Period is 2 years parts and labour. Guarantee starts from the date shown on the proof of purchase/sales receipt.
Location
York Barbell (UK) Ltd guarantees this product for 2 years for commercial use in England and Wales only.
This will be as set out above.
Outside of England and Wales including Scotland, Scottish Highlands, Channel Islands, Isle of Man, Isle of Wight, Northern
Ireland, Ireland, and other Euro Areas. York Commercial Reseller or your local York Store will be providing all after sales
service.
After Sales Service
Should you require any assistance regarding this product please contact the York Commercial Reseller or your local York
Store who supplied you this product.
Please have following information available before you contact the York Commercial Reseller or your local York Store.
• York Product Code/ Serial number
• York Product Name
• Your Gym Address / Location
• Your Gym/Company Name
• Your Gym Environment (light/full commercial)
• Your Proof of Purchase
• Product Problem (What is not working / what is the machine doing/not doing)
• Photographs of Issue (will help faster diagnosis and resolving the problem)
• Which Part is Required (part number can be found in the manual, see parts list section)
IMPORTANT - Please retain your sales receipt, York Commercial Reseller (your supplier) will need to present proof of
purchase to York Barbell (UK) Ltd to validate eligibility for product guarantee. Guarantee starts from the date shown on the
proof of purchase/sales receipt.
Guarantee

www.yorkfitness.com
strength and conditioning
since 1932
