York H1RA018S78 Quick start guide

339293-YTG-C-0208
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
TECHNICAL GUIDE
SPLIT-SYSTEM HEAT PUMPS
10 SEER – R-22
MODELS:
10 SEER 50 HZR22
H*RA018S78 THRU H*RA036S78 (1 PH)
(1.5 THRU 3 NOMINAL TONS)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
DESCRIPTION
The HRA Series condensing unit is the outdoor part of a ver-
satile system of air conditioning. It is designed to be custom
matched with one of UPG’s complete line of evaporator sec-
tions, each designed to serve a specific function. Matching
Air Handlers are available for upflow, downflow or horizontal
applications to provide a complete system. Electric Heaters
are available if required. Add-On coils are available for use
with upflow, downflow or horizontal furnaces and air handlers.
FEATURES
•QUALITY CONDENSER COILS - The coil is constructed
of enhanced copper tube and aluminum fins.
•COIL PROTECTION - Coils are protected from damage by
a polymer mesh applied between the coil face, and a PVC
coated steel coil guard.
•PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur. A liquid line filter-drier further protects the
compressor.
•DURABLE FINISH - Cabinet is made of pre-painted steel.
The pre-treated flat galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
•LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connections.
Discharge line heat exchanger knockouts are provided, if
required. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
•TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
•LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins of
the condenser coil muffle the normal fan motor and com-
pressor operating sounds.
•LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
•EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, a single panel covering the electrical controls
and the molex plug in the control box connecting the con-
denser fan, make for easy servicing of the unit.
•SECURED SERVICE VALVES - Secured re-usable ser-
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
•FACTORY TESTED - to verify system operation and con-
trol functioning before shipment.

339293-YTG-C-0208
2Unitary Products Group

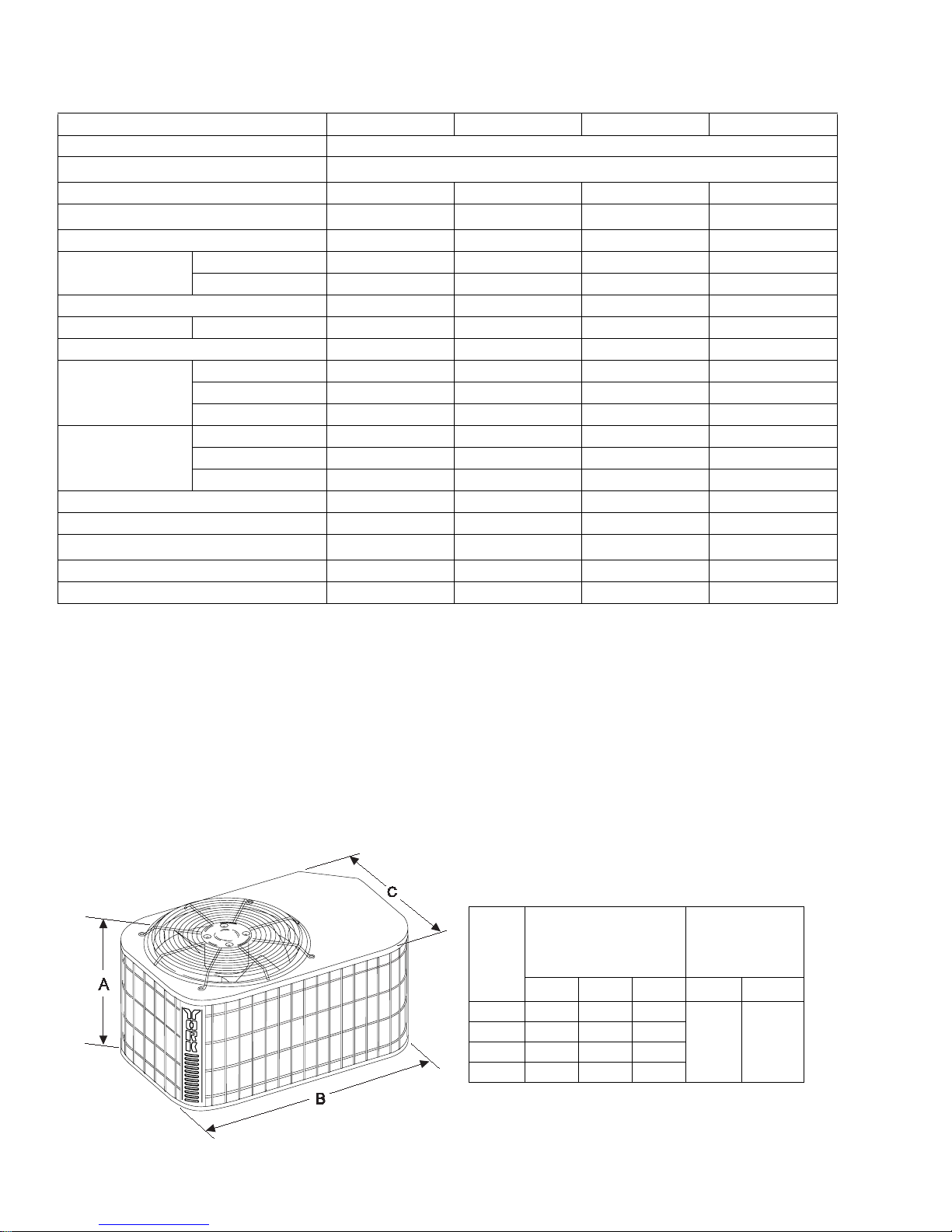

Physical and Electrical Data
Model H1RA018S78 H1RA024S78 H1RA030S78 H1RA036S78
Unit Supply Voltage 220 - 240V, 1φ, 50Hz
Normal Voltage Range 1
1.Rated in accordance with ARI Standard 110, utilization range “A”.
207 to 253
Minimum Circuit Ampacity 9.8 14.6 20.4 20.8
Max. Overcurrent Device Amps 2
2.Dual element fuses or HACR circuit breaker.
15 25 35 35
Compressor Type Recip Recip Recip Recip
Compressor Amps Rated Load 7.4 11.3 15.2 15.5
LockedRotor53659082
Crankcase Heater No No No No
Fan Motor Amps Rated Load .5 .5 1.8 1.8
Fan Diameter Inches 18 18 18 18
Fan Motor Rated HP 1/12 1/12 1/4 1/4 Nominal RPM 970 970 900 900
Nominal CFM 1,650 1,650 2,350 2,350
Coil FaceAreaSq.Ft.8.008.009.159.15 Rows Deep 1 1 1 1
Fin / Inches 14 14 16 16
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4
Unit Charge (Lbs. - Oz.) 3
3.The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than
15 feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
3 - 13 3 - 14 3 - 12 4 - 11
Charge Per Foot, Oz. 0.66 0.66 0.68 0.68
Operating Weight Lbs. 118 123 135 137
All dimensions are in inches. They are subject to
change without notice. Certified dimensions will be pro-
vided upon request.
Unit
Model
Dimensions
(Inches)
Refrigerant
Connection
Service Valve
Size
A1B C Liquid Vapor
018S78 17 35 23
3/8” 3/4”
024S78 17 35 23
030S78 19 35 23
036S78 19 35 23
1.Including Fan Guard

339293-YTG-C-0208
Unitary Products Group 3
1. For condensing unit only. Does not include effect of evaporator motor power or heat.
2. Performance based on 15°F superheat and 15°F sub-cooling at condensing unit.
a. Increase capacity 1% for each 2°F increase in sub-cooling.
b. Decrease capacity 1% for each 2°F decrease in sub-cooling.
3. Sub-cooling in excess of 20°F may result in excessively high condensing temperature with air on condenser above 115°F Maximum
recommended condensing temperature is 140°F.
COOLING CAPACITY - With Air Handler Coils
UNIT MODEL
AIR HANDLER COIL
MODEL
COOLING
MODEL ELECTRIC
HEAT KW WRATED CFM NET MBH KW
TOTAL SENS.
1 PHASE HRA / FRP (SINGLE PHASE)
H1RA018S78 F2RP024N93 5,7.5,10 18 – 650 18.1 12.9 1.86
H1RA024S78 F2RP024N93 5,7.5,10 18 – 850 23.4 16.8 2.87
H1RA030S78 F2RP036N93 5,7.5,10,15 21 – 1000 29.6 20.6 3.57
H1RA036S78 F2RP036N93 5,7.5,10,15 21 – 1250 34.3 25.6 3.86
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
KW includes compressor, outdoor fan and indoor blower motor watts. Add-on coils include 365 watts/1000 CFM for blower motor.
COOLING PERFORMANCE
MODEL SUCT. T/P
@ COMPR. AIR TEMP ON CONDENSER
75°F 95°F 115°F 125°F
TEMP. PSIG MBH KW MBH KW MBH KW MBH KW
H1RA018S78
35 61.5 13.1 1.36 13.1 1.36 10.6 1.46 9.3 1.52
40 68.5 14.8 1.42 14.8 1.42 12.8 1.55 10.6 1.61
45 76.0 16.5 1.48 16.5 1.48 13.7 1.62 12.2 1.69
50 84.0 18.4 1.55 18.4 1.55 15.2 1.71 13.7 1.78
H1RA024S78
35 61.5 21.3 1.59 17.7 1.93 14.7 2.14 13.3 2.23
40 68.5 24.1 1.68 20.1 2.04 16.7 2.27 15.1 2.38
45 76.0 26.7 1.77 22.3 2.16 18.9 2.40 17.1 2.53
50 84.0 29.6 1.85 24.9 2.27 21.1 2.55 19.4 2.67
H1RA030S78
35 61.5 28.0 2.31 24.4 2.65 20.1 2.86 18.0 2.96
40 68.5 31.5 2.44 27.5 2.78 22.8 3.02 23.4 3.31
45 76.0 35.1 2.52 30.7 2.91 25.9 3.17 23.4 3.48
50 84.0 38.9 2.62 34.2 3.04 28.8 3.34 26.3 3.48
H1RA036S78
35 61.5 30.6 3.14 27.0 3.48 23.1 3.79 21.0 3.89
40 68.5 34.4 3.28 30.4 3.64 26.1 3.98 23.7 4.10
45 76.0 38.3 3.42 33.9 3.81 29.1 4.17 26.6 4.30
50 84.0 38.9 2.62 34.2 3.04 28.8 3.34 26.3 3.48

339293-YTG-C-0208
4Unitary Products Group
ACCESSORIES
Refer to Price Manual for specific model numbers.
Compressor Blanket - Designed to further reduce the nor-
mal operating sound.
Hard Start Kit (Single Phase Units) - provides required
starting torque for use with thermal expansion valve.
Outdoor Thermostat - 2TD06700124 - Consists of an
adjustable outdoor thermostat and relay in a vented enclo-
sure. It provides additional second stage control of the sup-
plemental resistance heat.(Balance Point Control)
SOUND RATINGS
* Rated in accordance with ARI 270-95 Standards.
TYPICAL INSTALLATION - H*RA018S78 THRU 036S78 (1 PH)
TYPICAL FIELD WIRING - 1 PH APPLICATION (018S78 - 036S78)
UNIT MODEL (dBA)
018 76
024 78
030 82
036 82
MINIMUM 18” SERVICE ACCESS
CLEARANCE ON ONE SIDE
60” OVERHEAD
CLEARANCE
10” CLEARANCE
COIL AREA
WEATHERPROOF
DISCONNECT
SWITCH
THERMOSTAT TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO INDOOR COIL
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
CONTROL ACCESS PANEL
NOTE: ALL OUTDOOR WIRING MUST
BE WEATHERPROOF.
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
230-1-50
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*

339293-YTG-C-0208
Unitary Products Group 5
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87°F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA018S78A
INDOOR COIL MODEL NO. F2RP024
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 500 650 800
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75 T.C. 18.3 18.1 16.5 18.4 18.2 17.2 18.4 18.3 17.8 S.C. 10.6 10.8 10.5 11.0 11.6 11.9 11.4 12.4 13.3
K.W 1.55 1.55 1.53 1.71 1.71 1.69 1.68 1.67 1.66
85 T.C. 17.8 17.2 15.4 18.0 17.5 16.1 18.2 17.8 16.8 S.C. 10.6 10.7 10.2 11.3 11.7 11.6 12.0 12.8 13.1
K.W 1.76 1.74 0.95 1.95 1.93 1.90 1.95 1.93 1.90
95 T.C. 17.3 16.3 14.2 17.6 16.8 15.0 17.9 17.3 15.8 S.C. 10.6 10.5 9.8 11.6 11.8 11.4 12.5 13.1 12.9
K.W 1.79 1.75 1.71 1.95 1.92 1.88 1.92 1.89 1.85
105 T.C. 16.0 14.7 12.6 16.5 15.3 13.3 17.0 15.9 14.1 S.C. 10.0 10.0 9.2 11.4 11.4 10.7 12.7 12.8 12.2
K.W 1.99 1.94 1.90 2.19 2.14 2.09 2.19 2.14 2.09
115 T.C. 14.6 13.1 11.0 15.3 13.8 11.7 16.0 14.4 12.3 S.C. 9.4 9.5 8.5 11.2 11.0 10.0 12.9 12.5 11.5
K.W 2.01 1.94 1.90 2.18 2.12 2.07 2.16 2.10 2.04
125 T.C. 13.0 11.1 9.3 13.7 11.6 9.9 14.3 12.1 10.4 S.C. 9.4 8.5 7.8 11.1 10.0 9.2 12.7 11.5 10.6
K.W 2.11 2.04 1.98 2.28 2.21 2.15 2.26 2.19 2.13
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

339293-YTG-C-0208
6Unitary Products Group
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87°F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA024S78A
INDOOR COIL MODEL NO. F2RP024
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 650 850 1050
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75 T.C. 26.4 25.3 24.0 26.6 25.7 24.6 26.7 26.1 25.2 S.C. 15.4 15.6 15.4 16.2 16.7 16.8 16.9 17.8 18.2
K.W 2.15 2.11 2.08 2.17 2.13 2.10 2.18 2.15 2.12
85 T.C. 25.4 23.9 21.8 25.7 24.6 22.8 26.1 25.2 23.7 S.C. 15.3 15.1 14.4 16.4 16.6 16.2 17.4 18.2 18.1
K.W 2.312.261.162.332.282.232.362.312.26
95 T.C. 24.4 22.5 19.6 24.9 23.4 20.9 25.4 24.3 22.2 S.C. 15.3 14.6 13.4 16.6 16.6 15.7 17.9 18.5 17.9
K.W 2.472.402.312.502.442.352.532.472.39
105 T.C. 22.5 20.1 17.6 23.2 21.1 18.6 23.9 22.1 19.6 S.C. 14.7 13.8 12.7 16.4 15.9 14.7 18.1 17.9 16.8
K.W 2.622.532.442.662.572.472.702.612.51
115 T.C. 20.6 17.7 15.6 21.5 18.8 16.3 22.4 19.8 16.9 S.C. 14.2 13.0 11.9 16.3 15.2 13.8 18.3 17.3 15.6
K.W 2.762.652.562.812.702.592.862.742.62
125 T.C. 17.8 15.2 13.3 18.7 15.9 14.0 19.5 16.7 14.7 S.C. 13.3 12.4 11.4 15.4 14.3 13.1 17.4 16.1 14.7
K.W 2.892.782.692.942.822.722.992.852.75
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

339293-YTG-C-0208
Unitary Products Group 7
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87°F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA030S78A
INDOOR COIL MODEL NO. F2RP036
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 650 850 1050
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75 T.C. 26.4 25.3 24.0 26.6 25.7 24.6 26.7 26.1 25.2 S.C. 15.4 15.6 15.4 16.2 16.7 16.8 16.9 17.8 18.2
K.W 2.39 2.35 2.32 2.53 2.49 2.46 2.56 2.53 2.50
85 T.C. 25.4 23.9 21.8 25.7 24.6 22.8 26.1 25.2 23.7 S.C. 15.3 15.1 14.4 16.4 16.6 16.2 17.4 18.2 18.1
K.W 2.67 2.62 1.40 2.82 2.76 2.71 2.93 2.88 2.83
95 T.C. 24.4 22.5 19.6 24.9 23.4 20.9 25.4 24.3 22.2 S.C. 15.3 14.6 13.4 16.6 16.6 15.7 17.9 18.5 17.9
K.W 2.71 2.64 2.55 2.86 2.80 2.71 2.91 2.85 2.77
105 T.C. 22.5 20.1 17.6 23.2 21.1 18.6 23.9 22.1 19.6 S.C. 14.7 13.8 12.7 16.4 15.9 14.7 18.1 17.9 16.8
K.W 2.98 2.89 2.80 3.14 3.05 2.95 3.27 3.18 3.08
115 T.C. 20.6 17.7 15.6 21.5 18.8 16.3 22.4 19.8 16.9 S.C. 14.2 13.0 11.9 16.3 15.2 13.8 18.3 17.3 15.6
K.W 3.00 2.88 2.80 3.17 3.05 2.95 3.24 3.12 3.00
125 T.C. 17.8 15.2 13.3 18.7 15.9 14.0 19.5 16.7 14.7 S.C. 13.3 12.4 11.4 15.4 14.3 13.1 17.4 16.1 14.7
K.W 3.13 3.02 2.93 3.30 3.18 3.08 3.37 3.23 3.13
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

Subject to change without notice. Printed in U.S.A. 339293-YTG-C-0208
Copyright © by Unitary Products Group. 2008. All rights reserved. Supersedes: 339293-YTG-B-0108
Unitary 5005 Norman
Product York OK
Group Drive 73069
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87°F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA036S78A
INDOOR COIL MODEL NO. F2RP036
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 1050 1250 1450
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75 T.C. 38.7 36.8 35.0 39.1 34.7 35.6 39.4 32.5 36.2 S.C. 23.4 23.5 23.4 24.4 24.8 24.8 25.4 26.1 26.2
K.W 3.303.253.213.593.543.503.483.433.39
85 T.C. 37.4 34.8 31.9 37.7 34.1 32.6 38.1 33.4 33.4 S.C. 23.5 24.0 22.2 24.7 25.2 23.9 25.9 26.4 25.5
K.W 3.743.651.954.064.003.904.003.943.84
95 T.C. 36.0 32.7 28.7 36.4 33.5 29.6 36.7 34.3 30.5 S.C. 23.6 24.5 21.0 25.0 25.6 22.9 26.4 26.7 24.8
K.W 3.803.673.514.093.993.833.993.923.76
105 T.C. 32.6 29.1 25.5 33.2 29.9 26.3 33.9 30.7 27.2 S.C. 22.6 22.1 19.6 24.3 23.6 21.5 26.1 25.2 23.3
K.W 4.174.003.854.534.364.214.494.324.17
115 T.C. 29.2 25.5 22.3 30.1 26.3 23.1 31.0 27.0 23.8 S.C. 21.5 19.6 18.2 23.6 21.6 20.0 25.7 23.6 21.8
K.W 4.163.953.814.504.274.124.454.194.04
125 T.C. 25.5 22.4 19.6 26.2 22.8 20.0 26.9 23.1 20.4 S.C. 20.3 18.8 17.4 22.3 20.5 18.9 24.3 22.2 20.3
K.W 4.294.123.994.654.434.294.614.354.20
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
