York THGD18 THRU 60 Quick start guide

TECHNICAL GUIDE
SPLIT-SYSTEM
HEAT PUMPS
13 SEER – R-410A
MODELS:
THGD18 THRU 60
(1.5 THRU 5 NOMINAL TONS, 1 PHASE)
Due to continuous product improvement, specifications
are subject to change without notice.
V
isit us on the web at www.york.com
A
dditional rating information can be found at
w
ww.ahridirectory.org
LISTED
ISO 9001
Certified Quality
Management System
397763-YTG-B-0508
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The heat pump condensing unit is the outdoor part of a versa-
tile system of heating and air conditioning. It is designed to be
custom-matched with one of UPG’s complete line of evapora-
tor sections, with each serving a specific function. Matching
Air Handlers are available for upflow, downflow, or horizontal
applications to provide a complete system. Electric Heaters
are available, if required. Add-on coils are available for use
with upflow, downflow, or horizontal furnaces and air han-
dlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
5-year limited compressor warranty.
FEATURES
•QUALITY CONDENSER COILS - The coil is constructed
of copper tubing and enhanced aluminum fins for
increased efficiency and corrosion protection.
•PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure, temperature, and
externally by a factory installed high pressure switch. This
is accomplished by the simultaneous operation of high
pressure relief valve and a temperature sensor which pro-
tects the compressor if undesirable operating conditions
occur. A liquid line filter-drier further protects the compres-
sor.
•DURABLE FINISH - The cabinet is made of pre-painted
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
•LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connec-
tions. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
•TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
•LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins
of the condenser coil muffle the normal fan motor and
compressor operating sounds.
•LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
•EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, and a single panel covering the electrical con-
trols make for easy servicing of the unit.
•SECURED SERVICE VALVES - Secured re-usable ser-
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
•U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.

397763-YTG-B-0508
2Johnson Controls Unitary Products
All dimensions are in inches. They are subject to change
without notice. Certified dimensions will be provided upon
request.
Physical and Electrical Data
MODEL THGD18
S41S1 THGD24 S41S1 THGD30 S41S1 THGD36 S41S1 THGD42 S41S1 THGD48 S41S1 THGD60 S41S1
Unit Supply Voltage 208-230V, 1φ, 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 9.6 12.0 15.4 19.6 28.6 30.9 37.4
Max. Overcurrent Device Amps 215 20 25 30 50 50 60
Min. Overcurrent Device Amps 315 15 20 20 30 35 40
Compressor Type Recip Recip Recip Recip Scroll Scroll Scroll
Compressor Amps Rated Load 7.12 8.9 11.65 14.72 21.76 23.61 28.79
Locked Rotor 47.0 48.0 60.0 83.0 105.0 150.0 150
Crankcase Heater Yes Yes Yes Yes No No No
Fan Motor Amps Rated Load 0.70 0.80 0.80 1.5 1.5 1.5 1.5
Fan Diameter Inches 24 24 24 24 24 24 24
Fan Motor Rated HP 1/10 1/8 1/8 1/4 1/4 1/4 1/4 Nominal RPM 825 1075 1075 850 850 850 850
Nominal CFM 2200 2900 3100 3800 3200 3000 3000
Coil Face Area Sq. Ft. 15.7 18.3 21.0 23.58 23.58 23.58 23.58 Rows Deep 1 1 1 1 1 2 2
Fin / Inches 22 22 22 22 22 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.) 46 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6
Charge Per Foot, Oz. .62 .62 .62 .62 .67 .67 .67
Operating Weight Lbs. 172 184 196 208 208 275 280
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,
add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
B
C
A
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A1
1. Including Fan Guard.
B C Liquid Vapor
18 28 34 34
3/8”
3/4”
24 32 34 34
30 36 34 34
36 40 34 34
42 40 34 34 7/8”48 40 34 34
60 40 34 34

397763-YTG-B-0508
Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of interconnect-
ing line tubing.
2. Verify the TXV or orifice and additional charge required for specific evaporator coil in the system using the above table.
3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data
Table.
4. For TXV match charge weight needs to be weighed in for specififc coil match and lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evapo-
rator + adder for line set.
Additional R-410A Charge / Orifice Size for Various Matched Systems
Outdoor Unit THGD18
S41S1 THGD24 S41S1 THGD30 S41S1 THGD36 S41S1 THGD42 S41S1 THGD48 S41S1 THGD60 S41S1
Required Orifice or TXV 1,2 1TVM0901 1TVM0903 1TVM0903 1TVM0904 1TVM0904 1TVM0905 1TVM0906
Factory Charge, lbs-oz 6 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6
Indoor Coil3,4 Additional Charge, Oz
FC/MC/PC/UC18AB 0––––––
FC/MC/PC/UC24AB +40–––––
FC/MC/PC30AB –0–––––
FC/MC/PC32A –00––––
FC/MC/PC35BC –00––––
FC/MC/PC37A ––00–––
FC/MC/PC43BC ––00–––
FC/MC/PC/UC48CD – – – + 10 0 0 –
FC/MC/PC/UC60CD ––––00–
FC/MC62D –––––+120
HC18A +1––––––
HC30A +100–––––
HC36B –00––––
HC42 – – 0 0 0 – –
HC60 ––––00–
HD24 +14––––––
HD36 –+2–––––
HD48 – – + 8 + 8 – – –
HD60 ––––0+7–
AHP18 0––––––
AHP30 –0–––––
AHP36 ––00–––
AHP/SHP48 ––––00–
AHP/SHP60 –––––0–
AV24 +30–––––
AV36 – 6 0 0 – – –
AV/SV48 ––––00–
AV/SV60 –––––0–
F4FP24 0––––––
F4FP30 –0–––––
F4FP40 ––0––––
F4FP45 –––00––
F5FP48 ––––00–
F4FV60 –––––0–
F5FP60 –––––0–
FOOTNOTES:
1. For applications requiring a TXV use 1TVM900 series kit.
2. Approved orifice shipped with outdoor unit.
3. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.
4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
See Cautionbelow
See Cautionbelow
See Cautionbelow
See Cautionbelow
See Cautionbelow
See Cautionbelow
See Cautionbelow
F*FP Air Handlers come with a factory installed R-22 TXV which MUST BE CHANGED OUT to R-410A TXV or an orifice for proper opera-
tion. If the TXV is not changed out system damage will occur.

397763-YTG-B-0508
4Johnson Controls Unitary Products
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL W RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER HP WITH MA
THGD18S41S1 MA08B 17 FC/MC/PC18B 600 17.0 12.6 13.00 11.00
MA08B 17 FC/MC/PC24B 600 17.0 12.9 13.50 11.00
THGD24S41S1 MA08B 17 FC/MC/PC24B 800 23.0 17.1 13.00 11.00 MA08B 17 FC/MC/PC30B 800 23.0 17.2 13.00 11.00
MA08B 17 FC/MC/PC35B 800 23.0 17.5 13.00 11.00
THGD30S41S1 MA12B 17 FC/MC/PC35B 1000 29.0 23.2 13.00 11.00
MA12B 17 FC/MC/PC43B 1000 29.0 23.4 13.00 11.00
THGD36S41S1 MA12B 17 FC/MC/PC43B 1200 35.0 26.8 13.00 11.00
MA14D 24 FC/MC/PC48D 1200 35.0 27.0 13.00 11.00
THGD42S41S1
MA14D 24 FC/MC/PC48D 1400 41.5 31.4 13.00 11.00
MA16C 21 FC/MC/PC48C 1400 41.5 31.4 13.00 11.00
MA14D 24 FC/MC/PC60D 1400 41.0 31.2 13.00 11.00
MA16C 21 FC/MC/PC60C 1400 41.0 31.2 13.00 11.00
THGD48S41S1
MA16C 21 FC/MC/PC48C 1600 47.0 35.2 13.00 11.00
MA20D 24 FC/MC/PC48D 1600 47.0 35.2 13.00 11.00
MA16C 21 FC/MC/PC60C 1600 47.0 35.6 13.00 11.00
MA20D 24 FC/MC/PC60D 1600 47.0 35.6 13.00 11.00
MA20D 24 MC62D 1600 47.0 35.6 13.00 11.00
THGD60S41S1 MA20D 24 MC62D 1800 54.0 42.5 13.00 11.00
13 SEER HP WITH MV - VARIABLE SPEED
THGD18S41S1 MV12B 17 FC/MC/PC18B 600 17.0 12.9 14.00 12.00
MV12B 17 FC/MC/PC24B 600 17.0 13.2 14.00 12.00
THGD24S41S1
MV12B 17 FC/MC/PC24B 800 23.0 17.6 14.00 12.00
MV12B 17 FC/MC/PC30B 800 23.0 17.6 14.00 12.00
MV12B 17 FC/MC/PC35B 800 23.0 17.9 14.00 12.00
MV16C 21 FC/MC/PC35C 800 23.0 17.9 14.00 12.00
THGD30S41S1
MV12B 17 FC/MC/PC35B 1000 29.0 23.6 14.00 12.00
MV16C 21 FC/MC/PC35C 1000 29.0 23.6 14.00 12.00
MV12B 17 FC/MC/PC43B 1000 29.0 23.8 14.00 12.00
MV16C 21 FC/MC/PC43C 1000 29.0 24.0 14.00 12.00
THGD36S41S1
MV12B 17 FC/MC/PC43B 1200 35.0 27.0 13.50 11.50
MV16C 21 FC/MC/PC43C 1200 35.0 27.2 13.50 11.50
MV12D 24 FC/MC/PC48D 1150 35.0 26.8 13.50 11.50
MV16C 21 FC/MC/PC48C 1200 35.0 27.4 13.50 11.50
MV20D 24 FC/MC/PC48D 1200 35.0 27.4 13.50 11.50
THGD42S41S1 MV16C 21 FC/MC/PC48C 1400 42.0 31.8 14.00 12.00 MV20D 24 FC/MC/PC48D 1400 42.0 32.0 14.00 12.00
MV20D 24 FC/MC/PC60D 1400 41.5 31.8 14.00 12.00
THGD48S41S1
MV16C 21 FC/MC/PC48C 1600 47.5 35.6 14.00 11.80
MV20D 24 FC/MC/PC48D 1600 47.5 35.6 14.00 11.80
MV20D 24 FC/MC/PC60D 1600 47.5 36.0 14.00 11.80
MV20D 24 MC62D 1600 47.5 36.0 14.00 12.00
THGD60S41S1 MV20D 24 MC62D 1800 54.5 43.0 13.50 11.60
For Notes See Page 5.

397763-YTG-B-0508
Johnson Controls Unitary Products 5
— = Not applicable.
13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED
THGD18S41S1 AV24 17 – 550 17.0 13.0 14.00 12.00
THGD24S41S1 AV24 17 – 750 23.0 17.2 14.00 12.00
AV36 21 – 750 23.0 18.0 14.00 12.00
THGD30S41S1 AV36 21 – 1000 29.0 24.4 14.00 12.00
THGD36S41S1 AV36 21 – 1250 35.0 28.0 13.50 11.50
THGD42S41S1 AV/SV48 24 – 1400 41.5 32.0 14.00 12.00
THGD48S41S1 AV/SV48 24 – 1600 47.5 36.2 14.00 11.80 AV/SV60 24 – 1650 47.5 36.6 14.00 11.80
F4FV060 24 – 1600 47.5 36.2 14.00 11.80
13 SEER HP WITH AHP / SHP / F*FP
THGD18S41S1 AHP18 17 – 600 17.0 12.7 13.00 11.00
F4FP024 17 – 600 17.0 12.6 13.00 11.00
THGD24S41S1 AHP30 17 – 800 23.0 17.2 13.00 11.00
F4FP030 17 – 800 23.0 16.9 13.00 11.00
THGD30S41S1 AHP36 21 – 1000 29.0 23.2 13.00 11.00
F4FP040 21 – 1000 29.0 22.6 13.00 11.00
THGD36S41S1 AHP36 21 – 1200 35.0 26.8 13.00 11.00
F4FP045 24 – 1200 35.0 26.8 13.00 11.00
THGD42S41S1 AHP/SHP48 21 – 1400 41.5 31.4 13.00 11.00 F4FP045 24 – 1400 41.0 31.2 13.00 11.00
F5FP048 24 – 1450 41.0 32.6 13.00 11.00
THGD48S41S1 AHP/SHP60 24 – 1600 47.0 36.0 14.00 11.50 F5FP048 24 – 1700 47.5 36.6 14.00 11.50
F5FP060 24 – 1700 47.5 36.8 14.00 11.50
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL W RATED
CFM NET MBH SEER EER
TOTAL SENS.

397763-YTG-B-0508
6Johnson Controls Unitary Products
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils
UNIT MODEL FURNACE** COIL
MODEL
COOLING
CFM RANGE
(Min.-max.) WRATED CFM NET MBH SEER1EER
TOTAL SENS.
THGD18S41S1
450 - 750 14,17 FC/MC/PC18 600 17.0 12.6 13.00 11.00
450 - 750 14,17 FC/MC/PC24 600 17.0 12.9 13.50 11.00
450 - 750 14 HC18 600 17.0 12.6 13.00 11.00
450 - 750 14 HC30 600 17.0 12.8 13.00 11.00
450 - 750 14 HD24 600 17.0 13.0 13.50 11.00
THGD24S41S1
600 - 1000 14,17 FC/MC/PC24 800 23.0 17.1 13.00 11.00
600 - 1000 14,17 FC/MC/PC30 800 23.0 17.2 13.00 11.00
600 - 1000 14 FC/MC/PC32 800 23.0 17.5 13.00 11.00
600 - 1000 17,21 FC/MC/PC35 800 23.0 17.5 13.00 11.00
600 - 1000 14 HC30 800 23.0 17.2 13.00 11.00
600 - 1000 17 HC36 800 23.0 17.5 13.00 11.00
600 - 1000 14,17 HD36 800 23.0 16.4 13.00 11.00
THGD30S41S1
800 - 1200 14 FC/MC/PC32 1000 29.0 23.2 13.00 11.00
800 - 1200 17,21 FC/MC/PC35 1000 29.0 23.2 13.00 11.00
800 - 1200 14 FC/MC/PC37 1000 29.0 23.4 13.00 11.00
800 - 1200 17,21 FC/MC/PC43 1000 29.0 23.4 13.00 11.00
800 - 1200 17 HC36 1000 29.0 23.2 13.00 11.00
800 - 1200 21 HC42 1000 29.0 23.4 13.00 11.00
800 - 1200 21,24 HD48 1000 29.0 23.4 13.00 11.00
THGD36S41S1
1000 - 1400 14 FC/MC/PC37 1200 35.0 26.6 13.00 11.00
1000 - 1400 17,21 FC/MC/PC43 1200 35.0 26.8 13.00 11.00
1000 - 1400 21,24 FC/MC/PC48 1200 35.0 27.0 13.00 11.00
1000 - 1400 21 HC42 1200 35.0 26.8 13.00 11.00
1000 - 1400 21,24 HD48 1200 35.0 26.8 13.00 11.00
THGD42S41S1
1200 - 1600 21,24 FC/MC/PC48 1400 41.5 31.4 13.00 11.00
1200 - 1600 21,24 FC/MC/PC60 1400 41.0 31.2 13.00 11.00
1200 - 1600 21 HC42 1400 41.0 31.2 13.00 11.00
1200 - 1600 24 HC60 1400 41.0 31.2 13.00 11.00
1200 - 1600 21,24 HD60 1400 41.5 31.4 13.00 11.00
THGD48S41S1
1400 - 1800 21,24 FC/MC/PC48 1600 47.0 35.2 13.00 11.00
1400 - 1800 21,24 FC/MC/PC60 1600 47.0 35.6 13.00 11.00
1400 - 1800 24 HC60 1600 47.0 35.6 13.00 11.00
1400 - 1800 21,24 HD60 1600 47.0 35.4 13.00 11.00
1400 - 1800 21,24 MC62 1600 47.0 35.6 13.00 11.00
THGD60S41S1 1600 - 2000 21,24 MC62 1800 54.0 42.5 13.00 11.00
1. Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
** Refer to Quick Selection Chart for specific furnace match-up.

397763-YTG-B-0508
Johnson Controls Unitary Products 7
COOLING CAPACITY - With Variable Speed Furnaces
UNIT MODEL VARIABLE SPEED
FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2
THGD18S41S1
PV8*A12 FC/MC/PC18A 14 600 17.0 12.9 14.00 12.00
PV9*A12 FC/MC/PC18A 14 600 17.0 12.9 14.00 12.00
P(C,V)9*B12 FC/MC/PC18B 17 600 17.0 12.9 14.00 12.00
PV8*B16 FC/MC/PC/UC18B 17 600 17.0 12.9 14.00 12.00
PV8*A12 FC/MC/PC24A 14 600 17.0 13.2 14.00 12.00
PV9*A12 FC/MC/PC24A 14 600 17.0 13.2 14.00 12.00
P(C,V)9*B12 FC/MC/PC24B 17 600 17.0 13.2 14.00 12.00
PV8*B16 FC/MC/PC/UC24B 17 600 17.0 13.2 14.00 12.00
PV8*A12 HC18A 14 600 17.0 12.9 14.00 12.00
PV9*A12 HC18A 14 600 17.0 12.9 14.00 12.00
PV8*A12 HC30A 14 600 17.0 13.2 14.00 12.00
PV9*A12 HC30A 14 600 17.0 13.1 14.00 12.00
PV8*A12 HD24A 14 600 17.0 13.3 14.00 12.00
PV9*A12 HD24A 14 600 17.0 13.3 14.00 12.00
P(C,V)9*B12 HD24 17 600 17.0 13.3 14.00 12.00
PV8*B16 HD24 17 600 17.0 13.3 14.00 12.00
THGD24S41S1
PV8*A12 FC/MC/PC24A 14 750 23.0 17.1 14.00 12.00
PV9*A12 FC/MC/PC24A 14 800 23.0 17.4 14.00 12.00
P(C,V)9*B12 FC/MC/PC24B 17 800 23.0 17.5 14.00 12.00
PV8*A12 FC/MC/PC30A 14 750 23.0 17.2 14.00 12.00
PV9*A12 FC/MC/PC30A 14 800 23.0 17.5 14.00 12.00
P(C,V)9*B12 FC/MC/PC30B 17 800 23.0 17.5 14.00 12.00
PV8*A12 FC/MC/PC32A 14 750 23.0 17.4 14.00 12.00
PV9*A12 FC/MC/PC32A 14 800 23.0 17.7 14.00 12.00
P(C,V)9*B12 FC/MC/PC35B 17 800 23.0 17.8 14.00 12.00
P(C,V)9*C16 FC/MC/PC35C 21 850 23.0 18.6 14.00 12.00
PV8*A12 HC30A 14 750 23.0 17.2 14.00 12.00
PV9*A12 HC30A 14 800 23.0 17.6 14.00 12.00
P(C,V)9*B12 HC36B 17 800 23.0 17.8 14.00 12.00
PV8*A12 HD36A 14 750 23.0 16.7 14.00 12.00
PV9*A12 HD36A 14 800 23.0 16.8 14.00 12.00
P(C,V)9*B12 HD36B 17 800 23.0 16.8 14.00 12.00
THGD30S41S1
PV8*A12 FC/MC/PC32A 14 1000 29.0 23.4 14.00 12.00
PV9*A12 FC/MC/PC32A 14 1000 29.0 23.4 13.50 12.00
PV8*B16 FC/MC/PC35B 17 1050 29.0 24.4 14.00 12.00
PV8*C16 FC/MC/PC35C 21 1000 29.0 23.6 14.00 12.00
PV8*C20 FC/MC/PC35C 21 1100 29.0 25.0 14.00 12.00
P(C,V)9*B12 FC/MC/PC35B 17 1000 29.0 23.6 14.00 12.00
P(C,V)9*C16 FC/MC/PC35C 21 1000 29.0 23.6 14.00 12.00
P(C,V)9*C20 FC/MC/PC35C 21 1050 29.0 23.4 13.50 12.00
PV8*A12 FC/MC/PC37A 14 1000 29.0 23.8 13.50 12.00
PV9*A12 FC/MC/PC37A 14 1000 29.0 23.6 13.50 12.00
PV8*B16 FC/MC/PC43B 17 1050 29.0 24.6 14.00 12.00
PV8*C16 FC/MC/PC43C 21 1000 29.0 24.0 14.00 12.00
PV8*C20 FC/MC/PC43C 21 1100 29.0 25.6 14.00 12.00
P(C,V)9*B12 FC/MC/PC43B 17 1000 29.0 23.8 14.00 12.00
P(C,V)9*C16 FC/MC/PC43C 21 1000 29.0 23.8 14.00 12.00
P(C,V)9*C20 FC/MC/PC43C 21 1050 29.0 23.8 14.00 12.00
PV8*B16 HC36B 17 1050 29.0 24.2 14.00 12.00
P(C,V)9*B12 HC36B 17 1000 29.0 23.6 14.00 12.00
For Notes See Page 9.

397763-YTG-B-0508
8Johnson Controls Unitary Products
THGD30S41S1
PV8*C16 HC42C 21 1000 29.0 24.0 14.00 12.00
PV8*C20 HC42C 21 1100 29.0 25.6 14.00 12.00
P(C,V)9*C16 HC42C 21 1000 29.0 23.8 14.00 12.00
P(C,V)9*C20 HC42C 21 1050 29.0 23.8 14.00 12.00
PV8*C16 HD48C 21 1000 29.0 24.0 14.00 12.00
PV8*C20 HD48C 21 1100 29.0 25.4 14.00 12.00
P(C,V)9*C16 HD48C 21 1000 29.0 23.8 14.00 12.00
P(C,V)9*C20 HD48C 21 1050 29.0 23.8 14.00 12.00
P(C,V)9*D20 HD48D 24 1050 29.0 24.6 14.00 12.00
THGD36S41S1
PV8*A12 FC/MC/PC37A 14 1150 35.0 26.8 13.35 11.50
PV9*A12 FC/MC/PC37A 14 1100 35.0 25.8 13.20 11.50
PV8*B16 FC/MC/PC43B 17 1200 35.0 27.2 13.50 11.50
PV8*C16 FC/MC/PC43C 21 1200 35.0 27.2 13.50 11.50
PV8*C20 FC/MC/PC43C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*B12 FC/MC/PC43B 17 1200 35.0 27.0 13.50 11.50
P(C,V)9*C16 FC/MC/PC43C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*C20 FC/MC/PC43C 21 1200 35.0 27.2 13.50 11.50
PV8*C16 FC/MC/PC48C 21 1200 35.0 27.4 13.50 11.50
PV8*C20 FC/MC/PC48C 21 1200 35.0 27.4 13.50 11.50
P(C,V)9*C16 FC/MC/PC48C 21 1200 35.0 27.4 13.50 11.50
P(C,V)9*C20 FC/MC/PC48C 21 1200 35.0 27.4 13.50 11.50
P(C,V)9*D20 FC/MC/PC48D 24 1200 35.0 27.4 13.50 11.50
PV8*C16 HC42C 21 1200 35.0 27.2 13.50 11.50
PV8*C20 HC42C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*C16 HC42C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*C20 HC42C 21 1200 35.0 27.2 13.50 11.50
PV8*C16 HD48C 21 1200 35.0 27.2 13.50 11.50
PV8*C20 HD48C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*C16 HD48C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*C20 HD48C 21 1200 35.0 27.2 13.50 11.50
P(C,V)9*D20 HD48D 24 1200 35.0 27.2 13.50 11.50
THGD42S41S1
PV8*C16 FC/MC/PC48C 21 1400 42.0 31.6 13.50 11.50
PV8*C20 FC/MC/PC48C 21 1400 42.0 31.8 14.00 11.50
P(C,V)9*C16 FC/MC/PC48C 21 1400 41.5 31.6 13.50 11.50
P(C,V)9*C20 FC/MC/PC48C 21 1350 42.0 31.6 14.00 11.50
P(C,V)9*D20 FC/MC/PC48D 24 1350 42.0 31.8 14.00 12.00
PV8*C16 FC/MC/PC60C 21 1400 41.5 31.4 13.50 11.50
PV8*C20 FC/MC/PC60C 21 1400 41.5 31.6 13.50 11.50
P(C,V)9*C16 FC/MC/PC60C 21 1400 41.0 31.4 13.50 11.50
P(C,V)9*C20 FC/MC/PC60C 21 1350 41.5 31.4 13.50 11.50
P(C,V)9*D20 FC/MC/PC60D 24 1350 41.5 31.6 14.00 11.50
PV8*C16 HC42C 21 1400 41.5 31.4 13.50 11.50
PV8*C20 HC42C 21 1400 41.5 31.4 13.50 11.50
P(C,V)9*C16 HC42C 21 1400 41.5 31.4 13.50 11.50
P(C,V)9*C20 HC42C 21 1350 41.5 31.4 13.50 11.50
P(C,V)9*D20 HC60D 24 1350 41.5 31.6 14.00 11.50
PV8*C16 HD60C 21 1400 42.0 31.8 13.50 11.50
PV8*C20 HD60C 21 1400 42.0 31.8 14.00 11.50
P(C,V)9*C16 HD60C 21 1400 42.0 31.6 13.50 11.50
P(C,V)9*C20 HD60C 21 1350 42.0 31.8 14.00 11.50
P(C,V)9*D20 HD60D 24 1350 42.0 31.8 14.00 12.00
For Notes See Page 9.
COOLING CAPACITY - With Variable Speed Furnaces (Continued)
UNIT MODEL VARIABLE SPEED
FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2

397763-YTG-B-0508
Johnson Controls Unitary Products 9
THGD48S41S1
PV8*C16 FC/MC/PC48C 21 1500 46.5 34.2 13.00 11.00
PV8*C20 FC/MC/PC48C 21 1600 47.0 35.4 13.00 11.50
P(C,V)9*C16 FC/MC/PC48C 21 1600 47.0 35.2 13.00 11.00
P(C,V)9*C20 FC/MC/PC48C 21 1600 47.0 35.4 14.00 11.50
P(C,V)9*D20 FC/MC/PC48D 24 1550 47.0 35.6 14.00 11.50
PV8*C16 FC/MC/PC60C 21 1500 46.5 34.6 13.00 11.00
PV8*C20 FC/MC/PC60C 21 1600 47.0 35.8 14.00 11.50
P(C,V)9*C16 FC/MC/PC60C 21 1600 47.0 35.6 13.00 11.00
P(C,V)9*C20 FC/MC/PC60C 21 1600 47.0 35.6 14.00 11.50
P(C,V)9*D20 FC/MC/PC60D 24 1550 47.0 35.8 14.00 11.50
P(C,V)9*D20 HC60D 24 1550 47.0 35.8 14.00 11.50
PV8*C16 HD60C 21 1500 46.5 34.4 13.00 11.00
PV8*C20 HD60C 21 1600 47.0 35.4 14.00 11.50
P(C,V)9*C16 HD60C 21 1600 47.0 35.4 13.00 11.00
P(C,V)9*C20 HD60C 21 1600 47.0 35.4 14.00 11.50
P(C,V)9*D20 HD60D 24 1550 47.0 35.6 14.00 11.50
PV8*C20 MC62C 21 1600 47.5 35.8 14.00 11.50
P(C,V)9*C16 MC62C 21 1600 47.0 35.6 13.00 11.00
P(C,V)9*C20 MC62C 21 1600 47.0 35.8 14.00 11.50
P(C,V)9*D20 MC62D 24 1550 47.5 36.0 14.00 11.80
THGD60S41S1 PV8*C20 MC62C 21 1750 54.0 43.0 13.00 11.45 P(C,V)9*C20 MC62C 21 1650 53.0 41.0 13.00 11.25
P(C,V)9*D20 MC62D 24 1600 53.5 41.0 13.50 11.50
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - With Variable Speed Furnaces (Continued)
UNIT MODEL VARIABLE SPEED
FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2

397763-YTG-B-0508
10 Johnson Controls Unitary Products
HEATING PERFORMANCE - With Air Handler
UNIT
MODEL* AIR HANDLER COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD
13 SEER HP WITH MA
THGD18S41S1 MA08B FC/MC18B 17.0 3.32 1.50 12.7 3.00 1.24 7.70
MA08B FC/MC24B 17.0 3.44 1.45 10.4 2.60 1.17 7.70
THGD24S41S1 MA08B FC/MC/PC24B 23.2 3.40 2.00 12.6 2.24 1.65 7.70 MA08B FC/MC/PC30B 23.2 3.40 2.00 12.6 2.24 1.65 7.70
MA08B FC/MC/PC35B 23.2 3.40 2.00 12.6 2.24 1.65 7.70
THGD30S41S1 MA12B FC/MC/PC35B 28.0 3.34 2.46 16.4 2.30 2.09 7.70
MA12B FC/MC/PC43B 28.2 3.40 2.43 16.6 2.32 2.10 7.70
THGD36S41S1
MA12B FC/MC/PC43B 35.0 3.42 3.00 21.2 2.36 2.63 8.00
MA14D FC/MC/PC48D 35.0 3.42 3.00 21.4 2.36 2.66 8.00
MA16C FC/MC43C 35.0 3.48 3.03 21.0 2.40 2.56 8.00
MA16C FC/MC48C 35.0 3.48 3.03 21.0 2.40 2.56 8.00
THGD42S41S1
MA14D FC/MC/PC48D 41.0 3.48 3.45 28.0 2.46 3.34 8.00
MA16C FC/MC/PC48C 41.0 3.48 3.45 28.0 2.46 3.34 8.00
MA14D FC/MC/PC60D 41.0 3.66 3.28 27.8 2.56 3.18 8.00
MA16C FC/MC/PC60C 41.0 3.66 3.28 27.8 2.56 3.18 8.00
THGD48S41S1
MA16C FC/MC/PC48C 50.5 3.32 4.46 30.8 2.24 4.03 8.00
MA20D FC/MC/PC48D 50.5 3.32 4.46 30.8 2.24 4.03 8.00
MA16C FC/MC/PC60C 51.0 3.50 4.27 30.6 2.34 3.83 8.00
MA20D FC/MC/PC60D 51.0 3.50 4.27 30.6 2.34 3.83 8.00
MA20D MC62D 50.5 3.38 4.38 30.6 2.28 3.93 8.00
THGD60S41S1 MA20D MC62D 56.5 3.48 4.76 35.4 2.42 4.29 8.00
13 SEER HP WITH MV - VARIABLE SPEED
THGD18S41S1 MV12B FC/MC18B 16.7 3.52 1.39 12.7 3.00 1.24 8.00
MV12B FC/MC24B 17.0 3.66 1.36 9.8 2.78 1.03 8.00
THGD24S41S1
MV12B FC/MC/PC24B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
MV12B FC/MC/PC30B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
MV12B FC/MC/PC35B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
MV16C FC/MC/PC35C 22.8 3.72 1.80 12.4 2.50 1.45 8.00
THGD30S41S1
MV12B FC/MC/PC35B 27.4 3.50 2.29 15.9 2.42 1.93 8.00
MV16C FC/MC/PC35C 27.4 3.52 2.28 15.9 2.42 1.93 8.00
MV12B FC/MC/PC43B 27.8 3.58 2.28 16.1 2.46 1.92 8.00
MV16C FC/MC/PC43C 27.6 3.60 2.25 16.1 2.48 1.90 8.00
THGD36S41S1
MV12B FC/MC/PC43B 35.0 3.52 2.91 20.8 2.44 2.50 8.00
MV16C FC/MC/PC43C 35.0 3.58 2.87 20.6 2.48 2.43 8.00
MV12D FC/MC/PC48D 35.0 3.54 2.90 20.6 2.48 2.43 8.00
MV16C FC/MC/PC48C 35.0 3.60 2.85 20.6 2.50 2.42 8.00
MV20D FC/MC/PC48D 35.0 3.60 2.85 20.6 2.50 2.42 8.00
THGD42S41S1 MV16C FC/MC/PC48C 41.0 3.60 3.34 27.4 2.54 3.16 8.00 MV20D FC/MC/PC48D 41.0 3.62 3.32 27.4 2.56 3.14 8.00
MV20D FC/MC/PC60D 41.0 3.84 3.13 27.0 2.68 2.95 8.00
THGD48S41S1
MV16C FC/MC/PC48C 50.0 3.40 4.31 30.4 2.30 3.87 8.00
MV20D FC/MC/PC48D 50.0 3.38 4.34 30.4 2.28 3.91 8.00
MV20D FC/MC/PC60D 50.5 3.60 4.11 30.2 2.40 3.69 8.00
MV20D MC62D 50.0 3.48 4.21 30.0 2.34 3.76 8.00
THGD60S41S1 MV20D MC62D 56.5 3.54 4.68 35.2 2.46 4.19 8.00
For Notes See Page 11.

397763-YTG-B-0508
Johnson Controls Unitary Products 11
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
— = Not Applicable.
13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED
THGD18S41S1 AV24 – 16.8 3.62 1.36 11.5 3.18 1.06 8.00
THGD24S41S1 AV24 – 22.4 3.72 1.76 12.4 2.50 1.45 8.00
AV36 – 22.8 3.72 1.80 12.4 2.50 1.45 8.00
THGD30S41S1 AV36 – 27.6 3.64 2.22 16.0 2.50 1.88 8.00
THGD36S41S1 AV36 – 35.0 3.58 2.87 20.8 2.46 2.48 8.00
THGD42S41S1 AV/SV48 – 41.0 3.84 3.13 27.2 2.66 3.00 8.00
THGD48S41S1 AV/SV48 – 50.5 3.62 4.09 30.0 2.42 3.63 8.00 AV/SV60 – 50.5 3.62 4.09 30.2 2.40 3.69 8.00
F4FV060 – 50.5 3.62 4.09 30.2 2.40 3.69 8.00
13 SEER HP WITH AHP / SHP / F*FP
THGD18S41S1 AHP18 – 17.0 3.38 1.47 8.2 2.16 1.11 7.70
F4FP24 – 17.0 3.34 1.49 12.5 3.04 1.21 7.70
THGD24S41S1 AHP30 – 23.2 3.40 2.00 12.6 2.24 1.65 7.70
F4FP030 – 23.2 3.40 2.00 12.6 2.24 1.65 7.70
THGD30S41S1 AHP36 – 28.2 3.40 2.43 16.6 2.32 2.10 7.70
F4FP040 – 28.0 3.32 2.47 16.4 2.28 2.11 7.70
THGD36S41S1 AHP36 – 35.0 3.40 3.02 21.0 2.40 2.56 8.00
F4FP045 – 35.0 3.40 3.02 21.6 2.42 2.62 8.00
THGD42S41S1 AHP/SHP48 – 41.0 3.32 3.62 28.2 2.36 3.50 8.00 F4FP045 – 41.0 3.68 3.27 27.8 2.56 3.18 8.00
F5FP048 – 41.0 3.68 3.27 27.6 2.58 3.14 8.00
THGD48S41S1 AHP/SHP60 – 50.5 3.58 4.13 30.2 2.40 3.69 8.00 F5FP048 – 50.5 3.46 4.28 30.6 2.32 3.87 8.00
F5FP060 – 50.5 3.60 4.11 30.2 2.40 3.69 8.00
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and
no supplemental electric heat operation.
HEATING PERFORMANCE - With Air Handler (Continued)
UNIT
MODEL* AIR HANDLER COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD

397763-YTG-B-0508
12 Johnson Controls Unitary Products
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
— = Not Applicable.
HEATING PERFORMANCE - Upflow, Downflow, and Horizontal Furnaces and Coils
UNIT
MODEL* COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD
THGD18S41S1
FC/MC/PC/UC1 17.0 3.32 1.50 12.7 3.00 1.24 7.70
FC/MC/PC/UC2 17.0 3.44 1.45 10.4 2.60 1.17 7.70
HC18 17.0 3.32 1.50 12.7 3.00 1.24 7.70
HC30 17.0 3.38 1.47 10.4 2.60 1.17 7.70
HD24 16.6 3.16 1.54 12.8 3.00 1.25 7.70
THGD24S41S1
FC/MC/PC24 23.2 3.40 2.00 12.6 2.24 1.65 7.70
FC/MC/PC30 23.2 3.40 2.00 12.6 2.24 1.65 7.70
FC/MC/PC32 23.2 3.40 2.00 12.6 2.24 1.65 7.70
FC/MC/PC35 23.2 3.40 2.00 12.6 2.24 1.65 7.70
HC30 23.0 3.40 1.98 12.6 2.24 1.65 7.70
HC36 23.2 3.40 2.00 12.6 2.24 1.65 7.70
HD36 23.2 3.40 2.00 12.6 2.24 1.65 7.70
THGD30S41S1
FC/MC/PC32 28.0 3.34 2.46 16.4 2.28 2.11 7.70
FC/MC/PC35 28.0 3.34 2.46 16.4 2.30 2.09 7.70
FC/MC/PC37 28.2 3.40 2.43 16.6 2.32 2.10 7.70
FC/MC/PC43 28.2 3.40 2.43 16.6 2.32 2.10 7.70
HC36 28.2 3.34 2.47 16.4 2.28 2.11 7.70
HC42 28.2 3.40 2.43 16.6 2.32 2.10 7.70
HD48 28.2 3.60 2.30 16.6 2.32 2.10 7.70
THGD36S41S1
FC/MC/PC37 35.0 3.40 3.02 21.2 2.36 2.63 8.00
FC/MC/PC43 35.0 3.42 3.00 21.2 2.36 2.63 8.00
FC/MC/PC48 35.0 3.42 3.00 21.4 2.36 2.66 8.00
HC42 35.0 3.42 3.00 21.2 2.36 2.63 8.00
HD48 35.0 3.40 3.02 20.0 2.16 2.71 8.00
THGD42S41S1
FC/MC/PC48 41.0 3.48 3.45 28.0 2.46 3.34 8.00
FC/MC/PC60 41.0 3.66 3.28 27.8 2.56 3.18 8.00
HC42 41.0 3.46 3.47 27.8 2.48 3.29 8.00
HC60 41.0 3.66 3.28 27.8 2.56 3.18 8.00
HD60 41.0 3.14 3.83 27.6 2.26 3.58 8.00
THGD48S41S1
FC/MC/PC48 50.5 3.32 4.46 30.8 2.24 4.03 8.00
FC/MC/PC60 51.0 3.50 4.27 30.6 2.34 3.83 8.00
HC60 51.0 3.50 4.27 30.6 2.34 3.83 8.00
HD60 50.0 2.98 4.92 30.6 2.06 4.35 8.00
MC62 50.5 3.38 4.38 30.6 2.28 3.93 8.00
THGD60S41S1 MC62 56.5 3.48 4.76 35.4 2.42 4.29 8.00
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and
no supplemental electric heat operation.

397763-YTG-B-0508
Johnson Controls Unitary Products 13
HEATING CAPACITY - With Variable Speed Furnaces
UNIT
MODEL
VARIABLE
SPEED
FURNACE
COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD
13 SEER HP WITH VARIABLE SPEED FURNACES3
THGD18S41S1
PV8*A12 FC/MC/PC18A 16.7 3.56 1.37 11.5 3.12 1.08 8.00
PV9*A12 FC/MC/PC18A 16.8 3.52 1.40 11.5 3.12 1.08 8.00
P(C,V)9*B12 FC/MC/PC18B 16.7 3.52 1.39 11.5 3.12 1.08 8.00
PV8*B16 FC/MC/PC18B 16.7 3.52 1.39 11.5 3.12 1.08 8.00
PV8*A12 FC/MC/PC24A 17.0 3.68 1.35 9.7 2.80 1.02 8.00
PV9*A12 FC/MC/PC24A 17.0 3.64 1.37 9.8 2.76 1.04 8.00
P(C,V)9*B12 FC/MC/PC24B 17.0 3.66 1.36 9.8 2.78 1.03 8.00
PV8*B16 FC/MC/PC24B 17.0 3.66 1.36 9.8 2.78 1.03 8.00
PV8*A12 HC18A 16.7 3.56 1.37 11.5 3.12 1.08 8.00
PV9*A12 HC18A 16.8 3.52 1.40 11.5 3.12 1.08 8.00
PV8*A12 HC30A 17.0 3.62 1.38 9.7 2.78 1.02 8.00
PV9*A12 HC30A 17.0 3.58 1.39 9.8 2.74 1.05 8.00
PV8*A12 HD24A 16.2 3.38 1.40 12.0 3.20 1.10 8.00
PV9*A12 HD24A 16.3 3.36 1.42 12.0 3.20 1.10 8.00
P(C,V)9*B12 HD24 16.3 3.36 1.42 12.0 3.20 1.10 8.00
PV8*B16 HD24 16.3 3.36 1.42 12.0 3.20 1.10 8.00
THGD24S41S1
PV8*A12 FC/MC/PC24A 22.6 3.72 1.78 12.4 2.50 1.45 8.00
PV9*A12 FC/MC/PC24A 22.8 3.72 1.80 12.4 2.50 1.45 8.00
P(C,V)9*B12 FC/MC/PC24B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
PV8*A12 FC/MC/PC30A 22.6 3.72 1.78 12.4 2.50 1.45 8.00
PV9*A12 FC/MC/PC30A 22.8 3.72 1.80 12.4 2.50 1.45 8.00
P(C,V)9*B12 FC/MC/PC30B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
PV8*A12 FC/MC/PC32A 22.6 3.72 1.78 12.4 2.50 1.45 8.00
PV9*A12 FC/MC/PC32A 23.0 3.72 1.81 12.4 2.50 1.45 8.00
P(C,V)9*B12 FC/MC/PC35B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
P(C,V)9*C16 FC/MC/PC35C 23.0 3.72 1.81 12.4 2.50 1.45 8.00
PV8*A12 HC30A 22.4 3.72 1.76 12.4 2.50 1.45 8.00
PV9*A12 HC30A 22.6 3.72 1.78 12.4 2.50 1.45 8.00
P(C,V)9*B12 HC36B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
PV8*A12 HD36A 22.8 3.72 1.80 12.4 2.50 1.45 8.00
PV9*A12 HD36A 22.8 3.72 1.80 12.4 2.50 1.45 8.00
P(C,V)9*B12 HD36B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
THGD30S41S1
PV8*A12 FC/MC/PC32A 27.6 3.48 2.32 16.0 2.40 1.95 8.00
PV9*A12 FC/MC/PC32A 27.6 3.44 2.35 16.1 2.36 2.00 8.00
PV8*B16 FC/MC/PC35B 27.6 3.54 2.29 16.0 2.44 1.92 8.00
PV8*C16 FC/MC/PC35C 27.4 3.52 2.28 15.9 2.44 1.91 8.00
PV8*C20 FC/MC/PC35C 27.8 3.56 2.29 16.2 2.44 1.95 8.00
P(C,V)9*B12 FC/MC/PC35B 27.6 3.50 2.31 16.0 2.40 1.95 8.00
P(C,V)9*C16 FC/MC/PC35C 27.6 3.50 2.31 16.0 2.40 1.95 8.00
P(C,V)9*C20 FC/MC/PC35C 27.6 3.48 2.32 16.0 2.40 1.95 8.00
PV8*A12 FC/MC/PC37A 28.0 3.50 2.34 16.3 2.40 1.99 8.00
PV9*A12 FC/MC/PC37A 28.0 3.48 2.36 16.4 2.38 2.02 8.00
PV8*B16 FC/MC/PC43B 27.8 3.62 2.25 16.2 2.48 1.91 8.00
PV8*C16 FC/MC/PC43C 27.6 3.60 2.25 16.1 2.48 1.90 8.00
PV8*C20 FC/MC/PC43C 28.2 3.68 2.25 16.3 2.50 1.91 8.00
P(C,V)9*B12 FC/MC/PC43B 27.8 3.58 2.28 16.2 2.46 1.93 8.00
P(C,V)9*C16 FC/MC/PC43C 27.8 3.58 2.28 16.2 2.46 1.93 8.00
P(C,V)9*C20 FC/MC/PC43C 27.8 3.58 2.28 16.2 2.46 1.93 8.00
PV8*B16 HC36B 27.6 3.54 2.29 16.0 2.44 1.92 8.00
P(C,V)9*B12 HC36B 27.4 3.50 2.29 15.9 2.42 1.93 8.00
PV8*C16 HC42C 27.6 3.62 2.23 16.1 2.48 1.90 8.00
For Notes See Page 15.

397763-YTG-B-0508
14 Johnson Controls Unitary Products
THGD30S41S1
PV8*C20 HC42C 28.0 3.68 2.23 16.2 2.50 1.90 8.00
P(C,V)9*C16 HC42C 27.8 3.58 2.28 16.2 2.46 1.93 8.00
P(C,V)9*C20 HC42C 27.8 3.58 2.28 16.2 2.46 1.93 8.00
PV8*C16 HD48C 28.0 3.68 2.23 16.2 4.76 1.00 8.00
PV8*C20 HD48C 28.0 3.68 2.23 16.2 3.80 1.25 8.00
P(C,V)9*C16 HD48C 28.0 3.68 2.23 16.2 4.70 1.01 8.00
P(C,V)9*C20 HD48C 28.0 3.68 2.23 16.2 4.70 1.01 8.00
P(C,V)9*D20 HD48D 28.0 3.68 2.23 16.2 3.72 1.28 8.00
THGD36S41S1
PV8*A12 FC/MC/PC37A 35.0 3.46 2.96 21.2 2.38 2.61 8.00
PV9*A12 FC/MC/PC37A 35.0 3.40 3.02 21.0 2.38 2.59 8.00
PV8*B16 FC/MC/PC43B 35.0 3.54 2.90 20.8 2.44 2.50 8.00
PV8*C16 FC/MC/PC43C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
PV8*C20 FC/MC/PC43C 35.0 3.58 2.87 20.6 2.46 2.45 8.00
P(C,V)9*B12 FC/MC/PC43B 35.0 3.48 2.95 21.0 2.40 2.56 8.00
P(C,V)9*C16 FC/MC/PC43C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
P(C,V)9*C20 FC/MC/PC43C 35.0 3.54 2.90 20.8 2.44 2.50 8.00
PV8*C16 FC/MC/PC48C 35.0 3.58 2.87 20.6 2.48 2.43 8.00
PV8*C20 FC/MC/PC48C 35.0 3.58 2.87 20.6 2.48 2.43 8.00
P(C,V)9*C16 FC/MC/PC48C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
P(C,V)9*C20 FC/MC/PC48C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
P(C,V)9*D20 FC/MC/PC48D 35.0 3.56 2.88 20.8 2.46 2.48 8.00
PV8*C16 HC42C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
PV8*C20 HC42C 35.0 3.58 2.87 20.6 2.48 2.43 8.00
P(C,V)9*C16 HC42C 35.0 3.56 2.88 20.8 2.46 2.48 8.00
P(C,V)9*C20 HC42C 35.0 3.54 2.90 20.8 2.44 2.50 8.00
PV8*C16 HD48C 35.0 3.40 3.02 19.4 2.26 2.52 8.00
PV8*C20 HD48C 35.0 3.40 3.02 19.4 2.28 2.49 8.00
P(C,V)9*C16 HD48C 35.0 3.40 3.02 19.5 2.24 2.55 8.00
P(C,V)9*C20 HD48C 35.0 3.40 3.02 19.5 2.24 2.55 8.00
P(C,V)9*D20 HD48D 35.0 3.40 3.02 19.5 2.26 2.53 8.00
THGD42S41S1
PV8*C16 FC/MC/PC48C 41.0 3.56 3.38 27.6 2.52 3.21 8.00
PV8*C20 FC/MC/PC48C 41.0 3.58 3.36 27.6 2.52 3.21 8.00
P(C,V)9*C16 FC/MC/PC48C 41.0 3.54 3.39 27.8 2.50 3.26 8.00
P(C,V)9*C20 FC/MC/PC48C 41.0 3.56 3.38 27.6 2.52 3.21 8.00
P(C,V)9*D20 FC/MC/PC48D 41.0 3.60 3.34 27.4 2.54 3.16 8.00
PV8*C16 FC/MC/PC60C 41.0 3.76 3.20 27.4 2.62 3.07 8.00
PV8*C20 FC/MC/PC60C 41.0 3.78 3.18 27.2 2.64 3.02 8.00
P(C,V)9*C16 FC/MC/PC60C 41.0 3.72 3.23 27.4 2.60 3.09 8.00
P(C,V)9*C20 FC/MC/PC60C 41.0 3.76 3.20 27.4 2.62 3.07 8.00
P(C,V)9*D20 FC/MC/PC60D 41.0 3.80 3.16 27.2 2.66 3.00 8.00
PV8*C16 HC42C 41.0 3.52 3.41 27.6 2.52 3.21 8.00
PV8*C20 HC42C 41.0 3.54 3.39 27.4 2.54 3.16 8.00
P(C,V)9*C16 HC42C 41.0 3.50 3.43 27.6 2.52 3.21 8.00
P(C,V)9*C20 HC42C 41.0 3.54 3.39 27.4 2.54 3.16 8.00
P(C,V)9*D20 HC60D 41.0 3.80 3.16 27.2 2.66 3.00 8.00
PV8*C16 HD60C 41.0 3.20 3.76 27.2 2.30 3.47 8.00
PV8*C20 HD60C 41.0 3.22 3.73 27.2 2.30 3.47 8.00
P(C,V)9*C16 HD60C 41.0 3.18 3.78 27.4 2.28 3.52 8.00
P(C,V)9*C20 HD60C 41.0 3.22 3.73 27.2 2.30 3.47 8.00
P(C,V)9*D20 HD60D 41.0 3.24 3.71 27.0 2.32 3.41 8.00
For Notes See Page 15.
HEATING CAPACITY - With Variable Speed Furnaces (Continued)
UNIT
MODEL
VARIABLE
SPEED
FURNACE
COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD

397763-YTG-B-0508
Johnson Controls Unitary Products 15
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
— = Not Applicable.
THGD48S41S1
PV8*C16 FC/MC/PC48C 50.0 3.28 4.47 30.6 2.24 4.00 8.00
PV8*C20 FC/MC/PC48C 50.5 3.34 4.43 30.6 2.26 3.97 8.00
P(C,V)9*C16 FC/MC/PC48C 50.5 3.32 4.46 30.8 2.24 4.03 8.00
P(C,V)9*C20 FC/MC/PC48C 50.5 3.34 4.43 30.6 2.26 3.97 8.00
P(C,V)9*D20 FC/MC/PC48D 50.0 3.38 4.34 30.6 2.28 3.93 8.00
PV8*C16 FC/MC/PC60C 50.5 3.50 4.23 30.4 2.34 3.81 8.00
PV8*C20 FC/MC/PC60C 50.5 3.56 4.16 30.4 2.38 3.74 8.00
P(C,V)9*C16 FC/MC/PC60C 51.0 3.52 4.25 30.6 2.34 3.83 8.00
P(C,V)9*C20 FC/MC/PC60C 50.5 3.54 4.18 30.4 2.36 3.78 8.00
P(C,V)9*D20 FC/MC/PC60D 50.5 3.58 4.13 30.2 2.38 3.72 8.00
P(C,V)9*D20 HC60D 50.5 3.58 4.13 30.2 2.38 3.72 8.00
PV8*C16 HD60C 49.5 2.94 4.93 30.4 2.04 4.37 8.00
PV8*C20 HD60C 49.5 3.02 4.80 30.4 2.08 4.28 8.00
P(C,V)9*C16 HD60C 50.0 2.98 4.92 30.6 2.06 4.35 8.00
P(C,V)9*C20 HD60C 49.5 3.00 4.84 30.4 2.06 4.33 8.00
P(C,V)9*D20 HD60D 49.5 3.04 4.77 30.2 2.08 4.26 8.00
PV8*C20 MC62C 50.5 3.42 4.33 30.4 2.30 3.87 8.00
P(C,V)9*C16 MC62C 50.5 3.38 4.38 30.6 2.28 3.93 8.00
P(C,V)9*C20 MC62C 50.5 3.40 4.35 30.4 2.30 3.87 8.00
P(C,V)9*D20 MC62D 50.0 3.44 4.26 30.2 2.32 3.82 8.00
THGD60S41S1 PV8*C20 MC62C 56.5 3.52 4.70 35.2 2.44 4.23 8.00 P(C,V)9*C20 MC62C 56.5 3.44 4.81 35.2 2.42 4.26 8.00
P(C,V)9*D20 MC62D 56.0 3.46 4.74 35.0 2.42 4.24 8.00
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and
no supplemental electric heat operation.
3. Variable speed furnaces have B.O.D (Blower on Delay) standard.
HEATING CAPACITY - With Variable Speed Furnaces (Continued)
UNIT
MODEL
VARIABLE
SPEED
FURNACE
COIL1
MODEL
ARI HEATING2
47°F17°FHSPF
MBH COP KW MBH COP KW STD

397763-YTG-B-0508
16 Johnson Controls Unitary Products
ACCESSORIES
Refer to Price Manual for specific model numbers.
Start Assist Kit (2SA067*) - May be required on 42, 48, 60
models. Models 18, 24, 30, 36 have been factory installed.
Blower Time Delay - Available to increase efficiency when
installed. Installs on indoor section and maintains blower for
approximately one minute after cooling thermostat has been
satisfied.
Hard Start Kits - Provides required starting torque for use
with Thermal Expansion Valve Kit.
Low Temperature Cutout (2LT06700224) - Prevents heat
pump operation below -10°F ambient temperature.
Compressor Blanket - Designed to further reduce the nor-
mal operating sound.
Add-on Fossil Fuel Control - Interface controls for use with
gas, oil furnaces and the heat pump system are available.
Thermal Expansion Valve Kit - 1TVM900 Series TXV kit
used to improve system performance.
Outdoor Thermostat (2TD06700124) - Provides additional
staging of supplemental electric heat.
Room Thermostats - A wide selection of matching thermo-
stats is available to provide features required for any installa-
tion.
2H/1C, manual changeover electronic non-programmable
thermostat.
3H/2C, non-programmable digital thermostat.
3H/2C, auto/manual changeover, electronic programmable,
7-day, hardwire thermostat.
* For the most current accessory information, refer to the
price book or consult factory.
SOUND POWER RATINGS
* Rated in accordance with ARI 270-95 Standards.

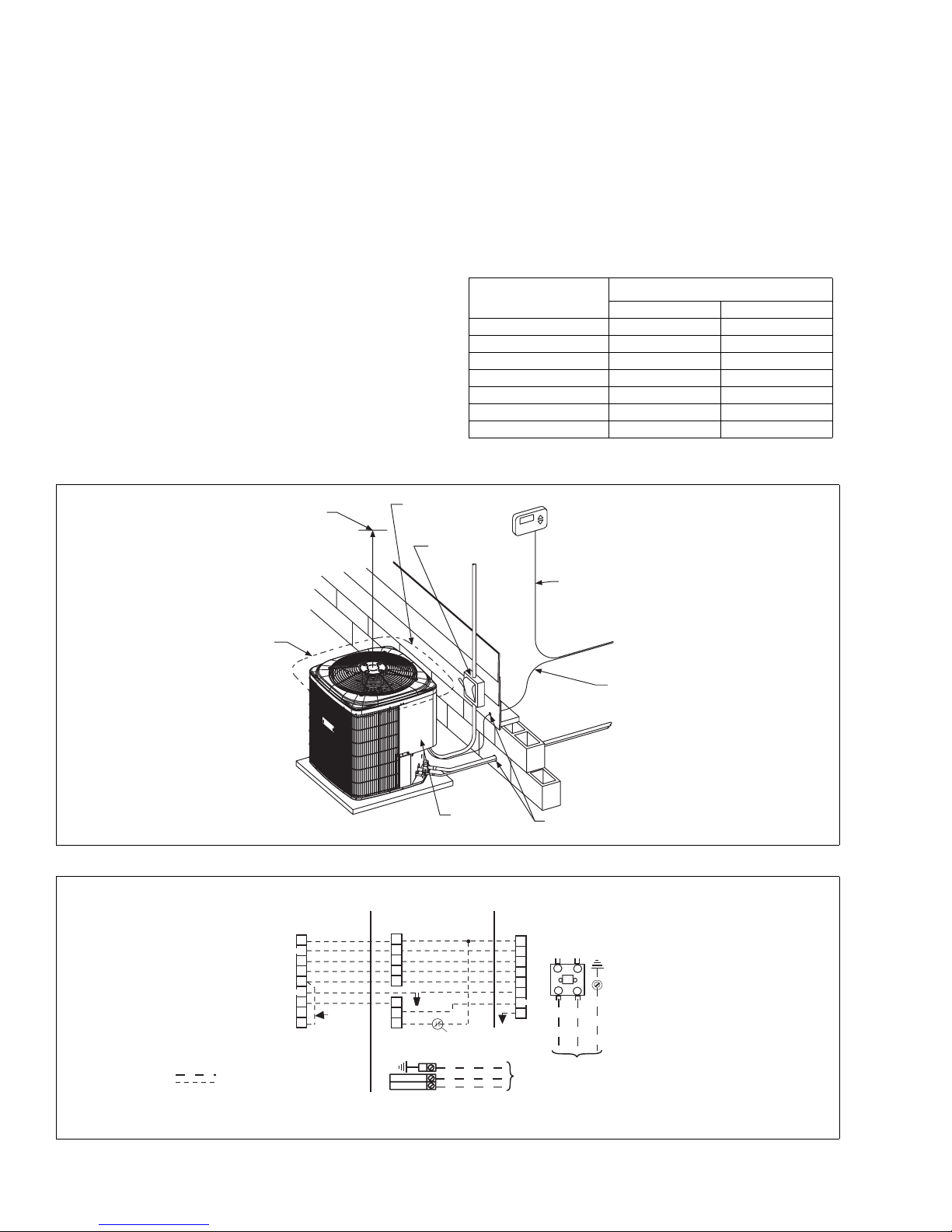

TYPICAL INSTALLATION
TYPICAL FIELD WIRING
UNIT MODEL (dBA)*
Cooling Heating
018 TBD TBD
024 TBD TBD
030 TBD TBD
036 TBD TBD
042 TBD TBD
048 TBD TBD
060 TBD TBD
THERMOSTAT
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
TO INDOOR COIL
TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 2 WIRING
NEC CLASS 1 WIRING
ALL OUTDOOR WIRING
MUST BE WEATHERPROOF. CONTROL
ACCESS
PANEL
WEATHERPROOF
DISCONNECT
SWITCH
MINIMUM 24” SERVICE
ACCESS CLEARANCE
ON ONE SIDE
48” OVERHEAD
CLEARANCE
10” CLEARANCE
AROUND PERIMETER
NOTE:
THERMOSTAT INDOOR UNIT
OUTDOOR UNIT
LOW VOLTAGE TERMINAL BLOCK
IN AIR HANDLER WITH ELECTRIC HEAT
DEFROST
CONTROL
FIELD
INSTALLED
JUMPER
DEHUMIDIFICATION CONTROL CONNECTION
(Humidistat* Jumper must be removed)
GND.
SCREW
CONTACTOR
T2 T1
L2 L1
M
R
LorX
Y
O
W
G
RR
YY
O
O
W2 W
W1
CC
X/L
G
W1
BK
GND. LUG
CIRCUIT
BREAKER***
POWER WIRING
24V CONTROL WIRING
(NEC CLASS 2)
JUMPER TERMINALS E AND W TO HEAT
ON FIRST STAGE DURING EMERGENCY HEAT.
TERMINAL NOT USED ON ALL THERMOSTATS. POWER WIRING
208/230-1-60
230-1-50
CHECK THE LOW VOLTAGE TERMINAL BLOCK ON THE INDOOR UNIT FOR THE ACTUAL ARRANGEMENT OF THE TERMINALS.
CONNECT POWER WIRING TO TERMINAL BLOCK 3TB ON UNITS WITHOUT ELECTRIC HEAT OR CIRCUIT BREAKER.
BorC
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
RED
BLK
YEL
ORG
WHT
PUR
BRN
CC
GRY
/66
GRAY FOR USE WITH OPTIONAL OUTDOOR THERMOSTAT KITS.
1
2
3
4
5
T
2
E2
15
3,4

397763-YTG-B-0508
Johnson Controls Unitary Products 17
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
CONDENSING UNIT MODEL NO. THGD18S41S1
INDOOR COIL MODEL NO. AHP18
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 450 600 750
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 17.6 20.2 20.2 22.5 24.9 20.4 21.5 21.8 24.2 26.7 23.2 22.7 23.4 25.9 28.4 S.C. 16.0 14.5 12.5 12.6 10.7 18.5 17.5 14.7 14.7 11.9 21.1 20.6 16.9 16.9 13.2
KW 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0
75 T.C. 16.6 18.6 18.6 20.7 23.0 19.1 19.9 19.9 22.1 24.6 21.6 21.2 21.2 23.6 26.1 S.C. 15.0 13.8 11.8 11.9 10.0 17.3 16.5 14.0 14.0 11.2 19.6 19.3 16.1 16.1 12.4
KW 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
85 T.C. 15.6 16.9 16.9 19.0 21.2 17.7 18.3 18.0 20.1 22.5 19.9 19.7 19.1 21.3 23.7 S.C. 14.1 13.1 11.1 11.2 9.3 16.1 15.5 13.2 13.2 10.5 18.1 17.9 15.3 15.3 11.6
KW 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
95 T.C. 14.5 15.3 15.3 17.2 19.3 16.4 16.8 16.1 18.1 20.3 18.3 18.3 16.9 19.0 21.4 S.C. 13.2 12.4 10.4 10.5 8.6 14.9 14.5 12.4 12.5 9.7 16.6 16.6 14.5 14.5 10.8
KW 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
105 T.C. 13.2 13.6 13.4 15.2 17.0 14.7 14.9 14.2 16.0 17.9 16.3 16.3 15.0 16.7 18.7 S.C. 11.9 11.3 9.6 9.7 7.8 13.3 13.0 11.3 11.5 8.9 14.8 14.8 13.1 13.3 10.1
KW 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5
115 T.C. 11.8 12.0 11.5 13.2 14.8 13.1 13.1 12.3 13.9 15.5 14.3 14.3 13.2 14.5 16.1 S.C. 10.7 10.4 8.9 9.0 7.1 11.9 11.7 10.3 10.6 8.2 13.0 13.0 11.7 12.3 9.3
KW 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6
125 T.C. 10.5 10.3 9.7 11.2 12.6 11.4 11.3 10.5 11.8 13.1 12.3 12.3 11.3 12.3 13.6 S.C. 9.5 9.4 8.2 8.3 6.3 10.4 10.3 9.2 9.7 7.4 11.2 11.2 10.3 11.2 8.6
KW 1.6 1.6 1.6 1.6 1.7 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
– FC/MC/PC18 0.99 0.99 1.00
– FC/MC/PC24 1.01 1.01 1.00
– HC18 0.99 0.99 1.00
– HC30 1.01 1.01 1.00
– HD24 1.03 1.02 1.00
AHP18 – 0.97 0.96 1.00
AV24 – 1.03 1.02 1.00
F4FP024 – 1.00 0.99 1.00
MA08B FC/MC/PC18B 0.99 0.99 1.00
MV12B FC/MC/PC18B 1.02 1.01 1.00
MA08B FC/MC/PC24B 1.01 1.01 1.00
MV12B FC/MC/PC24B 1.04 1.04 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC18A 1.02 1.02 1.00
PV9*A12 FC/MC/PC18A 1.02 1.01 1.00
P(C,V)9*B12 FC/MC/PC18B 1.02 1.01 1.00
PV8*B16 FC/MC/PC/UC18B 1.02 1.01 1.00
PV8*A12 FC/MC/PC24A 1.04 1.04 1.00
PV9*A12 FC/MC/PC24A 1.03 1.04 1.00
P(C,V)9*B12 FC/MC/PC24B 1.04 1.04 1.00
PV8*B16 FC/MC/PC/UC24B 1.04 1.04 1.00
PV8*A12 HC18A 1.02 1.02 1.00
PV9*A12 HC18A 1.02 1.01 1.00
PV8*A12 HC30A 1.03 1.04 1.00
PV9*A12 HC30A 1.03 1.03 1.00
PV8*A12 HD24A 1.06 1.05 1.00
PV9*A12 HD24A 1.05 1.05 1.00
P(C,V)9*B12 HD24 1.05 1.05 1.00
PV8*B16 HD24 1.05 1.05 1.00

397763-YTG-B-0508
18 Johnson Controls Unitary Products
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
CONDENSING UNIT MODEL NO. THGD24S41S1
INDOOR COIL MODEL NO. AHP30
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 600 800 1000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 22.9 26.4 25.6 29.2 31.5 25.8 28.0 27.2 30.7 33.2 28.8 29.6 28.8 32.2 35.0 S.C. 21.8 20.2 17.3 17.7 15.1 24.6 23.7 19.4 19.6 16.2 27.4 27.2 21.5 21.6 17.4
KW 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
75 T.C. 21.9 24.6 24.1 27.3 29.5 24.5 26.0 25.5 28.6 31.1 27.0 27.4 26.9 30.0 32.6 S.C. 20.8 19.4 16.5 16.8 14.3 23.3 22.4 18.6 18.8 15.4 25.7 25.4 20.7 20.8 16.5
KW 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
85 T.C. 20.9 22.9 22.6 25.3 27.6 23.1 24.1 23.7 26.5 28.9 25.3 25.3 24.9 27.8 30.3 S.C. 19.9 18.6 15.8 16.0 13.4 22.0 21.2 17.9 18.0 14.5 24.1 23.7 20.0 20.0 15.6
KW 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.8 1.8 1.7 1.7 1.8 1.8
95 T.C. 19.8 21.1 21.0 23.4 25.6 21.7 22.1 22.0 24.5 26.8 23.5 23.1 23.0 25.6 27.9 S.C. 18.9 17.8 15.0 15.1 12.6 20.6 19.9 17.1 17.2 13.7 22.4 22.0 19.2 19.2 14.8
KW 1.8 1.8 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
105 T.C. 18.4 19.1 19.2 21.5 23.5 20.1 20.3 20.0 22.3 24.5 21.8 21.5 20.8 23.2 25.5 S.C. 17.6 16.7 14.3 14.4 11.7 19.2 18.6 16.2 16.4 12.8 20.8 20.5 18.1 18.4 13.9
KW 1.9 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1
115 T.C. 17.1 17.3 17.4 19.6 21.5 18.6 18.6 18.0 20.2 22.3 20.1 20.0 18.7 20.9 23.1 S.C. 16.3 15.7 13.5 13.6 10.8 17.7 17.4 15.2 15.6 12.0 19.2 19.1 16.9 17.6 13.1
KW 2.1 2.1 2.1 2.1 2.2 2.1 2.1 2.1 2.1 2.2 2.2 2.2 2.1 2.2 2.2
125 T.C. 15.8 15.4 15.6 17.7 19.5 17.1 17.0 16.1 18.2 20.1 18.5 18.5 16.6 18.6 20.7 S.C. 15.0 14.7 12.7 12.9 10.0 16.3 16.1 14.3 14.9 11.1 17.6 17.6 15.8 16.9 12.2
KW 2.2 2.2 2.2 2.2 2.3 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.2 2.3 2.3
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
– FC/MC/PC24 0.98 0.98 1.00
– FC/MC/PC30 0.98 0.98 1.00
– FC/MC/PC32 1.00 1.00 1.00
– FC/MC/PC35 1.00 1.00 1.00
– HC30 0.98 0.99 1.00
– HC36 1.00 1.00 1.00
– HD36 0.98 0.94 1.00
AHP30 – 0.99 0.98 1.00
AV24 – 0.99 0.98 1.00
AV36 – 1.03 1.03 1.00
F4FP030 – 0.99 0.97 1.00
MA08B FC/MC/PC24B 0.98 0.98 1.00
MV12B FC/MC/PC24B 1.01 1.00 1.00
MA08B FC/MC/PC30B 0.98 0.98 1.00
MV12B FC/MC/PC30B 1.01 1.01 1.00
MA08B FC/MC/PC35B 1.00 1.00 1.00
MV12B FC/MC/PC35B 1.02 1.02 1.00
MV16C FC/MC/PC35C 1.02 1.02 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC24A 1.00 0.98 1.00
PV9*A12 FC/MC/PC24A 1.00 1.00 1.00
P(C,V)9*B12 FC/MC/PC24B 1.00 1.00 1.00
PV8*A12 FC/MC/PC30A 1.00 0.98 1.00
PV9*A12 FC/MC/PC30A 1.00 1.00 1.00
P(C,V)9*B12 FC/MC/PC30B 1.00 1.00 1.00
PV8*A12 FC/MC/PC32A 1.01 1.00 1.00
PV9*A12 FC/MC/PC32A 1.01 1.01 1.00
P(C,V)9*B12 FC/MC/PC35B 1.02 1.02 1.00
P(C,V)9*C16 FC/MC/PC35C 1.03 1.06 1.00
PV8*A12 HC30A 1.00 0.99 1.00
PV9*A12 HC30A 1.00 1.00 1.00
P(C,V)9*B12 HC36B 1.02 1.02 1.00
PV8*A12 HD36A 0.99 0.95 1.00
PV9*A12 HD36A 1.00 0.96 1.00
P(C,V)9*B12 HD36B 1.00 0.96 1.00

397763-YTG-B-0508
Johnson Controls Unitary Products 19
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
CONDENSING UNIT MODEL NO. THGD30S41S1
INDOOR COIL MODEL NO. AHP36
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 28.5 30.9 31.1 34.0 37.0 30.8 32.4 32.4 35.6 38.7 33.1 33.9 33.7 37.2 40.5 S.C. 28.7 26.1 22.3 22.1 18.6 31.1 29.7 24.5 24.4 19.8 33.4 33.4 26.8 26.7 21.1
KW 1.7 1.8 1.8 1.8 1.7 1.7 1.8 1.8 1.7 1.7 1.7 1.8 1.8 1.7 1.7
75 T.C. 27.1 29.1 29.1 32.0 35.3 29.2 30.3 30.3 33.4 36.6 31.3 31.5 31.5 34.7 37.9 S.C. 27.3 25.2 21.4 21.3 17.7 29.4 28.2 23.6 23.5 18.9 31.6 31.3 25.8 25.7 20.1
KW 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
85 T.C. 25.7 27.2 27.2 30.0 33.6 27.6 28.2 28.2 31.2 34.5 29.5 29.2 29.2 32.3 35.4 S.C. 25.9 24.3 20.5 20.4 16.8 27.8 26.7 22.7 22.6 17.9 29.8 29.2 24.8 24.7 19.1
KW 2.0 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1
95 T.C. 24.3 25.3 25.3 28.1 31.8 26.0 26.1 26.1 29.0 32.3 27.7 26.8 27.0 29.9 32.9 S.C. 24.5 23.4 19.6 19.6 15.9 26.2 25.2 21.7 21.7 17.0 27.9 27.1 23.9 23.7 18.0
KW 2.2 2.2 2.2 2.3 2.3 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.3 2.3
105 T.C. 22.6 23.3 23.0 25.7 29.1 24.1 24.2 23.7 26.4 29.6 25.6 25.1 24.4 27.2 30.1 S.C. 22.8 22.1 18.6 18.6 14.9 24.3 23.7 20.5 20.7 16.0 25.9 25.3 22.4 22.7 17.1
KW 2.4 2.4 2.4 2.4 2.5 2.4 2.4 2.4 2.4 2.5 2.4 2.4 2.4 2.5 2.5
115 T.C. 21.0 21.3 20.9 23.4 26.4 22.3 22.3 21.3 24.0 26.9 23.6 23.4 21.8 24.5 27.4 S.C. 21.2 20.8 17.7 17.7 13.9 22.5 22.2 19.3 19.7 15.0 23.9 23.6 20.9 21.8 16.1
KW 2.5 2.5 2.5 2.6 2.7 2.6 2.6 2.5 2.6 2.7 2.6 2.6 2.6 2.6 2.7
125 T.C. 19.4 19.3 18.7 21.1 23.7 20.5 20.5 19.0 21.5 24.2 21.6 21.6 19.3 21.9 24.7 S.C. 19.6 19.5 16.7 16.8 12.9 20.7 20.7 18.1 18.8 14.1 21.9 21.9 19.5 20.8 15.2
KW 2.7 2.7 2.7 2.8 2.8 2.7 2.7 2.7 2.8 2.9 2.8 2.8 2.7 2.8 2.9
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
– FC/MC/PC32 0.99 0.99 1.00
– FC/MC/PC35 0.99 0.99 1.00
– FC/MC/PC37 1.01 1.01 1.00
– FC/MC/PC43 1.01 1.01 1.00
– HC36 0.99 0.99 1.00
– HC42 1.01 1.01 1.00
– HD48 1.01 1.01 1.00
AHP36 – 1.00 1.00 1.00
AV36 – 1.04 1.05 1.00
F4FP040 – 0.99 0.97 1.00
MA12B FC/MC/PC35B 0.99 0.99 1.00
MV12B FC/MC/PC35B 1.01 1.01 1.00
MV16C FC/MC/PC35C 1.01 1.01 1.00
MA12B FC/MC/PC43B 1.01 1.01 1.00
MV12B FC/MC/PC43B 1.03 1.03 1.00
MV16C FC/MC/PC43C 1.03 1.03 1.00
Variable Speed
Furnace Coil T.C. S.C KW
PV8*A12 FC/MC/PC32A 1.01 1.01 1.00
PV9*A12 FC/MC/PC32A 1.00 1.01 1.00
PV8*B16 FC/MC/PC35B 1.02 1.04 1.00
PV8*C16 FC/MC/PC35C 1.01 1.01 1.00
PV8*C20 FC/MC/PC35C 1.03 1.07 1.00
P(C,V)9*B12 FC/MC/PC35B 1.01 1.01 1.00
P(C,V)9*C16 FC/MC/PC35C 1.01 1.01 1.00
P(C,V)9*C20 FC/MC/PC35C 1.01 1.01 1.00
PV8*A12 FC/MC/PC37A 1.02 1.02 1.00
PV9*A12 FC/MC/PC37A 1.02 1.02 1.00
PV8*B16 FC/MC/PC43B 1.03 1.06 1.00
PV8*C16 FC/MC/PC43C 1.03 1.03 1.00
PV8*C20 FC/MC/PC43C 1.05 1.10 1.00
P(C,V)9*B12 FC/MC/PC43B 1.03 1.03 1.00
P(C,V)9*C16 FC/MC/PC43C 1.03 1.03 1.00
P(C,V)9*C20 FC/MC/PC43C 1.03 1.03 1.00
PV8*B16 HC36B 1.02 1.04 1.00
P(C,V)9*B12 HC36B 1.01 1.01 1.00
PV8*C16 HC42C 1.03 1.03 1.00
PV8*C20 HC42C 1.05 1.10 1.00
P(C,V)9*C16 HC42C 1.03 1.03 1.00
P(C,V)9*C20 HC42C 1.03 1.03 1.00
PV8*C16 HD48C 1.03 1.03 1.00
PV8*C20 HD48C 1.05 1.10 1.00
P(C,V)9*C16 HD48C 1.03 1.03 1.00
P(C,V)9*C20 HD48C 1.03 1.03 1.00
P(C,V)9*D20 HD48D 1.04 1.06 1.00

397763-YTG-B-0508
20 Johnson Controls Unitary Products
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
CONDENSING UNIT MODEL NO. THGD36S41S1
INDOOR COIL MODEL NO. AHP36
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 1000 1200 1400
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 37.0 40.3 39.8 43.7 47.3 39.3 41.5 41.2 45.3 48.9 41.6 42.6 42.7 46.8 50.5 S.C. 35.7 32.2 27.3 27.6 23.6 37.9 35.0 29.4 29.4 24.6 40.2 37.8 31.4 31.3 25.6
KW 2.2 2.2 2.2 2.1 2.2 2.2 2.2 2.2 2.1 2.2 2.1 2.2 2.2 2.2 2.2
75 T.C. 35.3 37.9 37.5 41.4 44.9 37.5 39.0 38.7 42.7 46.3 39.7 40.2 40.0 44.1 47.8 S.C. 34.1 31.1 26.4 26.5 22.3 36.2 33.9 28.4 28.4 23.4 38.3 36.6 30.4 30.3 24.4
KW 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4
85 T.C. 33.7 35.4 35.2 39.0 42.4 35.7 36.6 36.2 40.2 43.7 37.7 37.8 37.3 41.4 45.1 S.C. 32.5 30.1 25.4 25.5 21.1 34.5 32.7 27.4 27.4 22.2 36.4 35.4 29.3 29.2 23.2
KW 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
95 T.C. 32.1 33.0 32.9 36.6 39.9 33.9 34.2 33.8 37.7 41.1 35.7 35.4 34.6 38.7 42.4 S.C. 31.0 29.1 24.4 24.5 19.9 32.7 31.6 26.4 26.4 20.9 34.5 34.2 28.3 28.2 22.0
KW 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.9
105 T.C. 29.9 30.2 30.2 33.6 36.9 31.6 31.6 30.9 34.5 38.0 33.2 32.9 31.6 35.5 39.0 S.C. 28.9 27.4 23.3 23.3 18.7 30.5 29.6 25.2 25.2 19.7 32.0 31.8 27.1 27.0 20.7
KW 2.9 3.0 3.0 3.0 3.1 3.0 3.0 3.0 3.0 3.1 3.0 3.0 3.0 3.0 3.1
115 T.C. 27.8 27.6 27.5 30.7 34.0 29.3 29.1 28.1 31.5 34.9 30.8 30.5 28.7 32.3 35.8 S.C. 26.9 25.7 22.1 22.2 17.5 28.3 27.6 24.0 24.0 18.5 29.7 29.5 25.9 25.9 19.5
KW 3.1 3.1 3.1 3.2 3.3 3.2 3.2 3.2 3.2 3.3 3.2 3.2 3.2 3.3 3.3
125 T.C. 25.7 25.0 24.8 27.8 31.1 27.0 26.6 25.3 28.4 31.8 28.3 28.1 25.8 29.1 32.6 S.C. 24.8 24.1 21.0 21.0 16.4 26.1 25.6 22.9 22.9 17.4 27.3 27.2 24.7 24.7 18.4
KW 3.3 3.3 3.3 3.4 3.5 3.4 3.4 3.3 3.4 3.5 3.4 3.4 3.4 3.5 3.6
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
– FC/MC/PC37 1.00 0.99 1.00
– FC/MC/PC43 0.99 0.99 1.00
– FC/MC/PC48 1.00 1.00 1.00
– HC42 0.99 0.99 1.00
– HD48 1.00 1.00 1.00
– HD48 0.97 0.96 1.00
AV36 – 1.02 1.04 1.00
F4FP045 – 1.00 1.00 1.00
MA12B FC/MC/PC43B 0.99 0.99 1.00
MV12B FC/MC/PC43B 1.01 1.01 1.00
MV16C FC/MC/PC43C 1.01 1.01 1.00
MA14D FC/MC/PC48D 1.00 1.00 1.00
MV12D FC/MC/PC48D 1.01 1.00 1.00
MV16C FC/MC/PC48C 1.03 1.02 1.00
MV20D FC/MC/PC48D 1.03 1.02 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
PV8*A12 FC/MC/PC37A 1.00 1.00 1.00
PV9*A12 FC/MC/PC37A 0.99 0.96 1.00
PV8*B16 FC/MC/PC43B 1.01 1.01 1.00
PV8*C16 FC/MC/PC43C 1.01 1.01 1.00
PV8*C20 FC/MC/PC43C 1.01 1.01 1.00
P(C,V)9*B12 FC/MC/PC43B 1.00 1.00 1.00
P(C,V)9*C16 FC/MC/PC43C 1.01 1.01 1.00
P(C,V)9*C20 FC/MC/PC43C 1.01 1.01 1.00
PV8*C16 FC/MC/PC48C 1.02 1.02 1.00
PV8*C20 FC/MC/PC48C 1.02 1.02 1.00
P(C,V)9*C16 FC/MC/PC48C 1.02 1.02 1.00
P(C,V)9*C20 FC/MC/PC48C 1.02 1.02 1.00
P(C,V)9*D20 FC/MC/PC48D 1.02 1.02 1.00
PV8*C16 HC42C 1.01 1.01 1.00
PV8*C20 HC42C 1.01 1.01 1.00
P(C,V)9*C16 HC42C 1.01 1.01 1.00
P(C,V)9*C20 HC42C 1.01 1.01 1.00
PV8*C16 HD48C 1.02 1.01 1.00
PV8*C20 HD48C 1.02 1.02 1.00
P(C,V)9*C16 HD48C 1.01 1.01 1.00
P(C,V)9*C20 HD48C 1.01 1.01 1.00
P(C,V)9*D20 HD48D 1.02 1.01 1.00
