Image Capture
Video Borescope

©York Survey Supply Centre 2018Ref:.. \operat98\instructions 18\282340.qxp 05-01-18
Image Capture
Video Borescope
KIT CONSISTS OF:
Video Borescope, gooseneck probe 100cm, video cable, USB cable,
Li- on batteries, charger, magnet tip, hook tip, mirror tip, hard case, 2GB
SD-card, user manual.
SAFETY INSTRUCTIONS
Please follow up instructions given in user manual.
Carefully read the instructions before using the instrument.
Do not open the instrument housing.
Repairs should be carried out by authorised workshops only. Please
contact York Survey Supply Centre.
Do not remove warning labels or safety instructions.
The camera is waterproof, but not the instrument. Do not use the
instrument under water. Do not use the instrument in humid/wet condition
(rain).
Carefully screw the probe onto the instrument in order to avoid
electro shocks.
Do not use the instrument in direct sunlight, in bright illumination and with
reflectors.
INTENDED USE OF INSTRUMENT
Optical check/survey of unaccessible places via borescope, i.e. sanitary
installations, electrical industry, construction.
CARE AND CLEANING
Please handle measuring instruments with care. Clean with soft cloth
only after any use. f necessary damp cloth with some water.
f instrument is wet, clean and dry it carefully. Pack it up only when it is
perfectly dry.
Transport in original container/case only.
FEATURES
Optical check of machine interior for service and repair.
Survey and check of objects under water (drainage works) - Please only
put camera with probe un er water - not the instrument!
Memory function
mage rotation
Display indication of date and time
Audio and video recording
SD-card (2GB; support up to 8GB optional)
Built-in 70MB flash memory
TV output
Conversion into jpg and bmp format
Languages: German, English, French, Spanish
LED illumination for working in dark surroundings
Adjustment of contrast, illumination and colours
USB charging of 2000mAH Li- on battery
Power saving mode
TECHNICAL DATA
Camera hea
Viewable angle 0° and 180°
Focal length 6 - 7cm
Viewable distance 5 - 15cm
Diameter of camera 17mm
Light source LED
Display
Display size 3.2”
Resolution 320 x 240 pixels
mage transmission to LCD Gooseneck tube
CMOS image sensor 300,000 pixels
Video output (to TV) PAL / NTSC
Picture/video format JPG/3GP
Resolution picture/video 320 x 240 pixels
nternal memory 70MB
Further memory 2GB SD-card support up
to 8GB (optional)
Operation languages German, English, French,
Spanish
Various
Probe length 100cm
Bend radius of probe 6cm
Protection class probe & camera P67
Power supply 3.7V/2000mAh Li- on
Operating time 3h
Temperature range -10 - +50°C
Humidity range 15 - 85%RH
Dimensions 240 x 160 x 100mm
Weight with probe 0.584kg

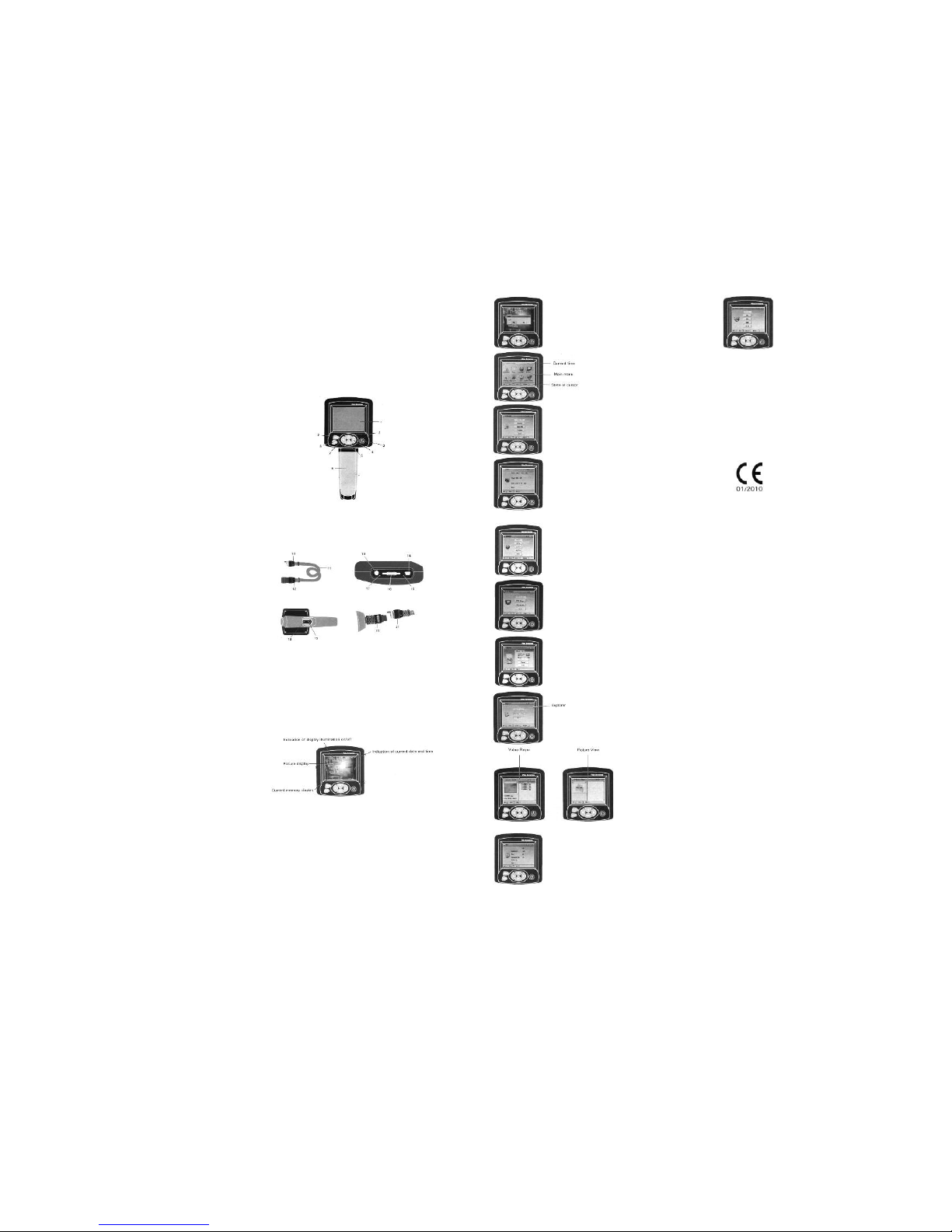

FEATURES
1) Display 6) Handle with Li- on battery
2) OK button 7) Cursor down
3) ON/OFF button 8) Display illumination down
4) Cursor up 9) Display illumination up
5) EX T button (ESC)
10) Camera adaptor 16) SD-card
11) Gooseneck 17) Built-in socket cover
12) Camera 18) Photo button (SNAP)
13) TV output 19) Video button (RECORD)
14) USB charging adaptor 20) Mainboard socket
15) RESET button 21) Camera adaptor
OPERATION
SWITCH INSTRUMENT ON
Switch instrument on with button 3. To switch instrument off press button
3 again.
SETTING IMAGE ILLUMINATION
With the buttons “Bright +” and “Bright -” you can adjust the image
illumination. The lowest illumination is 0 (= LED does not light anymore),
the maximum illumination is 10.
IMAGE ROTATION
With buttons 4 and 7 you can rotate the display by 180°.
SAVE PHOTOS
When the instrument is switched on press SNAP button on the reverse
side to save photos. For this press button shortly. Date and time will be
displayed on the photos. Photos can be browsed in the explorer.
MAIN MENU
Switch instrument on and press OK. Then following
dialogue box is displayed:
Choose YES with the cursor and confirm
with OK. Now you are in te main menu
and can choose menu icon required.
Confirm chosen menu icon with OK.
SET LANGUAGE
Choose LANGUAGE with the cursor and confirm
with OK. Now you can choose the language
requested and confirm with OK.
SET TIME
Choose T ME with the cursor and confirm with OK.
With the cursor you can now choose the parameter
requested. The yellow arrow shows which
parameter you have chosen. With the buttons
SNAP (= up) and RECORD (= down) you can set
the parameter. Confirm with OK. Thereafter, you
automatically return to the main menu.
AUTOMATIC SHUT DOWN
Choose AUTO OFF with the cursor and confirm with
OK. With the cursor you can now choose the
parameter requested. Confirm with OK. Thereafter,
you automatically return to the main menu.
TV OUTPUT
Connect TV cable (supplied) with monitor; plug the
black end into the instrument and the yellow end
into the monitor. Choose TV OUT in the main menu
and confirm with OK. Choose the correct parameter
with the cursor and confirm with OK. Thereafter, you
automatically return to the main menu.
MEMORY FUNCTION
Choose MEMORY with the cursor and confirm with
OK. Choose the required format with buttons SNAP
and RECORD and confirm with OK. With BACK you
return to the main menu.
PICTURE AND VIDEO EXPLORER
Choose EXPLORER with the cursor and
confirm with OK. Choose V DEO PLAYER or
P CTURE V EW and confirm with OK.
For deletion choose the picture/video
required with BR GHT+
SET
CHoose SET with the cursor and confirm with OK.
Now you can choose the requested parameter with
the cursor such as brightness, contrast, hue and
saturation. Set the parameter with buttons SNAP
and RECORD and confirm with OK. Thereafter, you
automatically return to the main menu.
SAVING POWER
Choose SAV NG POWER and confirm with OK.
Now set if and when saving power mode starts and
confirm with OK. Thereafter the instrument
automatically returns to the main menu. After the
time chosen the display will shut down but the
system is still working. Press any button to open the
display again.
EXIT MODE
You can leave any menu by pressing ESC. Then
you are in the video mode and can switch off the
instrument.
NOTICE:
Do not bend gooseneck mor than 90°.
Take out the battery if you do not use the instrument
for a long time.
Clean camera before using.
Please only use original battery pack.
CE CONFORMITY
nstrument is certified as per required CE
regulations.
ELECTROMAGNETIC ACCEPTABILITY (EMC)
• t cannot be completely excluded that this
instrument will disturb other instruments (e.g.
navigation systems);
• will be disturbed by other instruments (e.g.
intensive electromagnetic radiation, nearby
industrial facilities or radio transmitters).
WARRANTY
This product is warranted by the manufacturer to the original purchaser
to be free from defects in material and workmanship under normal use
for a period of two (2) years from the date of purchase.
During the warranty period, and upon proof of purchase, the product will
be repaired or replaced (with the same or similar model at manufacturer’s
option), without charge for either parts or labour.
n case of a defect please contact York Survey Supply Centre.
The warranty will not apply to this product if it has been misused, abused
or altered. Without limiting the foregoing, leakage of the battery, bending
or dropping the unit are presumed to be defects redulting from misuse or
abuse.
EXCEPTIONS FROM RESPONSIBILITY
The user of this product is expected to follow the instructions given in the
operator’s manual. Although all instruments left our warehouse in perfect
condition and adjustment the user is expected to carry out periodic
checks of the product’s accuracy and general performance.
The manufacturer or its representatives assumes no responsibility of
results of a faulty or intentional usage or misuse including any direct,
indirect, consequential damage and loss of profits.
The manufacturer or its representatives assumes no responsibility for
consequential damage and loss of profits by any disaster (earthquake,
storm, flood, etc.), fire, accident or an act of a third party and/or a usage
in other than usual conditions.
The manufacturer or its representatives assumes no responsibility for any
damage and loss of profits due to a change of data, loss of data and
interruption od business, etc. caused by using the product or an unusable
product.
The manufacturer or its representatives assumes no responsibility for any
damage and loss of profits caused by usage other than explained in the
user’s manual.
The manufacturer or its representatives assumes no responsibility for
damage caused by wrong movement or action due to connecting with
other products.
