YOSUDA S100A User manual

YOSUDA Treadmill-S100A Manual
IMPORTANT! Please read this manual before assembling and using. Retain
owner’s manual for using instructions. Your satisfaction is very important to us, any
questions PLEASE CONTACT US .

Catalog
Important Safety Instructions...........................................1
Warranty Commitment.......................................................2
Parts List and Technical Parameters.............................3
Product Structure................................................................4
Assembly Instructions.......................................................5
Function Operation Instructions.....................................6
Warm-Up...............................................................................8
Maintenance Guide..........................................................9
Trouble Code......................................................................12

Customer Service
Please let us know if you have any issues or concerns with the transaction,shipping or
product. And relevant photos or video are very important to help us better understand
the problem. We'll do our best to make it right for you!
➤Contact us via Amazon:Login your amazon account
> choose "Your orders"
> find the order ID
> click "Contact seller"
Or
➤Click our store “Seller name” Under the Buy Box
> Click “Ask a question”
> Click “An order I placed”
> Select a subject and write a message to us
Thank you for purchasing our products. Our products will help to improve your health

Treadmill supports connecting to mobile App via
Bluetooth
(Note: The scenario simulation function in the FITSHOW ,KINOMAP& ZWIFT APP is free
for a limited time. The final right of interpretation belongs to the official FITSHOW ,
KINOMAP& ZWIFT APP. )
FITSHOW
1. Scan this QR code and download app
2. Open the app and register the personal information.Turn on our phone Bluetooth.
3. Click the “Running”, and then click the “Quick Start” button, the program is
connecting to the machine, wait until the mobile phone program displays the word
connection, and click the connection directly.
Note:In order to ensure correct and fast connection, it is necessary to turn on
the treadmill connection power in advance and turn on the Bluetooth on the
mobile phone.

Kinomap
Search "KINOMAP" in the mobile app store to download app and register the
personal information.
Note: The treadmill can connect to FTMS and XG FITNESS.
Our Bluetooth and treadmill equipment must be turned on to connect.
There are two ways to connect to the treadmill via Bluetooth. If one of
XG FITNESS and FTMS cannot be connected, please change to
another mode.

Finally, the connection is successful, and the user interface display
is as follows.

Zwift
【1】Search "ZWIFT" in the mobile app store to download app and register the
personal information.
【2】Choose to pair running equipment;
【3】After the pairing is successful, click OK to start exercising;
【4】The treadmill needs to press the start button on the device to start
exercising;
Note：The Bluetooth model connected to the APP is not unique, and the
specific model is based on the model displayed on the mobile phone
connection.

1
Important Safety Instructions
To ensure your safety and to avoid accidents, please read the operating
instructions carefully before use.
●This product is an indoor household appliance, please do not modify it for
other purposes or use it outdoors; the location of the treadmill should be flat
and clean, and do not place it on for thick carpets or near water, there should
be a barrier-free safety area of 1000*1000mm behind the treadmill and 500mm
on the left and right sides.
●This product is for adults, and minors need to be accompanied by adults.
Physically uncomfortable or mentally handicapped and those who lack
common sense prohibited use. unless they have been under the supervision or
instruction regarding the use of the product by a person responsible for its
safety.
●If the power cord is damaged, it must be replaced by the manufacturer or
professional maintenance personnel in order to avoid hazards.
●This product is only used for 100V—120VAC voltage. Please use a power
outlet with safety grounding, grounding plug installation and grounding matters
Be sure to be consistent with the parameters of the user's area. If the plug and
socket are not compatible, please arrange a qualified electrician or after-sales
personnel to come deal with.
●Please check all parts before use to ensure that the screws and nuts are
locked tightly.
●Please wear comfortable tight clothes when using to avoid clothes being
caught by the machine. Keep small children or pets away to avoid accidents.
●Keep your hands clear of all moving parts, and do not put your hands and
feet in the space under the running belt.
●This product is suitable for home use, not for professional training and testing,
nor for medical purposes.

2
●The heart rate display of this product does not provide data for clinical
medicine.
●This product is for one person use only when it is in operation.
●Please switch off and unplug before cleaning and maintenance;
●Please turn off the phone and unplug it when people leave.
●Please use the accessories provided by the original factory,and unauthorized
replacement is strictly prohibited.
●This product is HC grade, the maximum weight of the user is 265LBS.
Warranty Commitment
We make sure that this product is made of high quality material.
Under normal use, if something goes wrong, we will be responsible for the
warranty.
The warranty period is 1 year (from the date of purchase). If the product you
purchased has quality problems, please contact our customer service within
12 months. Please do not deal with it without permission.
The following conditions are not covered by the warranty:
● Damage caused by external causes.
● Non-original accessories are used.
● Incorrect handling by oneself.
● Failure to follow instructions.
This warranty commitment is only valid for private use at home, not for
professional training situations such as gyms.
If you need to purchase non-warranty accessories, please contact customer

3
service. Please provide the following information when ordering:
● Manual.
● Product model.
● The serial number of the accessory.
● Proof of date of purchase.（Amazon order invoice）
Please do not send the product to our company without the confirmation of our
company's customer service. If you send the product back without permission,
our company will not bear any costs.

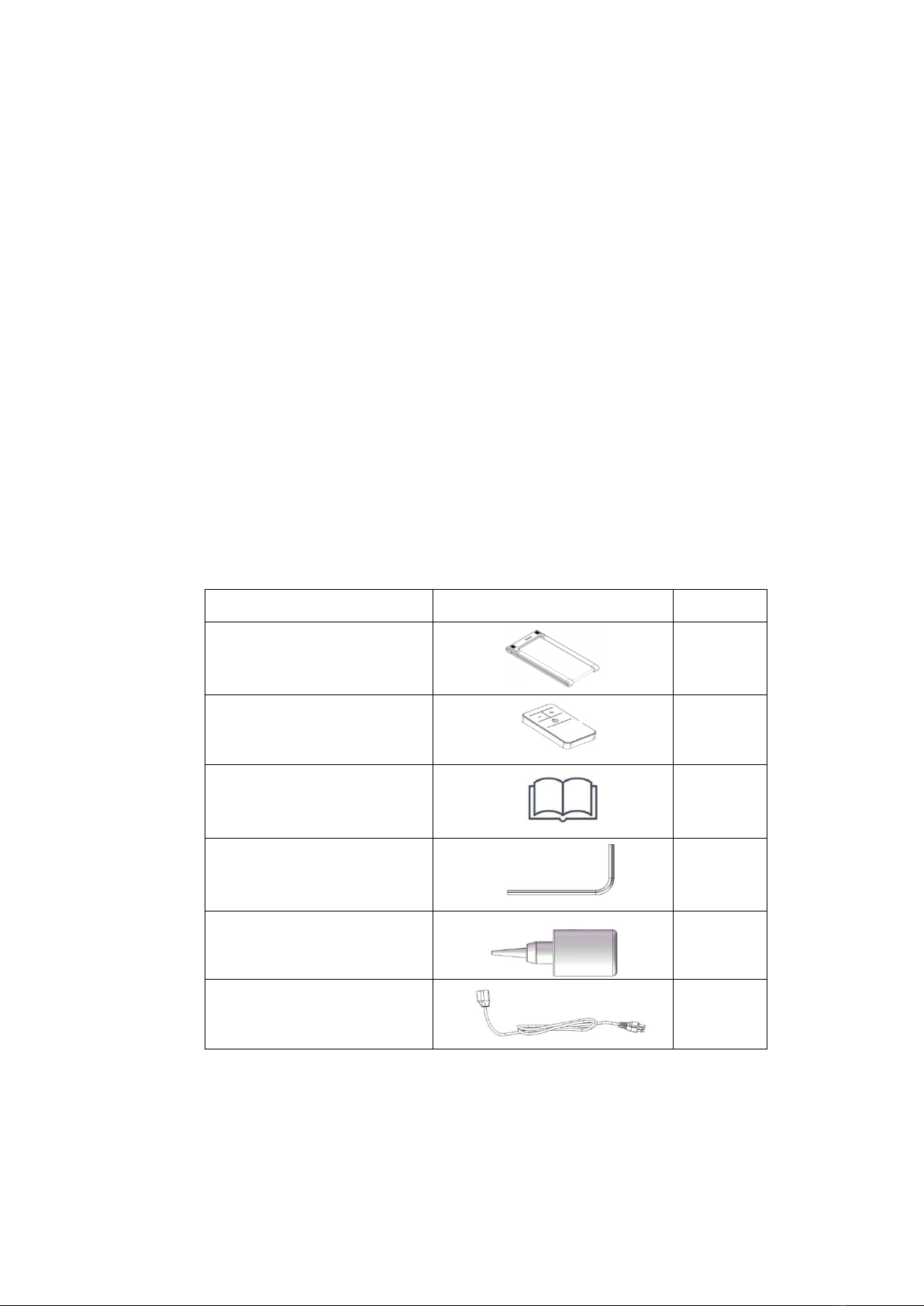

Parts List and Technical Parameters
Machine configuration
Name
Sketch (for reference)
Qty
Treadmill
1
remote control
1
manual
1
Allen wrench
1
lubricant
1
Power cable
1
Technical specifications

4
product configuration
specifications
Package size
54*27*5.5in
Product size
49*24*5in
Running Area Size
42.7*17in
Rated power
550W
Speed
0.6-4.0MPH
Weigh Capacity
265 lbs
N.W/G.W
53/ 59.5lbs
Product structure
Bluetooth audio
remote control
running belt
Pedal edge
Right rear corner
Left rear corner
Motor lower cover
Motor cover
display screen
Power switch
Power connector

5
Assembly Instructions
Step 1: Open the packing box, remove the relevant accessories and machine
from the box, and place the machine on flat floor.
Step 2：Connect the power cable, and turn on the power switch to complete
the assembly.

6
Function Operation Instructions
Start-up instructions
Turn on the power supply, turn on the power switch and the machine will
enter the standby state quickly; the remote control will start the machine
at 0.6MPH.

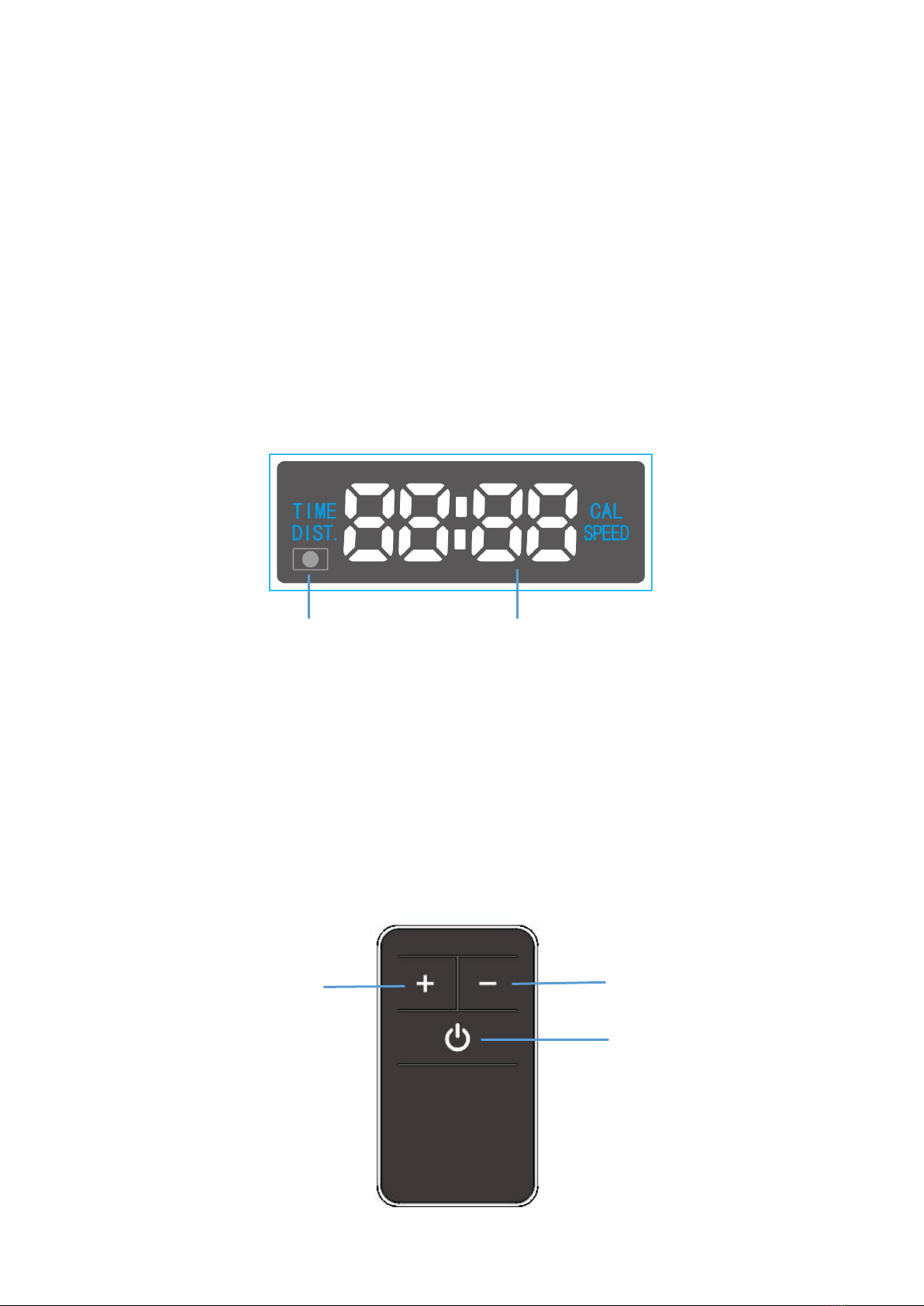

Display screen instructions
Infrared receiving: When using the remote control product to operate, the
remote control needs to be aimed at this position.
Function display: SPEED display when adjusting the speed operation, the
speed parameters are displayed at this time; SPEED, CAL, TIME, DIST. are
displayed in a cycle every 3 seconds respectively when the machine is running
without operation.
Description of the remote control key functions
Infrared receiver
Function display: speed, calories, time, distance.
Speed +
Speed -
Start/Stop

7
Operating Instructions
Functions：
1. Press key to start/stop, speed +/- .
2. Speed display 0.6-4.0MPH,Calorie display 0001-9999KCAL,Time display
01:00-99min
3. Display changes function menu (time, speed, distance, calories) every 3
seconds during operation.
4.Automatic stop at 99.00 minutes.
5.After 5 minutes of no operation after shutdown, it enters into a dormant state,
and the display screen goes off.
Speed control instructions
Each press of the speed+ button on the keypad or rocker during operation
increases the speed by 0.2MPH, a long press of the speed+ button increases
the speed by 0.2MPH continuously.
Each time you press the speed-button on the keyboard or remote controller
during operation, the speed will decrease by 0.2MPH; press and hold the
speed-button to continuously decrease at a speed of 0.2MPH.
Note:During speed operation, the display shows speed data, and if the speed
is not adjusted within 3 seconds, the display will cycle through the function
menus (time, speed, distance, calories) every 3 seconds.
Stopping instructions
In the running state, press the stop button on the remote control, the machine
stops running slowly.

8
Warm-Up
Before exercising, it is best to do stretching exercises. A successful exercise
program must include warm-up, aerobic and soothing exercises. The amount
of exercise should be carried out at least two to three times a week, with one
day off for one day of exercise. After a few months, you can increase the
amount of exercise to four to five days a week.
Warming up is a very important part of your fitness exercise. Warm up before
each exercise. Moderate warming up can prepare your body for more intense
exercise, because warming up can help muscles warm up and stretch,
Improves blood circulation and pulse rate, sending more oxygen to the
muscles. After aerobic exercise, repeated warm-up exercises can also reduce
muscle soreness. We recommend the following warm-up and cool-down
exercises.
1.Stretch down
The knees are slightly curved, the body slowly bends forward, let the back
and shoulders relax, and the hands try to touch the toes.Keep it for 10~15
seconds, then relax. Repeat 3 times (As picture 1 shown).
2. Tendon stretching
Sit on a clean seat cushion and straighten one leg. Put the other leg
inward so that it fits snugly against the inside of the straight leg. Try to
touch the toes with your hands. Keep it for 10~15 seconds, then relax.
Repeat 3 times for each leg.(As picture 2 shown).
3. Calf and heel stretch
Hold the wall or tree with both hands and one foot behind. Keep your hind
legs upright and your heels on the ground, leaning in the direction of the wall
or tree. Keep it for 10~15 seconds, then relax. Repeat 3 times for each leg.
(As picture 3 shown)
4. Head exercises
Tilt your head to the right for a count of one ,and feel the stretch in the left
stretching of the neck muscles;then turn your head to the back for a count of
two.Then turn your head to the left for a count of three; finally turn your head turn
your head back down towards your chest for a count of four. Then relax and
repeat for 3 times.(As picture 4 shown)
5.Waist exercise
Stretch your arms to the left and right and then slowly raise them slowly above
your head. Hold your right arm as straight as possible towards the ceiling. Hold
for 1 second and feel the stretch in your right side. Repeat with your left arm.(As
picture 5 shown)

9
Maintenance Guide
Warning:Always unplug the treadmill from the power supply before
servicing the product.
● Use a cloth to clean the surface of the product.
● Thorough cleaning will extend the life of the machine.
● A thorough cleaning will extend the life of the machine.
● Regularly remove dust to keep the parts clean and sweep the exposed parts
of the running belt on both sides, which will reduce the accumulation of
impurities on the running belt. Keep the sneakers clean to avoid carrying
foreign objects under the running belt and wearing the running board and belt.
The surface of the treadmill must be cleaned with a soapy damp cloth. Be
careful not to splash water on the electrical components and under the
treadmill.
● Check and lock all parts of the treadmill frequently, replace those defective
parts and/or leave the equipment unused until restoration.
1.Adjust the running belt
If you are using the treadmill, the running belt slippage or not smooth, you can
adjust the running belt elasticity to improve.
There are two functions for running adjustment: tightness adjustment and
running belt center position adjustment. The running belt has been adjusted at
the factory, but after use, the running belt will be stretched, and it will deviate
from the center position, causing the running belt to rub against the pedal edge
and the rear cover and damage it. It is normal for the running belt to stretch
during use.
When the product is running at no load, the running belt will have a side
deviation of not more than 5mm is a normal phenomenon.
Adjustment of the running belt method (the picture is for reference only,
subject to the real thing)
◆The running belt deviates to the left
tight

10
Adjustment method: When the power is turned off, take a 5mm hexagonal
wrench, turn the adjusting bolts on the left side ¼ turn clockwise, and then
power on the machine to run, and the test running belt is centered. Proceed in
this way until the loose adjustment of the walking belt is centered.
◆The running belt deviates to the right
Adjustment method: When the power is turned off, take a 5mm hexagonal
wrench, turn the adjusting bolts on the left side ¼ turn clockwise,and then
power on the machine to run, and the test running belt is centered. Proceed in
this way until the loose adjustment of the walking belt is centered.
◆The running belt will be loose after using for a period of time, the
running belt is too loose, the running belt will slip when using.
Adjustment: In the state of power off, take a 5mm hexagonal wrench, turn the
left and right bolts of the rear roller to the right 1/4 turn at the same time to
tighten the running belt, and then power on the machine to run and test the
tightness of the running belt. This method until the running belt tightness is
appropriate.
Note: When you use the treadmill, due to the running of the two feet with the
same force is not as large, the pressure on the running belt is not balanced,
resulting in the running belt deviated from the center. This deviation is normal,
when no one is running on the running belt, it will return to the center.
The running belt should not be adjusted too tightly. This will pull the running
belt, increase the pressure on the front/rear drums, bring harm to the drum
bearings, etc., and produce noise or other problems.
tight
tight
tight

11
2. Lubricating oil for walking machine
The machine is pre-lubricated before leaving the factory. With use, the belt
running deck will become dry gradually and the fiction between the belt and
deck will increase, which may wear both the deck and the belt. Proper belt
lubrication will help keeping your treadmill in its best condition. We recommend
you to lubricate your treadmill once every 30 hours in use.
Note: Please use special lubricants for treadmills or contact our
company directly.
How to add lubricant to the treadmill:
Turn off the power switch and unplug the power plug. The place to lubricate is on
the lower surface in the middle of the running belt. (As shown below)
Cut the mouth of the oil bottle into a small mouth, not too large, but to be
able to inject.
Lift the running belt so that the oil bottle is extended to the bottom of the
running belt, inject the oil into the middle of the running board, and lower
the running belt.
Plug in the power plug and turn on the power switch. After turning on the
machine, wait one minute for the oil to be applied evenly and then use
the treadmills.
Note:Attention should be paid to safety during lubricating operations.

12
Trouble Code
Code
Causes
Resolutions
E01
Poor communication
between electronic
meter and controller
1. Check that the connection between the electronic meter
and the controller is not properly connected.
2. The main IC of the controller contacts badly and is
re-tightened.
3. Controller power supply abnormal, change controller
E02
Explosion-proof and
impact-proof
protection
1.If the motor is open or in bad contact, replace the motor or
check the connecting terminals.
2.Power tube breakdown, replace it or the controller.
E05
Over current
protection
1.Overload.
2.The resistance of the treadmill is too heavy and needs to be
lubricated.
3.The motor is damaged, replace it.
E06
Overload protection
E10
Keyboard and panel
control connection
communication
failure
1. Check if the connection between the electronic watch and
the controller is poorly connected.
2. The controller plug is not in good contact and is re-inserted.
3. The controller power supply is abnormal and the controller
is replaced.
