YTL D119014 User manual

1
1. Introduction
This is a single phase meter with communication RS485 and RF. Protocol for RS485 is DTL645.
Meter with inside relay support for connect and disconnect functions.
2. Features and Technical Parameters
2.1 Features
●LCD display show voltage, current, power, and kWh.
●Measuring total energy consumption, support both active and reactive energy measurement.
●Meter with inside relay 80A which support on and off function through communication program
●Meter support both RF and RS485 communication, protocol for RS485 is DTL645, protocol for
RF is self defined.
RS485 communication: baud rate 9600 (fixed), eight data bits, even parity check, one stop bit
RF communication: baud rate 9600 (fixed), eight data bits, without parity check, one stop bit
●RF only used for communication with IHD (in home display)
●address for in home display and meter should corresponding and same
●It can received meter returned data when press ”SEND” on IHD
●IHD will ask meter every 1 minute for get data in case of with power supply
2.2 Technical Parameters
Voltage: 230V
Current: 10(80) A
Impulse constant: 1600imp/kWh
Display: LCD 6+2
Operating temperature：-20—45℃
Storage temperature：-25—70℃
relative humidity：≤75%
Frequency：50Hz
Accuracy class：1.0 s
Starting current：0.4%Ib(1.0s)
Power consumption：
Voltage circuit Un <2W / <10VA @ Un
Current circuit In <2.5 VA @ (Ib)

2

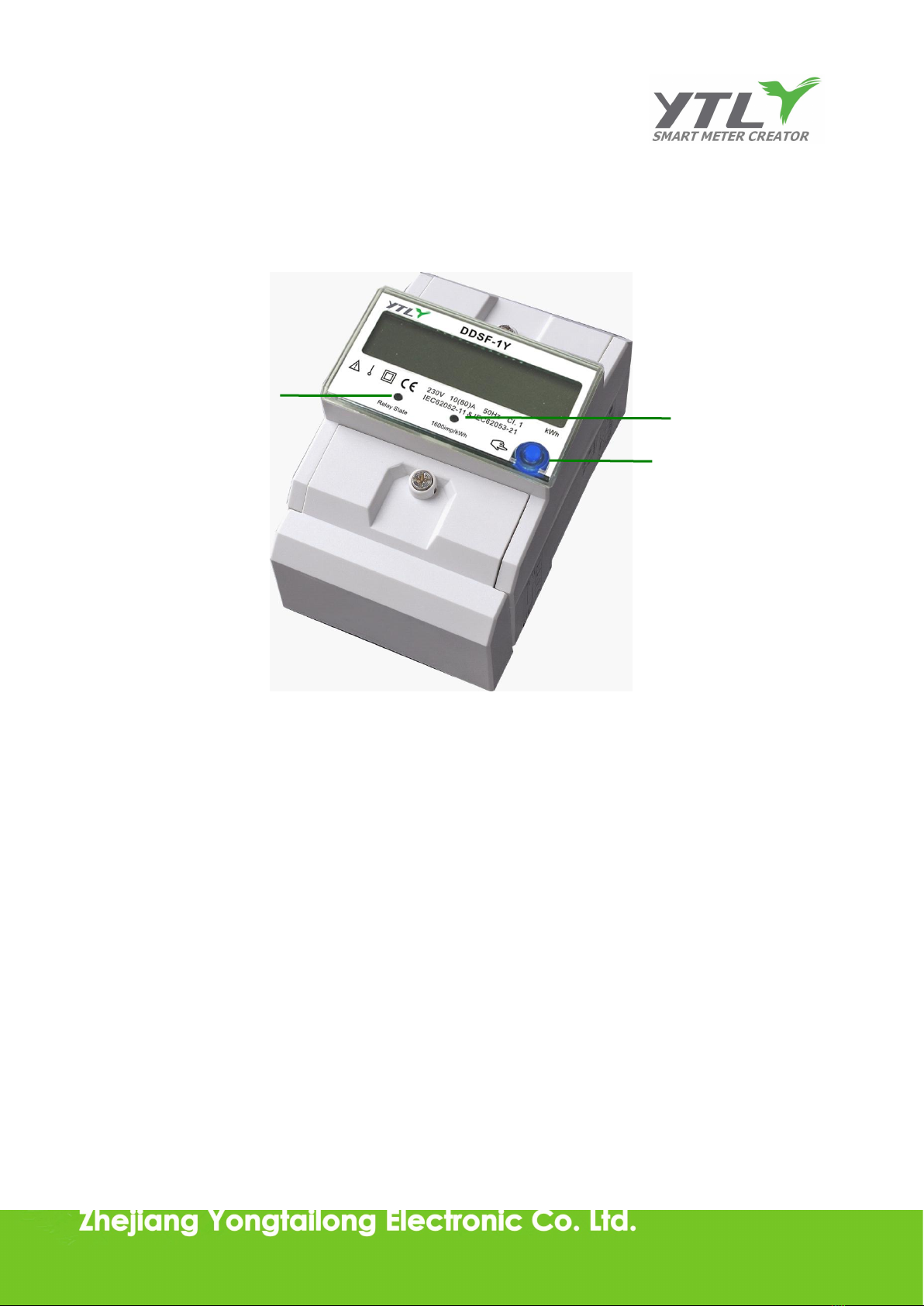

3. Description
A relay status
B Impulse indication
C Turn Page Button
Material
Case: ABS+PC
Hook: ABS material
A
B
C

3
4. Display

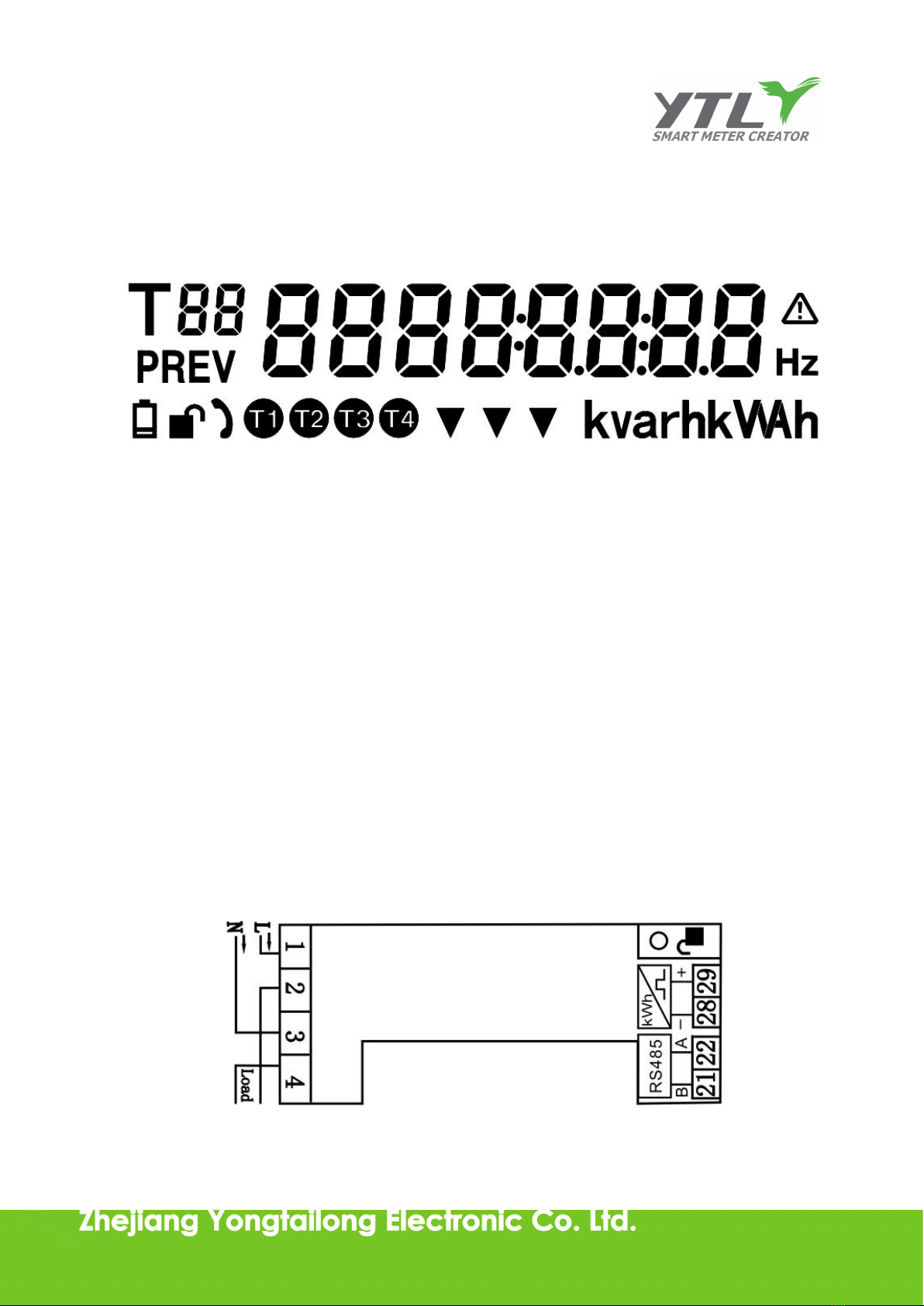

4.1 LCD content
4.2 Parameters show on the LCD screen
LCD display for present total kWh, press button can be used to turn to different pages, totally 4
pages
●Page 1: active power 000000.00 kWh
●page 2: voltage 000.0 V
●page 3: current 00.00 A
●page 4: instantaneous power 00.000 kW
5. Connection Diagram

4

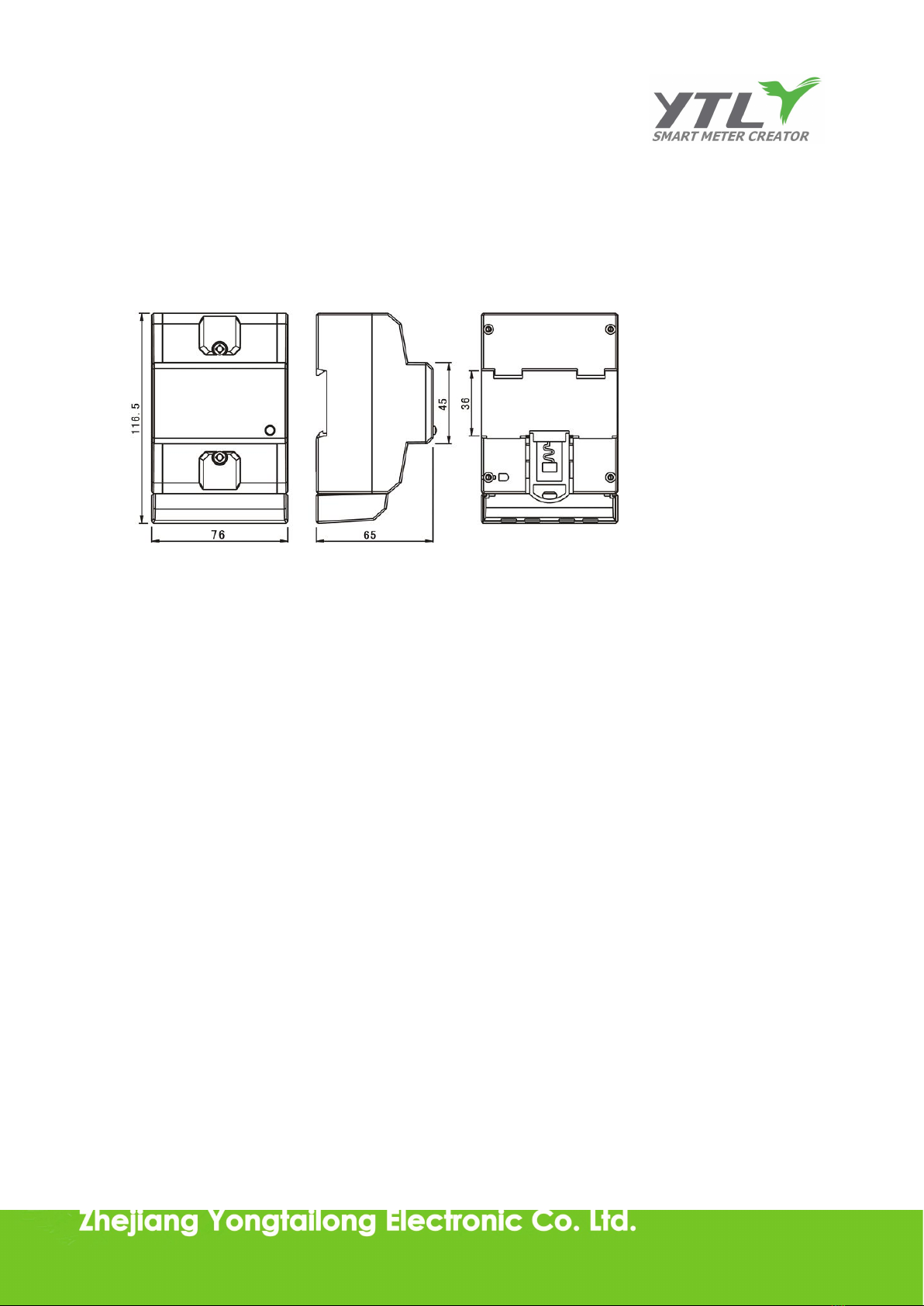

6. Meter Dimensions
Height 100mm
Width 76mm
Depth 65mm
Weight 0.3174kg(Net)
7. Software
Connect the meter correctly with power according to connection diagram, includes RS485 wire;
then power on

5
7.1 RS485 communication：

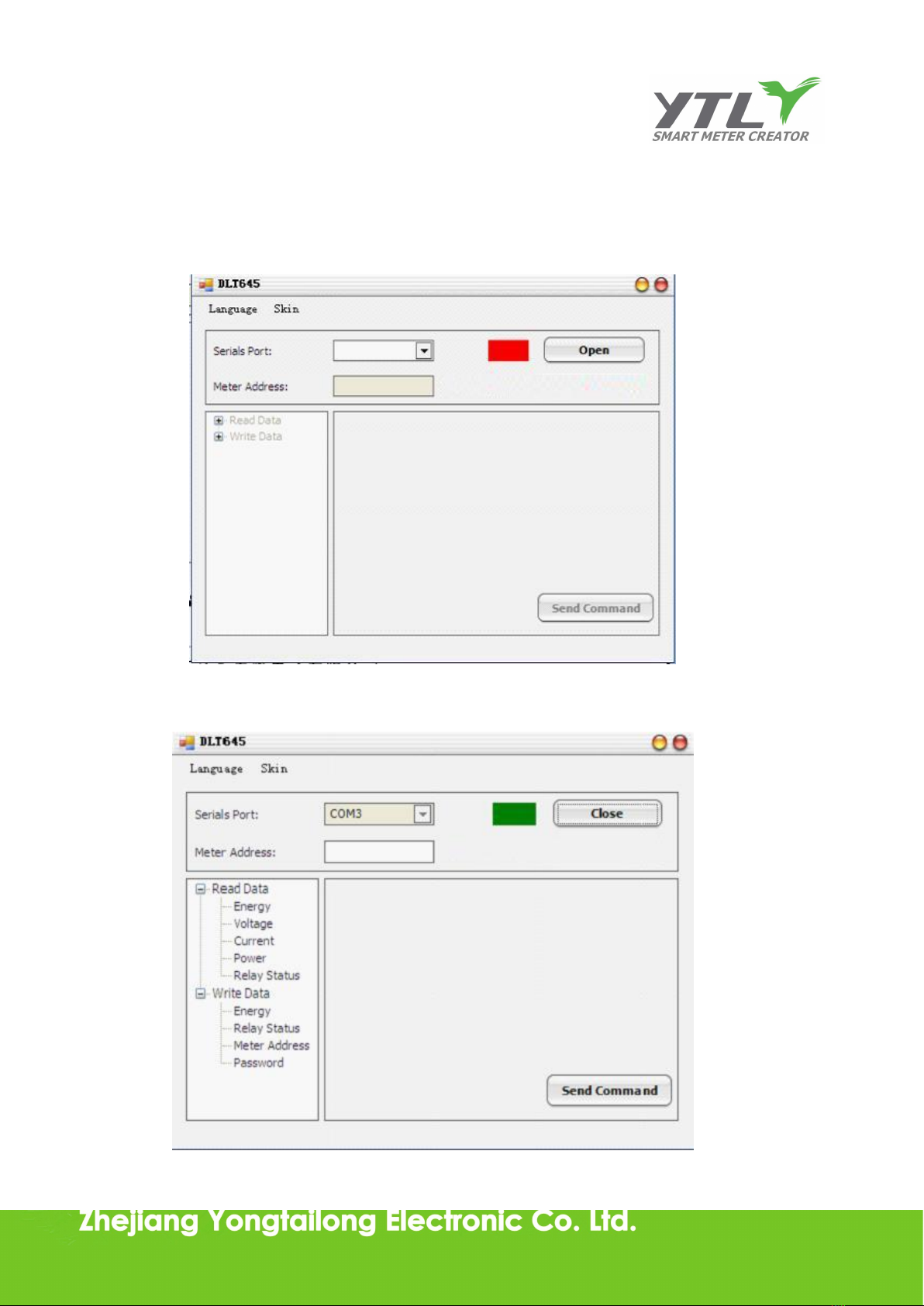

7.1.1 Open the software (see following interface)：
7.1.2 Choose the serial port, baud rate and open the serial port (see following interface)

6

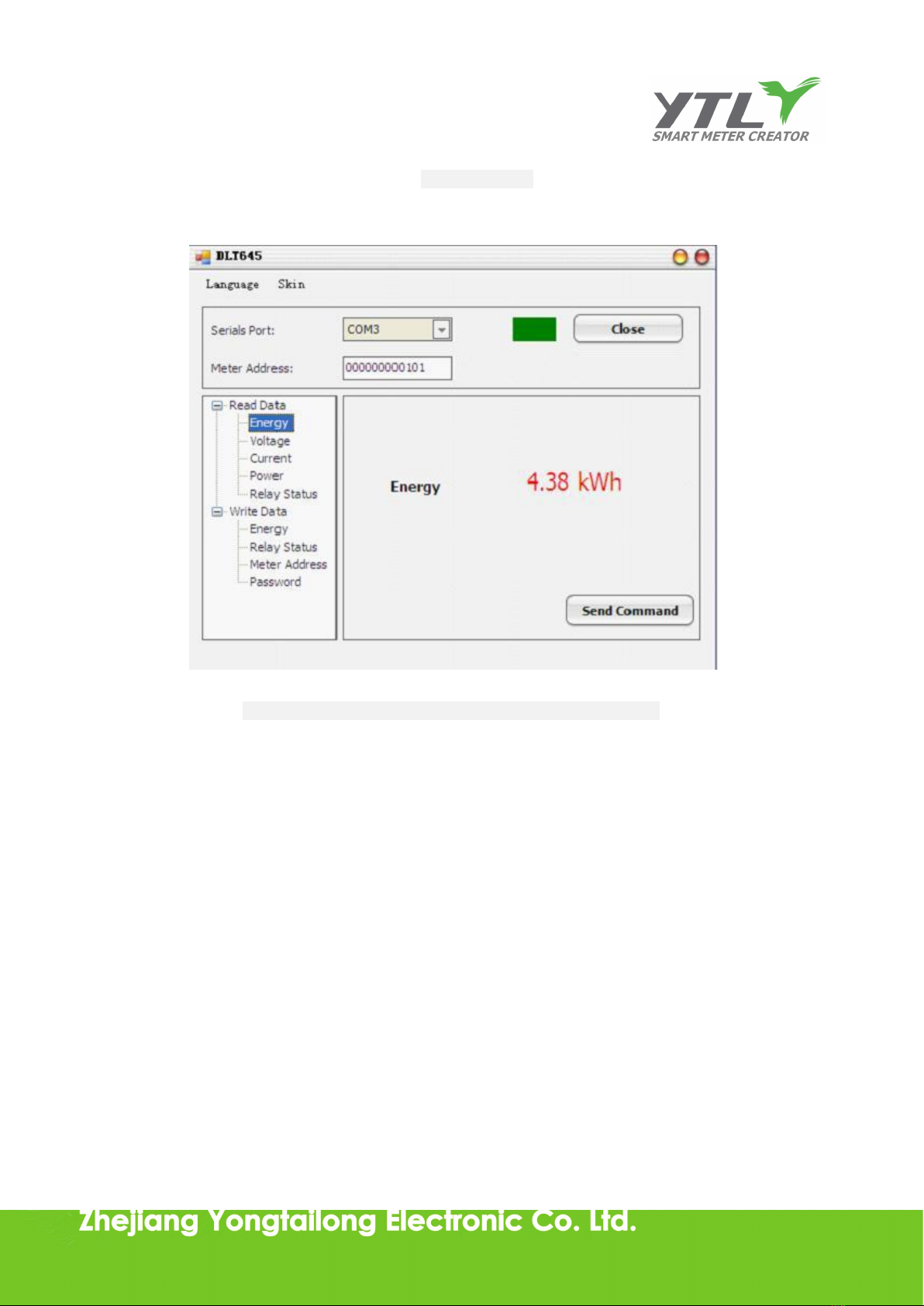

7.1.3 Input the correct meter address (Factory Default 000000000000), and choose the object
which need to be operated, then click send data,as following:
7.1.4 When use broadcast address operate meter needs press button on the meter
7.1.5 This meter without load curve and RTC

7
9. Installation Instruction
*Choose 35mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the
location which are waiting for installation;
*Push down the clip under the bottom of the meter for a gear, see fig. 1;
Fig.1

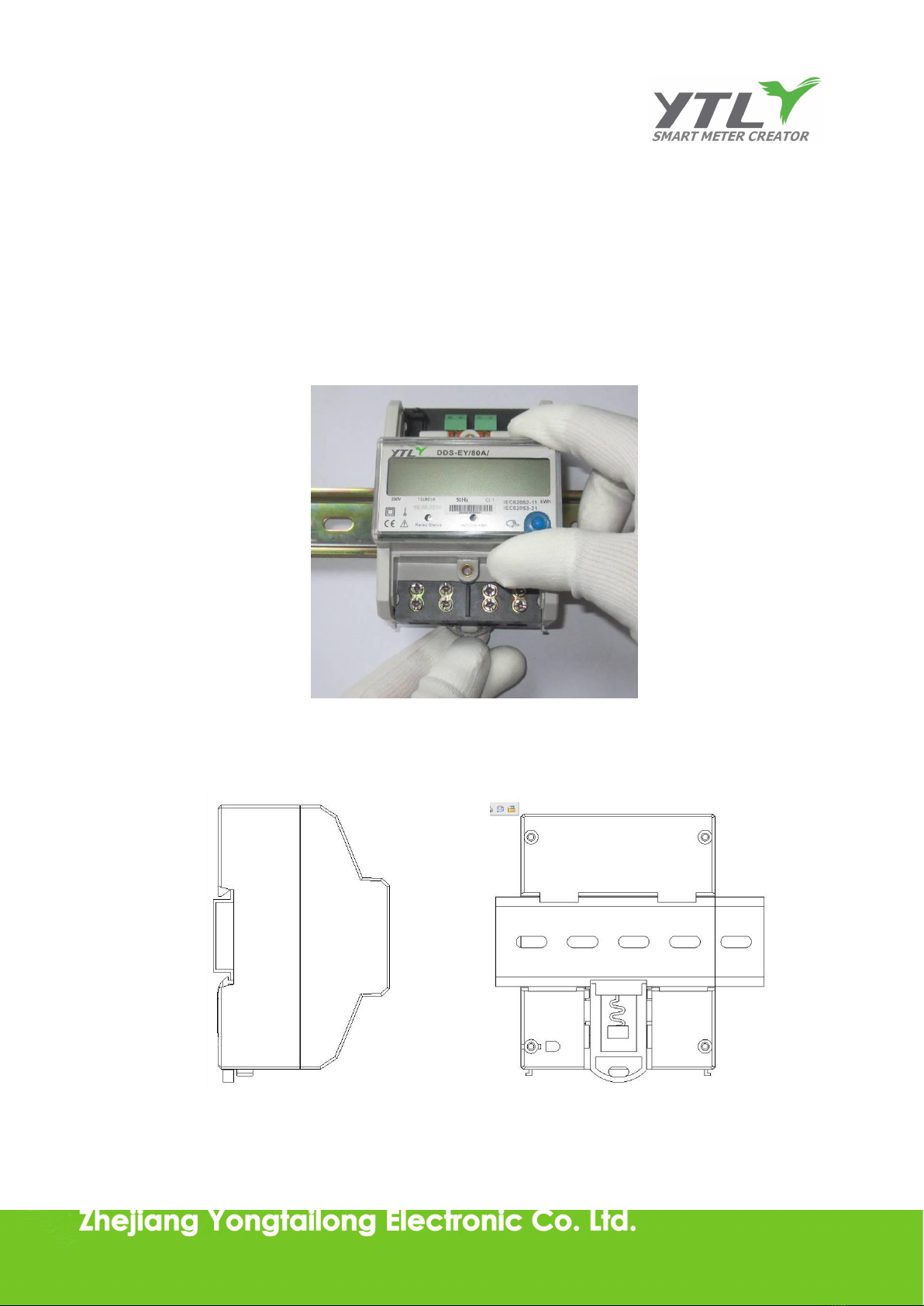

*Put the meter into the Din-rail as per Fig. 2, then push up the clip for a gear, install meter to
the Din-rail, see Fig. 3;
Fig. 2 Fig. 3

8

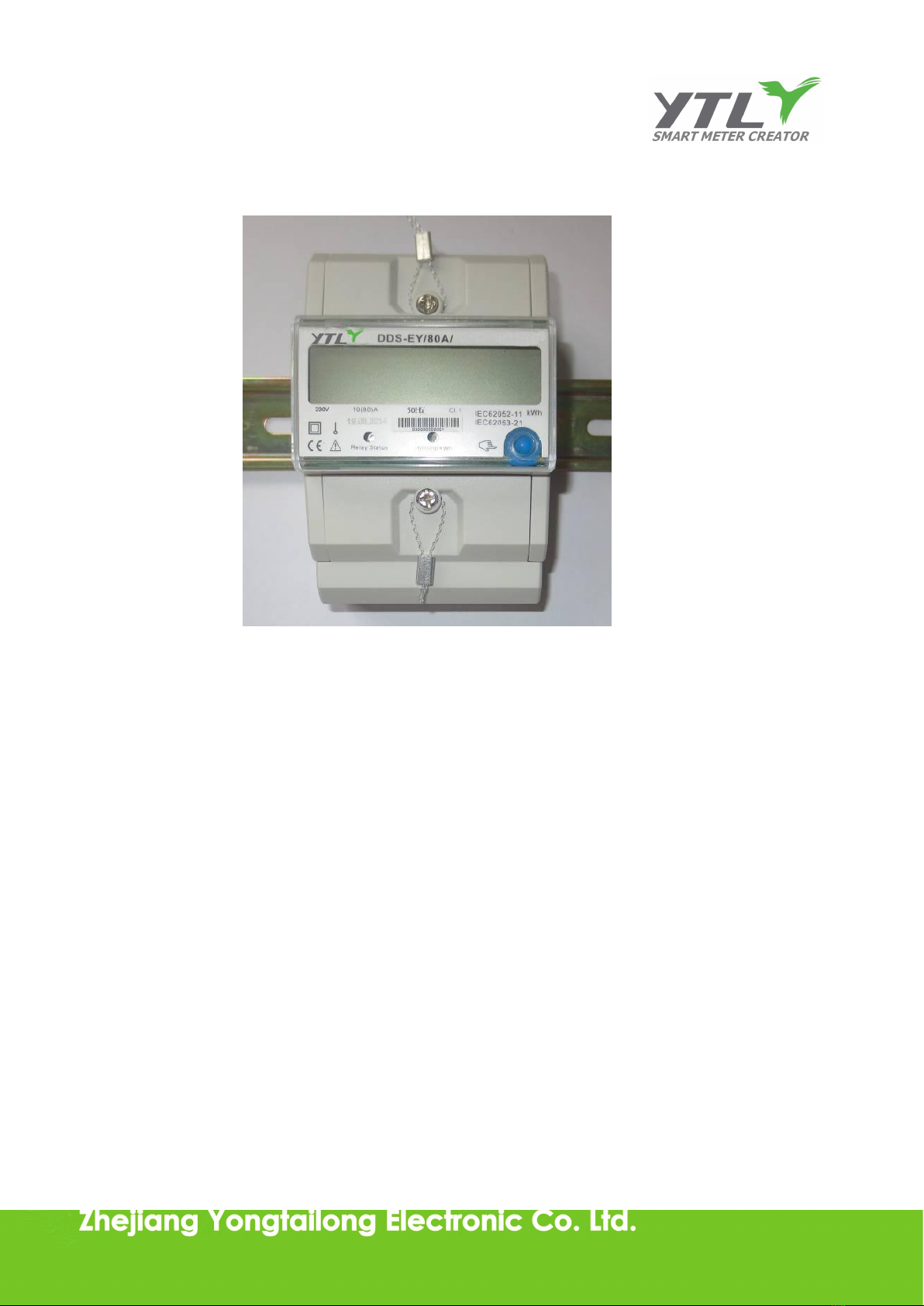

*Fig. 4 is after installation;
Fig.4
*Making the connection according to the wiring diagram, see Fig. 5
Fig.5

9
*After connection, use lead sealing to seal terminal cover, see Fig. 6
Fig.6

10
Recommended wire（For your reference）：
Safe carrying capacity of rubber or plastic insulated wire(1)
specification（mm）
nominal cross
section
（mm2）
Safe carrying capacity（A）
BX
BLX
BV
BLV
1*1.13
1
20
18
1*1.37
1.5
25
22
1*1.76
2.5
33
25
30
23
1*2.24
4
42
33
40
30
1*2.73
6
55
42
50
40
7*1.33
10
80
55
75
55
7*1.76
16
105
80
100
75
7*2.12
25
140
105
130
100
7*2.50
35
170
140
160
125
19*1.83
50
225
170
205
150
19*2.14
75
280
225
255
185
19*2.50
95
340
280
320
240
Note：BX(BLX）copper（aluminum）core rubber insulated wire or BV(BLV）copper（aluminum）
core PVC plastic insulated wire，widely used in 500V or less than 500V AC and DC power
distribution system. The temperature for the data listed in the above table is 35℃、the safe
carrying capacity value for the wire on single coved.

11
9 Safety Instructions
Information for Your Own Safety
This manual does not contain all of the safety measures for operation of this equipment (module,
device) because special operating conditions, local code requirements or local regulations may
necessitate further measures. However, it does contain information which must be adhered to for
your own personal safety and to avoid damage to the equipment. This information is highlighted
by a warning triangle with an exclamation mark or a lightning bolt depending on the severity of the
warning.
Warning
Means that failure to observe the instruction can result in death, serious injury or considerable
material damage.
Caution
Means hazard of electric shock and failure to take the necessary safety precautions will result in
death, serious injury or considerable material damage.
Qualified personnel
Installation and operation of this equipment described in this manual may only be performed by
qualified personal.
Only people that are authorized to install, connect and use this equipment and have the proper
knowledge about labeling and grounding electrical equipment and circuits and can do so
according to safety and regulatory standards are considered qualified personnel in the manual.
Use for the intend purpose
The equipment (device, module) may only be used for the application cases specified in the
catalog and the user manual and only in connection with devices and components recommended
and approved by YTL.
Exclusion of liability
We have checked the contents of this publication and every effort has been made to ensure that
the descriptions are as accurate as possible. However, deviations from the description cannot be
completely ruled out, so that no liability can be accepted for any errors or omissions in the
information given. The data in this manual is checked regularly and the necessary corrections will

12
be included in subsequent editions. If you have any suggestions, pls let us know.
Subject to technical modifications without notice.
Copyright
Copyright Zhejiang Yongtailong Electronic Co., Ltd. April 2013 All rights Reserved.
It is prohibited to pass on or copy this document or to use or disclose its contents without our
express permission. Any duplication is a violation of the law and subject to criminal and civil
penalties. All rights reserved, particularly for pending or approved patents award or registered
trademarks.
General Warning
After removing the packaging make sure the integrity of the unit. If in doubt don't use the
equipment and contact technical staff.
Mounting of electric appliances must be carried out only by skilled electricians. It is imperative to
observe the generally applicable safety measures.
In case of failure and /or malfunctioning of the device, turn off it. For any repair only contact
technical staff. Failure to comply with the above may compromise the device safety.
Warranty
The manufactory will repair or exchange the products while the lead seal is still exited, within 18
months, when discovering the products not accordance with the technical specification.
Technical support
For any problems of our products please contact:
Zhejiang Yongtailong Electronic co.,ltd
No. 320 Tongsheng road, Tongxiang Zhejiang, China
Post:314500
Web: www.ytl-e.com
Tel: [phone] Fax: [phone]
