YTL 46309 User manual
REV140522
CHIPPER SHREDDER
WITH METAL HOPPER
OPERATING INSTRUCTIONS
Read this manual before using this product.
Failure to do so may result in serious injury.
SAVE THIS MANUAL
YTL46309
2
Table of Contents
General Warnings................................................................................................. 3
Specific Safety Rules and Precautions ................................................................. 4
Controls and Features Identification ................................................................... 6
Component Parts.................................................................................................. 7
Assembly Instructions........................................................................................... 7
Operation Instructions........................................................................................... 9
Inspection, Maintenance and Cleaning............................................................... 10
Specification.........................................................................................................11
Parts Drawing & Parts List.................................................................................. 12
Limited Warranty.................................................................................................15
3
General Warnings
Read all Instructions
•Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
•Do not operate the chipper/shredder in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. The chipper/shredder can create sparks which may
ignite.
•Keep children and visitors away while operating the chipper/shredder. Distractions can
cause you to lose control. Provide barriers or shields as needed.
•Stay alert. Watch what you are doing and use common sense when operating the chipper /
shredder. Do not use while tired or under the influence of drugs, alcohol, or medication.
Amoment of inattention while operating the chipper/shredder may result in serious personal
injury.
•Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing and gloves away from moving parts. These things may get caught in moving parts.
•Avoid accidental starting. Be sure the engine ignition is in the “OFF” position before moving
the chipper/shredder or before performing any service, maintenance, or cleaning procedures on
the unit.
•Remove adjusting keys or wrenches before operating the chipper/shredder.A wrench or
a key that is left attached to a rotating part of the machine may result in personal injury.
•Do not overreach. Keep proper footing and balance at all times.
•Use safety equipment. Always wear ANSI approved safety impact goggles, hearing protection,
heavy-duty work gloves, and a dust mask or respirator when using this product.
•Do not use the chipper/shredder if the On/Off switch does not turn it on or off. Any tool
that cannot be controlled with its power switch is dangerous and must be replaced.
•Store the chipper/shredder out of reach of children and other untrained persons. The
chipper/shredder is dangerous in the hands of untrained users. Keep children away from this
product when in use and store out of their reach.
•Maintain the chipper/shredder with care. Properly maintained equipment is less likely to
malfunction and is easier to control. Do not use the chipper/shredder if it is damaged. Tag it “Do
not use” until repaired.
•Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the chipper/shredder’s operation. If damaged, have the
chipper/shredder serviced before using. Many accidents are caused by poorly maintained tools.
•Service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
•When servicing the chipper/shredder, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance and cleaning” section of this manual. Use of
unauthorized parts or failure to follow maintenance instructions may void your warranty.
4
PLEASE NOTE: Your Warranty is voided if you do not put engine oil in the engine’s crankcase
prior to its first use. Before each use, check the oil level. Never run the engine with low or no
engine oil. Running the engine with low or no oil will permanently damage the unit.
•The engine’s carburetor may need to be adjusted by a qualified mechanic for efficient high-altitude
use.
•Maintain labels and nameplates on the chipper/shredder. These carry important information. If
unreadable or missing, contact YTL International for a replacement.
•Make sure the chipper/shredder is located on a flat, level, sturdy surface capable of supporting the
weight of the chipper/shredder and any additional tools and equipment.
•Industrial applications must follow OSHA guidelines.
•Never stand on the chipper/shredder. Serious injury could result if the machine tips over.
•Never leave the chipper/shredder unattended when it is running. Turn off the engine before leaving.
•Be extremely cautious of the rotating Blades in the chipper/shredder. Never allow your hands,
fingers, or any other part of your body to enter the chipper or shredder hopper units.
•Never place your hands, fingers, feet, or any other part of your body close to the discharge opening
while the chipper/shredder is in operation.
•Do not look into the hoppers or discharge opening when the machine is running.
•Never allow metal, stone, glass or other foreign objects to be fed into thechipper/shredder. Use a
stick to push the tree limbs, leaves, etc. into the feed hopper.
•Do not attempt to use the machine on a slope or slick surface.
•Always feed branches slowly into the machine.
•Branches larger than 1/2” diameter should not be fed into the shredder hopper and branches larger
than 3” diameter should not be fed into the chipper hopper.
•Do not allow processed material to build up in the discharge area. This may prevent proper
discharge and can result in kick back of material through the feed hopper.
•If the machine becomes clogged, immediately turn the engine off. Wait until the chipper/shredder
comes to a complete stop. Unplug the spark plug wire from the spark plug. Then clear the machine
of the clogged material.
•Do not allow children and other untrained people to handle or play with the chipper/shredder. Never
allow people or animals in the work area.
•Do not force the chipper/shredder. This tool will do the work better and safer at the speed and
capacity for which it was designed.
•People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close
proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
PROP 65 WARNING
The engine exhaust from this product contains chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
Specific Safety Rules and Precautions
5
FIRE AND EXPLOSION PRECAUTIONS
1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and
handling procedures. Always have multiple ABC class fire extinguishers nearby.
2. Keep the chipper/shredder, its engine, and surrounding areas clean at all times.
3. When fuel or oil spills, it must be cleaned up immediately. Dispose of fluids and cleaning
materials as per any local, state, or federal codes and regulations. Store all oil rags in a covered
metal container that is ventilated.
4. Never store fuel or other flammable materials near the chipper/shredder.
5. Do not smoke, or allow sparks, flames, or other sources of ignition around the machine.
6. Keep grounded, conductive objects, such as tools, away from exposed, live electrical parts and
connections to avoid sparking or arcing. These events could ignite fumes or vapors.
7. Do not refill the fuel rank or oil while the engine is running or while the engine is still hot. Do not
operate the machine with known leaks in the fuel system.
8. Use only engine manufacturer recommended fuel and oil.
MECHANICAL PRECAUTIONS
1. Prior to performing service, maintenance, or cleaning procedures, always makes sure the
engine’s ignition is in its “OFF” position. Allow the engine to completely cool. Then, remove the
spark plug from the engine.
2. Do not alter or adjust any part of the chipper/shredder or engine that is assembled and supplied
by the manufacturer or distributor.
3. Always follow and complete scheduled engine maintenance.
CHEMICAL PRECAUTIONS
1. Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.
2. Avoid body contact with fuels, oils, and lubricants used in the engine
3. If swallowed, seek medical treatment immediately. Do not induce vomiting if fuel is swallowed.
For skin contact, immediately wash with soap and water. For eye contact, immediately flush eyes
with clean water.
4. This chipper/shredder is designed for outdoor use only. Do not operate the chipper/shredder in a
closed area or in a poorly ventilated area. When running, the engine of this machine produces
carbon monoxide, a colorless, odorless, toxic gas that, when inhaled, can cause serious
personal injury or death. Whenever possible, use a carbon monoxide detector (not included) to
detect excessive carbon monoxide fumes in the work area and in the surrounding area.
NOISE PRECAUTIONS
1. Exposure to high noise levels is hazardous to hearing. Always wear ANSI approved hearing
protection when operating or working around the chipper/shredder when it is running.
2. CAUTION: The warnings and precautions discussed in this manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common
sense and caution are factors which cannot be built into this product, but must be supplied by the
operator.
6

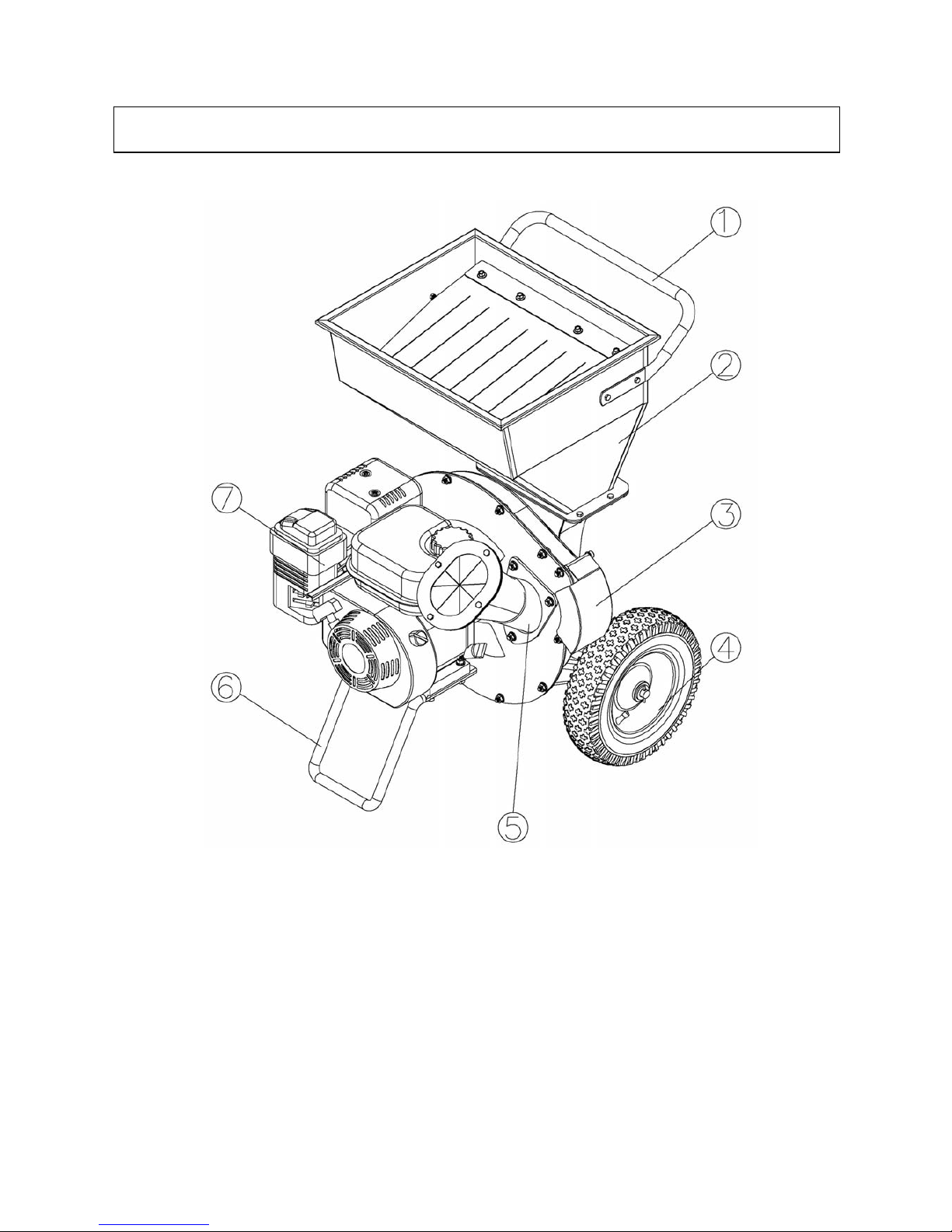

1. Handle: Easy Maneuverability
2. Shredder Hopper: 1/2” Max. Limb Diameter and Overall Size 17.6” x 14.84”
3. Discharge Port: Cover Cap/End
4. Wheels:12’’Pneumatic
5. Chipper Chute: 3’’Maximum Diameter and Opening Size 5” x 3.15”
6. Support Leg: Stabilizes the Engine During Operation
7. Engine: 6.5HP,196CC
Controls and Features Identification
7

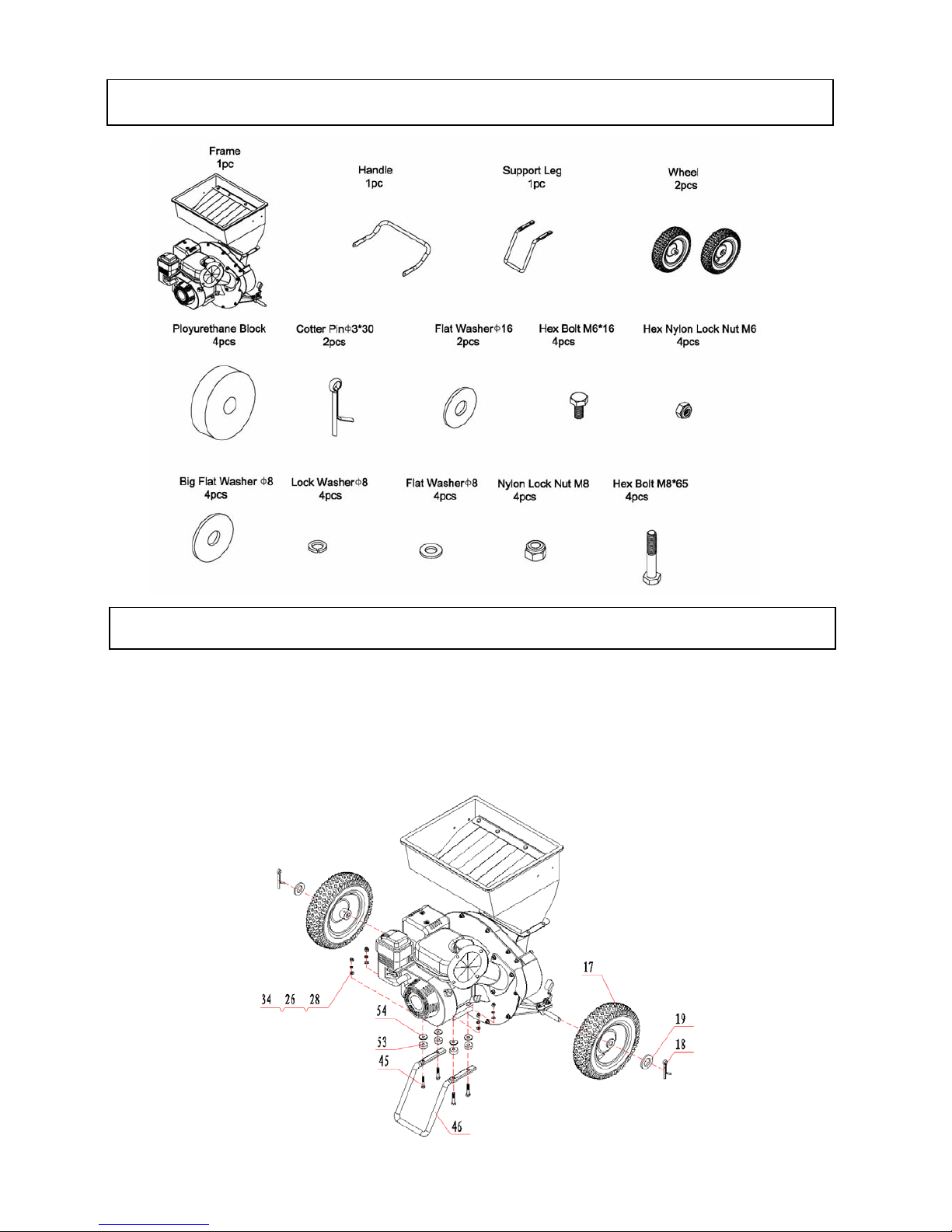

STEP 1: Attach Wheels to Frame & Attach the Support Leg to the Engine
1. Attach the Wheel (#17) to the Frame using Flat Washer Ø16 (#19) and Cotter Pin Ø3x30 (#18)
2. Secure the Engine Support Leg (#46) to the Engine using Hex Bolt M8x65 (#45), Polyurethane Block
(#53), Big Flat Washer Ø8 (#54), Flat Washer Ø8 (#28), Lock Washer Ø8(#26) and Nylon Lock Nut
M8(#34)
Component Parts
Assembly Instructions
8

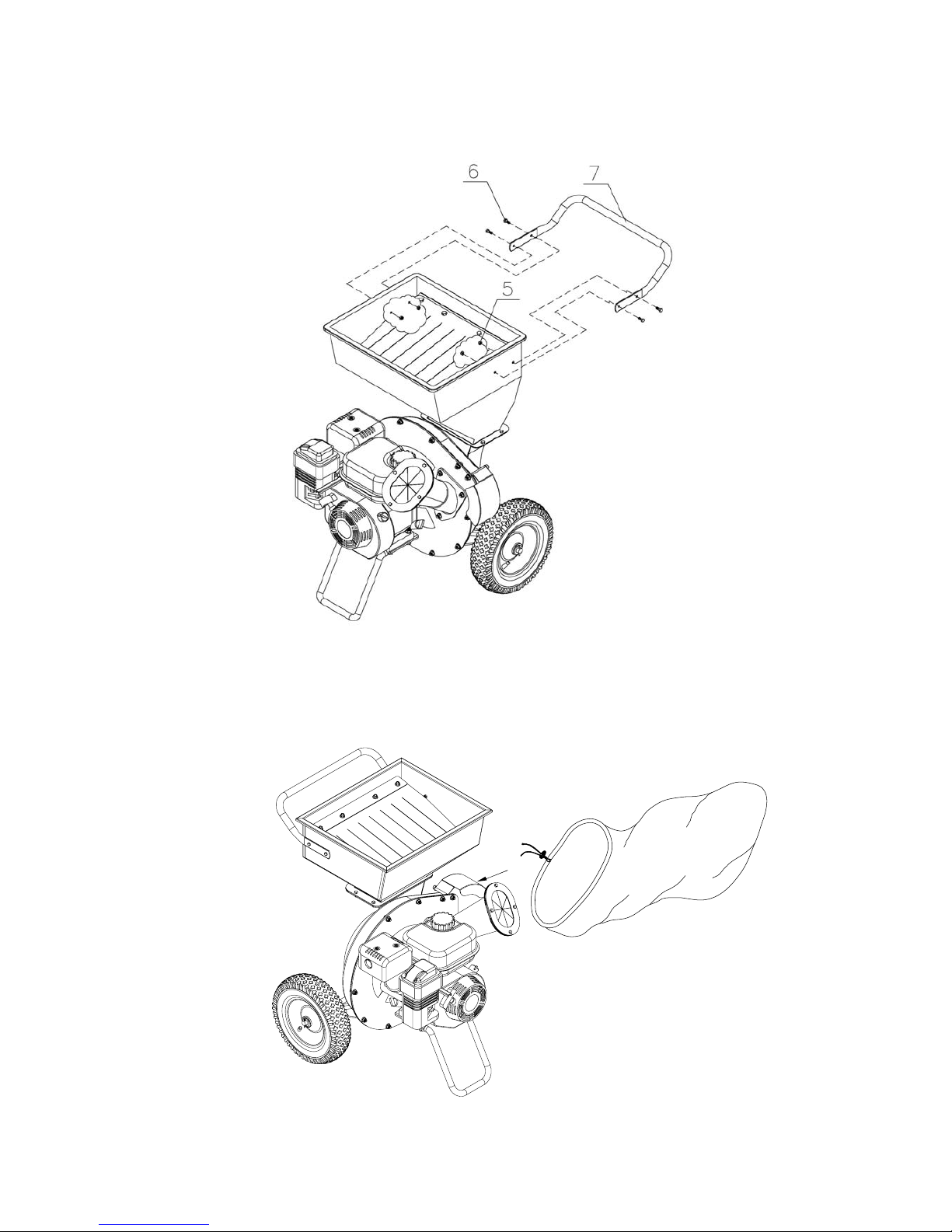

STEP 2: Attach Shredder Hopper Handle
1. Attach the Handle (#7) to the Hopper using Hex Bolt M6x16 (#6) and Nylon Hex Lock Nut M6
(#5).
STEP3：Attach discharge bag
Attach the discharge bag onto the chute deflector and frap the rope.
9
Before Starting
1. Use safety equipment. Always wear ANSI approved safety impact goggles and hearing
protection, heavy duty work gloves, and a dust mask or respirator when using this product.
2. Check underneath the chipper/shredder to make sure there are no spots that would indicate an
oil or gas leak. If there are any leaks, do not use the chipper/shredder and contact a qualified
repair professional for maintenance.
3. Inspect the condition of the chipper/shredder. Ensure that all shields and covers are in place.
Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, and
any other condition that may affect the safe operation of the machine. If abnormal noise or
vibration occurs, have the problem corrected before further use. Do not use damaged equipment.
Place on a flat, level surface.
4. Check the oil level. Never run the engine with low or no engine oil. Running the engine with low
or no oil will permanently damage the engine.
Starting Engine
1. Move the fuel valve lever to the “ON” position.
2. To start a cold engine, move the choke lever to the “CLOSED” position. If the engine is already
warmed up, leave the choke lever in the “OPEN” position.
3. Move the throttle lever about 1/3 of the way toward the “FAST” position. Turn the On/Off switch to
the “ON” position.
4. Take hold of the starter recoil grip firmly and pull slowly until there is resistance, then pull briskly
to start engine. Repeat as necessary.
5. As engine warms up, gradually move the choke lever to the “OPEN” position.
Shredding and Chipping
1. Without putting your hands into Shredder (on top), slowly drop material into the Hopper (one
branch at a time). The machine will pull the material in automatically.
WARNING
Never use your hands to feed material directly into the shredder. If needed, use a stick to push the
branches, leaves, etc. into the Shredder.
2. The chipper is located on the side of the unit, only feed one branch in at a time.
3. Material discharges from bottom of chipper/shredder. Stand clear to avoid shredded debris.
4. Do not allow processed material to build-up in the discharge zone. This may prevent proper
discharge and can result in kickback of material.
5. Should chipper/shredder jam during use, immediately turn engine’s On/Off switch to the “OFF”
position. Wait until the machine completely stops. Clear the jam in the machine by shifting the
material with a long stick. Then, resume operation.
6. When finished, turn the engine’s On/Off switch to its “OFF” position. Wait until the machine
completely stops before moving or cleaning the chipper/shredder.
7. Store the unit (with spark plug removed) in a clean, dry, safe location out of reach of children and
unauthorized people.
Operation Instructions
10
IMPORTANT:
•Do not force material into the chipper/shredder. Branches cannot
be larger than1/2” diameter (shredder hopper) and cannot be larger
than 3”diameter for chipper chute.
•Do not attempt to force large branches into hoppers.
•Do not force chipper/shredder the machine is designed
to draw material at its own pace.
WARNING
The spark plug wire must be disconnected and the On/Off switch must be in the “OFF” position prior to
performing any service, maintenance, or cleaning of the chipper/shredder.
1. Before each use, visually inspect the general condition of the chipper/shredder. Check for loose
screws, misalignment or binding of moving parts, cracked or broken parts, and any other condition
that may affect the safe operation of the machine. Start the engine, and if abnormal noise or vibration
occurs, have the problem corrected before further use. Do not use damaged equipment.
2. Before storing, unhook spark plug wire from spark plug, drain all fuel out of the engine’s fuel tank. If
this is not done, old fuel in the fuel tank may clog the carburetor of the engine and prevent it from
starting until cleaned out. Store the unit in a clean, dry, safe location out of reach of children and
other unauthorized people.
Chipper
Chute
3’’ diameter
branches max.
Shredder Hopper
1/2’’ diameter
branches max.
Inspection, Maintenance and Cleaning
11
Chipper Chute Capacity.......................................................3’’ Maximum Diameter
Chipper Chute Dimension..................................................5” x 3.15” Oval opening
Shredder Hopper Capacity……………………….1/2” Maximum Limb Diameter
Shredder Hoppe Dimension.......................................................17.6” L x 14.84” W
Accessories....................................Protective Glasses, Earmuff, Discharge Bag
Wheel Type...........................................................................12’’ Pneumatic Wheel
Engine Type…………………………………………………………..6.5HP, 196CC
Overall Size.............................................................................28.5’’ X23.1’’ X35.4’’
Packaging Size ..........................................................................25.8’’ X27’’ X33.7’’
N.W./G.W...........................................................................................121lbs/163lbs
NOTE: For Engine Details Refer to the Engine Owner’s Manual.
This product requires oil and fuel to be added before starting. Attempting to start the engine
without oil will ruin the engine and void the warranty.
Specifications
12
Parts Drawing & Parts List
13
ITEM Drawing No DESCRIPTION QTY
1 9115-08016-DX Hex Flange Bolt M8x16 4
2 CP75-00001 Batten 1
3 CP75-00002 Shredder Hopper Protective Film 1
4 CP75-01000 Shredder Hopper 1
5 9206-06000-DX Nylon Lock Nut M6 19
6 9101-06016-DX Hex Bolt M6x16 18
7 CP75-00003 Handle 1
8 YZ01-08050-FH Hex Bolt M8x50 4
9 9212-08000-DX Hex Flange Nut M8 1
10 9110-06012-DX Hex Bolt M6x12 3
11 9306-06000-DX Lock Washer Ø6 8
12 9301-06000-DX Flat Washer Ø6 11
13 CP75-00004 Cover Cap 1
14 CP75-02000 Small Housing 1
15 9302-06000-DX Big Flat Washer Ø6 3
16 CP75-03000 Wheel Stand 1
17 N570-00020 Wheel 2
18 9301-16000-DX Flat Washer Ø16 2
19 9404-03030-DX Cotter Pin Ø3x30 2
20 9101-08020-DX Hex Bolt M8x20 10
21 9105-08085-DX Inner Hex Cylindrical head Screw M8x85 1
22 CP75-00006 Discharge Port Cover Cap 1
23 CP75-04000 Big Housing 1
24 YZ05-08100-FH Inner Hex Cylindrical head Bolt M8x100 1
25 CP55-00012 Thick Washer Ø12 1
26 9306-08000-DX Lock Washer Ø8 19
27 9105-08050-FH Inner Hex Cylindrical head Bolt M8x50 4
28 9301-08000-DX Flat Washer Ø8 32
29 CP75-05001 Spacer Bushing 4
30 CP75-05201 “L” Blade 2
31 9105-08020-FH Inner Hex Cylindrical Head Screw M8x20 2
32 Z330-05006 Washer 4
Parts Drawing & Parts List
14
ITEM Drawing No DESCRIPTION QTY
33 CP75-05202 Tetragonum Blade 2
34 9206-08000-DX Nylon Lock Nut M8 31
35 9103-08025-FH Inner Hex Screw M8x25 4
36 CP75-05006 Blade 2
37 CP75-05100 Cutter 1
38 CP75-06000 Main Board 1
39 CP75-07000 Chipper Hopper 1
40 CP75-00003 Chipper Hopper Protective Film 1
41 CP75-07001 Chipper Hopper Mounting Ring 1
42 CP75-00007 Block 1
43 / Engine Flat Key 1
44 / Engine 1
45 9101-08065-DX Hex Bolt M8x65 4
46 CP75-00008 Support Leg 1
47 CP75-03001 Control Strip of Left Braking 1
48 CP75-03200 Brake Pad of Left Wheel 1
49 CP75-03300 Brake Pad of Right Wheel 1
50 CP75-03002 Control Strip of Right Braking 1
51 9105-06016-FH Inner Hex Cylindrical Head Screw M6x16 2
52 9105-06025-FH Inner Hex Cylindrical Head Screw M6x25 2
53 CP75-00013 Polyurethane Block 4
54 9302-08000-DX Big Flat Washer Ø8 4
Parts Drawing & Parts List
15
Warranty
For two years from the date of purchase YTL International will replace for the original purchaser. The
warranty will not apply to any unit which was not assembled correctly, misused, overloaded or which has
been used or operated contrary to our instructions, or which has been repaired or altered by anyone
other than an authorized representative.
Warranty Exclusions
This warranty does not cover cosmetic defects such as paint, decals or wear items such as tires. This
warranty will not cover failures or problems due to acts of God, or events or forces beyond the control of
the manufacturer.
Normal Wear Exclusion
The chipper/shredder needs periodic service to perform well. This warranty does not cover repair when
normal use has exhausted the life of a part or the equipment as a whole.
Installation, Use and Maintenance Exclusion
This warranty will not apply to parts and/or labor if the chipper/shredder has been misused, neglected,
involved in an accident, abused, loaded beyond its limits, modified or assembled incorrectly. Normal
maintenance is not covered under this warranty.
Limits of Implied Warranty and Consequential Damage Exclusion
YTL International disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this chipper/shredder. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR.
An exchange unit will be subject to the original warranty. The length of the warranty governing the
exchanged unit will have the date as the purchase date of the original unit. This warranty gives you
certain legal rights which may change from state to state. Your state may also have other rights you may
be entitled to that are not listed within this warranty.
Contact Information
YTL International Inc.
17517 Fabrica Way Suite J
Cerritos, CA 90703
Phone: (888) 723-6534
Phone: (562) 404-8016
Fax: (562) 404-8013
CANADA
Warranty & Customer Support Questions
Phone: (888) 723-6534
Limited Warranty
Table of contents
