Yuan nT19AX03 User manual

SOLUTIONS FOR GROWTH n - TECH SOLUTIONS
nT
Operation Manual
Operation Manual
MULTI INPUT STREAMING AND
RECORDING DEVICE
nT19AX03 | SC6C01 AIO

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
2
2/23
Index
1. PACKAGE CONTENT ............................................................................................................................ 3
2. PRODUCT INTRODUCTION .................................................................................................................. 4
2.1. PRODUCT BRIEF ............................................................................................................ 4
2.2. SPECIFICATION .............................................................................................................. 6
3. WEB UI ................................................................................................................................................... 8
3.1. IP FINDER ........................................................................................................................ 8
3.2. SOURCE .......................................................................................................................... 9
3.3. ENCODER ..................................................................................................................... 10
3.4. RECORD........................................................................................................................ 11
3.4.1. STORAGE CONTENT.............................................................................................................. 11
3.5. STREAMING .................................................................................................................. 12
3.5.1. INTRODUCTION: SRT .......................................................................................................... 13
3.5.2. EXAMPLE: RTSP ................................................................................................................... 13
3.5.3. EXAMPLE: RTMP .................................................................................................................. 14
3.5.1. EXAMPLE: YOUTUBE .......................................................................................................... 15
3.6. CG .................................................................................................................................. 17
3.6.1. OSD ......................................................................................................................................... 17
3.7. SYSTEM ........................................................................................................................ 18
3.7.1. NETWORK SETTING ............................................................................................................. 18
3.7.2. DEVICE NAME SETTINGS .................................................................................................... 19
3.7.3. TIME SETTING ...................................................................................................................... 19
3.7.4. FIRMWARE UPDATE ............................................................................................................ 19
3.7.5. ACCOUNT SETUP ................................................................................................................. 21
3.7.6. SYSTEM RELATED ................................................................................................................ 21
3.8. RS485 ............................................................................................................................ 22
3.8.1. RS485 PARAMETER ............................................................................................................... 22
4. VERSION ............................................................................................................................................... 23
4.1. VERSION 1.0 ................................................................................................................. 23
4.2. VERSION 1.1 ................................................................................................................. 23
4.3. VERSION 1.2 ................................................................................................................. 23
4.4. VERSION 1.3 ................................................................................................................. 23
4.5. VERSION 1.4 ................................................................................................................. 23
4.6. VERSION 1.5 ................................................................................................................. 23
4.7. VERSION 1.6 ................................................................................................................. 23
4.8. VERSION 1.7 ................................................................................................................. 23
4.9. VERSION 1.8 ................................................................................................................. 23

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
3
3/23
1. PACKAGE CONTENT
Product Name Quanties
SC6C0N1 AIO 1
Adapter 1

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
4
4/23
2. PRODUCT INTRODUCTION
2.1. PRODUCT BRIEF
Application
SC6C0N1 AIO provides 1 x 3G-SDI, 1 x HDMI, 1 x CVBS, 1 x YPbPr and 1 x S-Video for
video signal input with audio embedded feature, it also provided a 3.5mm audio jack and a pair
of RCA connector for stereo analog audio input.
Front panel detail
Back panel detail

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
5
5/23
Besides control button, in front panel, SC6C0N1 AIO provides power switch, USB 2.0 and
RS485 communication interface. USB 2.0 interface is for user to capture input AV signal. 3
control buttons are using to on/o ffstreaming, record mode and select input interface. User
can use RS485 interface to control perherials.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
6
6/23
2.2. SPECIFICATION
Model SC6C0N1 AIO
Max. FPS 60/50fps@1920×1080p
Recording
Mode Hardware Compression, Real-Time Mode
Input
Interfaces
 Video
 1×BNC for 3G/HD/SD-SDI
 3×BNC for YPbPr/CVBS/S-Video
 1×DVI-I for DVI-D/HDMI and DVI-A/VGA
 1×HDMI
 Audio
 2×RCA for Analog L/R Audio
 SDI/HDMI/DVI-D Embedded Audio
 1×3.5 mm Phone Jack
Video
Feature
 H.264/AVC, Baseline/Main/High Profile
 Configurable Bit Rate Up to 10Mbps
 Supported Resolutions
 Input
 1920×1080
( P60/P50/P30/P25/P24/i60/i50 )
 1280×720 ( P60/P50 ), 1280×1024 ( P60 ),
1280×960 ( P60 )
 1024×768 ( P60 ), 800×600 ( P60 ),
720×480 ( P60/i60 )
 640×480 ( P60 ), 720×576 ( P50/i50 )
 Output
 Resize Range from 160x128 to 1920×1080
( P60 )
 *Output Include Down Scaling.
Audio
Feature
 AAC-LC
 Configurable Bit Rate Range from 32Kbps to
384Kbps
 Sample Rate : 48KHz, 16Bit
Network
Feature
 1×RJ45 for 10/100Mbps Ethernet
 DHCP Client
Support
Streaming
protocol
 TS Over UDP ( Unicast & Multicast )
 RTSP Over HTTP/TCP/UDP ( RTSP
Elementary Stream )
 RTMP ( Publish )
 HLS
Misc.
Features
 Dynamic Parameter Setting
 RS-485
 1×USB 2.0 Host for USB Storage
 Web UI for System Configuration
 Firmware Upgradable
 LED Indicator
Record
Format MP4
System Requirement

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
7
7/23
Power
Supply DC 12V (With DC Adapter)

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
8
8/23
3. WEB UI
3.1. IP FINDER
In the beginning, user can execute IP Finder to find SC6C0N1 AIO, please make sure host (PC)
and target (SC6C0N1 AIO) are in the same netmask.

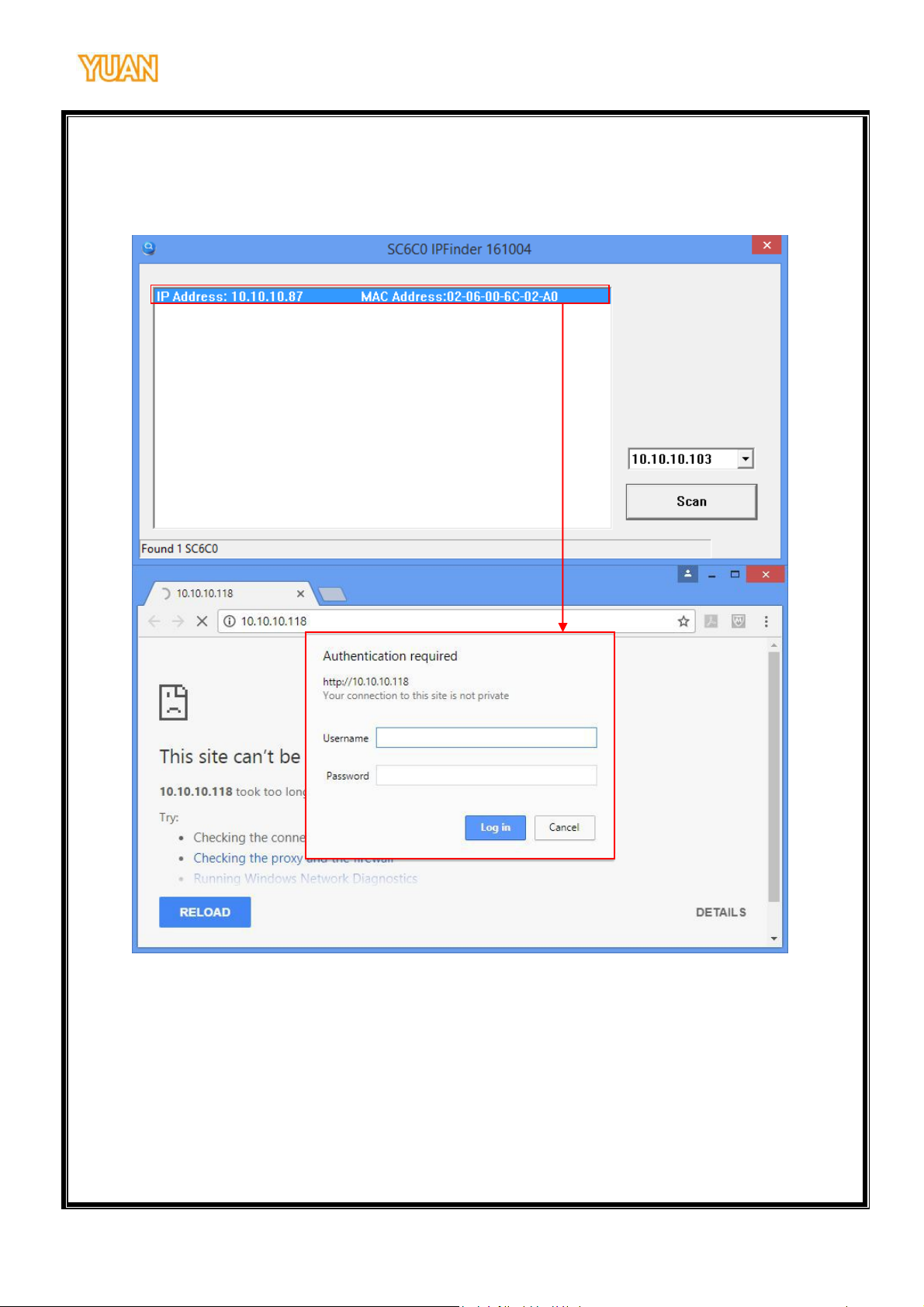

After double click the MAC address (The MAC address is provided in the bottom of SC6C0N1
AIO), the user will open the web browser automatically, please provide default user name and
password to login the SC6C0N1 AIO.
Default user name: admin
Defaule password: 000000
After login the system, the web UI will display inside browser automatically.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
9
9/23
3.2. SOURCE
In source page, user can decide input interface and finetune video format.
Video Tuning Default Range
brightness 128 0~255
contrast 128 0~255
hue 128 0~255
saturation 128 0~255
sharpness 128 0~255

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
10
10/23
3.3. ENCODER
In encoder page, user can change encode parameters here.
Parameter Range
Resolution 1920*1080~160*128
Framerate 60~1
Profile Baseline
Main
High
Video Bitrate ( bps ) 16M~256K
Audio Bitrate ( bps ) 384K~32K
GOP 180~1
Position-X/Y
Width/Height
Depending on screen
size
H.264 Encode: User can adjust here for H.264 profile selection, it supports high, main and
baseline.
Cropping: The place and size of cropping are listed as below. The cropped area will
displayed in keep aspect ratio mode.
Default value (X, Y, W, H) = (0, 0, 0, 0)
W Range : 128~1920
Y&H Range: 128~1080
※Please remind, if user had use only main stream, the SC6C0N1 AIO can streaming
1080P60, but if activate main and sub streaming, the main streaming can exceed to
1080P30, sub streaming can exceed to 960*540P30.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
11
11/23
3.4. RECORD

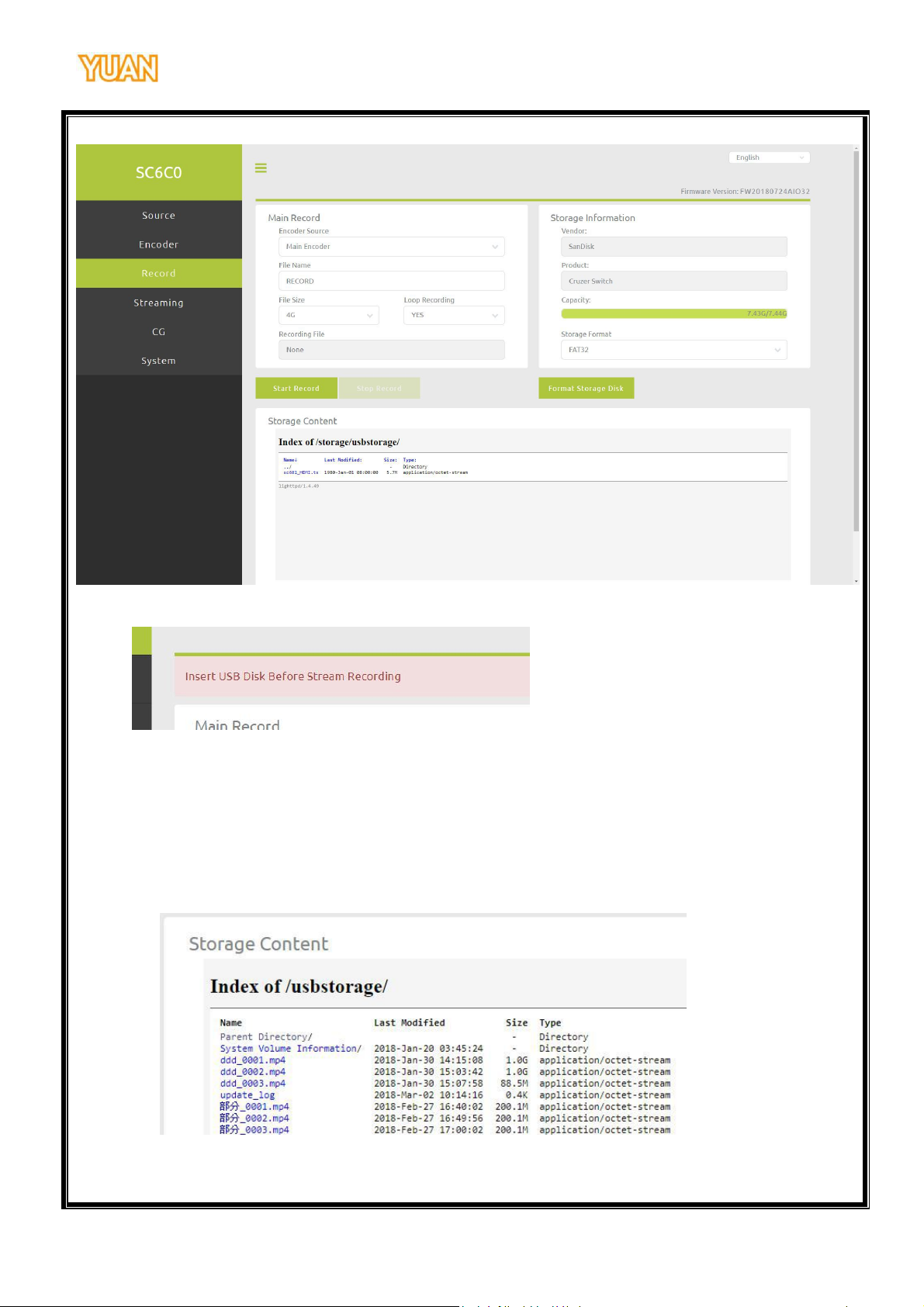

Record page contains storage media that user used, user can check left storage capacity and
format newly storage media here.
※When the Format USB Disk is not attached, the button will disable; When the USB disk is
attached but not formatted, the Format USB Disk button will enable but without information;
Only if the USB disk is attached and corrected formatted, the USB disk information and
usbstorage information will displayed.
3.4.1. STORAGE CONTENT
Storage Content block contains mounted USB flash disk information, when necessary, the
USB flash can be formatted here (Format to FAT32).
The index block will display the connected storage here.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
12
12/23
3.5. STREAMING
For streaming, here are RTSP / RTMP / TS / HLS / SRT / YouTube streaming methods
available. Streaming server function can be only activating when the AV signal is already input
to SC6C0N1 AIO.
For RTSP / RTMP / TS / HLS streaming protocols, SC6C0 supports Video only mode for user
to unsend audio data.
For TS UDP Streaming protocol, SC6C0 can send dual stream for user to use.
When the signal is not connect, SC6C0N1 AIO will generate an error message to remind user to
connect the signal.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
13
13/23
3.5.1. INTRODUCTION: SRT
SRT (Secure Reliable Transport) is a video stream protocol based on UDP, using to provide
a better video quality and lower latency time interval.
The advantage of SRT are listed as below
1. SRT can detect real-time network status.
2. Jitter compensation.
3.5.2. EXAMPLE: RTSP

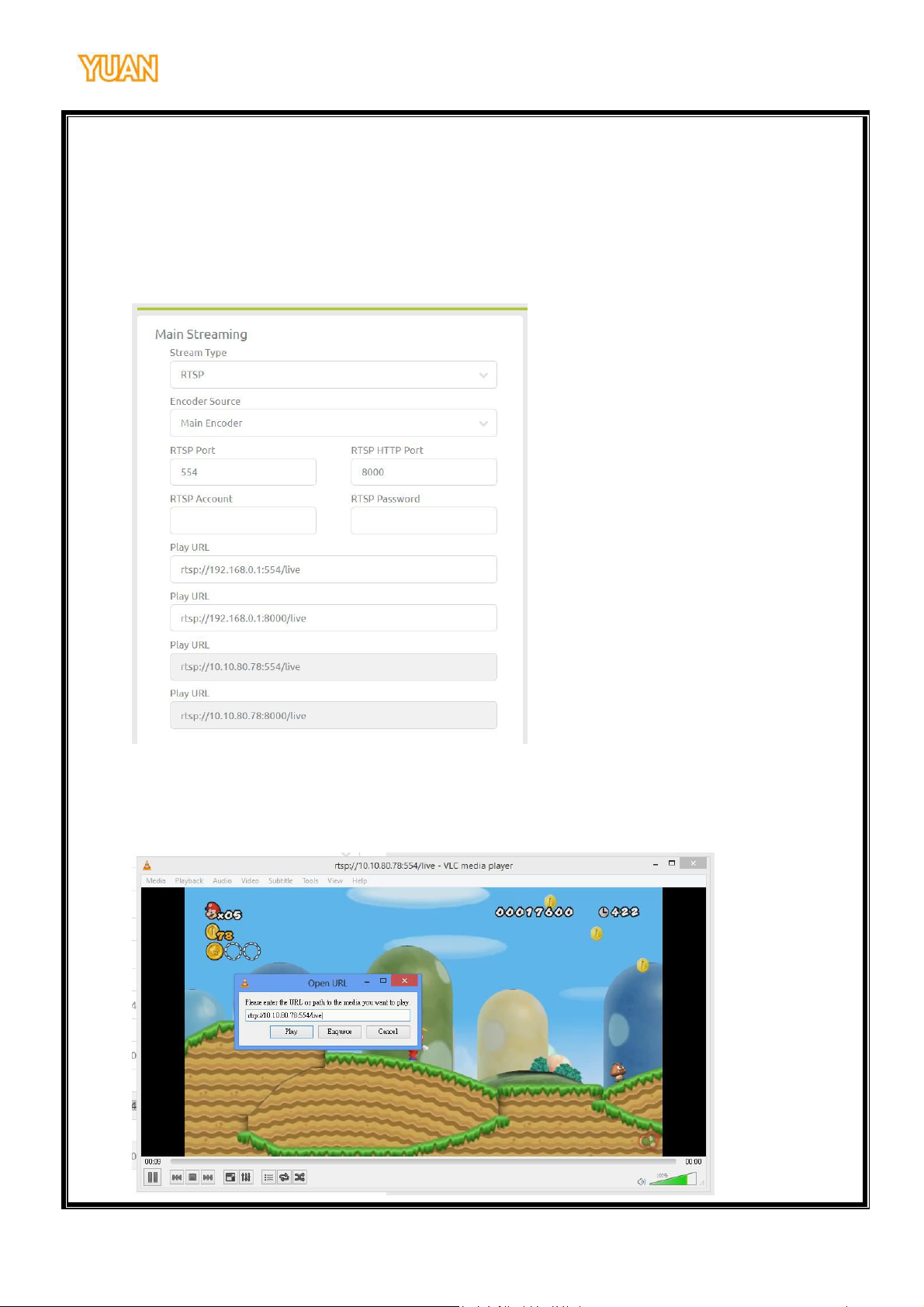

After selecting Stream Type to RTSP, the SC6C0N1 AIO will generate Play URL for user to
receive RTSP stream.
Open VLC media player→[Media]→[Open Network Stream] or direct press [Ctrl]+[V] to print
streaming to VLC media player

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
14
14/23
3.5.3. EXAMPLE: RTMP
RTMP can use for streaming live video to facebook, youtube, and etc.

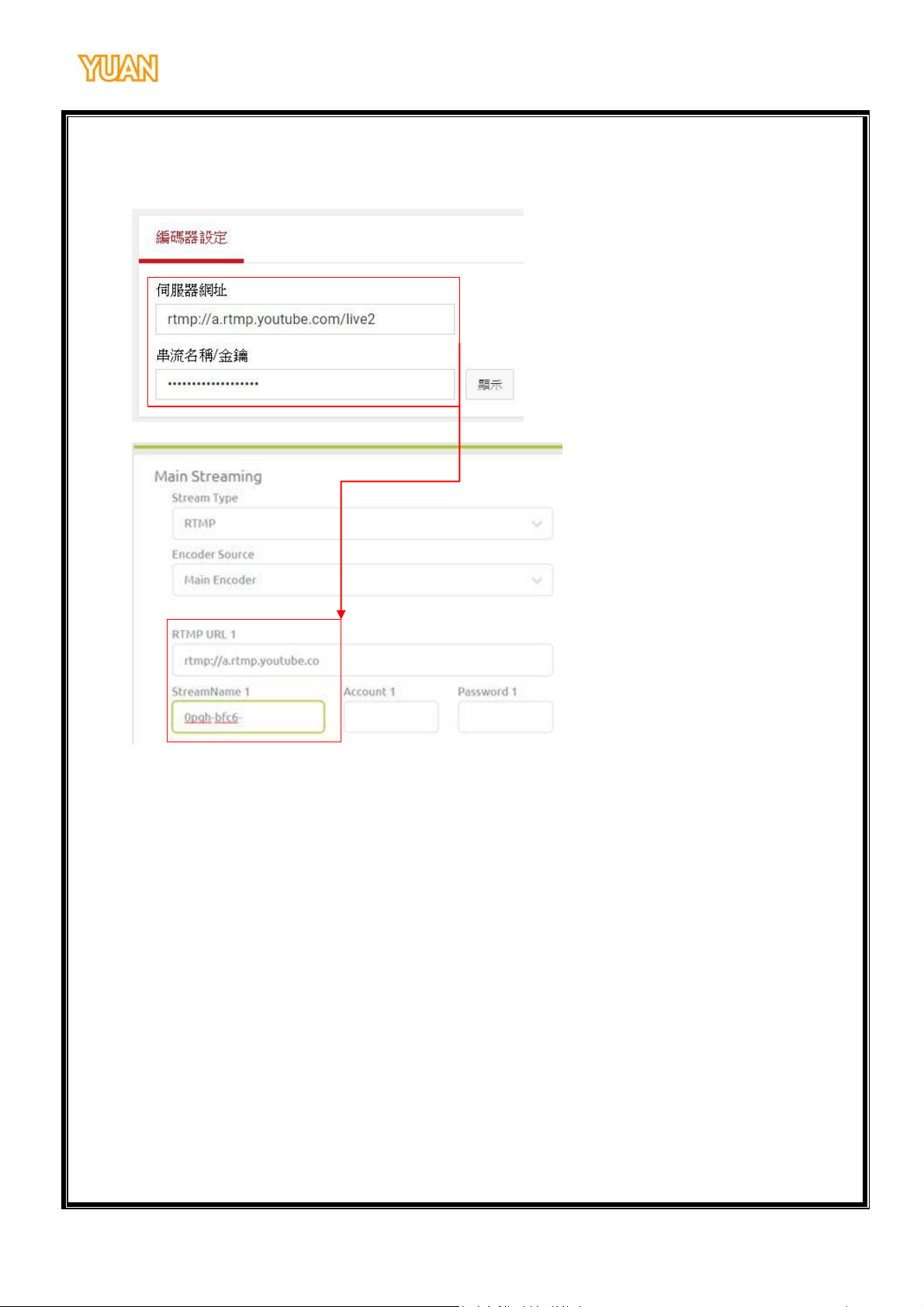

Please enter youtube live and copy server URL to SC6C0N1 AIO for SC6C0N1 AIO to
streaming video.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
15
15/23
3.5.1. EXAMPLE: YOUTUBE
Besides RTMP, SC6C0 also provides a simple way for user to streaming their Live video to
YouTube.

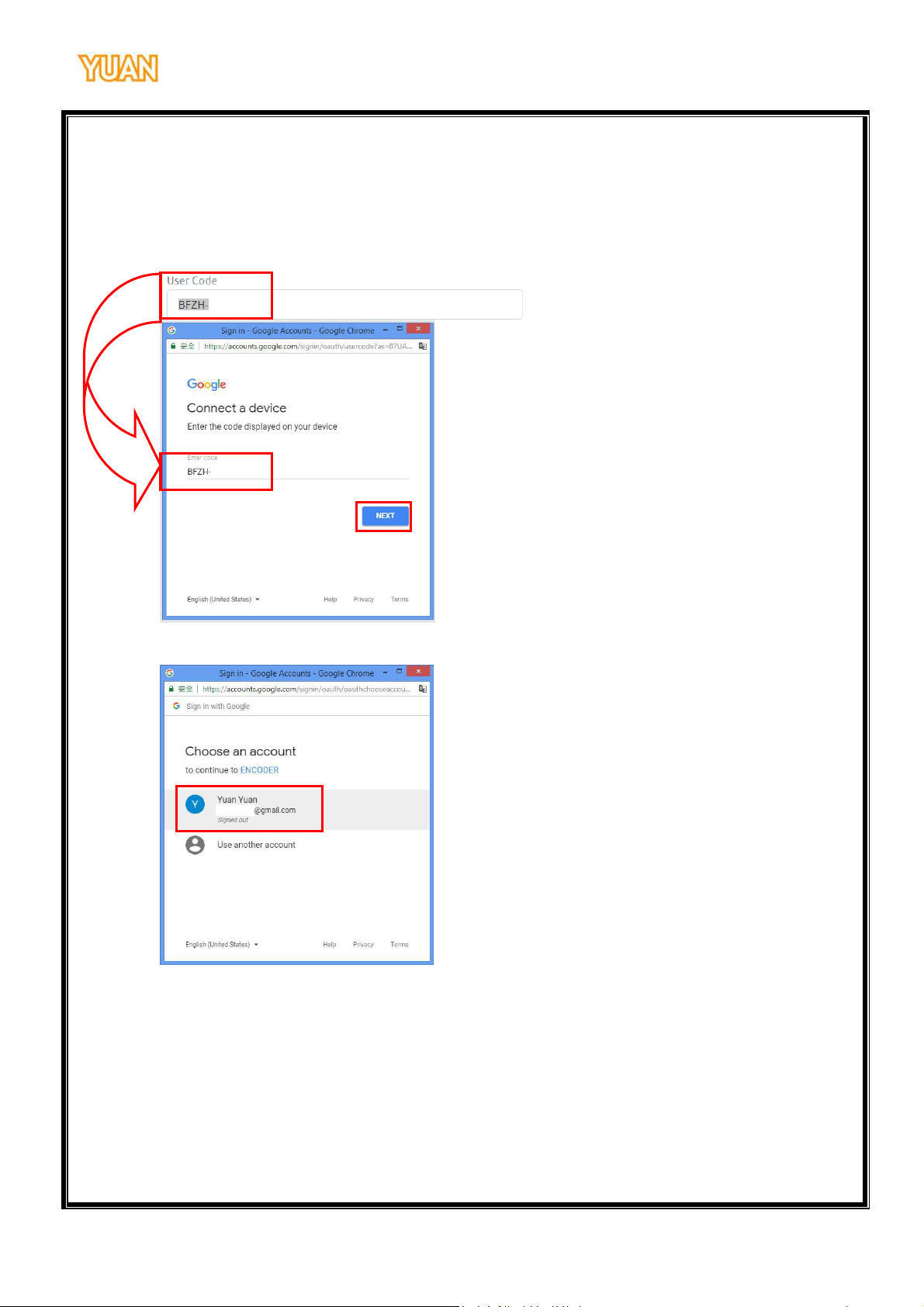

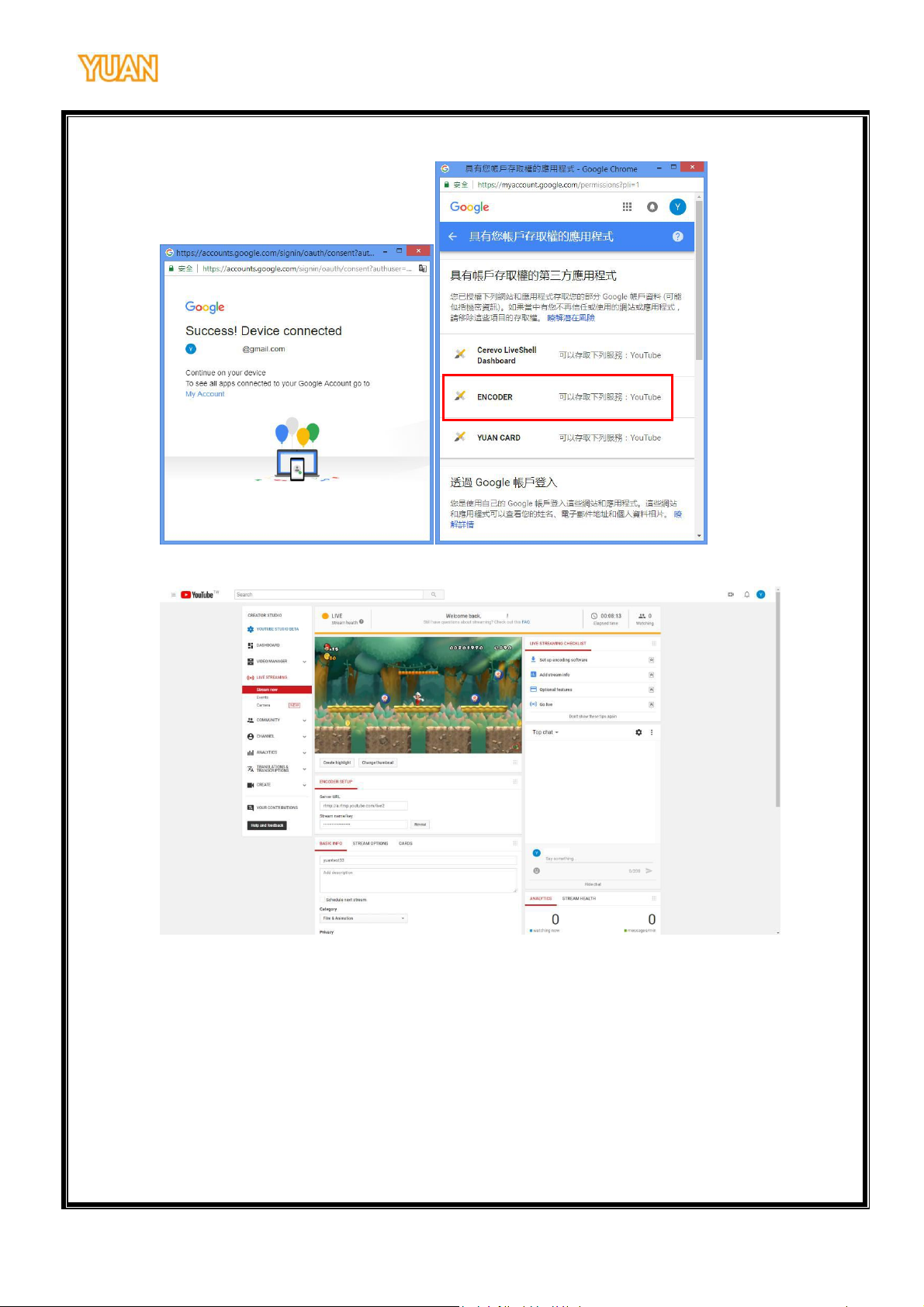

After select Streaming Type to YouTube and press start streaming, SC6C0 will
automatically generate USER CODE for user to connect with YouTube account.
(Remember to allow the browser popup window for connecting youtube)
After press NEXT, the connectable user account will appear for user to select.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
16
16/23
After the account is connected, the video will automatically live streaming to youtube; User
can also check the connected SC6C0 inside the popup window.
Youtube live video streaming will automatically generates after the setting is completed.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
17
17/23
3.6. CG
3.6.1. OSD
ON/OFF: Turn on or o ffOSD
Text: Displayed OSD content
Location-X: OSD place X
Location-Y: OSD place Y
Background: OSD background enable/disable
Text Size: OSD text size

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
18
18/23
3.7. SYSTEM
3.7.1. NETWORK SETTING
User can decide disable or enable DHCP mode, when disable DHCP mode, please
remember assign all necessary information for SC6C0N1 AIO.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
19
19/23
3.7.2. DEVICE NAME SETTINGS
User can naming SC6C0N1 AIO here.
3.7.3. TIME SETTING
User can update system time in this block.
3.7.4. FIRMWARE UPDATE
User can update firmware and check firmware version in this block; please don’t turn o ff
system when the firmware update is in the process!!!

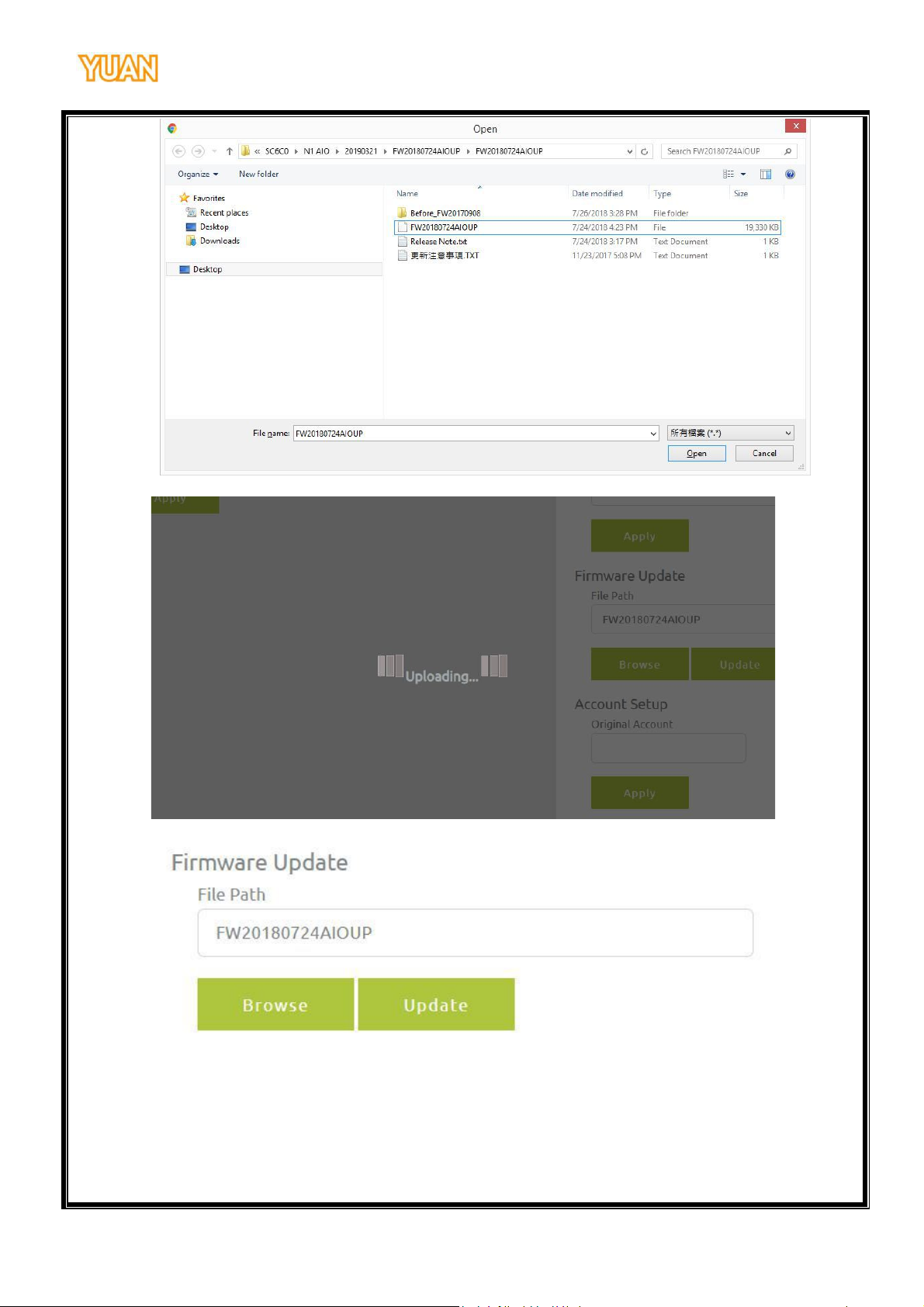

Before start firmware upgrade procedure, please unzip the firmware package and make sure
the directory of firmware file. (The file name will be FW201XXXXXXX )

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
20
20/23
1. Please click browse button and find firmware.
2. After select the firmware, the firmware will automatically upload to SC6C0.
3. After the upload is complete, the UI will become normal and firmware name
appears.
