Yudor YUC-H7BE6 User manual

1
OUTDOOR BULLET IP CAMERA
V5.2.2_1608
User Manual

2
This is a 1 / 2.9”Sony Exmor CMOS Sensor Outdoor IP camera with a
built-in web server. The user can view real-time video via IE browser. It
supports H.264 and M-JPEG video compressions, providing smooth and
high video quality. The video can be stored in Micro SD card and
playback remotely.
With a user friendly interface, it is an easy-to-use IP camera for security
applications.
i. Warnings, Cautions and Copyright ........................................................3
ii. Product Specifications.............................................................................4
iii. Product Installation.................................................................................8
* Monitor Settings ...................................................................................8
* Hardware Installation .........................................................................9
* IP assignment.....................................................................................13
* Install ActiveX control…………….....................................................17
iv. Live Video.................................................................................................24
v. Camera Configuration ............................................................................27
* System ..............................................................................................27
* Network ............................................................................................34
* A / V Settings ...................................................................................65
* Event List ...........................................................................................75
vi. Network Configuration ….......................................................................86
vii. I / O Configuration .................................................................................88
viii. Factory Default ......................................................................................91
ix. Universal Password .................................................................................92
x. Package Contents ..................................................................................95
xi. Micro SD Card Compatibility (Optional) ..............................................96
OUTDOOR BULLET IP CAMERA

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION
GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY
REGISTERED TO THEIR RESPECTIVE COMPANIES.
i. Warnings, Cautions and Copyright

4
Main Features:
Maximum Resolution of 2Megapixel with the Exmor™ CMOS Sensor
High Frame Rate of 30 Frames Per Second (fps)
H.264 (High/Main/Baseline Profile)/ M-JPEG Video Codec
External Vari-focal LensAdjustment
3D+2D Digital Noise Reduction
Power over Ethernet
Digital Wide Dynamic Range
Day & Night Manual Switch Time Control
IR LED Built-in 35M
IR Cut Filter Mechanism
H.264/ M-JPEG Compression
Micro SD Card Backup
2-way Audio
IP66
Cable Management
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 36 Ch Recording Software
ii. Product Specifications

5
Hardware
CPU
Multimedia SoC
RAM
256MB
Flash
512MB
Image Sensor
1 / 2.9”Sony Exmor CMOS Sensor
Sensitivity
Color: 0.008 Lux (AGC ON); B/W: 0.003 Lux (AGC ON)
Lens Type
Vari-focal Lens 2.8-12 mm @ F1.4
View Angle
32.30°~96.88°(H), 24.52°~71.25°(V)
ICR
IR cut Filter Mechanism
I/O
1 DI/ 1 DO
Power over
Ethernet
Yes
Video Output
N/A
Audio
G.711(64K) and G.726(32K,24K) audio compression
Input: 3.5mm phone jack
Output: 3.5mm phone jack, Support 2-way.
Power Consumption
DC 12V Max: 5.58 W(IR ON); 2.30 W(IR OFF)
PoE Max: 6.69 W(IR ON); 2.76 W(IR OFF)
Operating
Temperature
*IR ON: 50°C
-20°C ~ 60°C [*IR OFF]
Dimensions
77.4mm () x 125.5mm (H)
Weight
720g
IR LEDs
LEDs
28 Units 5φ + 2 Units High Power, 850nM

6
IR Distance
35M
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list,
IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
Wireless (Optional)
Wireless
802.11b/g/n
Security
WEP,WPA-PSK,WPA2-PSK
System
Video Resolution
1920x1080@30fps, 1280x720@30fps, 640x360@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Night
Mode, WDR, Flip, Mirror, Noise Reduction, Day&Night
Adjustable
Triple Streaming
Yes
Image Snapshot
Yes
Full Screen
Monitoring
Yes
Privacy Mask
Yes, 3 different areas
Compression
Format
H.264/ M-JPEG
Video Bitrates
Adjust
CBR, VBR
Motion Detection
Yes, 3 different areas
Triggered Action
Mail, FTP, Save to SD card, DO, SAMBA

7
Security
Password protection, IP address filtering, HTTPS encrypted data
transmission, 802.1X port-based authentication for network
protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Simultaneous
Connection
Up to 10
Micro SD Card Management
Recording Trigger
Motion Detection, IP check, Network break down (wire
only),Schedule, DI
Video Format
AVI, JPEG
Video Playback
Yes
Delete Files
Yes
Web Browsing Requirement
OS
Windows 7, XP, Microsoft IE 6.0 or above, Chrome, Safari,
Firefox
Mobile Support
iOS 4.3 or above, Android 1.6 or above
Hardware
Suggested
Intel Dual Core 2.8G,RAM: 4GB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

8

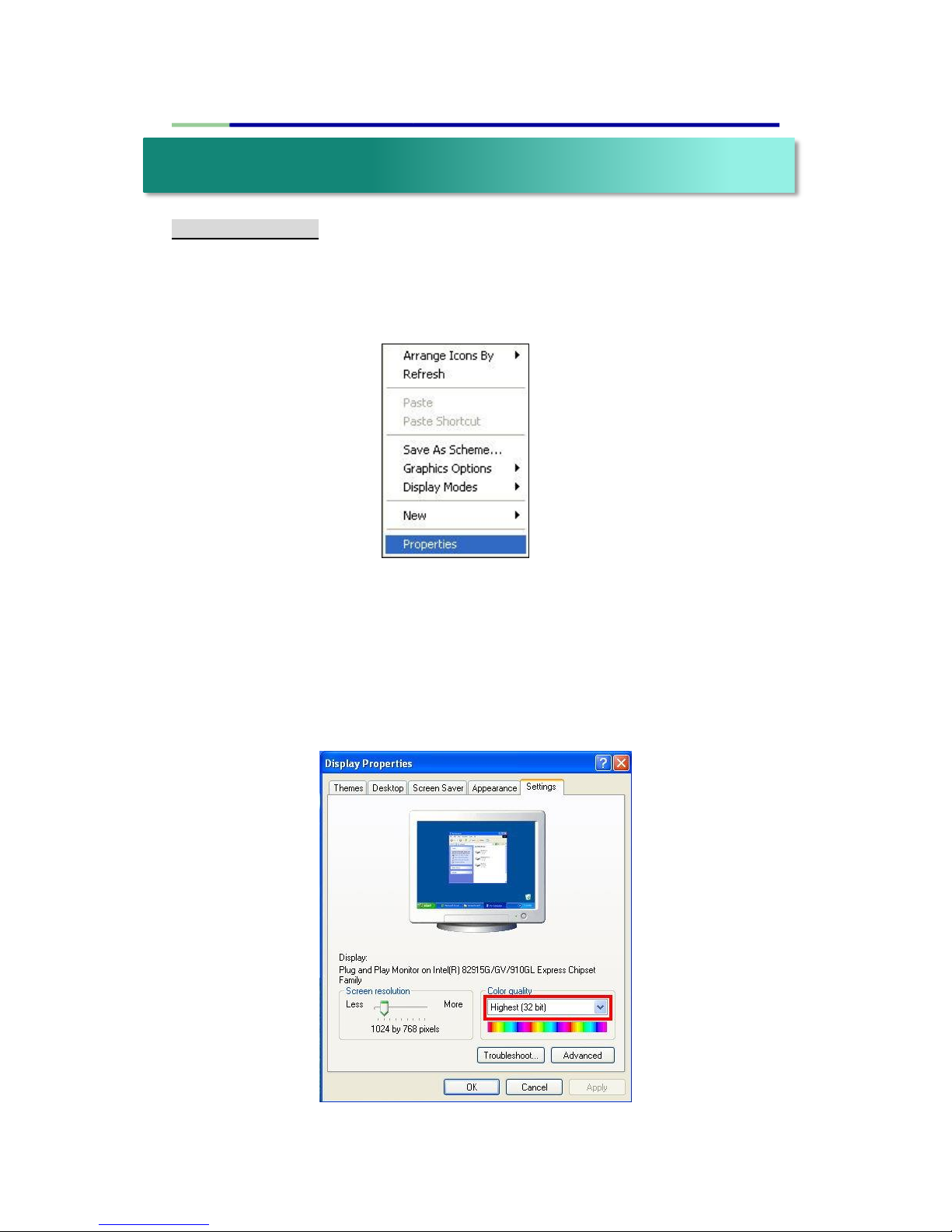

* Monitor Settings
1. Right-Click on the desktop. Select Properties
2. Change color quality to highest (32bit).
iii. Product Installation

9

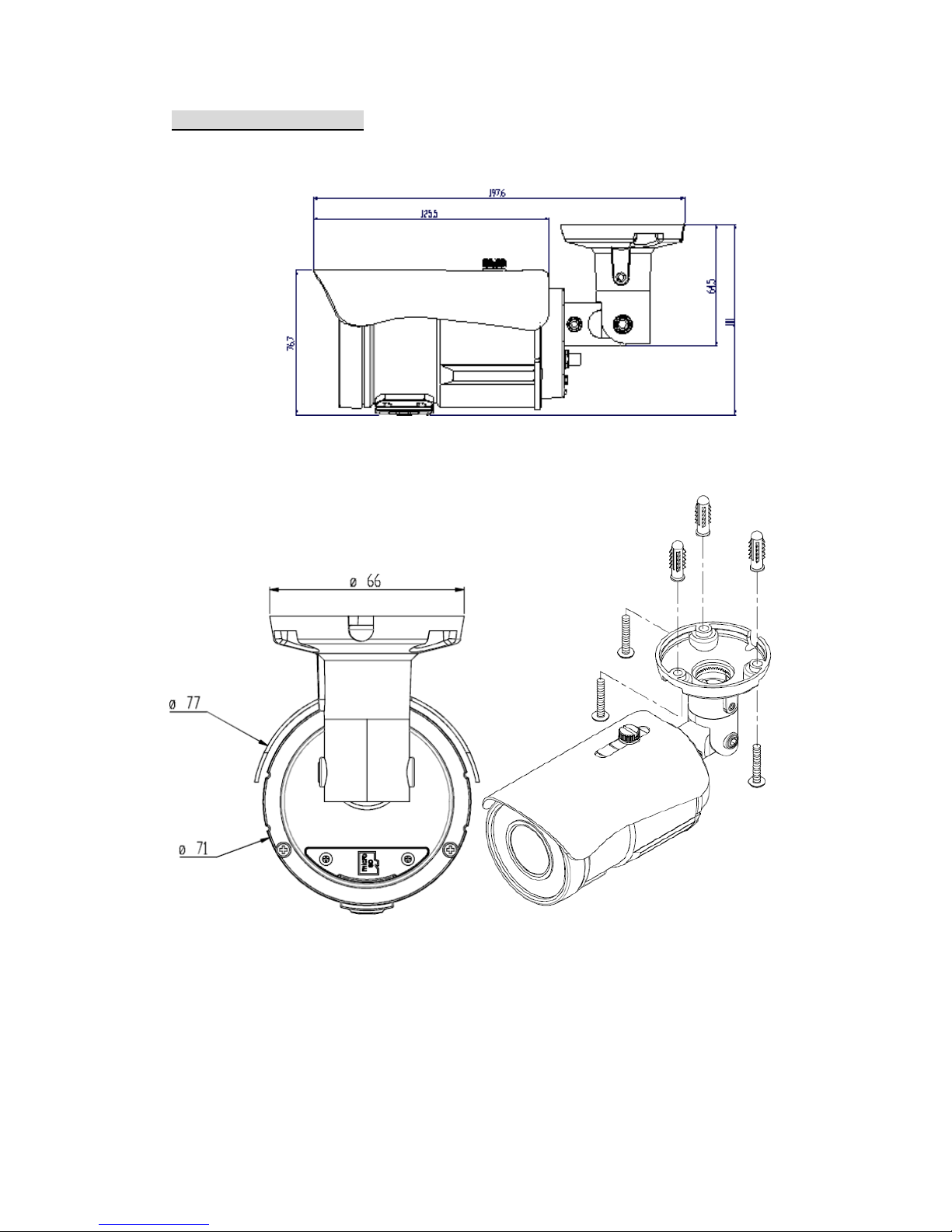

* Hardware Installation

10

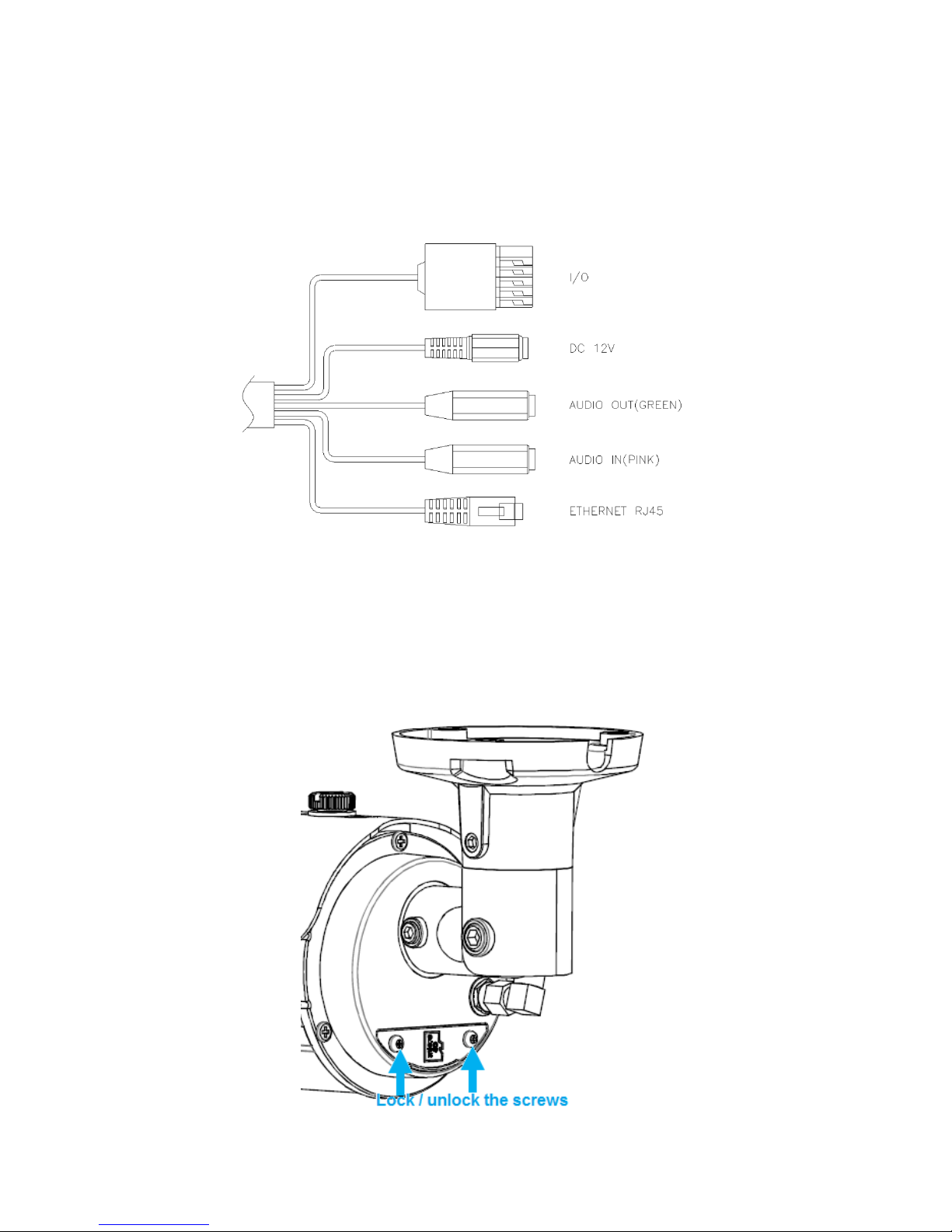

1. Connector Instruction
Connect the power adaptor first and connect the IP Camera to PC or
network. Set up configurations based on the network environment.
2. Installing the Micro SD Card
For waterproof purpose, when you install a Micro SD card, please turn and
lock the screws on the lid tightly and make sure it is sealed.

11
3. 3-Axis Bracket
Use the 3-Axis bracket to adjust the camera to appropriate angle, then turn
and tighten the screw to fix it.
4. External Vari-focal lens controller
This IP camera is equipped with an external vari-focal lens controller.
Please adjust the “ZOOM” and “FOCUS” as the following picture until the
image gets clear.

12

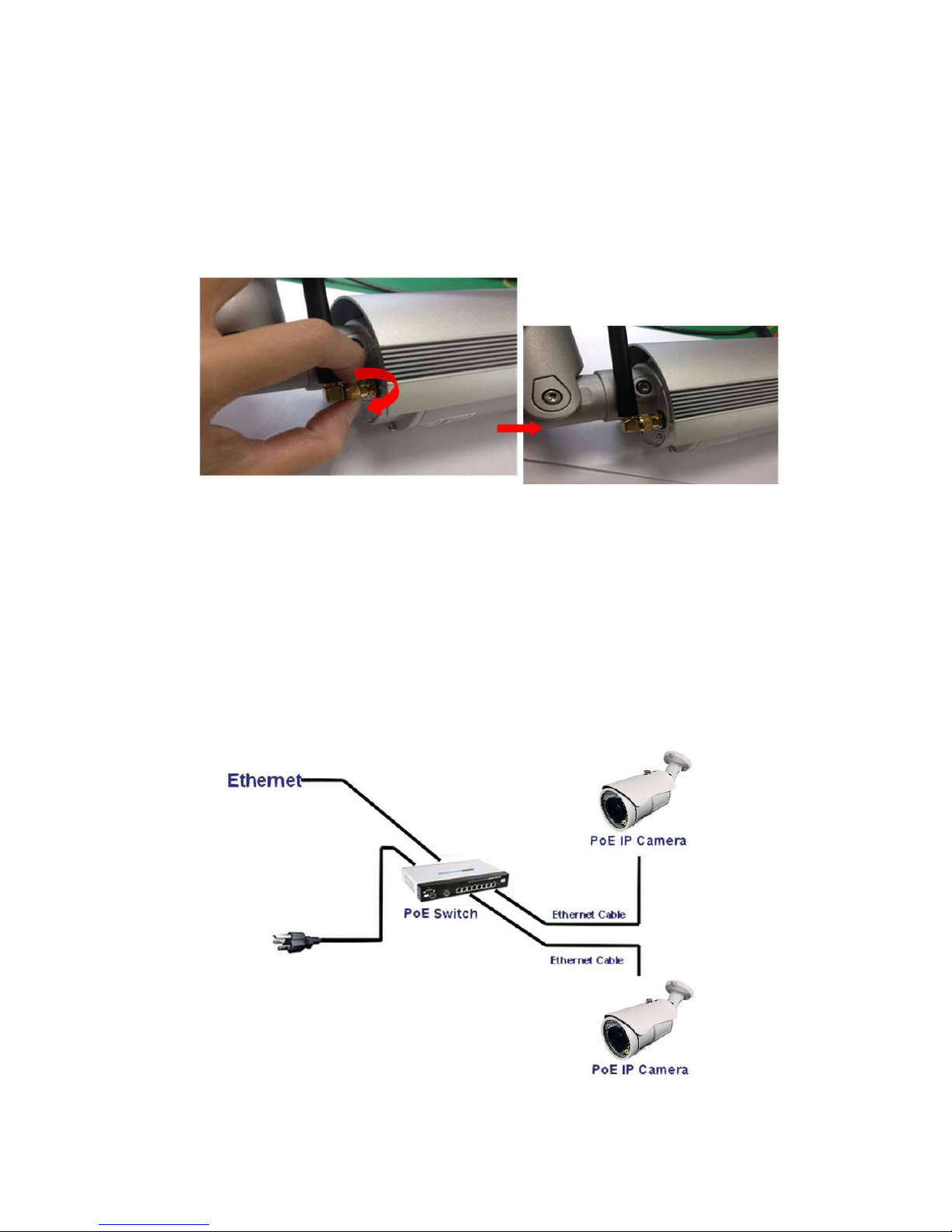

5. Wireless Antenna (Optional)
Screw the Wireless Antenna into the IP Camera as shown in the following
procedures.
a. Plug the Antenna into the connector while holding the Antenna bar.
b. Turn the lock nut to the right until it is totally locked. Do not bend or try to
straight the antenna bar.
(Pictures based on another camera model)
6. PoE (Power Over Ethernet) (Optional) 802.3af, 15.4W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It allows providing power to a network device,
such as an IP phone or a network camera, using the same cable for
network connection. It eliminates the need for power outlets at the camera
locations and enables easier application of uninterruptible power supplies
(UPS) to ensure 24 hours a day, 7 days a week operation.

13
*IP assignment
1. Open the software IP Scanner to assign the IP address of the IP Camera.
Find this software in the Applications folder in the software CD attached
to the product’s package.
2. IP Scanner supports two languages: This manual is for English version.
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Scanner
5. For Windows XP SP2 or above, a Windows Security Alert may pop up.
Choose the network type based on your surveillance environment, and
click on Unblock.

14
6. IP Scanner configuration:
7. IP Scanner will search for all the IP Cameras connected on the LAN. The
user can click Search Device to search again.
8. Click one of the IP Cameras listed on the left side. The network
configuration of this IP camera will be shown on the right side once you
highlight the device with your mouse. You can change the name of the IP
Camera to your preference (e.g.: Office, warehouse). Change the
parameters and click Submit, then click OK, it will apply the changes and
reboot the device.
9. Please make sure the subnet of the PC IP address and the IP Camera IP
address are the same.

15
The same Subnet:
IP Camera IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change the PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties
Make sure your IP Camera and PC are in the same Subnet. If not,
change the IP Camera subnet or the PC IP subnet accordingly below.
10. To quickly access remote monitoring, left-click the mouse twice on the
selected IP Camera listed under Device list of IP Scanner. A default
network browser of the camera control interface will open.

16
11. Enter admin for both Username and Password to gain access.

17
*Install ActiveX control
1. For users of IE 6.0 or above:
When viewing the camera video for the first time via IE, the browser will ask
you to install the ActiveX component.
Choose ‘Allow’,
Then choose ‘Install’.
Start installing the ActiveX component.
If the installation fails, please check the security settings in the IE
browser.
Go to Start-Up Menu on the lower left corner of the Windows,
select Control Panel then Double-click on
to access to Internet Properties settings.

18
Starting from Internet Properties, proceeding step Aand B:
A. Security Custom Level Security Settings Download
unsigned ActiveX controls Enable or Prompt (recommended).
B. Security Custom Level Security Settings Initialize and
script ActiveX controls not marked as safe Enable or Prompt
(recommended).
1
2
3
4

19
5
When popup the following dialogue box, click Yes.
2. You can choose another way:
Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the
IP address and click OK.
In the site list you can key one single IP address or a LAN address. For example,
if you add 192.168.21.*, all the IP address under 21.* on the LAN will be regarded
as trusted sites.

20
2. To Non-IE Web Browser Users
If you use Firefox or Google chrome to access the IP camera but fails to watch
the live video, please follow the steps to install necessary tools:
(The following pictures are based on chrome.)
a. You may see the prompt message as the picture below. Click the link:
Firstly, please install Microsoft Visual C++ 2010 Redistributable Package
(x86).
The link will conduct you to the Microsoft official site where you can download
the tools. Please select the language and click download.
