Yudor YUC-KX102-R User manual

1
IP SPEED DOME CAMERA
V1.0.1K_1608
User Manual

2
This is a 1/2.9" Sony Exmor CMOS Sensor IP camera with a built-in web
server. The user can view real-time video via IE browser. It supports
H.264+, H.264, and M-JPEG video compression, providing smooth and
high video quality.
With a user friendly interface, it is an easy-to-use IP camera for security
applications.
i. Warnings, Cautions and Copyright ...........................................................3
ii. Product Specifications...............................................................................4
iii. Product Installation....................................................................................7
* Monitor Settings ...................................................................................7
* Hardware Installation .........................................................................8
* IP assignment.....................................................................................13
* Install ActiveX control…………….....................................................17
iv. Live Video.................................................................................................24
v. Camera Configuration ............................................................................31
* System ................................................................................................31
* Network ..............................................................................................37
* A / V Settings .....................................................................................55
* Event List .............................................................................................61
vi. Network Configuration ….......................................................................66
vii. I / O Configuration .................................................................................68
viii. Universal Password ...............................................................................70
ix. Package Contents ..................................................................................73
x. Accessories (Optional)............................................................................74
IP SPEED DOME CAMERA

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION
GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY
REGISTERED TO THEIR RESPECTIVE COMPANIES.
i. Warnings, Cautions and Copyright

4
Main Features:
2 Megapixel Real Time 10x Zoom Module
H.264+/ H.264/ M-JPEG Compression
Smart Stream
ROI Function
IR LED Built in 70M Available
Digital Wide Dynamic Range
True Day/Night Function –IR Cut Filter (ICR)
360°Continuous Pan and 90 °Tilt
Power over Ethernet
IP66
-20°C ~ 60°C Temperature Range for Weather Conditions
Support iPhone/Android/Mac
Quadruple Streaming
SDK for Software Integration
Free Bundle 36 ch Recording Software
Hardware
CPU
Multimedia SoC
RAM
256MB
Flash
32MB
Image Sensor
1 / 2.9” Sony Exmor CMOS Sensor
Sensitivity
0.05 lux(B/W), 0.005 lux(Color)
Lens Type
10x optical zoom
Focal Length
5-50 mm
Maximum Aperture
F1.6~F1.8
View Angle
3.6°~ 53°(H) , 1.9°~ 30°(V)
Pan / Tilt Range
Pan: 360°/ Tilt: 90°Auto Flip
Manual Control
Speed
Pan: 0.45°~90°/s / Tilt: 0.35°~45°/s
Preset(Patrol) Speed
240°/s
ii. Product Specifications

5
Preset Accuracy
<±0.15°
Preset Points
256
Preset Focus Mode
Auto / Manual
Patrol
8 groups with 24 point
Auto Pan
Yes
Auto Recovery
Pending Time, Action
Cruise
Yes, 8 groups
Home Position
Yes
Point To Go
Yes
Auto Electronic
Shutter
Indoor , outdoor , 1/1 ~ 1/10000
BLC
N/A
Day & Night Mode
Auto / Color / B/W / Time Mode with auto ICR
Day & Night Level
1 ~ 5
Day & Night Delay
5~ 15sec
Sense Up
N/A
DNR Mode
0~9
WDR Mode
0~8
Video Orientation
Off / Flip / Mirror / Rotate
White Balance
Auto /Tungsten Lamp/Fluorescent
Lamp/Sunlight/Cloudy/Cloudy Days
R-Gain
-5~5
B-Gain
-5~5
Sharpness
-4 ~ 4
Anti fog
Off / On
OSD
Off / On
Contrast
-4 ~ 4
Saturation
-4 ~ 4
Focus Distance
N/A
Privacy Mask
3
I/O
1 DI
Audio
N/A
Power Source
DC 12V/ PoE
Power Consumption
DC 12V Power consumption : Max. 14.5W
PoE Power consumption : Max. 15W
Operating
Temperature
*IR ON: 50°C
Starting Temperature:-15℃~60℃
Working Temperature:-20℃~60℃
Dimensions
135mm (φ) X 198 mm(H)
Weight
1800 g
IR LEDs

6
LEDs
6 Units High Power
IR Distance
70M
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS , DNS ,
ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X,
RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
System
Video Resolution
1920x1080@30fps, 1280x720@30fps,
640x360@30fps
Video Adjust
Auto Electronic Shutter、Day & Night Mode、Day &
Night Level、Day & Night Delay、DNR Mode、WDR
Mode、Video Orientation、White Balance、Sharpness、
Anti fog、OSD、Contrast、Saturation
Features
ROI, Smart Stream, Motion Detection, Privacy Mask,
Anti Fog , Push Video , P2P(Optional)
Quadruple
Streaming
Yes
Image Snapshot
Yes
Full Screen
Monitoring
Yes
Compression Format
H.264+/ H.264 / M-JPEG
Video Bitrate Adjust
CVBR, VBR
Motion Detection
Windows area
Triggered Action
Mail, FTP, Samba , Google driver , Dropbox
Pre/ Post Alarm
Yes, configurable
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Client System Requirement
OS
Windows 7, XP, Microsoft IE 6.0 or above
Mobile Support
iOS 8.0 or above, Android 4.0.4 or above.
Suggested
Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:
128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

7
* Monitor Settings
1. Right-Click on the desktop. Select Properties
2. Change color quality to highest (32bit).
iii. Product Installation

8
* Hardware Installation
Camera Without Any Mount Bracket
Camera With Wall Mount Bracket

9
1. Mount the Camera Inside the Housing (Optional)
The camera in the package is already assembled. Please be sure its
cable connects thoroughly from the camera body through inside the
mount, and goes right behind the mounted surface to reach
connectors for power supply and internet connection.
Wall Mount
Example depicted above by Wall Mount. Same method applies
when the camera is mounted in other manners.

10
2. Dome Camera with Mount Installation Steps
A. Ensure the mounted surface is solid enough to support the weight of
the whole camera hardware.
B. Drill holes through the mounting surface for allowing cables through.
C. Put screws on to stiff the camera.
D. Below are some Various Mount Demonstrations.
Wall Mount Pendant Mount

11
In-Ceiling Mount

12
3. Connector Instruction
The camera connectors are as below. Connect the power and the
Ethernet cable with the camera, and set it according to your
network environment.
4. PoE(Power Over Ethernet) (Optional) 802.3at, 30W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It provides power for a network device,
such as a network camera using the same cable for network connection.
It eliminates the need for power outlets at the camera locations and
enables easier application of uninterruptible power supplies (UPS) to
ensure 24 hours a day, 7 days a week operation.

13
*IP assignment
1. Open the software IP Scanner to assign the IP address of the IP Camera.
Find this software in the Applications folder in the software CD attached
to the product’s package.
2. IP Scanner supports two languages: This manual is for English version.
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Scanner
5. For Windows XP SP2 or above, a Windows Security Alert may pop up.
Choose the network type based on your surveillance environment, and
click on Unblock.

14

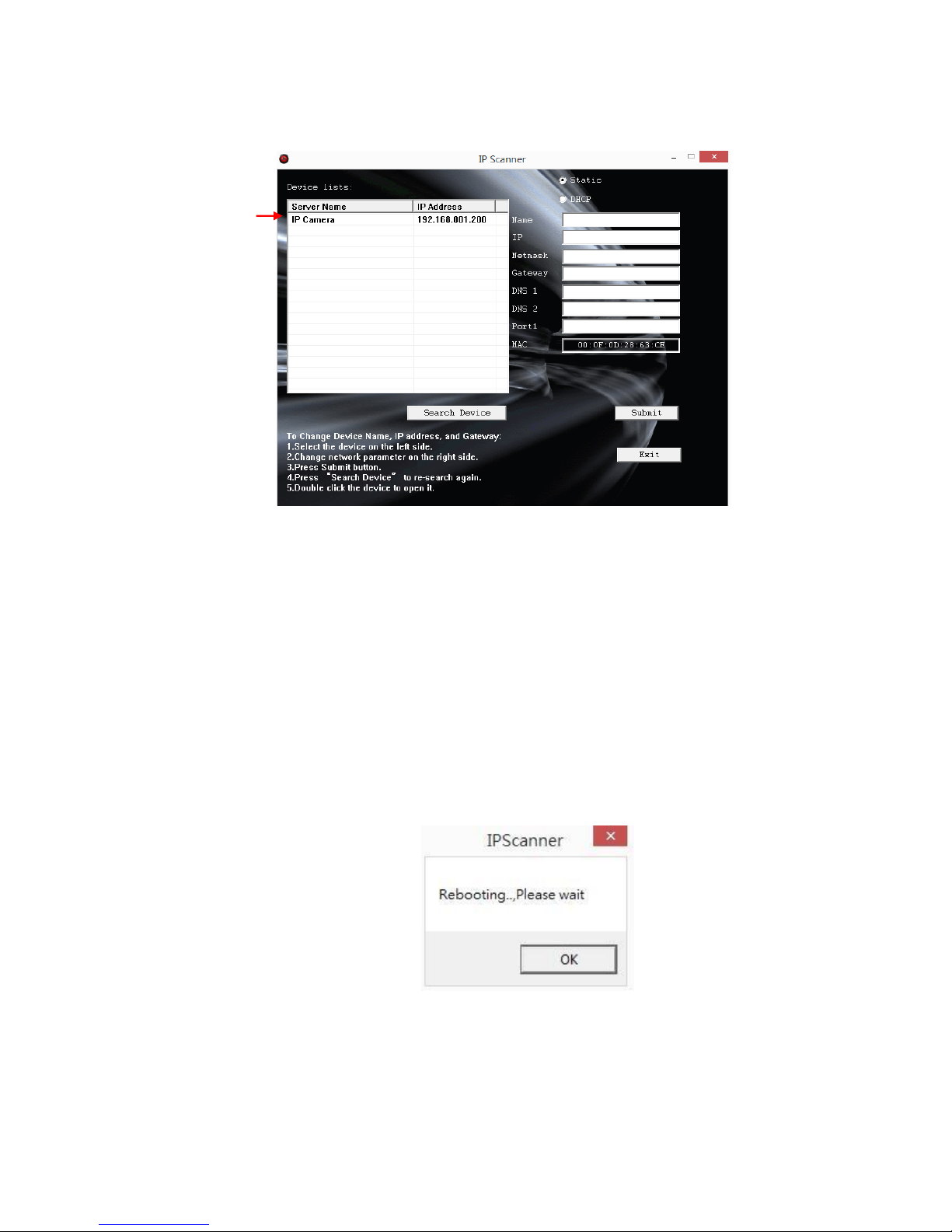

6. IP Scanner configuration:
7. IP Scanner will search for all the IP Cameras connected on the LAN. The
user can click Search Device to search again.
8. Click one of the IP Cameras listed on the left side. The network
configuration of this IP camera will be shown on the right side once you
highlight the device with your mouse. You can change the name of the IP
Camera to your preference (e.g.: Office, warehouse). Change the
parameters and click Submit, then click OK, it will apply the changes and
reboot the device.
9. Please make sure the subnet of the PC IP address and the IP Camera IP
address are the same.

15
The same Subnet:
IP Camera IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change the PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties
Make sure your IP Camera and PC are in the same Subnet. If not,
change the IP Camera subnet or the PC IP subnet accordingly below.
10. To quickly access remote monitoring, left-click the mouse twice on the
selected IP Camera listed under Device list of IP Scanner. A default
network browser of the camera control interface will open.

16
11. Enter admin for both Username and Password to gain access.

17
*Install ActiveX control
1. For users of IE 6.0 or above:
When viewing the camera video for the first time via IE, the browser will ask
you to install the ActiveX component.
Choose ‘Allow’,
Then choose ‘Install’.
Start installing the ActiveX component.
If the installation fails, please check the security settings in the IE
browser.
Go to Start-Up Menu on the lower left corner of the Windows,
select Control Panel then Double-click on
to access to Internet Properties settings.

18
Starting from Internet Properties, proceeding step Aand B:
A. Security Custom Level Security Settings Download
unsigned ActiveX controls Enable or Prompt (recommended).
B. Security Custom Level Security Settings Initialize and
script ActiveX controls not marked as safe Enable or Prompt
(recommended).
1
2
3
4

19
5
When popup the following dialogue box, click Yes.
2. You can choose another way:
Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the
IP address and click OK.
In the site list you can key one single IP address or a LAN address. For example,
if you add 192.168.21.*, all the IP address under 21.* on the LAN will be regarded
as trusted sites.

20
2. To Non-IE Web Browser Users
If you use Firefox or Google chrome to access the IP camera but fails to watch
the live video, please follow the steps to install necessary tools:
(The following pictures are based on chrome.)
a. You may see the prompt message as the picture below. Click the link:
Firstly, please install Microsoft Visual C++ 2010 Redistributable Package
(x86).
The link will conduct you to the Microsoft official site where you can download
the tools. Please select the language and click download.
