IP SPEED DOME CAMERA
V1.3_1608
User Manual

2
This is a 1 / 2.8” 2M Type Exmor CMOS Sensor IP camera with a built-in
web server. The user can view real-time video via IE browser. It supports
H.264, M-JPEG, and MPEG4 video compression, providing smooth and
high video quality. The video can be stored in SD card and playback
remotely.
With a user-friendly interface, it is an easy-to-use IP camera for security
applications.
i. Warnings, Cautions and Copyright ...........................................................3
ii. Product Specifications...............................................................................4
iii. Product Installation....................................................................................8
* Monitor Settings ...................................................................................8
* Hardware Installation .........................................................................9
* IP assignment.....................................................................................15
* Install ActiveX control…………….....................................................19
iv. Live Video.................................................................................................26
v. Camera Configuration ............................................................................34
* System ................................................................................................34
* Network ..............................................................................................40
* A / V Settings .....................................................................................63
* Event List .............................................................................................72
vi. Network Configuration ….......................................................................84
vii. I / O Configuration .................................................................................86
viii. Factory Default ......................................................................................90
ix. Universal Password .................................................................................91
x. Package Contents ..................................................................................94
xi. Micro SD Card Compatibility (Optional)...............................................95
xii. Accessories (Optional)..........................................................................96
IP SPEED DOME CAMERA

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION
GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY
REGISTERED TO THEIR RESPECTIVE COMPANIES.
i. Warnings, Cautions and Copyright

4
Main Features:
2 Megapixel Real Time Sony 30X Zoom Module
Sense Up Adjustable
Support DIS and T-WDR
True Day/Night Function –IR Cut Filter (ICR)
360°Continuous Pan and 180°Tilt
Power over Ethernet(802.3at)
2-Way Audio
IP66
H.264/ M-JPEG/ MPEG4 Compression
-20°C ~ 55°C Temperature Range for Weather Conditions
Micro SD Card Backup(Optional)
Support iPhone/Android/Mac
Triple Streaming
SDK for Software Integration
Free Bundle 36 ch Recording Software
Hardware
CPU
Multimedia SoC
RAM
256MB
Flash
16MB
Image Sensor
1/2.8" 2M Type Exmor CMOS Sensor
Sensitivity
0.002 lux(B/W), 0.05 lux(Color)
Lens Type
30X optical zoom lens
Focal Length
F=4.3mm (WIDE) to 129 mm (TELE)
Maximum Aperture
F1.6 ~ F4.7
View Angle
2.3°~63.7°(H), 1.3°~35.8°(V)
Pan / Tilt Range
Pan: 360°/ Tilt: 0°~180°Auto Flip
Manual Control Speed
Pan: 0.6°~80°/s / Tilt: 0.4°~50°/s
Preset(Patrol) Speed
200°/s
ii. Product Specifications

5
Preset Accuracy
< 0.15°
Preset Points
256
Preset Focus Mode
Auto / Manual
Patrol
8 groups with 24 point
Auto Pan
Yes
Auto Recovery
Pending Time, Action
Cruise
Yes, 8 groups
Home Position
Yes
Point To Go
Yes
Auto Electronic
Shutter
Auto / Iris / Shutter / Manual Mode
AE –Iris priority
F1.6 ~ Close
AE –Shutter priority
1/100 ~ 1/10000
AE –Manual mode
Iris: F1.6 ~ Close, Shutter: 1/100 ~ 1/10000,
Gain:1~16.
BLC
Off / On / HSBLC
Day & Night Mode
Auto / Color / B/W / Time Mode with auto ICR
Day & Night Level
1 ~ 5
Sense Up
Off / On
DNR Mode
Off / Low / Middle / High
WDR Mode
Off / Low / Middle / High
Video Orientation
Off / Flip / Mirror / Rotate
White Balance
Auto / Indoor / Outdoor / ATW / Manual
R-Gain
0 ~ 15
B-Gain
0 ~ 15
Sharpness
-3 ~ 3
Exposure
Compensation
-7 ~ 7
Defog
Off / Low / Middle / High
OSD
Off / On
Focus Distance
0.08M / 0.3M / 1M / 7M / 11M
Privacy Mask
Yes, 6 different areas.
I/O
4 DI / 1 DO
Audio
G.711(64K) and G.726(32K,24K)Audio Compression
Input: External Audio in
Output: External Line out
Support 2-way audio

6
Power Source
AC24 / PoE 802.3at
Power Consumption
24V AC Power consumption Max: 15.64W
PoE Power consumption Max: 15.84W
Dimensions
219mm
Weight
3500g
Operating
Temperature
-20℃~ +55℃without heater
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access
list, IEEE, 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP,
PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA
System
Video Resolution
1920x1080@30fps, 1280x720@30fps,
640x480@30fps, 320x240@30fps, 176x144@30fps
Video Adjust
Auto Electronic Shutter、BLC、Day & Night Mode、Day
& Night Level、Sense Up、DNR Mode、WDR Mode、
Video Orientation、White Balance、R-Gain、B-Gain、
Sharpness、Exposure Compensation、Defog、OSD、
Focus Distance、Privacy Mask
Triple Streaming
Yes
Image Snapshot
Yes
Full Screen
Monitoring
Yes
Compression Format
H.264 / M-JPEG / MPEG4
Video Bitrate Adjust
CBR, VBR
Motion Detection
ON / OFF
Triggered Action
Mail, FTP, Save to SD card, DO, Samba
Pre/ Post Alarm
Yes, configurable
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Micro SD Card Management (Optional)
Recording Trigger
Motion Detection, IP check, Network break down (wire
only), Schedule, DI
Video Format
AVI, JPEG

7
Video Playback
Yes
Delete Files
Yes
Client System Requirement
OS
Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, Safari, Firefox
Mobile Support
iOS 4.3 or above, Android 1.6 or above.
Hardware
Suggested
Intel Dual Core 2.53G, RAM: 1024MB, Graphic card:
128MB
Minimum
Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

8
* Monitor Settings
1. Right-Click on the desktop. Select Properties
2. Change color quality to highest (32bit).
iii. Product Installation

9
* Hardware Installation
1. Dome Installation Steps (The camera in the package is already assembled.)
Mount the bracket before the
installation.
A. Assure the mounted
surface is solid enough to
support the weight of the
whole camera hardware
B. Drill holes through the
mounting surface for
allowing cables through.
C. Install the Camera Housing. (See page 3)
D. Mount the camera inside the housing. (See page 3)
E. Mount the speed dome cover.
Mounting
Surface
A.
B.
C.
D.
E.

10
2. Install the Camera Housing
Coat the cables with the foam cylinder first before connecting the cables.
The cylinder which coats the cables should be placed through the hole, joining
the dome cover and the bracket for preventing insects or dust. See page 2 for
more details.
3. Mount the Camera Inside the Housing
A. Mount the base on the wall by using
the screws.
B. There is a safety strap equipped to
secure the camera while it is being
hung from above with the bracket. You
can adjust the interior parts, install, or
uninstall the IP camera without any risk
of the camera falling off.

11
C. Loosen the screws A, C, D before mounting the camera device unto the bracket.
Screw B is purposed to hold the strap, therefore it is meant to be tightened at all
times.
D. Keep the blue arrow side of the camera aiming at the blue arrow side of the dome
housing. Place the camera edge unto the screws A, C, D. B is meant to hold the clip
chain, it is not meant to fit any gap. The big knob is a screw which aims for screw E,
that fixes firmly the whole camera into the housing. This knob must be tight on the
final step of the installation only.

12
E. Follow the mini steps from the pictures:
1. Aim to make the gaps fit
the screws.
2. Pull the edge against the
other side for avoiding the
screws to get stuck in the
gaps.
3. Tighten the screws with
the screw driver.
4. Check the flexibility and stability of the installation. Be sure the camera can turn and
rotate firmly with no resistance inside the dome cover. After this tight, please tight
the big knob (screw E)

13

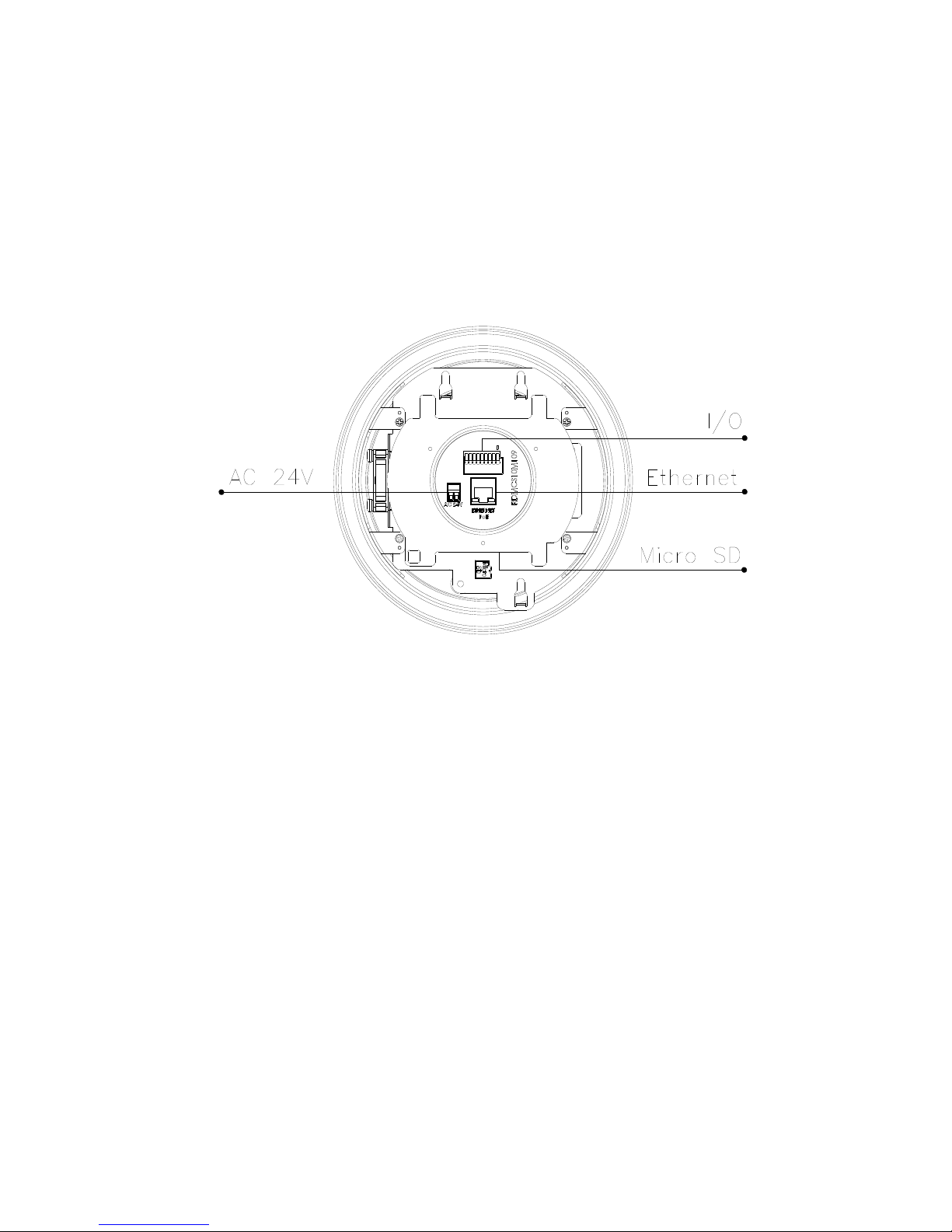

4. Connector Instruction
The camera connectors are as below. Connect the power and the
Ethernet cable with the camera, and set it according to your network
environment.
5. PoE (Power Over Ethernet) (Optional) 802.3af, 15.4W PoE Switch
is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to a
network device, such as an IP phone or a network camera, using the
same cable as that used for network connection. It eliminates the need
for power outlets at the camera locations and enables easier
application of uninterruptible power supplies (UPS) to ensure 24 hours
a day, 7 days a week operation.

14

15
*IP assignment
1. Open the software IP Scanner to assign the IP address of the IP Camera.
Find this software in the Applications folder in the software CD attached
to the product’s package.
2. IP Scanner supports two languages: This manual is for English version.
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Scanner
5. For Windows XP SP2 or above, a Windows Security Alert may pop up.
Choose the network type based on your surveillance environment, and
click on Unblock.

16
6. IP Scanner configuration:
7. IP Scanner will search for all the IP Cameras connected on the LAN. The
user can click Search Device to search again.
8. Click one of the IP Cameras listed on the left side. The network
configuration of this IP camera will be shown on the right side once you
highlight the device with your mouse. You can change the name of the IP
Camera to your preference (e.g.: Office, warehouse). Change the
parameters and click Submit, then click OK, it will apply the changes and
reboot the device.
9. Please make sure the subnet of the PC IP address and the IP Camera IP
address are the same.

17
The same Subnet:
IP Camera IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change the PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties
Make sure your IP Camera and PC are in the same Subnet. If not,
change the IP Camera subnet or the PC IP subnet accordingly below.
10. To quickly access remote monitoring, left-click the mouse twice on the
selected IP Camera listed under Device list of IP Scanner. A default
network browser of the camera control interface will open.

18
11. Enter admin for both Username and Password to gain access.

19
*Install ActiveX control
1. For users of IE 6.0 or above:
When viewing the camera video for the first time via IE, the browser will ask
you to install the ActiveX component.
Choose ‘Allow’,
Then choose ‘Install’.
Start installing the ActiveX component.
If the installation fails, please check the security settings in the IE
browser.
Go to Start-Up Menu on the lower left corner of the Windows,
select Control Panel then Double-click on
to access to Internet Properties settings.

20
Starting from Internet Properties, proceeding step Aand B:
A. Security Custom Level Security Settings Download
unsigned ActiveX controls Enable or Prompt (recommended).
B. Security Custom Level Security Settings Initialize and
script ActiveX controls not marked as safe Enable or Prompt
(recommended).
1
2
3
4
