Zaber LRT-EC Series User manual

LRT-EC Series User's Manual
High-load motorized linear stages with built-in motor encoders, dust covers
Disclaimer
Zaber’s devices are not intended for use in any critical medical, aviation, or military applications or situations
where a product's use or failure could cause personal injury, death, or damage to property. Zaber disclaims any
and all liability for injury or other damages resulting from the use of our products.
Precautions
Zaber's autodetect peripheral axes are designed to be used effortlessly with Zaber's line of autodetect controllers.
The LRT-EC includes onboard memory that allows Zaber's controllers to autodetect the model and set
reasonable parameters. See the Protocol Manual for more information on how to modify the settings. Damage to
the axis may result if the settings are not correct. To use your Zaber peripheral with a third-party controller, review
the motor, sensor, and encoder specifications and pin-outs carefully.
Zaber’s motion control devices are precision instruments and must be handled with care. In particular, moving
parts must be treated with care. Avoid axial loads in excess of the rated thrust load, axial and radial impact, dust
and other contaminants and damage to the lead screw thread. These will reduce the performance of the device
below stated specifications.
Conventions used throughout this document
Fixed width type indicates communication to and from a device. The symbol indicates a carriage
return, which can be achieved by pressing enter when using a terminal program.
An ASCII command followed by (T:xx) indicates a legacy T-Series Binary Protocol command that
achieves the same result. For example,
move abs 10000 (T:20:10000) shows that a move abs ASCII command can also be achieved with
Binary command number 20.
Not all ASCII commands have an equivalent Binary counterpart.
Device Overview
AutoDetect
Your LRT-EC peripheral is equipped with AutoDetect, a feature that allows a Zaber controller to automatically
configure its settings for the peripheral when it is connected.

Important: The controller should always be powered down before disconnecting or connecting your LRT-
EC peripheral.
To connect the peripheral to a controller:
1. Power off the controller.
2. Connect the LRT-EC peripheral.
3. Power on the controller.
4. The controller will activate the peripheral shortly after it is powered on.
Connectors
Recommended controller(s) for your LRT-EC peripheral are provided in the product specifications. Zaber's
controllers and peripherals are designed for ease of use when used together. Optimal settings for each peripheral
are automatically detected by Zaber's controllers when the device is connected.
For reference, the pinout for the peripheral cable connectors is shown below:
Pinout for D-sub 15 Connectors (peripherals)
T3A Peripheral (male)
T4A Peripheral (male)
Pin # Function
1 +5V for Limits & Encoder
2 AutoDetect Data
3 reserved
4 Away Sensor
5 Home Sensor
6 Ground
7 Motor B1
8 Motor A1
9 AutoDetect Clock

10 Encoder A
11 Encoder B
12 Encoder Index
13 Ground
14 Motor B2
15 Motor A2
Not all pins are used for all models
Alternate Controllers
The LRT-EC can be controlled by any 2-phase stepper motor controller with limit sensor and appropriate encoder
input. We do not recommend using your own controller unless you are familiar with how to control a
stepper motor with hall sensor limit switches. Damage to the stage due to incorrect wiring is not covered by
warranty.
Motors & Encoders
For motor and encoder information see the LRT-EC product page
Limit Sensors
Hall effect sensors are used in the LRT-EC as home sensors. The Hall sensors used are part number
A1120LLHLT-T made by Allegro. Click here for data sheet. Your controller should be configured so the stage
stops immediately (quick deceleration) when the sensors are triggered.
PCB wire colour code:
o3.6-24 Vdc input - red
oHome signal - yellow
oAway signal - white
oGround - black
The Hall sensor has an open-collector output. The default output is high impedance when the Hall sensor is not
active. When the sensor detects a magnet, the Hall sensor pulls the output low to ground.
If you are not using a Zaber controller, ensure that your controller has a pull-up resistor on the output line of each
Hall sensor as shown in the diagram. The bypass capacitor is optional, but may help to eliminate false triggering
in noisy environments. The typical value for the pull-up resistor (RLOAD) is 10 kΩ and for the bypass capacitor is 0.1
uF to 1 uF. The larger the capacitance, the better the noise filtering but the slower the response time.

Installation
Physical Installation
Secure stages with M6 (or 1/4"-20) socket cap screws, 35 mm or longer.
Two stages can be mounted directly in XY configuration.
Tip: To obtain the best pitch, roll, yaw and runout accuracy, mount the stage to a known flat, stiff surface.
Our tests were performed on a granite table, grade A flatness.
Tipping Hazard! Ensure stage is fastened to a secure surface before mounting load on carriage. An
unmounted stage with a load presents a tipping hazard. Ensure loads are mounted securely to the carriage of the
stage.
Back-driving Hazard! When mounting stages vertically where they will lift a load, do not exceed the values
in the following table. Exceeding this load could backdrive the device, especially during loss of power, and could
damage its controller and cause injury.

Drive Screw Version Back-driving Force (N)
A Non-back-driving
B 420
D 40
H 157
Maintenance
We recommend greasing the linear bearings to prolong service life. Many factors affect the lifetime of the grease
and bearings including temperature, contamination, and loading configurations but the following chart provides a
guideline. Grease with Shell Gadus S2 V220 2 or similar lithium thickened petroleum grease.
Remove dust cover
Careful, dust cover edges are sharp!
Pinch Hazard! You will need to move the stage with the power on while greasing. Be careful not to squish
anything, especially fingers or hands, between the carriage and the end plates.
Remove the dust cover clamps at each end of the stage by removing their M3 screws.

Remove the carriage ramps by removing their screws.
Slide out the carriage cover.
Slide out the dust cover. CAUTION! DUST COVER EDGES ARE SHARP!
Insert angled syringe tip into grease hole in bearing end cap. With the power on and using the manual
control knob (if equipped), move the stage about 100 mm (4") while squeezing grease in from the syringe.

Don't drive the carriage close to the ends of the stage where the risk is greater of squishing the syringe or
your fingers. Repeat with the other three end caps.
Reinstall dust cover
Slide dust cover into carriage, above angled sliding pads but below thin channel near the top. Position the
dust cover so it's about even at both ends
Install one carriage end ramp and slide the top sheet in the thin channel near the top.
Attach the other carriage end ramp.

Position the dust cover so it comes close to the clamp holes at each end.
Loosely attach the clamps at each end. Run the stage back and forth once to position the dust cover.
Gradually tighten the clamp screws, alternating between the two at each clamp. If part of the dust cover
isn't seated properly, loosen the nearest clamp and re-tighten.
Warranty and Repair
For Zaber's policies on warranty and repair, please refer to the Ordering Policies.
Standard products
Standard products are any part numbers that do not contain the suffix ENG followed by a 4 digit number. Most,
but not all, standard products are listed for sale on our website. All standard Zaber products are backed by a one-
month satisfaction guarantee. If you are not satisfied with your purchase, we will refund your payment minus any
shipping charges. Goods must be in brand new saleable condition with no marks. Zaber products are guaranteed
for one year. During this period Zaber will repair any products with faults due to manufacturing defects, free of
charge.
Custom products
Custom products are any part numbers containing the suffix ENG followed by a 4 digit number. Each of these
products has been designed for a custom application for a particular customer. Custom products are guaranteed
for one year, unless explicitly stated otherwise. During this period Zaber will repair any products with faults due to
manufacturing defects, free of charge.
How to return products
Customers with devices in need of return or repair should contact Zaber to obtain an RMA form which must be
filled out and sent back to us to receive an RMA number. The RMA form contains instructions for packing and
returning the device. The specified RMA number must be included on the shipment to ensure timely processing.
Email Updates

If you would like to receive our periodic email newsletter including product updates and promotions, please sign
up online at www.zaber.com (news section). Newsletters typically include a promotional offer worth at least $100.
Contact Information
Contact Zaber Technologies Inc by any of the following methods:
Phone [phone] (direct)
1-888-276-8033 (toll free in North America)
Fax [phone]
Mail #2 - 605 West Kent Ave. N., Vancouver, British Columbia, Canada, V6P 6T7
Web www.zaber.com
Email Please visit our website for up to date email contact information.
The original instructions for this product are available at https://www.zaber.com/manuals/LRT-EC.
Appendix A: Default Settings
Please see the Zaber Support Page for default settings for this device.
Product Drawing

Specifications
Specification Value Alternate Unit
Built-in Controller No
Recommended Controller X-MCC (48 V) Recommended
AutoDetect Yes
Encoder Resolution 400 CPR 1600 states/rev
Encoder Type Rotary quadrature encoder
Maximum Centered Load 5000 N 1121.3 lb
Maximum Cantilever Load 120 N⋅m 88.6 ft⋅lb
Guide Type Recirculating Ball Linear Guide
Vertical Runout < 10 µm < 0.000394"
Horizontal Runout < 18 µm < 0.000709"
Pitch 0.013° 0.227 mrad
Roll 0.01° 0.174 mrad
Yaw 0.017° 0.297 mrad
Stiffness in Pitch 1400 N⋅m/° 12 µrad/N⋅m
Stiffness in Roll 700 N⋅m/° 25 µrad/N⋅m
Stiffness in Yaw 1200 N⋅m/° 15 µrad/N⋅m
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 4200 mA/phase
Motor Winding Resistance 0.53 ohms/phase
Inductance 2 mH/phase
Motor Connection D-sub 15
Default Resolution 1/64 of a step
Limit or Home Sensing Magnetic home sensor
Axes of Motion 1
Operating Temperature Range 0 to 50 °C
Vacuum Compatible No
RoHS Compliant Yes
CE Compliant Yes
Comparison
Part Number
Microstep Size
(Default Resolution) Travel Range
Accuracy
(unidirectional) Repeatability
LRT0100AL-E08CT3A 0.124023438 µm 100 mm (3.937") 25 µm (0.000984") < 4 µm
(< 0.000157")
LRT0100BL-E08CT3A 0.49609375 µm 100 mm (3.937") 25 µm (0.000984") < 4 µm
(< 0.000157")
LRT0100DL-E08CT3A 1.984375 µm 100 mm (3.937") 25 µm (0.000984") < 8 µm
(< 0.000315")
LRT0100HL-E08CT3A 0.390625 µm 100 mm (3.937") 45 µm (0.001772") < 4 µm
(< 0.000157")
LRT0250AL-E08CT3A 0.124023438 µm 250 mm (9.843") 63 µm (0.002480") < 4 µm
(< 0.000157")
LRT0250BL-E08CT3A 0.49609375 µm 250 mm (9.843") 63 µm (0.002480") < 4 µm
(< 0.000157")

Part Number
Microstep Size
(Default Resolution) Travel Range
Accuracy
(unidirectional) Repeatability
LRT0250DL-E08CT3A 1.984375 µm 250 mm (9.843") 63 µm (0.002480") < 8 µm
(< 0.000315")
LRT0250HL-E08CT3A 0.390625 µm 250 mm (9.843") 113 µm (0.004449") < 4 µm
(< 0.000157")
LRT0500AL-E08CT3A 0.124023438 µm 500 mm (19.685") 125 µm (0.004921") < 4 µm
(< 0.000157")
LRT0500BL-E08CT3A 0.49609375 µm 500 mm (19.685") 125 µm (0.004921") < 4 µm
(< 0.000157")
LRT0500DL-E08CT3A 1.984375 µm 500 mm (19.685") 125 µm (0.004921") < 8 µm
(< 0.000315")
LRT0500HL-E08CT3A 0.390625 µm 500 mm (19.685") 225 µm (0.008858") < 4 µm
(< 0.000157")
LRT0750AL-E08CT3A 0.124023438 µm 750 mm (29.528") 188 µm (0.007402") < 4 µm
(< 0.000157")
LRT0750BL-E08CT3A 0.49609375 µm 750 mm (29.528") 188 µm (0.007402") < 4 µm
(< 0.000157")
LRT0750DL-E08CT3A 1.984375 µm 750 mm (29.528") 188 µm (0.007402") < 8 µm
(< 0.000315")
LRT0750HL-E08CT3A 0.390625 µm 750 mm (29.528") 338 µm (0.013307") < 4 µm
(< 0.000157")
LRT1000AL-E08CT3A 0.124023438 µm 1000 mm
(39.370")
250 µm (0.009842") < 4 µm
(< 0.000157")
LRT1000BL-E08CT3A 0.49609375 µm 1000 mm
(39.370")
250 µm (0.009842") < 4 µm
(< 0.000157")
LRT1000DL-E08CT3A 1.984375 µm 1000 mm
(39.370")
250 µm (0.009842") < 8 µm
(< 0.000315")
LRT1000HL-E08CT3A 0.390625 µm 1000 mm
(39.370")
450 µm (0.017716") < 4 µm
(< 0.000157")
LRT1500AL-E08CT3A 0.124023438 µm 1500 mm
(59.055")
375 µm (0.014764") < 4 µm
(< 0.000157")
LRT1500BL-E08CT3A 0.49609375 µm 1500 mm
(59.055")
375 µm (0.014764") < 4 µm
(< 0.000157")
LRT1500DL-E08CT3A 1.984375 µm 1500 mm
(59.055")
375 µm (0.014764") < 8 µm
(< 0.000315")
Part Number Backlash Maximum Speed Minimum Speed Speed Resolution
LRT0100AL-E08CT3A < 12 µm
(< 0.000472")
45 mm/s
(1.772"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)
LRT0100BL-E08CT3A < 45 µm
(< 0.001772")
175 mm/s
(6.890"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT0100DL-E08CT3A < 75 µm
(< 0.002953")
700 mm/s
(27.559"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
LRT0100HL-E08CT3A < 25 µm
(< 0.000984")
140 mm/s
(5.512"/s)
0.000239 mm/s
(0.000009"/s)
0.000239 mm/s
(0.000009"/s)
LRT0250AL-E08CT3A < 12 µm
(< 0.000472")
45 mm/s
(1.772"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)

Part Number Backlash Maximum Speed Minimum Speed Speed Resolution
LRT0250BL-E08CT3A < 45 µm
(< 0.001772")
175 mm/s
(6.890"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT0250DL-E08CT3A < 75 µm
(< 0.002953")
700 mm/s
(27.559"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
LRT0250HL-E08CT3A < 25 µm
(< 0.000984")
140 mm/s
(5.512"/s)
0.000239 mm/s
(0.000009"/s)
0.000239 mm/s
(0.000009"/s)
LRT0500AL-E08CT3A < 12 µm
(< 0.000472")
45 mm/s
(1.772"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)
LRT0500BL-E08CT3A < 45 µm
(< 0.001772")
175 mm/s
(6.890"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT0500DL-E08CT3A < 75 µm
(< 0.002953")
700 mm/s
(27.559"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
LRT0500HL-E08CT3A < 25 µm
(< 0.000984")
140 mm/s
(5.512"/s)
0.000239 mm/s
(0.000009"/s)
0.000239 mm/s
(0.000009"/s)
LRT0750AL-E08CT3A < 12 µm
(< 0.000472")
45 mm/s
(1.772"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)
LRT0750BL-E08CT3A < 45 µm
(< 0.001772")
175 mm/s
(6.890"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT0750DL-E08CT3A < 75 µm
(< 0.002953")
700 mm/s
(27.559"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
LRT0750HL-E08CT3A < 25 µm
(< 0.000984")
140 mm/s
(5.512"/s)
0.000239 mm/s
(0.000009"/s)
0.000239 mm/s
(0.000009"/s)
LRT1000AL-E08CT3A < 12 µm
(< 0.000472")
38 mm/s
(1.496"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)
LRT1000BL-E08CT3A < 45 µm
(< 0.001772")
140 mm/s
(5.512"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT1000DL-E08CT3A < 75 µm
(< 0.002953")
573 mm/s
(22.559"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
LRT1000HL-E08CT3A < 25 µm
(< 0.000984")
110 mm/s
(4.331"/s)
0.000239 mm/s
(0.000009"/s)
0.000239 mm/s
(0.000009"/s)
LRT1500AL-E08CT3A < 12 µm
(< 0.000472")
15 mm/s
(0.591"/s)
0.000076 mm/s
(0.000003"/s)
0.000076 mm/s
(0.000003"/s)
LRT1500BL-E08CT3A < 45 µm
(< 0.001772")
60 mm/s
(2.362"/s)
0.000303 mm/s
(0.000012"/s)
0.000303 mm/s
(0.000012"/s)
LRT1500DL-E08CT3A < 75 µm
(< 0.002953")
240 mm/s
(9.449"/s)
0.001212 mm/s
(0.000048"/s)
0.001212 mm/s
(0.000048"/s)
Part Number Peak Thrust
Back-driving
Force
Maximum
Continuous Thrust
Linear Motion Per
Motor Rev
LRT0100AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT0100BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")
LRT0100DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
LRT0100HL-E08CT3A 1200 N (269.1 lb) 157 N (35.2 lb)
(± 30%)
1200 N (269.1 lb) 5 mm (0.197")
LRT0250AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT0250BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")

Part Number Peak Thrust
Back-driving
Force
Maximum
Continuous Thrust
Linear Motion Per
Motor Rev
LRT0250DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
LRT0250HL-E08CT3A 1200 N (269.1 lb) 157 N (35.2 lb)
(± 30%)
1200 N (269.1 lb) 5 mm (0.197")
LRT0500AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT0500BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")
LRT0500DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
LRT0500HL-E08CT3A 1200 N (269.1 lb) 157 N (35.2 lb)
(± 30%)
1200 N (269.1 lb) 5 mm (0.197")
LRT0750AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT0750BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")
LRT0750DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
LRT0750HL-E08CT3A 1200 N (269.1 lb) 157 N (35.2 lb)
(± 30%)
1200 N (269.1 lb) 5 mm (0.197")
LRT1000AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT1000BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")
LRT1000DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
LRT1000HL-E08CT3A 1200 N (269.1 lb) 157 N (35.2 lb)
(± 30%)
1200 N (269.1 lb) 5 mm (0.197")
LRT1500AL-E08CT3A 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062")
LRT1500BL-E08CT3A 600 N (134.6 lb) 420 N (94.2 lb)
(± 30%)
600 N (134.6 lb) 6.35 mm (0.250")
LRT1500DL-E08CT3A 200 N (44.9 lb) 40 N (9.0 lb)
(± 30%)
200 N (44.9 lb) 25.4 mm (1.000")
Part Number Mechanical Drive System Weight
LRT0100AL-E08CT3A Precision lead screw 3.65 kg (8.047 lb)
LRT0100BL-E08CT3A Precision lead screw 3.65 kg (8.047 lb)
LRT0100DL-E08CT3A Precision lead screw 3.65 kg (8.047 lb)
LRT0100HL-E08CT3A Precision ball screw 3.65 kg (8.047 lb)
LRT0250AL-E08CT3A Precision lead screw 4.441 kg (9.791 lb)
LRT0250BL-E08CT3A Precision lead screw 4.441 kg (9.791 lb)
LRT0250DL-E08CT3A Precision lead screw 4.441 kg (9.791 lb)
LRT0250HL-E08CT3A Precision ball screw 4.441 kg (9.791 lb)
LRT0500AL-E08CT3A Precision lead screw 5.758 kg (12.694 lb)
LRT0500BL-E08CT3A Precision lead screw 5.758 kg (12.694 lb)
LRT0500DL-E08CT3A Precision lead screw 5.758 kg (12.694 lb)
LRT0500HL-E08CT3A Precision ball screw 5.758 kg (12.694 lb)
LRT0750AL-E08CT3A Precision lead screw 7.076 kg (15.600 lb)
LRT0750BL-E08CT3A Precision lead screw 7.076 kg (15.600 lb)
LRT0750DL-E08CT3A Precision lead screw 7.076 kg (15.600 lb)
LRT0750HL-E08CT3A Precision ball screw 7.076 kg (15.600 lb)
LRT1000AL-E08CT3A Precision lead screw 8.393 kg (18.503 lb)
LRT1000BL-E08CT3A Precision lead screw 8.393 kg (18.503 lb)

Part Number Mechanical Drive System Weight
LRT1000DL-E08CT3A Precision lead screw 8.393 kg (18.503 lb)
LRT1000HL-E08CT3A Precision ball screw 8.393 kg (18.503 lb)
LRT1500AL-E08CT3A Precision lead screw 11.028 kg (24.313 lb)
LRT1500BL-E08CT3A Precision lead screw 11.028 kg (24.313 lb)
LRT1500DL-E08CT3A Precision lead screw 11.028 kg (24.313 lb)

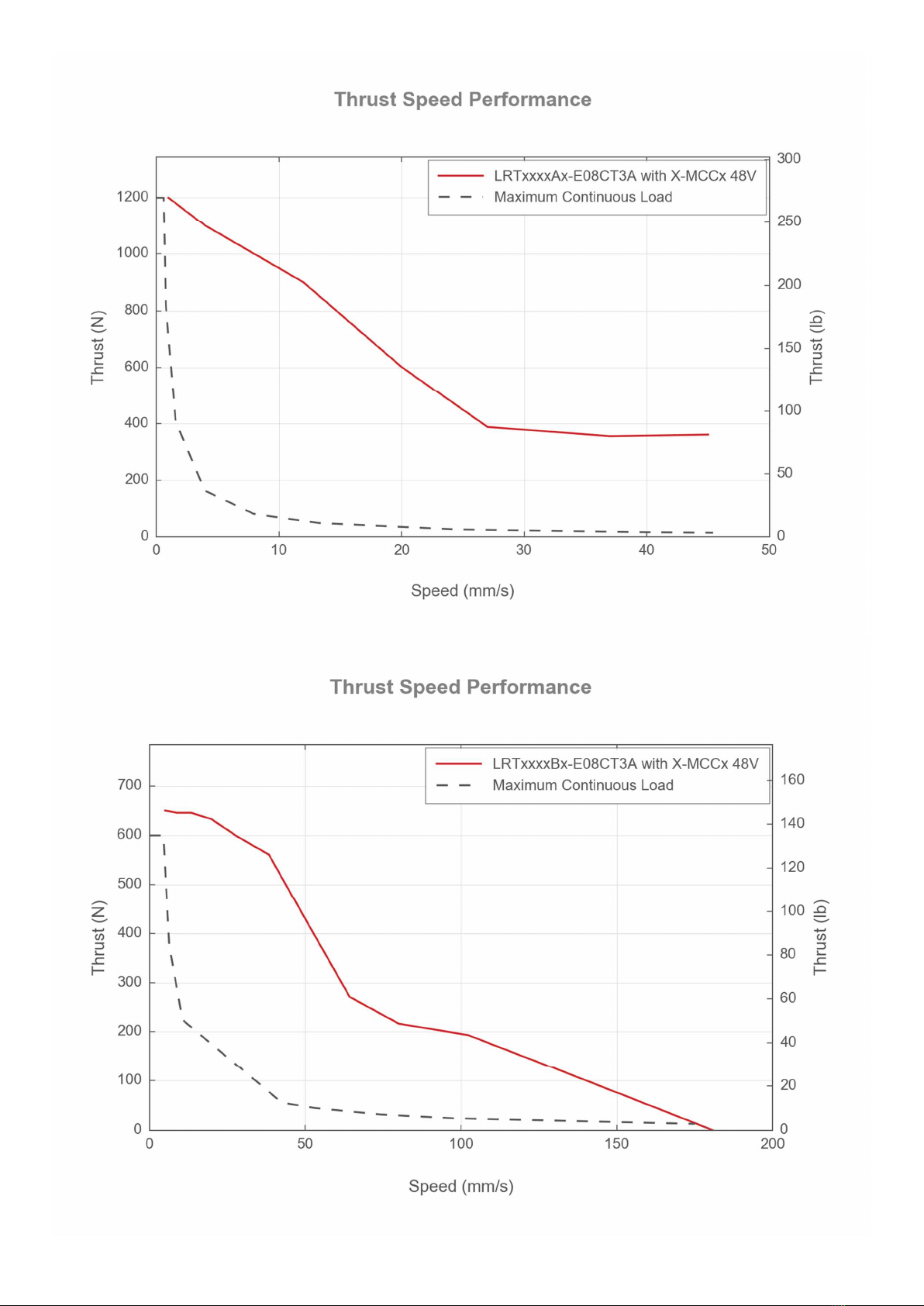

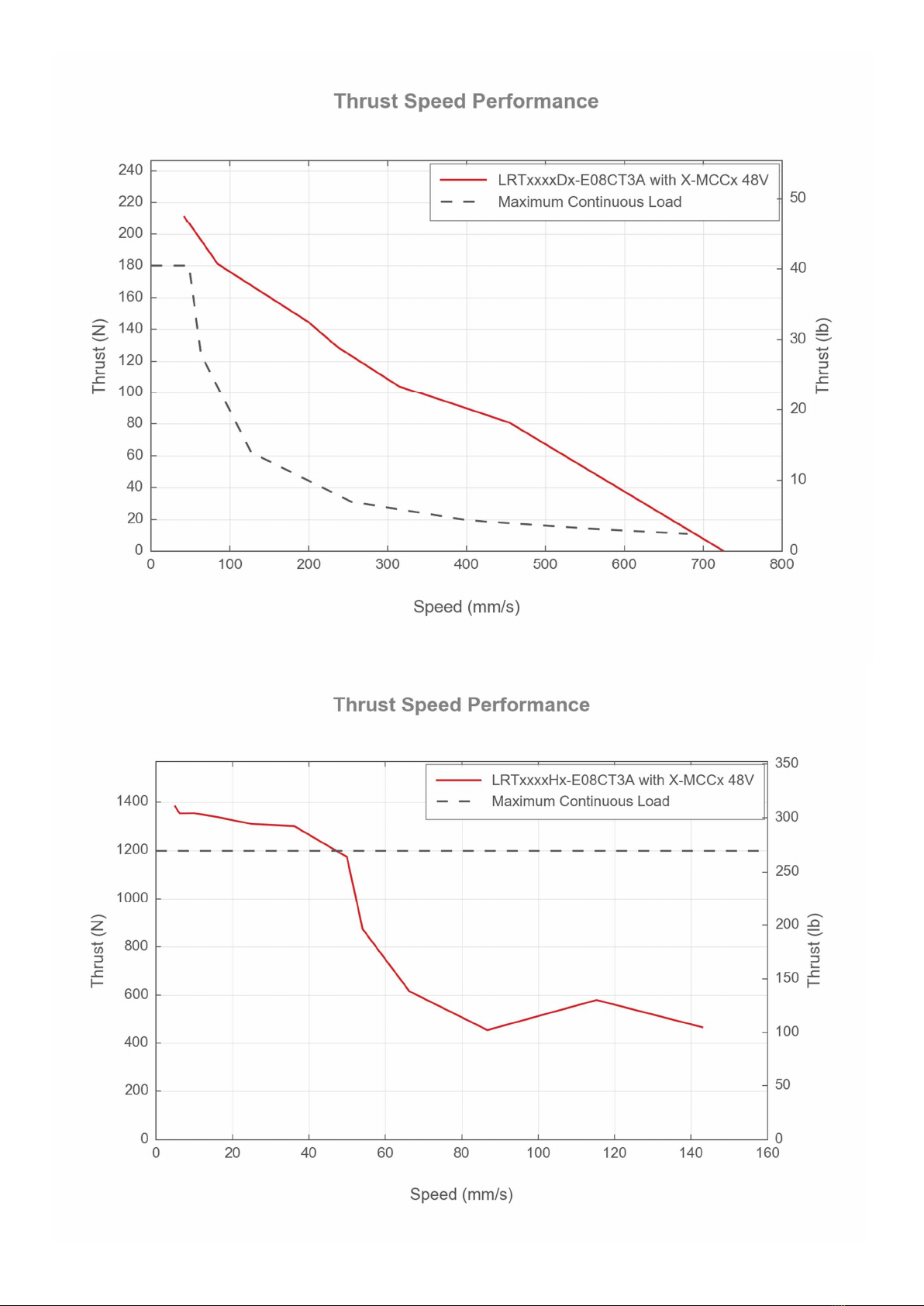

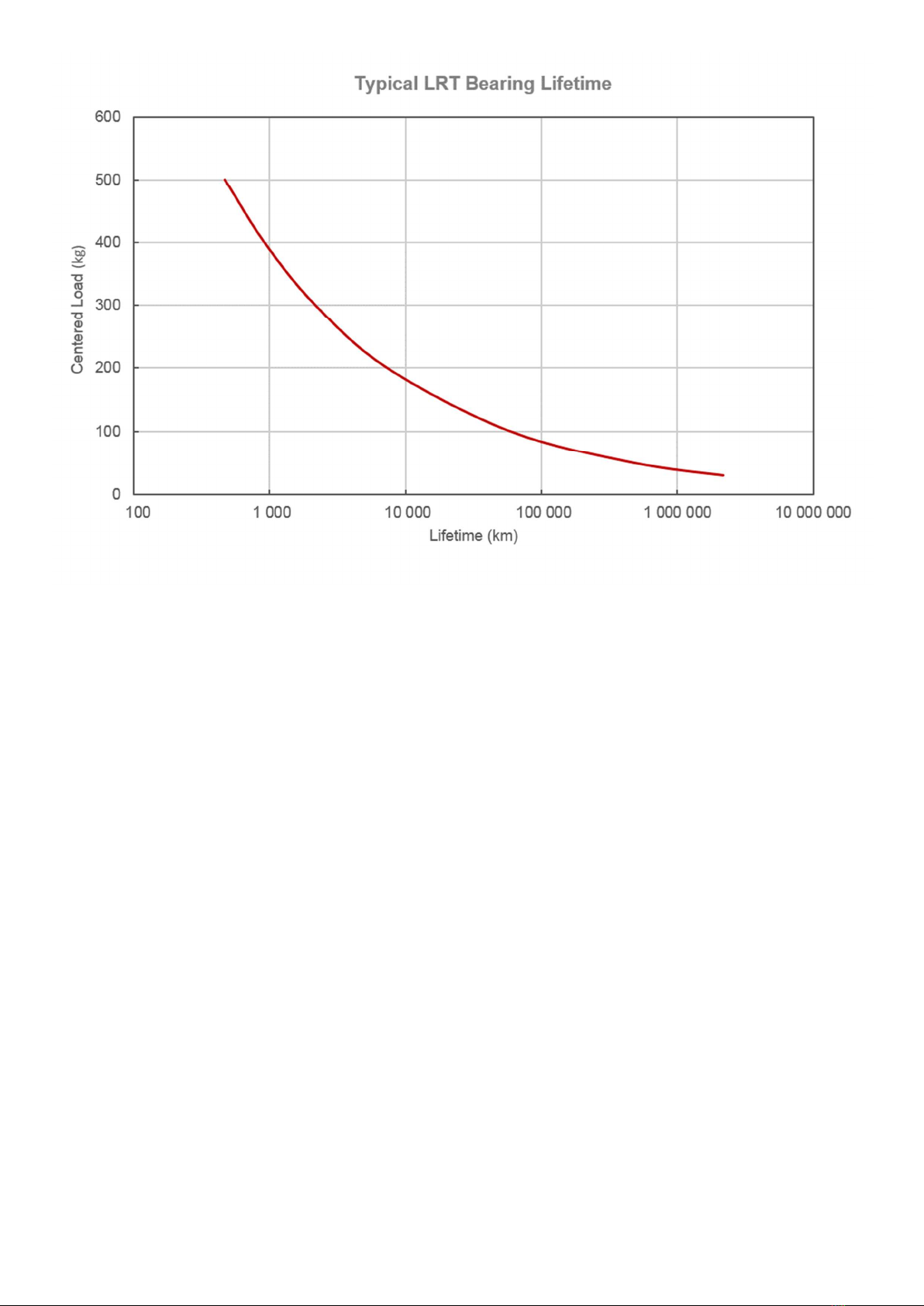

Charts and Notes

This product uses the FreeRTOS kernel. FreeRTOS is © 2021 Amazon.com, Inc. or its affiliates and is governed
by the following license:
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files
(the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so,
subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
This product uses the LZ4 compression library. LZ4 is © 2011–2016 Yann Collet and is governed by the following
license:
All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions
are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
