Zalip LOHASmart CDM530AM User manual

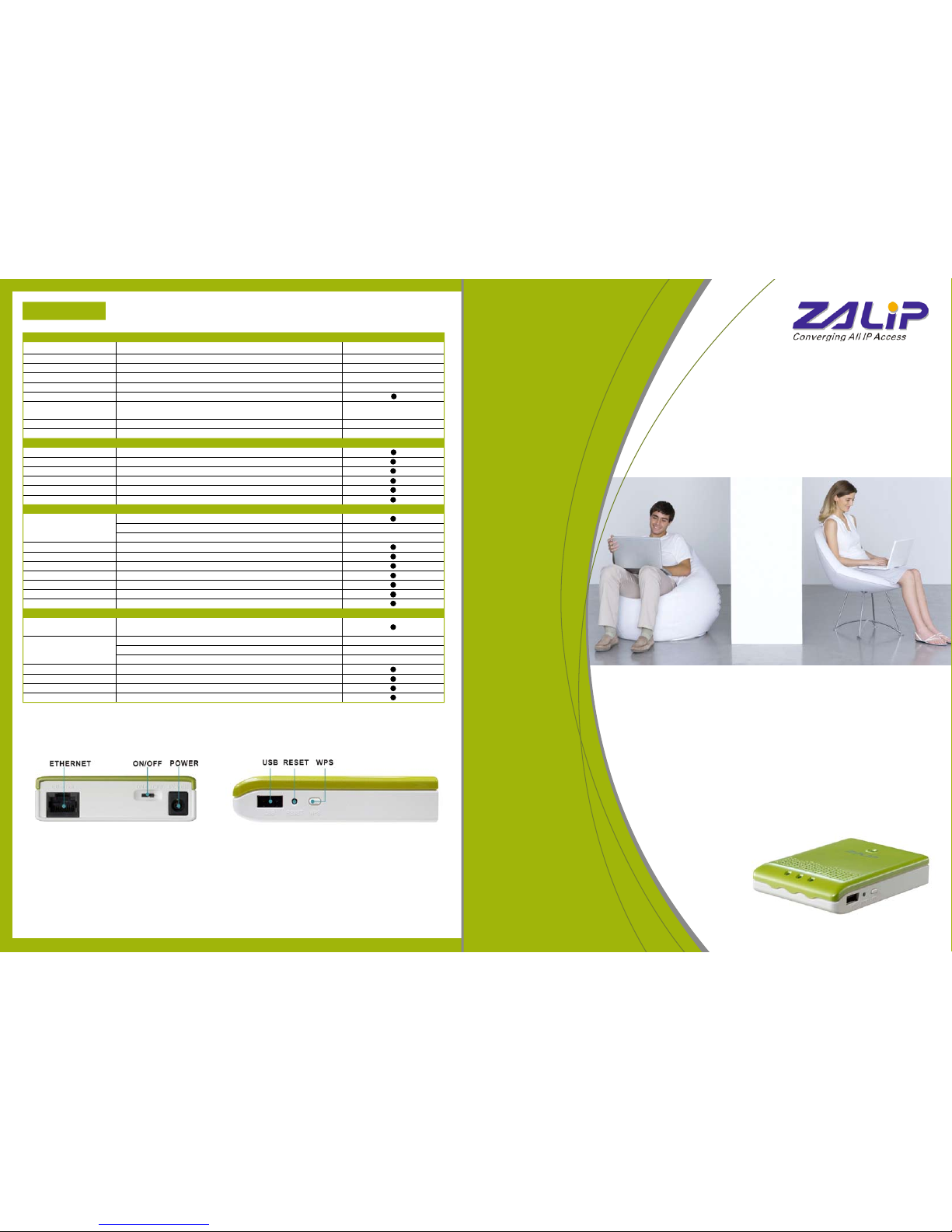

Specications
LOHASmart CDM V1.1
WiFi Mobile Gateway
Hardware & Port Conguration CDM530AM
Wireless WAN USB 2.0 for external 3G/3.75G modem 1
Ethernet WAN/LAN RJ-45 port, 10/100Mbps, WAN/LAN Congurable 1
Antenna PIFA internal antenna 1
WPS Button For WPS connection 1
Reset Button Reset router setting to factory default 1
LED Indication Power / Ethernet / USB / WiFi
Battery 3.7V / 1700mAh Li-ION battery
Compliant to NP120 form factor (35.3 x 52.8 x 11mm) 1
Power Switch Slide ON/OFF switch 1
Power Jack Power Jack, DC 5V/2A 1
Wireless LAN (WiFi)
Standard IEEE 802.11n-lite compliance
SSID SSID broadcast or in stealth mode
Channel Auto-selection, manually
Security WEP, WPA-PSK, WPA2-PSK
WPS WPS (Wi-Fi Protected Setup)
WMM WMM (Wi-Fi Multimedia)
Functionality
Wireless WAN
PPP (for WCDMA/HSPA)
PPPoE (for iBurst) (Optional)
DHCP Client (for Flash-OFDM/WM Phone) (Optional)
Ethernet WAN PPPoE, DHCP client, Static IP, PPTP, L2TP
WAN Connection Auto-reconnect, dial-on-demand, manually
One-to-Many NAT Virtual server, special application, DMZ
SPI Firewall IP/Service lter, URL blocking, MAC control
DoS Protection DoS (Deny of Service) detection and protection
Management SNMP, UPnP IGD, syslog
Administration Web-based UI, remote login, backup/restore setting
Environment & Certication
Package Content CDM530AM, DC 5V/2A power adapter, Quick Installation Guide, CD
Manual
Package Information
Device dimension (mm) 107 x 76 x 21
Package dimension (mm) TBD
Package weight (g) TBD
Operation Temp. Temp.: 0~40oC, Humidity 10%~90% non-condensing
Storage Temp. Temp.: -10~70oC, Humidity: 0~95% non-condensing
CE, FCC CE/FCC compliance
RoHS RoHS compliance
*Specications are subject to change without prior notice.
Advance Multimedia Internet Technology Inc.
Tel: [phone] Fax: [phone]
Web: http://www.zalip.com.tw For ODM biz: [email protected] For Channel biz: [email protected]
No.28, Lane 31, Sec.1, Huandung Rd., Tainan Science Park, Sinshih Township, Tainan county 741, Taiwan (R.O.C.)

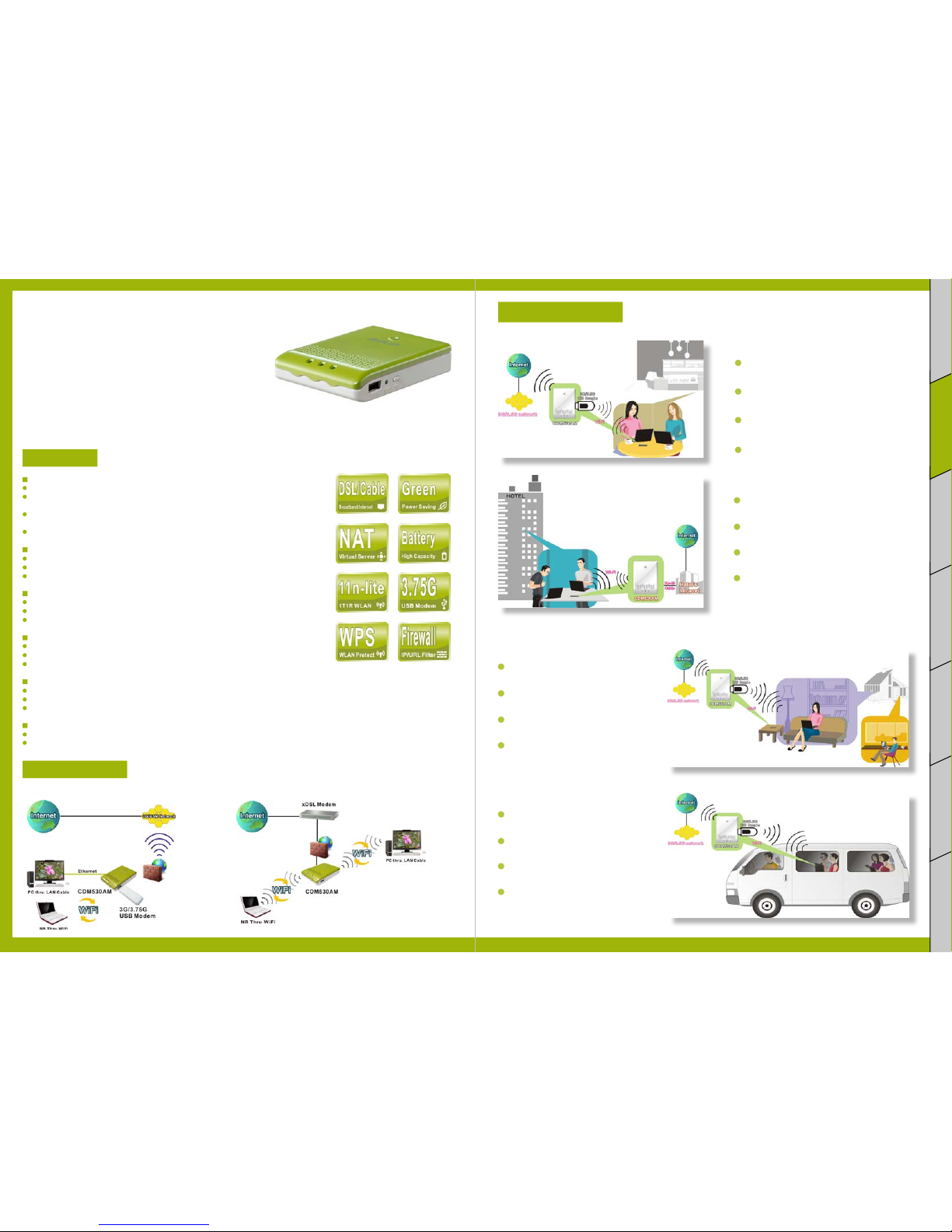

CDM530AM
LOHASmart

CDE CDM CDW MAA CDD CDG CTG
CDM530AM is a portable Wireless 802.11n-lite HSPA travel router. With
attaching USB 3G/3.75G data card, you can connect to Internet anywhere
without hard-wired effort. Besides mobile broadband access, CDM530AM
also provides a physical Ethernet port either for LAN or WAN for variety
of WAN connection types, such as PPPoE, static IP, dynamic IP (DHCP
client), PPTP, and L2TP. In addition, with its high capacity 1700mAh
Li-ION battery, you don’t need to worry about power supply problem
anymore.
In order to protect local computers, CDM530AM supports robust SPI
firewall and flexible filter rules for your requirements. You can easily
change settings by web-based UI, and backup or restore conguration if
required.
Main Feature
Mobile Broadband Gateway with Combo WAN Connection
Built-in NAT function for many PCs or devices to share one IP Internet access
Support various WAN connection types, such as dynamic IP, static IP, PPPoE,
PPTP, and L2TP
One USB for cellular modem Internet WAN connection, such as HSxPA, EVDO,
and TD-SCDMA
One congurable RJ45 for ADSL/cable modem Internet WAN connection or LAN
Industrial Compliant Wireless LAN & LAN
10/100M Ethernet LAN, Compliant with IEEE 802.3 and 802.3u standards
1x1 802.11n-lite wireless LAN, and max. physical data rate up to 150Mbps
Backward compatible to IEEE 802.11b/g standards
Secure Network Connection
Establish secured Wireless Connection via WPS function
Support WEP, WPA-PSK / WPA2-PSK Wireless Security
Support NAT rewall features, with SPI function to protect against DoS attacks
Advanced Networking Function for Specic Application
Support multiple sessions IPSec, L2TP and PPTP VPN pass-through
Support virtual server, ALG, DMZ and UPnP for various networking applications
Support QoS mechanism for efciently prioritizing the various type of trafcs
Easy to Install & Management
Web based UI management and EzSetup installation wizard
Intelligent EzSetup installation wizard with auto WAN detection
Easy rmware upgrade, and save/restore settings to ash memory by Web UI
Great Mobility to Use Everywhere
Compact design with only pocket size, easy to carry everywhere
Built in battery to be used in any place, even without power plug
User Scenario & Benets
Application Diagram
Surf Internet via 3G/3.75G Surf Internet via xDSL Modem
Surng Internet via 3.75G network when public
Wi-Fi Hotspot or xDSL is not available
Sharing Internet connection with friends or
colleagues easily
Built-in 1700mAh Li-ION battery, no external
power supply is required
Compact design for easy carry
Surng Internet In Public Areas
Connecting to xDSL or other xed-line broadband
network that is provided by hotel
Sharing Internet connection with friends or
colleagues easily
Built-in 1700mAh Li-ION battery, no external
power supply is required
Compact design for easy carry
Surng Internet via Fxed-line Broadband
Surfing Internet via 3.75G network or fixed-
line xDSL/cable broadband at home
Sharing Internet connection with friends or
families
Built-in 1700mAh Li-ION battery, no external
power supply is required
Compact design, so you can move it to any
room easily
Personal Wi-Fi Hotspot
Provide Internet access service on the move
for passengers
Co-wok with other GPS device, location data
can be sent back to control center instantly
Built-in 1700mAh Li-ION battery, no external
power supply is required
Compact design, without complicated
installation in advance
Personal Wi-Fi Hotspot
