Zamel Extra Free RZB-02 User manual

RZB-02 WIRELESS CONTROL SET
- LIGHTING WITH DIMMING FUNCTION MANUAL INSTRUCTION
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. [phone], fax [phone]
www.zamelcet.com, e-mail: [email protected]
VER. 003_20.05.2011

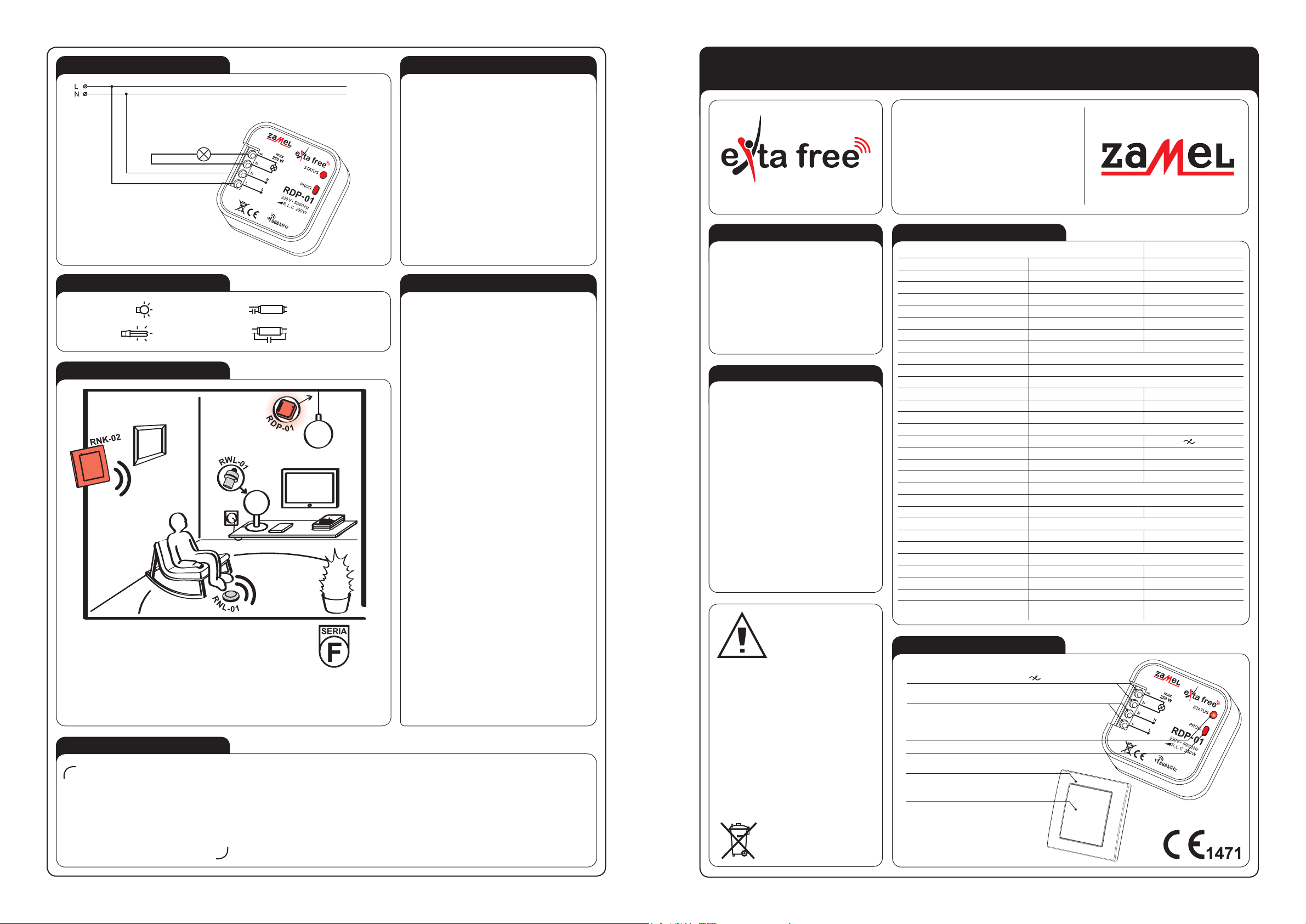

APPEARANCE
The device is designed for
single-phase installation and
must be installed in accord-
ance with standards valid in a
particular country. The device
should be connected accord-
ing to the details included in
this operating manual. Installation, connection
and control should be carried out by a qualied
electrician staff, who act in accordance with the
service manual and the device functions.
In case of casing dismantling an electric shock
may occur, and the guarantee is lost then. Before
installation make sure the connection cables are
not under voltage. The cruciform head screwdriv-
er 3,5 mm should be used to instal the device. Im-
proper transport, storage, and use of the device
inuence its wrong functioning. It is not advisable
to instal the device in the following cases: if any
device part is missing or the device is damaged
or deformed. In case of improper functioning of
the device contact the producer.
CAUTION!
FEATURES
TECHNICAL DATADESCRIPTION
● complete set of wireless control
(2–channel button radio transmitter
RNK-02 and 1-channel radio ash dim-
mer RDP-01),
● lighting operation control - switch on/
switch off, brightening and dimming,
● cooperation with light bulbs, uores-
cent lamps powered by electronic or
toroidal transformer,
● memory of luminous density level,
● wide range of operation (up to 180 m),
● operation is optically signalled,
● low current consumption, possibility of
constant work,
● possibility of widening operation range
by means of RTN-01 retransmitter.
RDP-01 dimmer cooperates with light
bulbs, compact uorescent lamps powe-
red by electronic or toroidal power supply
transformers. The device has different
functions: a traditional lighting dimmer
function, time control functions (staircase
time delay switch), comfort functions (me-
mory of adjusted luminous density level).
RNK-02 RDP-01
Input (supply) terminals: - L, N
Input rated voltage: 3 V DC (CR2032 battery) 230 V AC
Battery life: 3 ÷ 5 years -
Input voltage tolerance: - -15 ÷ +10 %
Nominal frequency: - 50 / 60 Hz
Nominal power consumption: - 0,5 W
Number of operation modes: - 5
Number of channels: 2 1
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Maximum number of transmitters: - 32
Range: up to 250 m in the open area up to 230 m in the open area
Time adjustment: - 1 sec ÷ 18 hours (every 1 sec.)
Optic signalling of transmitter’s operation: LED red diode
Receiver’s output clamps: - , N
Maximum output load: - 250 W
Number of terminal clamps: - 4
Section of connecting cables: - do 2,5 mm2
Ambient temperature range: -10 ÷ +55 oC
Operating position: free
Casing mounting:
wall plugs, double-sided adhesive tape installation cable box Ø60 mm
Casing protection degree: IP20 (EN 60529)
Protection level: III II
Overvoltage category: - II
Pollution degree: 2
Surge voltage: - 1 kV (EN 61000-4-5)
Dimensions: 90 x 80 x 11,5 mm 47,5 x 47,5 x 20 mm
Weight: 0,038 kg 0,040 kg
Reference standard: ETSI EN 300 220-1,
ETSI EN 300 220-2
EN 60669, EN 60950,
EN 61000
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
Optic signalling of receiver’s operation
Programming push-button
Receiver’s input (supply) terminals ( , N)
Input (supply) terminals (L, N)
Optic signalling of transmitter’s operation
Push-button
CONNECTION
APPLICATION
RDP-01 MOUNTING
1. Disconnect power supply by the phase fuse,
the circuit-breaker or the switch-disconnector
combined to the proper circuit.
2. Check if there is no voltage on connec-
tion cables by means of a special measure
equipment.
3. Connect the cables with the terminals in ac-
cordance with the installing diagram.
4. Install RDP-01 device in installation cable box.
5. Switch on the power supply from the mains.
RNK-02 FUNCTIONING, MOUNTING
By pressing the button, the transmitter sends a
signal with 868,32 MHz frequency which controls
EXTA FREE receivers. Device programming
procedure (adding a transmitter to a receiv-
er’s memory) is described in particular EXTA
FREE manual instructions. The device range (up
to 250 m depending on a receiver) can be in-
creased by means of a retransmitter or few RTN-
01 retransmitters. The device can be mounted in
any place by means of double-sided adhesive
tape or two wall plugs (5x(3x30) mm.
Mounting by means of wall plugs:
1. Remove the button - to do it press the button
on one side, and on the other side put a screw-
driver into a slot and lift up the button.
2. Find a place on the wall to mount the transmit-
ter, make two holes corresponding mounting
holes from the transmitter’s base.
3. Set wall plugs in the holes.
4. Fix the base by means of screwing screws into
wall plugs.
5. Place the button again.
BATTERY CHANGE
Battery discharge status is signalled by sev-
eral LED red diode ashes during transmis-
sion time.
1. Remove the button (as in point 1 of mounting).
2. By means of a screwdriver lever up the printed-
circuit board releasing the bottom latch (Fig. 2),
and remove it from the base.
3. Remove the battery from the latch.
4. Mount a new battery. Watch battery polari-
sation marked on the latch. Wrong battery
mounting may cause device damage.
5. Put the removed printed-circuit board back in
the base.
6. Put back the button.
CAUTION:
While changing the battery, it is suggested to
press any of the buttons for about 5 seconds
before putting it into a latch. Next press trans-
mission button several times to check its op-
eration. If the transmitter does not work prop-
erly repeat the battery change procedure.
Radio ush dimmer RDP-01 operates as
a receiver of 2-channel button radio
transmitter RNK-02 (switch on/switch off
control, lighting source brightening/dimming).
The above mentioned transmitters
can also control operation of radio lighting
switch RWL-01.
CAPACITY
250W
250W
250W
250W
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL provides a two-year warranty for its products.
2. The ZAMEL warranty does not cover: a) mechanical defects resulting from transport, loading / unloading or other circumstances
b) defects resulting from incorrect installation or operation of ZAMEL products; c) defects resulting from any changes made by CUS-
TOMERS or third parties, to products sold or equipment necessary for the correct operation of products sold; d) defects resulting
from force majeure or other aleatory events for which ZAMEL is not liable; e) power supply (batteries) to be equipped with a device
in the moment of sale (if they appear);
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. ZAMEL will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of ZAMEL.
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy
between the goods and the contract.
Salesman stamp and signature, date of sale
The ZAMEL company
devices which are
characterised with this sign
can cooperate
with each other.

VER. 003_20.05.2011

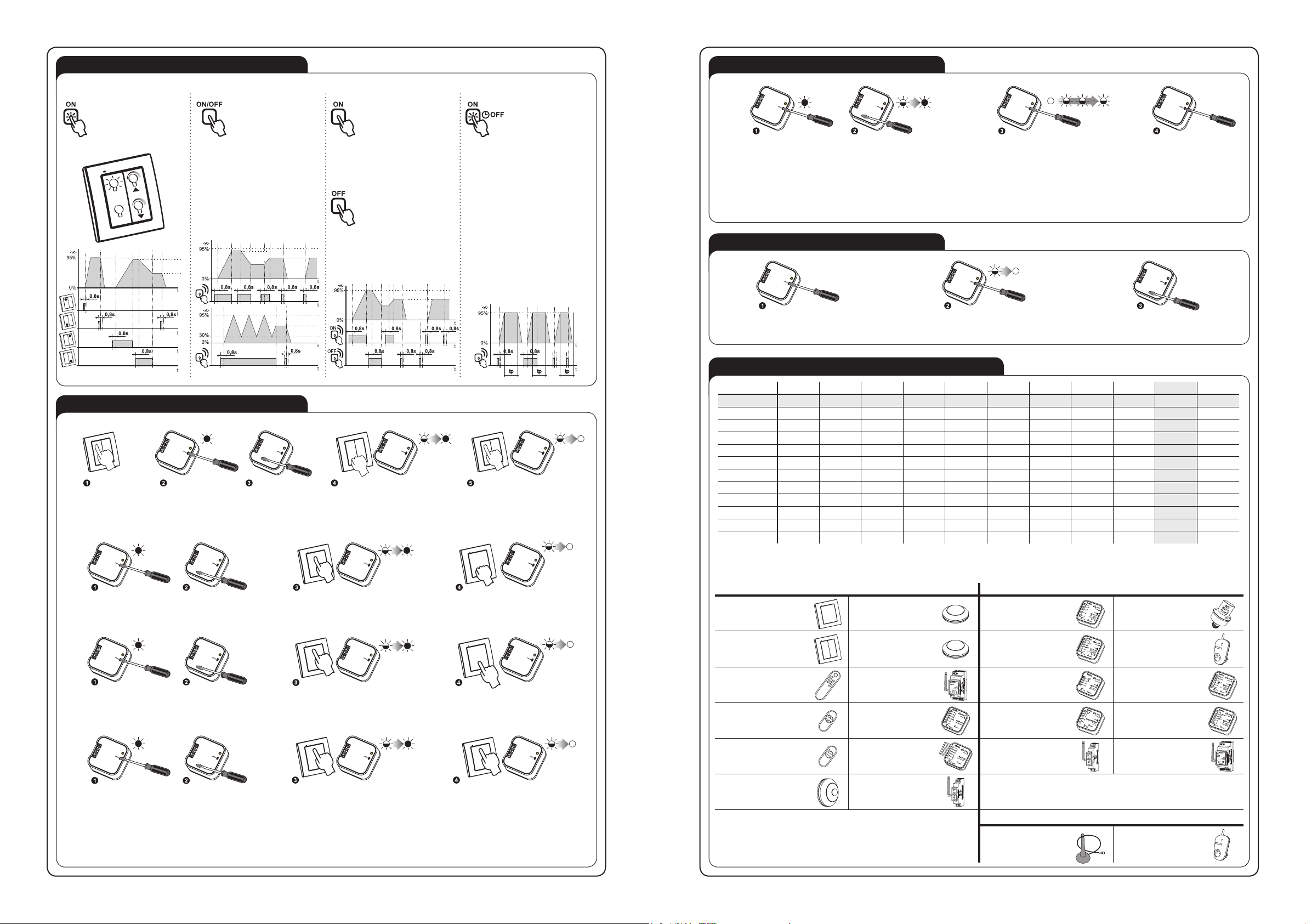

RDP-01 OPERATION
RDP-01 can operate in ve modes:
REMOTE CONTROLS PROGRAMMING
COMFORT
(Available only in coop-
eration with 4 push-button
transmitter). In this mode
the following two functions
are realised:
ONE PUSH-BUTTON
Pressing the programmed
push-button shortly (<0.8
sec.) causes the dimmer
to operate in the range
of switch on/switch off (to the last
adjustment of lighting luminous den-
sity level), however pressing the pro-
grammed push-button longer (>0.8
sec.) causes alternate lighting bright-
ening - dimming.
TWO PUSH-BUTTON
SWITCH ON push-button:
pressing the programmed
push-button shortly (<0.8
sec.) causes the lighting
switches on (the last adjustment of
lighting luminous density level), how-
ever pressing the programmed push-
button longer (>0.8 sec.) causes light-
ing brightening (to the maximum level).
SWITCH OFF push-button:
pressing the programmed
push-button shortly (<0.8
sec.) causes the light-
ing switches off, however
pressing the programmed push-but-
ton longer (>0.8 sec.) causes lighting
dimming (to the minimum level).
level memory
TIME
The device after press-
ing the push-button
switches on according
to the adjusted time
(tp), then it switches off
automatically. Another pressing of
the push-button during time count-
down causes the lighting is switched
off before adjusted time nishes.
Default settings - 15 seconds.
CAUTION! Adjusted time cannot
be deleted.
REMOTE CONTROLS DELETION
TIME PROGRAMMING
level
memory
COOPERATION AND OPERATING RANGE
Symbol ROP-01 ROP-02 ROB-01 SRP-02 SRP-03 RWG-01 RWL-01 ROM-01 ROM-10 RDP-01 RTN-01
RNK-02 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNK-04 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
P-256/8 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
P-257/4 (2) 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNM-10 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
RNP-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNP-02 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNL-01 160 m 180 m 180 m lack* lack* 200 m 160 m 200 m 200 m 160 m 200 m
RTN-01 200 m 200 m 200 m 200 m 200 m 250 m 200 m 250 m 250 m 200 m 250 m
RCR-01 160 m 180 m 180 m lack* lack* 200 m 160 m 200 m 200 m 160 m 200 m
RTI-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RXM-01 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
* - 1-channel transmitters do not cooperate with roller blind controllers.
CAUTION: The given range concerns open area - an ideal condition without any natural or articial obstacles. If there are some obstacles between a transmitter and a receiver,
it is advisable to decrease the range according to: wood and plaster: from 5 to 20 %, bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %, metal: from 90 to 100%,
glass: from 10 to 20 %, Over- and underground medium and high electrical power lines, radio and television transmitters, GSM transmitters set close to a device system have
also a negative inuence on the range.
level
memory
level
memory
level
memory
level
memory
level
memory
TRANSMITTERS RECEIVERS
RNK-02
2–channel button
radio transmitter
RNL-01
Radio
foot transmitter
ROP-01
1-channel
radio receiver
RWL-01
Radio lighting
switch
RNK-04
4-channel button
radio transmitter
RTI-01
IR/EXTA FREE
transceiver
ROP-02
2-channel
radio receiver
RWG-01
Remote control
socket
P-256/8
8-channel
remote controller
RNM-10
4-channel radio
modular transmitter
RDP-01
1-channel
radio dimmer
SRP-02
Radio roller blinds
controller
P-257/4
4-channel
remote controller
RNP-01
4-channel
radio transmitter
ROB-01/12-24V
Radio
gate controller
SRP-03
Central radio roller
blinds controller
P-257/2
2-channel
remote controller
RNP-02
4-channel
radio transmitter
ROM-01
1-channel radio
modular receiver
ROM-10
2-channel
radio modular receiver
RCR-01
Radio
motion sensor
RXM-01
Translator
RS-485/EXTA FREE
ACCESSORIES
ANT-01
External antenna
RTN-01
Retransmitter
Maximum time is 18 hours.
Press RNK-04
transmitter’s
push-button for
a longer time.
Press PROG push-button of RDP-01 device
for a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of RDP-01 device for
a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of RDP-01 device
for a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of RDP-01 device for
a longer time till LED red diode switches on
(constant signal). Next release PROG push-button.
Press the transmitter’s push-button
for a longer time. LED red diode switches
on (rst signal pulsates,
next the signal is constant).
Press and release transmitter’s rst
push-button. LED red diode switches on
(rst signal pulsates,
next the signal is constant).
Release transmitter’s push-
button. LED red diode switches
on (rst signal pulsates,
next the signal is constant).
Press the same transmitter’s push-
-button and release it. LED red diode
switches on (the signal pulsates) and
next it switches off -
THE TRANSMITTER IS ADDED.
COMFORT mode:
ONE PUSH-BUTTON mode:
SWITCH ON/SWITCH OFF mode (two push-buttons):
TIME mode (one push-button):
CAUTION: Every transmitter can cooperate with RDP-01 in a different mode, depending on how they were added to the device.
One transmitter can be added during one programming cycle. Full memory is signalled with pulsating LED red diode.
Press and release the second transmitter’s
push-button. LED red diode switches on
(the signal pulsates) and next it switches
off - THE TRANSMITTER IS ADDED.
Release transmitter’s push-button. LED red
diode switches on (the signal pulsates), next
the LED red diode switches off - it means
the TRANSMITTER IS ADDED.
Press and then release transmitter’s
push-button.LED red diode switches on
(rst signal pulsates,
next the signal is constant).
Press and release the same transmitter’s
push-button. LED red diode switches on
(signal pulsates) and then switches off -
THE TRANSMITTER IS ADDED.
After the adjusted time is
nished (the number of LED
red diode ashes) press
PROG push-button and then
release it - TIME IS ADDED.
Press PROG push-button of RDP-01
device and then release it. LED red diode
switches off and then switches on
(signal pulsates). Every LED diode pulse
equals 1 second.
Press PROG push-button of RDP-01 device for a longer time till
LED red diode switches on (constant signal). Next release PROG
push-button. Wait (for about 5 seconds) till LED red diode switches
on (rst signal pulsates, next the signal is constant).
Press PROG push-button of RDP-01
device for a longer time.
After 5 seconds LED red diode switches on
(signal pulsates) and then it switches off.
Release the push-button in RDP-01 -
MEMORY IS DELETED.
1s 2s ns
0%
95%
