Zanussi GAS COOKER ZCG 640 User manual

GAS
COOKER
ZCG 640
ZCG 641
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
GB

2
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need assistance,
contact our Customer Care Department on 08705 727727
Installation
• This appliance must be installed and serviced by a
competent person as stated in the Gas Safety (
Installation and Use) Regulations Current Editions
and the IEE Wiring Regulations.
• For appliances installed in the Republic of Ireland
please refer to NSAI-Domestic Gas Installations
I.S.813 Current Editions and the ETCI Rules for
Electrical Installations.
• This cooker is heavy. Take care when moving it.
• Remove all packaging before using the cooker.
• Ensure that the gas and electrical supply complies
with the type stated on the rating plate, located near
the gas supply pipe.
• Do not attempt to modify the cooker in any way.
Child Safety
• This cooker is designed to be operated by adults.
Do not allow children to play near or with the cooker.
• The cooker gets hot when it is in use. Children should
be kept away until it has cooled.
• Children can also injure themselves by pulling pans
or pots off the cooker.
During Use
• This cooker is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
• When in use a gas cooker will produce heat and
moisture in the room in which it has been installed.
Ensure there is a continuous air supply, keeping air
vents in good condition or installing a cooker hood
with a venting hose.
• When using the cooker for a long period of time,
the ventilation should be improved, by opening a
window or increasing the extractor speed.
• Do not use this cooker if it is in contact with water.
Do not operate the cooker with wet hands.
• Ensure the control knobs are in the ‘OFF’ position
when not in use.
• During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the cooker.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
• Unstable or misshapen pans should not be used on
the hob burners as unstable pans can cause an
accident by tipping or spillage.
• Never leave the cooker unattended when cooking
with oil and fats.
• This cooker should be kept clean at all times. A
build-up of fats or foodstuffs could result in a fire.
• Never use plastic dishes in the oven or on the hob
burners. Never line any part of the oven with
aluminium foil.
• Always ensure that the oven vent which is located
at the centre back of the hob is left unobstructed to
ensure ventilation of the oven cavity.
• Perishable food, plastic items and areosols may be
affected by heat and should not be stored above
the cooker.
Service
• This cooker should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
• After installation, please dispose of the packaging
with due regard to safety and the environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable.
This appliance is manufactured according to
the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC -
89/336 EEC - 90/396 EEC,
current edition.
These instructions are only valid in the
countries whose symbols appear on this
booklet's cover.

3
Contents
For the User For the Installer
Important Safety Information 2
Control Panel 4
The Gas Hob Controls 5
The Gas Oven and Electric Grill Control 5
Before the First Use of the Cooker 6
Using the Oven 6
The Minute Minder 7
Using the Gas oven 7
Gas Oven Cooking Chart 8
Grilling 9
Maintenance and Cleaning 10
Cleaning the Oven 10
Something Not Working 12
Service and Spare Parts 12
Customer Care 13
Guarantee Conditions 13
Important Safety Requirements 14
Instructions for the Installer 14
Installation 15
Electrical Connections 17
Commissioning 18
Conversion from Natural to LPG Gas 18
Guide to Use the Instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information


4

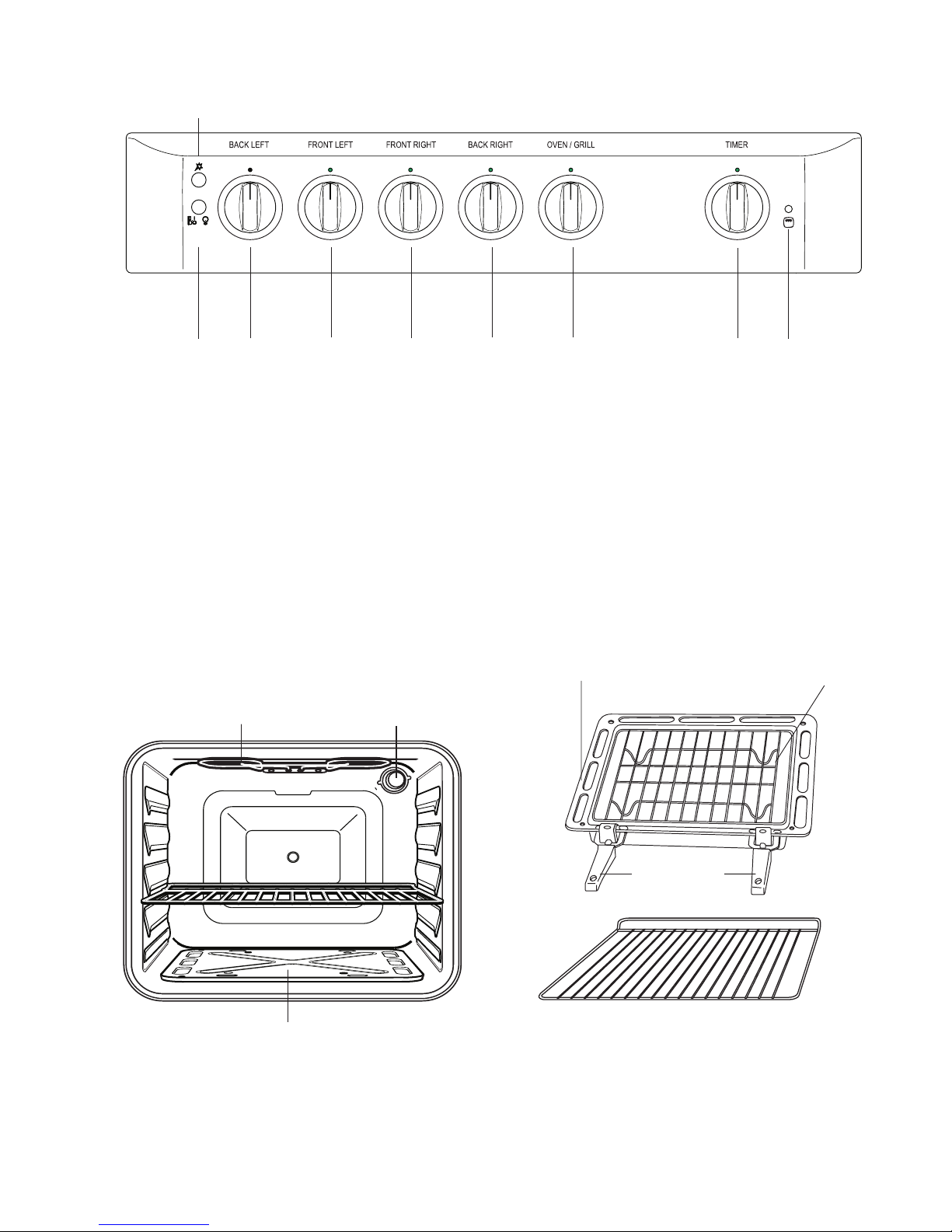

Control Panel
The Oven Cavity
Electric Grill Oven Light
1. Electric ignition button
2. Oven Light button
3. Back left burner control knob (semi-rapid)
4. Front left burner control knob (rapid)
5. Front right burner control knob (auxiliary)
6. Back right burner control knob (semi-rapid)
7. Gas Oven and Electric Grill control knob
8. Minute Minder
9. Grill function Pilot Light
76543 9 28
1
Accessories
Grill trivet
Grill/roasting pan
Removable
handles
2 anti-tip
shelves
Gas Oven
Bottom
Plate

5

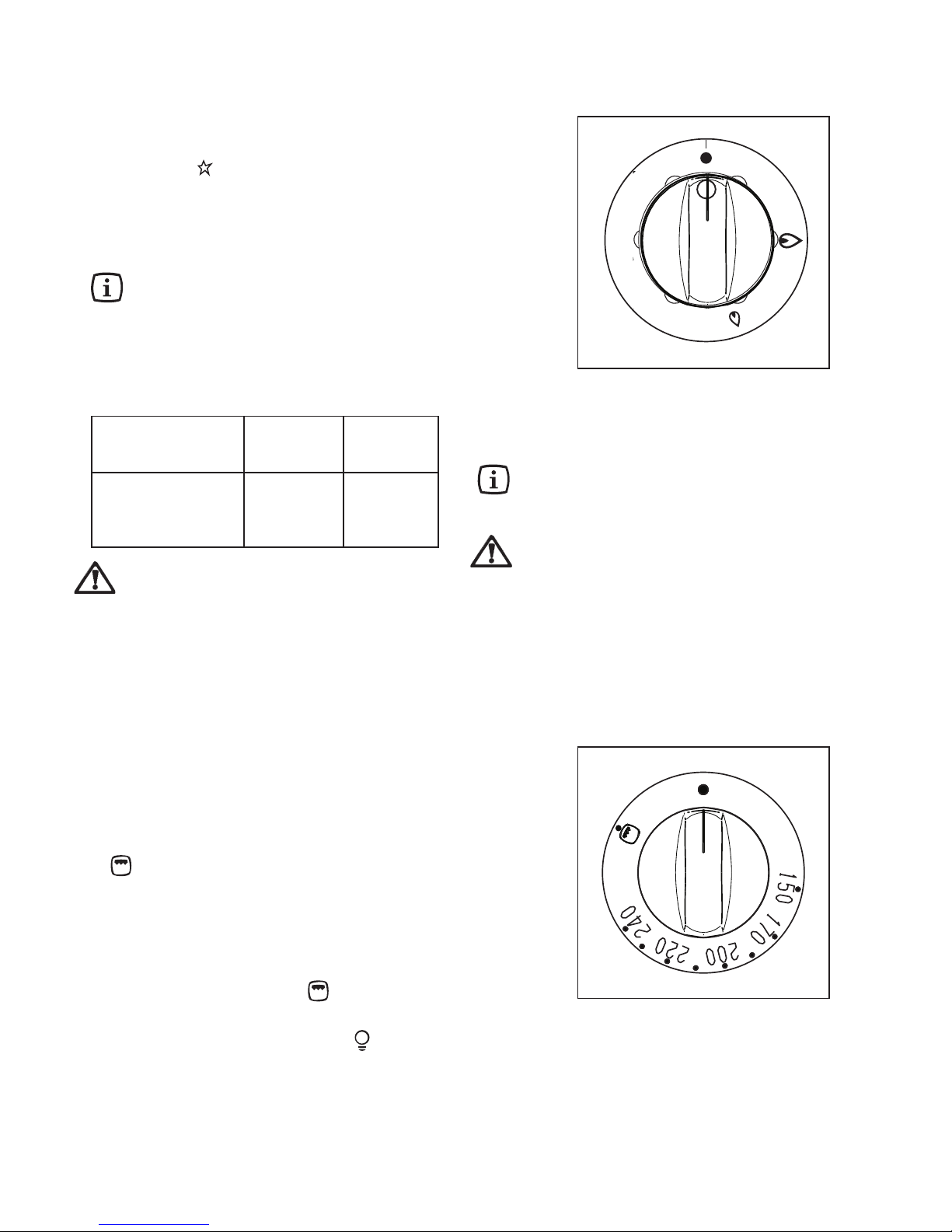

The Gas Hob Controls
To light a burner:
- Push the electric ignition button which is marked with
a little spark ( ).
- At the same time push in and turn the relevant control
knob anticlockwise to maximum position.
- Then adjust the flame as required.
If the burner does not ignite, turn the control knob to
zero, and try again.
When switching on the mains, after installation or
a power cut, it is quite normal for the spark
generator to be activated automatically.
To ensure maximum burner efficiency, you should only
use pots and pans with a flat bottom fitting the size of
the burner used (see table).
Burner minimum maximum
diameter diameter
Large (rapid) 180 mm. 260 mm.
Medium(semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
If you use a saucepan which is smaller than the
recommended size, the flame will spread beyond
the bottom of the pan, causing the handle to
overheat.
Oven Function Control Knob
Oven switched off
150-240150-240
150-240150-240
150-240 Range of temperature regulation for gas
oven
Grill - The heat comes only from the top
element
Grill function pilot light
The grill function pilot light will come on when the oven
function control knob is turned to .
Oven light push button
This button will turn the oven light on.
Gas Oven and Electric Grill Control

As soon as a liquid starts boiling, turn down the
flame so that it will barely keep the liquid
simmering.
Take care when frying food in hot oil or fat, as
the overheated splashes could easily ignite.
If the control knobs become difficult to turn,
please contact your local Service Force Centre.

6
Always cook with the oven door closed.
Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the
door using the door handle, until it is fully
open.
The oven has four shelf levels, and is supplied with
two shelves.
The shelf positions are counted from the bottom
of the oven as shown in the diagram.
It is important that these shelves are correctly
positioned.
Do not place cookware directly on the oven
base.
Using the Oven
Before the First Use of the Cooker
Remove all packaging, both inside and outside
the cooker, before using it.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Ignite the gas oven burner and set the gas oven
control knob to "240".
2. Open a window for ventilation.
3. Allow the oven to run empty for approximately 45
minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
Do not clean the oven while it is still warm.
4
2
1
3
The minute minder will mark the end of a timed period
with an acoustic alarm. The maximum timing is 60
minutes.
Turn the Minute Minder knob clockwise to the maximum
time position, then turn it back to the required time.
The Minute minder will not affect in any way the oven
operation, if it is in use.
The Minute Minder

7
Cookware
• Use any oven proof cookware which will withstand
temperatures of 250°C.
• Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back
of the oven, or placed on the oven base.
• Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation of
heat and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
AAluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and base browning.
BEnamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase cooking
and base browning.
To ignite the oven gas burner:
1. Open the oven door.
2. Push the electric ignition button which is marked
with a little spark ( ).
3. At the same time press the oven control knob and
turn it anti-clockwise until the maximum
temperature ("240") is reached.
4. Firmly press the oven control knob for
approximately 5 seconds, until the safety valve
automatically keeps the oven burner lit.
5. Release the control knob and then gently close the
oven door. To adjust the temperature, turn the knob
to the required setting after a few minutes.
If the oven burner accidentally goes out, turn
the oven knob to "" and wait at least 1
minute before trying to light the burner
again.
Using the Gas oven
Oven safety device
The cooker features a thermocouple; if for any reason
the flame should extinguish, the device will stop the gas
flow.

Condensation and Steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
Storage Drawer
The storage drawer is located underneath the oven
cavity.
During cooking the storage drawer may become
hot if the oven is on high for a long period of time,
thereforeflammablematerialssuchasovengloves,
tea towels, plastic aprons etc. should not be
stored in the drawer.
Oven accessories such as baking sheets, will also
become hot, therefore care should be taken when
removing these items from the drawer whilst the
oven is in use or still hot.
Hints and Tips

8
SHELF COOKING
POSITION TIME
PUDDINGS
Milk puddings 170 2 1½ - 2 hours
Baked sponge pudding 210 2 45-60 minutes
Baked custard 190 2 50-60 minutes
CAKES
Rich Fruit Cake 170 3 2¼ hours
Christmas Cake 170 3 3½ - 4½ hours
Victoria Sandwich 210 2 or 3 20-30 minutes
Madeira Cake 210 2 or 3 1 hour
Small Cakes 225 3 15-25 minutes
Plate tart 240 2 50 minutes
Fruit pie 240 2 50 minutes
Mince pies 225 2 or 3 15-25 mins
Profiteroles 210 2 25 minutes
YEAST MIXTURES
Bread
1lb Loaves max 2 or 3 30-40 minutes
Bread
2lb Loaves max 2 or 3 30-40 minutes
Rolls and Buns max 2 or 3 10-20 minutes
ROASTING MEAT
Beef 225 2 or 3 20-30 minutes per lb / 1/2Kg
Lamb 225 2 or 3 25-30 minutes per lb / 1/2Kg
Pork and veal 225 2 or 3 30-35 minutes per lb / 1/2Kg
Chicken 225 2 or 3 20 minutes per lb / 1/2Kg
Turkey 210 2 or 3 15-25 minutes per lb / 1/2Kg
Duck and duckling 225 2 or 3 25 minutes per lb / 1/2Kg
Stuffed poultry 225 2 or 3 25 minutes per lb / 1/2Kg
TEMPERATURES
°C
FOOD
Gas Oven Cooking Chart
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal requirements.

9
Grilling
Grilling must be carried out with the oven door
closed. The grill pan handles must be removed
from the pan.
How to Use the Grill
1. Turn the oven control function knob to .
The grill pilot light will come on.
2. Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking.
Preheat the grill for a few minutes before sealing steaks
or toasting. Adjust the shelf level as necessary, during
cooking.
Hints and Tips
- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air and to lift
the food out of the fats and juices. Food such as
fish, liver and kidneys may be placed directly on
the grill pan, if preferred
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking
- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling meats
- When toasting bread, we suggest that the top runner
position is used.
- The food should be turned over during cooking, as
required.
Type of food Mins per side
Bacon rashers 2 - 5
Chicken joints 15 - 20
Gammon rashers 5 - 8
Lamb chops 6 - 12
Pork chops 10 - 15
Sausages (turning as required) 10 - 12
Steaks (average thickness) Rare 3 - 6
Medium 6 - 10
Well done 8 - 12
Toast 1 - 11/2
Cooking chart
Cooking time depends on the thickness of the meat and
not on its weight.
OI
L


10
Cleaning materials
Before using any cleaning materials on your oven, check
that they are suitable and that their use is recommended
by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door and door
seal using a soft cloth well wrung out in warm water to
which a little washing up liquid has been added.
To prevent damaging or weakening the door glass
panels avoid the use of the following:
• Household detergent and bleaches
• Impregnated pads unsuitable for non-stick
saucepans
• Brillo/Ajax pads or steel wool pads
• Chemical oven pads or aerosols
• Rust removers
• Bath/Sink stain removers
The Hob Top
The hob is best cleaned whilst it is still warm, as spillage
can be removed more easily than if it is left to cool.
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up liquid
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob Brite
or Bar Keepers Friend is used.
The Pan Support
The pan support is dishwasher proof. If washing it by
hand, take care when drying it as the enamelling process
occasionally leaves rough edges. If necessary, remove
stubborn stains using a paste cleaner.
Maintenance and Cleaning
Cleaning the Oven
The Burners
The burner caps and crowns can be removed for cleaning.
Wash the burner caps and crowns using hot soapy
water, and remove marks with a mild paste cleaner. A well
moistened soap impregnated steel wool pad can be used
with caution, if the marks are particularly difficult to
remove.
After cleaning, be sure to wipe dry with a soft cloth.
Before any maintenance or cleaning can be
carried out, you must DISCONNECT the cooker
from the electricity supply.
This appliance cannot be cleaned with steam or
with a steam cleaning machine.
The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially
in the grill pan.
Clean the outer and inner door glass using warm soapy
water. Should the inner door glass become heavily soiled
it is recommended that a cleaning product such as Hob
Brite, or Bar Keepers Friend is used.
DO NOT clean the oven door while the glass panels
are warm. If this precaution is not observed the
glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened and
must be replaced to prevent the possibility of the
panel shattering. Contact your local Service Force
Centre who will be pleased to advise further.
A) Burner Cap
B) Burner Crown
C) Spark Electrode

11
Oven Shelves
To clean the oven shelves, soak in warm soapy water
and remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft cloth.
Oven Cavity
The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
Replacing the Oven Light
Disconnect the appliance from the electricity
supply.
If the oven bulb needs replacing, it must comply with
the following specifications:
- Electric power: 25W,
- Electric rate: 230V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14.
These bulbs are available from your local Service Force
Centre.
To replace the faulty bulb:
1. Ensure the oven is disconnected from the electrical
supply.
2. Turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace it with the new
one.
4. Refit the glass cover.
5. Reconnect to the electrical supply.


12
If the appliance is not working correctly, please carry out the following checks, before contacting your local Service
Force Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,
a charge will be made even if the appliance is under guarantee.
SYMPTOM
There is no spark when lighting the gas
The gas ring burns unevenly
 The oven does not come on
The oven light does not come on
The timer does not work
It takes too long to finish the dishes, or they are
cooked too fast.
Steam and condensation settle on the food and
the oven cavity.
SOLUTION
Check that the unit is plugged in and the electrical
supply is switched on
Check that the RCCB has not tripped (if fitted)
Check the mains fuse has not blown
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
Check the main jet is not blocked and the burner
crown is clear of food particles.
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
Check a cooking function / temperature have
been selected.
Check the socket switch or the switch from the
mains supply to the oven is ON.
Check the light bulb, and replace it if necessary
(see "Replacing the Oven light")
Check the instructions for the timer.
The temperature may need adjusting
Refer to the contents of this booklet, especially to
the chapter “Using the Oven”.
Leave dishes inside the oven no longer than 15-20
minutes after the cooking is completed.
Something Not Working

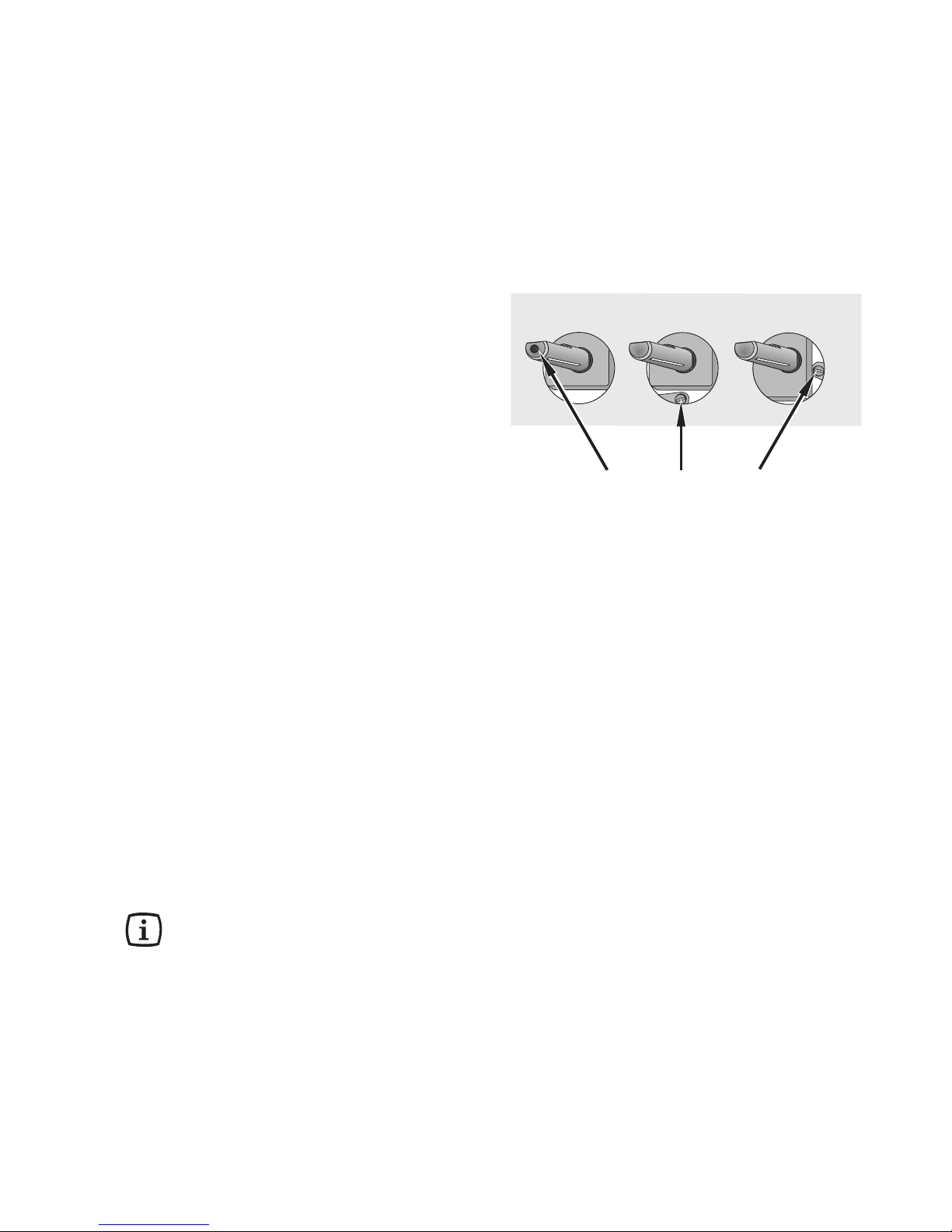

Service and Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working.”
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or
guarantee documentation is required for in-
guarantee service calls.
For Customer Service in the Republic of Ireland please
contact us at the address below:
Zanussi-Electrolux
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: [phone]
Email: [email protected]

13
Zanussi guarantee conditions
We, Zanussi, undertake that if, within 12 months of the
date of the purchase, this Zanussi appliance or any part
thereof is proved to be defective by any reason only of
faulty workmanship or materials, we will, at our option,
repair or replace the same FREE OF ANY CHARGE for
labour, materials or carriage on condition that:
* The appliance has been correctly installed and used
only on the gas and electricity supply stated on the
rating plate.
* The appliance has been used for normal domestic
purpose only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any person
not authorised by us.
* All service work under this guarantee must be
undertaken by a Zanussi Service Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday.Visits may be available outside these
hours, in which case a premium will be charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside European Community (EC) or European Free
Trade Area.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Zanussi manufacture which are not
marketed by Zanussi.
European Guarantee
If you should move to another country within Europe then
your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the same
extent for labour and parts as exist in the new country
of use for this brand or range of products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance with
our instructions and is only used domestically, i.e. a
normal household
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest Customer
Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after
you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
For general enquiries concerning your Zanussi appliance
or for further information on Zanussi products, please
contact our Customer Care Department by letter or
telephone at the address below or visit our website at
www.zanussi.co.uk
Customer Care Department
Zanussi-Electrolux
Cornwall House
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 727727 (*)
* calls to this number may be recorded for training purposes.
Customer Care Department
Guarantee Conditions

14
Hob
Rear left burner (semi-rapid) 2000 W
Front left burner (rapid) 3000 W
Rear right burner (semi-rapid) 2000 W
Front right burner (auxiliary) 1000 W
Oven
Electric Grill 1650 W
Gas Oven burner 2700 W
Oven light 25 W
Total Electric Rating 1675 W
Supply voltage (50 Hz) 230 V
Technical Data
Appliance Class 2 sub class 1 and Class 1
APPLIANCE CATEGORY : II2H3+
APPLIANCE GAS SUPPLY: Natural Gas G20 20mbar
Dimensions
Height 900 mm
Depth 600 mm
Width 600 mm
Oven Capacity 56 litres / 1.97 Cu. ft
BURNER RAPID SEMI-RAPID AUXILIARY OVEN
(large) (medium) (small)
POSITION MAX MIN MAX MIN MAX MIN MAX MIN
NOMINAL THERMAL
POWER (kW) 3.0 0.65 2.0 0.45 1.0 0.33 2.7 1.0
NOMINAL FLOW
RATE (m3/h) 0.286 0.062 0.190 0.043 0.095 0.031 0.257 0.095
NOZZLEREFERENCE 119 Adjust. 96 Adjust. 70 Adjust. 114 Adjust.
1/100 mm
NOMINALTHERMAL
POWER (kW) 2.8 0.65 2.0 0.45 1.0 0.33 2.7 1.0
NOMINAL FLOW
RATE (g/h) 202 47 144 32 72 24 195 72
NOZZLE REFERENCE 86 40 71 32 50 28 83 52
1/100 mm
NATURAL
GAS
20 mbar
TYPE OF
GAS
CHARACTERISTICS
LPG GAS
28-30/37
mbar
Instructions for the Installer
Important Safety Requirements
This appliance must be installed in accordance with
the Gas Safety (Installation and Use) Regulations
(current addition) and the I.E.E. Wiring Regulations.
Detailed recommendations are contained in the
following British Standard Codes of Practice - B.S. 6172,
B.S. 5440: Part 2 and B.S. 6891: Current Editions.
For appliances installed in the Republic of Ireland please
refer to NSAI- Domestic Gas Installation I.S. 813
Current Editions and the ETCI Rules for Electrical
Installations.
Provision for Ventilation
The room containing the cooker should have an air
supply in accordance with B.S. 5440: Part 2: Current
Editions.
The following requirements for ventilation must be
met.
The cooker should not be installed in a bed sitting room
with a volume of less than 20m3, if it is installed in a room
of volume less 5m3an air vent of effective area of 110cm2
is required; if it is installed in a room of volume between
5m3and 10m3, an air vent of effective area 50cm2is
required, while if the volume exceeds 11m3 no air vent is
required. However, if the room has a door which opens
directly to the outside, no air vent is required even when
the volume is between 5m3and 11m3.
If there are other fuel burning appliances in the same
room, B.S. 5440: Part. 2: Current Editions should be
consulted to determine the requisite air vent
requirements.
For appliances installed in the Republic of Ireland
please refer to the NSAI- Domestic Gas Installation I.S.
813 Current Editions Table Four.
VALUE =
Hs 49.92 MJ/Kg
Ws 82.09 MJ/ m3
VALUE =
Hs 37.78 MJ/m3
Ws 50.72 MJ/ m3

15
115
780
420
A
B
C
D
E
Installation

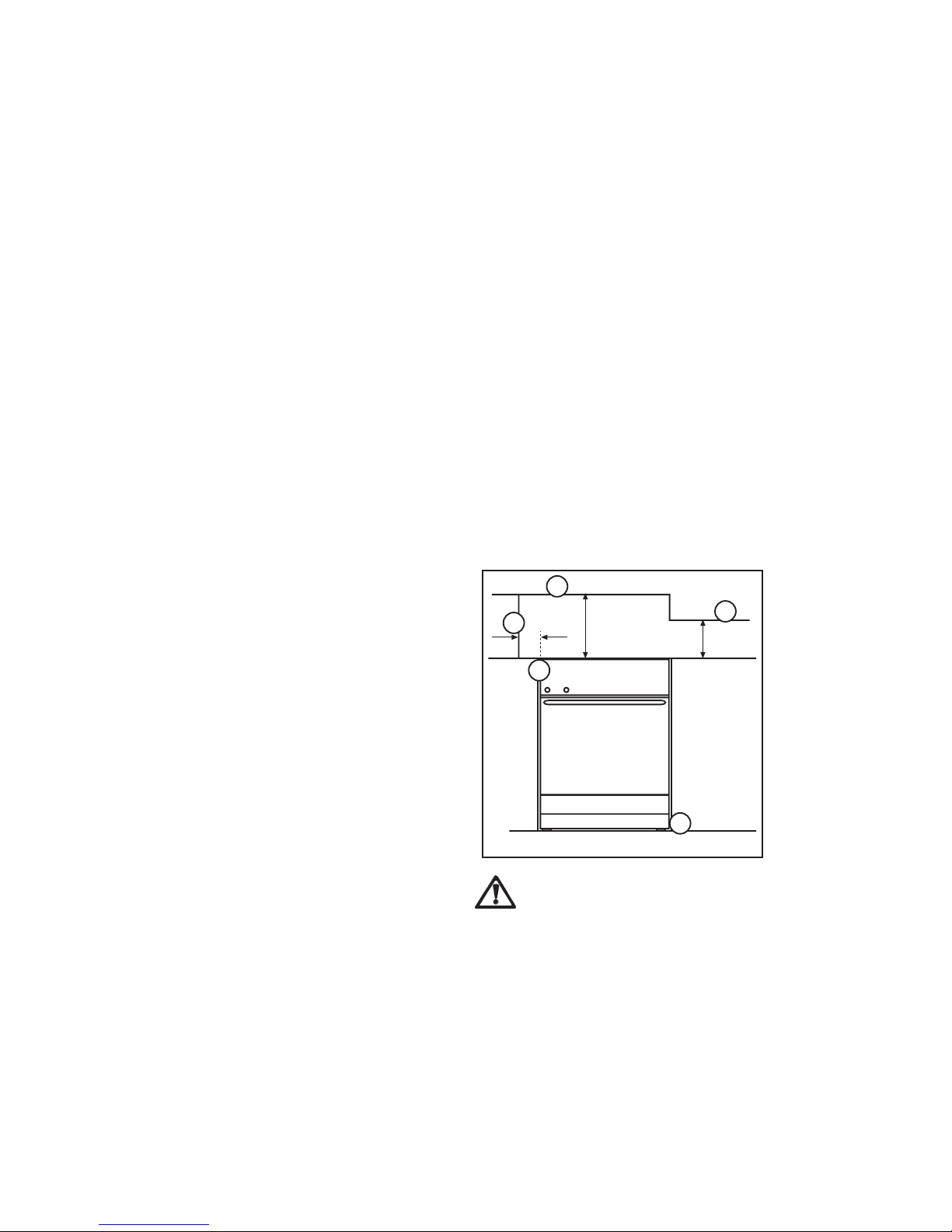

Fig. 1
1. Positioning the Appliance
(Fig. 1)
Note A: The appliance is designed to be flush fitted with
2mm clearance at each side to allow for it to be pulled
forward for cleaning etc.
Note B: The hotplate side trims should be flush with the
cabinets and must not be below. Adjustable levelling feet
at the front and rear are provided on the base of the
appliance. Adjustment is obtained by rotating in or out,
the feet at the front or rear of the appliance from the
underside of the appliance, with the drawer removed.
A spirit level should be placed on a cake tray on one of
the shelves to confirm that the appliance is correctly
levelled.
The levelling feet fitted to the appliance will achieve a
height to hotplate trims of 900mm-0 + 20mm.
Note C: If the appliance is fitted next to a side wall or
cabinets above height of the hotplate trims, then a gap
of 115 mm is required.
Curtains must not be fitted immediately behind the
cooker or within 115 mm of the sides of the cooker.
Note D: Any wall cabinet or extractor must not be lower
than 780mm above hotplate level.
Note E: Wall cabinets may be fitted in line with the sides
of the base units, providing that the lower edge of the
wall cabinet is a minimum of 420mm above the worktop.
This appliance cannot be positioned on a
base.
The appliance can not be installed beside or between
furniture units whose height exceeds the cooker
worktop.
This cooker must only be installed by qualified
personnel, according to the manufacturer’s instructions
and to the relevant British Standards.
FO 1141
Location of the appliance
This appliance must not be installed in a bed-sitting
room of volume less than 20m³ or in a bathroom, shower
room or garage. It is essential that the appliance is
positioned as stated below (see fig.1) i.e. shelves, wall
cabinets and cooker hoods must be fitted a minimum
of 787mm directly above the top of the hotplate and
400mm above the hotplate when fitted in line with the
outside of the appliance. If the units are intended to be
fitted adjacent to the appliance but less than 400mm
above the hotplate, then a minimum space of 100mm
must be maintained between the sides of the unit and
the appliance (see fig.). Curtains must not be fitted
immediately behind the appliance or within 150mm of
the sides of the hotplate. If fitted next to or between
two base units a minimum space of 1mm must be left
between each unit and the side of the appliance. The
levelling feet fitted to the appliance will achieve a
nominal height to hotplate trims of 900mm +20mm.
L.P.G. cookers MUST NOT be installed below ground
level, i.e. in a basement, or aboard any boat, yacht or
other vessel.
For appliances installed in the Republic of Ireland please
refer to NSAI- Domestic Gas Installation I.S 813 Current
Edition Section 7- Permitted Locations of Appliance.
Positioning the Cooker
Caution:
Some soft or badly fitted floor coverings can be
damaged when the cooker is moved across their
surface for cleaning. It is advisable to ensure that the
floor covering in the area below the cooker is either
securely fixed so as not to become damaged when the
cooker is moved or, if preferred, removed.

16
Fig. 3
Fitting the Stability Bracket
(Not supplied)
If the cooker has to be installed with a flexible supply
pipe, it is necessary that a stability device is fitted.
(See "Important Safety Requirements").
The stability bracket is to be fitted by the installer and
these instructions should be read in conjunction with
the leaflet packed with the stability bracket.
Place the cooker in its intended position and level
cooker.
Mark off 295mm (11 1/2") from the right hand side of the
cooker as shown, this is the centre line of the bracket
fixing.
Draw a line 100mm (4") from the front edge of the
levelling feet (see Fig. 2) and remove cooker from its
position. Mark off 480mm (19") back from this line on
the centre line of the bracket to locate the front edge of
the lower bracket.
Fix lower bracket (with two fixing holes) to the floor, then
measure height from floor level to engagement edge on
back of cooker, dimension 'A' of Fig. 2.
Assemble upper bracket to lower bracket so that
underside of bracket is dimension 'A' +3mm (1/8") above
floor level. Re-position cooker and check that top
bracket engages into cooker back to a depth of 75mm
(3"), as shown in Fig. 2.
Should the stability bracket currently installed not allow
the cooker to stand correctly, ask the installer to replace
it with the correct type.
Fig. 2
Connecting to Gas
This cooker is designed to be installed with an appliance
flexible connection. Connection is made to the RC 1/2
(1/2" B.S.P.) threaded entry pipe located just below the
hotplate level on the rear right-hand side of the cooker.
Check for gas soundness after connecting the gas
supply.
The gas bayonet connector must be fitted in the shaded
area indicated in the diagram. Take into account that it
must be possible to pull the cooker forward sufficiently.
The hose must not get caught on the stability bracket.
Note:
For certain types of gas bayonet connection used, it
may not be possible for the appliance to be pushed fully
back to the wall stops.
Important:
Flexible tubing MUST comply with BS.669 Current
Edition.
LEVELLING FEET
PENCIL LINE ON THE FLOOR
PLAN VIEW OF THE COOKER
580 mm.
100 mm.
300 mm.
295 mm.
WALL FACE
A
BACK OF COOKER
SIDE VIEW
OF THE COOKER
BASE OF COOKER
ENGAGEMENT EDGE FOR
STABILITY BRACKET
FO 0179
FO 0180
600
450
130

17
Electrical connections
Any electrical work required to install this cooker
should be carried out by a qualified electrician or
competent person, in accordance with the current
regulations.
THIS COOKER MUST BE EARTHED.
The manufacturer declines any liability should these safety
measures not be observed.
This cooker is designed to be connected to a 230V 50Hz
AC electrical supply.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the cooker
rating plate. The rating plate is located on the oven
frame.
The cooker is supplied with a 3 core flexible supply
cord incorporating a 13amp plug fitted. In the event of
having to change the fuse, a 13amp ASTA approved
(BS 1362) fuse must be used.
Should the plug need to be replaced for any reason,
the wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
— Connect the green and yellow (earth) wire to
the terminal in the plug which is marked with
the letter 'E' or the earth symbol or
coloured green and yellow. The earth wire
should be about 2 cm longer than the neutral
and live wires.
— Connect the blue (neutral) wire to the terminal
in the plug which is marked with the letter 'N'
or coloured black.
— Connect the brown (live) wire to the terminal
in the plug which is marked with the letter 'L'
or coloured red.
Upon completion there must be no cut, or stray strands
of wire present and the cord clamp must be secure
over the outer sheath.
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard. Ensure that
the cut off plug is disposed of safely.
Permanent Connection
In the case of a permanent connection, it is necessary
that you install a double pole switch between the cooker
and the electricity supply (mains), with a minimum gap
of 3 mm. between the switch contacts and of a type
suitable for the required load in compliance with the
current electric regulations.
The switch must not break the yellow and green earth
wire at any point. The earth wire should be about 2 cm
longer than the neutral and live wires.
Ensure that the cooker supply cable does not
come into contact with surfaces with
temperatures higher than 50 deg. C.
FO 0390
1


18
Conversion from Natural to LPG Gas
IMPORTANT
The replacement/conversion of the appliance
should only be undertaken by a registered engineer
or competent person.
It is important to note that this model is designed for
use with natural gas but can be converted for use with
butane or propane gas providing the correct injectors
are fitted. The gas rate is adjusted to suit.
The oven burner and the hob burners do not
need any primary air regulation.
Replacement of gas hob
burner nozzles
• Ensure that the gas taps are in the 'OFF' position
• Isolate the appliance from the electricity supply
• Remove all pan supports, burner caps, rings, crowns
and control knobs.
• With the aid of a 7mm box spanner, the burner
injectors can then be unscrewed and replaced by
the appropriate LPG injectors (see Technical Data).
Commissioning
When the hob has been fully installed it will be
necessary to check the minimum flame setting. To do
this, follow the procedure below.
- Turn the gas tap to the MAX position and ignite.
- Set the gas tap to the MIN flame position then turn
the control knob from MIN to MAX several times. If
the flame is unstable or is extinguished follow the
procedure below.
Procedure:
- Re-ignite the burner and set to MIN.
- Remove the control knob. According to the different
gas tap versions, the adjustment screw can be
located down the centre of the gas tap control shaft
or on the gas tap body itself (see diagram).
- To adjust, use a thin bladed screwdriver and turn
the adjustment screw until the flame is steady and
does not extinguish, when the knob is turned from
MIN to MAX. Repeat this procedure for all burners.
Pressure Testing
- Remove left hand pan support and front left burner
cap and crown.
- Fit manometer tube over the injector.
- Turn on the burner gas supply and ignite another
burner supply.
- The pressure reading should be nominally 20mbar
and must be between 17 mbar and 25mbar.
- Turn off the burner supplies.


Position of by-pass screw
(according to different gas
tap versions)
Minimum level adjustment
of gas hob burners
With the aid of a thin bladed screwdriver completely
tighten down the by pass adjustment screw. Upon
completion, stick the replacement gas type label on
the back plate of the appliance.

19

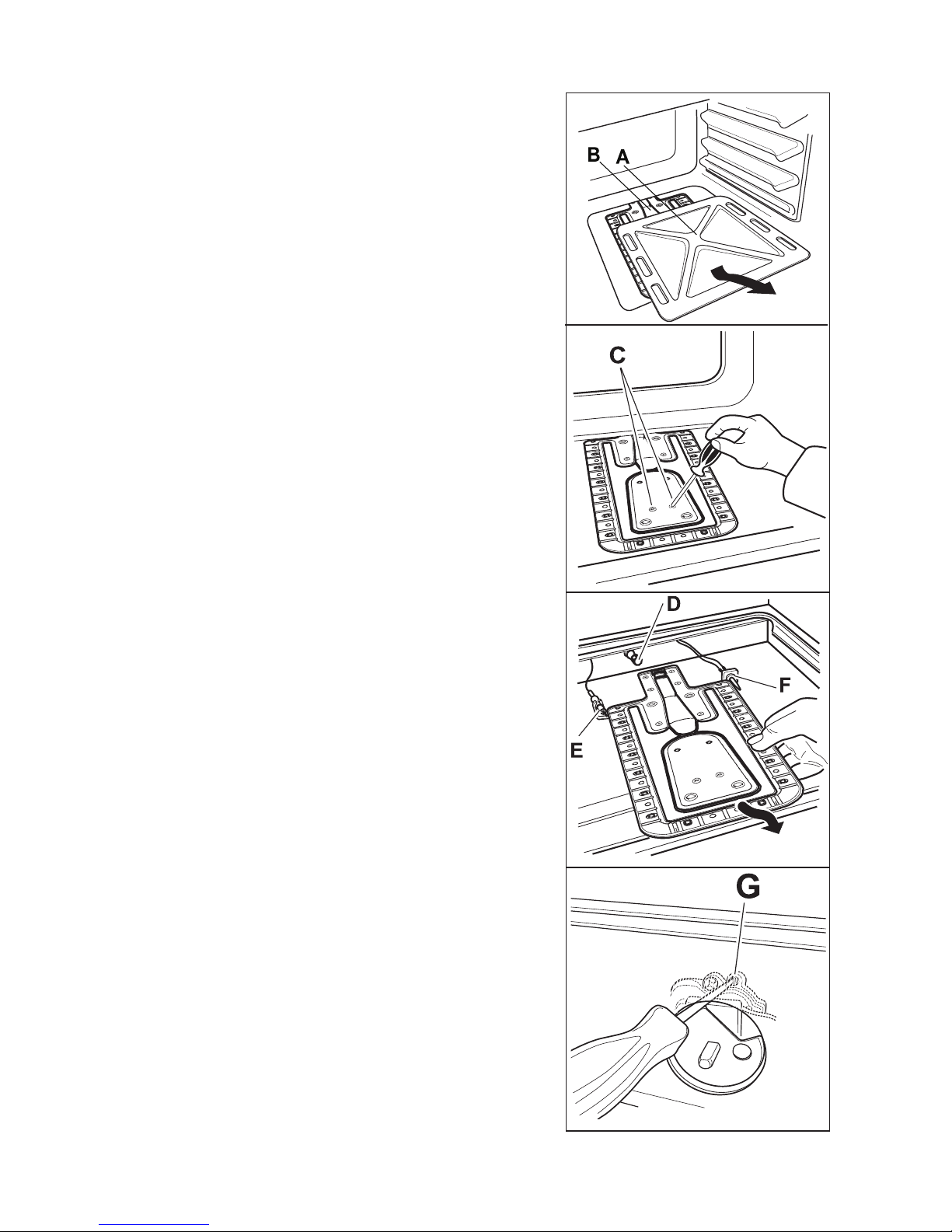

Replacement of gas oven
burner nozzle
To replace the gas oven nozzle, follow this procedure:
1. Remove the bottom plate of the oven cavity (“A”);
2. Undo the two fixing screws (“C”) which keep the
oven gas burner in place
3. Gently slide the oven gas burner off the injector
support (“D”) and slowly move it to the left hand
side, taking care not to cause stress to the spark
plug connection wire (“E”) and the thermocouple
(“F”) conductor;
3. With a socket spanner 7 unscrew and remove the
gas burner injector (“D”), and replace it with the
required one (see "Technical Data");
4. Reassemble the burner following the same proce-
dure in reverse.
5. Replace the Gas Type Sticker (it is located near the
gas connection ramp) with the one relevant to the
new gas type which is supplied with the injector kit.
Minimum level adjustment
of gas oven burner
After setting the oven on maximum temperature with
door closed for about 10 minutes, turn the knob to
minimum.
To reach the thermostat by-pass screw and adjust the
minimum level, act as follows:
– take out the gas oven control knob;
– in case of conversion from natural gas to LPG, tightly
screw the by-pass screw of thermostat (see diagram,
letter "G");
– to convert from LPG to natural gas, unscrew the
by-pass screw, until a regular small flame is reached.
– finally check that turning quickly the tap from
maximum position to minimum position, the flame
does not go out;
– reassemble the knobs.

Grafiche MDM - Forlì
35687-5441 06/04
CUSTOMER CARE
Zanussi-Electrolux
Cornwall House
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 727727 (*)
©Electrolux plc 2004
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than
55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and
lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
