Zanussi ZOU 332 User manual

Einbau-Herd
Built-under oven
ZOU 332
Bedienungs- und Einbauanweisungen
Instruction booklet

18
English
Warnings - Built-under oven
It is most important that the instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can be acquainted with the functioning of the appliance and the
relevant warnings. These warnings are provided in the interest of safety. You must read
them carefully before installing or using the appliance.
Installation
zAny installation work must be undertaken by
a qualified electrician or competent person.
zInstallation and initial adjustment of your oven
MUST be carried out by qualified personnel
in compliance with current regulations.
Specific installation instructions for the
installer are given in this booklet.
During use
zThis appliance has been designed for
cooking edible foodstuffs only, and must not
be used for any other purposes.
zAlways stand back from the oven when
opening the oven door during cooking or at
the end of it to allow any build up of steam
or heat to release.
zAppliances become very hot with use, and
retain their heat for a long period after use.
Care should be taken to avoid touching
heating elements inside the oven.
zIt is dangerous to alter the specifications or
modify the product in any way.
zAppliances become very hot with use, and
retain their heat for a long period after use.
zAlways ensure that the control knobs are in
the “off” position when not in use.
zFor hygiene and safety reasons, this
appliance should be kept clean at all times.
A build-up of fats or foodstuffs could result in
a fire.
zNever line any part of the oven with aluminium
foil.
zEasy clean-liners (if provided) should never
be cleaned with any other than soapy water.
zNever use steam or steam machines to
clean the appliance.
zBefore any maintenance or cleaning work is
carried out on the appliance, always turn off
the isolator switch at the cooker point, and
allow to cool.
zDuring oven cooking and grilling, the
appliance door and the surrounding parts
are warmed up to a very high temperature.
Be careful and keep children away from the
appliance while you are using it. When you
connect other appliances to a plug near the
oven, check carefully that the wire does not
touch warm parts of the oven and does not
get taken in the oven door.
zEnsure that the shelves are put in place in
the correct way.
zThis oven (even if it is linked to an electrical
cooking table) is made to function at 230 V
mono, double or three-phase with neutral.
zA polyphase linking without neutral (400 V)
can induce the distruction of the oven and of
the eventual cooking table.
Child safety
zThis appliance is designed to be operated
by adults. Children should not be allowed to
tamper with the controls or play with the
product.
zChildren should be supervised at all times
and should not be allowed to touch the hot
surfaces or be in the vicinity when in use or
until the appliance has cooled after use.

19
Guide to Use the
instructions
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
)
Once the oven has been installed:
a) set the thermostat knob to MAX;
b) allow the oven to run empty for
approximately 45 minutes;
c) open a window for ventilation.
During this time, an unpleasant odour may
be emitted. This is absolutely normal, and
is caused by residues of manufacturing.
Repeat this operation for the grill and fan
cookingfunction.
Once this operation is carried out, let the
oven cool down, then clean the oven cavity
with a soft cloth soaked in warm soapy
water.
Before cooking for the first time,
carefully wash the oven
accessories.
When the oven is first installed
)
MANUFACTURER:
ELECTROLUXHOMEPRODUCTSITALY S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)
Fig. 1

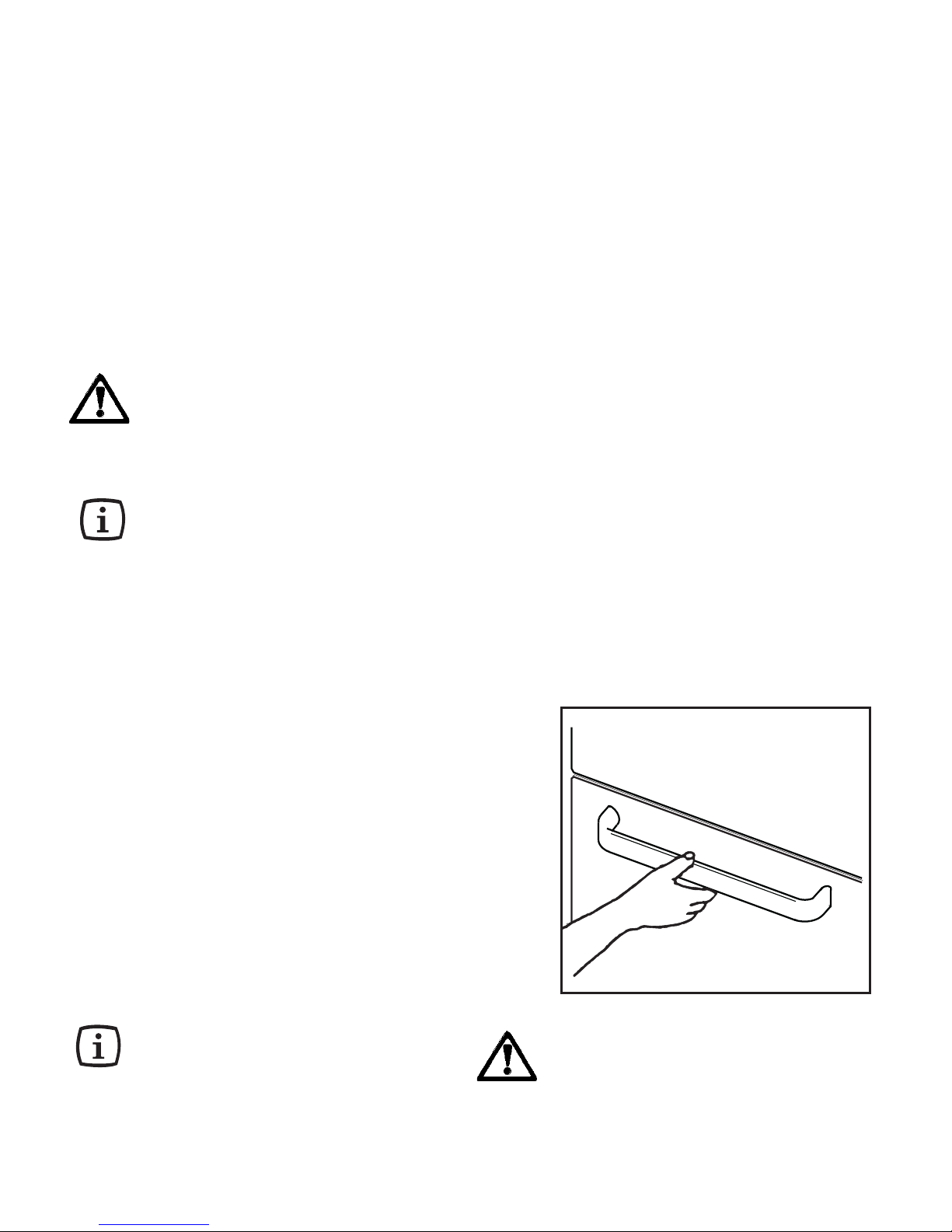

To open the oven door, always
catch the handle in its central part
(Fig. 1).
Technical assistance
zThis appliance should be serviced by an
authorized Network Service Centre, and only
genuine spare parts should be used.
zUnder no circumstances should you attempt
to repair the appliance yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning. Refer
to your local Service Centre. Always insist on
genuine spare parts.

20
Description of the appliance
1. Control panel
2. Control knob for front right cooking plate
3. Control knob for rear right cooking plate
4. Control knob for rear left cooking plate
5. Control knob for front left cooking plate
6. Oven Function control knob
7. Overall control light
8. Oven thermostat control light
9. Oven lamp
10.Rating plate
723456
1
9
8
10

21
Hints and tips for using
the oven
Oven function control knob
(Fig. 2)
It enables to select the most appropriate
type of heating for the different cooking
requirements by appropriately connecting
the heating elements and adjusting
temperature to the required level.
Meaning of the symbols:
Oven lamp
50-MAX Range of temperature regulation
for conventional cooking
Bottom heating element
Top heating element
Grilling
To select the temperature turn the switch in
a clockwise direction and place sign in front
of the symbol corresponding to the
temperature required, included between 50
and MAX.The temperature will be maintained
constant by the thermostat.
If a different type of heating is required, for
example more heat on the bottom or the top,
you should turn the switch to the symbols
(heat from below) or (heat from
above). In these conditions the temperature
will never exceed 230°C.
Grilling
— Turn the oven function knob to the
symbol .
Hotplate control knobs
The Control Knobs for the hotplates (Fig. 3)
can be found on the oven control panel. The
energy regulator of the hotplates can be set
by means of a 7-position control knob:
0=Off
1= Minimum
3= Maximum
Electric oven
Fig. 2 Fig. 3
0
1
2
3
The intermediate positions give an increasing
heating power.
Carefully supervise cookings with oil
or fats, since these types of food can
result in a fire, when over-heated.
Control lights
Oven thermostat control light: This light
goes off when the oven heats up to the
temperature set and comes on again every
time the thermostat cuts in to stabilize
temperature.
Operating control light: It indicates that
one or more of the heating elements are
turned on.
Always cook with the oven door
closed.
The oven is supplied with an exclusive system
which produces a natural circulation of air
and the constant recycling of steam.
This system makes it possible to cook in a
steamy environment and keep the dishes soft
inside and crusty outside. Moreover, the
cooking time and energy consumption are
reduced to a minimum. During cooking steam
may be produced which can be released when
opening the oven door. This is absolutely
normal.
However, always stand back from the
oven when opening the oven door during
cooking or at the end of it to allow any
build up of steam or heat to release.

22
Conventional cooking
Heat comes from the top and from the bottom,
therefore it is preferable to use the central
runners. If cooking requires more heat from
the top or from the bottom use the top or the
bottom runners.
Grilling
When grilling meat or fish, spread a little oil
onthem and always place them on the oven
grid. The shelf level depends on the
thinckness of the food.
Always place the dripping pan at the lowest
level, with some water in it, to avoid smoke
and unpleasant smells.
Some hints
For baking cakes
Cakes require a moderate temperature
(normally between 150 and 200°C). In addition,
the oven must be heated up beforehand - for
about 10 minutes.
The oven door should not be opened before at
least 3/4 of the set cooking time is up.
Normal short pastry dough should be cooked
in a mould or tin for 2/3 of total cooking time
required and then garnished as desired before
being cooked completely.
Clearly, the remaining cooking time depends
on the type of garnish used (jam, fruit, etc.).
Care should be taken to ensure that any dough
and cake mixes are of the right consistency
since an unduly moist mix lengthens cooking
time unnecessarily. The raw dough or mix
should therefore be fairly difficult to detach from
the spoon or beater.
For cooking meat and fish
Meat cooked in the oven should weigh at least
1 kg to prevent it from becoming too dry dur-
ing cooking. Very tender red meat to be cooked
rare, i.e. well cooked on the outside but
extremely juicy inside, requires
high-temperature cooking (200-220°C).
White meat, poultry and fish instead require
low-temperature cooking (150-175°C).
The ingredients for the accompanying sauce
or gravy should be put in the baking pan at the
very beginning only when cooking times are
short.Otherwise they should be added during
the last half hour. A simple way of checking
whether meat is done or not is to press it with
a spoon; if the meat does not yield under this
pressure it means that it is done to a turn. In
the case of roast beef and fillet steaks, the
inside of which should remain fairly pink in
color, cooking times must be short. The meat
can be cooked in a baking pan or else directly
on the shelf - in this case a dripping pan must
obviously be placed underneath the shelf to
collect the juice. Once the meat is cooked, it
is advisable to let it rest for at least 15 minutes
before carving so that the juice does not seep
out. To prevent the formation of too much
smoke in the oven during roasting, it is a good
idea to pour a little water into the dripping pan
and—to prevent steam—to add a little bit more
during cooking if the original amount dries up
too much.
Before serving, the various courses can be
kept hot in the oven which should be turned
down to the minimum temperature.
Hints and tips for using the oven

23
Cooking times
Cooking times vary according to the type of
food to be cooked, its consistency, and
volume.We suggest that you take particular
note of your first cooking experiments with the
oven, since operating in the same conditions
for the same dishes you will of course obtain
similar results.
Only experience will enable you to make the
appropriate changes to values given on charts.
Attention! - Do not place objects on
the bottom of the oven and do not cover
it with aluminium foil while cooking, as
this could cause a heat build-up which
would affect the baking results and
damage the oven enamel.Always place
pans, heat-resisting pans and
aluminium foils on the grid which has
been inserted in the oven shelves.
Becareful whenyouinsertandextract
the grid and the dripping pan from the
oven in order not to damage the
enamelledsurfacesoftheovencavity.
Cooking times in the table do not include pre-heating. We recommend to pre-heat the oven for
about 5 minutes before cooking.
Fillet steaks 4 800 3 max 12 ~ 15 12 ~ 14
Beef-steaks 4 600 3 max 10 ~ 12 6 ~ 8
Sausages 8 — 3 max 12 ~ 15 10 ~ 12
Pork chops 4 600 3 max 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 max 30 ~ 35 25 ~ 30
Kebabs 4 — 3 max 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 max 12 ~ 15 12 ~ 14
Hamburger 6 600 3 max 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 max 12 ~ 14 10 ~ 12
Sandwiches 4-6 — 3 max 5 ~ 7 —
Toast 4-6 — 3 max 2~4 2 ~ 3
Upper
side
°C
temp.
Pieces Weight
Quantity Cooking time
(minutes)
Lower
side
Grilling
TYPE OF DISH
Level
4
3
2
1
Grilling table

24
Roasting and baking table
Shelf Temperature Cooking time
Type of dish position °C in minutes
4
3
2
1
CAKES
Whipped up kneading 2 170 45 ~ 60
Shortbread dough 2 170 20 ~ 30
Butter-milk cheese cake 1 160 60 ~ 80
Apple cake 1 180 40 ~ 60
Strudel 2 175 60 ~ 80
Jam-tart 2 175 30 ~ 40
Fruit cake 1 175 45 ~ 60
Sponge cake 1 175 30 ~ 40
Christmas cake 1 170 40 ~ 60
Plum cake 1 170 50 ~ 60
Small cakes 2 175 25 ~ 35
Biscuits 2 160 20 ~ 30
Meringues 2 100 90 ~ 120
Buns 2 190 12 ~ 20
Pastry: Choux 2 200 15 ~ 25
BREAD AND PIZZA
1000 White bread 1 190 40 ~ 60
500 Rye bread 1 190 30 ~ 45
500 Bread rolls 2 200 20 ~ 35
250 Pizza 1 210 15 ~ 30
FLANS
Pasta flan 2 200 40 ~ 50
Vegetable flan 2 200 45 ~ 60
Quiches 1 200 35 ~ 45
Lasagne 2 180 45 ~ 60
Cannelloni 2 200 40 ~ 55
MEAT
1000 Beef 2 190 50 ~ 70
1200 Pork 2 180 100 ~ 130
1000 Veal 2 190 90 ~ 120
1500
English roast beef
1500 underdone 2 210 50 ~ 60
1500 done 2 210 60 ~ 70
1500 well done 2 210 70 ~ 80
2000 Shoulder of pork (with rind) 2 180 120 ~ 150
1200 Shin of pork 2 180 100 ~ 120
1200 Lamb 2 190 110 ~ 130
1000 Chicken 2 190 60 ~ 80
4000 Turkey 2 180 210 ~ 240
1500 Duck 2 175 120 ~ 150
3000 Goose 2 175 150 ~ 200
1200 Rabbit 2 190 60 ~ 80
1500 Hare 2 190 150 ~ 200
800 Pheasant 2 190 90 ~ 120
Meat loaf 2 180 40 ~ 60
FISH
1200 Trout/Sea bream 2 190 30 ~ 40
1500 Tuna fish/Salmon 2 190 25 ~ 35
Weight (gr.)
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures
to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating. We recommend,
especially when cooking cakes, pizza and bread, to pre-heat the oven for about 10 minutes before cooking.

25
Before any cleaning switch the
oven off and let it cool down. This
appliance cannot be cleaned with
steam or with a steam cleaning
machine.
Important! Before carrying out
maintenance and cleaning
operations, make sure that your
oven is disconnected from the
mains power supply.
Cleaning must be carried out after the oven
has cooled down. Wash the enamelled parts
with lukewarm water and detergent. Do not
use abrasive products, such as steel wool
pads, acids etc. since these could damage
the various surfaces. Rinse stainless steel
parts with water after use, and dry them with
a soft cloth or chamois leather.
In the case of persistent stains, you can
use normal non-abrasive detergents or
products specific for stainless steel readily
available on the market.Another alternative
is a drop of hot vinegar.
When cleaning the oven door with the glass
top cover use just hot water, taking care to
avoid using coarse cloths or abrasive
products.
The hot acids of fruit (e.g. Iemons, stewed
prunes, etc.) leave difficult-to-remove stains
on the enamelled surfaces; this inconvenient
may remove enamel gloss, but, it does not
impair oven operation.
Clean the oven thoroughly after use; in this
way it will be possible to remove cooking
residuals more easily, thus avoiding these
from burning the next time the oven is used.
Models in stainless steel or aluminium:
We recommend to clean the oven door using
only a wet sponge and dry it up after cleaning
with a soft cloth.
Never use steel wool, acids or abrasive
products as they can damage the oven
surface.
Cleaning and Maintenance
FO 0452
Fig. 4
Clean the oven control panel following the
same precautions.

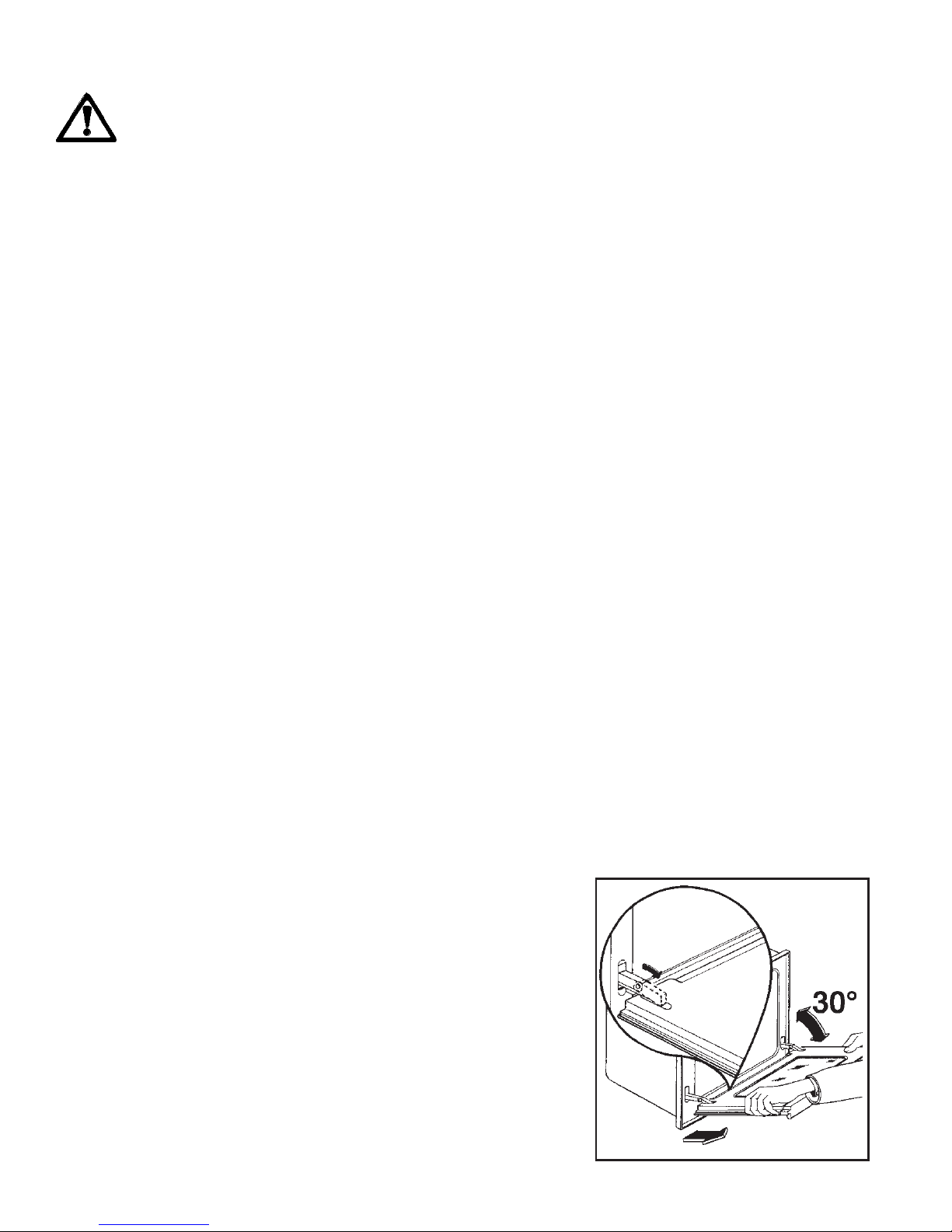

Oven door cleaning
For a better cleansing of the oven door, you
are suggested to remove it from the appliance
with the following procedure: open tho door
completely; lift the small levers placed on
the two hinges and turn the levers towarde
the inside (Fig. 4). Slowly close the oven
door, until it touches the two levers, then
push it towards the oven and remove it by
pulling it towards the outeide. Place the door
on a horizontal level. After cleaning,
assemble the door again by carrying out the
procedure described above backwards.
When the two small levers are placed again
on the hinges, the door will have been
accurately fit.

26
What happens if something goes wrong
If after the checks listed in the previous
chapter, the appliance still does not work
correctly, contact your local Service Centre,
specifying the type of malfunctioning, the
appliance model (Mod.), the product number
(Prod. No.) and the serial number (Ser. No.)

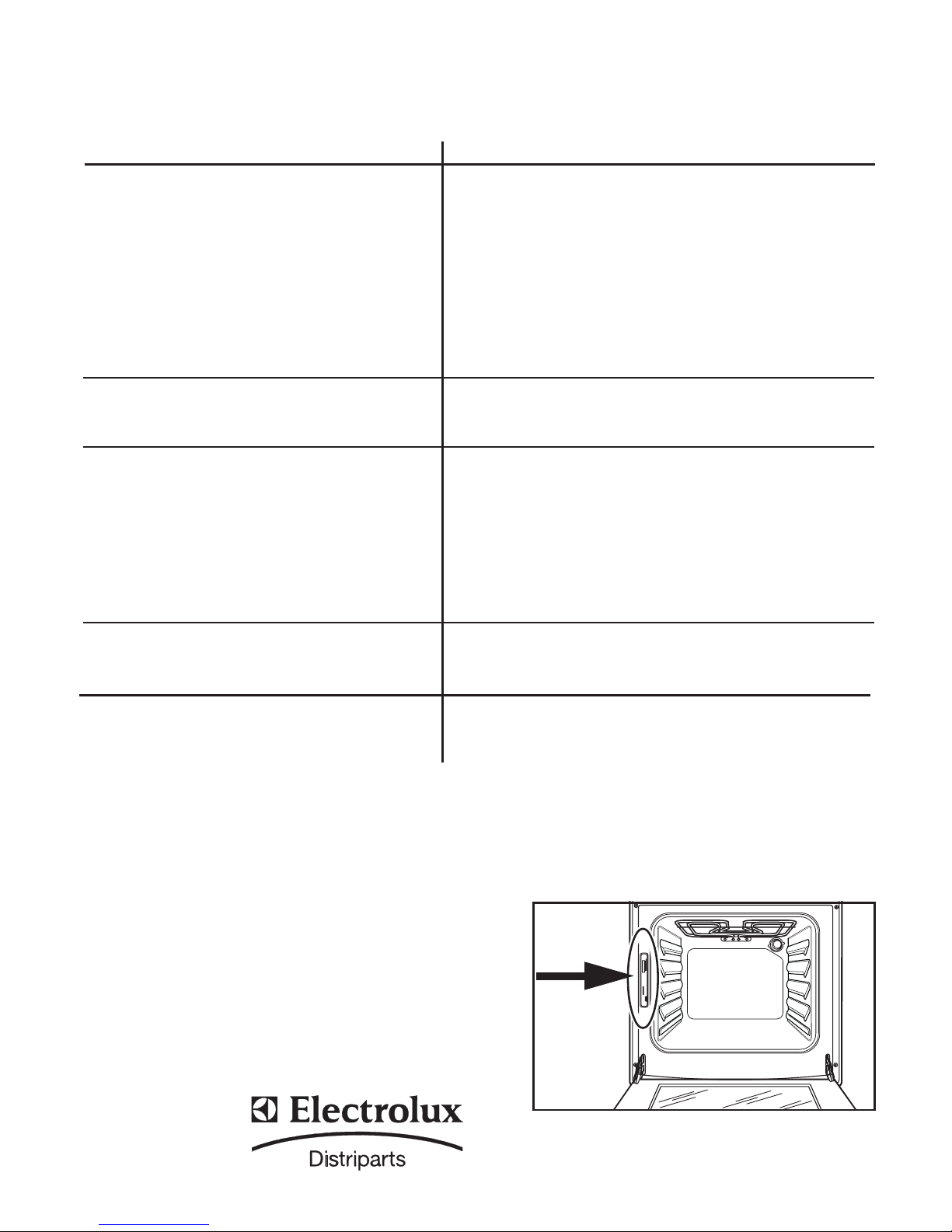

marked on the identification plate. This plate
is placed on the front external edge of the
oven cavity. Original spare parts, certified by
the product manufacturer and carrying this
symbol are only available at our
Service Centre
and authorized
spare parts
shops.
Service and Spare Parts
If the appliance is not working correctly, please carry out the following checks, before
contacting your local Service Centre.
SOLUTION
Check the oven is in manual operation and
that both a cooking function and a temperatu-
re have been selected.
or
Check the appliance is wired in properly, and
the socket switch or the switch from the
mains supply to the oven are ON.
Turn the oven function control knob on a
function.
Turn the oven function control knob on a
function.
or
Buy a new oven light bulb, asking for it to your
local Service Centre and replace it by following
the instruction provided in this booklet.
Refer to the contents of this booklet,
especially to the chapter "Electric oven".
Leave dishes inside the oven no longer than
15-20 minutes after the cooking is completed.
SYMPTOM
 The oven does not come on
 The oven temperature light does
not come on
 The oven light does not come on
 It takes too much time to finish the
dishes, or they are cooked too fast.
 Steam and condensation settle on
the food and the oven cavity.

27
Technical Data
This appliance complies with the
following E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336 (Electromagnetical Compatibility
Directive);
- 93/68 (General Directives)
and subsequent modifications.

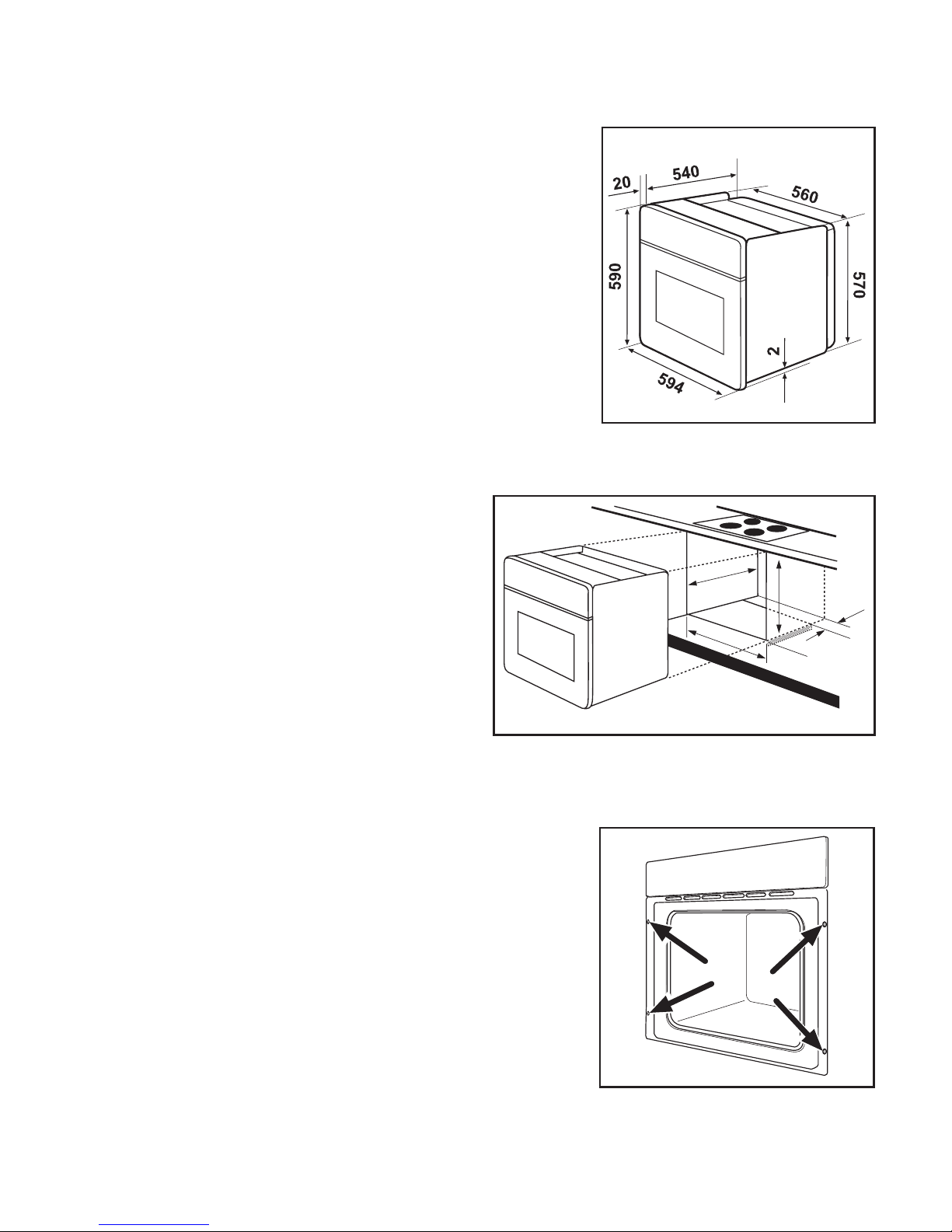

Dimension of the oven
recess
Height 593 mm
Width 560 mm
Depth 550 mm
Dimensions of the oven
cavity
Height 335 mm
Width 405 mm
Depth 410 mm
Capacity 56 l
Oven thermostat regulation: from 50 °C up
to 230 °C
Heating elements
Oven lamp 25 W
Top Heating Element 800 W
Bottom Heating Element 1000 W
Top + Bottom Heating Elements 1800 W
Grill Element 1650 W
Maximum Power absorbed: 1825 W
Operating Voltage (50 Hz) 230 V - 400 V
Fig. 5
Replacing the oven light
Disconnect the appliance from its power
supply point. Push in and unscrew the glass
cap (Fig. 5). Unscrew the light bulb and
replace it with a new heat-proof bulb (300
°C) having the following features: - Operative
tension: 230 V (50 Hz); - Power: 25 W; -
Fitting: E 14. Reconnect the appliance.
This appliance can be connected to
variuos ceramic hobs:
zz
zz
zCeramic hobs
Type: ZK 64
Maximum power absorbed 5,8 kW
Type: ZC 6675
Maximum power absorbed 5,8 kW
Type: ZC 6685
Maximum power absorbed 6,5 kW
Type: ZK 630
Maximum power absorbed 7,6 kW
Type: ZK 640
Maximum power absorbed 7,4 kW
Power supply voltage (50 Hz) 230 V
Nominal heating power
zz
zz
zOven with ceramic hob
7,625 kW - 8,325 kW - 9,225 kW -
9,425 kW

28
Instructions for the installer
The instructions given below are
designed specifically for a qualified
installer and should aid him or her to
perform all installation, adjustment,
and maintenance operations with
absolute precision and in compliance
with all current legislation and
regulations. We strongly recommend
that all operations for the installation
of your cooker be carryed out by
Qualified Personnel in accordance
with existing rules and regulations.
Electrical connection
Prior to making the electrical connection,
make sure that:
— the protection fuse and the domestic
wiring system are suitable to carry the
total electric load of the oven (see rating
plate);
— your domestic wiring system has an
efficient earth connection in compliance
with rules and laws in force;
— the wall socket or the omnipole switch
used for the electrical connection can
easily be reached after the oven is built
in.
This appliance is delivered without an
electric supply cable, therefore, you will have
to fit to it a supply cable with standard plug,
suitable for the total electric load shown on
the rating plate. The plug is to be inserted
into a suitable wall socket. If you require a
direct connection to the electric network
(mains), it will be necessary to fit between
the appliance and the mains an omnipole
switch, with a minimum gap between
contacts of 3 mm, suitable for the required
load and in compliance with rules in force.
The green & yellow ground wire must not be
interrupted by the switch and it should be 2-
3 cm longer than the other cables. The
supply cable must in all cases be laid out in
such a way as to ensure that it does not
reach at any given point a temperature 50
°C higher than the ambient temperature.
Suitable power supply cables are the
following types, considering the respective
necessary section of cable: H07 RN-F, H05
RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F.

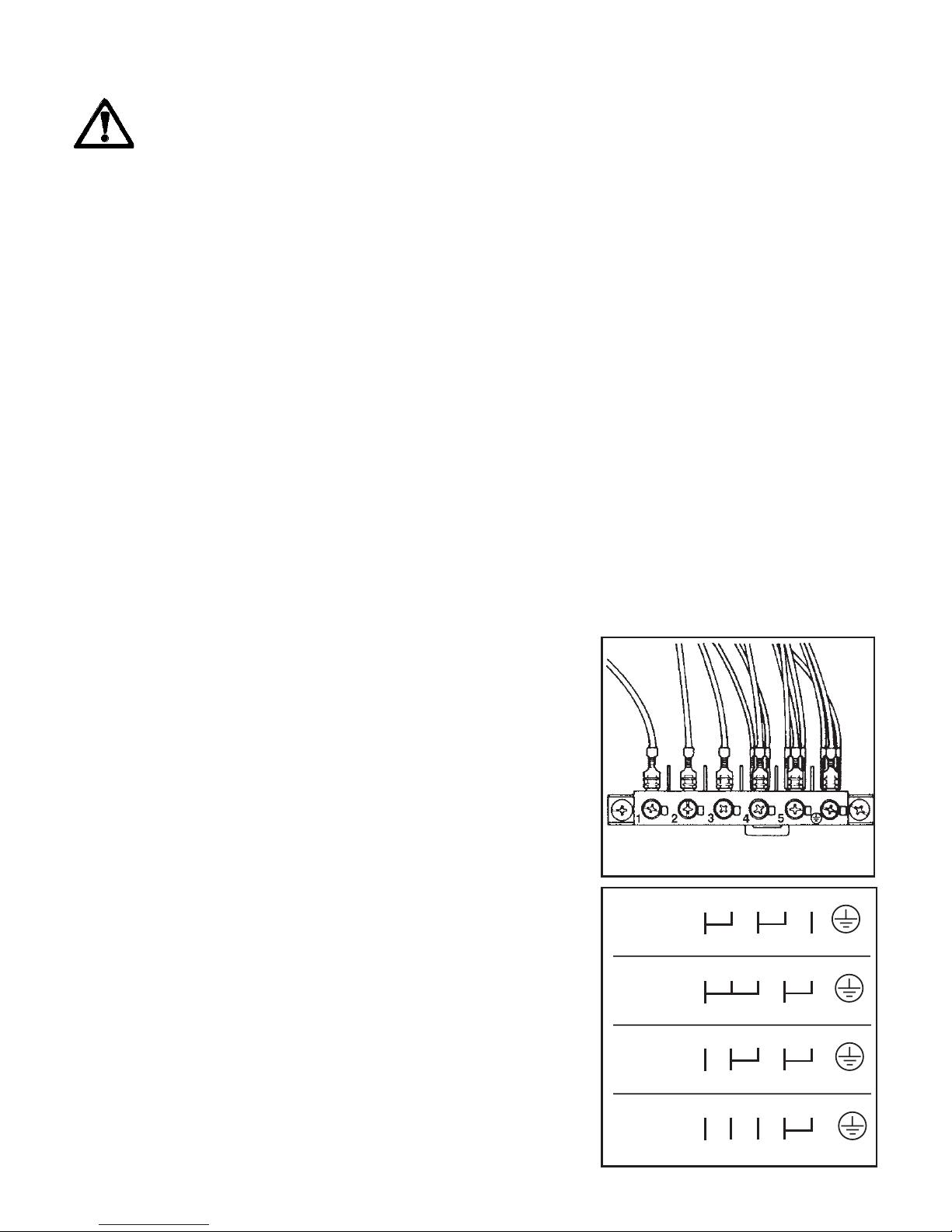

Connecting the terminal board
The appliance incorporates an easily
accessible 6-pole terminal board whose
jumpers (bridges) are already pre-set for
operation on 400V tri-phase with neutral wire
(Fig. 6). In case a different mains voltage is
present, the jumpers on the terminal board
must be rearranged as shown in the diagram
(Fig.7). The ground cable must be connected
FO 0330
Fig. 6
230V 3~
1 2 3 4 5
L1 L2 L3 PE
230V 1~
1 2 3 4 5
L1 N PE
400V 2N~
1 2 3 4 5
L1 L2 N PE
400V 3N~
1 2 3 4 5
L1 L2 L3 N PE
FO 0584
Fig. 7

29
to terminal . After connecting the supply
cable to the terminal board, secure it with a
junction clamp.
Electrical connection with
the hob
This oven can be connected to hobs
indicated in the paragraph "Technical data".
The socket for connecting the hob is located
at the top of the oven cabinet. The hobs come
complete with connecting leads for the hot
plates/heat areas and ground cable; these
leads feature plug-in connectors. Connection
of the hob to the oven is carried out by
plugging-in these connectors to the cor-
responding oven socket.
The plug-to-socket connection design is
such as to prevent possible wrong
plugging-ins.
The Manufacturer disclaims any liability
in case these accident-preventing rules
are not observed.

30

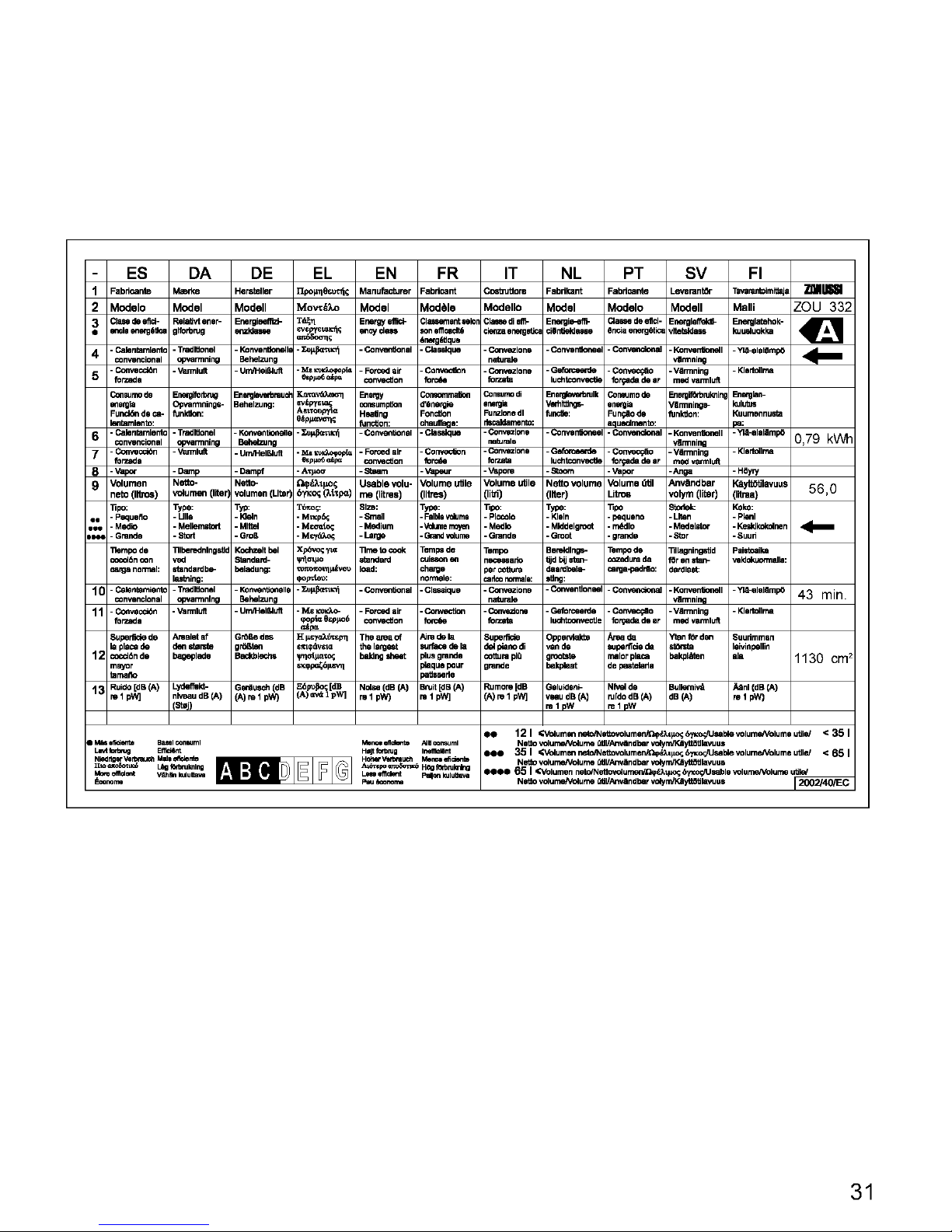

To ensure correct operation of the built-in
assembly, the kitchen cabinet and the
recess for the built-in appliance must have
suitable dimensions.
When the appliance is fitted-in, there must
be no open spaces left and it must be closed
on all sides by the kitchen furniture to
prevent the possibility of inadvertently
touching “live” (current carrying) parts of the
oven.
All parts ensuring such a protection,
including any covering panel (for instance,
if the appliance is installed at the end or at
the beginning of a kitchen counter) must be
fastened in such a way as to prevent removal
of the same without the aid of some tool.
This appliance can be placed with its back
and with one side close to appliances or
walls of higher height. The other side,
instead, must be placed close to furniture
or appliances, having the same height.
Overall oven dimensions
(Fig. 8)
Building-in under a kitchen
counter
The recess must have the dimensions
shown in Fig. 9.
Before carrying out the building-in of the
oven, connect it to the hob (see
corresponding chapter); then recess
completely the oven under the counter; open
the oven door and secure the oven to the
kitchen cabinet with four wood screws which
are to fit exactly into the holes provided for
the purpose on the oven frame (Fig.10).
Fig. 8
Fig. 9
Fig. 10
Building-in
FO 2662
550 MIN
593
560 - 570
80÷100

Grafiche MDM - Forlì
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning
and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers,
washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value
of approx. USD 14 billion in more than 150 countries around the world.
35686-4901 04/04
