Zanussi ZWD 12270 G1 User manual

User
manual
Washer-
dryer
ZWD 12270 W1
ZWD 12270 S1
ZWD 12270 G1
ZWD 14270 W1
ZWD 16270 W1

2
Content
Safety information - - - - - - - - - - - - - - - - - - -3
Description of the appliance - - - - - - - - - - - -5
Detergent dispenser drawer - - - - - - - - - - - -5
Control panel and functions - - - - - - - - - - - -6
Programme table - - - - - - - - - - - - - - - - - -10
Drying times - - - - - - - - - - - - - - - - - - - - - -12
Programme information - - - - - - - - - - - - - -13
Washing and drying hints - - - - - - - - - - - - -14
Before the first use - - - - - - - - - - - - - - - - -17
Operating Sequence - - - - - - - - - - - - - - - -18
Washing only - - - - - - - - - - - - - - - - - - - - -18
Drying only - - - - - - - - - - - - - - - - - - - - - - -20
NON-STOP programme - - - - - - - - - - - - - -21
Care and cleaning - - - - - - - - - - - - - - - - - -22
What to do if... - - - - - - - - - - - - - - - - - - - - 25
Technical data- - - - - - - - - - - - - - - - - - - - - 29
Consumption values - - - - - - - - - - - - - - - - 30
Installation instruction - - - - - - - - - - - - - - - 31
Environmental concerns - - - - - - - - - - - - - 35
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our
brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference
document. The user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid
damaging the appliance.
General information and tips
Environmental information

3
Safety information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and
accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions and make
sure that they remain with the appliance if it
is moved or sold, so that everyone using it
through its life will be properly informed on
appliance use and safety.
General safety
●It is dangerous to alter the specifications or
attempt to modify this product in any way.
●During high temperature washing and drying
programmes the door glass may get hot. Do
not touch it!
●Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
●Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
●Only use the advised quantities of fabric
softener and detergent. Damage to the fabric
can ensue if you over-fill. Refer to the
manufacturer’s recommendations of
quantities.
●Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such items to
slip down between the tub and the inner
drum.
●Do not use your washer-dryer to wash
articles with whalebones, material without
hems or torn material.
●Always unplug the appliance and turn off the
water supply after use, cleaning and
maintenance.
●Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre. Always
insist on genuine spare parts.
Installation
●This appliance is heavy. Care should be
taken when moving it.
●When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
●All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this is
not adhered to. See relevant section in the
user manual.
●After having installed the appliance, check
that it is not standing on the inlet and drain
hose and the worktop is not pressing the
electrical supply cable.
●If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely under the appliance.
●Always be sure, that there is no water
leakage from hoses and their connections
after the installation.
●If the appliance is installed in a location
subject to frost, please read the «dangers of
freezing» chapter.
●Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
●Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.

4
Use
●This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
●Only wash and dry fabrics which are
designed to be machine washed and dried.
Follow the instructions on each garment
label.
●Do not overload the appliance. See the
relevant section in the user manual.
●Before washing, ensure that all pockets are
empty and buttons and zips are fastened.
Avoid washing frayed or torn articles and
treat stains such as paint, ink, rust, and
grass before washing. Underwired bras must
NOT be machine washed.
●Garments which have been in contact with
volatile petroleum products should not be
machine washed. If volatile cleaning fluids
are used, care should be taken to ensure
that the fluid is removed from the garment
before placing in the machine.
●As some duvets and eiderdowns should be
washed/dried in large commercial machines
because of their bulk, please check with the
manufacturer of the item before washing in a
domestic machine.
●The users should always check that they
have not left their gas lighters (disposable or
otherwise) in their clothing.
●Never dry items that have had contact with
chemicals such as dry cleaning fluid.These
are of a volatile nature and could cause an
explosion.
●Only tumble dry items which have been
washed in water or require airing.
●Plastic detergent dispensers should not
remain in the drum during the drying cycle,
as the plastic used is not designed to
withstand the heat. If you wish to wash-
through-to-dry you should use the
conventional detergent dispenser drawer.
●Never pull the power supply cable to remove
the plug from the socket; always take hold of
the plug itself.
●Never use the washer-dryer if the power
supply cable, the control panel, the working
surface or the base are damaged so that the
inside of the washer-dryer is accessible.
Child safety
●This appliance is not intended for use by
persons (including children) with reduced
physical sensory or mental capabilities or
lack of experience and knowledge unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
●Young children should be supervised to
ensure that they do not play with the
appliance.
●The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of
children’s reach
●Keep all detergents in a safe place out of
children’s reach.
●Make sure that children or pets do not climb
into the drum. To avoid that they remain
closed inside the drum, the machine
incorporates special feature.

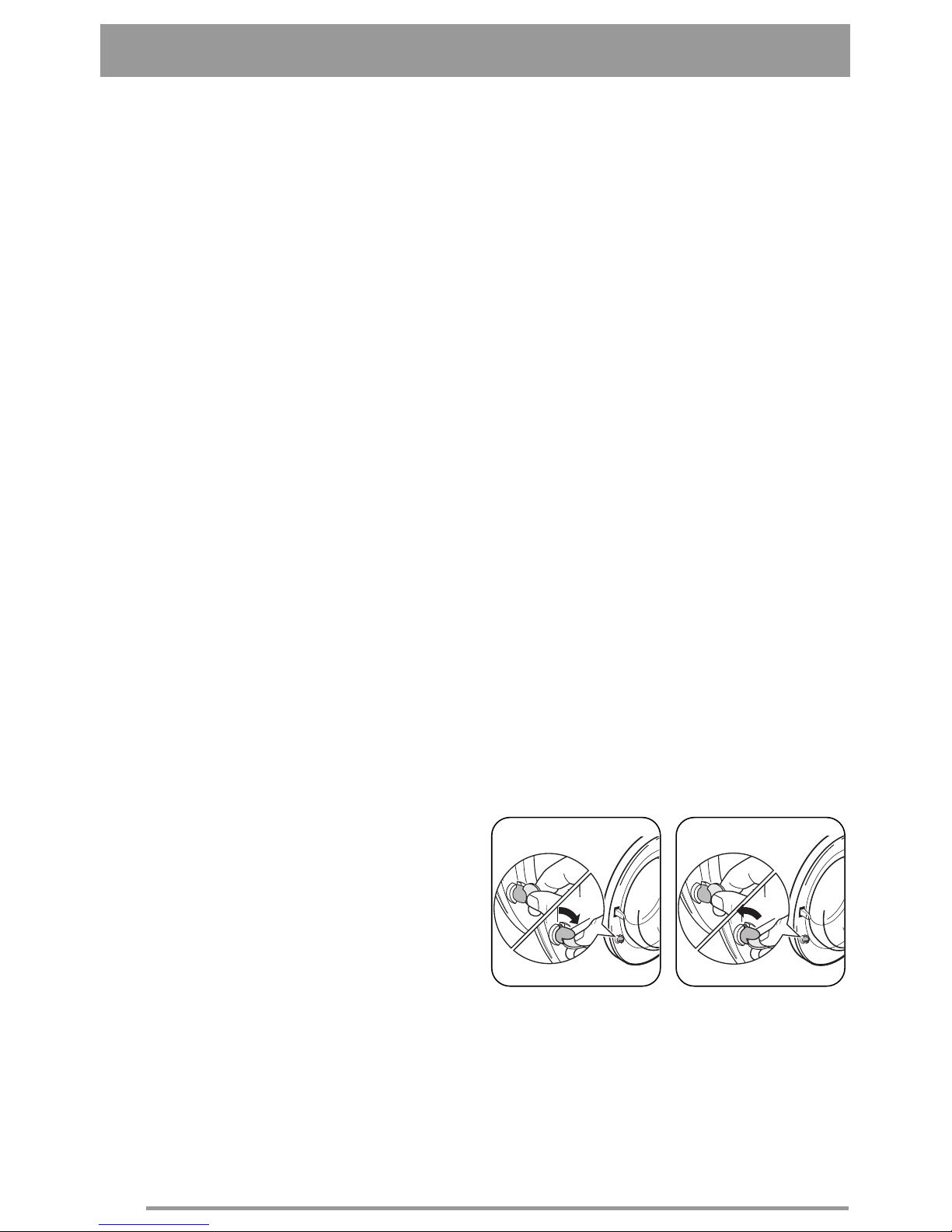

To disable this device
and restore the
possibility of closing the
door, rotate the button
anti-clockwise until the
groove is vertical.
To activate this device,
rotate the button
(without pressing it)
inside the door
clockwise until the
groove is horizontal. If
necessary use a coin.

5
Description of the appliance
Detergent dispenser drawer
Control panel
Door opening handle
Drain pump
Adjustable feet
5
4
3
2
1
1 2
3
4
5
Detergent dispenser drawer
Prewash
Wash
Fabric Softener

Control panel and functions
6
1 2 3 4 68
57
Programme selector dial and
On/Off switch
●The programme selector dial allows you to select a
programme and/or to switch the machine on/off. It can
be turned either clockwise or anticlockwise. The light of
button starts to flash.
6
Spin reduction button
●Press the Spin button repeatedly to change the spin
speed, if you want your laundry to be spun at a speed
different from the one proposed by the washer-dryer or to
select the «No spin» or the «Rinse Hold» option. The
relevant light will light up.
Options button
●By pressing this button, you can select only one of the
following options: «Prewash», «Intensive», «Super
Quick» (see the relevant chapter «Functions»).
●The relevant light will light up.
1
2
3
Information
The control panel is illustrated above. It shows the programme selector dial as well as the different
buttons, the pilot lights and the display. These are represented by relevant numbers which are
explained in the table below.
Control Panel key symbols:
= «No spin» option, = «Rinse Hold» option, = Child safety lock

7
Extra Rinse button ●By pressing this button, the machine performs some
additional rinses.
Start/Pause button
●This button allows you to start the selected programme;
the corresponding green pilot light stops flashing.
●This button also interrupts a programme which is running,
the corresponding green pilot light starts to flash.
Drying Time button
●By pressing this button you can select a timed
programme for cotton or synthetics, the relevant phase
light illuminates.
Programme progress display
●The different pilot lights illuminate during the different
phases: washing (Wash = ), drying (Dry = ) and
at the end of the cycle (End = ).
8.3
8.28.1
Display
●The display shows the following information: duration of
the selected programme, selected drying time, incorrect
option selection, alarm codes, heating phase, child
safety lock and end of programme.
5
4
6
7
8

8
The display () shows the following
information:
Duration of the selected programme/
After selecting a programme the duration of
the selected programme appears on the dis-
play (e.g. 2.05). During the programme, the
time remaining is updated every minute.
After having pressed button , the light
illuminates and stays on.
/Selected drying time
After selecting a drying programme, the drying
time is displayed in minutes or in hours and
minutes (max 250 mins = 4.10 only for cot-
tons).
After the programme has started the time
remaining is updated every minute.
/Incorrect option selection
The incorrect option selection is indicated by
the message Err displayed for a few seconds
and by flashing of the red light button .
6
8.1
6
5.1
5/Alarm codes
In the event of operating problems, some
alarm codes can be displayed, (see paragraph
«What to do if...»).
/End of programme
The End of programme is indicated by three
flashing zeros «0.00». The light illumina-
tes. After a few minutes the door can be ope-
ned.
Child safety lock
This device permits you to leave the appliance
unattended during it’s functioning.
Heating phase
During the washing cycle the display shows a
temperature icon to indicate that the appliance
has started the heating phase of the water in
the tub.
5.3
5.2
8.3
2.05
5.15.2
5.3
Display

9
Functions
No spin (button )
By selecting this option all the spinning phases
are suppressed to prevent the fabrics from
creasing. The final spin is replaced by a
draining phase.
Rinse Hold (button )
By selecting this option the water of the last
rinse is not emptied out to prevent the fabrics
from creasing.
When the programme has finished, the
Start/Pause and the «Wash» light go off, the
«End»( ) pilot light illuminates, the display
shows three flashing zeros «0.00» and the
door is blocked to indicate that the water must
be emptied out.
To empty out the water see chapter «At the
end of the programme».
Prewash (button )
Select this option if you wish your laundry to be
prewashed at 30°C before the main wash (not
available for all programmes). The prewash
ends with a short spin in programmes for
cotton and synthetics, whereas in the
programmes for delicate fabrics the water is
only drained.
Intensive (button )
This option can be selected for heavily soiled
laundry: the washing intensity will be increased
and the washing time will be prolonged by a
few minutes depending on the selected type of
fabric.
Super Quick (button )
Avery short cycle for slightly soiled items that
have been used or worn for a short time. The
washing time will be reduced according to the
type of fabric and the selected temperature.
We recommend that you reduce the load size.
3
3
3
8.3
2
2
Extra Rinse option (button )
This option is recommended for people who
are allergic to detergents, and in areas where
the water is very soft. The machine performs
some additional rinses.
For the options compatibility with each
programme, please refer to the «Programme
table».
Drying time (button )
By pressing this button you can select a timed
drying for cotton or synthetics. The
corresponding light illuminates. The
selected drying time appears on the display.
For Cottons you can select a drying time from
10 minutes to 250 minutes (4.10).
For Synthetics it is possible to select a drying
time from 10 minutes to 130 minutes (2.10).
Every time you press the button the time
increases by 5 mins.
Pilot Light (s)
When selecting the programmes, depending on
the programme selected, the «Wash» ( ) or
the «Dry» ( ) pilot light illuminates
and stays on while the machine is working. In
any case both lights indicate that the appliance
starts operating and the door is locked.
When the programme has finished, the «End»
() pilot light illuminates and the other lights
go off.
8.3
8.2
8.1
8
8.2
7
4

10
Programme table
Cottons
90°
White cotton
(normally soiled cotton
items
Spin red.
Prewash, Intensive,
Super Quick(*),
Extra rinse
Main wash, rinses
Long spin at max speed
Max Load: 6 Kg
Reduced Load: 3 Kg
Cottons
60° Eco
White and fast
coloured cotton
(normally soiled cotton
items)
Spin red.
Prewash, Extra rinse
Main wash, rinses
Long spin at max speed
Max Load: 6 Kg
Cottons
60° - 40°
Coloured cotton
normally soiled
Spin red.
Prewash, Intensive,
Super Quick(*),
Extra rinse
Main wash, rinses
Long spin at max speed
Max Load: 6 Kg
Reduced Load: 3 Kg
Cottons
40° Eco
Coloured cotton lightly
soiled
Spin red.
Prewash, Extra rinse
Main wash, rinses
Long spin at max speed
Max Load: 6 Kg
Synthetics
50° - 40
Synthetic or mixed
fabrics
Spin red.
Prewash, Intensive,
Super Quick(*),
Extra rinse
Main wash, rinses
Short spin at 900 rpm
Max Load: 3 Kg
Reduced Load:1.5 Kg
Synthetics
Easy iron 40°
Synthetic or mixed
fabrics to be gently
washed and spun.
Spin red.
Prewash, Extra rinse
Main wash, rinses
Short spin at 900 rpm
Max Load: 1.5 Kg
Delicates
40° - 30°
Delicate fabrics, for
example curtains. Prewash, Super Quick(*)
Intensive, Extra Rinse
Main wash, rinses
Short spin at 700 rpm
Max Load: 3 Kg
Reduced Load:1.5 Kg
Programme/
Temperature Type of laundry Options Description of programme
(*)If you select the option «Super Quick» by pressing the button , we recommend that you
reduce the load sizes as indicated in the table above. Full loading is possible however with
somewhat reduced cleaning results.
3

11
Programme table
Rinse
Separate rinse cycle for
hand washed cotton
items.
Spin red.
Extra rinse
3 rinses
Long spin at max speed
Max Load: 6 Kg
Mini 30’
30°
Short cycle for lightly
soiled fabrics
Main Wash, rinses
Short spin at 700 rpm
Max Load: 2.5 Kg
Drain
For emptying out the last
rinse water in
programmes with the
«Rinse Hold» option.
Draining of water
Spin Separate spin for
cottons. Spin red. Drain and long spin
Wool
40°
Programme for wool
«Pure new wool, non-
shrink, machine
washable» label.
Spin red., ,
Main wash, rinses
Short spin at 900 rpm
Max Load: 2 Kg
Handwash
30° - Cold
Special programme for
hand washing fabrics Spin red., ,
Main wash, rinses
Short spin at 900 rpm
Max Load: 2 Kg
Silk
30°
Silk items to be gently
washed and spun. ,
Main wash, rinses
Short spin at 700 rpm
Max Load: 1 Kg
Programme/
Temperature Type of laundry Options Description of programme

12
Degree of drying Type of fabric Spin speed
Suggested
drying time
(mins)
130 - 150
140 - 160
150 - 170
1600 rpm
1400 rpm
1200 rpm
4 kg
100 - 120
110 - 130
120 - 140
1600 rpm
1400 rpm
1200 rpm
4 kg
1600 rpm
1400 rpm
1200 rpm
75 - 85
80 - 90
85 - 95
3 kg
1600 rpm
1400 rpm
1200 rpm
35 - 45
40 - 50
45 - 55
1.5 kg
Suitable for
items to put
away without
ironing
Cotton and linen*
(bathrobes, bath towels,
etc
Synthetics and mixed fab-
rics (jumpers, blouses,
underwear, household
linen)
900 rpm
2 kg 70 - 80
900 rpm
1 kg 35 - 45
*In compliance with EC directive EN 50229 the cotton reference programme for the data
entered in the Energy Label must be tested dividing the maximum washing load by two equal
parts and drying with TIMED DRYING each of them.
NOTE!
The different type of cottons (towelling,sheets, shirts and so on) or eventual laundry rolling up
during spinning phase may cause a not uniform dryness. So, in the exceptional case that at the
end of the cycle the laundry remains slightly wet, we suggest you to stretch the items rolled up
out, to redistribute evenly the laundry in the drum and to select an additional drying cycle of 20-
30 minutes.
Load
Suitable
for ironing
Cotton and linen (sheets,
tablecloths, shirts, etc.)
Drying Times
1600 rpm
1400 rpm
1200 rpm
60 - 70
65 - 75
70 - 80
1600 rpm
1400 rpm
1200 rpm
30 - 40
35 - 45
40 - 50
3 kg
1.5 kg

13
Programme information
Rinses
With this programme it is possible to rinse and spin cotton garments
which have been washed by hand.
The machine performs 3 rinses, followed by a final spin at maximum
speed.
The spin speed can be reduced by depressing the button .
2
Drain
For emptying out the water of the last rinse in programmes with the
Rinse Hold option.
Turn first the programme selector dial to «Off», then select
programme Drain and depress the button .
6
Easy Iron
Selecting this programme, the laundry is gently washed and spun to
avoid any creasing. In this way ironing is easier. Furthermore the
machine will perform additional rinses.
Spin
Separate spin for hand washed garments and after programmes
with Rinse Hold option. Before selecting this programme the
selector dial must be turned to Off. You can choose the speed by
means of the relevant button to adapt it to the fabrics to be spun.
Off = Cancelling/
Switching off of the
appliance
To reset a programme and to switch off the machine turn the
selector dial to «Off». Anew programme can now be selected.
Wool and
Handwash
Washing programme for machine washable wool as well as for hand
washable woollens and delicate fabrics with the «hand washing»
care symbol .
Eco programmes
This programme can be selected for slightly or normally soiled
cotton items. The temperature will decrease and the washing time
will be extended. This allows you to obtain a good washing
efficiency whilst saving energy.
Silk
Delicate washing programme suitable for silk and mixed synthetics
items. Washing temperature is 30°C.
The maximum spin speed is automatically reduced to 700 rpm.
Mini 30’
Special program at 30°C, (the duration is approx. 30 minutes),
suitable for laundry to be freshened up: e.g. a sport jacket worn only
once or slightly soiled or new garments.

14
Washing and drying hints
Sorting the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s washing
instructions. Sort the laundry as follows: whites,
coloureds, synthetics, delicates, woollens.
Temperatures
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their «whiteness» in the
wash.
New coloured items may run in the first wash;
they should therefore be washed separately
the first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins). Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any belts
or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special
detergent or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Avoid drying dark clothes with light coloured
fluffy items such as towels as these can attract
the fluff.
Remove the laundry when the appliance has
finished drying.
To avoid a static charge when drying is com-
pleted, use either a fabric softener when you
are washing the laundry or a fabric conditioner
specifically for tumble dryers.
Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such
as anoraks, bedcovers, quilts, sleeping bags
and duvets must not be machine dried.
Garments padded with foam-rubber or materi-
als similar to foam-rubber must not be machine
dried; they represent a fire hazard.
Also, fabrics containing residues of setting
lotions or hair sprays, nail solvents or similar
solutions must not be machine dried in order to
avoid the formation of harmful vapours.
For drying, follow the indications given on the
manufacturer’s labels.
May be tumble dried
Drying at high temperature
Drying at reduced temperature
Do not tumble dry
IMPORTANT!
As a dryer, the machine works on the
condensation principle.
Therefore, the water tap must be open and
the drain hose must drain water into a sink
or into the drain pipe, even during the dry-
ing cycle.
90° or 95°
for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
50°/60°
for normally soiled, colour fast
garments (e.g. shirts, night
dresses, pyjamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).
30°-40°-Cold
for delicate items (e.g. net
curtains), mixed laundry including
synthetic fibres and woollens
bearing the label «pure new wool,
machine washable, non-shrink».

Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load
size.
Laundry weights
The following weights are indicative:
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
1200 gbathrobe
100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and
dab the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since the
cellulose structure will have already been
damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft cloth and
dab the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove
any residual marks from white fabrics with
bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic
acid; treat any residual marks on white fabrics
with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
15

16
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washer-dryer
detergents may be used in this appliance:
●powder detergents for all types of fabric,
●powder detergents for delicate fabrics (60°C
max) and woollens,
●liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be
placed in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
The washer-dryer incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do
not exceed the «MAX» mark in the
detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of
soiling and hardness of the water used.
Water hardness is classified in so-called
«degrees» of hardness. Information on
hardness of the water in your area can be
obtained from the relevant water supply
company.
Follow the product manufacturers’ instructions
on quantities to use.
Degrees of water hardness
Follow the product manufacturers’ instructions
on quantities to use.
Use less detergent if:
●you are washing a small load,
●the laundry is lightly soiled,
●large amounts of foam form during washing.
Level
Degrees
German
°dH
French
°T.H.
Characteristic
10-7 0-15soft
28-14 16-25medium
315-21 26-37hard
4> 21 > 37very hard

17
Before the first use
WARNING!
Ensure that the electrical and water
connections comply with the installation
instructions.
IMPORTANT!
Remove the polystyrene block and any
material from the drum.
IMPORTANT!
Pour 2 litres of water into the main wash
compartment of the detergent drawer in
order to activate the ECO valve. Then run a
cotton cycle at 90°C or 95°C, without any
laundry in the machine, to remove any
manufacturing residue from the drum and tub.
Pour 1/2 a measure of detergent into the
dispenser drawer and start the machine.
Child safety lock
This device permits you to leave the appliance
unattended without having the worry that
children might be injured by or cause damage
to the appliance.
This function remains enabled also when the
washer-dryer is not working.
There are two different ways to set this option:
●before pressing the : it will be impossible
to start the machine.
●after pressing the button it will be
impossible to change any other programme
or option.
To enable (disable) this option press
simultaneously for about 6 seconds buttons
and until the icon appears
(disappears) on (from) the display.
4
3
6
6
Acoustic signals
The machine is supplied with an acoustic
device, which sounds in the following cases:
●at the end of the cycle
●in the event of operating problems
By pressing the buttons and
simultaneously for about 6 seconds, the
acoustic signal is deactivated (except for the
events of operating problems).
By pressing these 2 buttons again, the acoustic
signal is reactivated.
32

18

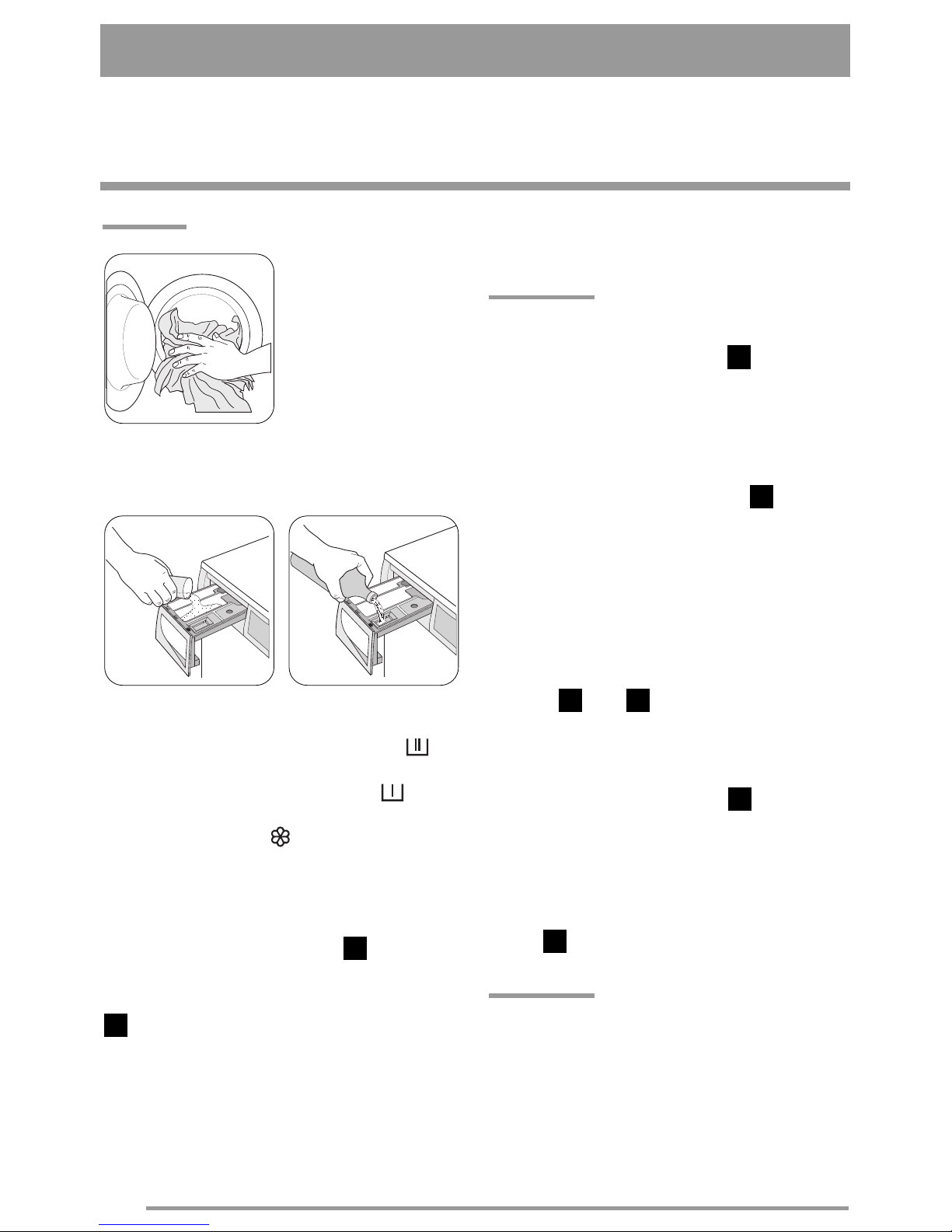

Operating sequence - Washing only
Washing
1. Load the laundry
Open the door by
carefully pulling the
door handle outwards.
Place the laundry in
the drum, one item at
a time, shaking them
out as much as
possible. Close the door.
Measure out the detergent and the fabric
softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required,
pour it into the main wash compartment
and, if you wish to carry out the prewash phase,
pour it into the compartment marked .
If required, pour fabric softener into the
compartment marked (the amount used
must not exceed the «MAX» mark in the
drawer). Close the drawer gently.
Select the required programme by turning
the programme selector dial ( )
Turn the programme selector dial to the
required programme. The green light of button
starts to flash.
On position «Off» the programme is reset and
the machine is switched off.
6
1
At the end of the programme the selector
dial must be turned to position «Off», to
switch the machine off.
IMPORTANT!
If you turn the programme selector dial to
another programme when the machine is
working, the red light of button will flash 3
times and the message Err is displayed to
indicate a wrong selection. The machine will
not perform the new selected programme.
Select the spin speed or No Spin or Rinse
Hold option by pressing button
When selecting a programme, the light
corresponding to the maximum speed allowed
for that programme will illuminate (refer to the
section «Programme table» for the maximum
allowed by each cycle spin speed). The
relevant light will light up.
Select the desired option by pressing the
buttons and
Depending on the programme, different
functions can be combined. These must be
selected after choosing the desired programme
and before pressing the button . The
relevant light will light up.
In any case, if an option is chosen that is not
allowed with the selected programme, the
message Err will be displayed on the display
for a few seconds, and the red light of the
button start flashing.
IMPORTANT!
For the compatibility of the options with the
washing programmes, please refer to the
«Programme table».
6
6
43
2
6

19
Start the programme by pressing button
To start the selected programme, press this
button; the corresponding green pilot light
stops flashing. The appliance starts operating
and the door is locked.
To interrupt a programme which is running,
depress the button : the corresponding
green pilot light starts to flash.
To restart the programme from the point at
which it was interrupted, press the same button
again.
IMPORTANT!
If an incorrect option is selected, the red pilot
light of the button flashes 3 times and the
message Err is displayed for a few seconds.
Altering an option or a running programme
It is possible to change some options before
the programme carries it out.
Before you make any change, you must pause
the washer-dryer by pressing the button .
Changing a running programme is possible
only by resetting it. Turn the programme
selector dial to «Off» and then to the new
programme position.
Start the new programme by depressing the
button again. The washing water in the tub
will not be emptied out.
Interrupting a programme
Press the button to interrupt a programme
which is running, the corresponding light starts
to flash. Press the same button again to restart
the programme.
Cancelling a programme
Turn the selector dial to «Off» to cancel a
programme which is running. You can now
select a new programme.
6
6
6
6
6
6Opening the door after the programme has
started
First set the machine to pause by pressing the
button . The door can be opened
immediately or after a few minutes depending
on the model. In any case do not try to open
the door if it is locked!
If the door remains locked, this means that the
machine is already heating or that the water
level is to high.
If you cannot open the door but you need to
open it you have to switch the machine off by
turning the selector dial to «Off». After a few
minutes the door can be opened (pay attention
to the water level and temperature!).
After this procedure, it will be necessary to set
the programme and the options again and then
to press button .
At the end of the programme
The machine stops automatically. Some
acoustic signals sound. The light of button
and the light go off, the light
illuminates and on the display will appear a
flashing «0.00». The door can be opened.
If, at the end of a programme, there is water in
the tub, the light illuminates but the door
remains locked to indicate that the water must
be emptied out before opening the door.
To empty out the water proceed as follows:
1. turn the programme selector dial to «Off»
2. select the Drain or Spin programme
3. reduce the spin speed if needed, by pressing
the relevant button
4. press the button
5. at the end of programme, only the pilot light
illuminates.
8.3
6
8.3
8.38.1
6
6
6

20
Turn the programme selector dial to «Off» to
switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty.
If you do not intend to carry out another wash,
close the water tap.
Leave the door open to prevent the formation
of mildew and unpleasant smells.
Stand by: once the programme has finished
after a few minutes the energy saving system
will be enabled. The brightness of the display
is reduced. By pressing any button the
appliance will come out of the energy saving
status.
The recommended load to dry in your washer-
dryer is 3 kg for cotton and 2 kg for synthetics.
Note!
It is possible also to dry up to 4 kg of cot-
ton items (see the drying times table).
The water tap must be open and the drain
hose must be positioned in the sink or connect-
ed to the drain pipe.
1. Load the laundry.
2. Turn the selector dial to «Cottons» or
«Synthetics» programme in the «Drying»
section.
3. Select the duration of the drying cycle by
pressing repeatedly button until the
time you want appears on the display (see
the drying programmes).
For Cottons you can select a drying time from
10 minutes to 250 minutes (4.10).
For Synthetics you can select a drying time
from 10 minutes to 130 minutes (2.10).
Every time you press the button the time
increases by 5 mins.
7
Note!
The drying time will automatically increase by
up to 2 minutes. This is quite normal.
4. Press the button to start the pro-
gramme. After the programme has started,
the time remaining is updated every
minute.
5. At the end of the programme, the buzzer
sounds. Three flashing zeros «0.00» will
appear on the display.
At this point, begins an «anti-crease
phase», which lasts about 10 minutes. The
door is locked and can be opened only at
the end of this phase.
Note!
If you wish to open the door before the
anti-crease phase or to interrupt it, press
any key or turn the programme selector
dial to any programme position (except
«Off»). The door can be opened immedia-
tely or in a few minutes depending on the
model.
6. Turn the selector dial to the «Off» position
to switch the machine off. Remove the
laundry.
6
Operating sequence - Drying only
