Zanussi ZWT 71401 WA User manual

EN
User manual 2
ES
Manual de instrucciones 30
Washer Dryer
Lavadora-secadora
ZWT 71401 WA

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Washing programmes _ _ _ _ _ _ _ _ _ _ _ _ 8
Drying Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Consumption values _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ 12
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
Personalisation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15
Use - Drying _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 25
Building in _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 27
Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ 29
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an incor-
rect installation and use causes injuries and damages. Always keep
the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• Do not let persons, children included, with reduced physical sen-
sory, reduced mental functions or lack of experience and knowl-
edge use the appliance. They must have supervision or instruction
for the operation of the appliance by a person who is responsible
for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is
open.
• If the appliance has a child safety device, we recommend you acti-
vate it.
General Safety
• Before maintenance, deactivate the appliance and disconnect the
mains plug from the mains socket.
2
www.zanussi.com

• Do not change the specification of this appliance.
• Obey the maximum load volume of 7 kg (refer to the “Programme
chart” chapter).
• If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualified persons in order to
avoid a hazard.
•Theoperatingwaterpressure (minimum and maximum) must be
between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not be ob-
structed by a carpet.
• The appliance is to be connected to the water mains using the
new supplied hose-sets. Old hose sets must not be reused.
Safety instructions
Installation
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move the
appliance again you must block the drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the
temperature is less than 0 °C or where it is
exposed to the weather.
• Obey the installation instruction supplied with
the appliance.
• Make sure that the floor where you install the
appliance is flat, stable, heat resistant and
clean.
• Do not install the appliance where the appli-
ance door can not be fully opened.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Make sure that there is air circulation be-
tween the appliance and the floor.
• Adjust the feet to have the necessary space
between the appliance and the carpet.
Electrical connection
Warning! Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power supply.
If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains
plug and to the mains cable. Contact the
Service or an electrician to change a dam-
aged mains cable.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains
plug with wet hands.
• This appliance complies with the E.E.C. Di-
rectives.
3
www.zanussi.com

Water connection
• Make sure not to cause damage to the water
hoses.
• The appliance is to be connected to the wa-
ter mains using the new supplied hose-sets.
Old hose sets must not be reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time, let
the water flow until it is clean.
• The first time you use the appliance, make
sure that there is no leakage.
Use
Warning! Risk of injury, electrical shock,
fire, burns or damage to the appliance.
• Use this appliance in a household only.
• Do not change the specification of this appli-
ance.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not touch the glass of the door while a
programme operates. The glass can be hot.
• Make sure that you remove all metal objects
from the laundry.
• The final part of the drying cycle occurs with-
out heat (cool down cycle) to ensure that the
items will not be damaged.
If you stop the appliance before the end of
the drying cycle, immediately remove and
spread out all items, so that the heat can dis-
sipate.
• If you use detergent, fabric softener or similar
products, obey the instructions on the pack-
aging.
• Wipe away lint that has accumulated around
the appliance.
• Do not dry the damaged items which contain
padding or fillings .
• Do not dry items such as foam rubber (latex
foam), shower caps, waterproof textiles and
rubber backed articles.
• Before drying items that have been in contact
with substances such as cooking oil, ace-
tone, alcohol , petrol, kerosene, spot remov-
ers, turpentine, waxes and wax removers,
wash them in hot water with an extra amount
of detergent.
• Do not dry items if industrial chemicals have
been used for cleaning.
• Make sure that no gas lighters or matches
have been left in the pockets of the clothing.
• Only dry fabrics which are applicable to dry in
the tumble dryer. Follow the instructions on
the fabric label.
• Do not dry not washed items in the appliance.
• If you have washed your laundry with a stain
remover start an extra rinse cycle before you
start the appliance.
• Plastic items are not heat resistant.
– If you use a detergent ball, remove it before
you set the drying programme.
– Do not use a detergent ball when you set a
non-stop programme.
Warning! Risk of injury or damage to the
appliance.
• Do not sit or stand on the open door.
• Obey the maximum load volume.
• Do not dry dripping wet clothes in the appli-
ance.
Care and Cleaning
Warning! Risk of injury or damage to the
appliance.
• Do not use water spray and steam to clean
the appliance.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
4
www.zanussi.com

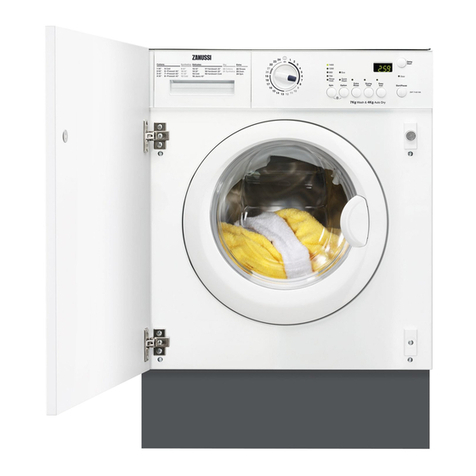

Product description
Your new appliance meets all modern requirements for effective treatment of laundry with low
water, energy and detergent consumption. Its new washing system allows total use of deter-
gent and reduces water consumption so saving energy.
1
6
5
3
4
2
1Detergent dispenser drawer
2Control panel
3Door opening handle
4Rating Plate
5Drain pump
6Adjustable feet
Child safety
Make sure that children or pets do not climb in-
to the drum. To prevent children and pets be-
coming trapped inside the drum this machine in-
corporates a special feature.
To activate this de-
vice, rotate the button
(without pressing it)
inside the door clock-
wise until the groove
is horizontal. If neces-
sary use a coin.
To disable this de-
vice and restore the
possibility of closing
the door, rotate the
button anti-clockwise
until the groove is ver-
tical.
5
www.zanussi.com

Rubber feet kit (4055126249)
Available from your authorized dealer.
The rubber feet are particularly recommended
on floating, slippery and wooden floors.
Mount the rubber feet to prevent vibration,
noises and displacement of the appliance dur-
ing operation.
Read carefully the instructions supplied with the
kit.
Fixing plate kit (4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth, secure
the appliance in the fixing plates.
Follow the instructions supplied with the kit.
Detergent dispenser drawer
Compartment for detergent used for pre-
wash and soak phase or for stain remover used
during the stain action phase (if available). The
prewash and soak detergent is added at the
beginning of the wash programme. The stain re-
mover is added during the stain action phase.
Compartment for powder or liquid detergent
used for main wash. If using liquid detergent
pour it just before starting the programme.
Compartment for liquid additives (fabric
softener, starch).
Follow the product manufacturer’s recommen-
dations on quantities to use and do not exceed
the «MAX» mark in the detergent dispenser
drawer. Any fabric softener or starching addi-
tives must be poured into the compartment be-
fore starting the wash programme.
Control panel
Below is a picture of the control panel. It shows the programme selector dial as well as the
buttons, pilot light and the display. These are presented by relevant numbers on the following
pages.
1 2 3 4 5 6 7 8
10 9
1Programme selector dial 2Spin reduction button (Centrifug.)
6
www.zanussi.com

3Opciones button
–Super Rápido
–Económico
4AquaCare button
5Tiempo de secado button
6Planchado fácil button
7Display
8Inicio/Diferido button
9Puerta bloqueada pilot light
10 Inicio diferido button
Programme Selector Dial
It allows you to switch the appliance on/off and/
or to select a programme.
Spin
By pressing this button you can change the spin
speed of the set programme or select the avail-
able option(s).
Super Quick
Short cycle for lightly soiled items or for laundry
which needs only freshening up. We recom-
mend you to reduce the fabrics loading.
Rinse hold
By selecting this function the water of the last
rinse is not emptied out to prevent the fabrics
from creasing. Before opening the door it will be
necessary to empty out the water. To empty out
the water, please read the paragraph «At the
end of the programme».
Economy
Only for cottons and synthetic items lightly or
normally soiled at a temperature of 40°C or
higher. The washing time will be prolonged and
the washing temperature will be reduced. You
can use this option if you want to wash normally
soiled laundry and at the same time save ener-
gy.
Extra Rinse
This appliance is designed to save energy. If it
necessary to rinse the laundry using an extra
quantity of water (extra rinse), select this option.
Some additional rinses will be performed. This
option is recommended for people who are al-
lergic to detergents, and in areas where the wa-
ter is very soft.
Drying Time
If you wish to carry out a timed drying pro-
gramme, press this button until the drying time
you want appears on the display according to
the fabrics (cottons or synthetics) you have to
dry. For Cottons you can select a drying time
from 10 minutes to 250 minutes (4.10). For
Synthetics you can select a drying time from 10
minutes to 130 minutes (2.10). Every time you
press this button the drying time increases by 5
mins.
Easy Iron
By selecting this option the laundry is gently
washed and spun to avoid any creasing. In this
way ironing is easier. Furthermore the machine
will perform some additional rinses in some pro-
grammes. On cotton programmes the maximum
spin speed is reduced automatically.
Start Pause
This button allows you to start or to interrupt the
selected programme.
Door locked pilot light
The pilot light 9illuminates when the pro-
gramme starts and indicates if the door can be
opened:
• light on: the door cannot be opened. The ma-
chine in working or has stopped with water
left in the tub.
• light off: the door can be opened. The pro-
gramme is finished or the water has been
emptied out.
• light flashing: the door is opening.
Delay Start
The programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up
to a maximum of 20 hours by means of this but-
ton.
7
www.zanussi.com

Display
7.27.1
The display shows the following information:
7.1: Child safety lock
This device permits you to leave the appliance
unattended during it's functioning (see «Child
Safety Lock» paragraph).
7.2:
•Duration of the selected programme
After selecting a programme, the duration is
displayed in hours and minutes (for example
2.05). The duration is calculated automatically
on the basis of the maximum recommended
load for each type of fabric. After the pro-
gramme has started, the time remaining is up-
dated every minute.
•Selected drying time
After selecting a drying programme, the dry-
ing time is displayed in minutes or in hours
and minutes (e.g. 130 mins = 2.10). After the
programme has started the time remaining is
updated every minute.
•Delayed start
The Selected delay set by pressing the rele-
vant button appears on the display for few
seconds, then the duration of the selected
programme is displayed again.
•Alarm codes
In the event of operating problems, some
alarm codes can be displayed, for example
E20 (see paragraph «What to do if...»).
•Incorrect option selection
If an option which is not compatible with the
set wash programme is selected, the mes-
sage Err is displayed at the bottom of the
display for a few seconds and the integrated
red light of button 8start flashing.
•End of programme
When the programme has finished three
flashing zeros are displayed, the pilot light 9
and the pilot light of button 8go out and the
door can be opened.
Washing programmes
Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
Options Detergent
Compartment
1–5
Algodón
90°- Frío
Main wash - Rinses
Long spin at maximum speed
Max. load 7 kg - Reduced load 3,5 kg
1)
For white and coloured cotton (normally soiled items).
Centrifugado
Agua en cuba
Económico
2)
Super Rápido
AquaCare
Planchado fácil
8
www.zanussi.com

Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
Options Detergent
Compartment
6–8
Algodón + Prelavado
90°-40°
Prewash - Main wash - Rinses
Long spin at maximum speed
Max. load 7 kg - Reduced load 3,5 kg
1)
For white or coloured cottons with prewash phase
(heavily soiled items).
Centrifugado
Agua en cuba
Económico
Super Rápido
AquaCare
Planchado fácil
3)
9–12
Sintéticos
60°- Frío
Main wash - Rinses
Short spin at 900 rpm
Max. load 3,5 kg - Reduced load 2 kg
1)
Synthetic or mixed fabrics: underwear, coloured gar-
ments, non-shrink shirts, blouses.
Centrifugado
Agua en cuba
Económico
2)
Super Rápido
AquaCare
Planchado fácil
13–15
Delicados
40°- Frío
Main wash - Rinses
Short spin at 700 rpm
Max. load kg 3,5 - Reduced. load kg 2
1)
Delicate fabrics: acrylics, viscose, polyester.
Agua en cuba
Super Rápido
AquaCare
16
Vaqueros
40°
Main wash - Rinses
Long spin at 1200 rpm
Max. load 3,5 kg
With this programme it is possible to wash items like pants,
shirts or jackets in denim and also jersey realized with hi-
tech materials.
(The Extra Rinse option will be activated automatically).
Centrifugado
Agua en cuba
Planchado fácil
17–19
A mano
40°- Frío
Main wash - Rinses
Short spin at 900 rpm
Max. load 2 kg
Special programme for delicate fabrics with «hand washing»
care symbol and machine washable wollens.
Centrifugado
Agua en cuba
Secado
9
www.zanussi.com

Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
Options Detergent
Compartment
20
Algodón
Drying programme for cotton items
21
Sintéticos
Drying programme for synthetic items
Extra
22
Aclarados
Rinses
Long spin at maximum speed
Max. load 7 kg
With this programme it is possible to rinse and spin cotton
garments which have been washed by hand. The machine
performs 3 rinses, followed by a final long spin. The spin
speed can be reduced.
Centrifugado
Agua en cuba
AquaCare
Planchado fácil
23
Descarga
Drain and long spin
Long spin at maximum speed
Max. load 7 kg
Separate spin for hand washed garments and after pro-
grammes with the Rinse Hold option selected. You can
choose the spin speed by pressing the relevant button to
adapt it to the fabrics to be spun.
Centrifugado
24
Centrifugado
Draining of water
Max. load 7 kg
For emptying out the water of the last rinse in programmes
with the Rinse Hold option selected.
O = OFF
For cancelling the programme which is running or to switch
the machine off .
1) If you select the Super Quick option by pressing button 3, we recommend that you reduce the maximum load
as indicated. Full loading is possible however with somewhat reduced cleaning results.
2) This option can be selected at the temperature of 40°C or higher only.
3) If using liquid detergents, a programme without PREWASH must be selected.
10
www.zanussi.com

Drying Programmes
Degree of Drying Type of Fabric Max Load Spin Speed
Suggested
drying time
in Mins
Ideal for towelling materials
Cotton and linen
(bathrobes, bath tow-
els, etc)
4 kg
3 kg
1,5 kg
1400
160-180
110-120
75-85
Suitable for items to put away
without ironing
Cotton and linen
(bathrobes, bath tow-
els, etc)
4 kg
3 kg
1,5 kg
1400
150-170
100-110
65-75
Suitable for items to put away
without ironing
Synthetics and
mixed fabrics
2 kg
1 kg 900 90-100 55-65
Suitable for ironing
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
4 kg
3 kg
1,5 kg
1400
120-140
80-90
50-60
In compliance with EC directive EN 50229 the cotton reference programme for the data
entered in the Energy Label must be tested dividing the maximum washing load by two equal
parts and drying with DRYING TIME each of them.
Consumption values
Programme Energy consumption
(KWh)
Water consumption
(litres)
Programme duration
(Minutes)
White Cottons 90° 2.20 72
For the duration of
the programmes,
please refer to the
display on the control
panel.
Cottons 60° 1.35 67
Cotton Eco 60°
1)
1.05 49
Cottons 40° 0.85 67
Synthetics 40° 0.55 42
Delicates 40° 0.55 63
Wool/ Handwash 30° 0.25 55
1) «Cottons Eco» at 60°C with a load of 7 kg is the reference programme for the data entered in the energy
label, in compliance with EEC 92/75 standards.
Off Mode (W) Left On Mode (W)
0.10 0.98
The information given in the charts above are in compliance with the EU Commission regulation 1015/2010
implementing directive 2009/125/EC.
The consumption data shown on this chart
is to be considered purely indicative, as it
may vary depending on the quantity and type of
laundry, on the inlet water temperature and on
the ambient temperature.
11
www.zanussi.com

Helpful hints and tips
Sorting out the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instruc-
tions. Sort the laundry as follows: whites, col-
oureds, synthetics, delicates, woollens.
Temperatures
95° or 90°
for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
60°/50°
for normally soiled, colour fast
garments (e.g. shirts, night dres-
ses, pyjamas....) in linen, cotton or
synthetic fibres and for lightly
soiled white cotton (e.g. under-
wear)
40°-30°- Cold
for delicate items (e.g. net cur-
tains), mixed laundry including
synthetic fibres and woollens
bearing the label «pure new wool,
machine washable, non-shrink»
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their «whiteness» in the wash.
New coloured items may run in the first wash;
they should therefore be washed separately the
first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins).
Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special de-
tergent or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the wash-
ing programme charts.
General rules:
•Cotton, linen: drum full but not too tightly
packed;
•Synthetics: drum no more than half full;
•Delicate fabrics and woollens: drum no
more than one third full.
Washing a maximum load makes the most effi-
cient use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
The following weights are indicative:
bathrobe 1200 g
quilt cover 700 g
man’s work shirt 600 g
sheet, man’s pyjamas 500 g
tablecloth 250 g
pillow case, towelling towel,
night dress, man’s shirt
200 g
tea cloth, ladies’ briefs, napkin,
blouse, men’s underpants
100 g
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a spe-
cial detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with
rust stains which are not recent since the cellu-
lose structure will already have been damaged
and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
12
www.zanussi.com

Ball point pen and glue: moisten with ace-
tone
1)
, lay the garment on a soft cloth and dab
the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Treat any re-
sidual marks with bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone
1)
, then with acetic acid;
treat any residual marks on white fabrics with
bleach and then rinse thoroughly.
Tar stains: first treat with stain remover, methy-
lated spirits or benzine, then rub with detergent
paste.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the envi-
ronment.
Although biodegradable, detergents contain
substances which, in large quantities, can upset
the delicate balance of nature.
The choice of detergent will depend on the type
of fabric (delicates, woollens, cottons, etc.), the
colour, washing temperature and degree of soil-
ing.
All commonly available washing machine deter-
gents may be used in this appliance:
• powder detergents for all types of fabric
• powder detergents for delicate fabrics (60°C
max) and woollens
• liquid detergents, preferably for low tempera-
ture wash programmes (60°C max) for all
types of fabric, or special for woollens only.
The detergent and any additives must be placed
in the appropriate compartments of the dis-
penser drawer before starting the wash pro-
gramme.
If using liquid detergents, a programme without
prewash must be selected.
Your appliance incorporates a recirculation sys-
tem which allows an optimal use of the concen-
trated detergent.
Follow the product manufacturer’s recommen-
dations on quantities to use and do not ex-
ceed the «MAX» mark in the detergent dis-
penser drawer.
Degrees of water hardness
Water hardness is classified in so-called “de-
grees” of hardness. Information on hardness of
the water in your area can be obtained from the
relevant water supply company, or from your lo-
cal authority.
A water softener must be added when wa-
ter has a medium-high degree of hardness
(from degree of hardness II). Follow the manu-
facturer’s instructions. The quantity of detergent
can then always be adjusted to degree of hard-
ness I (= soft).
Level Charac-
teristic
Degrees of water
hardness
German
°dH
French
°T.H.
1soft 0-7 0-15
2medium 8-14 16-25
3hard 15-21 26-37
4very hard > 21 > 37
Drying Hints
Preparing the drying cycle
As a dryer, the appliance works on the conden-
sation principle.
Therefore, the water tap must be open and
the drain hose must drain water into a
sink or into the drain pipe, even during the
drying cycle.
Attention!
Before starting the drying programme, reduce
the loads of washed laundry, in order to obtain
good performances.
Laundry not suitable for drying
• Particularly delicate items such as synthetic
curtains, woollen and silk, garments with met-
al inserts, nylon stockings, bulky garments
1) do not use acetone on artificial silk
13
www.zanussi.com

such as anoraks, bed covers, quilts, sleeping
bags and duvets must not be machine dried.
• Avoid drying dark clothes with light coloured
fluffy items such as towels as these can at-
tract the fluff.
• Remove the laundry when the appliance has
finished drying.
• To avoid a static charge when drying is com-
pleted, use either a fabric softener when you
are washing the laundry or a fabric condition-
er specifically for tumble dryers.
• Garments padded with foam-rubber or mate-
rials similar to foam-rubber must not be ma-
chine dried; they represent a fire hazard.
• Also, fabrics containing residue of setting lo-
tions or hair sprays, nail solvents or similar
solutions must not be machine dried in order
to avoid the formation of harmful vapours.
The detergent and any additives must be placed
in the appropriate compartments of the dis-
penser drawer before starting the wash pro-
gramme.
If using liquid detergents, a programme without
prewash must be selected.
Your appliance incorporates a re-circulation
system which allows an optimal use of the con-
centrated detergent.
Follow the product manufacturer’s recommen-
dations on quantities to use and do not ex-
ceed the «MAX» mark in the detergent dis-
penser drawer.
Garment labels
For drying, follow the indications given on the
manufacturer’s labels:
•= May be tumble dried
•= Drying at high temperature
•= Drying at reduced temperature
•= Do not tumble dry.
Drying cycle duration
The drying time may vary depending on:
• speed of the final spin
• dryness degree required (iron dry, store dry)
• type of laundry
• weight of the load size .
The average drying time for a timed drying are
indicated in the «Drying programmes» chapter.
The experience will help you to dry your laundry
in a more suitable way, according to the differ-
ent fabrics. Take note of the duration drying time
of the already performed cycles.
Additional drying
If the laundry is still damp at the end of the dry-
ing programme, select a short drying cycle
again.
Warning! Do not over dry the laundry
in order to avoid creasing of fabrics
or garment’s shrinking.
First use
• Ensure that the electrical and water con-
nections comply with the installation in-
structions.
• Remove the polystyrene block and any
material from the drum.
• Pour 2 litres of water into the main wash
compartment of the detergent drawer
in order to activate the ECO valve. Then
run a cotton cycle at the highest temper-
ature without any laundry in the machine,
to remove any manufacturing residue
from the drum and tub. Pour 1/2 a
measure of detergent into the main wash
compartment and start the machine.
Personalisation
Acoustic signals
The machine is provided with an acoustic de-
vice, which sounds in the following cases:
• at the end of the cycle
• if there is a fault.
By pressing the 4and 5buttons simultaneously
for about 6 seconds, the acoustic signal is de-
14
www.zanussi.com

activated (except if there is a fault). By pressing
these 2 buttons again, the acoustic signal is re-
activated.
Child safety lock
This device permits you to leave the appliance
unattended and not to worry that children might
be injured by or cause damage to the appliance.
This function remains enabled also when the
washing machine is not working.
There are two different ways to set this option:
1. Before pressing button 8: it will be impossi-
ble to start the machine.
2. After pressing button 8: it will be impossi-
ble to change any other programme or op-
tion.
To enable or disable this option press simulta-
neously for about 6 seconds buttons 2and 3
until on the display, the icon appears or dis-
appears.
Daily use
Washing only
Load the laundry
Open the door by carefully pulling the door han-
dle outwards. Place the laundry in the drum, one
item at a time, shaking them out as much as
possible. Close the door.
Make sure that no laundry stays between the
seal and the door. There is a risk of water leak-
age or damage to the laundry.
Measure out the detergent and the fabric
softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required,
pour it into the main wash compartment or in
the appropriate compartment if the selected
programme/option it requires (see more details
in «Detergent dispenser drawer»).
If required, pour fabric softener into the com-
partment marked (the amount used must not
exceed the «MAX» mark in the drawer). Close
the drawer gently.
Select the required programme by turning
the programme selector dial (1)
Turn the programme selector dial to the re-
quired programme. The washing machine will
propose a temperature and automatically select
the maximum spin value provided for the pro-
gramme you have chosen. You can change
these values by operating the corresponding
15
www.zanussi.com

buttons. The green pilot light of the button 8
starts to flash.
The selector dial can be turned either clockwise
or counterclockwise. Turn to position to re-
set programme/Switching the machine off.
At the end of the programme the selector
dial must be turned to position , to
switch the machine off.
Caution! If you turn the programme
selector dial to another programme when
the machine is working, the red pilot light of
button 8will blink 3 times and the message Err
is displayed to indicate a wrong selection. The
machine will not perform the new selected
programme.
Reduce the spin speed by pressing button
2
By selecting a programme, the appliance propo-
ses automatically the maximum spin speed pro-
vided for that programme.
Press button 2repeatedly to change the spin
speed, if you want your laundry to be spun at a
different speed. The relevant light illuminates.
Select the available options by pressing
buttons 3, 4 and 6
Depending on the programme, different func-
tions can be combined. These must be selected
after choosing the desired programme and be-
fore pressing button 8.
When these buttons are pressed, the corre-
sponding icons appear on the display. When
they are pressed again, the icons disappear. If
an incorrect option is selected, the integrated
red pilot light of the button 8flashes for 3 times
and the Err message appears on the display for
a few seconds.
For the compatibility among the washing
programmes and the options see chapter
«Washing Programmes».
Select the Delay Start by pressing button
10
Before you start the programme, if you wish to
delay the start, press the button 10 repeatedly,
to select the desired delay.
The selected delay time value (up to 20 hours)
will appear on the display a few seconds, then
the duration of the programme will appear
again.
You must select this option after you have set
the programme and before you press button 8.
You can cancel or modify the delay time at any
moment, before you press button 8.
Selecting the delayed start:
1. Select the programme and the required op-
tions.
2. Select the delay start by pressing the but-
ton 10.
3. Press button 8:
– the machine starts its hourly countdown.
– The programme will start after the selec-
ted delay has expired.
Cancelling the delayed start after having press-
ed button 8:
1. Set the washing machine to PAUSE by
pressing button 8.
2. Press button 10 once until the symbol ’
is displayed
3. Press button 8again to start the pro-
gramme.
Important! The selected delay can be changed
only after selecting the washing programme
again.
The Delay Start can not be selected with
DRAIN programme.
Start the programme by pressing button 8
To start the selected programme, press the but-
ton 8, the green pilot light of the button 8stops
blinking.
To interrupt a programme which is running,
press the button 8: the green pilot light starts
blinking.
To restart the programme from the point at
which it was interrupted, press the button 8
again. If you have chosen a delayed start, the
machine will begin the countdown. If an incor-
rect option is selected, the red pilot light of the
button 8blinks 3 times and the message Err is
displayed for a few seconds.
16
www.zanussi.com

Altering an option or a running
programme
It is possible to change some options before the
programme carries them out.
Before you make any change, you must PAUSE
the appliance by pressing the button 8.
Changing a running programme is possible only
by resetting it. Turn the programme selector dial
to Oand then to the new programme position.
Start the new programme by pressing the but-
ton 8again. The washing water in the tub will be
not emptied out.
Interrupting a programme
Press the button 8to interrupt a programme
which is running, the corresponding green pilot
light starts blinking.
Press the button again to restart the pro-
gramme.
Cancelling a programme
Turn the selector dial to to cancel a pro-
gramme which is running.
You can select now a new programme.
At the end of the programme
The machine stops automatically. Three blinking
0.00 appear on the display and the pilot light of
button 8goes off. Some acoustic signals
sound.
If a programme or an option that ends with wa-
ter left in the tub has been selected, the door
remains locked to indicate that the water must
be emptied out before opening the door.
Follow the below instructions to empty out the
water:
1. Turn the programme selector dial to O.
2. Select the draining or spinning programme.
3. Reduce the spin speed if needed, by press-
ing the relevant button.
4. Press button 8.
At the end of the programme, the door is re-
leased and can be opened. Turn the programme
selector dial to Oto switch the machine off.
Remove the laundry from the drum and carefully
check that the drum is empty. If you do not in-
tend to carry out another wash, close the water
tap. Leave the door open to prevent the forma-
tion of mildew and unpleasant smells.
Stand By: If your laundry is not removed within
10 minutes after the programme is finished, the
back light of the display switches off and the
energy saving system will be enabled. Only the
pilot light of the button 8is blinking to indicate
that the appliance has to be switched off. By
pressing any button the appliance will come out
from the energy saving status and you can set
another programme or switch the appliance off.
Use - Drying
Drying only
Warning!
The recommended load size is 3 kg for cottons
and linen, and 1,5 kg for synthetic items.
By pressing Drying Time button it is also
possible to dry up to 4 kg of cotton items
(see the «Drying Programme » table).
Warning!
The water tap must be open and the drain
hose must be positioned in the sink or
connected to the drain pipe.
1. Load the laundry.
2. Select a spin cycle at the maximum spin
speed allowed for the type of laundry in or-
der to obtain the best drying performances.
3. Select the drying programme for Cottons or
Synthetic in the Drying sector of the pro-
gramme selector dial.
4. If you wish to select a timed drying, press
button 5until the time you want appears on
the display (see the «Drying Programme»
table). Every time you press this button the
drying time increases by 5 minutes.
Note!
The programme time will automatically in-
crease by some minutes.
5. Press button 8to start the programme.
After the programme has started, the time
remaining is updated every minute.
17
www.zanussi.com

Note!
The different type of cottons (towelling,
sheets, shirts, and so on) or any laundry
items rolling up during the spinning phase
may result in partial dryness. In the excep-
tional case that at the end of the cycle the
laundry remains slightly wet, we suggest
that you unfold the rolled up items, redis-
tribute them evenly in the drum and select
an additional drying cycle of 20-30 mi-
nutes.
6. At the end of the programme, the buzzer
sounds and three blinking «0.00» appear on
the display and the pilot light 9is on to indi-
cate that the door is locked.
The last 10 minutes of the drying cycle cor-
respond to an anti-crease phase. During
this time the door is locked and the display
keeps showing three flashing zeros «0.00».
If you wish to open the door before or dur-
ing the anti-crease phase or to interrupt it,
press any button or turn the programme selec-
tor dial to any programme position (except O).
7. Turn the selector dial to the Oposition to
switch the machine off.
8. Remove the laundry.
Automatic washing and drying (NON-
STOP programme)
For NON-STOP programmes, the recommen-
ded load size is 3 kg for cotton and 1,5 kg for
synthetic.
It is possible to dry up to 4 kg of cotton
items by pressing Drying Time button only
(see the «Drying Programme » table).
Caution! Do not use a dosing device/
ball when carrying out a washing and
drying programme.
1. Load the laundry.
2. Add detergent and fabric softener.
3. Switch the machine on by turning the se-
lector dial to the selected washing pro-
gramme/fabric.
4. Select the required options by pressing the
relevant buttons.
If possible, do not select a spin speed lower
than that proposed by the appliance to avoid
too long a drying time therefore saving energy.
In any case the reduction of the spin speed
is only possible after selecting drying.
5. Select the drying time by pressing button 5.
The display shows the entire duration of the
washing and the selected drying cycle.
6. Start the programme by pressing button 8.
After the programme has started, the time
remaining is updated every minute.
7. At the end of the programme turn the se-
lector dial to the Oposition to switch the
machine off.
8. Remove the laundry.
Fluff in the garments
During the WASHING AND/OR DRYING
PHASE, certain types of fabric, as sponge-
cloth, wool, sweatshirt, could release fluff.
The released fluff could stick to the fabrics dur-
ing the next cycle.
This drawback increases with technical fabrics.
To prevent the lint in your clothes, it is recom-
mended:
• To do not wash dark fabrics after you washed
and dried light colored fabrics (new sponge,
wool, sweatshirt especially) and vice versa.
• To air-dry this type of fabrics when they are
washed the first time.
• To clean the filter.
• Perform one or more rinse cycles to wash the
drum between the washing and drying of fab-
rics with different colors.
• After the drying phase, thoroughly clean the
empty drum, the gasket and the door with a
wet rag.
18
www.zanussi.com

Care and cleaning
Warning! You must DISCONNECT the
appliance from the electricity supply,
before you can carry out any cleaning or
maintenance work.
Descaling
The water we use normally contains lime. It is a
good idea to periodically use a water softening
powder in the machine. Do this separately from
any laundry washing, and according to the soft-
ening powder manufacturer's instructions. This
will help to prevent the formation of lime depos-
its.
External cleaning
Clean the exterior cabinet of the appliance with
soap and water only, and then dry thoroughly.
Cleaning the dispenser drawer
The washing powder and additive dispenser
drawer should be cleaned regularly.
Remove the drawer
by pressing the catch
downwards and by
pulling it out. Flush it
out under a tap, to re-
move any traces of
accumulated powder.
To aid cleaning, the
top part of the addi-
tive compartment
should be removed.
Cleaning the drawer recess
Having removed the
drawer, use a small
brush to clean the re-
cess, ensuring that all
washing powder resi-
due is removed from
the upper and lower
part of the recess.
Replace the drawer and run the rinse pro-
gramme without any clothes in the drum.
Cleaning the pump
The pump should be inspected regularly and
particularly if:
• the appliance does not empty and/or spin;
• the appliance makes an unusual noise during
draining due to objects such as safety pins,
coins etc. blocking the pump;
• a problem with water draining is detected
(see chapter “What to do if...” for more de-
tails).
Warning! Before opening the pump door,
switch the appliance off and remove the
mains plug from the socket.
Proceed as follows:
• Unplug the appliance.
• If it is necessary, wait until the water has
cooled down.
Place a container
close to the pump (A)
to collect any spillage.
Pull out the emergen-
cy emptying hose (B),
place it in the con-
tainer and remove its
cap.
19
www.zanussi.com

When no more water comes out, unscrew the
pump cover by turning it anti-clockwise and
remove the filter. Use pliers, if necessary. Al-
ways keep a rag nearby to dry up any water
spillage when removing the cover.
Clean the filter under a tap, to remove any
traces of fluff.
Remove foreign bod-
ies and fluff from the
filter seat and from
the pump impeller.
Check carefully
whether the pump im-
peller rotates (it ro-
tates jerkily). If it
doesn’t rotate, please
contact your Service
Centre.
Put the cap back on
the emergency emp-
tying hose and place
the latter back in its
seat.
Replace the filter into
the pump by inserting
it correctly into the
special guides. Screw
the pump cover firmly
by turning it clock-
wise.
Caution! When the appliance is in use
and depending on the programme selected
there can be hot water in the pump.
Never remove the pump cover during a wash
cycle, always wait until the appliance has
finished the cycle, and is empty. When refitting
the pump cover, ensure it is securely re-
tightened so as to stop leaks and young
children being able to remove it.
Cleaning the water inlet filters
Important! If the appliance doesn't fill, takes
long to fill with water, the starting button blinks
yellow or the display (if available) shows the
relevant alarm (see chapter "What to do if..." for
more details), check if the water inlet filters are
blocked .
To clean the water inlet filters:
• Turn off the water
tap.
• Unscrew the hose
from the tap.
• Clean the filter in
the hose with a stiff
brush.
• Screw the hose back onto the tap. Make
sure the connection is tight.
• Unscrew the hose from the machine. Keep
a rag nearby because some water may flow.
• Clean the filter in the valve with a stiff brush
or with the piece of cloth.
35° 45°
• Screw the hose back to the machine and
make sure the connection is tight.
• Turn on the water tap.
20
www.zanussi.com
