zBoost ZB246 User manual

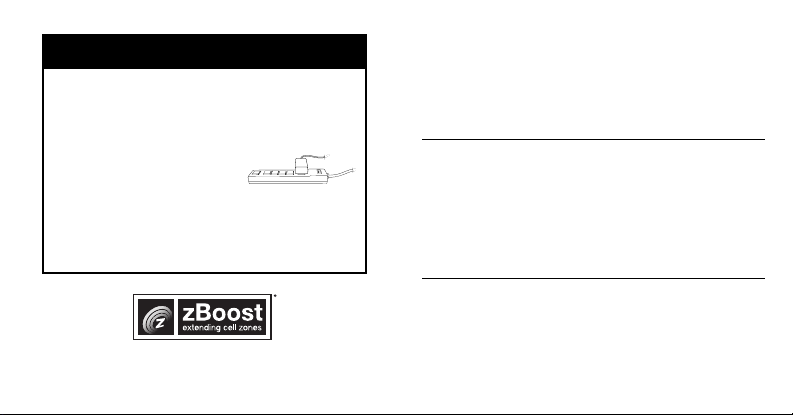

Using the AC/DC Power Supply
Connect the cable from the AC/DC power
supply to the Signal Booster input marked
“Power” and insert the plug end into a
surge protected AC Power Strip with at
least a 1000 Joule rating.
IMPORTANT: Connect both the
Outside and Inside Antenna cables to
the Signal Booster before powering up
the Signal Booster.
INSTRUCTION SHEET FOR
L-WINDOW BRACKET AND
AC/DC POWER SUPPLY
These instructions cover the antenna window
L-bracket and AC/DC power supply for use
with zBoost Mobile1 Signal Boosters.
For complete Signal Booster installation
instructions, please refer to the Installation
Guide packaged with the Signal Booster.
If you have any questions, please contact zBoost
Technical Support at 877-594-5766 or email
[email protected]
© Copyright 2014 zBoost, LLC. All rights reserved.
Rev.1 04.08.14

Installing the Window Bracket
attach to window
attach to window
Window Bracket
& Mini-Mount Antenna
Signal Booster
to Surge Protector Power Strip
For the best possible performance, choose a
location within the building where the existing
signal is the strongest. Then select a nearby
window at least 12 inches away from any
radio or television antennas and free of
obstructions.
Using the suction cups, position the mounting
bracket on the window at a height convenient
to where the Signal Booster is located, then
attach the antenna to the bracket. The
antenna must be installed vertically. Signal
performance will be degraded if the antenna
is not vertical.
