ZEG-ENERGETYKA ATS-9 User manual

ATS
-
9
Automatic Transfer Switch Controller

ATS - 9 Operating Manual
- 2 - DTR ATS-9_05.2017
TABLE OF CONTENT
1. MANUFACTURER COMMENTS ........................................................................................... 3
1.1. General safety rules .......................................................................................................................... 3
1.2. List of applied standards ................................................................................................................... 3
1.3. Storage and transport ....................................................................................................................... 4
1.4. Place of installation ........................................................................................................................... 4
1.5. Device documentation....................................................................................................................... 4
1.6. Disposal ............................................................................................................................................ 4
1.7. Warranty and service ........................................................................................................................ 4
1.8. How to order ...................................................................................................................................... 5
1.9. Manufacturer’s data .......................................................................................................................... 5
2. TECHNICAL DESCRIPTION ................................................................................................. 6
2.1. Application ......................................................................................................................................... 6
2.2. Main features .................................................................................................................................... 6
2.3. Construction ...................................................................................................................................... 7
3. TECHNICAL DATA .............................................................................................................. 11
4. FUNCTIONAL PROPERTIES .............................................................................................. 12
4.1. Principle of operation ...................................................................................................................... 12
4.2. Error codes ...................................................................................................................................... 20
5. INSTALLATION AND COMMISSIONING ............................................................................ 20
5.1. Storage and preparation ATS-9 controller for operation ................................................................. 20
5.2. Operation and maintaince ............................................................................................................... 21
6. SMIS 2 SOFTWARE ............................................................................................................ 21

ATS - 9 Operating Manual
- 3 - DTR ATS-9_05.2017
1. MANUFACTURER COMMENTS
1.1. General safety rules
1.2. List of applied standards
The device described in this manual has been designed and manufactured for industrial purposes. In the process
of development and production, compliance with the standards has been assumed, the fulfilment of which ensures
the implementation of the assumed principles and safety measures, provided that the user complies with the
installation, commissioning and operating instructions.
This device complies with the essential requirements of the Low Voltage Directive (2014/35/UE) and the
Electromagnetic Compatibility Directive (2014/30 / EU), in compliance with the following standards:
Urządzenie będące przedmiotem niniejszej instrukcji zostało zaprojektowane i jest produkowane dla zastosowań
przemysłowych.
 PN-EN 60664-1:2011 Insulation coordination for equipment within low-voltage
systems - Part 1: Principles, requirements and tests
 PN-EN 61010-1:2011 Safety requirements for electrical equipment for
measurement, control, and laboratory use -- Part 1: General requirements
 PN-EN 60255-26:2014-01 Measuring relays and protection equipment -- Part 26: Electromagnetic
compatibility requirements
 PN-EN 61000-6-2:2008 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for
industrial environments
 PN-EN 61000-6-4:2008/A12:2012 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards -
Emission standard for industrial environments
Related standards:
 PN-EN 61000-4-2:2011 Electromagnetic compatibility (EMC) - Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity test
 PN-EN 61000-4-4:2013-05 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst immunity test
 PN-EN 61000-4-5:2014-10 Electromagnetic compatibility (EMC) -- Part 4-5: Testing and measurement
techniques -- Surge immunity test
 PN-EN 61000-4-11:2007 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions and voltage variations immunity tests
 PN-EN 60255-22-5:2014-1 Measuring relays and protection equipment -- Part 26: Electromagnetic
compatibility requirements
WARNING
During normal operation of the device, some of its parts are under hazardous voltage.
Inappropriate or improper use of the device can pose a danger to persons serving, also
leads to damage of the device.

ATS - 9 Operating Manual
- 4 - DTR ATS-9_05.2017
 PN-EN 60255-22-2:2014-1 Measuring relays and protection equipment -- Part 26: Electromagnetic
compatibility requirements
 PN-EN 60255-22-4:2014-01 Measuring relays and protection equipment -- Part 26: Electromagnetic
compatibility requirements
 PN-IEC 255-11:1994 Electrical relays - Part 11: Interruptions to and alternating component (ripple) in
d.c. auxiliary energizing quantity of measuring relays
1.3. Storage and transport
The devices are packed in individual packages to protect them from damage during transport and storage.
Equipment should be stored in transport packs, indoors, free of vibration and direct atmospheric, dry, airy, free
from harmful vapors and gases. Ambient air temperature should not be below -20 ° C and above + 70 ° C and
relative humidity should not exceed 80%.
1.4. Place of installation
The equipment should work in areas free of water, dust and gases and explosive, flammable and chemically
active gases where the mechanical exposure is moderate. Installation height should not exceed 2000 m above
sea level at an ambient temperature of -5 ° C to + 40 ° C and relative humidity not exceeding 80%.
The device terminal marked with the PE symbol should be connected to ground potential. It is recommended to
use stranded wire of cross section min. 2,5 mm2 and insulation strength min. 500 V with a length of no more than
3 m.
1.5. Device documentation
The set comes with:
 Operating manual
 Test protocol
 Warranty Card
1.6. Disposal
The device has been manufactured mostly from materials that can be recycled or disposed of without endangering
the environment. A recalled device may be recaptured for re-processing, provided that its condition corresponds
to normal wear and tear. All components that are not regenerated will be removed in an environmentally friendly
manner. The device should be disposed of in accordance with local law or passed on to an electronic waste
disposal company.
1.7. Warranty and service
The warranty period is 24 months from the date of sale, unless a longer period agreed in the contract or the sales
contract.

ATS - 9 Operating Manual
- 5 - DTR ATS-9_05.2017
The warranty covers free of charge removal of defects revealed during use, under the conditions specified in the
warranty card.
ZEG-ENERGETYKA SP. Z O.O. gives a guarantee subject to the following conditions:
 the installation and operation of the device should be in accordance with that manual
 the seal on the device's housing must not be affected
 no corrections or changes can be made to the warranty card
The warranty does not cover:
 defects caused in result of inappropriate transport or storage conditions
 defects caused in result of inappropriate installation or operation of the device
 defects caused in result of tampering within the unit, structural modifications, alterations and repairs
carried out without the consent of the manufacturer
BUYER TIPS:
 Proper and trouble-free operation of the device requires proper transport, storage, mounting and
commissioning, as well as proper operation, maintenance and service.
 The equipment must be handled by properly trained and qualified personnel
 When complaining, please state the reason for the complaint (symptoms related to malfunction) and
factory serial number
 After receiving of the complaint confirmation, send the complaint device with the warranty card to the
manufacturer's address
 The warranty period is extended by the time of successful complaint filling
1.8. How to order
The order should specify the full name of the device and all the necessary parameters:
 type and version of the device
 supply voltage level
Example of order:
 Automatic Transfer Switch Controller ATS-9
 supply voltage: Upn = 220 V DC
1.9. Manufacturer’s data
ZEG-ENERGETYKA Sp. z o.o. Oddział Tychy
ul. Fabryczna 2
43-100 Tychy
Poland

ATS - 9 Operating Manual
- 6 - DTR ATS-9_05.2017
tel: [phone]
tel/fax: [phone]
NIP: 6381805949
REGON: 242933572
VAT ID-No.: PL6381805949
ING Bank Śląski SA: 72 1050 1344 1000 0090 9570 7718
e-mail: [e-mail]
www.zeg-energetyka.pl
2. TECHNICAL DESCRIPTION
2.1. Application
ATS-9 is automatic transfer switch controller dedicated for LV switchgear. The device is especially dedicated for
switchgears serving as auxiliary voltage supply system including diesel generator incoming feeders. An Incoming
feeder where unplanned outage occurs is automatically switched off and the controller immediately sends switch
on command to one of stand-by supplies according to set priority. Signalling of failures provides the staff precise
and immediate information about occurring alert states. The controller provides also event recorder function. The
records can be transferred to SCADA system with fiber optic port, RS-485 port or ethernet port. The
communication protocol is chosen from one of the available protocols from the list as follows: ZEG, IEC 60870-5-
103 or (optional) MODBUS, DNP-3, IEC 61850.
Depending on auxiliary voltage level, the device is provided in two versions:
 ATS-9 of Upn 230V AC/DC
 ATS-9 of Upn 110V AC/DC
2.2. Main features
The main features of ATS-9 are:
 standard rack 19” enclosure 19”/4U/160
 removable front panel with possibility to install in any place
 48 programmable binary inputs
 24 relay outputs to control breakers and cooperate with substation telecontrol system
 16 analog inputs with function of voltage unbalance detection
 32 LED RGB diodes, fully programmable
 7 inch LCD display (mimic diagram, settings, configuration)
 watchdog contact in order to signal lack of auxilliary voltage or power supply module failure
 binary inputs for remote confirmation of visual signalling
 input/output modules equipped with screw 16-pins plugs
 possibility of upgrading the device to control any number of supplies
 possibility to block signalling with “Alarm ON/OFF” button
 „Alarm C” button to confirm signalling

ATS - 9 Operating Manual
- 7 - DTR ATS-9_05.2017
 function buttons F1-F6 for setting the priority of supplies
 8 communication ports: RS-232, RS-485, ST-fibre-optic
 transmission protocol chosen by software: IEC 60870-5-103 or ZEG
2.3. Construction
ATS-9 is enclosured in standard rack cassette of dimensions: 19”/4U/160. Each cassette is equipped with 32
RGB LED diodes for disturbance signalling purposes (Fig. 1). 7” LCD display main task is to visualise of switchgear
topology with current breakers states. LCD display serves as interface for settings and configuration purposes as
well. The device consist of two main parts:
 the front panel (equipped with RGB LED diodes and 7” LCD display)
 logical unit (enclosured in standard 4U cassette, equipped with input/output modules, supply module,
communication module)

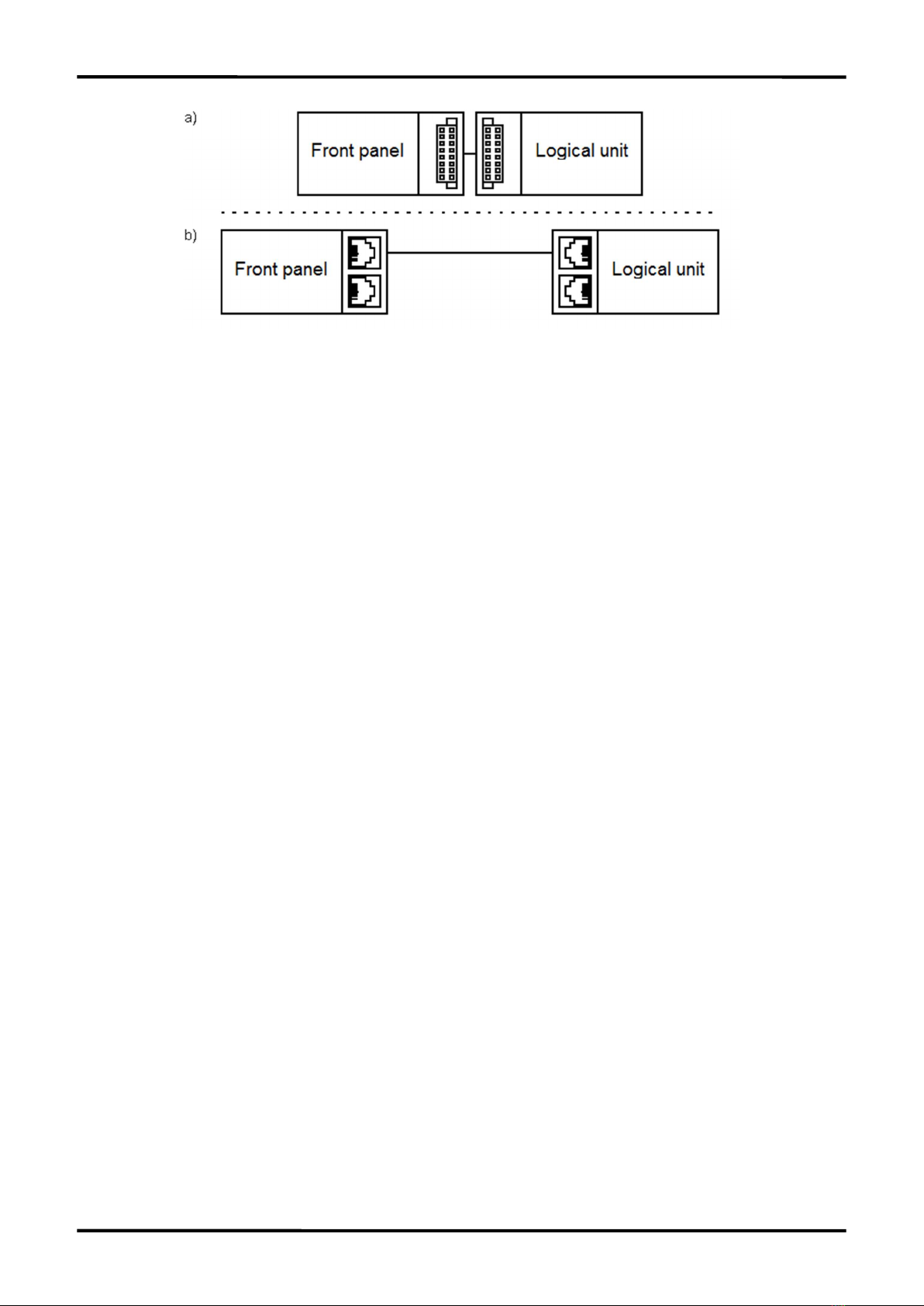

Device construction allows to mount separately the front panel and the logical unit. The device can be mounted
in any place, while the front panel could be mount in desired place, for example at detachable cabinet frame. On
the front panel (Fig. 1) the function buttons F1-F6 are located. Function buttons are used for setting the priority of
supply voltage. ON/OFF buttons allows to block alarm and failure signals. Alarm C buttons is used for quitting
alarm signals.
483
1
7
7
Fig. 1. ATS-9 Automatic Transfer Switch Controller – front panel view
Description of modules designations:
 E1 – cassette 4U no. 1 (E2 – no. 2 etc.)
 H1 – communication module
 Z1 – supply voltage module, the converter of 230 V to 12 V DC
 Y1 – modules of 8 independent outputs for control and signalling purposes
 A1 – modules of 8 inputs dedicated to collect binary signals (input voltage 220 V AC/DC)
 P1 – supply voltage measuring module

ATS - 9 Operating Manual
- 8 - DTR ATS-9_05.2017
The standard hardware configuration of ATS-9 controller is:
 4 input modules, 8 inputs per each (marked as E1A1 – E1A4)
 3 output modules, 8 outputs per each (marked as E1Y1 – E1Y3)
 1 supply voltage module equipped with two independent 12 V transducers (marked as E1Z1)
 1 communication module (marked as E1H1)
 1 measuring module for measuring the supply voltage at incoming feeder
Fig. 3 presents the side view of the device. The device consist of two main parts:
 Front panel (left)
 Logical unit (right)
RXDRXD TXDTXD
USB
FRONT
PANEL
EKRAN
EKRAN
12V DC
E1A1 E1A2 E1A3 E1A4 E1A5 E1Y1 E1Y2 E1Y3 E1H1
PORT 1
PORT 2
PORT 7
PORT 1
PORT 2
PORT 3
PORT 4
PORT 5
PORT 6
E1P2E1P1 E1Z1
U84 U80 U76 U72 U68 U64 U60 U56 U40U44U48U52 U04U08U12U16U20U24U28U32U36
A
B
A
B
A
B
A
B
A
A
B
B
1
2
3
4
5
6
7
8
9
10
11
12
Fig. 2. Terminals arrangement – logical unit back side
121
42
Fig. 3. Side view. The front panel (left) and logical unit (right)

ATS - 9 Operating Manual
- 9 - DTR ATS-9_05.2017
Table 1a. Assigned functions of inputs in cassette 1 (E1) – standard arrangement
Table 1b. Assigned functions of inputs in cassette 1 (E1) – extra input module arrangement

ATS - 9 Operating Manual
- 10 - DTR ATS-9_05.2017
Table 2. Voltage measuring inputs – E1P1 – E1P3 modules
Table 3. Supply module – terminals description

ATS - 9 Operating Manual
- 11 - DTR ATS-9_05.2017
Table 4. Description of output modules in cassette 1 (E1)
Plug E1Y1 Plug E1Y2 Plug E1Y3 Plug E1Y4 Plug E1Y5 Plug E1Y6
ATS blocked.
or lac k of
Aux. Volt.
Breaker A
Ready to close
Breaker
No t ready
for close
Breaker
Faulty position
Block ed by
Protection
Relay operation
Trans former
Protection
TRIP
FIRE
System
operation
Paralle l
Operation
Of transf.
Section 1A
No voltage
ATS failure
or lac k of
Aux. Volt.
Breaker A
Open command
Breaker A
Close command
Generator G
Turn ON
command
Feeder C
priority
Control and signalling
Outputs
module
Transformer
Protection
TRIP
+ potential
For ATS
Unblocking
signall
ATS
Operation
signal
Unsuccesfull
ATS operation
Outage
Any of feeder
Section 2A
No voltage Feede r D
priority
Generator G
Turn OFF
command
Section 1B
No voltage
Section 2B
No voltage
Breaker S
Open command
Breaker S
Close command
Breaker B
Open command
Breaker B
Close command
Breaker B
Ready to close
Breaker S
Rea dy to close
Breaker D
Ready to close
Breaker C
Ready to close
Breaker C
Open command
Breaker C
Close command
Breaker D
Open command
Breaker D
Close command
Breaker E
Open command
Breaker E
Close command
Breaker F
Open command
Breaker F
Close command
Breaker G
Open command
Breaker G
Close command
Breaker H
Open command
Breaker H
Close command
Breaker E
Ready to close
Breaker G
Ready to close
Breaker F
Rea dy to close
Breaker H
Ready to close
Control and signalling
Outputs
module
Control and signalling
Outputs
module
Control and signalling
Outputs
module
Control and signalling
Output s
module
Control and signalling
Outputs
module
3. TECHNICAL DATA
Supply module
Supply voltage Uz = 2 × 110V/240V, DC/AC
(on request)
Permissible range of supply
voltage fluctuation ±15%
Burden in supply voltage AC  30VA
DC  30W
Burden in control inputs AC  25VA
DC  25W
Permissible supply voltage
dip tp = 50ms
Signal inputs
Number of inputs (per one
cassette) 64 to 128
Number of cassettes 1 to 4
Insulation Optical
Input voltage (of signal
inputs)
Uin = 220V DC / 230V AC
(or any different on request)
Threshold
0,7 x Uin for DC
0,5 x Uin for AC
(on request)
Burden in signal inputs 0,3W / input
Range of settable time delay
5 ms to 25 s for DC
20 ms to 25 s for AC
Default setting: 100ms
Time resolution 1 ms

ATS - 9 Operating Manual
- 12 - DTR ATS-9_05.2017
Communication
Number of communication
channels 8
Port 1 Fiber optic ST / IEC 870-5-
103
Port 2 Fiber optic ST / ZEG protocol
Port 1/3/4/5/6 RS-485
Port 7 – front panel USB / ZEG protocol
Port 8 – terminals side USB / ZEG protocol
Insulation
Insulation strenght 2kV, 50Hz, 1 min
Nominal voltage 250V
Overvoltage II
Ingress protection IP 40
Operating condition
Ambient temperature 268  313K (-5  +40 oC)
Relative humidity < 80%
General data
Dimensions
(width x height x depth) 257 mm × 157 mm × 163 mm
Weight 7 kg
4. FUNCTIONAL PROPERTIES
4.1. Principle of operation
ATS-9 is freely programmable device which by: light indicators on front panel, LCD display and set of relay
outputs, signals the current condition of auxiliary voltage switchgear. The signals can be grouped and individually
assigned to visual indicators and signalling outputs. Inputs can be picked-up by energising them or by voltage
drop. Input signal can be delayed by timer of duration up to 25 sec. Block diagram of the device is shown at Fig.
4 (page 15). Diagram of connection manners of logical unit and front panel are shown at Fig. 5 (page 16). Fig. 5
a presents the logical unit mechanically and electrically connected to front panel by 32 pins connector. At Fig. 6
b the connection by RJ45 wire is shown. In this case, the front panel and logical unit are mount separately. Fig 6
c presents the possibility of connection two front panels with one logical unit by RJ45 wire. This arrangement
allows to present the same group of signals in two different places.

ATS - 9 Operating Manual
- 13 - DTR ATS-9_05.2017
Fig. 4. Block diagram of principle of operation of ATS-9 controller

ATS - 9 Operating Manual
- 14 - DTR ATS-9_05.2017
Fig. 5. Block diagram of connection manners of front panel and logical unit
Cooperation with standard switchgear topology
ATS-9 provides voltages supervision on switchgear busbars and feeders. In standard 3-breakers topology (two
incoming feedes, two busbar section and coupling breaker) the voltage is supervised in 4 points:
 feeder A
 feeder B
 busbars section A
 busbars section B
In addition, the controller receives the signals of:
 circuit breakers positions
 circuit breakers ready-to-close statuses
 trip signals of each breaker
In normal operation, section A is energised from TR1 transformer and section B is energised by TR2 transformer.
Circuit-breakers A and B are closed, while the circuit-breaker S is opened. In case of voltage drop on TR1 or TR2
transformer, the controller automatically starts its operation.
The breaker on which, outage situation occurs, is immidiatelly opened. Than breaker in coupling bay (CB "S")
receives the command to close. The time delay of CB "S" close can be adjusted.
In case of switchgear of more than 3 circuit-breakers, the operation is defined individually according to particular
case.

ATS - 9 Operating Manual
- 15 - DTR ATS-9_05.2017
incoming feeder A incoming feeder B

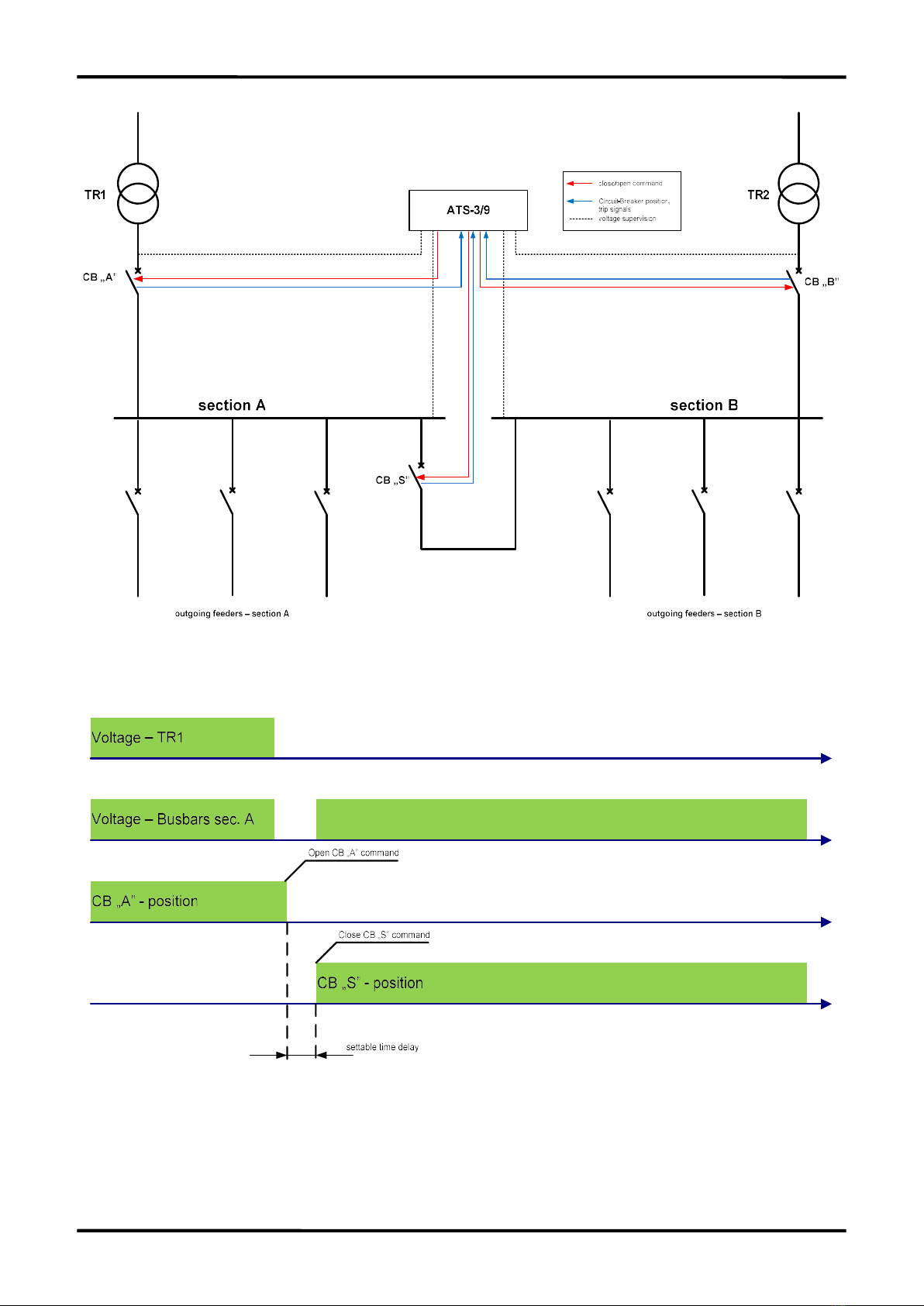

Fig 6. ATS operation in standard two-section switchgear
Fig 7. Operation of ATS. Reaction to outage on TR1

ATS - 9 Operating Manual
- 16 - DTR ATS-9_05.2017
Repeating, non-repeating operation mode
ATS controller can be set as: repeating or non-repeating operation mode. In repeating operation mode, the ATS
controller immediatelly restores the standard arrangement of the switchgear when voltage on faulted feeder is
restored.
In non-repeating operation mode, the ATS controller do not restore the standard arrangment. If the voltages is
restored on faulted feeder, the controller waits for acknowledgment signal. Once the controller receives the
acknowledgment signal, restores the standard arrangement by sending open command to coupling breaker ("S")
and close command to breaker on which, the outage situation occured.
Fig.8 Operation of ATS set to “repeating mode”
Fig. 9. Operation of ATS set to non-repeating mode

ATS - 9 Operating Manual
- 17 - DTR ATS-9_05.2017
Priority of feeder
The ATS controller allows the user to switch between the feeders. It can be performed by changing the priority of
power source. If the priority is set to "energise by TR1", the controller set breakers A and S as close and breaker
B as open. If the controller is set to priority "energise by TR2", the controller set breakers B and S as close and
breaker A as open. If changing the priority form A to B or B to A, the controller performs operation using an
appropriate order. Firstly, opens all the breakers, then closes the breaker suitable for selected priority and finally,
closes coupling breaker "S".

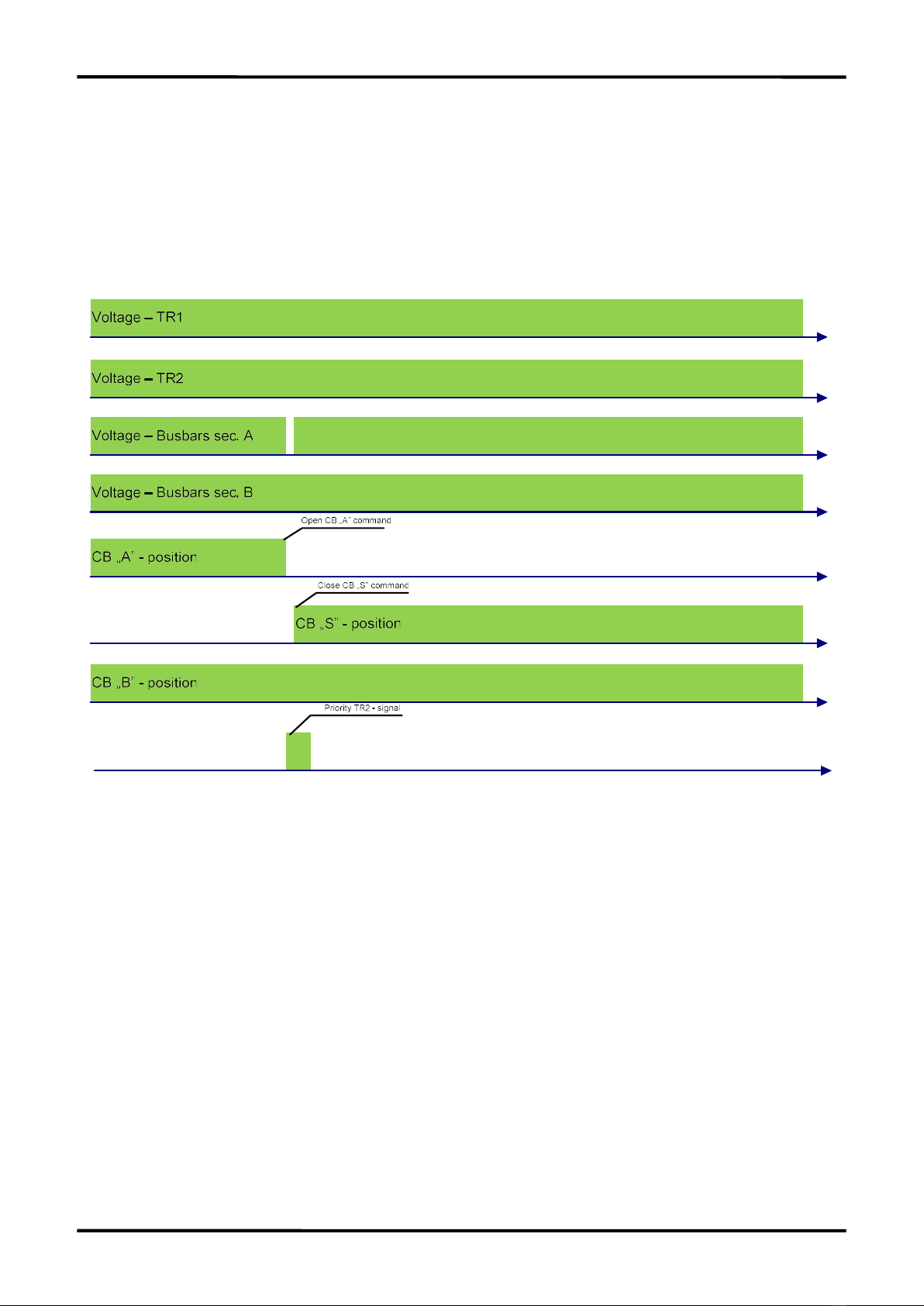

Fig. 10. Operation of ATS. Change od priority of incoming feeder.
Supervision of breakers position
In order to provide reliable operation, the ATS controller needs to receive the information of each breaker in two-
byte mode. The controller recognises the position correctly when receives the pair of signals "high" and "low" or
"low" and "high" at the same time (XOR gate logic). In case of receiving two "low" or two "high" signals, the
controller generates signal "CB ... faulty position" and turn into temporary blocked operation mode - the controller
performs no operation. If the controller receives proper pair of signals, automatically returns to ON status and
performs all operations according to the situation.

ATS - 9 Operating Manual
- 18 - DTR ATS-9_05.2017
auxilliary
voltage
ATS-3/9
CB
+
-
Fig. 11. ATS connection to CB contacts
Table 5. Logical table of CB position supervision
CB closed
position
CB open
position
CB status in ATS
controller
Low Low CB faulty position
Low High CB open
High Low CB closed
High High CB faulty position
Fig. 12. ATS operation in case of CB faulty position status

ATS - 9 Operating Manual
- 19 - DTR ATS-9_05.2017
Blocking by trip signal
In case of fault on busbars, the CB is open by its overcurrent protection. In such situation, standard operation of
ATS controller, would cause "switch-onto-fault" situation. It could result in increasing the danger to staff and
equipment. To prevent such situation, the controller receives signal of trip condition of each supervised breaker.
In case of trip of any breaker, the controller turns to "latched interlock" and performs no operation. That status
must be ackwnoledged by the staff. Until the controller receives the acknowledgment signal, it generates no
commands.

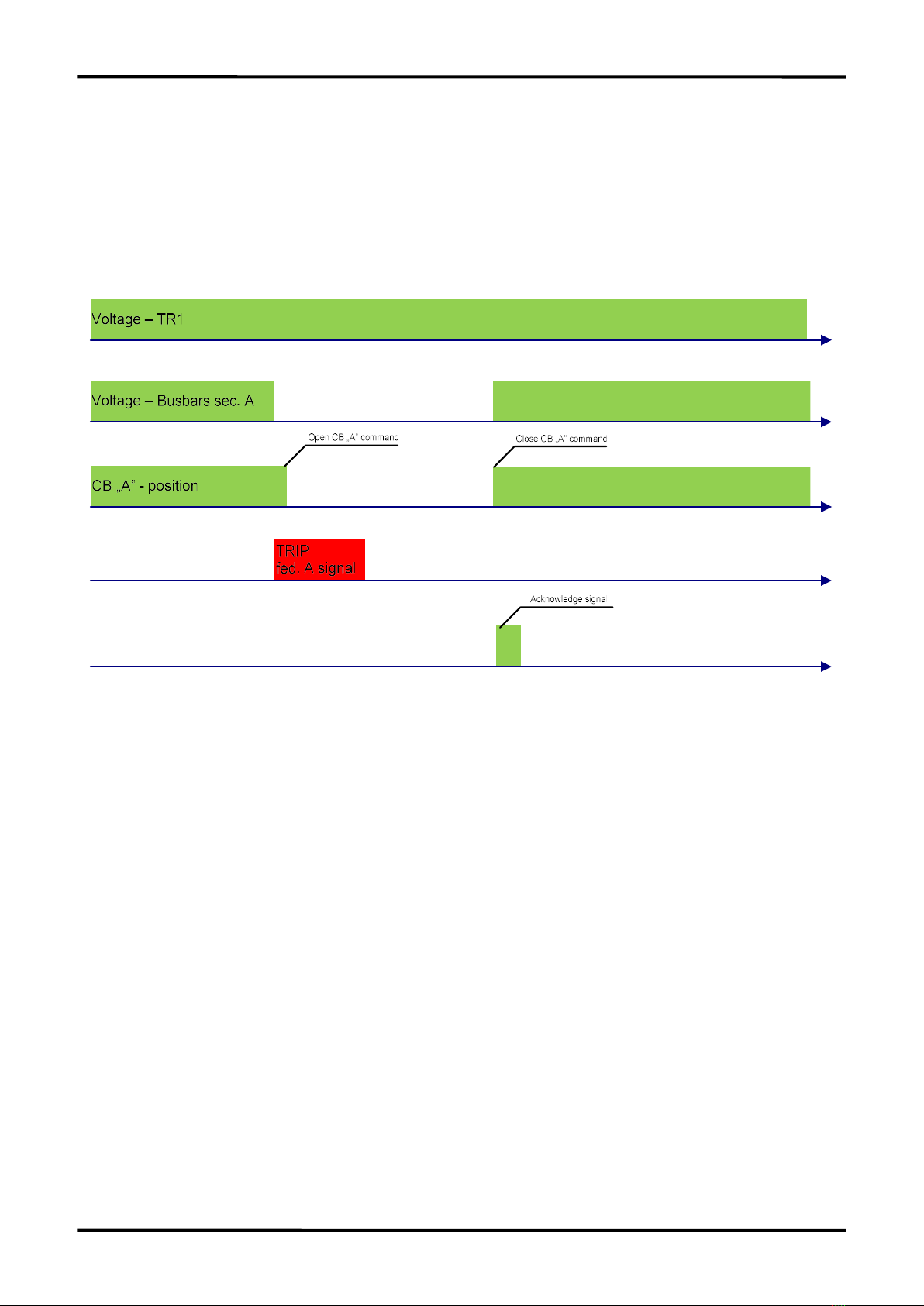

Fig. 13. ATS operation in case of TRIP signal
ATS blocked mode
In order to allow to make intentional outage on switchgear busbars, the controller can be blocked by blocking
input. This can be use in case of neccessity of performing maintanance works on switchgear busbars. If the
blocking signal is active, the ATS controller performs no operation. The outage can be manually performed by the
staff.
Circuit-breaker control circuit fault
In case of unsuccesful operation of Circuit Breaker, the controller sends command 3 times again. If the position
of CB does not change to expected position, the controller recognise it as failure in control circuits and generates
signal "not ready-to-close".
Protection agains parallel operation of transformers
Standard switchgear wiring do not allow to close all CB at the same time. It would cause the parallel operation of
transformer what is in most cases not permitted. If, however, such sitation occurs, the ATS controller immidiatelly
sends open command to all breakers. After the time delay, the ATS controller closes proper pair of CB's according
to set priority.

ATS - 9 Operating Manual
- 20 - DTR ATS-9_05.2017
4.2. Error codes
The ATS controller provides visual indication of events occurring within the controlled switchgear. Internal device
logic covers up to 255 logical nodes of which ~90 are defined as errors or faults. The typical list of errors arriving
on device LCD screen is presented in table 6.
Table 6. Error codes on device LCD
Error number on LCD Error description
15 ATS blocked (to be acknowledged)
16 ATS interlock signal from CB A Trip status
17 ATS interlock signal from CB B Trip status
24 ATS interlock signal from CB S Trip status
25 Circuit Breaker A Trip status
26 Circuit Breaker B Trip status
29 ATS in OFF mode
30 Lack of voltage at TR1 - phase L1
31 Lack of voltage at TR1 - phase L2
32 Lack of voltage at TR1 - phase L3
33 Voltage unbalance at TR1
34 Lack of voltage at TR2 - phase L1
35 Lack of voltage at TR2 - phase L2
36 Lack of voltage at TR2 - phase L3
37 Voltage unbalance at TR2
54 Lack of voltage on section A
55 Lack of voltage on section A
56 Lack of voltage on section B
57 Lack of voltage on section B
58 Circuit Breaker A - not ready-to-close
59 Circuit Breaker B - not ready-to-close
66 Circuit Breaker S - not ready-to-close
67 Circuit Breaker A - control circuit failure
68 Circuit Breaker B - control circuit failure
75 Circuit Breaker S - control circuit failure
76 ATS controller internal failure
77 Lack of voltage in measuring circuit of TR1
78 Lack of voltage in measuring circuit of TR2
79 Circuit Breaker A - faulty position
80 Circuit Breaker B - faulty position
87 Circuit Breaker S - faulty position
88 ATS operation - 5 seconds
91 Lack of auxilliary voltage 1
92 Lack of auxilliary voltage 2
5. INSTALLATION AND COMMISSIONING
5.1. Storage and preparation ATS-9 controller for operation
ATS-9 Automatic Transfer Switch Controller is delivered to the user in packages to ensure protection against
external influences that could cause damage. Therefore, do not unpack them for storage. Transport packages
