Zehnder Rittling ComfoClime 24 User manual

1 - EN
ComfoClime 24
ComfoClime 36
User manual
Decorative radiators Comfortable indoor ventilation Heating and cooling ceiling Clean air solutions

EN - 2
All rights reserved.
This manual has been compiled with the utmost care. The publisher cannot be held liable for any
damage caused as a result of missing or incorrect information in this manual.
Table of Contents
Preface............................................................................................................................3
1 Installation..................................................................................................................... 4
2 The provisioning ............................................................................................................5
2.1 Special circumstances......................................................................................................12
2.2 Settings ..........................................................................................................................14
3 The home page........................................................................................................... 16
4 The main menu ........................................................................................................... 17
5 Your devices ............................................................................................................... 18
6 The thermal profile ....................................................................................................... 20
7 Scenarios ................................................................................................................... 23
8 The scheduler ............................................................................................................. 24
9 Notification.................................................................................................................. 25
10 Firmware updates ...................................................................................................... 26

3 - EN
Preface
IMPORTANT!
Carefully read this manual before use.
The ComfoClime is hereinafter referred to as "device".
This manual explains how to install, configure and use the App in order to control the ComfoClime.
Since that application is continuously developed and improved, your actual release may differ a bit
from the descriptions shown in this document.
Due to the automatic update procedure of mobile app stores (Google Play and Apple Store), the App
will automatically upgrade as soon as an update is released.
NOTE : this manual has been compiled with the utmost care. However, no rights
can be derived from it. In addition, we at all times reserve the right to change the
contents of this manual, without prior notice.
The following pictograms are used in this document:
Symbol Meaning
Consult the manual before using/operate the equipment.
Point of attention / important informations.
Risk of compromised performance or damage to the ventilation system / risk of
personal injury.
Caution electrical hazard!
Zehnder Group International - Via G. di Vittorio 6 - 41011 Campogalliano (MO), Italy
T [phone] - F [phone]

EN - 4
1 Installation
To configure and operate the ComfoClime the user must install the ComfoClime Control app by
downloading it from Google Play or Apple Store.
Once installed the app will appear among the phone apps with it's icon:
All the manuals are downloadable scanning this QR-code.
You’ll be redirected to the download page where you can select
among a wide range of languages.

5 - EN
2 The provisioning
At the first launch of the app, the user will be prompted to detect the ComfoClime and connect it to
his home WiFi network (if available).
The ComfoClime can be controlled only through the ComfoClime Control app.
In case the user doesn’t have a WiFi network running in the house there is the possibility to get
connected to the ComfoClime anyway through the Bluetooth connection or through a local WiFi
network generated by the ComfoClime itself.
ACTION IMAGE

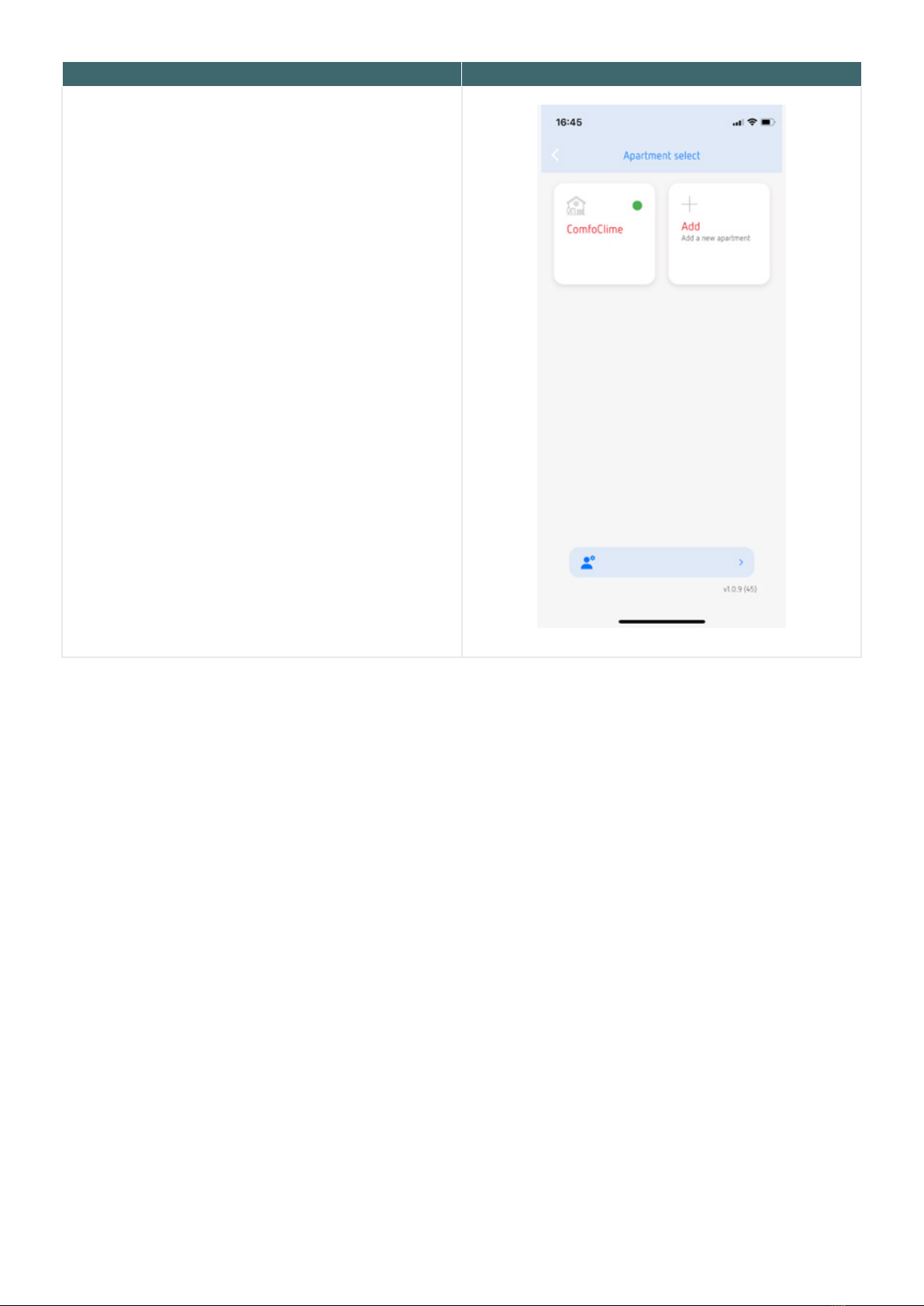

Launching the APP the installation page, called
Apartment select, will appear.
To begin detecting the ComfoClime, proceed
by tapping the ADD button.

EN - 6
ACTION IMAGE
In the next page the user is asked to select
between a WiFi present or not can choose
whether to go for a brand new installation or
connect an already installed ComfoClime.
Advise: please ensure in your mobile phone WiFi
settings that your WiFi allows to add additional
devices.
Note: check also if the router allows to add other
devices to the local network and in case, enable
the feature.
In the first provisioning screen there are two
possibilities:
YES: the user will install the ComfoClime in the
WiFi network searching the unit via Bluetooth.
NO: the user will install the ComfoClime using
a local direct WiFi connection between the
smartphone and the unit (go to pag. 7).
WIFI PRESENT
Answering YES (Step 1) the following page allows
the user to connect the smartphone to the WiFi
in case it wasn’t yet done, firstly tapping on Go
To Wifi Settings and going temporarily in the
smartphone settings to set up the wifi connection
Afterwards, in any case, tap on Next to move to
the next step.

7 - EN
ACTION IMAGE

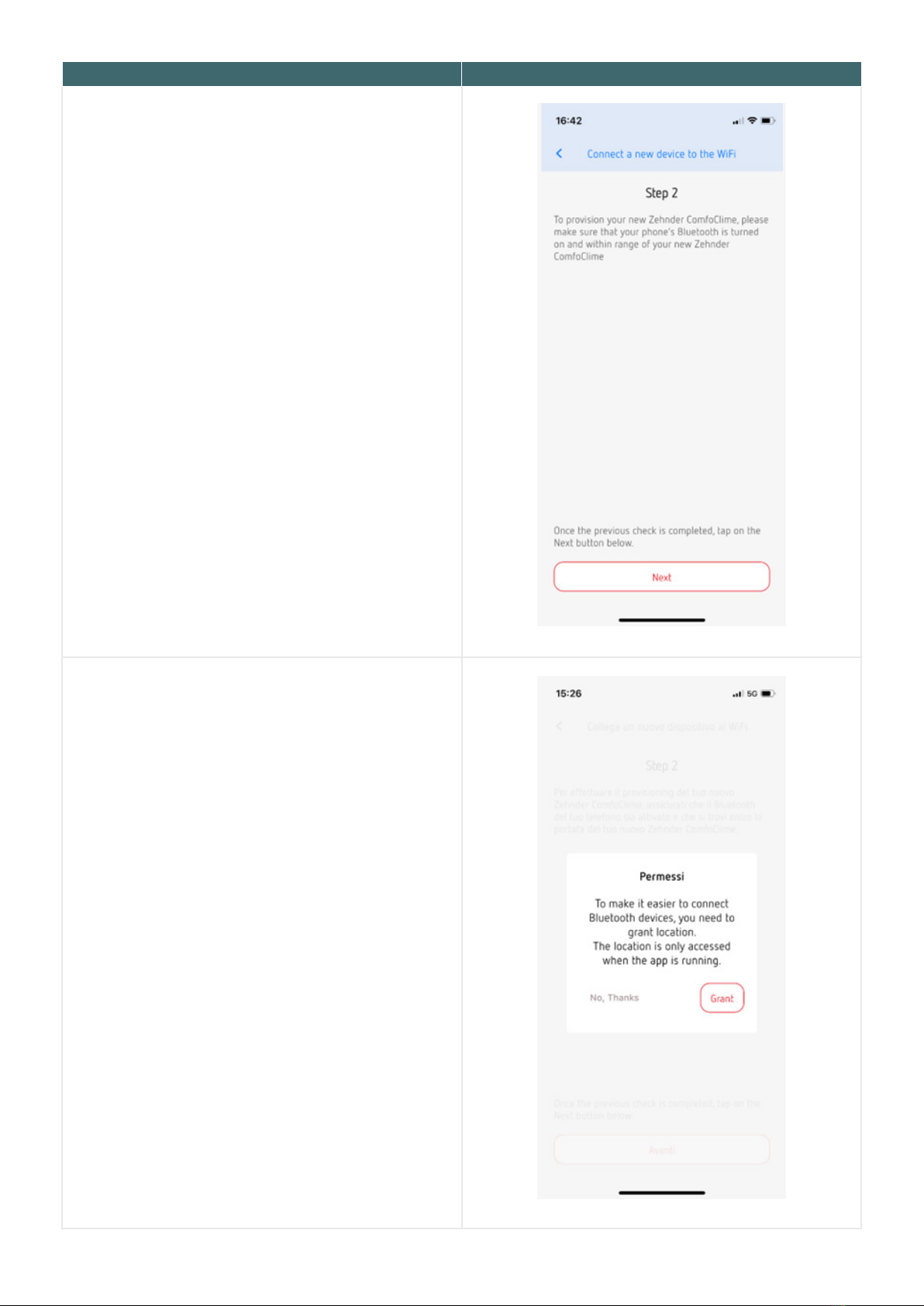

Step 2: the app asks the user to check and
confirm that the smartphone has the Bluetooth
enabled. Once confirmed tap Next.
In this page please confirm the authorization
to use also the geolocation in order to let the
smartphone looking for the ComfoClime tapping
on Grant.

EN - 8
ACTION IMAGE
When the app finds a Bluetooth signal (the one
generated by the ComfoClime), it will show it and
the user must tap on New Device to trigger the
connection phase between the two devices.
The app will move automatically to the next step.
In this page the user confirms the authorization
to the Bluetooth pairing tapping on Pair.

9 - EN
ACTION IMAGE
In this page it is possible to assign the WiFi
connection to the ComfoClime among the ones
found in the environment (usually in a house
there is only one)
Important: insert the user’s WiFi router password.
Once the WiFi is chosen the app moves to the
next page.
WiFi Home
Tap on Next.

EN - 10
ACTION IMAGE
Now the ComfoClime has been found and
included in the network with a generic name
ComfoClime.
Tap on the name to enter the personalization
page.
In case of the ComfoClime was already installed
before but it is necessary to repeat the procedure
only for the part regarding the search of the
unit, the page will show directly the unit with the
name that was assigned to during the previous
provisioning.
In this page it is possible to change the name
of the unit (apartment), assigning if desired the
address, city and country.
Finally an icon can be assigned as well.
Then tap on Save to confirm the choices.

11 - EN
ACTION IMAGE
The next page recap the installation successfully
done showing the configured unit with its
name and a green dot that means it is properly
connected.
To enter the ComfoClime controls just tap
over the name of the unit.
Important: this feature is useful especially if
the user owns several ComfoClime in different
houses so that he can use the same app to
control all of them. The active system is visible
by the green dot. All the others should have
the red dot because it is normally assumed
that there is only one ComfoClime in the
building. Otherwise the user will see a green
dot for each ComfoClime actually present.
Go to pag. 17.

EN - 12
2.1 Special circumstances
ACTION IMAGE
WIFI NOT PRESENT
Answering NO the user begins the connection
procedure between the smartphone and the
ComfoClime.
To do so, the ComfoClime emits a WiFi signal to
which the smartphone must be connected.
The name of the local ComfoClime network is:
Zehnder_xxxxxxxxxxxxxxx
Where xxxxxxxxxxxxxx stands for the serial
number of the unit itself.
Therefore:
1. The user sets up the smartphone in the
local network;
2. Connect the smartphone to the
ComfoClime.
1
2
Tapping on:
Go To WiFi Settings
the app opens the Wifi settings of the smartphone
letting the user to select the Zehnder_
xxxxxxxxxxxxxx network.
Insert the password Zehnder1.
Once the connection is established it is possible
to tap back to the previous app page.

13 - EN
ACTION IMAGE
Returned to the previous page tap Connect.
The app detects immediately the ComfoClime
and enter the page for customization (see pag. 6).
In this page it is possible to change the name
of the unit (apartment), assigning if desired the
address, city and country.
Finally an icon can be chosen as well.
Then tap on Save to confirm the choices.
Go to pag.

EN - 14
2.2 Settings
ACTION IMAGE
The option Settings allows to:
• Assign a different WiFi to the ComfoClime
connection;
• Perform a soft reset (Restart) corresponding
to unplug and replug the ComfoClime.
Tapping on WiFi it is possible to change the WiFi
signal which the ComfoClime is connected to.
Tapping on Restart the ComfoClime is reset as
if it were unplugged and replugged.

15 - EN
ACTION IMAGE
At the bottom of the MAIN MENU there is the
option to change the access level.
There are three different possibilities:
• Basic: default user level. All the main
functions are active for a normal use and
control of the unit.
• Advanced: tapping on it and confirming with
Enter button the user has access to many
further parameters of the Thermal profile
concerning the settings of the heating and
cooling functions.
Warning: changing these values can be very
detrimental for the proper functioning of the
ComfoClime so it is recommended not to change
them if not completely sure (and responsible
for) but leave this job to authorized and skilled
personnel.
• Installer: tapping on it, typing a PIN code
and the ACTIVATE button, the installer has
access to further more parameters that
deeply affects the ComfoClime behaviour. As
for the advanced level it is strongly suggested
to not change these values leaving that duty
only to the installer or other Zehnder Service
technicians.
Warning: changing these values can be very
detrimental if not lethal for the proper functioning
of the ComfoClime and the access to the Installer
level is permitted only to authorized personnel.

EN - 16
3 The home page
POS. DESCRIPTION
1Main menu
2
ComfoClime mode:
Blue snowflake = COOLING active;
Red sun = HEATING active;
Blank = the heat pump is not running.
3ComfoAir Q airflow preset: It is possible to select all three ComfoAir Q speeds by tapping
on the circular icon. When the preset is changed the unit will switch to manual mode.
4BOOST ventilation mode. Always visible. Red if enabled.
5Shortcut to the SCHEDULER.
6
Notification bell: if a red dot appears, check the message in the notifications page tapping
on the bell. When possible the user can reset the error messages tapping on RESET
button in the notification page.
7INDOOR and OUTDOOR temperature.
8
Mode selector: POWER; COMFORT; ECO.
Selection through scrolling, in a loop.
When the temperature selection is MANUAL the selector shows the degrees.
When the temperature is in AUTO mode the selctor shows the actual mode.
9SCENARIOs selector.
10 Shortcut to the THERMAL PROFILER.
1
2
3
4
5
6
7
8
9
10

17 - EN
4 The main menu
ACTION IMAGE
Tapping on the 4 dots icon on the top left corner
of the app, the main menu will appear.
It is possible to browse through all the pages of
the app simply tapping on their names.
In the lower right corner of the main menu it is
possible to read the installed version of the app.
The pages are:
Home: the home page.
Your Devices: the page that shows in detail all
the units connected to the ComfoNet network (the
Comfoair Q, the ComfoClime, other devices…)
and allows to update them when a new firmware
is available (see pag. 27).
Thermal profile: the page with all the thermal
settings. According to the actual access level
(see below) different values are visible and/or
editable.
Scheduler: the weekly scheduler through which
it is possible to customize the ComfoClime
assigning different profiles in the 24 hours/7days.
Apartment select: the page with all the
ComfoClimes configured and the ADD button
to add a new ComfoClime. This is the first page
to get into when it is necessary to install a
ComfoClime.
Settings: see pag. 14.

EN - 18
5 Your devices
ACTION IMAGE
The "Your Devices" page lists all the devices
connected to the ComfoNet system.
The ComfoAir Q and the ComfoClime must
be present all the times; other devices are
accessories so they can appear only when
installed.
Tapping on each image a sub page will be opened
showing details of the specific unit (model, size
and firmware version).
The sub-page of the ComfoAir Q unit shows the
4 working temperatures of the ComfoAir Q and
the indoor temperature.
The fan speed of the ComfoAir Q is adjustable
tapping on the big central wheel.
The red sectors indicate the actual speed.

19 - EN
ACTION IMAGE
The sub-page of the ComfoClime unit shows:
• the working mode (Auto or Manual tapping
on the button on the left upper corner);
• the indoor temperature;
• the working mode switch (Power, Comfort,
Eco);
• the Supply Air Temperature;
• the external Tpma value.
ComfoClime working modes
ComfoClime automatic modes:
• Power: the unit works at full power with
a default setpoint of 23°C in heating and
cooling;
• Comfort: the unit works at a balanced mode
with a heating setpoint of 21°C and a cooling
setpoint of 25°C;
• Eco: the unit works at a reduced power
(energy saving mode) with a heating setpoint
of 19°C and a cooling setpoint of 27°C.
When the switch it's set to Manual the main
slider changes showing the exact temperature of
setpoint.

EN - 20
6 The thermal profile
ACTION IMAGE
The Thermal profiler page is composed of two
pages in which it is possible to see and/or set
several parameters, accordingly to the access
level and the model of ComfoClime installed.
Season selection
In Auto mode the season is automatically
detected by the ComfoClime accordingly to the
external temperature and the season settings.
The system calculates by itself the season which
it belongs to, considering an average outdoor
temperature called Tpma.
The Tpma keeps into consideration the
temperature of the past days in order to
determine a “predicted” and consistents current
temperature so not to be misled by sudden
change of the weather. Seasons are defined
by temperature limits (thresholds). The heating
season threshold determines the outdoor Tpma
temperature below which the active heating
is enabled; the cooling season thershold
determines, on the contrary, when the active
cooling is enabled (Tpma above the cooling
threshold). In between there is the middle season
during which the device is disabled so only the
ComfoAir Q provides passive energy recovery.
The user can manage the season in Auto or
Manual mode: in manual, tapping the icons, he
can force the season according to his needs.
The thresholds can be adjusted only by Zehnder
Service personnel during a setup configuration.
The adjustments can be done in the advanced
settings.
Temperature selection
This value represents the setpoint for each
working mode.
In Automatic mode the default values are:
MODE VALUE
POWER 23° heating/23° cooling
COMFORT 21° heating/25° cooling
ECO 19° heating/27° cooling
See the table in the next page for all the default
values.
The Manual temperature adjustment is possible
enabling the advanced profile in the main menu
and the range goes from 18°C to 28°C in both
heating and cooling mode.
In the examples on the right, the different aspects
of the Thermal profiles according to the active
access level: upper the BASIC and below the
ADVANCED
