Zenith HydroTap G5 Instruction Manual

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
1
Quick Start Installation Guide
Command Centre
Boiling/Chilled models (Manufactured after 1 January 2023)
AFFIX PRODUCT LABEL HERE
Zenith
HydroTap G5
Visit our website to
download the manuals

2Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
Table of contents
SECTION 1: Using the instructions......................................................................3
SECTION 2: IMPORTANT SAFETY INSTRUCTIONS............................................. 4
SECTION 3: WARNINGS AND REGULATORY INSTRUCTIONS.............................7
SECTION 4: Technical data ............................................................................... 9
SECTION 5: Supplied parts checklist .................................................................11
SECTION 6: Set up the ventilation.................................................................... 12
SECTION 7: Connect the water supply ............................................................ 15
SECTION 8: Set the bypass & install the scale filter .......................................... 16
SECTION 9: Fit the Booster............................................................................... 17
SECTION 10: Connect the Booster ................................................................... 18
SECTION 11: Connect the Command Centre.................................................... 19
SECTION 12: Commissioning ............................................................................ 23
Contact details .................................................................................................36
Read the
instructions
Button/
coin battery

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
3
SECTION 1: Using these instructions
This document is a Quick Start Installation Guide.
For further details on installing and operating your HydroTap
download & read the Command Centre installation and user
instructions , which can be found online at:
zenithwater.co.nz
!
Read and use the instructions supplied with individual kit
components for a safe installation.
Before you start
!
!
Explanation of symbols
Read the
instructions
WARNING
!
!
Danger of
electric shock
!
!
Hot surface
!UV
!
Highly
Flammable
Button/
coin battery

4Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 2: IMPORTANT SAFETY INSTRUCTIONS
Safety
This appliance is not intended for use by children under 8 years or persons
(including children under 8 years) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by
a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Refrigerant
The Zenith HydroTap Command Centre range uses either HIGHLY
FLAMMABLE R290, R600a or R134A refrigerant under pressure.
Check the rating plate or contact Zenith before commencing
work.
Maintenance of the refrigeration unit must be carried out by an
accredited service provider or qualified refrigeration technician.
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Qualifications
To avoid hazards, all installation procedures must be carried out by a
suitably qualified tradesperson. The power cable and power outlet must be
in a safe visible position for connection.
!
!
Compliance
In NZ/Australia electrical installation must comply with AS/NZS3000.
In NZ/Australia plumbing installation must comply with AS/NZS3500.
In NZ/Australia For residential chilled models, all refrigeration must comply
with AS/NZS 60335.2.24.
In the UK the system must be installed in accordance with water supply byelaws,
current IEE regulations and local authority byelaws.
!UV
!

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
5
SECTION 2: IMPORTANT SAFETY INSTRUCTIONS
Venting
Sometimes steam and / or boiling water droplets may discharge through a
vent outlet on the tap. If not using the font, ensure the tap body is located
so the tap outlet safely dispenses into the sink bowl.
Lifting
Take care when lifting. The Command Centre may exceed safe lifting
limits. If you feel this is beyond your personal capabilities, please seek
assistance with the lift. The weight of the Command Centre is marked on
the packaging. Do not lift the Command Centre by the front cover or any of
its connections.
Airflow
The Zenith HydroTap operates within the ambient temperature range 5ºC
- 35ºC. Proper air circulation must be provided. The system will operate
satisfactorily only if the recommended air gaps are provided. The vent kit
supplied must be fitted.
Altitude
Water boils at varying temperatures at different altitudes. The HydroTap
adjusts for this during startup calibration and will recalibrate itself on a
regular basis.
Frost protection
If the HydroTap is located where the ambient air temperature could fall
below 5ºC when the system is not in use, do not turn off the Command
Centre electrically. This safeguard does not offer the same protection to
the connecting pipework and fittings.
Application
The HydroTap G5 Home series is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type
environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

6Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 2: IMPORTANT SAFETY INSTRUCTIONS
• Read label before use.
• Keep out of reach of children.
• Use according to SDS (safety data sheet).
• Pressurised container. Contains gas under pressure,may explode if heated.
• Protect from sunlight.
• Do not expose to temperatures exceeding 50˚C.
• Do not expose to naked flame or any incandescent material.
• Do not pierce or burn, even after use.
• Avoid shock.
• SDS is available for download at www.zenithwater.co.nz
!
UV
!
Compressed gas warning- HydroTap Clean can
First aid
• For advice contact a Poison Control Information Centre
• Australia ([phone]
• New Zealand ([phone]
• UK ([phone]

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
7
SECTION 3: WARNINGS & REGULATORY INFORMATION
• The Zenith HydroTap must be earthed, earthing is provided via the
supplied power cord. The resistance of the earth connection to each
exposed metal part must be less than 1Ω. Use the power cable supplied.
It is the responsibility of the installer to ensure the power point is
earthed.
• All installation and service work must be completed by trained and
suitably qualified tradespeople. Faulty operation due to unqualified
persons working on this product, may void warranty coverage.
• As the installer, it is your responsibility to supply and install all valves as
required by local regulations and relevant standards.
• The HydroTap is rated for 220-240V 50Hz AC operation.
• Do not remove the cover of the appliance under any circumstances
without first isolating the appliance from the power supply.
• Connect only to a potable (wholesome, cat1) mains water supply.
• Never locate the system near, or clean with water jets.
• Do not expose the Zenith HydroTap to the elements of nature.
The booster complies with protection class IP 20.
• For UK, a pressure limiting valve must be fitted for mains water
pressures above the maximum limits stated.
!
!
• For continued safety of this appliance it must be installed,
operated and maintained in accordance with the
manufacturer’s instructions.
• This appliance may deliver water at high temperature. Refer
to the Plumbing Code of Australia (PCA), local requirements
and installation instructions to determine if additional
delivery temperature control is required.
• The button/coin battery is hazardous and is to be kept away
from children. It can cause severe or fatal injuries in 2 hours
or less if it is swallowed or placed inside any part of the
body. Medical attention should be sought immediately if it is
suspected the battery has been swallowed or placed inside
any part of the body.

8Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 3: WARNINGS & REGULATORY INFORMATION
• Use of tools can be hazardous. Assess the risks before you start.
• A clearance envelope around all Command Centres must be provided
to allow adequate ventilation for the safe and effective use of the
HydroTap system.
• Valve and fitting threads must be sealed appropriately with PTFE tape
where compression seals are not provided.
• Always flush new filter before use.
• Do not connect Booster to electrical supply until commissioning.
• Do not over tighten plumbing and hose connections.
• Braided hoses supplied cannot be lengthened.
• The power cord and general power outlet must be in a safe and
accessible position after installation. When positioning the appliance,
ensure the power supply cord is not trapped or damaged. If the power
supply cord is damaged it must be replaced by a Zenith service provider
or a qualified electrician.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
• For safe operation, the HydroTap is designed to be installed,
commissioned and used within 48 hours. Should the HydroTap not be
required for an extended period of time (72 hours or more), do not fill
and commission the HydroTap until ready for first use.
• For water taste and quality reasons, following any non-use period of
more than 72 hours, Zenith recommends to perform a system flush.
Failure to flush the system may affect water quality.
• For UK, this appliance incorporates adequate backflow prevention
in accordance to S.I.1999 No.1148 The Water Supply (Water fittings)
Regulations 1999 Schedule 2 requirement. No further backflow
prevention is required for connection to the water supply.
• For UK, this appliance only contains materials that conform to the
requirements of BS6920:2014 ‘Suitability of non metallic materials and
products for use in contact with water intended for human consumption
with regard to their effect on the quality of water’.

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
9
SECTION 4: Technical data
* power rating of the booster #Including vent tray
Model Power rating
kW
Dimensions
W x D x H (mm) Weight (kg)
BC100
BC100 H 2.1 + 2.2* 450 (500)#x 470 x 333 30
BC60
BC60 H 2.1 450 (500)#x 470 x 333 30
BC40
BC40 H 1.97 450 (500)#x 470 x 333 30
BC30
BC30 H 1.9 + 2.2* 280 x 470 x 333 23
BC20
BC20 H 1.9 280 x 470 x 333 23
BC Home 1.44 280 x 470 x 333 30
Electricity supply requirements
220-240V 50Hz AC (for power requirement see table above).
Without booster With booster
1x 220 - 240V AC 10A socket 2x 220 - 240V AC 10A sockets

10 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 4: Technical data
A pressure limiting valve must be fitted for mains water pressures
above the maximum limits stated above in accordance with local
plumbing regulations.
Note: All models (excluding UK) have an internal pressure limiting
device to reduce the maximum mains regulated pressure (700kPa in NZ/
Australia), protecting the system against pressure surges above 500kPa.
!
Water supply connection
1/2” BSP (G1/2).
Booster specification
Specification Rating
Nominal power 2.2kW
Nominal current 10A
Flow rate 1.2 L/m
Water supply pressure requirements
Component Min - Max pressure, kPA (bar)
NZ/Australia
HydroTap 170 (1.7) - 700 (7.0)
Vented Mixer Tap 300 (3.0) - 700 (7.0)
Booster 200 (2.0) - 700 (7.0)
Limescale filter 200 (2.0) - 700 (7.0)

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
11
SECTION 5: Parts supplied
Parts supplied with the HydroTap BC
for Work
BC H
for Work
BC
for Home
Tap
HydroTap tap  
HydroTap pipes, tubes hoses and fittings  
Separate vented Mixer tap kit 
Separate Mains mixer Tap Optional Optional
Separate Mains mixer Tap fittings Optional Optional
Separate Mains mixer Tap instructions Optional Optional
Command Centre
Command Centre  
Mains electrical supply cable  
Water supply inlet hose  
Water supply inlet adaptor and strainer  
Ventilation kit (inc. vent tray 100 -40 models)  
Water block kit (UK only) (UK only)
Booster
Booster & hoses Optional 
Filters
Water filter & instructions  
Limescale filter kit Optional Optional
Font
Font kit Optional Optional
Note: Mains water isolation valve is not supplied with the kit.
Contact Zenith for the full range of consumables and accessories.

12 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 6: Set up the ventilation
Command Centre width
A clearance envelope around all Command Centres must be
provided to allow ventilation for the safe and effective use of the
HydroTap system.
200mm
50mm 50mm
Use instructions supplied with individual kit parts.
!
!
Use of tools can be hazardous. Assess the risks before you start.
!
!

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
13
SECTION 6: Set up the ventilation
BC100 - BC40 models
Vent tray
The vent tray must be fitted. It provides a safe exhaust for
refrigerant gas in the unlikely event of a leak.
!
!
Vent tray dimensions WxDxH (mm): 500 x (515-555) x 40
• Cold air is drawn in through the inlet vent and gap provided by the door
buffers.
• Inlet vent is mounted over cupboard side, door or floor cut-out.
• Warm air is exhausted through vent tray.
• Observe 100mm inlet / outlet vent separation.
Air outlet
100mm
4mm door buffers
(supplied)
Air inlet options

14 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 6: Set up the ventilation
BC30, BC20 & Home models
If cupboard temperature exceeds 35°C, additional ventilation is required.
Contact your Zenith service provider for options (including additional vents
and fan kit).
All models
• Cold air is drawn in through the inlet vent and lower gap provided by the
door buffers.
• Inlet vent is mounted over cupboard side, door or floor cut-out.
• Warm air is exhausted through upper gap provided by the door buffers.
4mm door buffers
(supplied)
Inlet vent
Air inlet
Air outlet

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
15
SECTION 7: Connect the water supply
!

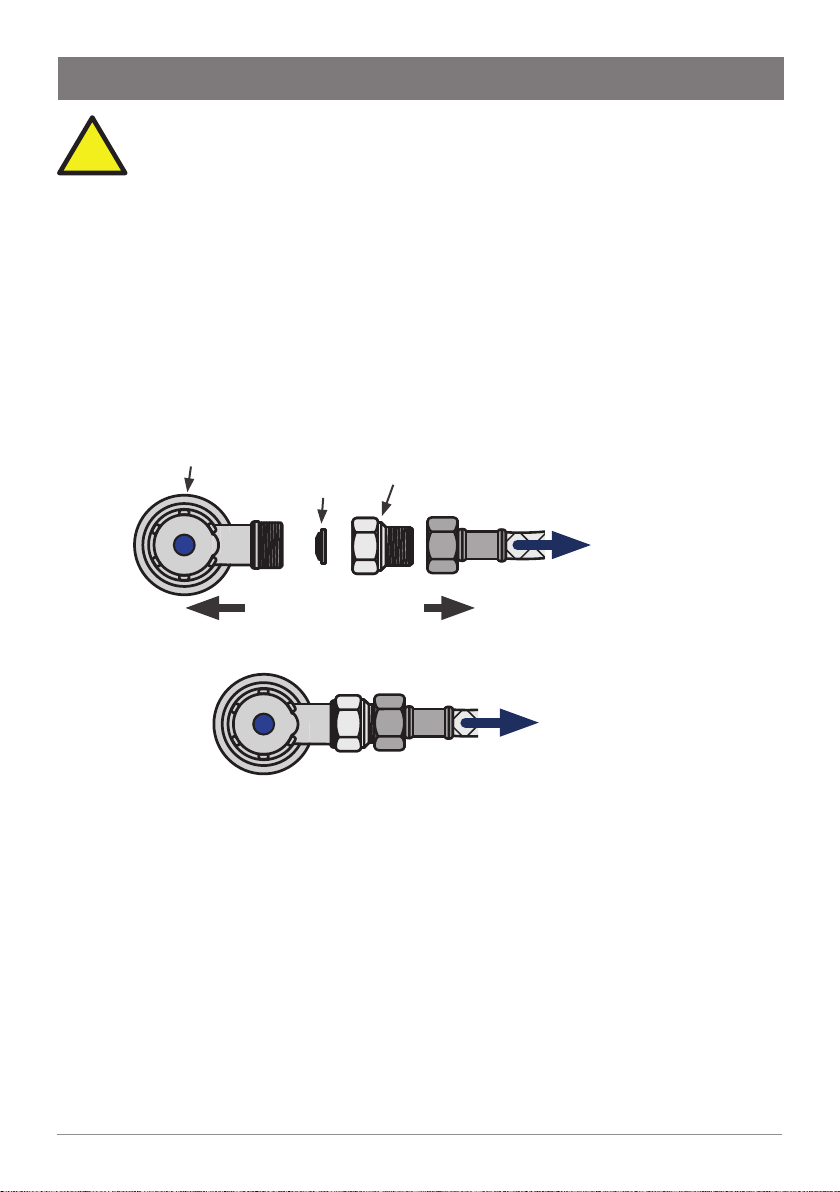

Note: correct strainer orientation.
Isolation valve
(not supplied) Strainer
(supplied)
Male - Female
adaptor
(supplied)
Connect together
Connect to
Command Centre,
see pages 20-22
Connect to
Command Centre,
see pages 20-22
Note: Mixer tap installations also use a ‘Tee piece’ as part of the water supply
plumbing connections. Refer to the Tap installation instructions supplied with
the Mixer Tap to connect the water supply if using the mixer tap option.
Valves and fittings must be sealed with PTFE
tape if compression seals are not included.

16 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 8: Set the bypass & install the limescale filter
Water
in
Bypass out
see pages 20-22
Water
out
Bypass in
see pages 20-22
Insert
Remove
Insert
Remove

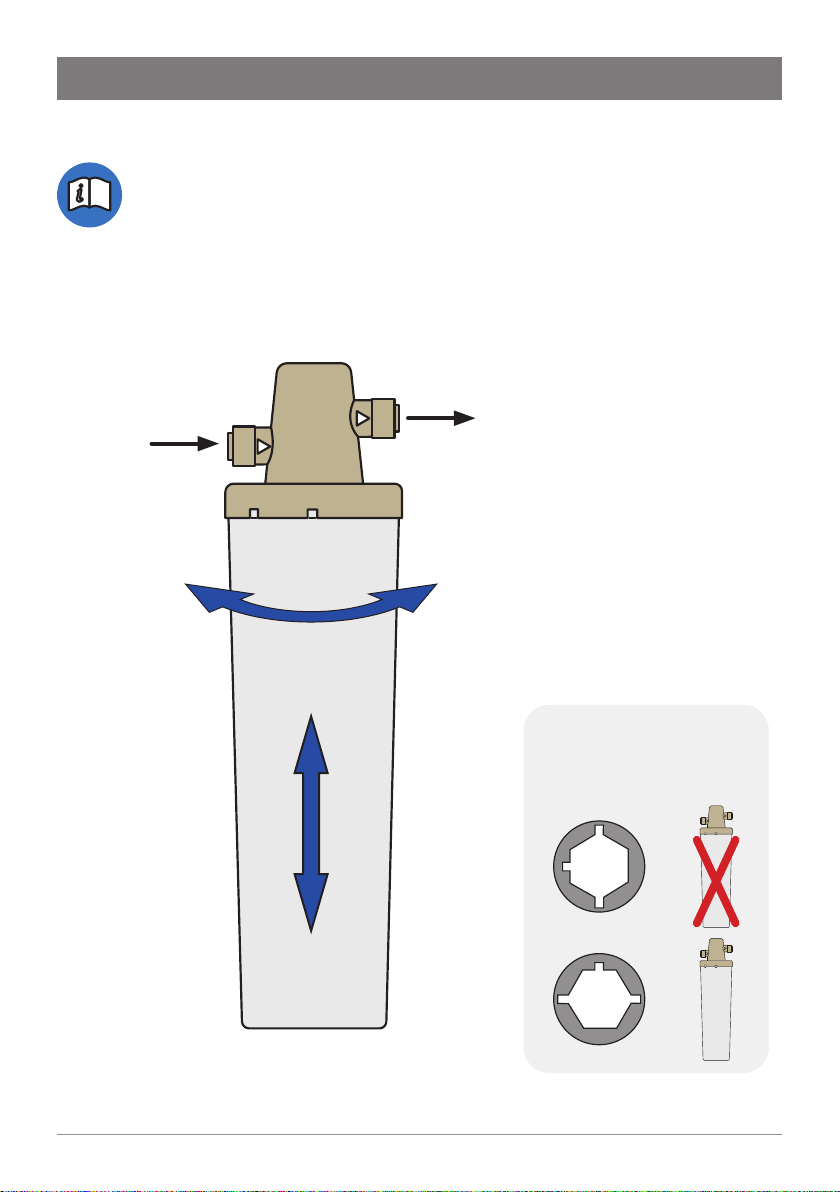

For filter head and scale filter installation use the guide supplied
with the filter head and filter respectively.
Bypass valve
(Rear of the Command
Centre)
Available as optional accessory - UK only.

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
17

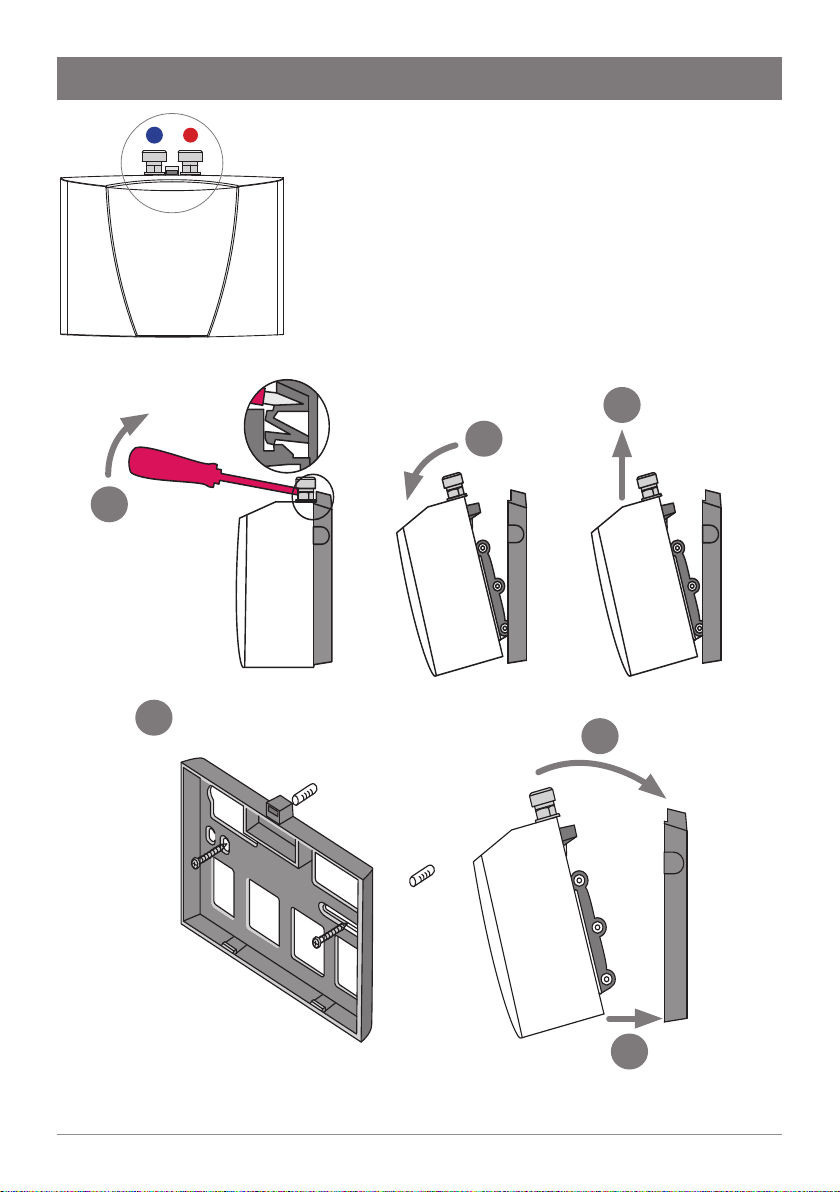

SECTION 9: Fit the Booster
a
bc
d
e
f
10⁰
15⁰
Note Take care not to break the clips when removing or installing the Booster.
Supplied with selected models, or available as
an optional accessory with selected models.
Booster

18 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 10: Connect the Booster
Booster
Booster
Hold connections
with spanner
while tightening hoses
3/8" BSP
connections
!
Do not connect to electrical power until commissioning.
Do not over tighten hose connections.
Braided hoses supplied cannot be lengthened.
!
Strainer
Cold water into Booster,
connect to Command Centre
BYPASS OUT
see pages 20-22
Hot water out of Booster,
connect to Command Centre
BYPASS IN
see pages 20-22

Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
19
SECTION 11: Connect the Command Centre
For HydroTap, mixer tap and any optional accessories, use
instructions supplied with individual kit components.
Connections key
HydroTap
Braided hose
Command
Centre
USB
Tap
Generic installation instructions
Mains power cable
Do not connect to the mains
socket until commissioning
Installation diagrams are for illustrative purposes only.
Hoses are not shown to scale and cannot be lengthened.
!

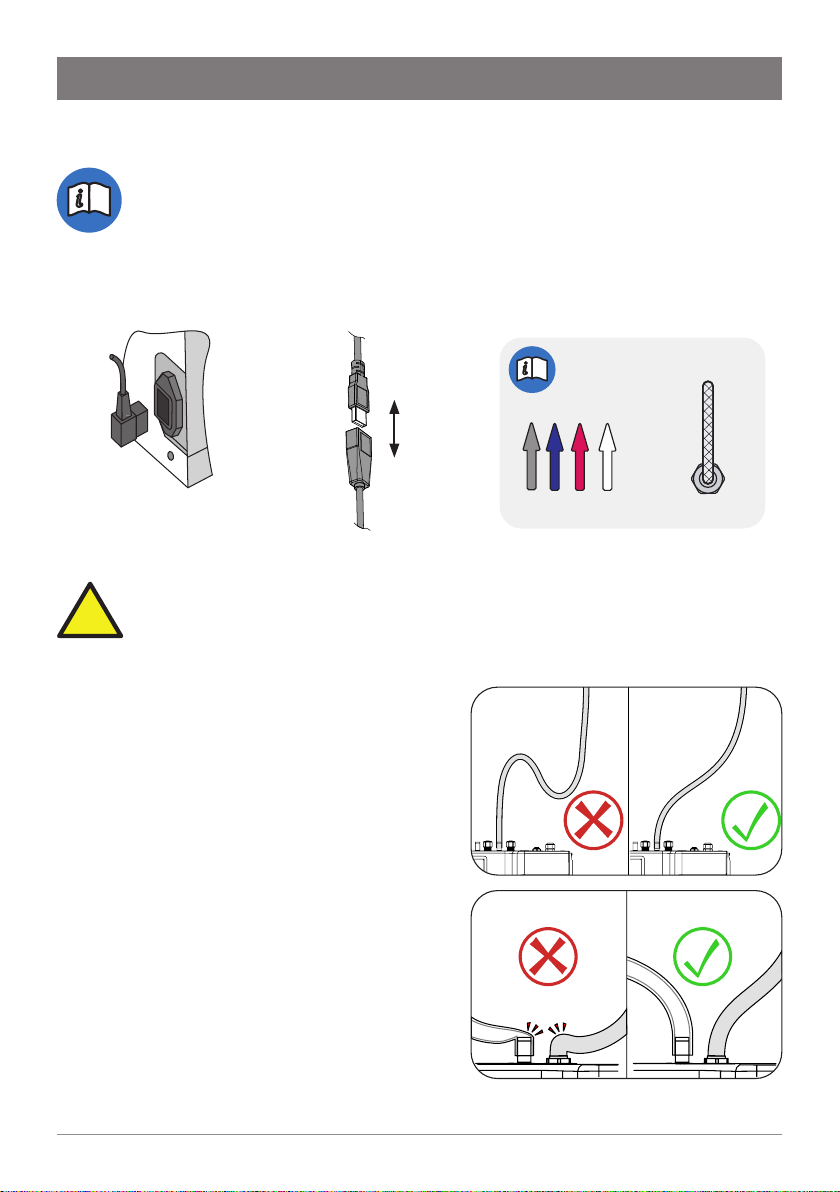

Tips for hose connection
• Push the silicone hose over the
connector for a minimum of 15mm.
• Ensure there is a constant fall from
the tap down to the command
centre.
• Hoses must be trimmed to avoid
loops and kinks. Take care when
positioning before cutting and make
a clean cut straight across the hose,
using a sharp blade.
• The hoses must not be under tension
when installed.

20 Quick Start Installation Guide
807118NZ v1.06 08.23 G5 BC Quick Start Guide
SECTION 11: Connect the Command Centre
USB CO2
IN
CHILLED
OUTLET
SPARKLING
OUTLET
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
CHILLED
OUTLET
SPARKLING
OUTLET
CO2
IN
USB
BCS comm
BCS res
BC comm
CHILLED
OUTLET
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
USB
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
CHILLED
OUTLET
USB
BC res ?
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
AMBIENT
OUTLET
USB
BA res comm
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
B res comm
USB
MAINS
IN
C 175 comm
USB
CHILLED
OUTLET
CS 175 comm
CO2
IN
CHILLED
OUTLET
SPARKLING
OUTLET
MAINS
IN
C res
CHILLED
OUTLET
MAINS
IN
USB
CS75 res
CO2
IN
CHILLED
OUTLET
SPARKLING
OUTLET
MAINS
IN
USB
check USB
position
check which way round
still / sparkling
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
CHILLED
OUTLET
USB
BC res
Mains
Water
!
BC40, BC60, BC100 models
Zenith
Vented
Mixer Tap
connections
(if supplied)
Fit foam insulation
(supplied) to the
BLUE pipe
BC Comm

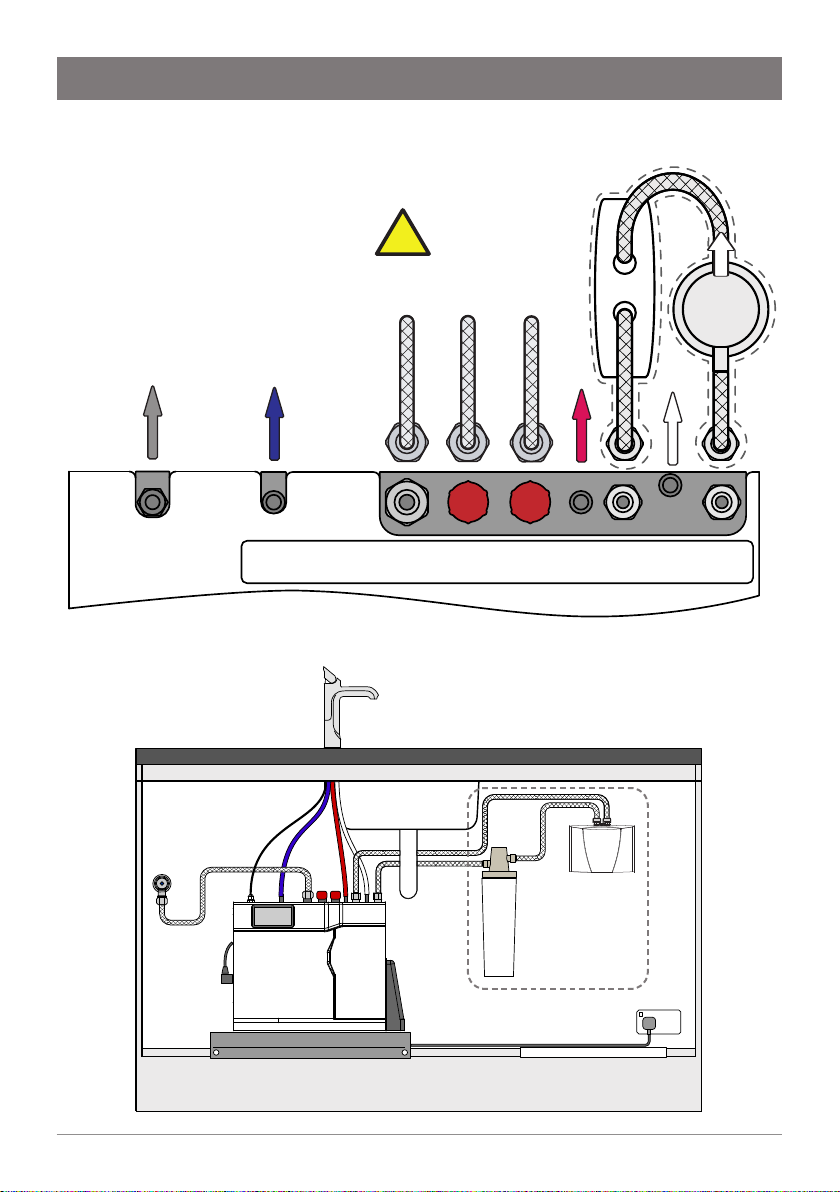

Example installation
BLUE RED
Booster (selected models) and
limescale filter (optional)
Optional
booster and
limescale filter
Booster
Diagram for illustrative purposes only.
Hoses are not shown to scale, as the
booster hoses cannot be lengthened.
CLEAR
Booster
Lime- scale Filter
