Zenith HydroTap G5 User manual

1808081NZ v1.00 03.21 Industrial Tap Instructions
Zenith
HydroTap G5
Tap installation instructions
Industrial Side Touch Tap
Industrial Top Touch Tap
Visit our website to
download the manuals

2 808081NZ v1.00 03.21 Industrial Tap Instructions
Using these instructions
Please refer to all safety and installation requirements detailed in the Quick
start guide provided with the HydroTap Command Centre, and HydroTap
Command Centre installation instructions found online, prior to installation of
or any change to the complete system.
Before commencing the installation,
download & read the HydroTap
Command Centre installation
instructions
!
Read the
instructions
WARNING
Contents
Before Installation ...................................................................3
Installation: Top Touch Tap (sink)........................................... 4
Installation: Side Touch Tap (sink) ...........................................5
Font Installation (optional)..................................................... 6
Side Touch Tap Template: Buttons on LHS ............................. 8
Side Touch Tap Template: Buttons on RHS............................. 9
USB Connection .....................................................................11
Connect to Command Centre............................................... 12
Commissioning ..................................................................... 13
Tap Operation: Top Touch Tap .............................................. 14
Tap Operation: Side Touch Tap ............................................. 15

3808081NZ v1.00 03.21 Industrial Tap Instructions
Position the tap such that it dispenses into
the sink bowl with clearance for a cup or tea
pot.
Alternatively, refer to pages 8-9 for tap
installation on a Font.
Position Command Centre and Tap as close
together as possible.
BC Compact
Ensure that taps are positioned to minimise
the risks of scalding when dispensing
boiling water.
!
Tools needed for tap installation
In addition to normal tools, the following (or equivalent) will be required.
• 35mm diameter sheet metal hole punch for sinks.
• 35mm diameter hole saw for worktops.
• Hole saw for font installation (optional - refer to font kit)
• Tube spanner for fixing the tap assembly (supplied).
Water supply pressure requirements
Positioning
Min - Max pressure, kPA (bar)
HydroTap 170 (1.7) - 700 (7.0)
Booster 200 (2.0) - 700 (7.0)
Be aware of the risks of hazards which could
cause harm when using tools. Assess the
risks before starting the installation.
!
Before Installation

4 808081NZ v1.00 03.21 Industrial Tap Instructions
1Top Touch Tap installation
• Pass the tubes and USB cable through
the Ø35mm hole. Use a tube spanner
to secure the tap in place.
Black
plastic spacer
Fixing
washer
Spider
clamp
Fixing nut
USB
Installation: Top Touch Tap (sink)
• Cut a Ø35mm hole in the worktop /
sink.
• Apply a light smearing of silicone
sealant on the underside of the spacer
to ensure a watertight fit.
Ø35mm
Black
plastic spacer

5808081NZ v1.00 03.21 Industrial Tap Instructions
• Use the template supplied on pages 6-7
to locate and cut the 35mm hole and 3x
6.5mm clearance holes in the correct
orientation for either left or right hand
operation.
• Use 3x cap screws to suit your benchtop
thickness.
• Apply a light smearing of silicone sealant
on the underside of the O-ring seal to
ensure a watertight fit.
• Pass the tubes and USB cable through
the Ø35mm hole.
• From below the bench, feed the three
tubes and USB cable through the clamp
block, noting the orientation marker.
• Fit the 3 cap screws and spring washers.
Tighten with an allen key.
• Use a tube spanner to secure the fixing
nut.

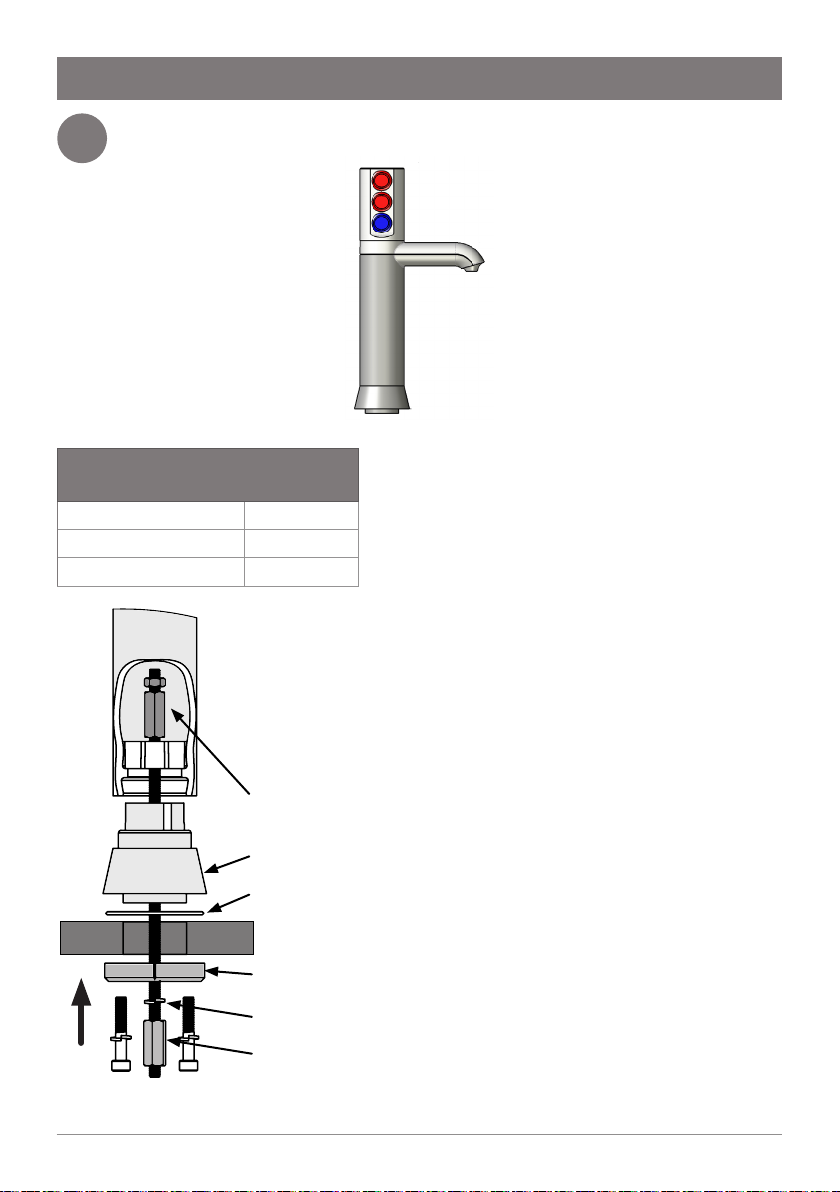

2Side Touch Tap installation
Installation: Side Touch Tap (sink)
Internal nuts
Tapered base
O-ring seal
Benchtop
Clamp block
Spring washer
Fixing nut
Cap screw Benchtop
thickness
M6 x 35 (supplied) 14 - 18 mm
M6 x 30 (not supplied) 8 - 13 mm
M6 x 40 (not supplied) 19 - 24 mm

6 808081NZ v1.00 03.21 Industrial Tap Instructions

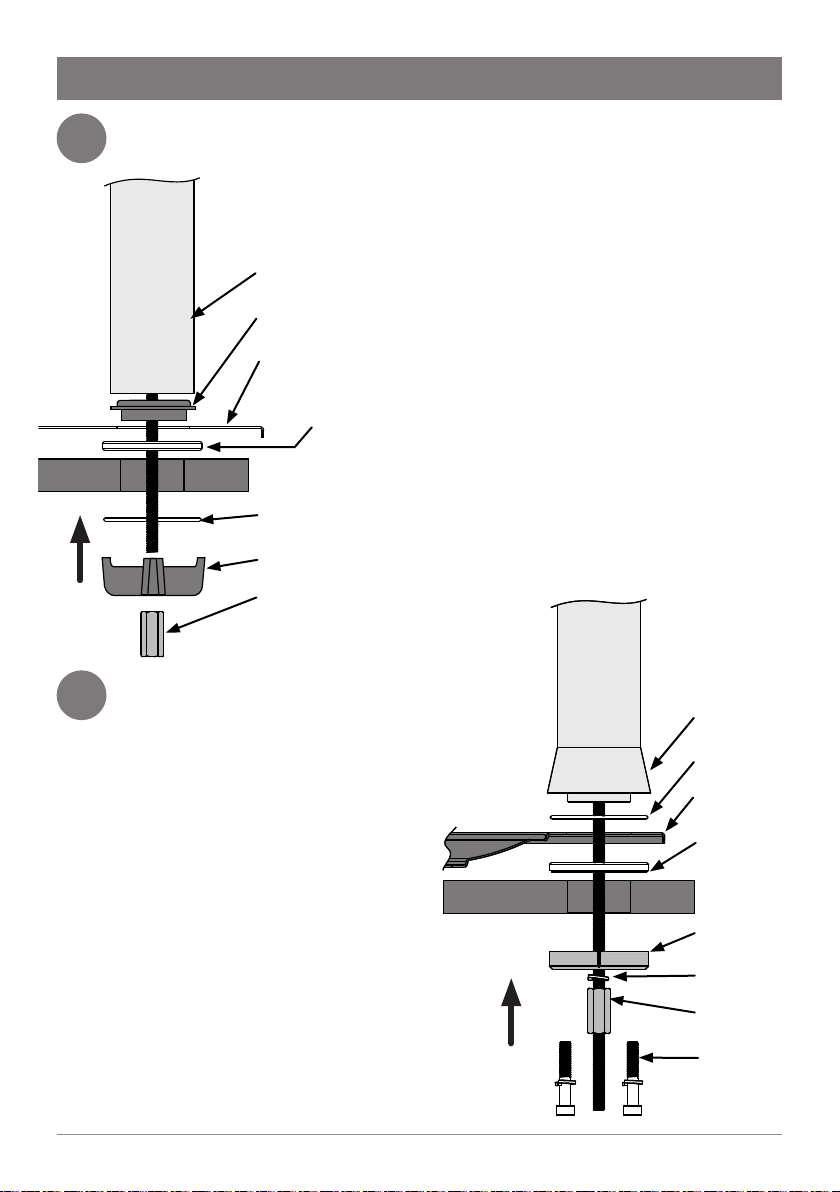

1Top Touch Tap Font Installation
Font Installation (optional)
Industrial Top
Touch Tap
Black plastic
spacer
Font
Spacer ring
under Font
Benchtop
Steel washer
Spider clamp
Fixing nut
• Position the Font template (provided
in the kit) on the bench, so that the
Command Centre is within reach of the
tap hoses and USB cable.
• Cut the holes as shown in the template.
• Apply a light smearing of silicone
sealant on the underside of the spacer
under the Font. Locate the spacer
under the Font base.
• Pass the tubes and USB cable through
the hole and use a tube spanner to
secure the tap in place.
• Position the Font template (provided
in the kit) on the bench, so that the
Command Centre is within reach of the
tap hoses and USB cable.
• Cut the holes as shown in the template.
• Apply a light smearing of silicone sealant
on the underside of the spacer under the
Font. Locate the spacer under the Font
base.
• From below the bench, feed the three
tubes and USB cable through the clamp
block, noting the orientation marker.
• Fit the 3 cap screws and spring
washers. Tighten with an allen key.
• Use a tube spanner to secure the fixing nut.
2Side Touch Tap Font installation Industrial Side
Touch Tap -
Tapered base
O-ring seal
Font
Spacer ring
under font
Benchtop
Clamp block
Spring washer
Fixing nut
Cap screws x3

7808081NZ v1.00 03.21 Industrial Tap Instructions
PULL OUT
TEMPLATE FOR
INDUSTRIAL
SIDE TOUCH TAP
INSTALLATION

8 808081NZ v1.00 03.21 Industrial Tap Instructions
Side Touch Tap Template: Buttons on LHS

9808081NZ v1.00 03.21 Industrial Tap Instructions
Side Touch Tap Template: Buttons on RHS

10 808081NZ v1.00 03.21 Industrial Tap Instructions
3

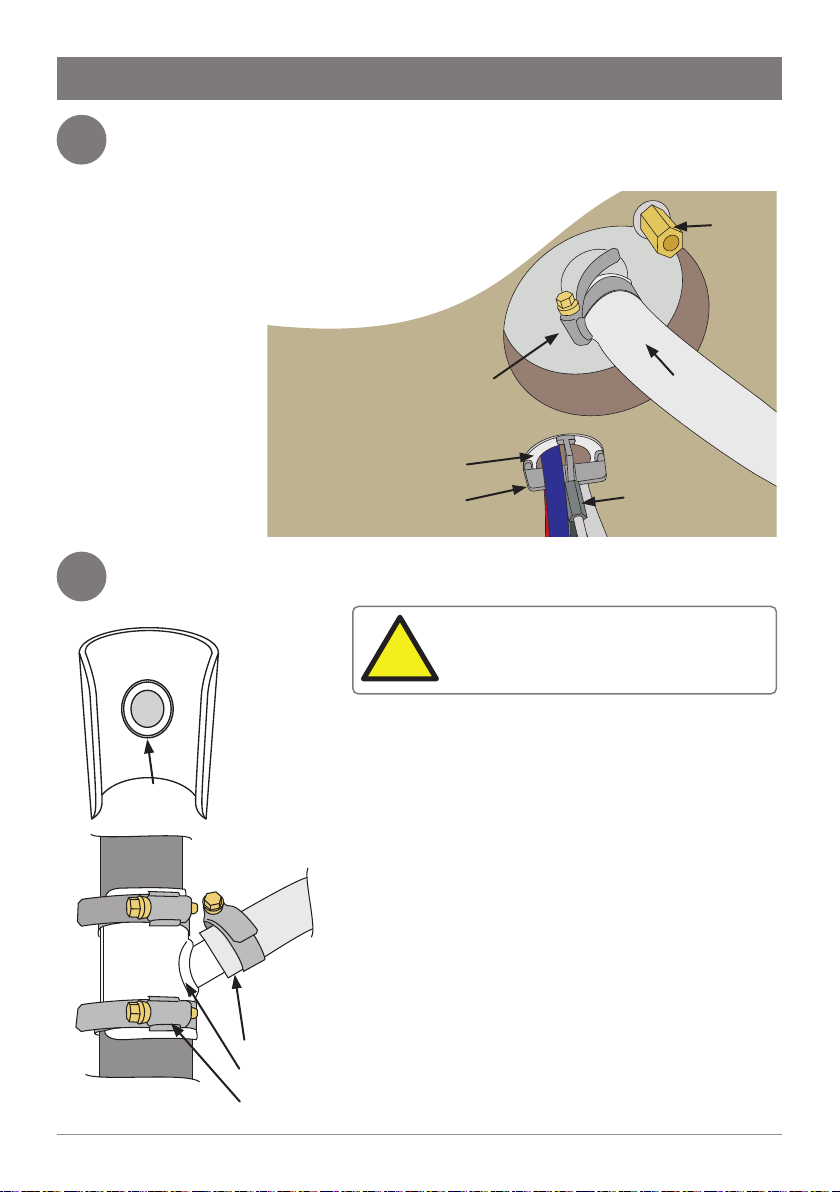

Prepare the drainage point
4
• Locate pipe branch attachment
temporarily in position on vertical pipe,
upstream from a drain trap.
• Mark spigot hole position, remove
attachment & drill out 13mm diameter.
• Apply sealant to spigot groove.
• Ensuring spigot is pointing upwards, snap
attachment into place over hole.
• Secure with worm drive clamps.
• Attach drain pipe to spigot.
• Secure with worm drive clamp.
Sealant
groove
Flexible pipe from Font
Pipe branch attachment
Worm drive clamps
Pipe branch
attachment
!
Position upstream of a drain trap.
Drain pipe must have constant fall.
Ensure there are no kinks or sags.
Secure Font & Tap, attach drain (underneath)
• Secure flexible drain pipe (not supplied) with a
worm drive clamp.
• If required, use an elbow fitting under the Font
to prevent hose kinks.
Mounting
nut &
washer
Flexible
drain pipe
Worm drive clamp
Spider clamp
Fixing washer
Fixing nut
Font Installation (optional)
• Test for leaks and re-seal if
required.

11808081NZ v1.00 03.21 Industrial Tap Instructions
USB Connection
Connect the cable from the tap to the black junction box, using the
round 4-pin plug.
Check the orientation of the USB plug and connect it to the undersink
unit, without forcing the plug.
Fix the junction box in an elevated position, so that any possible water
leak will drip off the cable and will not run to the cable connection point.
4 pin plug
Tap cable
Black
junction box
USB connection to
Command Centre
1
2
3

12 808081NZ v1.00 03.21 Industrial Tap Instructions
USB Connected to the Tap.
Boiling out Red silicone tube from tap. Cut to length.
Chilled out
(BC, C) Blue silicone tube from tap,
(BCS, CS) Blue JG pipe from tap.
Cut to length.
Vent Clear silicone tube from tap. Cut to length.
Ambient out Blue JG pipe from tap. Cut to length.
Command Centre connections
Cleaning and general maintenance
Wipe surfaces with a damp cloth and then wipe dry with a clean, dry cloth.
Familiarise yourself with the tap connections
RED
boiling
tube
(BC,
B only)
BLUE
Chilled
tube
(BC, C only)
CLEAR
Vent
tube
(BC,
B only)
Boiling,
Boiling chilled,
Chilled
USB
Boiling
ambient
RED
boiling
tube
CLEAR
Vent
tube
USB
BLUE
JG
pipe
Connect to Command Centre
Refer to the HydroTap Command Centre installation
instructions.

13808081NZ v1.00 03.21 Industrial Tap Instructions
Commissioning
Legacy mode must be enabled for the Industrial Side Touch or Industrial Top
Touch tap to function with HydroTap G4 or G5 Command Centres.
98
°C
BOILING 12:12 PM
.0
ENTER CURRENT PASSCODE 12:12 PM
1 2 3
5 6
7 8 9
0
Enter 5-pin
passcode
4
[ ] From the main menu, press “Product Serial
No”. Note the 13-digit serial number.
_ _ _ _ - _ _ _ _ - _ _ _ _ _
_ _ _ _ - _ _ * *- _ _ * * *
The indicated digits of the Serial Number
(digits 7, 8, 11, 12, 13) comprise the 5-digit
passcode. Contact Zenith service if further
assistance is required.
Press “Service Technician”. Enter the
passcode obtained as above, followed by
ENTER CURRENT PASSCODE 12:12 PM
1 2 3
5 6
7 8 9
0
Enter 5-pin
passcode
4
.
Select “Resets/Install”.
Select “Legacy Tap”.
Select “Enable”.
Press “Home” to return to the home
screen.
[ ]
[ ]
[ ]
[ ]
Refer to the HydroTap Command Centre installation
instructions for commissioning before proceeding.
MAIN MENU 12:12 PM
General
Settings
System
Settings
Safety &
Security
Energy
Saving
Info &
Logs
Product
Serial No.
Register
Product
Service
Technician
[ ] [ ]

14 808081NZ v1.00 03.21 Industrial Tap Instructions
Tap Operation: Top Touch Tap
Filter Change
Light off: filter is operating within
its normal specified lifespan.
Flashing slowly: filter is due for
replacement. The LCD will show
“Filter Change”. Refer to the
User Guide to replace the filter
cartridge.
Red Boiling Water Light
On: Boiling water is ready.
Flashingslowly:Waterisbelow
the desired temperature.
Safety light
Light on: No boiling water
will be dispensed unless the
RED and SAFETY buttons are
pressed simultaneously.
Controls
Lights
Boiling water
Press the RED and SAFETY buttons simul-
taneously, to dispense boiling water
for 5 - 15 seconds (adjustable). Release
the buttons to stop the flow of water.
Note: No Boiling water will be
dispensed when Hot Isolation is
enabled.
Chilled water
Press the BLUE button to
dispense chilled for 5 - 15
seconds (adjustable).
Release the button to stop
the flow of water.
Blue Chilled Water Light
On: chilled water temperature is
within the set range.
Flashing slowly: chilled water
temperature is not within the set
range. During heavy usage, the
temperature can rise out of this
range.

15808081NZ v1.00 03.21 Industrial Tap Instructions
Tap Operation: Side Touch Tap
IMPORTANT:
For the Industrial Side Touch Tap, to allow
the dispensing of boiling water, the safety
lock setting must be DISABLED using
the LCD touch screen on the Command
Centre.
Press [Menu] - [Safety & Security] -
[Boiling Safety].
Press the toggle to DISABLE “Boiling safety
lock”.
Note: “Hot isolation” settings are not
available for the Industrial Side Touch tap.
Boiling water
Press both RED buttons simultaneously
to dispense boiling water, for 5 - 15
seconds (adjustable). Release the
buttons to stop the flow of water.
98
°C
BOILING 12:12 PM
.0
[ ]
MAIN MENU 12:12 PM
General
Settings
System
Settings
Safety &
Security
Energy
Saving
Info &
Logs
Product
Serial No.
Register
Product
Service
Technician
[ ] [ ]
12:12 PMBOILING SAFETY
Boiling safety lock
Use the safety button to dispense hot water
Hot isolation (additional boiling safety)
3 slow safety button presses required
prior to dispensing
[ ]
Controls
Chilled water
Press the BLUE button to dispense
chilled water for 5 - 15 seconds
(adjustable). Release the button to
stop the flow of water.

16 808081NZ v1.00 03.21 Industrial Tap Instructions
Zenith Heaters Limited
IRD/GST No. 95 640 729
18 Kawakawa Place, Westgate, Auckland 0814
New Zealand
Ph: +(64 9) 838 8612 | Free Call 0800 558 055
zenithwater.co.nz
AU02691
WMKA00099
AS 3498
Refer to User Guide for operation and maintenance.
