Zenner multidata User manual

multidata
Installation and operating manual
Electronic energy calculator for heat meters
with 2 inputs/outputs
optionally with M-Bus, RS 232 and RS 485
All that counts.
EnergyMetering

2
General information
With multidata you have acquired one of the most
up-to-date, modern heat calculators currently
available on the market.
Expressive symbols in the display and easy menu
navigation make readout simple. It can be oper-
ated with one single button. The setting of the
data loggers is being done via the software GMM.
The calculator is equipped with a long-life battery
made for operation during the initial verication
validity period (5 years) including a reserve of at
least another year. With a second battery you will
reach 11 years.
Initial verification
multidata is produced and tested in compliance
with the new European measuring instruments
directive (MID). According to this directive, de-
vices do no longer carry an initial verication
stamp, but rather the year of the device’s decla-
ration of conformity (recognizable on the front of
the device, for example: M09). The MID controls
the use of heat meters up to the moment they
are placed on the market resp. their rst putting
into use. After this, the national regulations for
devices subject to legal verication apply within
the EU.
The duration of initial verication validity in Ger-
many remains 5 years for heat meters. After this
period has expired, the measuring device may no
longer be used for billing in commercial use.
The regulations resp. validity period may vary in
other countries of the EU.
Electro-magnetic interference
multidata fulls the national and international
requirements for interference resistance. To
avoid malfunctions due to other interferences,
do not install uorescent lamps, switch cabinets
or electric devices such as motors or pumps in
the immediate vicinity of the meter (minimum
distance 1 m). Cables leaving the meter should
not be laid parallel to live cables (230V, minimum
distance 0.2 m).
Care instructions
Clean plastic surfaces with a damp cloth only.
Do not use any scouring or aggressive cleaning
agents! The device is maintenance-free during
the service life. Repairs can only be made by the
manufacturer.
Declaration of Conformity
ZENNER International GmbH & Co. KG declares
that this product with the number of the EC type-
examination certicate DE-08-MI004-PTB012
complies with the requirements of the EC direc-
tives 2004/22/EC (Measuring instruments direc-
tive) and 89/336/ EEC (electro-magnetic compat-
ibility). The most up-to-date information about this
product can be found at www.zenner.com

3
Status display / Error codes
The symbols in the table below show the meter’s operational status. The status messages only appear
in the main display (energy)! The temporary display of the warning triangle can be caused by special
operating states and does not always mean that the device is malfunctioning. However, should the symbol
be displayed over a longer period of time you should contact the service company.
Error codes show faults detected by multidata. If more than one error appears, the sum of the error
codes is displayed: Error 1005 = error 1000 and error 5.
.
Symbol Status Event
Flow existent -
Attention! Check system / device for errors
Data transmission -
Emergency operation Exchange device
External power supply -
Code Error Event
1 Short-circuit return sensor Check sensors, replace if needed
2 Interruption return sensor Check sensors, replace if needed
3 Short-circuit supply sensor Check sensors, replace if needed
4 Interruption supply sensor Check sensors, replace if needed
5 Hardware error Exchange device
6 Battery empty or wrong temp. sensor Check device / sensor
7 Temperatures out of measuring range Correction heating system
100 Emergency operation Exchange device
1000 Battery life time exceeded Exchange device
2000 Initial verication expired Exchange device
> 8000 Internal hardware error Exchange device

4
Technical data multidata
Temperature range °C 1 - 150
Temperature difference range K 3 - 120
Display Multifunctional LCD, 8-digit, oating
Display unit MWh, kWh, GJ, MJ
Interface ow sensor Models with contact pulsers or active pulser
(no Namur or Opto), passive max. 1Hz / active max. 100 Hz
Temperature sensor connection PT500, optional PT100, PT1000
Max. cable length 2-wire 12,5 m (PT500), 2,5 m (PT100), 20 m (PT1000)
Max. cable length 4-wire 20 m
Interfaces optical, optionally ZR-Bus, M-Bus, RS-232,
remote readout outputs
Ambient temperature °C 5 - 55
Power supply Battery 3.6 V Lithium, optionally mains supply 230 V
Battery lifetime 6 years, optionally 11 years
Protection class IP 54 / IP 65, acc. to DIN 40050
Mechanical/electro-magnetic class M1/E1
Accuracy class 3
Measuring cycle dynamic 40s/30s/10s

5
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
1 Hz Version: fmax = 1 Hz, Pulse-duty factor 1:1 to 1:9 Input
capacitance: approx. 10 nF, Input resistance approx 850 kOhm
100 Hz Version: not allowed
fmax = 1 Hz,
Pulse-duty factor 1:1 to 1:9
Input capacitance: approx. 15 nF,
Input resistance approx 470 kOhm
Ext. Voltage 3V … 30 V DC
Max. current 20 mA
Output frequency 1 Hz (8 Hz dynamically switching, if output
with 1 Hz is not possible)
Switching times: 1 Hz: 400ms < tp < 600 ms
8 Hz: 50ms < tp < 80 ms
1 Hz Version: fmax = 1 Hz, Pulse-duty factor 1:1 to 1:9 Input
capacitance: approx. 10 nF, Input resistance approx 850 kOhm
100 Hz Version: fmax = 30 Hz, Pulse-duty factor 1:1, Input
capacitance: approx. 2,5 nF, Input resistance approx. 850 kOhm
fmax = 1 Hz,
Pulse-duty factor 1:1 to 1:9
Input capacitance: approx. 15 nF,
Input resistance approx 470 kOhm
1 Hz Version: fmax = 1 Hz, Pulse-duty factor 1:1 to 1:9
Uhigh = 2,5 … 3,6V, Ulow = 0 … 0,3 V, Input capacitance:
approx. 10 nF, Input resistance approx 850 kOhm
100 Hz Version: fmax = 100 Hz, Pulse-duty factor 1:1
Uhigh = 2,5 … 3,6V, Ulow = 0 … 0,3 V, Input capacitance:
approx. 2,5 nF, Input resistance approx. 850 kOhm
Passive with
mechanical
contact (Reed)
Passive with
mechanical
contact (Reed)
Passive with
open drain FET
Passive with
open drain FET
Active f.ex. with
C-MOS Gate
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
Typical connection
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
pulse
52/
54
11
10
GND
pulse
11
10
pulse
11
10
VCC 2,5 … 3,6 V
U = 3 … 30 V
Imax = 20 mA
tp
tp
53/
55
52/
54
53/
55
52/
54
53/
55
GND
Uhigh = 2,5 … 3,6 V
Ulow = 0 … 0,3 V
Flow sensor input
Electrical connection Schematic diagram Connection data
Electrical connection Schematic diagram Connection data
Technical data additional inputs
Connection data outputs
Technical data flow sensor input

6
Dimensions
Height: H = 106 mm
Width: B = 126 mm
Depth: T = 54 mm
Subject to modications and errors excepted. Any liability for misprints excluded. SAP120966 _110902_EN ZENNER is a registered trademark of ZENNER International GmbH & Co. KG.
B
H
T
Communication
At calculators with two pulse outputs typically
the rst output (I/O1) gives the energy and
the second (I/O2) the volume information.
The pulse value is permanently set and
corresponds to the last position of the as-
sociated display value.
Example:
Output 1 = energy output
Energy display = XXXXX.XX MWh
Last position = 0.01 MWh = 10 kWh
Output pulse = 10 KWh
The calculator can be ordered with two in-
puts optionally. The pulse value can be

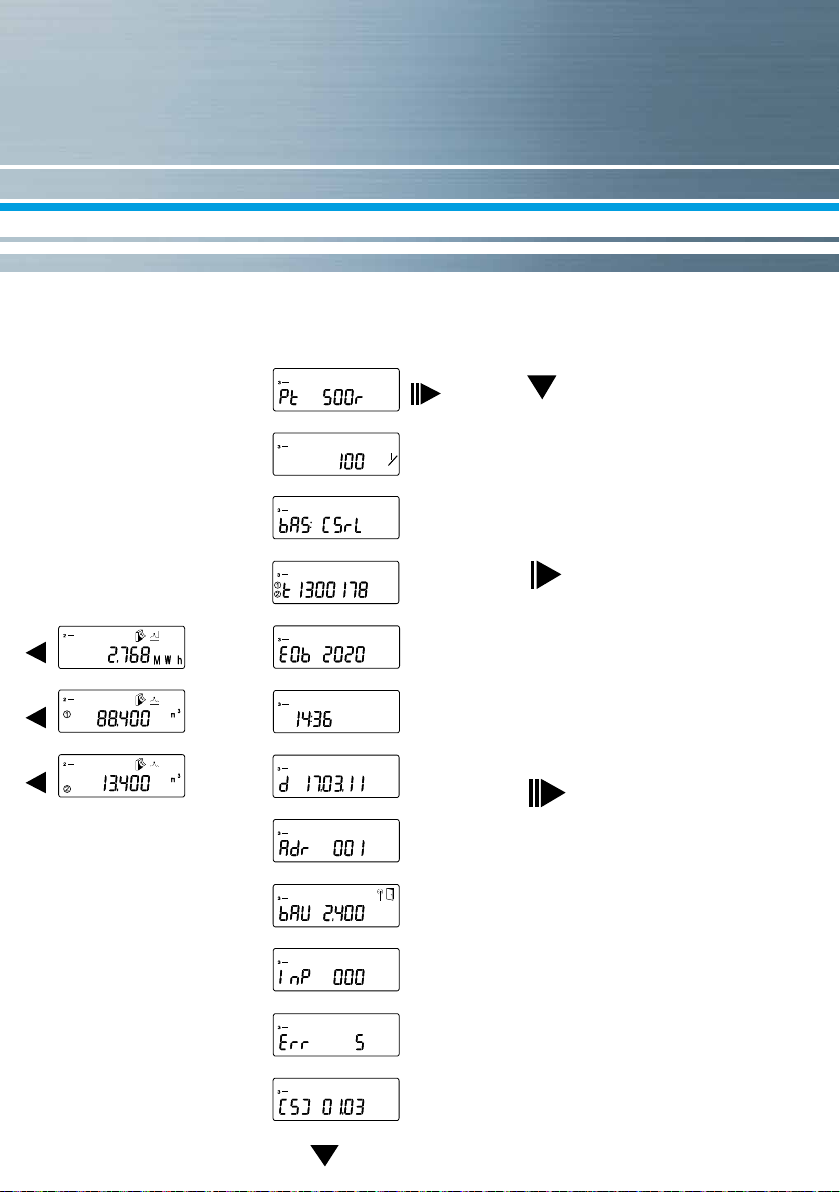

called up in the display (see the display
overview, Level 1).
M-Bus (optional)
The optional M-Bus interface complies with
the norm EN 1434-3 and operates with 2400
baud xed. It can be set to 300/9600 baud if
necessary.
Römerstadt 4
D-66121 Saarbrücken
Telephone [phone]
Telefax [phone]
E-Mail [e-mail]
Internet www.zenner.com
ZENNER International GmbH & Co. KG

7
Installation instructions
Safety instructions
The installation has to be done by qualied per-
sonnel. Read the instructions carefully right up to
the end before starting to mount the device.
The current laws and regulations have to be
observed, especially EN 1434 part 1+6, (in Ger-
many also AGFW directive FW202 and DIN 4713
part 4 and the initial verication directive).
At devices with communication interfaces or
mains supply the general technical rules and the
correspondent regulations have to be followed.
While demounting ow sensors and temperature
sensors make sure no heating water escapes
from the pipe – this can cause burns!
Close valves and release pressure before instal-
lation.
General Information
Take care of:
■the display must readable at all times,
■to avoid malfunctions due to other interfer-
ences do not install uorescent lamps, switch
cabinets or electric devices such as motors or
pumps in the immediate vicinity of the meter
(minimum distance 1 m),
■all welding must be nished,
■the ambient temperature must not exceed
55°C,
■the type of temperature sensor must corre-
spond with the calculator,
■the pulse value of the ow sensor must corre-
spond with the one from the calculator.
The calculator has 7 screwed cable glands for
wires with a diameter between 4,2 and 10 mm.
Keep unused glands closed.
Mind the connection order: temperature sensors
rst, ow sensor afterwards!
mulitdata is delivered ready for operation. It does
not need any settings or adjustings.

8

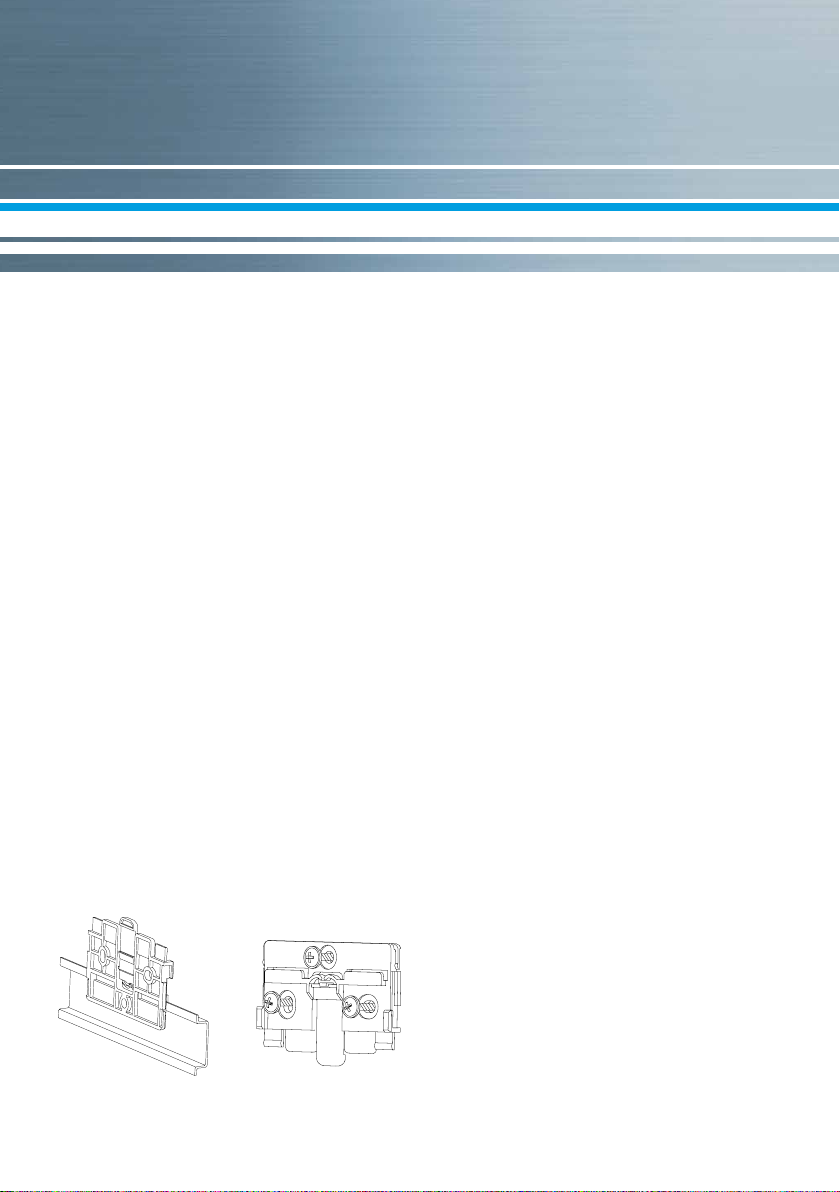

Installation heat calculator
ZENNER recommends to mount the calculator
on the wall. Do not mount the device at the pipe
or attach it directly on the ow sensor.
The mounting adapter at the backside of the cal-
culator can be used for rail mounting or for wall
mounting.
For wall mounting detach the adapter and turn it
180°, attach with at least two screws to the wall
and clip the calculator on it.
For rail mounting lift the adapter a little bit, place
the calculator on the rail and push the adapter
back until it locks.
Connection sensors
The mounting of the temperature sensors should
be done symmetrical with direct immersion.
If immersion sleeves are used they have to be
checked for conformity to MID and have to be
marked accordingly.
The installation of immersion sleeves has to be
done according to DIN EN 1434-2.
■The sensor cables are marked with colors (red
= supply, blue = return).
■Do not buckle, extend or shorten the wires!
■Do only use paired sensors with the same se-
rial number on it.
■At 2-wire systems the cable length of the tem-
perature sensor for supply and return should
not exceed 2.5 m for PT100 and 12.5 m for
PT500.
■At 4-wire systems the maximum cable length
is 20 m.
■Consider EN 1434-2 regarding the diameter of
the wires.
■Supply and return sensors must be inserted
into the immersion sleeves completely.
■Installation points in the ow sensor can be
used for symmetrical installation of the tem-
perature sensors
■Seal temperature sensor after installation to
prevent unauthorized demounting (seals in-
cluded).
■Do not wrap or install wires along hot pipes.
Rail mounting Wall mounting
NOTE! This WR3 heat integrator is
designed to be connected to a flow meter in
the RETURN pipe when used in heating
installations. Connecting to a meter in the
supply pipe will exceed the maximum
permissible error and the unit will not
operate correctly.

9
Switch 2-/4-wire
Calculators equipped with 4-wire measuring sys-
tem can be switched to 2-wire with the switch on
the top left side of the connection board.
Switch to the left for 2-wire, switch position on the
right for 4-wire measurement.
Connection flow sensor
The total length of the wire between ow sensor
and calculator should not exceed 10 m.
With mechanical ow sensors the connection
order is optional. Mind the polarity at electronic
ow sensors.
External power supply
A small vertical line appears in the display when
the optional external power supply is on service.
In case of a failure of the external power sup-
ply the devices switches automatically to battery
supply. The battery lifetime can be checked in the
display (level 3). After having reached the date
the battery has to be replaced if needed.
Operation test
Check the calculator for any error codes in the
display after installation (see table for error
codes). Most of the errors can be deleted by
pressing the button. If the error appears perma-
nently, it will be detected at the next measuring
cycle and displayed again. Check weather the
volume information is updated and the displayed
temperatures correspond to the present ones
while the system is running (measuring cycle 2
minutes max.).
When attaching the top cover on the housing
pulses on the inputs can possibly be generated.
Check readings of the inputs and correct if nec-
essary.
Sealing
Seal the device with the included seals to pre-
vent unauthorized opening.
Maintenance
Repairs or overhaul are only allowed by the
manufacturer or companies authorized by the
manufacturer.

10

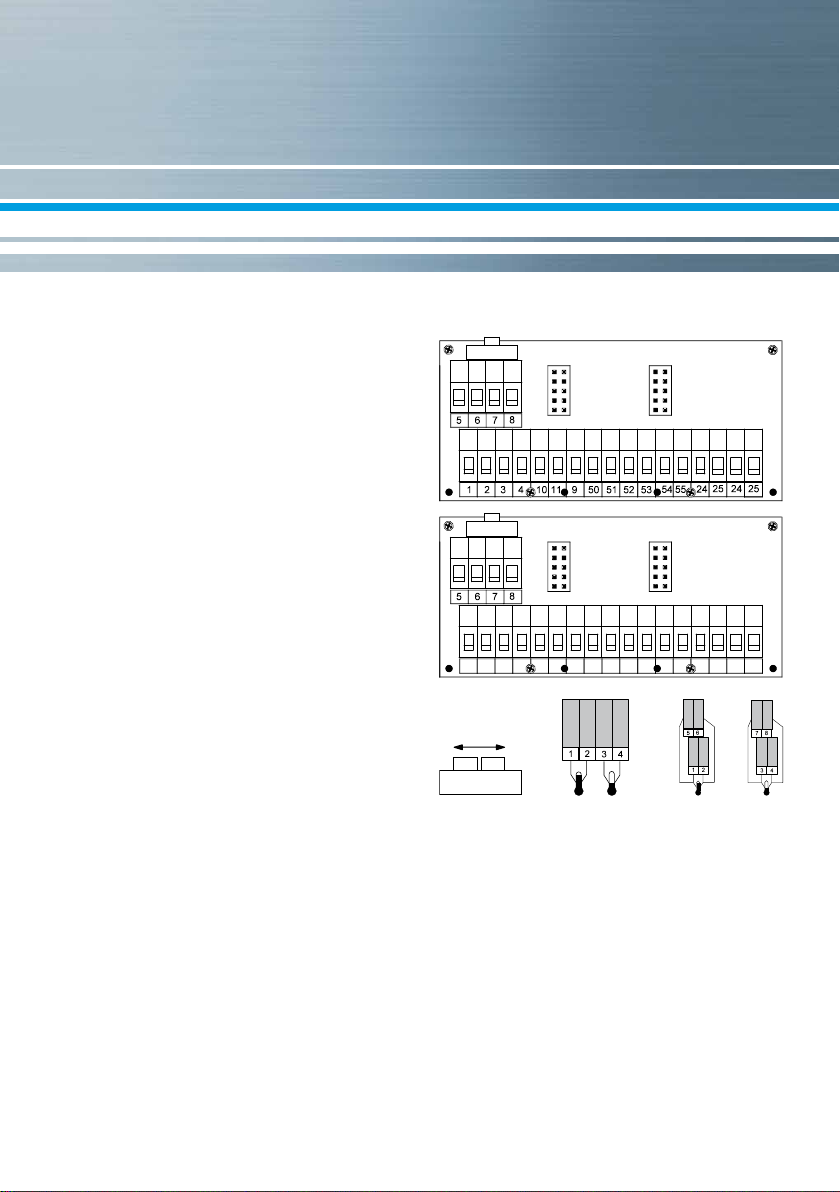

Connector pin assignment
Temperature sensors
2-wire measurement
Supply 1 - 2
Return 3 - 4
4-wire measurement (optionally)
Supply 1 - 2 / 5 - 6
Return 3 - 4 / 7 - 8
Flow sensor
Flow sensor pulse 10
GND 11
Input/Output
I/O 1 pulse 52
GND 53
I/O 2 pulse 54
GND 55
M-Bus
M-Bus L1 24
L2 25
RS-232
DTR 71
GND 72
Tx 73
Rx 74
RS-485
+UB 71
GND 72
A 73
B 74
Switch Connection 2-wire Connection 4-wire
If water meters with a potential free reed contact
are connected to the inputs the connection can
be made in any direction.
Take care of the polarity when connecting to a
BMS.
The connectors are given twice for the incoming
and outgoing of the M-bus wire.
Depending on the meter’s model the version of
the connection board can differ.
2 4
1 2 3 4 10 11 9 50 51 52 53 54 55 71 72 73 74

11
Energy at SRD
Date SRD
SRD value external input 1
SRD value external input 2
Monthly values energy Date month 1 energy
1. monthly value heat energy
Date month 1 input 1
Date month 1 input 2
1. Monthly value input 1
1. Monthly value input 2
Monthly values input 1
Monthly values input 2
Serial number
Customer number
Serial number input 1
Serial number input 2
Energy (main display)
Cooling (in change-iover versions)
Volume
Volume external input 1
Volume external input 2
Segment test
Supply temperature
Return temperature
Temperature difference
Flow
Instantaneous power
Pulse value counter 1
Pulse value counter 2
Maximum flow
maximale Leistung
Sensor type and installation point
Pulse value
Basic configuration
Model number
Battery lifetime
Time
Date
M-bus address
Baud rate
Input display
Error status
Software version
Kälte am Stichtag
Monatswerte Kälte
S
Level 1 Level 2
H
H
L
L
You can switch levels at
any point in the menu.
H
H H
L
Monthly consumption
L
S
H
L
H
L
L
L

12
Legend
Press the button briey (S),
to switch through the display
from top to bottom.
When having reached the
last menu item the device au-
tomatically jumps back to the
menu item at the top (loop).
Press the button for about 2
seconds (L), wait for the door
symbol to appear (upper right
corner of the display) and
then release the button.
The menu is then updated
resp. switches to the sub-
menu.
Hold down the button (H) un-
til the device switches to an-
other level or switches back
from the sub-menu.
Note
Depending on your meter's
model its displays can differ in
number and order from those
shown here.
H
L
S
Level 3
H
Energy at SRD
Date SRD
SRD value external input 1
SRD value external input 2
Monthly values energy Date month 1 energy
1. monthly value heat energy
Date month 1 input 1
Date month 1 input 2
1. Monthly value input 1
1. Monthly value input 2
Monthly values input 1
Monthly values input 2
Serial number
Customer number
Serial number input 1
Serial number input 2
Energy (main display)
Cooling (in change-iover versions)
Volume
Volume external input 1
Volume external input 2
Segment test
Supply temperature
Return temperature
Temperature difference
Flow
Instantaneous power
Pulse value counter 1
Pulse value counter 2
Maximum flow
maximale Leistung
Sensor type and installation point
Pulse value
Basic configuration
Model number
Battery lifetime
Time
Date
M-bus address
Baud rate
Input display
Error status
Software version
Kälte am Stichtag
Monatswerte Kälte
S
S
S
S
