Zest ZQ280 User manual

User Manual
ZQ280/ZQ280A
Vector Variable Frequency Drive
Solar Inverter

1
Safety Information and Precautions
This guide is packaged together with the product for ZQ280(A) Variable Frequency Drive. It contains basic
information for quick start of the drive. For safety and more information, please refer to the ZQ280(A) VFD User
Manual, which can bedownloaded onwebsite: http://www.zest-electric.com
■Electrical Safety
Extreme care must be taken at all times when working with the VFD or within the area of the VFD. The voltages used
in the VFD can cause severe electrical shock or burns and is potentially lethal. Only authorized and qualified
personnel should be allowed to work on VFD.
■Machine/System Design and Safety of Personnel
Machine/system design, installation, commissioning startups and maintenance must be carried out by personnel who
have the necessary training and experience. They must read this safety information and the contents of this manual.
If incorrectly installed, the VFD may present a safety hazard.
The VFD uses high voltages and currents (including DC), carries a high level of stored electrical energy in the DC bus
capacitors even after power OFF. These high voltages are potentially lethal.
The VFD is NOT intended to be used for safety related applications/functions. The electronic “STOP &START”
control circuitswithin the VFD must not be relied upon for the safety of personnel. Such control circuits do not
isolate mains power voltages from the output of the VFD.The mains power supply must be disconnected by an
electrical safety isolation device before accessing the internal parts of the VFD.
Safety risk assessments of the machine or process system which uses an VFD must be undertaken by the user and
or by their systems integrator/designer. In particular the safety assessment/design must take into consideration
the consequences of the VFD failing or tripping out during normal operation and whether this leads to a safe stop
position without damaging machine, adjacent equipment and machine operators/users. This responsibility lies with
the user or their machine/process system integrator.
The system integrator/designer must ensure the complete system is safe and designed according to the relevant
safety standards. Z EST Technology and Authorized Distributors can provide recommendations related to the VFD
to ensure long term safeoperation.
■Electrical Installation - Safety
Electrical shock risk is always present within an VFD including the output cable leading to the motor terminals. Where
dynamic brake resistors are fitted external to the VFD, care must be taken with regards to live contact with the brake
resistors, terminals which are at high DC voltage and potentially lethal. Cables from the VFD to the dynamic brake
resistors should be double insulated as DC voltages are typically 300 VDC to 800 VDC.
Mains power supply isolation switch should be fitted to the VFD. The mains power supply must be disconnected
via the isolation switch before any cover of the VFD can be removed or before any servicing work is undertaken
stored charge in the DC buscapacitors ofthe PWM VFD is potentially lethal after the AC supply has been disconnected.
The AC supply must be isolated at least 10 minutes before any work can be undertaken as the stored charge will have
been discharged through the internal bleed resistor fitted across the DC bus capacitors.
Whenever possible, it is good practice to check the DC bus voltage with a VDC meter before accessing the VFD bridge.
Where the VFD input is connected to the mains supply with a plug and socket, then upon disconnecting the plug
and socket, be aware that the plug pins may be exposed and internally connected to the DC bus capacitors (via the
internal bridge rectifier in reversed bias). Wait 10 minutes to allow stored charge in the DC bus capacitors to be
dissipated by the bleed resistors before commencing work on the VFD.

2
Manufacturer
Product Name
Rated Input
Rated Output
Product:Variable Frequency Drive
Model:ZQ280(280A)T1D5
Appli Motor: 1.5KW
Rate Input:3PH AC 380-440V 50/60Hz
Rate Input:3PH AC 380-440V 0-999Hz 4.1A
Nameplate
ZEST Electric
Anhui Zest Electric Co.,Ltd
Web: www.zest-electric.com
E-mail: [email protected]
ZQ280(A)
Mark Input voltage
T3PH 380V to 440V Mark Application
Motor(KW)
0D40.4
1D5
5D5
7D5
1.5
5.5
7.5
- T- 1D5
ZQ280(A) Series
VFD Model
Application Motor
S1PH/3PH 220V to 240V
......
......
Type of Variable Frequency Drive
Type Power Power Supply Output
Current External Dimensions
ZQ280S0D4 0.4KW 2.3
ZQ280S0D7 0.75KW 4 186.5*86*143.5
ZQ280S1D5 1.5KW 7 186.5*86*143.5
ZQ280S2D2 2.2KW 9.5 186.5*86*143.5
ZQ280S3D 3KW 13
ZQ280S4D 4KW 15
ZQ280S5D5 5.5KW 20
ZQ280T0D4 0.4KW 1.5
ZQ280T0D7 0.75KW 2.5 186.5*86*143.5
ZQ280T1D5 1.5KW 4.1 186.5*86*143.5
ZQ280T2D2 2.2KW 5.1 186.5*86*143.5
ZQ280T3D 3KW 7.9 186.5*86*143.5
ZQ280T4D 4KW 9.4
ZQ280T5D5 5.5KW 12.6
ZQ280T7D5 7.5KW 16.1
Single phase
220-240VAC
50/60Hz
Three phase
220-240VAC
50/60Hz
Three phase
380-440VAC
50/60Hz
186.5*86*143.5
186.5*86*143.5

3
Operating Panel

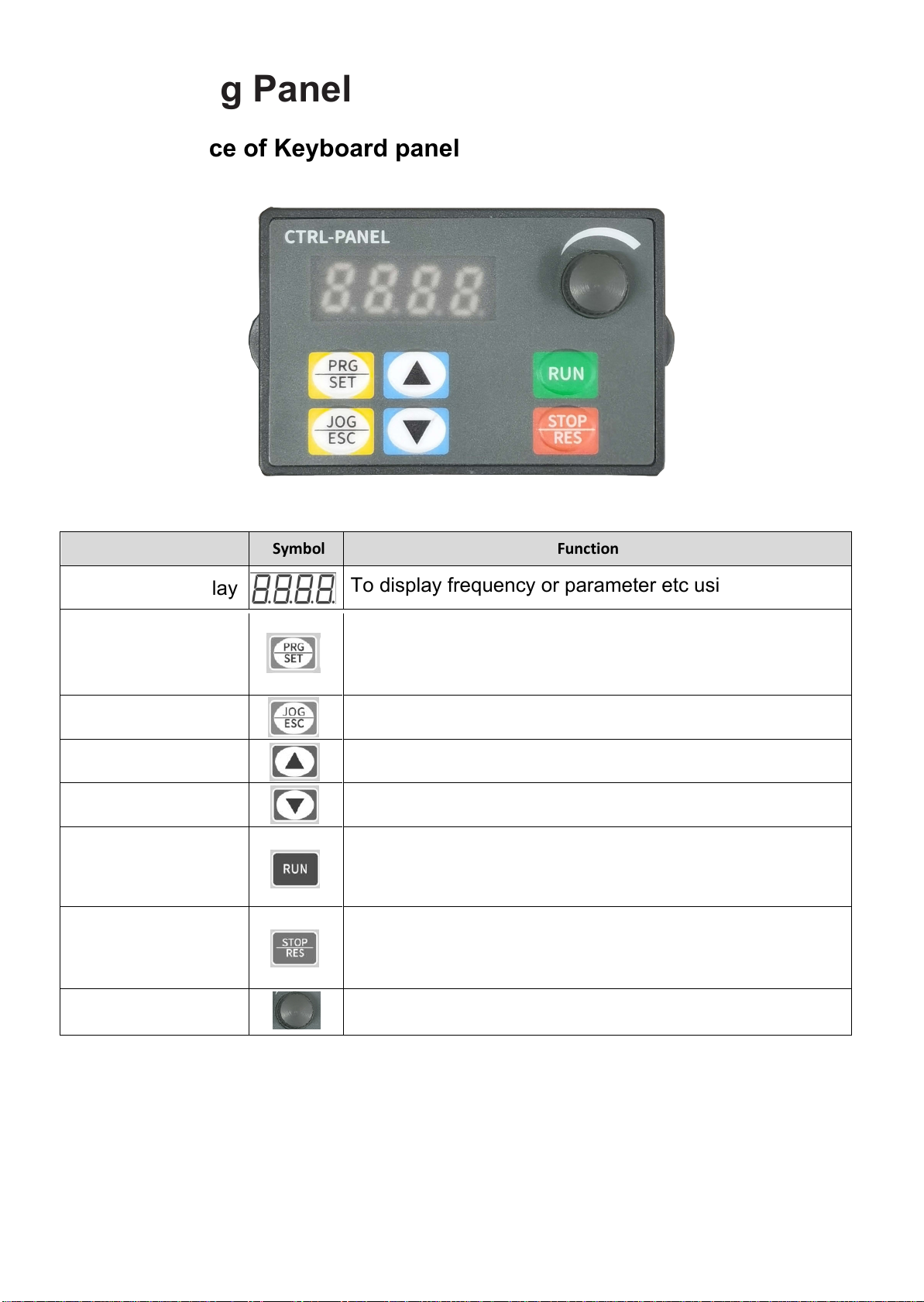

1. Appearance of Keyboard panel
Item Symbol Function
Digital tube display To display frequency or parameter etc using LED.
Parameter setting
key
Used to read and modify each group of parameters,
press to enter the parameter group or display the
parameter value.
Jog and return keys Used for VFD jog operation or parameter setting return
Increment
Decrement
RUN
STOP
Speed control knob
To increase parameter number or parameter set value
To reduce parameter number or parameter set value
To adjust frequency
Stop the VFD when the drive is in the RUNNING
status. Perform a reset operation when the drive is in
the FAULT status.
Start the VFD when using the operating panel control
mode. It is inactive when using the terminal or
communication control mode.
After setting the parameters, return to the original interface method:
1. After power off, power on again.
2. Select parameter d-00, and then press SET key.
3. Long press the SET button

2. Basic operation of panel
5.3
d-00
F0.10
F8.03
SET
SET
50.0
Display out frequency
after power on
Out Current
7.5
10.2
SET
SET
d-04
F0.00
SET
Automatic
return after
30 seconds
3. VFD running command mode setting
The operation command mode of the VFD is set by parameter F0.04:
there are two types of panel control start/stop, and terminal control start/
stop:
(1) Panel control start and stop: (set to panel start and stop F0.04=0)
To use the panel control to start and stop the VFD, press the green
button on the panel to start, the red button to stop, the VFD starts by
default forward rotation, and the forward and reverse rotation needs to be
Set through input terminals X1-X5, (reverse setting is 4).
(2) Terminal start/stop: (set to terminal start/stop F0.04=1)
4

VFD frequency setting method selection
The VFD frequency setting mode of the VFD is set by parameter F0.05.
When F0.05=4, the running frequency is set by the potentiometer; when
F0.05=2, the running frequency is input by AVI (0-10V can be connected
to a potentiometer); when F0.05=3, the running frequency is input by ACI
(4-20mA); when F0.05=1, it is controlled by the external terminal (the
digital value is set to increase/decrease the frequency).
5

6
Installment and Wiring
Terminal Function Instruction
Terminal Function Setting and Instruction
R、S、T
VFD：
Three phase 220V/380V
Model connect with R、S、T
terminals
Single phase 220V Model
connect with R、T terminals
Air switch should be used as the
over-current protection device in front of the
VFD power. If there is LCDI, and it is afraid
of breakdown, please choose the LCDI
whose sensitivity level is above 200mA and
reaction period last more than 100ms.
U、V、W VFD output, connected
with electrical machine
In order to reduce the leakage of current, the
connection wire should not be over 50
meters.
P+、PB Connected with braking resistor
According to the list of braking resistors,
choose an appropriate one.
PE Connected with the ground The VFD should be connected with the
ground well.

COM Signal public terminal Zero potential of digital signal
X1 Digital input X1 Set according to parameter F5.02,
and factory set defaults to be FWD.
X2 Digital input X2 Set according to parameter F5.03,
and factory set defaults to be REV
X3 Digital input X3 Set according to parameter F5.04,
and factory set defaults to be the
first one of multistage speed.
X4/485+ ZQ280:Digital input
X4 ZQ280A:RS485+
ZQ280:Set according to parameter
F5.05, and factory set defaults to be
the second one of multistage speed
ZQ280A:factory set defaults is
RS485+
X5/485-ZQ280:Digital input
X5 ZQ280A:RS485-
ZQ280:Set according to
parameter F5.06, and factory set
defaults to be external RST.
ZQ280A:factory set defaults is
RS485-
GND Signal public terminal Zero potential of analog input signal
AVI 0-10V signal input 0-10V, input resistance:>50KΩ
10V Frequency Setting
potentiometer power
source
+10V, the maximum is 10mA
ACI 4-20mA analog input 4-10mA, input resistance: 100Ω
A0 Analog output Set according to parameter F6.10
TA、TB、TC Relay output
Set according to parameter F5.07
Contact rating:
AC 250V/3A
DC 24V/2A
Terminal Function Setting and Instruction
7

Function
code Name Description Setting range Factory default
F0.00 VF Power The current power of the VFD. 0.00-
99.99KW Model setting
F0.01 Control Mode 0：V/F Control
1: SVC mode 0-1 0
F0.02 Running order channel selection 0：Keyboard command channel
1：Terminal command channel 0-1 0
F0.03
Frequency given source channel
A
0：Digita setting (UP/DOWN terminals
requlate,Off electricity does not storage)
1：Digita setting 2(UP/DOWN terminals
requlate,Off electricity storage)
2：AVI analog setting（0～10V）
3：ACI analog setting（0～20mA）
4：Keybord potentiometer setting
5：Multi-speed setting
6：Simple PLC
7：PID control
8：Communication(ZQ280A Only)
0-7 4
F0.04 Frequency given source channel
B
0：Digita setting (UP/DOWN terminals
requlate,Off electricity does not storage)
1：Digita setting 2(UP/DOWN terminals
requlate,Off electricity storage)
2：AVI analog setting（0～10V）
3：ACI analog setting（0～20mA）
4：Keybord potentiometer setting
5：Multi-speed setting
6：Simple PLC
7：PID control
0-7 0
F0.05 Channel A and Channel B
calculate result selection
0：Ａ+Ｂ
1：Ａ-Ｂ
2：MAX（Ａ，Ｂ）
3：MIN（Ａ，Ｂ）
0-3 0
F0.06 Frequency given source
selection
0: Main frequency A
1: Channel A and Channel B calculate
result(Refer to F0.05)
2: Switch Channel A to Channel B
3: Switch Channel A to Channel A and Channel
B calculate result
4: Switch Channel B to Channel A and Channel
B calculate result
0-4 0
F0.07 digital frequency setting The set value is the initial value of frequency
digital given 0-MAX Frequency 50.00Hz
F0.08 Max frequency output
The maximum output frequency is the highest
frequency that the VFD allows to output, and it is
the benchmark for acceleration and deceleration
settings.
Upper limit
frequency -
400.00Hz 50.00Hz
F0.09 Upper limit frequency The operating frequency cannot exceed the
maximum output frequency of this frequency
Lower limit
frequency -
Max
frequency
50.00Hz
F0 group-Basic running Parameters
Function Parameter Specifications
8

Function
code Name Description Setting range
Factory
default
F0.11 Lower limit frequency running
mode
0: Zero speed running
1: Run at lower limit frequency
2: Stop output, enter into
pause running state
0-2 0
F00.12 Acceleration Time 1 10.0s
F00.13 Deceleration Time 1 10.0s
F00.14 Running direction selection
0: Forward direction
1: Reverse direction
2: Forbidden reverse operation
The forward and reverse selections are valid
when the run command comes from the panel.
No reverse rotation is prohibited No matter what
the source of the running command is, the
inverter will not reverse rotation
0-2 0
F0.15 User password
When a non-zero number is set, the password
takes effect; after decryption, if 0000 is set, the
password function is canceled.
0000-9999 0
F0.16 Software version Current software version. 01.00-99.99 Model setting
F0.17 Parameter initialization
0: No action
1: Restore factory default (not restoring motor
parameters)
2: Clear malfunction records
3: Restore factory default (restoring motor
parameters)
0-3 0
F1.00 V/F curve set
0: Beeline
1：VF square curve
2：1.5 respectively VF power curve
3：1.2 respectively VF power curve
4：Custom VF curve; see [F1.04.01-F1.09];
0-4 0
F1.01 Torque boost
Fixed torque boost while it is set other values.
Improve low frequency torque trait by voltage
compensation.
Automatically torque boost while it is set 0.
0.0-30.0% 3.0%
F1.02 Torque boost cut-off frequency
Set torque improves valid range. While output
frequency is over this value, torque improving
function stops.
0.0-50.00Hz 15.00Hz
F1.03 PWM Carrier frequency
This feature is mainly used to improve noise and
vibration during operation of the VFD, but at the
same time the main parts switch loss and the
heat are heavy while the efficiency would be
reduced.
2.0-12.0KHz Model setting
F1 group:V/F Control Parameters
Time for the VFD to accelerate to the maximum
output frequency or decelerate to zero frequency 0-999.9S
9
F0.10 Lower limit frequency The operating frequency cannot be lower than
this frequency
0-Upper limit
frequency 0.00Hz

Function
code Name Description Setting range
Factory
default
F1.04 Self-setting frequency F1 0.01-
frequency F2 12.50Hz
F1.05 Self-setting voltage V1 0.0-
voltage V2 25.0%
F1.06 Self-setting frequency F2 F1-F3 25.00Hz
F1.07 Self-setting voltage V2 V1-V3 50.0%
F1.08 Self-setting frequency F3
F2-Motor
rated
frequency
37.50Hz
F1.09 Self-setting voltage V3 V2-100% 75.0%
F1.10 AVR function
0：Forbid
1：All Effective
2：Forbid only deceleration
0-2 0
F1.11 Brake ratio Braking resistor braking ratio 0-100% 90%
F1.12 Torque compensation gain 0-150% 0%
F1.13 VF overexcitation gain 0-200% 84%
F1.14 Oscillation suppression ffunction 0-6 5
F2.00 ASR Low speed Kp 1-100 20
F2.01 ASR Low speed Ki 1-10.00 0.50
F2.02 ASR High speed Kp 1-100 10
F2.03 ASR High speed Ki 1-10.00 1.0
F2.04 ASR Low speed switch
frequency
Lower limit
frequency -
Max
frequency
10.00Hz
F2.05 ASR High speed switch
frequency
Lower limit
frequency -
Max
frequency
30.00Hz
F2.06 Electric slip compensation gain 0.0-100.0% 0
F2.07 Reserved
F2.08 Reserved
F2.09 Reserved
F2.10 Current loop Kp 0-60000 2000
F2.11 Current loop Ki 0-60000 1300
F2.12 Reserved
F2.13 Reserved
F2.14 SVC motor slip compensation 0-200% 100%
F2.15 Reserved
F2.16 Reserved
F2.17 Reserved
F2.18 Reserved
F2.19 Speed control (drive) torque
upper limit digital setting 0.0-200.0% 150.0%
Voltage is a percentage of the rated voltage of
the motor
F2 group:Vector Control Parameters
10

Function
code Name Description Setting range
Factory
default
F2.20 Maximum torque coefficient in
field weakening region 50-200% 100%
F2.21 Current loop M-axis proportional
coefficient 5-300 5
F2.22 Current loop M-axis integral
coefficient 0-65535 0
F2.23 Open loop vector velocity loop
filter time constant 0-100 25
F2.24 Open loop vector torque boost 0-500 100
F2.25 Open loop vector torque boost
cut-off frequency
Lower limit
frequency -
Max
frequency
20.00Hz
F2.26 Torque given filter 0-31 28
F2.27 Maximum field weakening
voltage overmodulation factor 0-110% 105%
F2.28 Magnetic flux observation
compensation factor 0-100% 100%
F2.29 Flux observation filter coefficient 0-2000 300
F2.30 T-axis current closed-loop
coefficient 0-500 0
F2.31 Reserved
F2.32 Reserved
F2.33 Reserved
F3.00 Start-up mode 0：Start frequency
1：DC breake+start frequency 0-1 0
F3.01 Start frequency Initial frequency of VFD start 0.50-20.00Hz 0.50hz
F3.02 Holding time of start frequency Start frequency run time 0.0-60.0s 0
F3.03 Start DC brking current
Current value for applying DC braking:
When the rated current of the motor is less than
or equal to 80% of the rated current of the VFD, it
is a percentage base value relative to the rated
current of the motor:
When the rated current of the motor is greater
than 80% of the rated current of the VFD, it is
relative to 80% of the rated current of the VFD as
the percentage base value.
0.0-100% 0.00%
F3.04 Start DC brking time Duration of applying DC braking 0.0～100.0s 0.1s
F3.05 Stop mode
0：Decelerate stop
1：Decelerate stop + DC brking
2：Free stop
0-2 0
F3.06 Initial frequency for Stop DC
braking
When the frequency reaches the preset
frequency, DC braking starts
0.0-upper
limited
frequency
0.00Hz
F3.07 Stop DC brking current Applying the same braking current value as DC
braking current 0.0-100% 0.00%
F3.08 Stop DC braking time Duration of applying DC braking 0.0-30.0% 0.0s
F4.00 Jog forward running frequency
setting
F4.01 Jog reverse running frequency
setting
F4 group: Auxiliary Operation 2 Parameters
Set jog forward and reverse frequency 0.00-50.00Hz 10.00Hz
F3 group: Auxiliary Operation Parameters
11

Function
code
Name Description Setting
range
Factory
default
F4.02 Jog Accel time
F4.03 Jog Decel time
F4.04 Accel Time 2 10.0s
F4.05 Deccel Time 2 10.0s
F4.06 Jog priority
0: invalid
1: When the VFD is running, the jog priority
is the highest
0-1 1
F4.07 Jump frequency
0.0-upper
limited
0.00Hz
F4.08 Jump frequency width 0.0-10.0Hz 0.00Hz
F5.00 FWD/REV mode
0：Two-line control mode1
1：Two-line control mode2
2：Tree-line control mode1
3: Tree-line control mode2
0-3 0
F5.01
Terminal run detection
selection at power on
0：Teminal running command is invalid when
electrified
1：Teminal running command is valid when
electrified
0-1 0
F5.02 Input X1 Function 0-26 3
F5.03 Input X2 Function 0-26 4
F5.04 Input X3 Function 0-26 12
F5.05
ZQ280:Input X4 Function
ZQ280A:RS485+
0-26 13
F5.06 0-26 8
F5 group: Digital Input and Output Parameters
Set the jog acceleration and deceleration time
0.1-999.9s
Model setting
0.1-999.9s
By setting the jump frequency and range, the
inverter can avoid the mechanical resonance
point of the load.
0：Control end idle
1：Forword rotation contrl（FWD）
2：Reverse rotation contrl（REV）
3：Three-line control
4：Forword jog control
5：Reverse jog control
6：Stop freely control
7：Externa Stop control
8：External rest signal input(RST)
9：External failure open input
10：Frequency increase control(UP)
11：Frequency decelerase control(DOWN)
12：Multi-speed selection1
13：Multi-speed selection2
14：Multi-speed selection3
15：Run command switch to terminal
16：Reserve
17：Stop DC brking
18：frequency source switch（F0.06）
19：Reserve
20：Reserve
21：Reserve
22：Count clearance signal(Fb.10 Count
function)
23：Count trigger signal(Fb.10 Count function)
24：Timing clearance signal(Fb.10 Timing
function)
25：Timing trigger signal(Fb.10 Timing function)
26：Acceleration or deceleration time selection
（Time 1 and Time 2 switch selection）
12
ZQ280:Input X5Function
ZQ280A:RS485-

Function
code
Name Description Setting
range
Factory
default
F5.07 Programmable relay
R output
0：NO output
1：VFD ready to run
2：Running indication signal
3：VFD zero-speed running
4：External fault stop
5：VFD fault
6：Frequency/speed arrival signal (FAR)
7：Frequency/speed level detection signal (FDT)
8：Upper limit arrival of output frequency
9：Lower limit arrival of output frequency
10：VFD overload
11：Timer time is up(When the timing time
reaches the timing setting time of Fb.13, the relay
outputs)
12：Counter reaches the set value(When the
count value reaches the counter detection value
of Fb.12, the relay will output)
13：Counter reset signal (reserved)
14：Reserved
0-14 5
F5.08 R output delay time
F5.09 R turn off delay time
F5.10
Frequency arrival
detectionrange (FAR)
When the output frequency is within the positive
and negative detection width of the set frequency,
the terminal outputs a valid signal (low level)
0.00-15.00Hz 5.OOHz
F5.11 FDT level setting
0.00-Upper
limited
frequency
10.00Hz
F5.12 FDT lag
0.00～
30.00Hz
1.00Hz
F5.13
UF/DOWN terminal modification
rate
Set the frequency modification rate when the
UP/DOWN terminal sets the frequency. That is,
the UP/DOWN terminal is short-circuited with
COM for one second, the magnitude of the
frequency change.
0.10-
200.00Hz/s
1.00Hz
F5.14 Reserved
F5.15
Effective logic setting
of input terminal (X1 -X5)
Bit0 to Bit4 correspond to X1 to X5 respectively
0 is positive logic, i.e. terminal Xi is enabled when
it connects with common terminal and disabled if
disconnected.
1 is negative logic, i.e. terminal Xi is disabled
when it connects with common terminal and
enabled when disconnected.
0-31 0
F5.16 X1 filter coefficient 0-9999 5
F5.17 X2 filter coefficient 0-9999 5
F5.18 X3 filter coefficient 0-9999 5
F5.19 X4 filter coefficient 0-9999 5
F5.20 X5 filter coefficient 0-9999 5
0.0s
Used to set the sensitivity of the input terminals.
If the digital input terminals are susceptible to
interference and cause malfunction, this
parameter can be increased to increase the
resistance to
interference. However, setting it too high will
result in a reduction in the sensitivity of the input
terminals.
1: represents the unit of 2MS scan time
The delay from the change of the state of relay R
to the change of the output
0-999.9s
13

Function
code
Name Description Setting
range
Factory
default
F6.00 Lower limit voltage
of AVI input 0.0%
F6.01 Upper limit voltage
of AVI input 100.0%
F6.02
Setting corresponding to AVI
lower limit
0.0%
F6.03
Setting corresponding to AVI
upper limit
100.0%
F6.04 Lower limit current
of ACI input 0.0%
F6.05 Upper limit current
of ACI input 100.0%
F6.06
Setting corresponding to ACI
lower limit
0.0%
F6.07
Setting corresponding to ACI
lower limit
100.0%
F6.08
Constant for filtering
time of analog input
signal
This parameter is used for filtering the input
signals of AVI, ACI and panel
potentiometer to eliminate the effect of
interference.
0.1-5.0s 0.1s
F6.09 Error limit of analog input
When analog input signal shows frequent
fluctuation around the set point, set F6.09 to
restrain the frequency
fluctuation caused by this fluctuation.
0.0-100.0% 0.0
F6.10 A01 output selection
0：Output frequency, 0-Max frequency
1：Given frequency, 0-Max frequency
2：Output current, 0-2 times rated current
3：Output voltage, 0-2 times rated voltage
4：AVI, 0-10V
5：ACI, 0-20mA
0-5 0.0
F6.11 AO function lower limit 0.0
F6.12 AO function upper limit 100.0%
F6.13 AO output lower limit 0.0
F6.14 AO output upper limit 100.0%
F7.00 Multi-speed frequency 1
Set multi-speed 1 frequency
5.0Hz
F7.01 Multi-speed frequency 2
Set multi-speed 1 frequency
10.0Hz
F7.02 Multi-speed frequency 3
Set multi-speed 1 frequency
15.0Hz
F7.03 Multi-speed frequency 4
Set multi-speed 1 frequency
20.0Hz
F7.04 Multi-speed frequency 5
Set multi-speed 1 frequency
25.0Hz
F7.05 Multi-speed frequency 6
Set multi-speed 1 frequency
37.5.0Hz
F7.06 Multi-speed frequency 7
Set multi-speed 1 frequency
50.0Hz
F7.07 PLC run mode selections
0：Stop after single cycle
1：Continuous cycles
2：Keep final value after single cycle
0-2 0
F7.08 Stop save mode 0：No save 1：Save 0-1 0
F7.09 Power down save mode
0：No save 1：Save
0-1 0
F7.10 1st step running time T1
Set multi-speed 1 running time
10.0s
F7.11 2nd step running time T2
Set multi-speed 2 running time
10.0s
F7.12 3rd step running time T3
Set multi-speed 3 running time
10.0s
F7.13 4th step running time T4
Set multi-speed 4 running time
10.0s
F7.14 5th step running time T5
Set multi-speed 5 running time
10.0s
F7.15 6th step running time T6
Set multi-speed 6 running time
10.0s
F7.16 7th step running time T7
Set multi-speed 7 running time
10.0s
lower limit
frquecy
-
upper limit
frequency
0.0-100.0%
0.0-100.0%
0.0-999.9s
F7 group:PLC、Multi-speed Parameters
Set the upper and lower limit of the function
selected by AO
Set AO output upper and lower limits
Set the setting corresponding to the ACI upper
and lower limits, which corresponds to the
percentage of the upper limit frequency [F0.09]
-100.0%-
100.0%
F6 group: Analog Input and Output Parameters
Set AVI upper and lower limit voltage
0.00-100.0%
Set the setting corresponding to the AVI upper
and lower limits, which corresponds to the
percentage of the upper limit frequency [F0.09]
-100.0%-
100.0%
Set ACI upper and lower limit current
0.00-100.0%
14

Function
code
Name Description Setting
range
Factory
default
F7.17 T1 run mode selections 0
F7.18 T2 run mode selections 0
F7.19 T3 run mode selections 0
F7.20 T4 run mode selections 0
F7.21 T5 run mode selections 0
F7.22 T6 run mode selections 0
F7.23 T7 run mode selections 0
F7.24
Current running
multi-speed(Reserve)
F7.25 Current running time
(Reserve)
F8.00 PID feedback trait selection
0：Positive trait 1：Negative trait
0-1 0
F8.01 PID give signal source
0：Keyboard number given
1：Keyboard Potentiometer given
2：AVI
3：ACI
0-3 0
F8.02 PID feedback signal source
0：AVI 1：ACI
0-1 0
F8.03 Keyboard number PID given
The given value when the PID given source is
Keyboard number setting
PID range
lower limit
-
PID range
upper limit
0.5
F8.04
PID instruction acceleration and
deceleration time
0.0-100.0s 0.0
F8.05 PID control deviation limit 0.0-100.0% 0.0
F8.06
PID control deviation limit
keeping time
0.0-6000.0s 0.0
F8.07 PID deviatiom upper limit 0.0-100.0% 100.0
F8.08 PID deviatiom lower limit 0.0-100.0% 0.0
F8.09 Proportion gain 0.00-600.00 25.00
F8.10 Integral time
0：No
Integral time
0.0-100.0s
1.0
F8.11 Differential coefficient
0：No
Differential
coefficient
0.00-10.00s
0.00
F8.12 PID output upper limit 0.0-100.0% 100.0
F8.13 PID output lower limit 0.0-100.0% 0.0
F8.14 PID output filter time 0.00-10.00 0.00
F8.15 Feedback fault action selection
0：Run at the upper limit frequency
1：Run at the lower frequency limit
2：Run according to the digital set frequency
3：Decelerate to stop
4：Free stop
0-4 2
F8.16
PID feedback loss detection
value
0.0-100.0% 0.0
F8.17 PID feedback loss detection time 0.0-100.0s 1.0
F8.18
PID feedback over-limit detection
value
0.0-100.0% 100.0
F8.19
PID feedback over-limit detection
time
0.0-100.0s 1.0
F8 group: PID Control, MPPT And PV Pump Parameters
0：Forward, Select acceleration time 1
1：Forward, Select acceleration time 2
2：Reverse, Select acceleration time 1
3：Reverse, Select acceleration time 2
0-3
15

Function
code
Name Description Setting
range
Factory
default
F8.20 PID sleep control
0：No sleep function
1：Internal wake-up
2：External input terminal control
0-2 0
F8.21 Sleep frequency
0.00Hz-Max
frequency
0.00
F8.22 Sleep delay 0.0-6000.0s 0.0
F8.23 Wake-up deviation 0.0-100.0% 0.0
F8.24 Wake-up delay 0.0-60.0s 0.5
F8.25 PID range lower limit 0.0
F8.26 PID range upper limit 0.1
F8.27 Decimal point display settings
0：Do not show decimal point
1：Display one decimal point
2：Display two decimal places
3：Display three decimal places
This parameter is only used to control the
decimal point display of F8.03, F8.25, F8.26, d0-
11 and d0-12;
0-3 1
F8.28
-
F8.35
Reserve
F8.36
MPPT and PV pump function
selection
0：Not enabled
1：MPPT function enabled
2：PV pump function enabled
3：Both MPPT and PV pumps are enabled
0-3 0
F8.37
MPPT low point operating
Voltage
0-【F8.38】VModel setting
F8.38
MPPT high point operating
Voltage
【F8.37】-
1000/500V
Model setting
F8.39
PV pump lack of water detect
Current Ratio
0.0-300.0% 0.0
F8.40 PV pump Low limit frequemcy 0.00-99.99Hz 0.00
F8.41
PV pump lack of water detect
time
0.0-250.0s 0.0
F9.00
Motor rated power Model setting
F9.01
Motor rated voltage 1-500V Model setting
F9.02
Motor rated current 0.01-99.99A Model setting
F9.03
Motor rated speed 0-60000Krpm Model setting
F9.04
Motor rated frequency 1-400.00hz 50.00Hz
If the bus voltage (d-03) is higher than the set
value of the MPPT high-point working voltage
(F8.38), it will run at the maximum frequency; if it
is lower than the MPPT high-point working
voltage (F8.38) set value, press ( Busbar
voltage/MPPT high-point working voltage) *Run
at the frequency obtained from the maximum
frequency, if the busbar voltage reaches the
MPPT low-point working voltage (F8.37), it will
run at the minimum running frequency (F8.40) of
the water outlet.
If the frequency converter runs above the
minimum water output frequency (F8.40), and the
output current is lessthan the motor no-load
current (F9.11) * the water shortage detection
current of the Guangyou pump corresponds to
the no-load current ratio (F8.39), after the
Guangyou After the water shortage detection time
of the water pump (F8.09), the VFD will report the
water shortage fault ELT.
F9 group: Motor Parameters
Since the display is 4 digital tubes, the displayed
digits may not match the actual value, but it does
not affect the final set value.
-3276.8
-
3276.8
16

Function
code
Name Description Setting
range
Factory
default
F9.05
Parameters self-adjustment
selections
0：No operation
1：Static self-tuning
0-1 0
F9.06
Motor stator resistance
0.001-65.535
Ω
Model setting
F9.07
Motor rotor resistance
Model setting
F9.08
Motor rotor inductance
Model setting
F9.09
Motor rotor mutual inductance
Model setting
F9.10
Reserve
F9.11
Motor no-load current Model setting
FA.00 Motor overload protection 0：Invalid
1：Valid 0-1 0
FA.01 Motor overload protection curve
coefficient
The motor overload protection factor is the
percentage of the rated current value of the
motor to the rated output current value of the
VFD.
30%-110% 100%
FA.02 Undervoltage protection level This power parameter specifies the allowable lower limit voltage of the DC bus when the
inverter is working normally.
150-280V
300-480V 180/360V
FA.03 Overvoltage Stall Enable 0：disabled
1：enable 0-1 1
FA.04 Over-voltage limit level The overvoltage limit level defines the operating
voltage for overvoltage stall protection 350-380V 660-760V 375/660V
FA.05 Current limit level
The current limit level defines the current
threshold value of the automatic current limit
action, and its set value is a percentage relative
to the rated current of the VFD.
30-200% 150%
FA.06 Frequency drop rate at current
limit 0-99.99Hz/s 0
FA.07 Current limiting action selection
0：invalid
1：Acceleration and deceleration are valid,
constant speed is invalid
2：Valid for acceleration and deceleration, valid
for constant speed
0-2 0
FA.08 Overload pre-alarm level The current threshold of the VFD overload
pre-alarm action, and its set value is a
percentage relative to the rated current of the
inverter.
120-150% 120%
FA.09 Overload pre-alarm delay
The delay time between the VFD output current
continuously greater than the overload pre-alarm
level amplitude (FA.08) and the output of the
overload pre-alarm signal.
0.0-15.0s 5.0s
FA.10 Oscillation suppression
coefficient In general, when the motor oscillates, increase the oscillation suppression coefficient. 0-200 30
FA.11 Amplitude suppression
coefficient Set the maximum adjustment amount for oscillation suppression. 0-1000 20
FA.12 Oscillation suppression lower
limit frequency Below this frequency, oscillation suppression is disabled. 0.0-FA.13 5.00Hz
FA.13 Oscillation suppression upper
limit frequency Above this frequency, oscillation suppression is disabled. FA.12- 200.00Hz 50.00HZ
FA group: Protect Parameters
17

Function
code
Name Description Setting
range
Factory
default
FA.14
Cycle-by-cycle current limit
selection
Ones place: select in acceleration
0: invalid, 1: valid
Tens place: Select during deceleration
0: invalid, 1: valid
Hundreds place: select from constant speed
0: invalid, 1: valid
Thousands: reserved
000-111 011
FA.15 Cycle-by-cycle current limit level
VFD rated current.
80-200% 180
FA.16 Malfunction auto-reset times
When the reset times are set to 0, there is no
automatic reset function, only manual reset.
10 means that the number of times is unlimited,
that is, infinite times.
0-10 0
FA.17 Malfunction auto-reset interval 0.5-25.0s 3.0S
FA.18
VF overcurrent, overvoltage
suppression selection
0：Not enabled
1：Overcurrent suppression enable
2：Overvoltage Suppression enable
3：Overcurrent and overvoltage suppression
enable
0-3 3
FA.19 VF overcurrent suppression Kp 0-100 20
FA.20
VF Double-speed overcurrent
stall action current compensation
coefficient
50-200 50
FA.21 VF overvoltage suppression Kp 0-100 60
FA.22
VF Overvoltage Stall Rise
Maximum Frequency
0-50 5
FA.23
VF Overvoltage Stall Regulator
Kp
0-100 80
FA.24
Power-off and under-voltage
shutdown mode
0：Report undervoltage fault, free stop
1：No undervoltage fault is reported, stop
according to the set stop mode (F3.05)
0-1 0
FB.00
Running monitoring parameters 0
FB.01
Stop monitoring parameters 1
FB.02
Motor speed display coefficient
It is used to correct the display error of the speed
scale and has no effect on the actual speed.
0.01-99.99 1.00
FB.03
Current Malfunction 0-9999 0
FB.04
Last malfunction 0-9999 0
FB.05
First two malfunction 0-9999 0
FB.06
Malfunction Bus Voltage 0-9999 0
FB.07
Malfunction out Current 0.0-999.9 0
FB.08
Malfunction given frequency 0.0-300.0 0
FB.09
Malfunction running frequency 0.0-300.0 0
FB group: Display And Special Parameters
The default display item of the main monitoring
interface. The corresponding numbers are d
group parameters.
0-15
18

Function
code
Name Description Setting
range
Factory
default
FB.10
Counting and Timing Modes
Ones place: Count arrival processing
0：Single-week count, stop output,
1：Single-week count, continue to output
2：Cycle count, stop output
3：Cycle count, continue to output.
Tens: reserved
Hundreds place: timed arrival processing,
0：Single-week timing, stop output
1：One-week timing, continue to output,
2：Cycle timing, stop output
3：Cycle timing, continue to output.
Thousands: reserved
000-303 103
FB.11
Counter reset value setting 0-9999 1
FB.12
Counter detection value setting 0-9999 1
FB.13
Timing time setting 0-9999s 0
FB.14
Reserve
FB.15
Reserve
FB.16
Reserve
FB.17
Reserve
FB.18
Reserve
FB.19
Reserve
FB.20
Reserve
FB.21
Reserve
FB.22
Software version Model setting
FC.00
Communication baud rate
0：1200 1：2400 2：4800
3：9600 4：19200 5：38400
0-5 3
FC.01
Modbus data format
0：(N,8,1) format 1：(O,9,1) format
2：(E,9,1) format 3：(N,8,1) format
3：(E,8,1) format 4：(O,8,1) format
6：(N,8,2) format
0-6 0
FC.02
485 communication address
It set communication address while VFD is
Modbus communication slave machine.
1-247 1
FC.03
Modbus communication overtime
fault time
0.0-600.0s 10.0s
FC.04
Reserve
FC.05
Modbus communication fault act
mode selections
0：No checkout overtime fault
1：Alarm
2：Forced stop
0-2 1
FC group：Communication Control Function Parameter
18
