Zeta FYREYE MKII ZASC-MI User manual
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 1
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR
INSTALLATION GUIDE
General
The Fyreye MkII Addressable Sounder Control Module is supplied with a backbox for
surface mounting.
NOTE: The Sounder Control Module is designed for indoor use only.
This module is NOT LOOP POWERED, an adequate 24Vdc input is required with the
necessary battery back up. Note the input voltage should provide adequate current to
operate the ZASC-MI in addition to operating the connected alarm load.
Model No: ZASC-MI Fyreye MkII Addressable Sounder Control Module With Isolator
Surface Mounting
1. Mount the backbox as required and install all cables for termination.
2. Set the address of the unit as shown on page 3.
3. Terminate all cables.
4. Gently push the completed assembly towards the back box until the mounting
holes are aligned and secure with the two mounting screws provided. DO NOT
OVERTIGHTEN.
Isolator Module
The Sounder Control Module is tted with a bi-directional short-circuit isolator and will
be unaected by loop short-circuits on either loop input or output.
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 2
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
Wiring Details
All wiring terminals will accept solid or stranded cables up to 2.5mm2

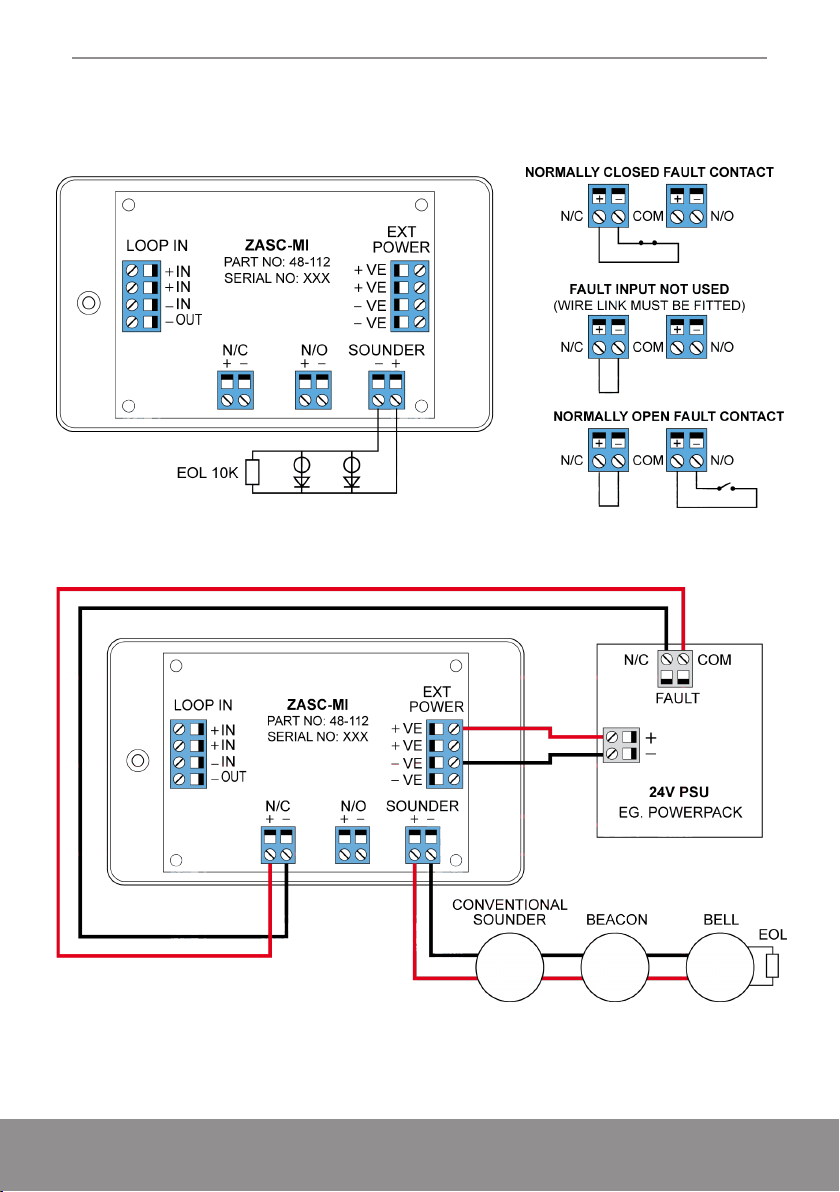

Typical Connections
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 3
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
Technical Specication
Model ZASC-MI
Part Number 48-112
Operating Voltage (Loop) 17 – 28V DC
Quiescent Current (Loop) 0.6 mA
Fault Current (Loop) 0.6 mA
Sounder On Current (Loop) 0.8 mA
Operating Voltage (Ext. Power) 9-32V DC
Quiescent Current (Ext. @ 24V) 2 mA
Sounder On Current (Ext. @ 9V) 2.5mA Plus Sounder Load
Sounder On Current (Ext. @ 32V) 9.5mA Plus Sounder Load
Sounder Output Rating 500 mA
Isolating Current 7.3mA
Sounder End of Line 10K (tolerance 7.5K to 15K)
Operating Temperature -10°C to +55°C
Max Humidity 95% RH Non Condensing
IP Rating IP21C
Size 150 x 90 x 45 mm
Weight 220g
For information on the short circuit isolator operation see document GLT-224-6-9
available from your distributor.

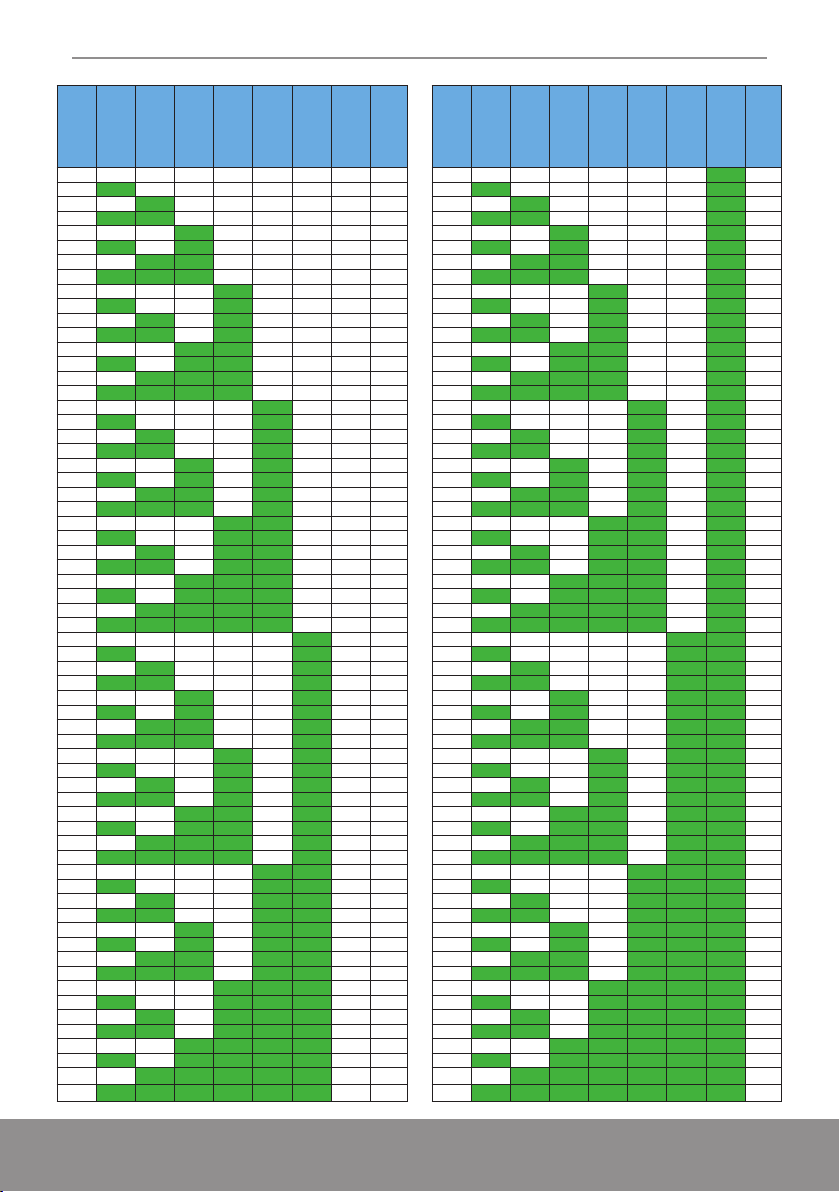

Address Setting
The address of the Sounder Control Module is set using the eight segments of the DIL
switch. Each segment of the switch must be set to “0”(ON) or “1”(OFF), using a small
screwdriver or similar tool. A complete list of address settings is shown overleaf. The
maximum address is 250.
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 4
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
ADDRESS
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
0
1OFF ON ON ON ON ON ON ON
2 ON OFF ON ON ON ON ON ON
3OFF OFF ON ON ON ON ON ON
4 ON ON OFF ON ON ON ON ON
5OFF ON OFF ON ON ON ON ON
6 ON OFF OFF ON ON ON ON ON
7OFF OFF OFF ON ON ON ON ON
8 ON ON ON OFF ON ON ON ON
9OFF ON ON OFF ON ON ON ON
10 ON OFF ON OFF ON ON ON ON
11 OFF OFF ON OFF ON ON ON ON
12 ON ON OFF OFF ON ON ON ON
13 OFF ON OFF OFF ON ON ON ON
14 ON OFF OFF OFF ON ON ON ON
15 OFF OFF OFF OFF ON ON ON ON
16 ON ON ON ON OFF ON ON ON
17 OFF ON ON ON OFF ON ON ON
18 ON OFF ON ON OFF ON ON ON
19 OFF OFF ON ON OFF ON ON ON
20 ON ON OFF ON OFF ON ON ON
21 OFF ON OFF ON OFF ON ON ON
22 ON OFF OFF ON OFF ON ON ON
23 OFF OFF OFF ON OFF ON ON ON
24 ON ON ON OFF OFF ON ON ON
25 OFF ON ON OFF OFF ON ON ON
26 ON OFF ON OFF OFF ON ON ON
27 OFF OFF ON OFF OFF ON ON ON
28 ON ON OFF OFF OFF ON ON ON
29 OFF ON OFF OFF OFF ON ON ON
30 ON OFF OFF OFF OFF ON ON ON
31 OFF OFF OFF OFF OFF ON ON ON
32 ON ON ON ON ON OFF ON ON
33 OFF ON ON ON ON OFF ON ON
34 ON OFF ON ON ON OFF ON ON
35 OFF OFF ON ON ON OFF ON ON
36 ON ON OFF ON ON OFF ON ON
37 OFF ON OFF ON ON OFF ON ON
38 ON OFF OFF ON ON OFF ON ON
39 OFF OFF OFF ON ON OFF ON ON
40 ON ON ON OFF ON OFF ON ON
41 OFF ON ON OFF ON OFF ON ON
42 ON OFF ON OFF ON OFF ON ON
43 OFF OFF ON OFF ON OFF ON ON
44 ON ON OFF OFF ON OFF ON ON
45 OFF ON OFF OFF ON OFF ON ON
46 ON OFF OFF OFF ON OFF ON ON
47 OFF OFF OFF OFF ON OFF ON ON
48 ON ON ON ON OFF OFF ON ON
49 OFF ON ON ON OFF OFF ON ON
50 ON OFF ON ON OFF OFF ON ON
51 OFF OFF ON ON OFF OFF ON ON
52 ON ON OFF ON OFF OFF ON ON
53 OFF ON OFF ON OFF OFF ON ON
54 ON OFF OFF ON OFF OFF ON ON
55 OFF OFF OFF ON OFF OFF ON ON
56 ON ON ON OFF OFF OFF ON ON
57 OFF ON ON OFF OFF OFF ON ON
58 ON OFF ON OFF OFF OFF ON ON
59 OFF OFF ON OFF OFF OFF ON ON
60 ON ON OFF OFF OFF OFF ON ON
61 OFF ON OFF OFF OFF OFF ON ON
62 ON OFF OFF OFF OFF OFF ON ON
63 OFF OFF OFF OFF OFF OFF ON ON
ADDRESS
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
64 ON ON ON ON ON ON OFF ON
65 OFF ON ON ON ON ON OFF ON
66 ON OFF ON ON ON ON OFF ON
67 OFF OFF ON ON ON ON OFF ON
68 ON ON OFF ON ON ON OFF ON
69 OFF ON OFF ON ON ON OFF ON
70 ON OFF OFF ON ON ON OFF ON
71 OFF OFF OFF ON ON ON OFF ON
72 ON ON ON OFF ON ON OFF ON
73 OFF ON ON OFF ON ON OFF ON
74 ON OFF ON OFF ON ON OFF ON
75 OFF OFF ON OFF ON ON OFF ON
76 ON ON OFF OFF ON ON OFF ON
77 OFF ON OFF OFF ON ON OFF ON
78 ON OFF OFF OFF ON ON OFF ON
79 OFF OFF OFF OFF ON ON OFF ON
80 ON ON ON ON OFF ON OFF ON
81 OFF ON ON ON OFF ON OFF ON
82 ON OFF ON ON OFF ON OFF ON
83 OFF OFF ON ON OFF ON OFF ON
84 ON ON OFF ON OFF ON OFF ON
85 OFF ON OFF ON OFF ON OFF ON
86 ON OFF OFF ON OFF ON OFF ON
87 OFF OFF OFF ON OFF ON OFF ON
88 ON ON ON OFF OFF ON OFF ON
89 OFF ON ON OFF OFF ON OFF ON
90 ON OFF ON OFF OFF ON OFF ON
91 OFF OFF ON OFF OFF ON OFF ON
92 ON ON OFF OFF OFF ON OFF ON
93 OFF ON OFF OFF OFF ON OFF ON
94 ON OFF OFF OFF OFF ON OFF ON
95 OFF OFF OFF OFF OFF ON OFF ON
96 ON ON ON ON ON OFF OFF ON
97 OFF ON ON ON ON OFF OFF ON
98 ON OFF ON ON ON OFF OFF ON
99 OFF OFF ON ON ON OFF OFF ON
100 ON ON OFF ON ON OFF OFF ON
101 OFF ON OFF ON ON OFF OFF ON
102 ON OFF OFF ON ON OFF OFF ON
103 OFF OFF OFF ON ON OFF OFF ON
104 ON ON ON OFF ON OFF OFF ON
105 OFF ON ON OFF ON OFF OFF ON
106 ON OFF ON OFF ON OFF OFF ON
107 OFF OFF ON OFF ON OFF OFF ON
108 ON ON OFF OFF ON OFF OFF ON
109 OFF ON OFF OFF ON OFF OFF ON
110 ON OFF OFF OFF ON OFF OFF ON
111 OFF OFF OFF OFF ON OFF OFF ON
112 ON ON ON ON OFF OFF OFF ON
113 OFF ON ON ON OFF OFF OFF ON
114 ON OFF ON ON OFF OFF OFF ON
115 OFF OFF ON ON OFF OFF OFF ON
116 ON ON OFF ON OFF OFF OFF ON
117 OFF ON OFF ON OFF OFF OFF ON
118 ON OFF OFF ON OFF OFF OFF ON
119 OFF OFF OFF ON OFF OFF OFF ON
120 ON ON ON OFF OFF OFF OFF ON
121 OFF ON ON OFF OFF OFF OFF ON
122 ON OFF ON OFF OFF OFF OFF ON
123 OFF OFF ON OFF OFF OFF OFF ON
124 ON ON OFF OFF OFF OFF OFF ON
125 OFF ON OFF OFF OFF OFF OFF ON
126 ON OFF OFF OFF OFF OFF OFF ON
127 OFF OFF OFF OFF OFF OFF OFF ON
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 5
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
ADDRESS
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
192 ON ON ON ON ON ON OFF OFF
193 OFF ON ON ON ON ON OFF OFF
194 ON OFF ON ON ON ON OFF OFF
195 OFF OFF ON ON ON ON OFF OFF
196 ON ON OFF ON ON ON OFF OFF
197 OFF ON OFF ON ON ON OFF OFF
198 ON OFF OFF ON ON ON OFF OFF
199 OFF OFF OFF ON ON ON OFF OFF
200 ON ON ON OFF ON ON OFF OFF
201 OFF ON ON OFF ON ON OFF OFF
202 ON OFF ON OFF ON ON OFF OFF
203 OFF OFF ON OFF ON ON OFF OFF
204 ON ON OFF OFF ON ON OFF OFF
205 OFF ON OFF OFF ON ON OFF OFF
206 ON OFF OFF OFF ON ON OFF OFF
207 OFF OFF OFF OFF ON ON OFF OFF
208 ON ON ON ON OFF ON OFF OFF
209 OFF ON ON ON OFF ON OFF OFF
210 ON OFF ON ON OFF ON OFF OFF
211 OFF OFF ON ON OFF ON OFF OFF
212 ON ON OFF ON OFF ON OFF OFF
213 OFF ON OFF ON OFF ON OFF OFF
214 ON OFF OFF ON OFF ON OFF OFF
215 OFF OFF OFF ON OFF ON OFF OFF
216 ON ON ON OFF OFF ON OFF OFF
217 OFF ON ON OFF OFF ON OFF OFF
218 ON OFF ON OFF OFF ON OFF OFF
219 OFF OFF ON OFF OFF ON OFF OFF
220 ON ON OFF OFF OFF ON OFF OFF
221 OFF ON OFF OFF OFF ON OFF OFF
222 ON OFF OFF OFF OFF ON OFF OFF
223 OFF OFF OFF OFF OFF ON OFF OFF
224 ON ON ON ON ON OFF OFF OFF
225 OFF ON ON ON ON OFF OFF OFF
226 ON OFF ON ON ON OFF OFF OFF
227 OFF OFF ON ON ON OFF OFF OFF
228 ON ON OFF ON ON OFF OFF OFF
229 OFF ON OFF ON ON OFF OFF OFF
230 ON OFF OFF ON ON OFF OFF OFF
231 OFF OFF OFF ON ON OFF OFF OFF
232 ON ON ON OFF ON OFF OFF OFF
233 OFF ON ON OFF ON OFF OFF OFF
234 ON OFF ON OFF ON OFF OFF OFF
235 OFF OFF ON OFF ON OFF OFF OFF
236 ON ON OFF OFF ON OFF OFF OFF
237 OFF ON OFF OFF ON OFF OFF OFF
238 ON OFF OFF OFF ON OFF OFF OFF
239 OFF OFF OFF OFF ON OFF OFF OFF
240 ON ON ON ON OFF OFF OFF OFF
241 OFF ON ON ON OFF OFF OFF OFF
242 ON OFF ON ON OFF OFF OFF OFF
243 OFF OFF ON ON OFF OFF OFF OFF
244 ON ON OFF ON OFF OFF OFF OFF
245 OFF ON OFF ON OFF OFF OFF OFF
246 ON OFF OFF ON OFF OFF OFF OFF
247 OFF OFF OFF ON OFF OFF OFF OFF
248 ON ON ON OFF OFF OFF OFF OFF
249 OFF ON ON OFF OFF OFF OFF OFF
250 ON OFF ON OFF OFF OFF OFF OFF
251
252
253
254
255
ADDRESS
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
128 ON ON ON ON ON ON ON OFF
129 OFF ON ON ON ON ON ON OFF
130 ON OFF ON ON ON ON ON OFF
131 OFF OFF ON ON ON ON ON OFF
132 ON ON OFF ON ON ON ON OFF
133 OFF ON OFF ON ON ON ON OFF
134 ON OFF OFF ON ON ON ON OFF
135 OFF OFF OFF ON ON ON ON OFF
136 ON ON ON OFF ON ON ON OFF
137 OFF ON ON OFF ON ON ON OFF
138 ON OFF ON OFF ON ON ON OFF
139 OFF OFF ON OFF ON ON ON OFF
140 ON ON OFF OFF ON ON ON OFF
141 OFF ON OFF OFF ON ON ON OFF
142 ON OFF OFF OFF ON ON ON OFF
143 OFF OFF OFF OFF ON ON ON OFF
144 ON ON ON ON OFF ON ON OFF
145 OFF ON ON ON OFF ON ON OFF
146 ON OFF ON ON OFF ON ON OFF
147 OFF OFF ON ON OFF ON ON OFF
148 ON ON OFF ON OFF ON ON OFF
149 OFF ON OFF ON OFF ON ON OFF
150 ON OFF OFF ON OFF ON ON OFF
151 OFF OFF OFF ON OFF ON ON OFF
152 ON ON ON OFF OFF ON ON OFF
153 OFF ON ON OFF OFF ON ON OFF
154 ON OFF ON OFF OFF ON ON OFF
155 OFF OFF ON OFF OFF ON ON OFF
156 ON ON OFF OFF OFF ON ON OFF
157 OFF ON OFF OFF OFF ON ON OFF
158 ON OFF OFF OFF OFF ON ON OFF
159 OFF OFF OFF OFF OFF ON ON OFF
160 ON ON ON ON ON OFF ON OFF
161 OFF ON ON ON ON OFF ON OFF
162 ON OFF ON ON ON OFF ON OFF
163 OFF OFF ON ON ON OFF ON OFF
164 ON ON OFF ON ON OFF ON OFF
165 OFF ON OFF ON ON OFF ON OFF
166 ON OFF OFF ON ON OFF ON OFF
167 OFF OFF OFF ON ON OFF ON OFF
168 ON ON ON OFF ON OFF ON OFF
169 OFF ON ON OFF ON OFF ON OFF
170 ON OFF ON OFF ON OFF ON OFF
171 OFF OFF ON OFF ON OFF ON OFF
172 ON ON OFF OFF ON OFF ON OFF
173 OFF ON OFF OFF ON OFF ON OFF
174 ON OFF OFF OFF ON OFF ON OFF
175 OFF OFF OFF OFF ON OFF ON OFF
176 ON ON ON ON OFF OFF ON OFF
177 OFF ON ON ON OFF OFF ON OFF
178 ON OFF ON ON OFF OFF ON OFF
179 OFF OFF ON ON OFF OFF ON OFF
180 ON ON OFF ON OFF OFF ON OFF
181 OFF ON OFF ON OFF OFF ON OFF
182 ON OFF OFF ON OFF OFF ON OFF
183 OFF OFF OFF ON OFF OFF ON OFF
184 ON ON ON OFF OFF OFF ON OFF
185 OFF ON ON OFF OFF OFF ON OFF
186 ON OFF ON OFF OFF OFF ON OFF
187 OFF OFF ON OFF OFF OFF ON OFF
188 ON ON OFF OFF OFF OFF ON OFF
189 OFF ON OFF OFF OFF OFF ON OFF
190 ON OFF OFF OFF OFF OFF ON OFF
191 OFF OFF OFF OFF OFF OFF ON OFF
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 6
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
Alternative Soft Addressing Option
Using our hand held MkII programmer (Part No: 48-004), the unit can be addressed
electronically.
Step 1: Set all addresses to zero 0000000
Step 2: Connect leads to LOOP IN+ and LOOP IN- as shown below
Step 3: Follow the procedure as described in the handheld programmer manual.
NOTE: When a device is soft addressed as above, the address CANNOT BE CHANGED by
mechanical setting of the dip-switch. In order to re-enable the dip-switch the unit needs
to be set electronically back to zero rst.
Isolator Function
The Isolator Function can be enabled or disabled according to the wiring method.
B. Enabling the Isolator Function
A. By-passing the Isolator Function
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 7
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
LED Indications
Status LED Indication
Alarm Illuminated red when the Sounder Control Module is in alarm
Fault Illuminated yellow when the Sounder Control Module is in fault
Open Illuminated yellow when the sounder input is in open state
Short Illuminated yellow when the sounder input is in short state
Polling Flashed green when the module is communicating with the panel
Isolating Illuminated yellow when the loop is short or wrong connection circuit
Ext Power Illuminated green when Ext Power is connected correctly
Input Illuminated when no external fault signal present
Functional Test Data
Command Bit Function Input Bit Function
3 Not Used 3 Not Used
2 Not Used 2 Not Used
1 PULSED MODE
1 = Pulsed Mode On
0 = Pulsed Mode O
1 PULSE MODE CONFIRMED
1 = Pulsed Mode On Conrmed
0 = Pulsed Mode O Conrmed
0 CONTINUOUS MODE
1 = Continuous Mode On
0 = Continuous Mode O
0 CONTINUOUS MODE CONFIRMED
1 = Continuous Mode On Conrmed
0 = Continuous Mode O Conrmed
Analogue Return Back
Analogue value 08 72
State Open/short circuit Normal
LED State --- ---
Troubleshooting
Before investigating individual units for faults, it is very important to check that the
system wiring is fault free. Many fault conditions are the result of simple wiring errors.
Check all connections to the unit and make sure that the correct value resistors are
tted where necessary.
Document No: GLT-234-7-1
Issue No: 012
Author: NRP Jones
Date: 10/05/2021
Page 8
FYREYE MKII ADDRESSABLE SOUNDER CONTROL MODULE WITH ISOLATOR - INSTALLATION GUIDE
Faultnding
Problem Possible Cause
No response or missing Incorrect address setting
Incorrect loop wiring
Fault condition reported IIncorrect address setting
Incorrect wiring of sounder zone or fault input
Faulty sounder
Local supply faulty or polarity incorrect
Fuse blown on sounder PCB
Sounders do not operate Incorrect wiring
Fuse blown on sounder PCB
Incorrect cause and eect programming
Faulty sounder
Panel Fault
Sounders operate continuously Incorrect sounder zone wiring
Analogue value unstable Dual address
Loop data fault, data corruption
0905
Zeta Alarms Limited,
72-78 Morfa Road, Swansea SA1 2EN
14
GLT-234-DoP-1
EN54-18: 2005
EN54-17: 2005
Fire detection and re alarm systems – Input/Output Devices
Fire detection and re alarm systems – Short Circuit Isolators
Zeta Addressable Sounder Control Module with Isolator
ZASC-MI
Intended for use in re detection and re alarm systems in and around buildings
Response delay (response time) - PASS
Performance under re conditions - PASS
Operational reliability - PASS
Durability of operational reliability: temperature resistance - PASS
Durability of operational reliability; vibration resistance - PASS
Durability of operational reliability; humidity resistance - PASS
Durability of operational reliability; corrosion resistance - PASS
Durability of operational reliability; electrical stability - PASS
This manual suits for next models
1
Table of contents
Other Zeta Control Unit manuals
