Owner’s Manual Of
The Motorized Treadmill

2
CONTENTS
SAFETY PRECAUTIONS ----------------------------------------------------------3
WARRANTY DESCRIPTION-------------------------------------------------------4
SAFETY USE ATTENTION --------------------------------------------------------5
ASSEMBLY INSTRUCTION ------------------------------------------------------6-7
TECHNICAL PARAMETERS -------------------------------------------------------8
GETTING START GUIDE -----------------------------------------------------------9
WARM-UP EXERCISE --------------------------------------------------------------10
OPERATION GUIDE--------------------------------------------------------------11-18
SAFETY EXERCISE -------------------------------------------------------------18-19
MAINTENANCE INSTRUCTION----------------------------------------------19-21
EXPLODED DRAWING-------------------------------------------------------------22
PART LIST --------------------------------------------------------------------------23-24

3
Warning:
In order to avoid the accident, you have to pay attention to the following:
When using the treadmill ,keep attaching the safety key clip to your clothes or belt;
When you are exercising, PLS swing your arms naturally, straight ahead. Don’t look at your feet;
Be gradual acceleration. To adapt to the current speed after the acceleration ;
When run into emergency , press the emergency stop button or pull away the safety key;
When the treadmill was completely stopped leave is allowed.
Attention: Strictly according to the assembly instruction to install this product.
1. Before starting any exercise program, consult your physician.
2. Make sure all the bolts locked tightly.
3. Do not place the treadmill at the moist places, it may cause trouble.
(We take no responsibility for any troubles or hurts due to above reasons)
4. Wearing sports suits and shoes before you start exercise.
5. Do not exercise in 40 minutes after meal.
6. Do warm-up exercise to avoid injury.
7. People who suffering from hypertension should consult doctor before start the exercise.
8. This treadmill only used for adults.
9. The elderly, the disabled, children should be given proper care and guidance.
10. Do not plug anything into any parts of this fitness equipment, or it may damage.
SAFETY PRECAUTIONS

4
Warranty range
Damage in correct maintenance and normal operations (not factitious factors). Warranty card to
the original purchaser, shall not be transferred.
Warranty Time
HOME USE
·Steel frame lifetime warranty
·Motorwarrantyfor5years
·12 months warranty for other parts
·Free manual repair within one year
The following conditions are not under warranty range：
（1） As a result of abuse, neglect, accident, or unauthorized modification;
（2） The damage due to incorrect adjustment of the running belt and motor belt;
（3） As a result of abnormal maintenance；
（4） Other illegal operations and resulting damage.
Repair and Maintenance Service
All the accessories are available in the local distributor; you can get kinds of services from our
distributors.
WARRANTY DESCRIPTION

5
Only the treadmill had finished the installation and put on the motor protect cover, you can plug in
the power. The power line plug into the power socket which should with the safety grounding line,
we suggest fit on overload protector to ensure the safety of the user and the treadmill.
1. PLS position the treadmill on a clear, lever surface. Do not place it on thick carpet as it may
interfere with proper ventilation under the treadmill. Also do not place the treadmill near water
or outdoor. The power line is special for treadmill, if it is broken, please purchase it from
distributor or connect our company directly.
2. Place the treadmill at the place where is convenient for plug in the power, do not ward off the
socket on the wall.
3. Never start the treadmill while you are standing on the running belt. After turning the power on
and adjusting the speed control, there maybe a pause before the running belt begins to move,
always stand on the plastic checkered plate of the treadmill both sides till the belt moving.
4. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting
clothing that could become caught in the treadmill. Always wear running or aerobic shoes with
rubber soles.
5. Never remove the protective cover casually, if need to open, PLS be sure to unplug the power
line.
6. Keep the kids away from the treadmill during operation.
7. Always hold the handrails when initially walking or running on the treadmill until you are
comfortable with the speed.
8. The treadmill is indoor equipment do not use outdoor. Put it in the clean and tidy place, guard
against damp. Don’t refit the treadmill.
9. Child use the treadmill must have adult on side.
If the treadmill suddenly increased in speed due to an electronic failure or the speed being
inadvertently increase, the treadmill will come to a sudden stop when the safety key is
disengaged from console.
SAFETY USE ATTENTION

6

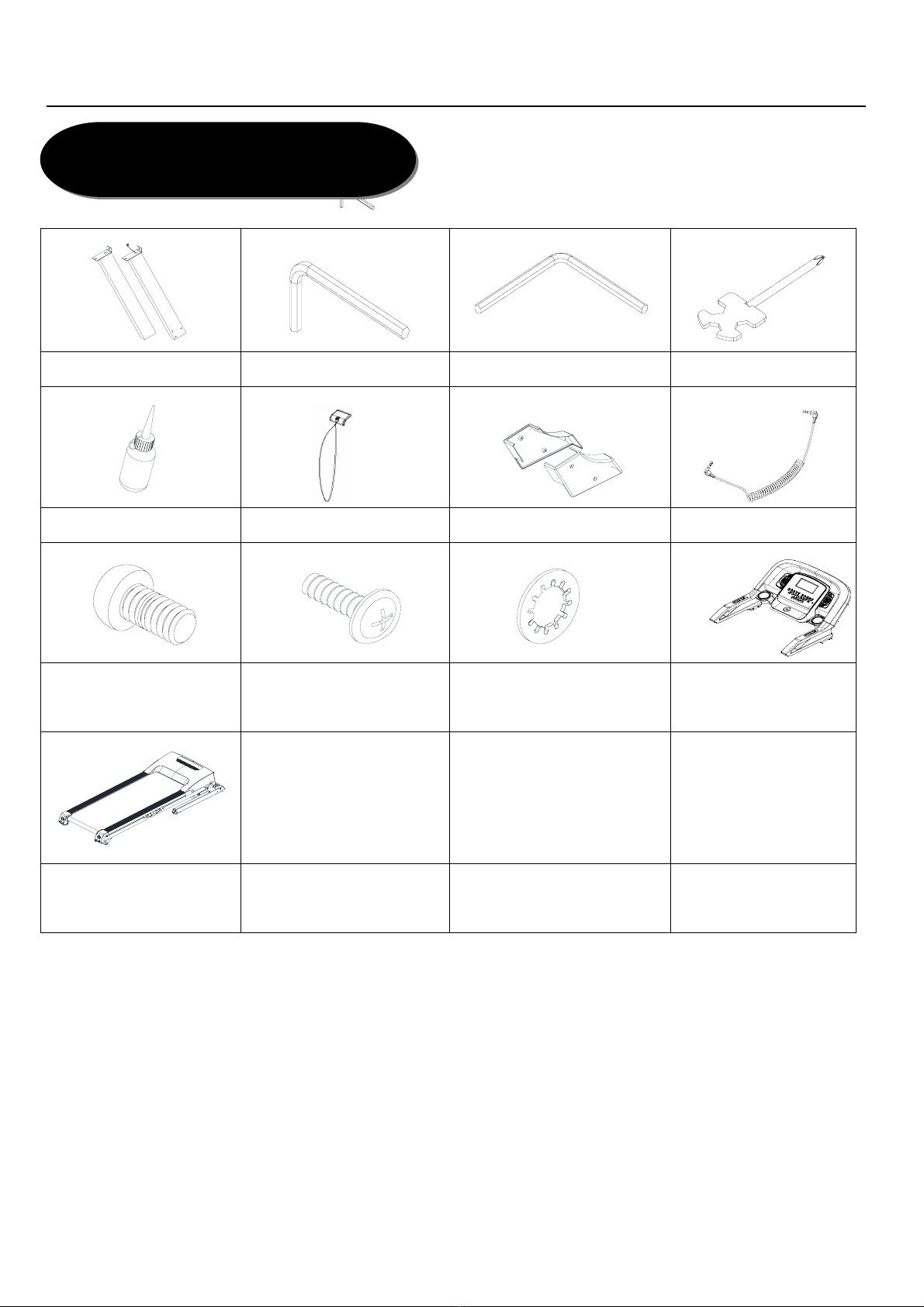

When you open the carton, you will find the below spare parts.
3. L/R Upright 9.L-Type Wrench(5#) 10.7-type Wrench(6#) 11.Wrench
12．Silicone Oil 29．Safety Lock 38L/R. L/R Front Cover 57.Spring Line
80. Bolt
M8*20
83. Bolt
M4*8
30. Internal Washer
∮8.4*∮14.5*t0.8
98. computer
assembly
99．Main Frame
assembly
ASSEMBLY INSTRUCTION

7
INSTALL
ATTENTION: Confirm complete assembly as required above ,then lock all bolts.
Checking everything is OK before power on. About the treadmill operation and
using, PLS read the following instruction .

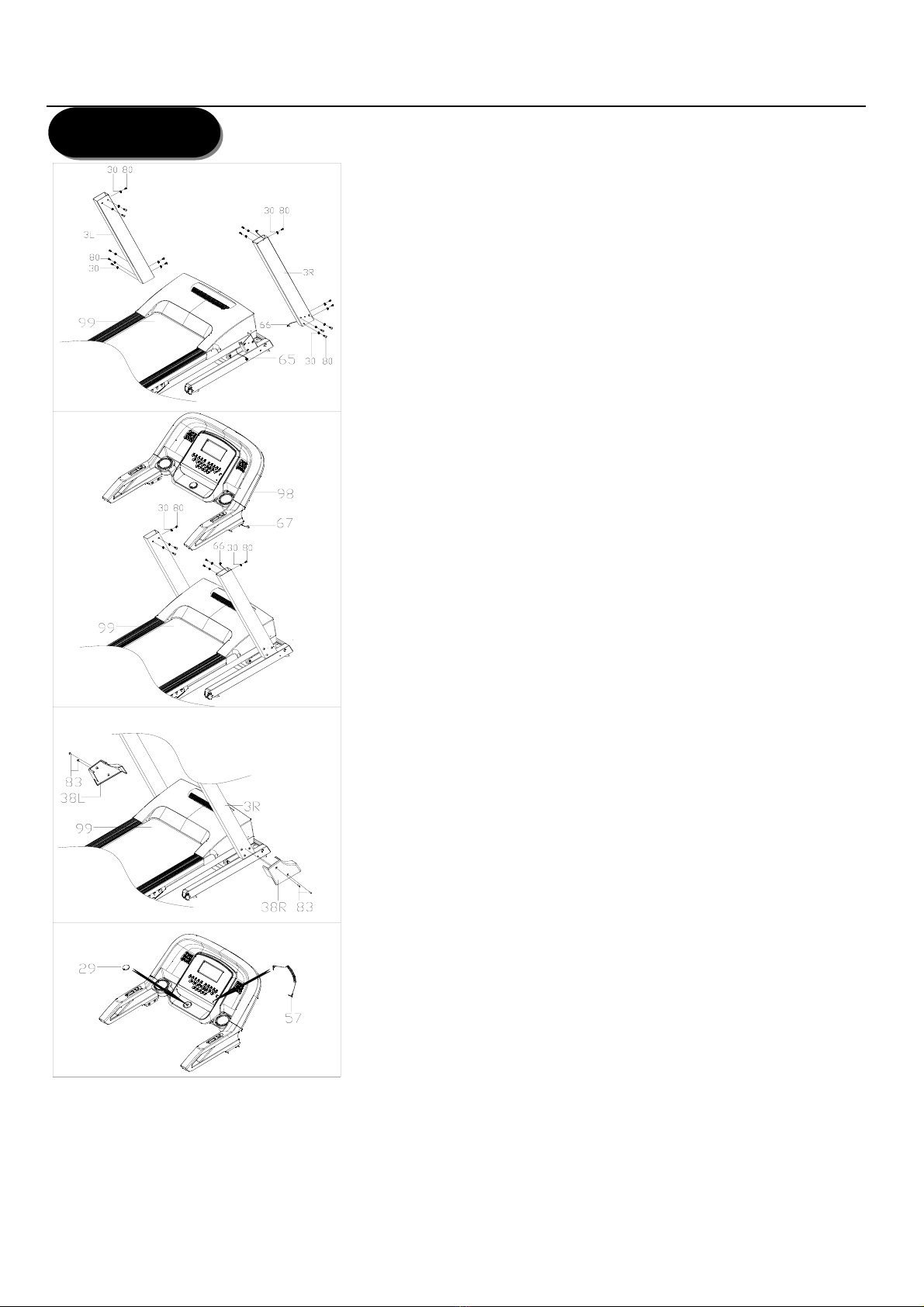

First Step:
Connect the bottom wire (65) with
the middle wire(66). Then put the
L/R upright (3)on the main frame
assembly(99), fix them with bolt
M8*15(80)and the Internal Washer
∮8.4*∮14.5*t0.8（30），do not lock
them tightly.
Second Step：
Connect the middle wire（66）with
the up wire（67）.Fix the computer
assembly(98)on the L/R upright(3)
with bolt M8*15(80)and internal
washer∮8.4*∮14.5*t0.8 (30). Then
lock the bolts(80 )in the first step
tightly.
Third Step：
Fix the Front cap(38L/R) on the L/R
upright(3) and the main frame
assembly (99) with bolt M4*8(83).
Forth Step：
The safety key (29)and MP3 player
wire plug(100) into the right place of
the computer assembly(98).

8
Folding instruction

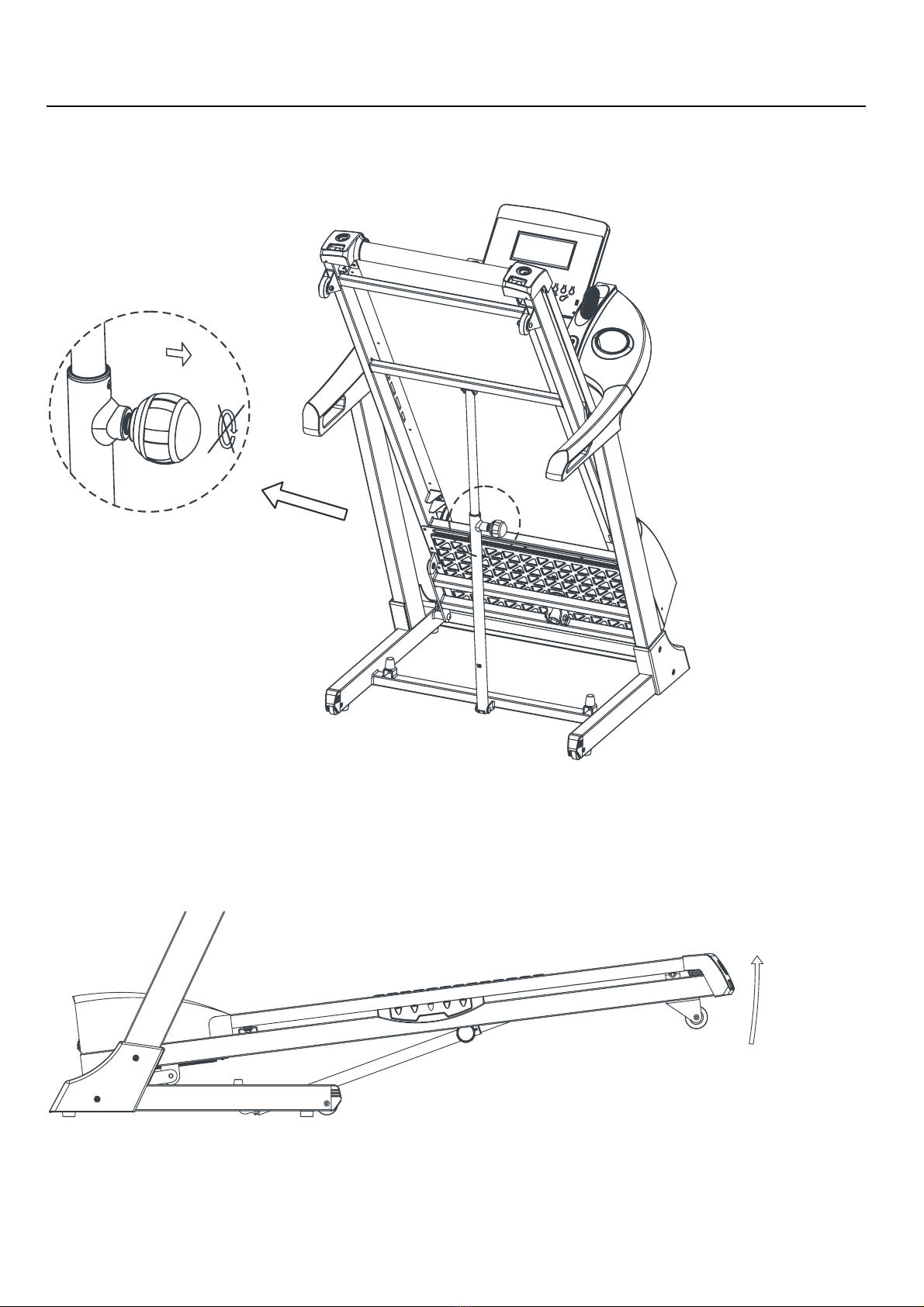

Unfolding treadmill: Support the end of the treadmill with left hand,pull the spherical pull
pin (rotate the pull pin is forbidden )
folding the treadmill: Support the end of treadmill with hand , kick the place
as arrow showing of air pressure bar, then the base frame will fall down automatically

9
Assembly size(mm) 1940*840*1395mm Speed Range 1—18Km/h
Folding size(mm) 1050*870*1670mm Motor Spec 3.5HP(PEAK)
Running size(mm) 1400*500mm Input Volt(V) 220-240V
N.W.(kg) 98Kg Max Output (W) 2600W
Max use weight 120Kg Operating
Temperature 0-28℃
Blue Single display Speed, Time, Distance, Calories, Pulse
Safety
Protection and
Advantage
1. Magnetic safety lock(red)；
A. B.Overcurrent and overload function set in the
microcomputer ；
C. Blue single display, it’s clear with no limited view-angle
coverage .
1.0—18km/h speed range;
D. Speed is controlled by light sensation way, adjust the speed is
very smoothly and conveniently；
E. Buffer system make the exercise natural smooth, and lowest
impact for the user foot, ankle, joint and so on part.
F. The overcurrent protector can protect the motor to avoid
damage；
G. Intelligent explosion-proof circuit can finish the function in
third seconds, give the user maximal protection；
TECHNICAL PAPARAMETERS

10
PREPARE：
If you are around 45 years old, or have health problem, or this is your first time to do exercise,
please consult doctor or professional before use it.入门指南
Before use the motorized treadmill, please stand on the side to learn the operation, such as start,
stop and speed adjustment. Then stand on the plastic checkered plate of the treadmill both sides ,
catch the handrail with both hands, turn on the treadmill by 1.6—3.2km/h low speed, stand straight,
look forward, try to run on the running belt few times with one foot, then stand on the running belt
to do exercise. After adapting, you can adjust the speed to 3—5km/h and keep doing about 10
minutes, then stop slowly.
EXERCISE：
PLS stand on the side to learn how to operate, such as adjust speed or incline, start do the
exercise until you are familiar with it.
Walk 1 km by constant step need about 15-25 minutes, please record the time. Walk 1km by
4.8km/h need about 12minutes, if you can do it easily by few times, then can adjust to the high
speed and incline, and go on to do it 30 minutes, you can take a good exercise. Before do walk
exercise, please remember it is for your health and can not irritable.
EXERCISE FREQUENCY
Target is 3--5 times per week, do 15-60mins each time. It is better to make a time schedule first, do
not do the exercise accord to your favor. You can control the movement acuteness degree through
adjust speed and incline. We suggest you do not set incline when start do exercise. You can
increase the incline when you want to add the movement acuteness degree
AMOUNT OF EXERCISE：
SHORTCUT----The best way to save time is do 15-20 minutes exercise.
Warm up 2 minutes by 4.8 km/h, and adjust the speed to 5.3 km/h and 5.8 km/h, continue do
exercise by this two speeds. Then add 0.3 km/h per 2mins speed increase, until you feel breathing
quickened but not difficulty breathing. Keep this speed to do exercise, if feels uncomfortable,
please reduce 0.3 km/h. Leave 4 minutes to reduce speed at last. If you feel it is hard to strengthen
the movement intensity by increase speed, then you can choose the way of increase incline slowly,
it also can strengthen the movement intensity.
CONSUMPTION OF HEAT----This way can really consumption the heat.
Warm up 5 minutes by 4--4.8 km/h speed, then add 0.3 km/h per 2 minutes increasing speed, you
can do 45mins on this speed that you will feel it is comfortable and challenge. In order to
strengthen do exercise. You can do 1 hour by this speed and add 0.3 km/h speed when you heard
some business advertisements, and return the speed back when go to next program, so at this
period, the heat will be consumed enough. At last keep 4 minutes to reduce the speed.
CLOTHING：
All you need is a pair of fully stretch shoes, at the same time sole don’t stick foreign matters avoid
damage running deck and belt. Please wear comfortable suitable for sports clothes.
GETTING START GUIDE

11
WARM-UP EXERCISE
It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 minutes to warm-up.
Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds
or more every time. After running, do those stretch exercises one more time.

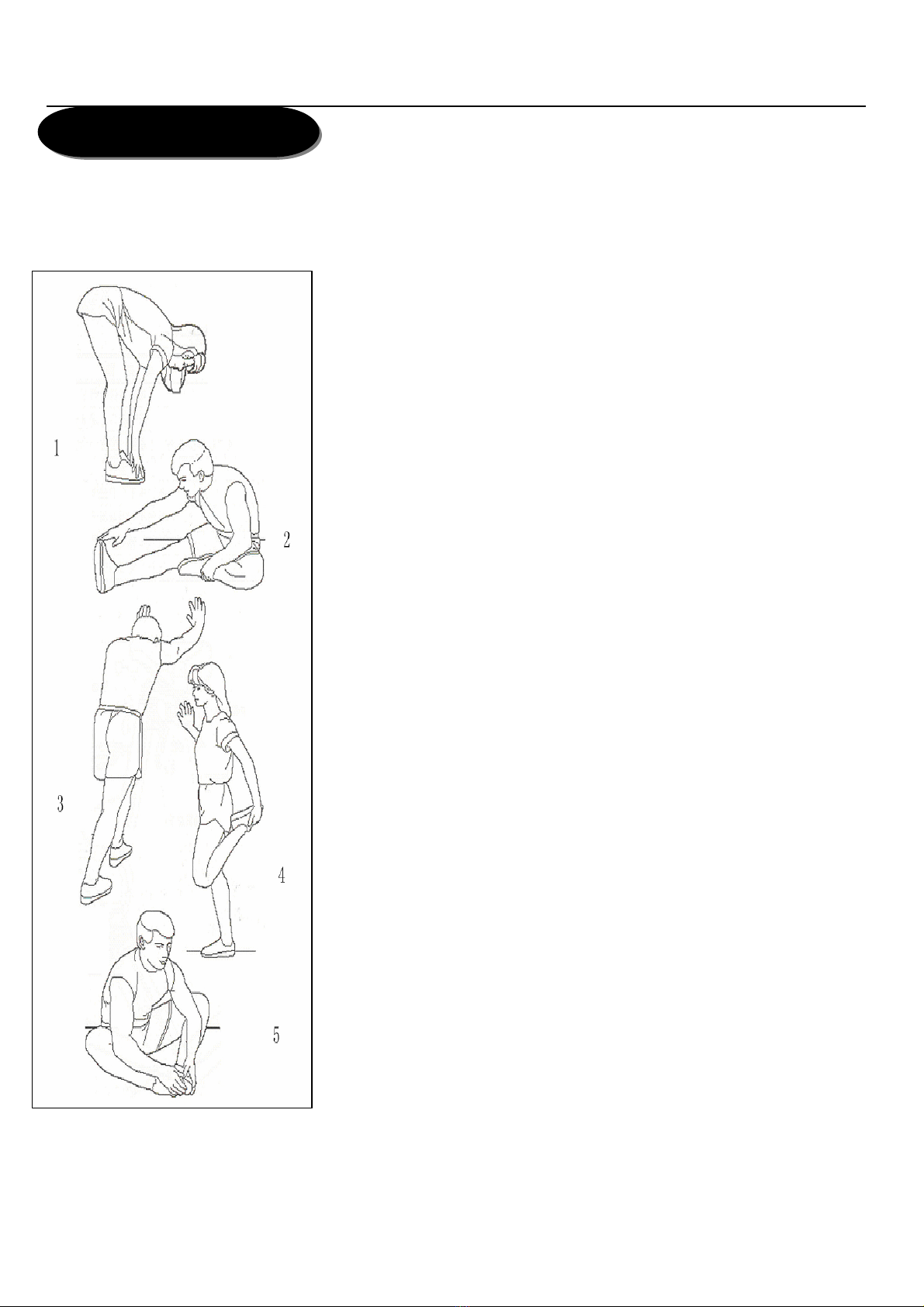

1. Reach Down Knees slightly bent and body slowly bent
forward, back and shoulders relax, trying to touch toes. Keep
10-15 seconds, and relax. Repeat 3 times (See picture l).
2. Hamstrings Stretches Sitting on a clean cushion, put one
leg straight, the other inward and close to the inside of the
straight leg. Try to touch your toes by hand. Keeping 10-15
seconds, and relax. Repeat 3 times for each leg (See picture
2).
3. Crus and Feet Tendon Stretches Standing with two
hands on the wall or tree, one leg behind. Keeping your legs
straight and the heel on the ground, tilt to the wall or tree. Keep
10-15 seconds, and relax. Repeat 3 times for each leg (See
picture 3).
4. Quadriceps Stretches Keeping your balance with your left
hand holding on the wall or table, then stretch your right heel
toward your buttocks slowly, until you feel very tense in the front
of your thigh. Keep10-15 seconds, and relax. Repeat 3 times for
each leg (See picture 4).
5. Sartorius (Inner Muscles of the Thigh) Muscle
Stretches Sitting down with your soles opposite and knees
outward. Pull feet toward groin Keep 10-15 seconds, and relax.
Repeat 3 times (See picture 5).

12

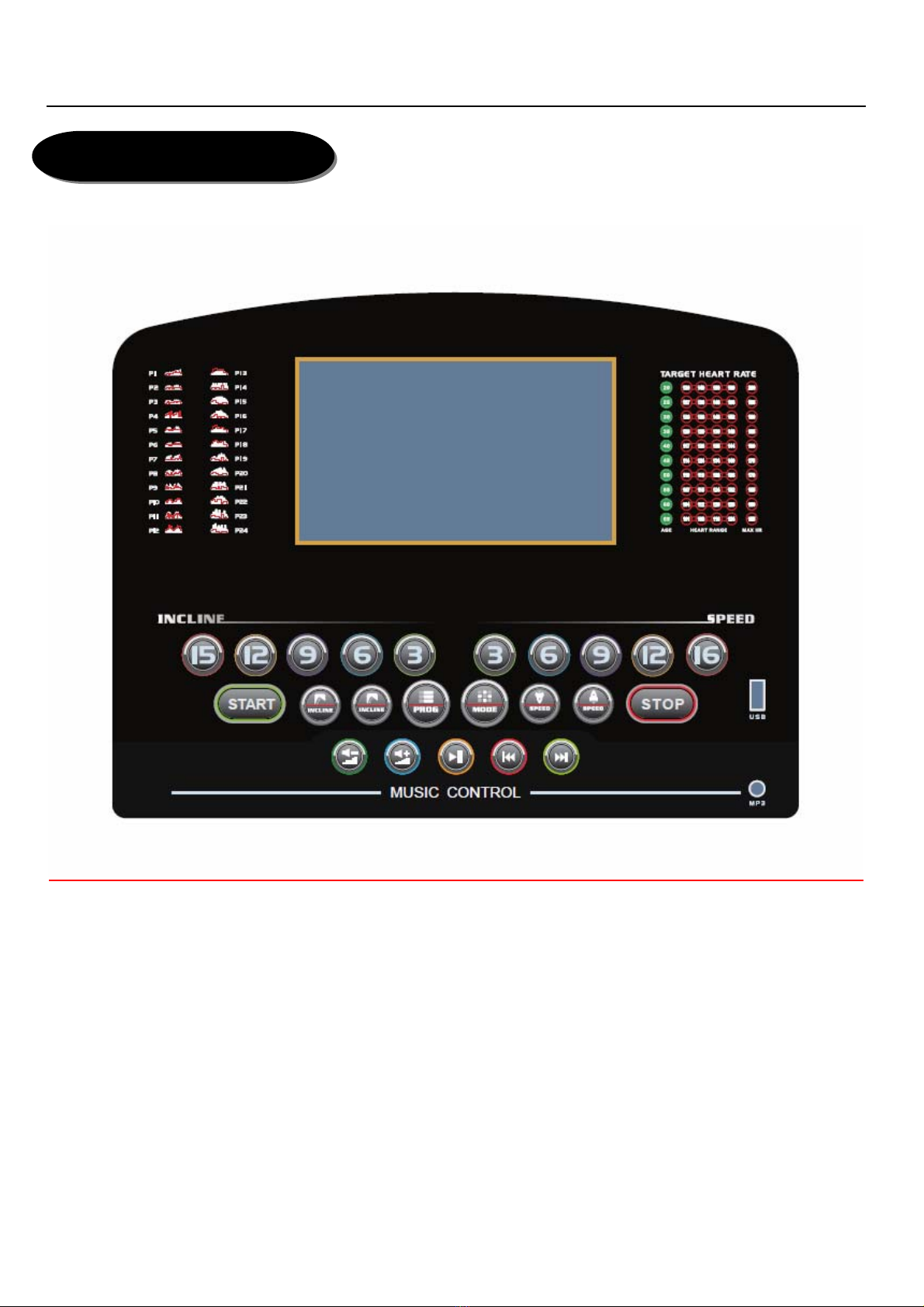

Operation instruction
FIRST.WINDOWS and BUTTONS：
1．LCD Window Function：
A.Time/Pulse window：display time and pulse data；pulse data first ；standby default show
time.
B. Distance/Calories/Incline window：display record of distance, calories and incline .
C. Speed Window：display the data of the speed.
2．Function Button：start; stop; program; mode; speed+; speed-; incline+; incline-; speed
shortcut3,6,9,12,16km/h; incline shortcut 3,6,9,12,15 section.
3．Button Function：
一、 ‘Program’ button: in standby condition, Press the button can cycle select the program:
manual program-P01-P02…-P24-U1-U2-U3-FAT .

13
二、 ‘Mode’ button：in standby condition ，Press the button can cycle select the mode：
manual mode(normal mode) —time countdown —distance countdown —calories
countdown；In the ‘fat’ mode，the function of the mode button reference to the body fat
test function.
三、 ‘START’ BUTTON：press the button to start the motor.
四、 ‘STOP’ BUTTON：press the button to stop the motor.
五、 ‘SPEED+’BUTTON: in the set state，press the button can increase the set data. under
the operating state, press the button can add the speed.
六、 ‘SPEED-‘ BUTTON：，in the set state，press the button can decrease the set data.
under the operating state, press the button can cut down the speed.
七、 ‘INCLINE+’ button：in the setting state，press the button can increase the set data.
under the operating state, press the button you can add the incline.
八、 ‘INCLINE-’：in the setting state，press the button can decrease the set date. under the
operating state, press the button you can countdown the incline.
九、 Speed shortcuts：3、6、9、12、16KM/H，under the operating state，press the button
adjust the speed to the setting up value.
十、 Incline shortcuts：3、6、9、12、15sections，under the operating state，press the button
adjust the incline to the setting up value.
SECOND.FIX PROGRAM/STARTING：
1. PROGRAM：
A. One manual program，This program includes：normal mode，time countdown、calories
countdown、distance countdown.
B. 24 fixed program：P01，P02，…，P24.
C. 3 user setting program：U01，U02，U03.
D. One body fat test function.
2. Starting：
A. Put the safety lock on the right place of the panel.
B. Press the ‘START’ button ,the windows show3-2-1,each time with a alarm noise, then the
motor started.
THIRD. Manual mode：
1. Getting into manual mode：
A. Turn on the power，getting in to the normal mode directly.
B. In the standby state，press the ‘MODE’ button you can select to the normal mode in the
manual program.
2. Three setting-up function in the manual program：time set，distance set，calories set.
A. Enter into the manual program，Time window initial display:0:00；
B. Under the manual program ，press the ‘mode’ button get into time countdown mode，the
time window flashing and display the time ，initial time ：15:00 ，Press
‘SPEED+/SPEED-/INCLINE+/INCLINE-’ button to set the time. Range：5:00-99:00.
C. In the time countdown mode，press the ‘mode’button get into calories countdown
mode，the window flashing and display the calories，initial data:50.0kcal，Press
‘SPEED+/SPEED-/INCLINE+/INCLINE- ’button to set the value. Range ：
10.0-999.0.kcalEach press with 1.0kcal increase/decrease

14
D. In the calories countdown mode，press the ‘mode’button get into distance countdown
mode，the window flashing and display the distance，initial data:1.00km，Press
‘SPEED+/SPEED-/INCLINE+/INCLINE- ’button to set the value. Range ：
0.50-99.90.Each press with 0.1km increase/decrease
3. Manual programming operation：
A. Press the ‘START’ button，3 seconds countdown, then the treadmill start with the
speed1.0km/h ；
B. Press SPEED+/SPEED- to adjust the speed；
C. Press INCLINE+/INCLINE- to adjust the incline；
D. Press the speed shortcut button to the setting speed value；
E. Press the incline shortcut button to the setting incline value；
F. The treadmill is running ,press the stop button, the motor stop working；
G. Take away the safety lock and the treadmill will stop quickly with noise BI-BI-BI，LCD
window display“---or----”.
H. When the set time/set calories/ set distance countdown to 0,the alarming make a short
noise Bi-Bi-Bi，and the speed gradually reduce to stop ，when the alarming make the
long noise Bi-Bi-Bi the speed window display “End”，5 seconds later, the treadmill back to
the standby state，the alarming make a noise Bi-Bi；
I. Under unset up situation, When reach the max data automatic back to 0；under the
manual mode, the treadmill stop running when the time reach99:59(100minutes) .
FORTH. Fixed PROGRAM MODE ：
1.Initial setting time 10 minutes，time set only，range：5:00—99:00. Press the SPEED+/SPEED-
to adjust the time value；
2.Press the start button, the motor going to operate, and the speed increase to the setting value
in the first PROG (See the PROGRAM EXERCISE CHAT)；
3.Press SPEED+/SPEED- to adjust the speed；
4.Press INCLINE+/INCLINE- to adjust the incline ；
5.Press the speed shortcut button to select the speed；
6.Press the incline shortcut button to select the incline；
7.Each program is divided into 20 sections ,each section with twentieth of the set value running
time；
8.At the transition between the sections ,the alarm will make three noise；
9.When Time countdown to zero the alarm make short sound Bi-Bi-Bi，The speed gradually
reduce to 0，the alarm make long sound Bi--Bi—Bi and the speed window display “end”，5
seconds later, the treadmill back to standby situation with the alarm make long sound Bi--Bi；
10.Take away the safety lock the treadmill will stop quickly ,and the window display
“---or----”alarm make the sound Bi-Bi-Bi；
FIFTH. PROGRAM EXERCISE CHAT:
SETTING TIME/20 =EVERY GARDE TIME
TIME
PROG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
SPEED 2 4 3 4 3 5 4 2 5 2 6 2 7 2 8 3 7 3 9 3
P01 INCLINE 1 2 3 3 1 2 2 3 2 5 4 5 6 6 4 5 5 6 5 2
P02 SPEED 2 5 4 6 4 6 4 2 4 3 3 6 5 7 5 7 5 3 5 2

15
INCLINE 1 2 3 3 2 2 3 4 2 3 2 3 4 4 3 3 4 5 3 2
SPEED 2 5 4 5 4 5 4 2 3 3 3 6 5 6 5 6 5 3 4 2
P03 INCLINE 1 2 2 3 1 2 2 2 2 2 2 3 3 4 2 3 3 3 3 1
SPEED 2 6 7 4 4 7 4 2 4 3 3 7 8 5 5 8 5 3 5 2
P04 INCLINE 4 5 6 6 9 9 1 12 6 4 5 6 7 7 10 10 2 12 7 3
SPEED 2 4 6 8 7 8 6 2 3 3 3 5 7 9 8 9 7 3 4 2
P05 INCLINE 3 5 4 4 3 4 4 3 3 3 4 6 5 5 4 5 5 4 4 2
SPEED 2 4 5 5 6 5 6 3 3 3 3 5 6 6 7 6 7 4 4 2
P06 INCLINE 3 5 3 4 2 3 4 2 3 3 4 6 4 5 3 4 5 3 4 2
SPEED 3 6 7 5 8 5 9 6 4 2 4 7 8 6 9 6 10 7 4 3
P07 INCLINE 2 2 3 3 2 2 4 6 2 3 3 3 4 4 3 3 5 7 3 2
SPEED 3 6 7 5 8 6 7 6 4 4 4 7 8 6 9 7 8 7 5 3
P08 INCLINE 1 2 4 3 2 2 4 5 2 2 2 3 5 4 3 3 5 6 3 1
SPEED 2 8 6 4 5 9 7 5 4 4 3 9 7 5 6 10 8 6 5 3
P09 INCLINE 2 2 6 2 3 4 2 2 2 2 3 3 7 3 4 5 3 3 3 1
SPEED 2 3 5 3 3 5 3 6 3 4 3 4 6 4 4 6 4 7 4 3
P10 INCLINE 4 4 3 6 7 8 8 6 3 4 5 5 4 7 8 9 9 7 4 3
SPEED 2 5 8 10 6 9 5 3 2 3 3 6 9 10 7 10 6 4 3 2
P11 INCLINE 1 3 5 8 1 7 6 3 2 4 2 4 6 9 2 8 7 4 3 3
SPEED 2 5 5 4 4 6 4 2 3 5 3 6 6 5 5 7 5 3 4 4
P12 INCLINE 3 5 6 7 12 9 11 11 6 4 4 6 7 8 12 10 11 11 7 3
SPEED 2 2 4 4 4 6 668888866 6 4 422
P13 INCLINE 5 5 10 10 12 12 1277777999 4 4 440
SPEED 5 7 10 5 7 10 5 7 10 10 5 10 10 5 7 10 10 5 10 5
P14 INCLINE 2 4 4 4 4 2 333311166 0 0 210
SPEED 4 6 8 8 9 9 11 10 11 11 11 11 11 11 9 9 9 7 6 4
P15 INCLINE 3 3 5 5 5 5 221100012 2 2 220
SPEED 4 5 5 7 7 8 11 11 11 11 11 12 11 9 8 8 7 6 3 3
P16 INCLINE 0 2 2 4 4 6 611220033 3 1 110
SPEED 3 3 4 4 5 5 777755665 5 4 433
P17 INCLINE 5 5 10 10 12 12 1277777999 4 4 440
SPEED 2 4 6 6 7 7 884477886 6 8 553
P18 INCLINE 5 5 8 8 10 10 1077777999 4 4 440
SPEED 4 6 3 7 7 2 5 5 8 10 10 6 12 8 10 10 7 5 3 2
P19 INCLINE 2 4 4 4 4 2 333311166 0 0 210
SPEED 5 6 6 8 8 9 9 10 10 11 12 12 10 8 8 12 10 7 5 4
P20 INCLINE 3 3 5 5 5 5 221100012 2 2 220
SPEED 3 6 9 9 12 12 12 12 7 7 12 12 9 9 10 12 11 6 4 3
P21 INCLINE 2 3 3 3 4 4 115522255 4 4 440

16
P22 SPEED 5 5 7 7 9 9 10 12 12 10 10 12 12 12 8 10 8 6 5 3
INCLINE 5 5 8 8 4 4 477777113 4 4 440
SPEED 6 6 10 10 10 14 148813136688 12 12 663
P23 INCLINE 2 4 4 4 4 2 333311166 0 0 210
SPEED 5 5 12 12 14 14 8 8 11 11 9 9 12 12 6 6 12 12 5 4
P24 INCLINE 3 3 5 5 5 5 221100012 2 2 220
SIXTH. BODY FAT TEST ：
1. At the standby state, press the “PROGRAM” button to select the “fat”(Body fat test mode)；
2. Press the “MODE” button, entering body fat tester，set the parameter(F-1--sex，F-2—age，
F-3—height，F-4—weight，F-5-physical testing)；Press the “SPEED+/SPEED-”to set the value
(F-1…F-4)；When the physical testing F-5 display“---”grasp the hand pulse with both hands for
5-6 seconds the window will display your body quality index.
3. After entered the body fat test function，first display F-1 ,set the sex, the setting default value is
01(male) and you can press the speed+/speed- to input the sex:01-male，02-female
4. Press “MODE” button enter into the state(window display:F-2) to set the age，setting default
value is 25(years)，Press the speed+/- to adjust the data(Range：10－99 years).
5. Press“MODE”button enter into the state(window display:F-3) to set the height，setting default
value is 170(cm)，Press the speed+/- to adjust the data(Range：100-200cm).
6. Press“MODE”button enter into the state(window display:F-4) to set the weight，setting default
value is 70(kg)，Press the SPEED+/- to adjust the data(Range：20-150kg).
7. Press “MODE”button select “F-5”,when the window display “---” you have enter into the body
fat test procedure . Grasp the hand pulse for 8 seconds ，the window will display the body fat
data and BMI.
8. In Asian Standards，BMI under19, it means too thin, if between 20 and 25, it means all right, if
between 25 and 29, it means overweight, if over 30, it means obesity.(The data is just for
reference, can not be medicinal data)
F-1 sex 01-male 02-female
F-2 age 10-99
F-3 height 100-200
F-4 weight 20-150
≤19 thin
=(20---25) normal
=(25---29) overweight
F-5 BMI
≥30 obesity

17
SEVENTH. Running parameter display and setting range：
Default
value Setting default value Setting Range Display Range
TIME(M:S) 0:00 15:00 5:00-99:00 0:00-99:59
SPEED(KM/H) 0.0 N/A N/A
1.0－18.0
INCLINE（SECTIONS）0 N/A N/A 0－15
DISTANCE(KM) 0.0 1.00
0.50－99.90 0.00－99.99
CALORIES(KCL) 0 50.0
10.0－999.0 0.0－999.9
EIGHTH. Safety lock function：
The window shows “---”or “----“ when take away the safety lock and the treadmill will stop
quickly with the short sound Bi-Bi-Bi. and all the button useless.
NINTH. Power saving mode：
When treadmill stops and no actions for more than 10 minutes, the system will shut down the
display and going into POWER SAVING state. Press any key to wake it up.
TENTH.MP3 Player Function(customized)：
When turn on the power, connect the MP3 player or other audio equipment, the computer will
play the music you can adjust the sound size by the button on the audio equipment. PLS not
too loud that will affect the quality of the sound and the inside audio.
ELEVENTH. Shutdown：
You can turn off the power to shutdown the treadmill at any state.
Attention：
1. Check the power and safety lock is sure a valid state before start do exercise.
2.When run into emergency, pull off the safety lock to stop the treadmill quickly；，and put on
the safety lock, the system back to default, waiting for input the instruction.
3.If there is any problem，PLS contact the distributor .Amateurs, do not attempt to disassemble
or maintain so as to avoid the damage of equipment
TWELFTH. Calories Calculation method:
70.3×V(Km/h)×t(h)×(1+?%)
Calories consumption rate: 70.3kcl/km. (incline=0)
TIRTEENTH. Simple troubleshooting methods：
Fault Description Possible Reason Check Method Fault Processing

18
1.power plug get loose 1.check the plug and make sure the wire
connect well
1.connect the wire
again
Power on , no
reaction in the
computer 2.power switch not open2.check the switch 2.turn on the power
again
1.Motor circuit abnormal
1.check the motor
circuit, if they are
correct plug and plug
well
1.Replug the motor
line
2. Not press the
“START” button
2.check the “START”
button, it may useless
or not press 2.repress the button
3.the safety lock may
loose or dropped 3.check safety lock 3.place the safety lock
4.The motor plug loose
or damaged 4.test the motor 4.change the motor
The Motor Doesn’t
Work
5.The specification of
the power or the
controller not correct
AC（110/230）V
5.make sure the
specification Choose the correct specification
1.check the distance
from the magnet and
the sensor position
1.adjustment the
distance in 5mm to the
magnet
2.the wires may
damaged or not
connect well
2.change the wires or
sensor
The Motor and
Other Parts is ok,
but the Treadmill
doesn’t running
SENSOR induction bad
3.the joints may not
connect well 3.connecting the joints again
The Display
Content not clear
PA circuit board screw
not clock well or the
connector not connect
well
Check the circuit make
it connect well
Reset the connector
and lock the screw
tightness
1.check the wires’
connection 1.connect again or change
1.SENSOR induction
bad 2.check the joints 2.connect again
2.human induction not
sensitive（ear clip）3.Knead the earlobe
several times. Retest
No pulse data
display
3.human induction
bad(hand pulse）4.wetting hands or do
some friction. Retest
1.check the connection
line between the
computer and the
controller
1.change the line
E01(fault code)
the computer and the
controller
Communication
abnormal check the joints 2.connecting the
j
oints again
E02(fault code) Explosion-proof
protection 1.the power and
voltage is less than
50% normal
1.use the right power
and voltage

19
2.check the connection
of the motor or the
motor may damaged
2.connecting again
or change the motor
3.check there is special
smell of the controller
or not
3.exchange the
controller
1. check the installation
of the sensor and the
magnet.
1.correct install the
sensor and the magnet
2.check the connection
of the sensor 2.reconnection
E03(fault code)
1.failure to detect the
motor signal for 15
seconds or above
2.failure to detect the
sensor signal for 10
seconds 3.check the sensor if it
is damaged 3.chang the sensor
1.check the connection
of the VR line 1.reconnecting the
j
oint of the VR line
2.check the connection
of the AC line 2.reconnecting the
j
oint of the AC line
3.check the connection
of the motor line 3.reconnecting or change the wires
4.check the motor if it
is damaged 4.change the motor
E04(fault code) Failure study for the
incline motor
5.failure study 5.press the button on the controller for3
second ,restudy again
1.make sure the power
and voltage is comply
with standard
2.change the motor or
controller, test again
E05(fault code) Over-current
E08(fault code) EEPROM(data memory
error)
1. the part 24C02is broken or not connected
24C02 well.
2. change them immediately.

20
SAFETY EXERCISE
Please consult professional staff before do exercise. He can help recommendation
exercise rate/intension and time according to your age and health condition. When
running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath,
dizziness or other unwell, please stop immediately! And consult professional before you
want continually to do exercise. If you often use treadmill, you can choose normal walk
speed or jog speed.
If you have no experience or can't make sure the best testing speed, you can reference
below standard:
Speed 1-3.0 km/h weak constitution people.
Speed 3.0-4.5 km/h sedentary or not often exercise people.
Speed4.5-6.0km/h walkingquicklypeople.
Speed 6.0-7.5 km/h fast walk people.
Speed 7.5-9.0 km /h jogger.
Speed 9.0-12.0 km/h intermediate speed runner.
Speed 12.0-14.5 km/h experienced runner
Speed14.5-18.0 km/h excellent runner.
ATTENTION
It is suitable for walker to choose less than or equal to 6 km/h speed.
It is suitable for runner to choose more than or equal to 8.0 km/h speed.
WARNING
Please make sure pulled out the treadmill's power plug before cleaning or maintain the
product.
MAINTENANCE INSTRUCTION
