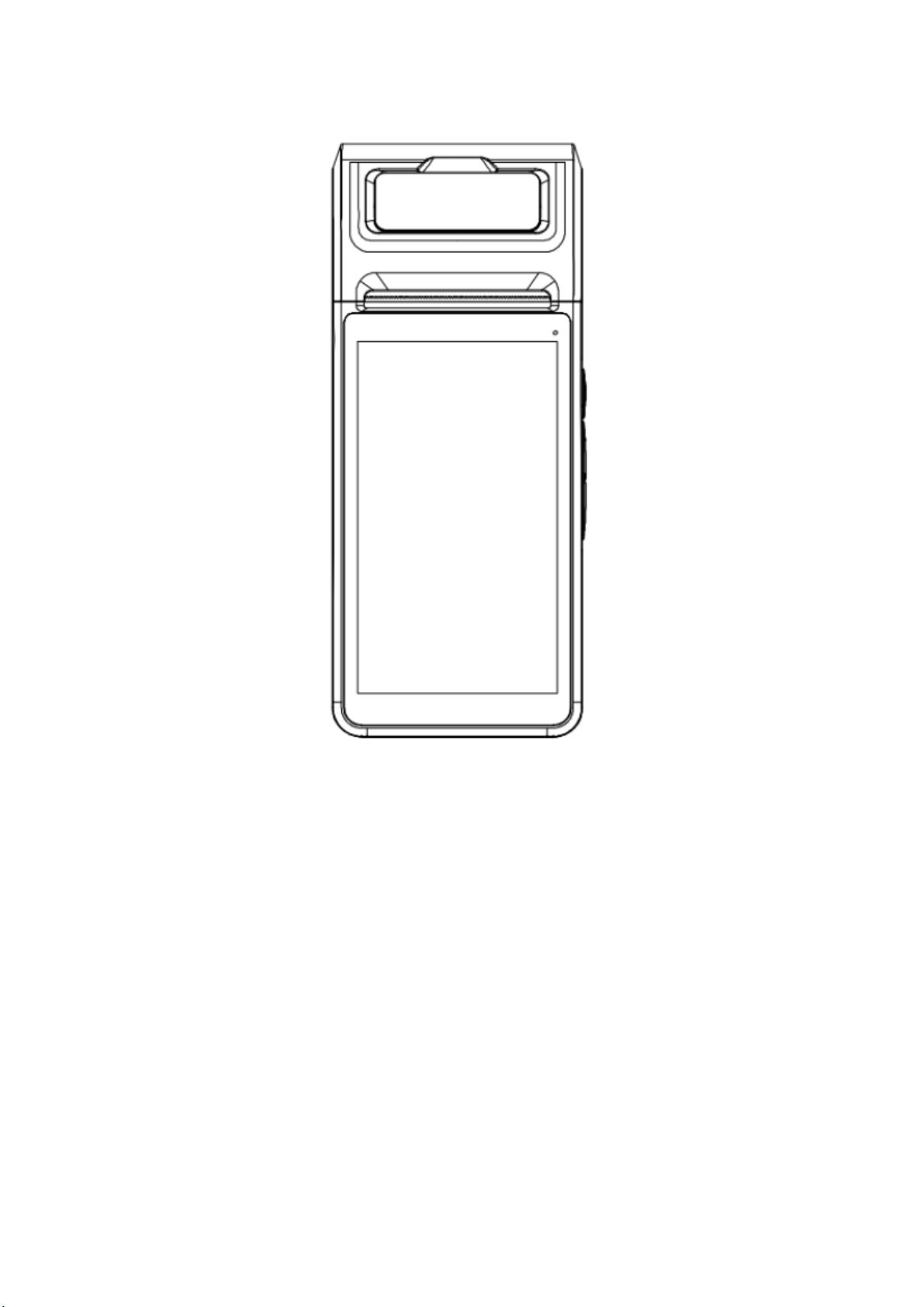

ZHUHAI HONOR TECHNOLOGY XPOS-I100 User manual

XPOS-I100
Smart handheld printer
User guide
ZHUHAI HONOR TECHNOLOGY CO.LTD

Power Button
Short press: Turn on/off the screen when power on.
Long press: Hold few seconds to switch the power on. When power is on, hold for few
seconds to show the Option Menu including ‘Power off’, ‘Airplane Mode’, ‘Settings’, ‘Lock
Now’, and ‘Reboot’.
VOLUME Button
Adjusting the volume.
Can be defined as quick launch button for applications which had been installed(Settings ->
Volume key Customization).
BACK
Back to the last scene/application.

HOME
Back to home screen.
MENU
Show recently opened apps.
Tapontheapptoopentheapp,orslidetheapptoleft/righttocloseit.
Printing head
The thermal printing head.
Notification LED
Solid green light when XPOS-I100 is charging and the battery is fully charged.
Flashing green light when you have a pending notification.
Solid red light when the battery is being charged.
Paper cover handle
Open the paper cover.
Paper cover
Open this cover to install/replace the roll paper.

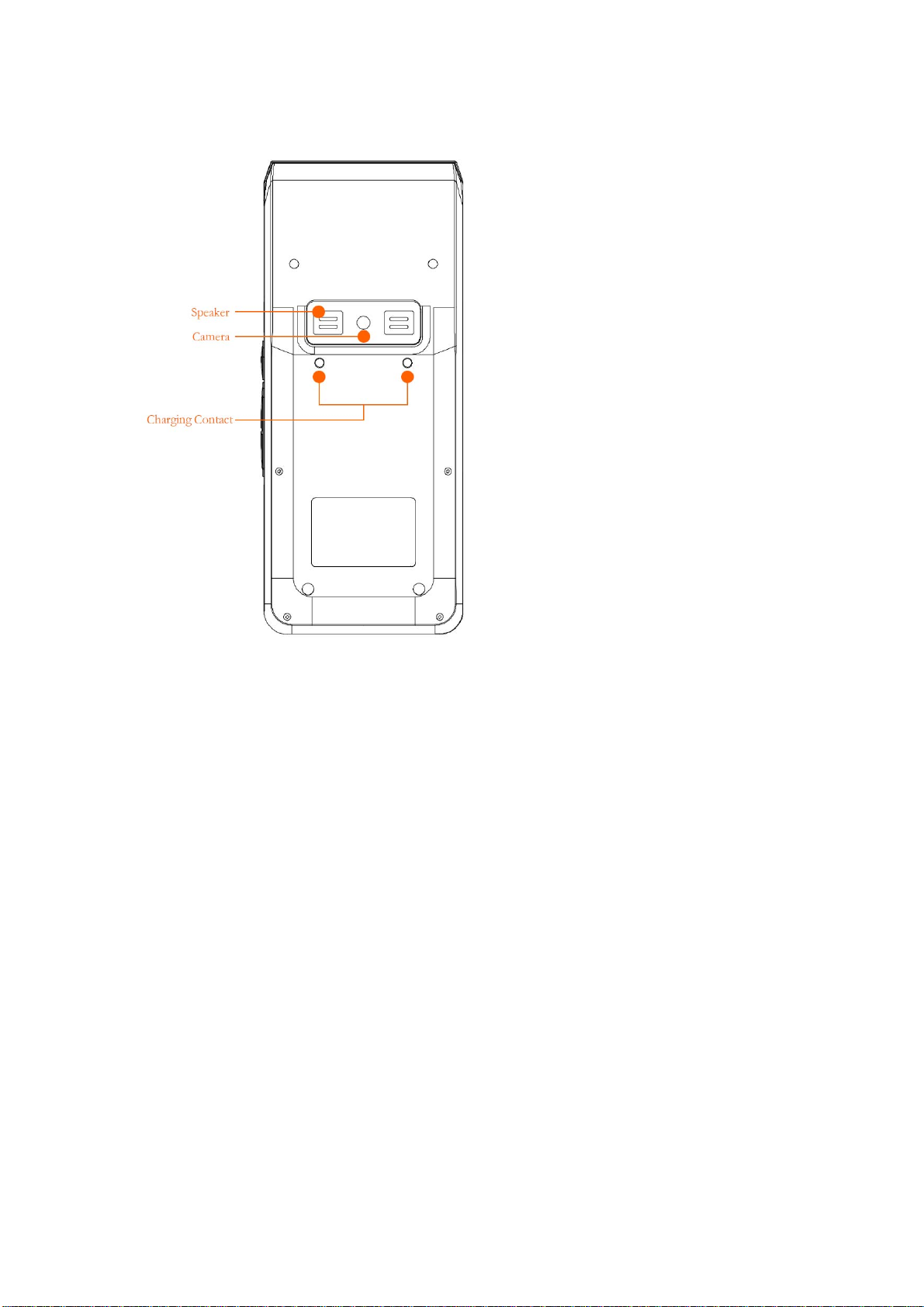

Speaker
Sound comes out from here when playing music or movie.
The sound that prompts the Printer’s status, like run out of paper or overheat, also comes out
from here.
Camera
Scan QR code or bar code.
Charging Contact
Use to charge with the Charging base (keep away from water, metal object and other electrified
equipment).

Headset
The headset jack.
Micro SIM Card
The Micro SIM Card slot.
Note: when inserting or removing the microSIM card, please make sure the XPOS-I 100 is power
off, otherwise it may cause damage to the hardware.
To insert the microSIM card, firstly open the soft cover，then insert the sim card into the slot that
the picture shows with its metallic side UP and the unfilled corner side OUT, finally close the soft
cover.
To remove the microSIM card, firstly open the soft cover, then push the card in to eject it from its
slot, slide the sim card out and finally close the cover.
TF Card
TF Card slot.
MICRO USB
USB connector, it can be used for charging or connecting to PC.
MIC
Microphone, use for speech input.

schematic drawing of installing roll paper
Installing the roll paper:
·Open the paper cover with the handle(see ①).
·Remove the used roll paper core if any, then install the roll paper in the correct direction
according to the Schematic drawing, remember to pull out some paper outside the cover (see ②).
·Close the paper cover back，finish installing roll paper(see ③)；
Note: XPOS-I 100 only support 58mm roll paper width settings: 57±0.5mm*Ø 40mm.
If the paper is blank while printing, please check whether the roll paper is reversed.
Charge:
·XPOS-I 100 support charging with Charging Base or USB connector(No difference between
these two method).
·While charge with the Charging Base, insert the Power Adapter’s USB cable into the Micro
USB connector in the Charging Base(see ①), then put XPOS-I 100 on the Charging Base(see
②).
·While charge with USB connector directly, just insert the Power Adapter’s USB cable into the
Micro USB connector in the XPOS_I 100.
·The Battery icon transform to Charging status when charging, and the Notification LED solid
light.
·If XPOS-I 100 cannot enter charging status, please check if is correctly connected, or if the
Charging contact is polluted.

BATTERY CAUTION
·XPOS-I 100 use a 3.8 v/6000mAh built-in lithium battery, please do not disassemble by
yourself.
·To protect the battery, it is recommended to charge in time when battery level is low, do not let
the battery run out.
Product Specifications
Product Model: XPOS-I100
Operating System: Android 7.0
CPU: frequency 1.3GHz，64 bit Quad Processor
RAM: 1GB
ROM: 8GB
Display: 5.5-inch IPS with 960X540 resolution
Touch Screen: capacitive multi touch screen
Camera: 5 mega-pixel with auto focus
Speaker: 1 watt single channel with 90 DB maximum volume(adjustable)
Headset: 3.5mmaudio interface, stereo headset is supported
Microphone：support
Support Band: GSM: B2/3/5/8
WCDMA: B1/2/5/8
LTE-FDD: B1/2/3/4/5/7/20
WIFI: IEEE 802.11 a/b/g/n(2.4G/5G)
Bluetooth: Bluetooth 4.1
GPS+AGPS：support
Power Button: switching on/off(quick launch camera by double click when in lock screen)
Volume +/- Button: adjust volume(can be customization to other function)
SIM Card: Micro SIM support
TF Card: Maximum support for 32GB
MICRO USB：USB 2.0 OTG, for charging or connect to PC
Printing method: Thermal line printing
Roll Paper Width: 58mm
Roll Paper Diameter: Maximum Ø 40mm
Print Speed: 50mm/s
Thermal head life: 50km
Working Temperature: 0℃~50℃, relative humidity 5%~90%
Storage Temperature: -20℃~70℃
Battery: 3.8V lithium battery, capacity 6000mAh
Power Supply: INPUT：AC100~240V/1.5A
OUTPUT：DC5V/2A
Overall dimensions: 205X86X54.5mm

In the Box
XPOS-I 100 x1
Charging base x1
Power Adapter x1
USB cable x1
User Manual x1, Warranty Card x1, Product certificate x1
☑58mm roll paper x1
□__________
Safety Precautions
·Do not use in locations subject to high humidity or temperature. Excessive humidity and
temperature may cause equipment damage, fire, or shock.
·Keep the equipment away from fire or water. This may cause fire or electric shock.
·Touch screen is fragile, please handle with care, avoid impacting or pressing.
·Shut down your equipment immediately if it produces smoke, a strange odor, or unusual
noise. Continued use may lead to fire or electric shock.
·The manual cutter is sharp, please be carefully when you cut the roll paper manually.
·Do not expose the equipment to high dust levels environment, do not allow foreign matter to
fall into the equipment. Penetration of foreign objects may lead to fire or shock.
Disclaimer
With the update of the product, some details described in this manual may not be inconformity
with the actual product, please take the actual product as the standard. The company has reserved
the final explanation rights to this manual.
The contents of this manual are subject to change without notice.
This product toxic and hazardous substance name and content identification form
Module Name
Hazardous Substance
Pb Hg Cd Cr(VII) PBB PBDE
Circuit
Modules X○○ ○ ○ ○
Printing Head X○○ ○ ○ ○
○: Indicates that the concentration of the hazardous substance in all homogeneous materials
in the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance in all homogeneous materials
in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
There has some hazardous substance marked as ‘X’ is because there is no mature alternative
technology in the industry.

Product Warranty Card
Product Name: _________________________
Product Model: _________________________
Product Number: _________________________
Purchase Date: _________________________
Warranty Period：The warranty time is _____ days from the day when you have the invoice.
Free maintain won't be given under the following circumstance:
·The malfunction and damaged caused by unauthorized repairs and alteration.
·Incomplete product bar code or Fragile Sticker.
·Incomplete warranty card or there is any modification on the warranty card.
·The damage caused by not in accordance with the user manual operation.
·The damage caused by water or fall or other man-made factors.
·The damage caused by force majeure.
·Beyond the warranty period.
Telephone: _________________________
Company Address: _________________________
Qualification Certificate

Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment。
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Specific Absorption Rate (SAR) information:
This Smart Phone meets the government's requirements for exposure to radio waves. The guidelines are based
on standards that were developed by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin designed to assure the
safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of
tissue. Device types: Smart handheld printer (FCC ID: ) has also been tested against this SAR limit. The highest SAR
value reported under this standard during product
certification is 0.932W/kg when properly worn on the body. This device was tested for typical body-worn
operations with the back of the Smart Phone kept 00mm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a 00cm separation distance between the user's body and
the back of the Tablet PC. The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these requirements may
not comply with FCC RF exposure requirements, and should be avoided.
very high volume, prolonged listening to a mobile phone can damage your hearing.
