• Installation must only be undertaken by a competent person holding a current registered
operative identity card for the installation of unvented domestic hot water storage systems
issued by an accredited body.
• To ensure you have the latest revision of this instruction manual, please visit www.
zipwater.co.uk to download the latest copy.
• Please leave these instructions with the end user after installation.
General Product Description 3
Approvals 3
Technical Data 4
Safety Information 5
WARNINGS 5
CAUTIONS 7
Spare parts 8
Components supplied with the unit for site tting 9
Installation 9
Dimensions 10
Connection to the water supply 10
Schematic diagrams 12
Connection to the electricity supply 13
Electrical wiring diagram 14
Discharge pipe arrangement 15
Operation 16
Service & maintenance 18
Trouble shooting 19
End of life disposal 20
Warranty 21
Contact details 24
Table of contents
!
!
!
!

3
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
• These instructions will guide you through the installation, maintenance and use of the Zip
Aquapoint, however, if you require any further information please call Zip customer service
on 0345 6 005 005.
• The Zip Aquapoint is an unvented water heater designed for connection directly to
incoming mains water supply and can serve one or more outlets using conventional
taps.
• Care should be taken that the unit being chosen can meet the demands of the outlets
being supplied.
• The casing is constructed of powder coated steel and heat losses are minimised by the
high efciency polyurethane foam insulation.
• The inner vessel is constructed from glass enamelled steel sheet and pressure tested to
1.2 MPa (12 bar).
• A manually resettable safety cut out automatically cuts off the electrical supply to the
heating element in the event of a malfunction.
• A sacricial magnesium anode is tted to the vessel to provide anti-corrosion protection for
the vessel and the heating element.
• Gradual erosion of the anode will occur depending on local conditions and in extreme
cases, conditions may cause rapid erosion resulting in particles being deposited as a
residue or emitted from the heater.
• The Aquapoint should not therefore, be used in applications where the quality of the water
is paramount. Regular preventative maintenance inspections are vital to achieve optimum
performance and durability of the Aquapoint.
• The condition of the anode should be checked regularly by an authorised Zip service
provider as part of the preventative maintenance programme.
• If the hot water system is not used for two weeks or more, it is recommended that a hot
tap be turned on for several minutes at a sink, basin or bath, it is not recommended that
either a dishwasher, clothes washer or other appliance be used before the heater is
returned to service.
• The Aquapoint must be installed in accordance with these instructions and all current
legislation, codes of practice and regulations governing the installation of unvented hot
water cylinders in force at the time of installation.
• Please contact Zip Customer Service for advice on 0345 6 005 005.
Approvals
• Aquapoint complies with LVD and EMC directives and is CE endorsed.
General product description

4Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Technical data
Technical Data Zip Aquapoint
MODEL AP430S AP450S AP480S AP4100S
Declared load prole S M M L
Energy efciency class(1) B B B C
Energy efciency (ηwh)(1) % 37,2 40 39,6 40
AEC Annual electricity
consumption (1) kWh 496 1282 1296 2480
Daily electricity consumption
Qelec (2) kWh 2.864 6.870 6.956 13.003
Weekly electricity consumption
with smart control kWh 13.055 24.198 25.564 49.740
Weekly electricity consumption
without smart control kWh 16.215 28.501 30.049 57.832
Thermostat temperature
setting eco
“Smart” value 1
Storage volume V l 29.1 49.1 78.8 98.1
Mixed water at 40°C (V40)(2) l-68 121 142
Connections to the supply
network 1/2” BSP 1/2” BSP 1/2” BSP 1/2” BSP
Weight/with water kg 19/49 24/74 31/111 36/136
Max working pressure bar 6 6 6 6
Enamelled steel tank + + + +
Protective magnesium anode + + + +
Protection against overheating + + + +
Protection against dry start + + + +
Protection class l
Degree of protection IP 24
Rated power output kW 2 2 2 2
Supply voltage V AC 230
Heating time - 10 to 65°C
[hr_min] 0_59 1_38 2_37 3_16
Packaging
dimensions
D
W
H
mm
490
480
630
490
480
810
490
480
1070
490
480
1245
(1) EU Regulation 812/2013 ; EN 50440
(2) EN 50440

5
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death and/or serious injury and/
or property damage.
CAUTION Indicates a potentially hazardous situation, which, if not
avoided, may result in property damage.
Safety Information
WARNINGS
• Installation, commissioning and maintenance of this Aquapoint must only be
carried out by a competent installer, familiar with unvented systems who will
then be responsible for adhering to all relevant standards and regulations.
• The Aquapoint must be permanently connected to the supply through an
isolating switch with a contact separation of at least 3mm in all poles.
• To protect the Aquapoint, a circuit breaker must be tted with a rating
suitable for the nominal current of the Aquapoint.
• The cross sectional area of the connection cable must be appropriate for
the power rating and location of the Aquapoint.
• The connecting cable must be adequately secured.
• This Aquapoint must be earthed at all times.
• Check that the power supply is switched off prior to electrical connection.
• The Aquapoint, its wiring and piping must not be modied in any way.
• Do not remove the cover whilst the Aquapoint is connected to the electricity
supply.
• In case of malfunction isolate the power supply immediately. In case of
leaks also isolate the water supply. Repairs must only be carried out by a
competent person.
• Do not reset the over temperature cut-out until the cause of its operation
IMPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY.
NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE
THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY, AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR
FUTURE USE.
SAFETY INFORMATION
!
!
!
!
!
!

6Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
has been diagnosed and necessary repairs have been undertaken.
• Do not use the Aquapoint if it is suspected of being frozen. Switch off the
electrical supply if water ceases to ow and do not switch on again until a
competent person has checked that it is safe to do so.
• The heater should be visually inspected regularly. This is particularly
important if its located in a cupboard, roof space or any other concealed
location. If there is any sign of leaks or seepage the Aquapoint should be
isolated from the water supply and switched off from the electrical supply
until a competent person has investigated the cause.
• Do not block or restrict the discharge from any safety valve.
• Do not tamper with any safety valve.
• The Aquapoint must not be subjected to pressure exceeding 6 bar.
• If water discharges from any safety valve switch off the electrical supply to
the Aquapoint, isolate the water supply and contact a competent person
familiar with unvented systems.
• Temperatures in excess of approximately 43°C are perceived as hot,
especially by children, and may cause a feeling of burning. Please consider
using the temperature controls.
• This Aquapoint must not be used by any person (including children) with
limited physical, sensorial or mental abilities or failing experience and/or
knowledge unless they are supervised by a person responsible for their
safety or have received instruction about how to use the Aquapoint, and
that are aware of the potential hazards.
• Children should be supervised in order to make sure that they do not play with,
use, clean or maintain the Aquapoint.
• In a closed, pressurised system of installation, it is obligatory to install a
safety valve on the inlet pipe with a rated pressure of 0.6 MPa (6 bar),
0.9 MPa (9 bar) or 1.0 MPa (10 bar) (see the label), which prevents the
elevation of pressure in the boiler by more than 0.1 MPa (1 bar) above the
rated pressure.
• Water may drip from the outlet opening of the safety valve, so the outlet
opening should be set to atmospheric pressure.
• The outlet of the safety valve should be installed facing downwards and in
a non-freezing area.
• To ensure proper functioning of the safety valve, the user should perform
regular inspection and maintenance to remove lime scale and make sure
SAFETY INFORMATION

7
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
the safety valve is not blocked.
• Do not install a stop valve between the water heater and the safety valve,
because it will impair the pressure protection of the Aquapoint.
• The Aquapoint is equipped with an additional thermal cut-off for protection
in case of failure of the operating thermostat. In this case, however, the
temperature of the water in the heater can reach up to 130°C according to
the safety standards. During the water supply installation, the possibility of
temperature overloads should be taken into account.
• If the Aquapoint is to be disconnected from the power supply, please drain
any water from the heater to prevent freezing.
• Water from the Aquapoint that is installed vertically on the wall can be
drained through the heater’s inlet pipe. For this purpose it is advisable to
install a T- piece with an outlet valve between the inlet pipe and safety
valve.
• Please do not try to x any defects of the Aquapoint on your own.
• Call Zip on 0345 6 005 005.
• The Aquapoint must be completely lled with water before being switched
on.
CAUTIONS
• The Aquapoint must only be used when correctly installed and in perfect
working order.
• The Aquapoint must be installed in a frost-free room and must never be
exposed to frost.
• The Aquapoint range is not recommended for use with secondary
circulation systems.
• The Aquapoint must only be used for heating potable water. The Aquapoint
must not be used for any other purpose.
• When the Aquapoint has been in use for some time, the ttings may be
very hot.
• The Aquapoint is intended for connection to mains supply only. In any other
case please contact Zip on 0345 6 005 005 for advice.
• Zip Water UK cannot be held liable for any damages caused by failure to
observe these instructions.
SAFETY INFORMATION
!
!

8Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
REF ITEM DESCRIPTION
001 94806 Heating element 2000W
002 AQ0331 Gasket
005 94807 Bimetal safety cut-out
006 AQ0320 Sacrifying anode (30 l)
006 AQ0306 Sacrifying anode (50 l)
006 AQ0307 Sacrifying anode (80 l, 100 l)
013 AQ0338 Fixing ange
019 95081 Gasket
020 AQ0346 Bush
025 95075 Control panel
083 94809 Wall bracket
095 95077 Electronic module
097 AQ0315 Insulating bush
111 95082 Sensor strip
133 95078 Cable for sensor
147 AQ1 P&T valve
Spare parts
Fig. 1

9
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Components supplied with the unit for site fitting
Installation
• The Aquapoint shall be installed as close as possible to the outlets.
• When installing the Aquapoint in a room with a bathtub or shower, take into account the
requirements dened in IEC Standard 60364-7-701 (VDE 0100, Part 701).
• The Aquapoint has to be tted to the wall using appropriate wall screws with a minimum
diameter of 8mm.
• A wall with a poor load-bearing capacity must be properly reinforced where the Aquapoint
will be installed.
• The AP4 model may only be mounted vertically.
• To facilitate future service interventions, you are advised to install the heater in accordance
with the installation measurements (see Fig. 3 and Fig. 7).
AQ105 kit is supplied with 30 to 50 litre models.
AQ108 kit is supplied with 80 to 100 litre models.
Both kits include:
• Cold inlet assembly comprising pressure reducing valve with integral line strainer and
expansion relief valve with check valve, expansion vessel take off and balanced cold
water take off.
• Expansion vessel and wall xing bracket.
• Wall locating bracket.
• Tundish.
Cold inlet set
Cold supply
to cylinder
Internal check valve
Expansion vessel take off
Discharge to
tundish
Expansion relief valve
Balanced cold take off
Cold mains in
Pressure reducing valve
(inc. line strainer)
Fig. 2

10 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Installation
• The water heater connections for the inlet and outlet of water are colour-coded. The inlet
of cold water is marked with blue colour, while the hot water outlet is marked with red
colour.
• The water heater can be connected to the water supply in a closed-circuit pressure system
enables several points of use.
• In a closed, pressurised system (Fig. 4) pressurised mix taps should be used at the outlet
points.
• To ensure safe operation of the heater a safety valve should be installed on the inlet
pipe to prevent elevation of pressure for more than 0.1 MPa (1 bar) above the nominal
pressure.
• The outlet opening on the safety valve must be equipped with an outlet for atmospheric
pressure.
• The heating of water in the Aquapoint causes the pressure in the tank to increase to the
level set by the safety valve. As the water cannot return to the water supply system, this
Connection to the water supply
Fig. 3 Vertical installation on a wall
Dimensions (See table below)
PRODUCT A B C
AP430 510 310 235
AP450 690 470 250
AP480 950 735 245
AP4100 1125 900 255
Dimensions in mm

11
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Installation
can result in dripping from the outlet of the safety valve.
• The drip can be piped to the drain by installing a tundish just below the safety valve.
• The drain installed below the safety valve outlet must be piped down vertically and placed
in an environment that is free from the onset of freezing conditions.
• To avoid water dripping from the safety valve, an expansion tank should be installed on the
inlet pipe of the heater with the capacity of at least 5% of the heater volume.
• To ensure proper operation of the safety valve, periodical inspections must be carried out
to remove limescale and make sure the safety valve is not blocked.
• To check the valve, open the outlet of the safety valve by turning the handle or unscrewing
the nut of the valve (depending on the type of the valve).
• The valve is operating properly if the water comes out of the nozzle when the outlet is
open.
Do not t an isolation valve between the Aquapoint and
pressure relief valve
Before connecting it to the power supply, the Aquapoint must
be lled with water
• When lling the heater for the rst time, the tap for the hot water on the mixing tap must be
opened.
• When the heater is lled with water, the water starts to run through the outlet pipe of the
mixing tap.
!
!
!
!

12 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
REF DESCRIPTION
1Cold main
2 Balanced cold connection
3 Expansion vessel with wall bracket, from ‘cold inlet set’ take off
4 Hot water outlet
5 Temperature control
6 Neon indicator
7 Tundish to drain
8 Temperature and pressure relief valve
9 Expansion relief valve to drain via tundish
10 Check valve
11 Pressure reducing valve
12 Isolating valve (not supplied)
13 Drain valves (not supplied)
Installation
Pipe tting diagram (closed pressure system)
8
7
13 13 13
3
2
10
1
12
11
9
6
5
4
AP4
Fig 4

13
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Installation
Connection to the electricity supply
• Before connecting to the power supply network,
install a power supply cord in the water heater,
with a min. diameter of 1.5 mm2 (H05VV-F 3G 1.5
mm2).
• To do this, the protective plate must be removed
from the Aquapoint.
• Switch off the mains electrical supply before
removing the electrical cover panel or carrying
out any work involving a live circuit or access to
components that may be live.
• Do not switch on the electrical supply until the
Aquapoint is full of water.
• This Aquapoint must be earthed.
• The electrical connection to the heating elements must conform to current IEE wiring
regulations and be permanently connected to the electrical supply through a double-pole
isolating switch with at least 3mm contact separation in each pole and with a minimum
rating of 13A.
• All internal wiring is factory mounted and should not be altered or modied.
• A suitable supply cable should be fed through the grommet on the underside of the
Aquapoint, connected to the live, neutral and earth connections on the terminal block and
secured with the cable clamp provided.
• Check all electrical connections for security and tightness.
• An over temperature cut-out is incorporated within the Aquapoint which is designed to
operate at 79 - 84ºC. Should this happen, press the reset button.
IMPORTANT
• Before resetting the over temperature cut-out, isolate the electrical supply to the Aquapoint
(prior to removing the electrical cover panel).
• Ensure that the cover panel is replaced correctly and the retaining screws tted before
re-connecting the electrical supply.
Before service or maintenance work, disconnect the Aquapoint
from the power supply network
This must only be performed by a trained professional
!
!

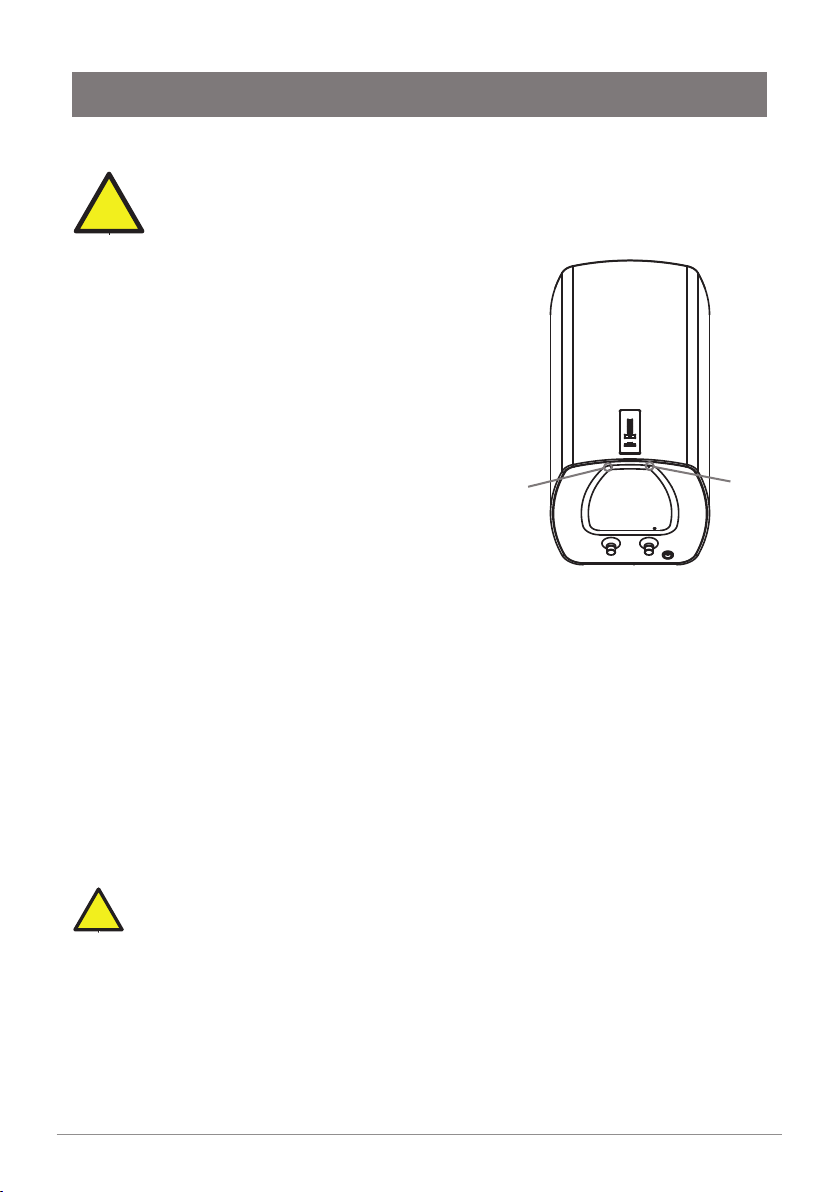

Fig. 5 Removing the protective cover
!
!

14 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk

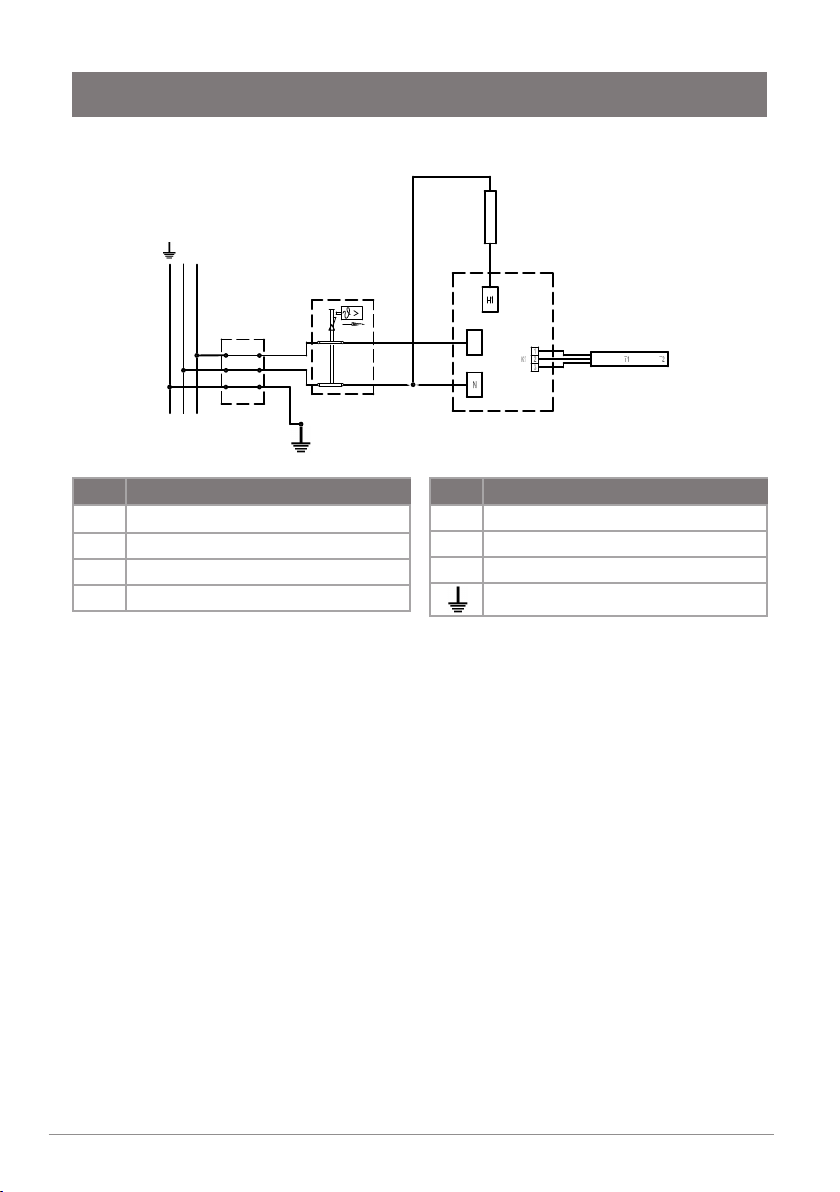

Electrical wiring diagram
1
2
4
5
3
N L
230V AC
REF DESCRIPTION
1Connection terminal
2Thermal cut-out
3 Electronic regulator
4 Electrical heating element
REF DESCRIPTION
5 Temperature sensor
L Live conductor
N Neutral conductor
Earthing conductor
Fig. 6
Installation

15
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Valve outlet
size
Minimum size
of discharge
pipe D1
Minimum size of
discharge pipe D2
from tundish
Maximum resistance allowed,
expressed as a length of
straight pipe
(i.e. no elbows or bends)
Resistance
created by
each elbow or
bend
G1/2 15mm
22mm up to 9m 0.8m
28mm up to 18m 1.0m
35mm up to 27m 1.4m
G3/4 22mm
28mm up to 9m 1.0m
35mm up to 18m 1.4m
42mm up to 27m 1.7m
G1 28mm
35mm up to 9m 1.4m
42mm up to 18m 1.7m
54mm up to 27m 2.3m
600mm
Maximum
Pipe Length
Safety device
e.g temperature
relief valve
Tundish
Metal Discharge Pipe (D2) From Tundish, with
Continuous Fall
Metal Discharge Pipe (D1) From Temperature
Relief Valve to Tundish, with Continuous Fall
Discharge Below
Fixed Grating
Trapped
Gulley
300mm
minimum Discharge below xed grating
(G3 3.62 gives alternative points of
discharge)
Note The above chart is based on copper tube.
Plastic pipes may be of a different bore and resistance. Sizes and maximum lengths of plastic
should be calculated using data prepared for the type of pipe being used.
Discharge pipe arrangement
Note The discharge would consist of high temperature water and steam. Asphalt, roong
felt and non-metallic rainwater goods may be damaged by such discharges.
Note It is not acceptable to discharge straight into a soil pipe. For guidance See G3 3.60.
Installation
Fig. 7

16 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Operation
• After it has been connected to the water and power supply grid, the heater is ready to be
used.
• When connected to the power supply, the heater runs in standby mode. In the standby
mode, the heater maintains the water temperature of 10°C.
• The heater is equipped with the SmartEco electronic
regulator, which enables the setting of water temperature, error
diagnostics and smart mode with which you can reduce the use
of electric energy.
Fig. 8 Control panel
Display of:
• Set temperature.
• Actual temperature of water in the heater.
• Errors.
On / Off button, temperature setting.
Indication of the SMART function.
Switch for the SMART function.
2
3
4
1
Switching the heater on / off
• The water heater can be switched on by holding the
button for 3 seconds.
• By holding the button for 3 seconds again, the
heater goes into standby.
2
2
Operating the Aquapoint - manual settings
Operating the Aquapoint
• Temperature is set by pressing button until you get the desired temperature level
(preset temperature level is 57°C).
Freeze protection temperature 10°C.
Water temperature 35°C.
Water temperature 57°C.
Water temperature 75°C.
eco
eco
eco
eco
2
Note all temperature values
are nominal.

17
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Operation
• Once the maximum level is achieved, pressing the button returns the
temperature to the rst setting .
• We recommend the "eco" setting. This setting is the most energy-efcient. The
temperature of water is about 57 °C, while limescale production and heat loss will be
smaller than in case of higher temperature settings.
• When you last press the button, the setting is stored. After 5 seconds, the current
temperature in the tank is displayed on the display .
• If the heater will not be used for a longer period of time, please protect its contents from
freezing by setting the temperature to the position.
• At this setting, the heater will maintain the temperature of water at 10°C.
eco
2
eco
1
2
eco
Functioning of the heater in the SmartEco mode
• This mode is appropriate especially if you have well-established hot water consumption
habits (e.g. showering every day at approximately the same time).
• To start the heater in the SmartEco mode, you rst have to start recording. During the
recording time, the electronic regulator remembers your habits and takes them into
account while heating the water after the recording period has ended.
• The recording takes place for 7 days. The SmartEco mode reduces the consumption of
electrical energy.
• Pressing button will begin the recording of your habits.
• The green control light will ash during the recording period.
• Once recording concludes after 7 days, the recording regime will begin running
automatically.
• The green control light will light up when the heater is functioning in the SmartEco mode.
• By pressing again, you can switch off the recording or the SmartEco function.
• The heater resumes to the basic mode of operation. The water is heated to the set
temperature.
• The SmartEco function can be resumed by pressing button .
• If the regime has already been recorded (if the recording was not interrupted), the regime
will begin running and the green control light will light up.
• If the recording was interrupted, a new 7 day recording period will begin and the green
control light will again begin ashing.
• If the electronic regulator has recorded the regime but the user's hot water consumption
habits have changed, a new recording period must be started. It can be started by holding
button .
• The recording period lasts 7 days.
4
3
4
4
3
3
4

18 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
Maintenance
• Clean the exterior of the Aquapoint using a soft cloth and mild detergent intended for
cleaning smooth varnished surfaces.
• Do not use detergents that contain alcohol or abrasives.
• Regular servicing will ensure faultless functioning and a long life of the Aquapoint.
• Tank corrosion warranty applies only if all the prescribed regular inspections of the
protective anode wear have been made.
• The period between regular inspections should not be longer than stated in the warranty
certicate.
• Upon inspection the service provider will inspect the amount of wear on the anti-corrosion
anode and, if necessary, clean the limescale that accumulates depending on the quality,
quantity and temperature of the water inside the heater.
• The service provider will also recommend the date for the next inspection depending on
the condition of the heater.
!
!
Service & maintenance
See warnings and cautions page 5
Operation
The Anti-Legionella Function
If the water in the heater does not reach 65°C for 14 consecutive days, the anti-legionella
function heats the water to 70°C and maintains this temperature for 120 minutes.
Emptying the heater
• If you are planning to disconnect the Aquapoint from power supply, please drain out all the
water to prevent freezing.
• Water from the heater that is installed vertically on the wall can be drained through the
heater's inlet pipe.
• For this purpose it is advisable to install a T- piece with an outlet valve between the inlet
pipe and safety valve.
!
!
Please do not attempt to x any defects of the Aquapoint by
yourself. Call the nearest authorised service provider.

19
Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
• Before draining, please disconnect the Aquapoint from the power supply, open the warm
water handle on the mixing tap and drain the warm water.
• When the water in the Aquapoint is cooled, close the ow of cold water into the heater and
unscrew the exible pipe on the warm water outlet.
• The Aquapoint can now be drained through the outlet valve on the inlet pipe.
• After draining the water through the inlet pipe, a small quantity of water remains in the
heater.
• When relling the heater with water it is recommended to open the warm water tap on the
mixing tap and let the water run for at least two minutes through the outlet pipe (the water
stream should be steady, medium strength, about as thick as a pencil).
Error functions
In case of error, control lights start to ash on the display
Error Description Indicator Solution
E1 Temperature
sensor error
Repeated 2x quick pulse
of the control light on the
display
Call service (heater out of order).
E5 Overheating
Repeated 3x quick pulse
of the control light on the
display
The error is automatically deleted when
the temperature drops below the set
value. Should the error repeat, please
call the service company.
E44 Dry start
Repeated 4x quick pulse
of the control light on the
display
Fill the heater with water. The error is
deleted by switching off the heater or
by holding button for 3 seconds.
Troubleshooting
Service & maintenance
1
1
1
12

20 Installation instructions & user manual
T210023 v1.02 NOV 2018 - ZIP AP430S-AP4100S
Technical support
Tel: [phone] email: service@zipindustries .co.uk www.zipwater.co.uk
The use of this crossed out wheeled bin logo indicates that this product needs to
be disposed of separately to any other household waste.
Within each of the European Union member countries, provisions have been
made for the collection and recycling of unwanted electrical and electronic equip-
ment.
In order to preserve our environment we ask that you dispose of this product cor-
rectly. Please contact Zip Customer Service for advice on 0345 6 005 005.
End of life disposal
