Zipato Zipamini User manual

ZIPAMINI
This guide
describes
how to install,
program and
operate Zipato’s
Zipamini.
How can I
manage all
security issues
with one
easy, intuitive
and efficient
solution?
USER
GUIDE
v1.2b

COPYRIGHT
© 2015 Tri plus grupa d.o.o. All Rights Reserved. Copyright by Tri plus grupa d.o.o.
No part of this manual may be reproduced or transmitted in any form without the
expressed, written permission of Tri plus grupa d.o.o.
TRADEMARKS
Zipato and the Zipato logo are registered Trademarks.
All other product names mentioned herein may be trademarks or registered
trademarks of their respective companies.
NOTICE
Although Zipato has attempted to ensure the accuracy of the content of this manual,
it is possible that this document may contain technical inaccuracies, typographical,
or other errors. Zipato assumes no liability for any error in this publication, and
for damages, whether direct, indirect, incidental, and consequential or otherwise,
that may result from such error, including, but not limited to loss of data or profits.
Zipato provides this publication “as is” without warranty of any kind, either express
or implied, including, but not limited to implied warranties of merchantability or
fitness for a particular purpose. The published information in the manual is subject
to change without notice.
Zipato reserves the right to make changes in the product design, layout, and driver
revisions without notification to its users.
03
ZIPAMINI
QUICK INSTALLATION GUIDE
02 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

IMPORTANT SAFETY INFORMATION
To avoid contact with electrical current:
Never install an Ethernet connection in wet locations unless that connector is
specifically designed for wet locations.
Do not place Ethernet wiring or connections in any conduit, outlet or junction box
containing electrical wiring.
Installation of inside wire may bring you close to electrical wire, conduit, terminals
and other electrical facilities. Extreme caution must be used to avoid electrical
shock from such facilities. Avoid contact with all such facilities.
Ethernet wiring must be at least 2 m from bare power wiring or lightning rods and
associated wires, and at least 15 cm from other wire (antenna wires, doorbell
wires, wires from transformers to neon signs), steam or hot water pipes, and
heating ducts.
ELECTROMAGNETIC COMPATIBILITY
When operated according to manufacturer instructions, the product complies with
all applicable CE harmonised standards from EMC Directive 2004/108/EC and Part
15 of the FCC Rules. The connections conducting HF signals must not be damaged or
altered in any way by the user.
03
ZIPAMINI
QUICK INSTALLATION GUIDE
02 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

INTRODUCTION 05
PACKAGE CONTENTS 12
CONNECT THE ZIPAMINI 13
ACCOUNT CREATION AND REGISTRATION 15
ADDING DEVICES 19
REMOVING DEVICES 19
TROUBLESHOOTING 20
SPECIFICATIONS 23
LIMITED PRODUCT WARRANTY 25
DECLARATION OF CONFORMITY 30
CONTENTS
05
ZIPAMINI
QUICK INSTALLATION GUIDE
04 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

Thank you for purchasing Zipamini. This guide describes how to install, program
and operate your Zipamini. Zipamini makes every home smart by using advanced
technology to hide the complexity of home networking - delivering a simple
smart home. It plugs into any outlet in the home and automatically talks to all the
connected devices in the house, connecting them to the cloud so that consumers
can control them using tablets, smart phones, computers or TVs— at home or
on the go. The Zipamini Gateway supports a variety of communication standards
including Z-WAVE, ONVIF and IP.
Once configured, the gateway works stand-alone, but also features cloud support
for advanced monitoring, messaging and programming services.
Intuitive graphical user interface allows customers to program their own home
rules without any previous programming experience.
INTRODUCTION
05
ZIPAMINI
QUICK INSTALLATION GUIDE
04 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

SECURITY
AND SAFETY
01
unlimited number of virtual alarms (partitions)
up to 233 two-way, wireless zones
trigger alarms in case of:
intruder (motion sensors and door/window sensors),
fire (smoke sensors),
flood (water leakage sensors),
gas (CO sensors)
panic button,
duress (if someone force you to disarm your system)
health care (in case of missing actions during particular time e.g. motion, door
opening, laying on bed...)
remote arm/disarm and status-info with any smartphone
vandal proof - Zipamini is 24/7 monitored by central station which triggers alarm
in case of connection loss
include arm/disarm commands in automation scenes
easy online setup and configuration through web based interface
use of same sensors for security and automation purposes
07
ZIPAMINI
QUICK INSTALLATION GUIDE
06 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

LIGHTING
02
easy installation of wireless modules
Z-Wave lighting module pre-configured for even easier setup
support remote dimming and on/off switching with any smartphone
automatically turn lights on at sunset and off at sunrise
unlimited number of scenes supported
turn lights on during emergencies
advanced event based rules configuration
auto-pilot lighting programs to discourage intruders while home is empty
CLIMATE
03
multi-room heating and cooling control with any smartphone
advanced programming scheduler online, accessible over web browser
easily create unlimited number of custom zones (thermostats)
multi-zone humidity control by using standard humidifiers and dehumidifiers
use Internet weather feeds to program your home climate conditions
create advanced event based rules to automate home climate based on other
07
ZIPAMINI
QUICK INSTALLATION GUIDE
06 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

environmental and home events
include climate control in automation scenes together with alarm, lighting, etc.
Notification and automated actions in case of overtemperature events, power
outages, and other incidents…
SUN
SHADING
04
control blinds, roller-shutters, curtains and pergolas using any smartphone
automate motors by using fun and easy programming
add your sun shading commands into home scenarios together with lights,
climate, alarms...
automate your shades to react to outside weather conditions
easy installation using pre-configured wireless modules
IRRIGATION
05
control unlimited number of irrigation zones
use advanced programming options online to setup perfect irrigation process
automate irrigation system based on Internet weather forecast
09
ZIPAMINI
QUICK INSTALLATION GUIDE
08 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

integrate your irrigation scheme together with your complete home automation
scenarios
ACCESS
06
remotely lock/unlock your door with any smartphone
remotely open/close your garage door or gate over any smartphone
get video notification when door is open
use RFID tags to open doors and get detailed statistics
automate doors/locks using scenarios and event based programming tool
trigger automation events when door lock user codes are entered
automatically unlock doors in the event of an emergency
MULTIMEDIA
07
remotely control your audio/video equipment with any smartphone
automatically turn off A/V equipment at pre-set time or when room is unoccupied
automatically turn on equipment to discourage intruders
09
ZIPAMINI
QUICK INSTALLATION GUIDE
08 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

VIDEO
MONITORING
08
access live and recorded video via the web and from any smartphone
support for most of the available IP cameras – ONVIF support
get email and SMS notifications with pictures and live video attached
remotely adjust pan-tilt cameras
create advanced event based recording and video notification rules
ENERGY
METERING
09
real-time monitoring energy consumption and notification right on smartphone
compare energy usage and cost with others in the area
automatically turn on/off your appliances in accordance with electricity prices
see detailed analysis of your energy consumption
save energy by automating lights, thermostats, sun shades...
11
ZIPAMINI
QUICK INSTALLATION GUIDE
10 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

TECHNICAL
SUPPORT
10
HAVING TROUBLE INSTALLING YOUR NEW PRODUCT?
Zipato’s website contains the latest user documentation and software updates for
Zipato products and services.
www.zipato.com
You can also find answers in the Zipato Community at: community.zipato.com
Zipato Support: [email protected]om
11
ZIPAMINI
QUICK INSTALLATION GUIDE
10 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

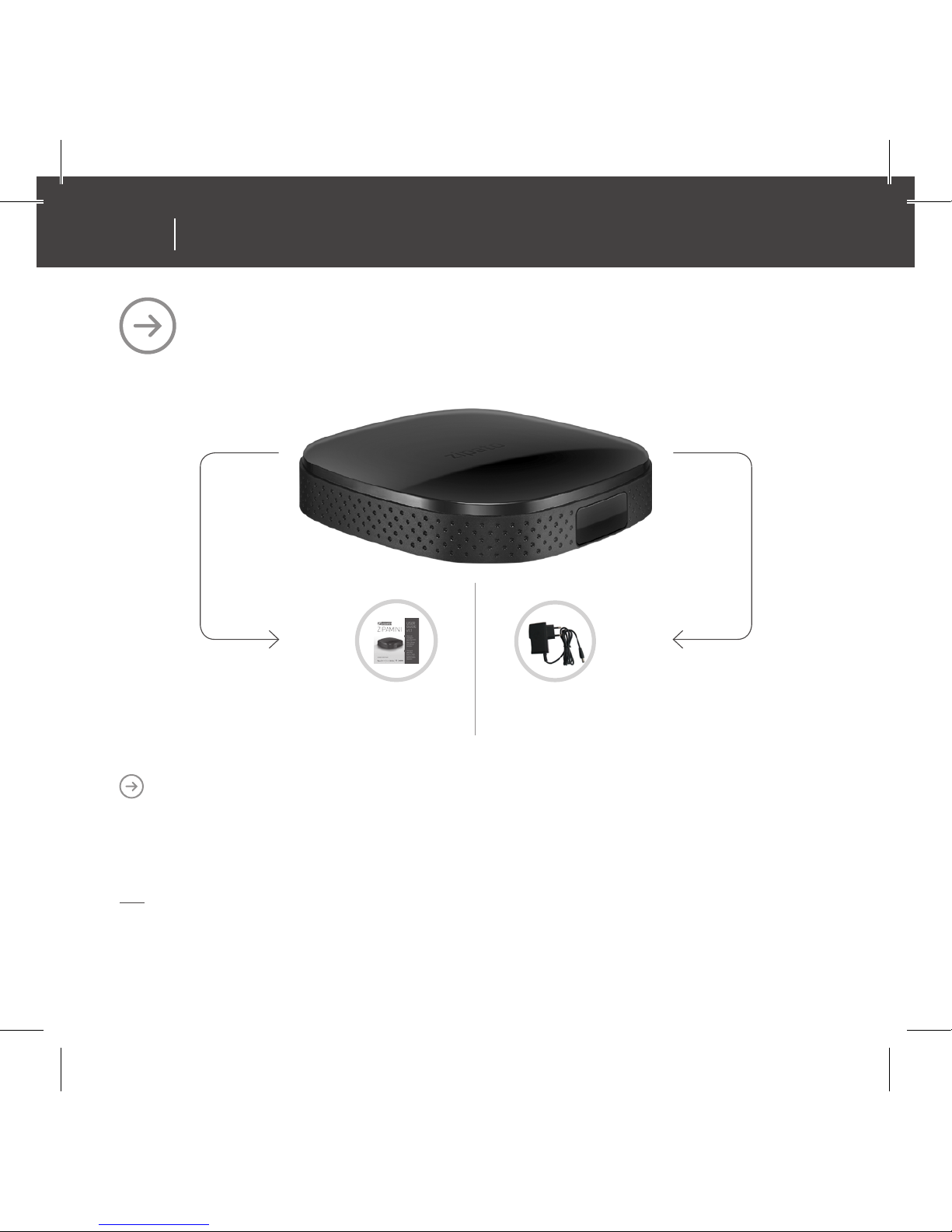

PACKAGE CONTENTS
ZIPAMINI
5V/2A
ADAPTER
USER
GUIDE
PLACEMENT
Make sure you place Zipamini on flat, non-metalic, non-slim surface. Also make sure
Zipamini is located at least 15 cm away from other electronic equipment, such as WiFi
routers, plasma and LED TV’s, set-up boxes, etc.
IMPORTANT: Failure to comply will result in poor Z-Wave range, inability to join Z-Wave
devices and other Z-Wave communication problems (offline devices).
13
ZIPAMINI
QUICK INSTALLATION GUIDE
12 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

CONNECT THE ZIPAMINI
Your Serial number is mentioned in the package, please keep it safe as it will be
required when registering your panel online.
CONNECT TO BROADBAND
Connect your Zipamini to your broadband router via the Ethernet cable.
The Ethernet port is located on the back of the Zipamini.
Zipamini queries your DHCP server for an IP address. If you do not have a DHCP
server in your local network, after 60 seconds Zipamini will auto configure itself with
link-local IPv4 address (in 169.254.0.0/16 range).
01 Micro
SD
02 USB 1
03
USB 2
04 AV/OUT
05 Ethernet
port
06 HDMI
07 DC 5V
03
02
01
03
04
05
06
07
13
ZIPAMINI
QUICK INSTALLATION GUIDE
12 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

POWER UP
Plug the power adaptor into mains supply wall socket and the other end into control
unit.

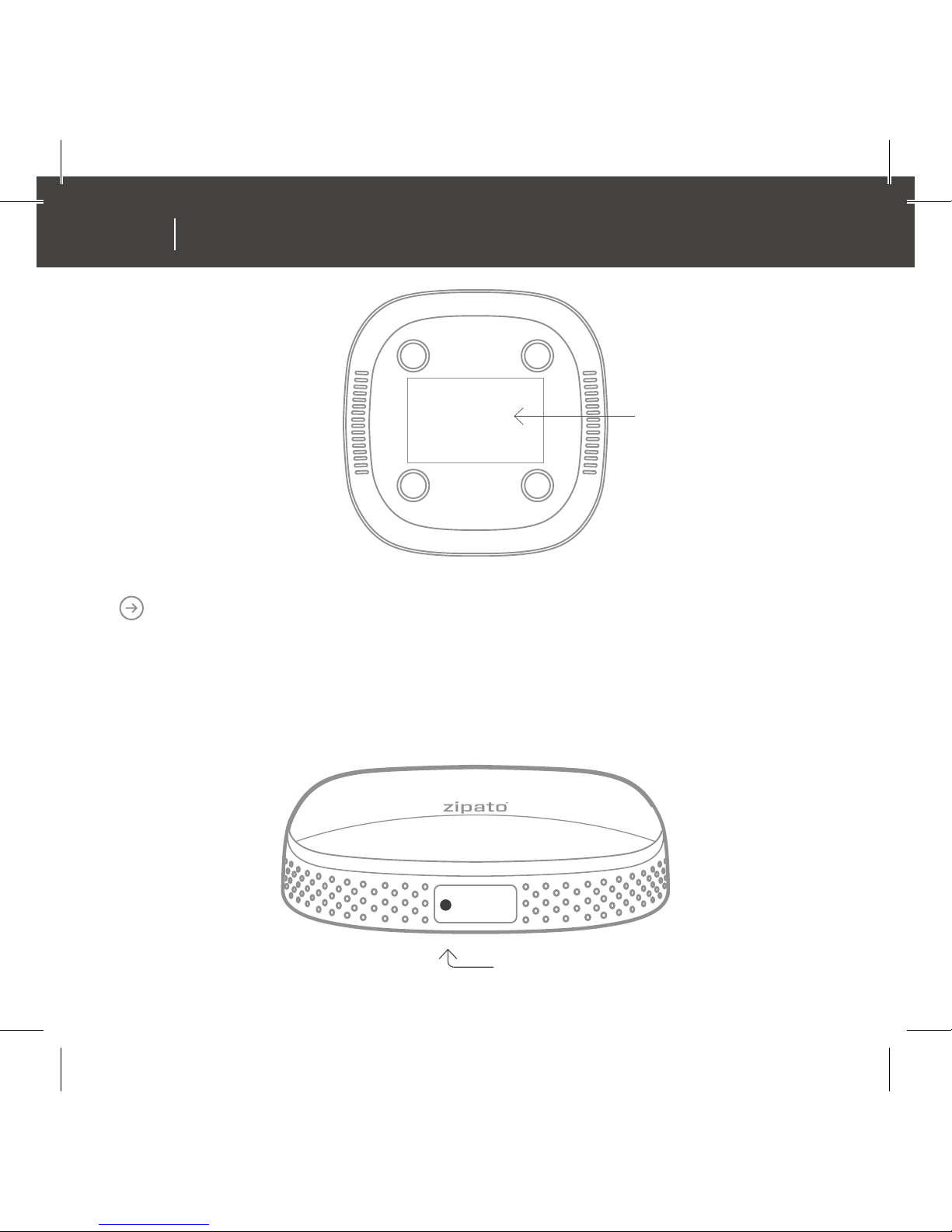

01 | PLUG IN POWER ADAPTOR
02 | ZIPAMINI READY: steady green light
Green LED Indicator
Serial number
15
ZIPAMINI
QUICK INSTALLATION GUIDE
14 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

ACCOUNT CREATION
To benefit from the Zipato monitoring and control service you will need to set up your
Zipato account and register your Zipamini. Upon registration you will automatically
get the basic free level of monitoring service.
Open a browser window on your computer and go to the following URL: my.zipato.com
Click on “Sign Up!” button in the middle of the screen and fill out all required fields
that will popup in the line below the “Sign Up!” button.
ACCOUNT CREATION
AND REGISTRATION
Fill out empty fields
Click on “Register”
Take note of your password
during this process.
15
ZIPAMINI
QUICK INSTALLATION GUIDE
14 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

REGISTER YOUR ZIPAMINI
When you first time log in to your account, you need to enter serial number of
your Zipamini. Serial number is located on the back of Zipamini and in “Zipabox”
application (see picture on next page).
Once you input registration data and click on register, the following message will
pop up:
“Thank you for signing up!
Please check your e-mail for confirmation message.”
When this message appears check your email account. If there is no email please
check spam container.
Email should look like this:
“Hi, your email here, welcome to the Zipamini!
To validate your email address please click on the following link verify.”
Once email is verified, login to Zipato by filing out credentials.
17
ZIPAMINI
QUICK INSTALLATION GUIDE
16 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

In “Zipabox” application on your Android Zipato controller you will find:
Serial number
Indication strip (steady Green strip indication means that controller is online and
ready)
Firmware version which installed on your controllerready)
IP address
MAC address
17
ZIPAMINI
QUICK INSTALLATION GUIDE
16 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

Enter the serial number located at back of your Zipamini
Message appears saying “Allowed registration time elapsed”. Please restart
Zipamini and reenter serial number.
FINALIZE YOUR ACCOUNT
Your account is set up and you are able to use Zipato cloud system. Anyway, you
need to ensure that your account is fully set up so you get the most from your Zipato
account.
Make sure that you have fully completed your profile. To check and verify account
details please see Users and Zipabox settings section in Zipato Control Center.
USERS
The Users section is where you add your family members which will have the rights
to use your system. Adding a new user requires you to enter new user’s details and
to give him/her certain rights. Rights management allows you to permit individual
services for some users.
19
ZIPAMINI
QUICK INSTALLATION GUIDE
18 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

ADDING NEW ZWAVE DEVICES
Before adding new device, it is recommended to bring device closer to Zipamini, so
that no obstacle can interfere with operating range of device. Recommended distance
between sensors and Zipamini is less than one meter. Read device instructions
regarding inclusion/join mode. Device in inclusion/join mode is awake and ready for
joining in to Zipato network. Always reset device before adding it to the network.
Device reset deletes any information about prior controller that was stored in
device. At the end of joining or removing session it is recommended to synchronize
everything and refresh Zipato Control Center.
01 | On Zipato dashboard, go to the “General” options and in “Device manager” click
“Add new device” button and follow wizard instructions.
02 | After you successfully add the device into your Zipato network go to “General”,
select “Device manager”, click on the Network protocol of this device (e.g. Z-Wave) and
set your device’s room name and type. This will help you to easier control your device.
REMOVING DEVICES
01 | Go to “General” options, select “Device manager”, Network protocol to which
this device belongs (e.g. Z-Wave) and find this device;.
02 | Click on the trash can beside the device and in the popup window confirm deleting
03 | Click on the Synchronize button and refresh the Internet browser.
ADDING DEVICES
19
ZIPAMINI
QUICK INSTALLATION GUIDE
18 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com

Waiting for more than a five minutes and still there is no green LED light.
01 | Check your Internet connection
02 | Check whether you connected your network cable correctly to your Internet router.
I forgot my password
01 | Go to my.zipato.com
02 | Click “Forgot password” and follow screen instruction.
I have placed a device outside my house and it is not communicating with the
Zipamini. What’s happening?
If you have a lot of metal in the exterior construction of your home, this could
significantly impede wireless communication. Metal is an insulator of radio signals. If
your house has metal siding or a stucco finish over a metal mesh, you may have range
problems on devices outside your home communicating with the Zipamini inside.
What should I do if I am having trouble installing my device?
If you are having difficulty with the physical installation of non-Zipato branded
devices (Thermostats, GE switches, Blueline meter reader, etc.), please contact the
manufacturer directly for assistance. If you are having trouble pairing a device to the
TROUBLESHOOTING
21
ZIPAMINI
QUICK INSTALLATION GUIDE
20 ZIPAMINI QUICK INSTALLATION GUIDE
www.zipato.com
www.zipato.com
