Zipato SMART SMOKE SENSOR User manual

QUICK INSTALLATION GUIDE
v1.0
SMART SMOKE
SENSOR
distance from lights or decoration, and at least 15 cm from
walls. If room is more than 12 meters wide please install at 2
sides of the room.
2| SLOPING CEILING MOUNTING
If ceiling is sloping, please install the smoke alarm at
horizontal distance 90 cm away from the ceiling top.

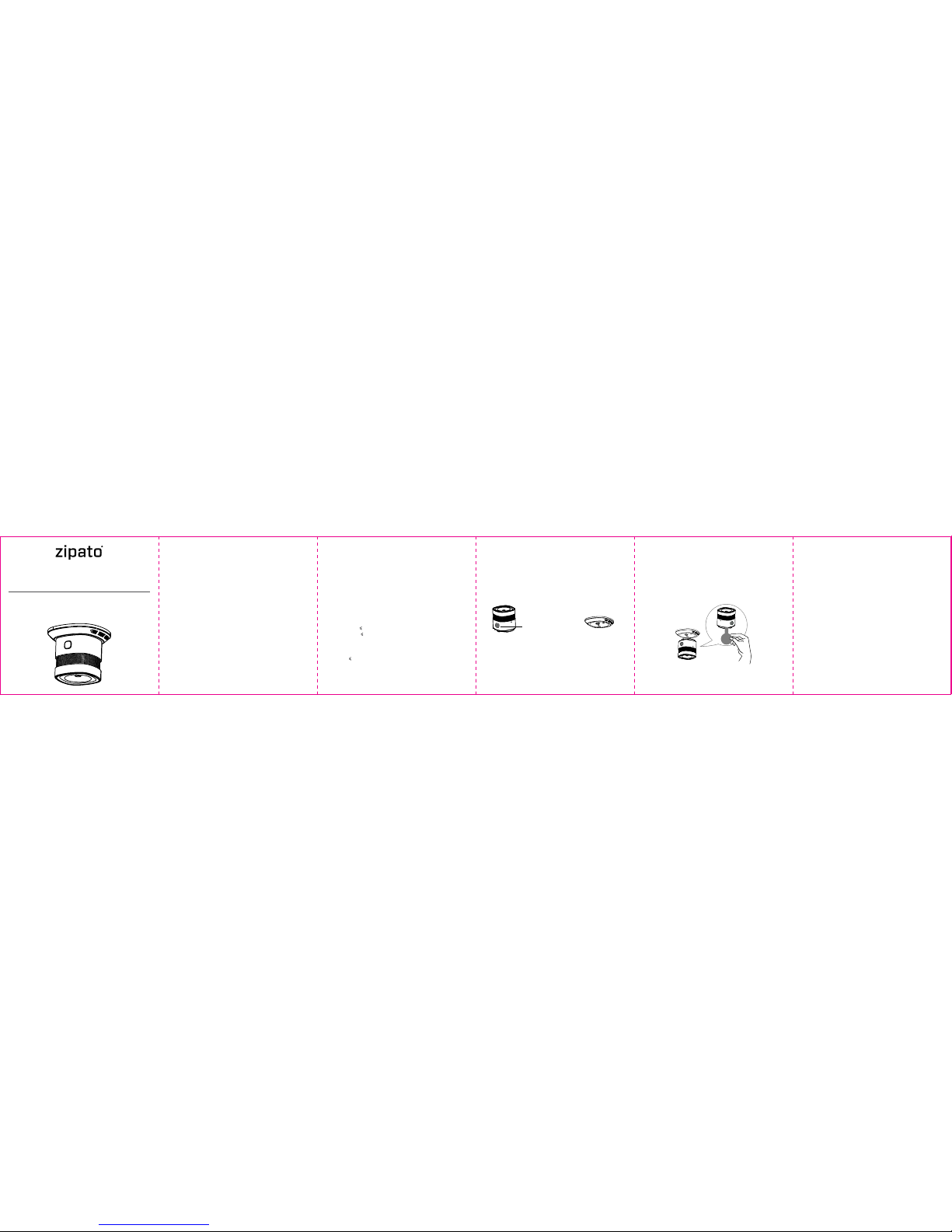

INSTALLATION STEP 1:
Anticlockwise rotate the bracket out from the installation
base, then remove the battery insulating strip to make the
sensor to power on.
WARNINGS
1. Specifically designed for home use.
2. Avoid installation in bathrooms and other ver y humid places,
dusty or greas y areas, or very air y place with air conditioning,
ceiling fans, etc.
3. Keep Smoke Sensor clean. Recommended to cleane ever y 6
months with soft brush.
4. Effective life span is 10 years.
INSTALLATION
1| CEILING MOUNTING
The preffered location to install the sensor is in the centre
of the ceiling becase smoke, heat and combustion products
rise to the ceiling and will lateral spread. Keep at least 30 cm
INTRODUCTION
This product is a Smart Smoke Sensor, a warning device. It can
not sense gas, heat, flame and cannot prevent or put out the fire.
It is capable of real time detection of smoke, visible particles
(smoldering fire) faster than ionization smoke alarms. Red LED
flashes rapidly and detectors sound alarm once the smoke/fire
danager has been detected. Smoke alarms should be installed in
all rooms where fire may happen.
SPECIFICATION
Working voltage: DC3V (CR123A Lithium batter y)
Static current: 20uA
Alarm current: 60mA
Alarm sound: 85dB/1m
Networking: Z-Wave
Working temperature: -10°C~+50°C
Humidity: 95%RH
Dimensions: 60 x 60 x 49.2 mm
TRADEMARKS
Zipato and the Zipato logo are registered Trademarks. All other
product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
NOTICE
Although Zipato has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may
contain technical inaccuracies, typographical, or other errors.
Zipato assumes no liability for any error in this publication, and for
damages, whether direct, indirect, incidental, and consequential
or otherwise, that may result from such error, including, but not
limited to loss of data or profits.
Zipato provides this publication “as is” without warranty of any
kind, either express or implied, including, but not limited to
implied warranties of merchantability or fitness for a particular
purpose. The published information in the manual is subject
to change without notice.Zipato reserves the right to make
changes in the product design, layout, and driver revisions without
notification to its users. This version of the Installation guide
supersedes all previous versions.
Test button and
LED indicator.
Alarm Bracket
INSTALLATION STEP 2:
1. DEVICE INCLUSION
- Click [Add] icon in Z-Wave PC Controller Program.
- Press the Net _Button 3 times within 1.5s, Green LED is
blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off.
2. DEVICE EXCLUSION
- Click [Remove] icon in Z-Wave PC Controller Program
- Press the Net _Button 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6
times, then turn off.
3. DEVICE TEST MODE
If Inclusion process is successful, Press Test _Button to test if
the device is working normally. Red LED blinks 3 times when
smoke is detected.
4. DEVICE DETECTION MODE
If Inclusion process is successful, the device will report alarm
information if detect the status change of smoke and no smoke.
Red LED blinks quickly when smoke is detected.

STATUS & TROUBLESHOOTING
STATUS LIGHT ALARM SUND
Normal Red LED falshes every 53 seconds No
Testing Red LED flashes quickly Rapid beeps
Alarm Red LED flashes quckly Rapid beeps
Mute mode Red LED flashes every 10 seconds No
Low power Red LED flashes every 40 seconds Beep every 40 seconds
Fault Red LED flashes every 40 seconds Beep every 40 seconds
Please refer to the following situations if the Smoke Sensor
isn’t working properly:
1. If batter y reaches service life, please replace it
2. Fault affected by dust or oil, please clean it
3. Check if the sensor is properly placed into bracket
9. WAKE UP NOTIFICATION
- Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Repor t
is Transmitted
INSTALLATION STEP 3:
Remove the double-sided adhesive membrane on the
mounting bracket and fit the smoke sensor into the bracket
by rotating it.
MUTE FUNCTION
Please make sure that there is no real danger of fire when
using the mute function. Under known and non-fire alarm
conditions, please do not block or by any other form prohibit
alarming. Press the “Test/Mute” button to lower sensitivity
and relieve alarm.
Press test button for 3 seconds until alarm sounds.Do this test
at least once a week.
BATTERY REPLACEMENT
Turn right to dismantle the mounting base of the device.
Replace the battery correctly, following the battery positive
and negative electrode. Turn left to install the mounting base
of the device (before install the mounting base, you should
must insert batter y firstly , other wise the mounting base will
not be fixed).
Please pay attention to environmental protection and dispose
used batteries properly.
smoke via Lifeline.
2-When the sensor detects status change between smoke and
no smoke, the device will be triggered.
7. NOTIFICATION REPORT
- Press or release test button, or smoke status is changed
(smoke detected or no smoke detected) , Notification Repor t
is transmitted
NOTIFICATION TYPE EVENT
Smoke Alarm
(0x01)
Previous Events cleared ( 0x00)
Smoke detected, Unknown Location(0x02)
8. BATTERY REPORT
- Batter y Report is tr ansmitted when power on the device.
- Batter y Report is tr ansmitted once a day.
- Bat tery Re port i s transmit ted when the batter y falls les s than 10%
BATTERY VOLTAGE BATTERY LEVEL
2.4V ~ 3.0V 10~ 100 (%)
Under 2.4V 0xFF
CR123A
5. DEVICE FACTORY RESET
- Long press Net_Button while installing batteries in HS1SA-Z.
- Device Reset Locally notification is Transmitted.
- Please use this procedure only when the network primary
controller is missing or otherwise inoperable.
6. ASSOCIATION & ASSOCIATION GROUP INFORMATION
- Lifeline between controller and HS1SA-Z
- Supported command classes
Batter y report, Notification repor t, and Device Reset Locally
notification, Binary report.
- Maximum supported nodes are 5.
- Association Group description
• Association group 1: Lifeline association group
Include command classes: Battery report, Notification report,
and Device Reset Locally notification, Binary repor t.
• Association group 2: Root Device group(Binary Sensor)
Binary Sensor Command Class: Compatible with 300 series
1-Binary Sensor reports status of smoke or no smoke via Lifeline.
2-When the sensor detects status change between smoke and
no smoke, the device will be triggered.
• Association group 3: Root Device group(Notification)
1-Notification repor ts reports status of detect smoke or no
