Zlpower EX series User manual

EX SERIES
EX6K(L) EX10K(L) EX3110K(L)
EX3115K(L) EX3120K(L)
USER
MANUAL

Thank you for using our product.
Observe the warnings on the machine and manual
strictly and properly keep the manual. Do not operate
the UPS before read safety notes and operation
instruction.

Operation safety
1. Read safety notes carefully and thoroughly before operation to
ensure on using correctly, and save the manual properly.
2. Pay attention to alarm table on the UPS and operate according to it.
3. Do not install the UPS under the circumstances of direct sunlight,
running water, or excessive humidity.
4. Do not install the device in the environment where is close to heating
facilities such as space heaters or furnaces.
5. Put the UPS in a room with good ventilation and safe distance. Refer
to manual to perform installation.
6. Clean with dry stuff, do not use liquid or spray detergent.
7. In the event of fire alarm occurring in the vicinity, please use dry
power fire extinguishers. The use of liquid fire extinguishing agents
may cause electric shock.
Electric safety
1. Verify that cabling and battery cable polarity are correct and earth
connection correct before switch on the UPS.
2. Before moving or re-wiring the UPS, please disconnect the mains
source and make sure UPS shut down completely. Or else, the
output terminal may carry with live voltage, thus present with electric
shock risk.
3. Please use fittings and accessories appointed by us.
4. To meet the requirement of EMC, the length of the output cable
should be within 20m.
Battery safety
1. Battery’s lifetime will be shorten with the increase of ambient
temperature, so the battery should be replaced periodically to ensure
normal UPS operation and enough backup time.
2. Battery maintenance should be performed or supervised by people
with professional knowledge of battery.
3. Please use the same number and type of battery when replace
battery.
4. Battery can present a risk of electrical shock and high short circuit
current. The following precaution should be observed when replace
battery in order to avoid hurt people with electrical shock risk.
A. Remove watches, rings, or other metal objects from the hands;
B. Use tools with insulated handles;

C. Wear rubber gloves and boots;
D. Do not lay tools or metal parts on the battery;
E. Disconnect the load before remove the terminal of battery.
5. Do not dispose battery in the fire as they may explode.
6. Prohibit unprofessional people from opening or damaging the battery,
It may cause an electrolyte leakage that is toxic and harmful to the
skin and eyes. If electrolyte comes into contact with the skin, wash
the affected area with plenty of clean water immediately and go to the
hospital for a check.
7. Do not make the positive and negative terminals of the battery short
circuit; otherwise it may cause electric shock or fire.
Maintenance
1. The operating environment and storage method are two main factors
affecting the lifetime and reliability of the UPS. Hence, it is advisable
not to use the device in the following environments.
A. Where the temperature and relative humidity are outside the
specifications (temperature: 0℃～40℃, relative humidity: 20%～
90%.)
B. Where vibrations or shocks are existing.
C. Where with metal dust, corrosive substances, salt or inflammable
gas.
2. If the UPS will remain idle for a long period, it must be stored in a dry
environment. The storage temperature range should be between －
25℃～＋55℃(without battery). Make the ambient temperature over
0℃and keep more than 2hours before switch on the UPS.

Catalog
1. Brief Introduction…………………………………………………………….2
1.1 Description of commonly used symbols……………………………….3
1.2 Front View………………………………………………………………...4
1.3 Back View…………………………………………………………………5
1.4 Product Specification…………………………………………………….6
2. Installation ……………………………………………………………………8
2.1 Unpacking Inspection …………………………………………………..8
2.2 Wiring Table ……………………………………………………………..9
2.3 UPS Connection………………………………………………………..10
2.4 Operation Procedure of External Battery for Long Backup Time UPS
…………………………………………………………………… 12
2.5 Connect to Computer interface………………………………………. 13
2.6 Parallel Card (Optional Accessory) …………………………………. 14
2.7 Installation of Intelligent Card …………………………….......…….18
2.8 EPO ………………………………………………………………………20
2.9 Maintenance Switch …………………………………………………….20
2.10 Dust-proof (Optional Accessory) …………………………………….22
2.11 Box of Insulating Transformer (Optional Accessory) ………………22
3. Control Panel ……………………………………………………............22
3.1 Panel Description ................................................... ……..............22
3.2 Button Description................................. ………..............................23
3.3 Panel Display & Meaning ........................ …..................................24
3.4 Fault Code & Meaning ................................................................25
4. Operation ………………………………………………………………….27
4.1 Turning on/off UPS …………………………………………………….27
4.2 Operate mode ………………………………………………………….29
5. Battery Maintenance……………………………………………………….31
6. Warranty ……..........................................................………….......…32

2
1. Brief Introduction
The Online EX Series is an uninterruptible power supply incorporating
double-conversion technology, optional EPO and maintenance switch,
parallel redundancy. It provides perfect protection specifically for computer
equipment, communication systems and computerized instruments.
Its true online double-conversion design eliminates all mains power
disturbances. A rectifier converts the alternating current from the utility
power to direct current. This direct current charges the batteries and
powers the inverter. On the basis of this DC voltage, the inverter
generates a pure sinusoidal AC voltage, which is constantly powering the
loads.
In the event of power failure, the maintenance-free batteries power the
inverter. If overload or inverter failure, UPS will work on bypass mode to
power with mains power. After load become normal, it will still work on
battery mode.
This manual is applicable to the following models:
lEX6K: Standard model with built-in batteries.
lEX6KL: Long backup time model, it is able to connect with the
external battery bank.
lEX10K: Standard model with built-in batteries.
lEX10KL: Long backup time model, it is able to connect with the
external battery bank.
lEX3110KL: three-phase input and single-phase output, long backup
time models, it is able to connect with the external battery bank.
lEX3115KL: three-phase input and single-phase output, long backup
time models, it is able to connect with the external battery bank.
lEX3120KL: three-phase input and single-phase output, long backup
time models, it is able to connect with the external battery bank.
Above all models contain standard rev and professional rev, User can
select corresponding model by its requirement, compared with standard
rev, professional rev (Model number with “P”) has EPO switch and bypass
maintenance switch built-in, about the function of EPO and bypass
maintenance switch please refer to 2.8 and 2.9.

3
1.1 Description of symbols
Meaning
Symbols Meaning
Notice or Fault
High voltage risk
AC
DC
Earth protection
Circle
Do not place with
sundries
Overload
Battery inspection
Power on/off UPS

4
1.2 Front View
1.3 Rear View
EX6KL/EX10KL
EX6K/EX10K/EX3110KL
EX3115KL/EX3120KL
EX10K
EX6K

5
EX6KL EX10KL
EX3110KL
EX3115KL/EX3120KL

6
①Computer Interface
②Intelligent Slot
③Fan
④Parallel Card Plate (selectable accessory)

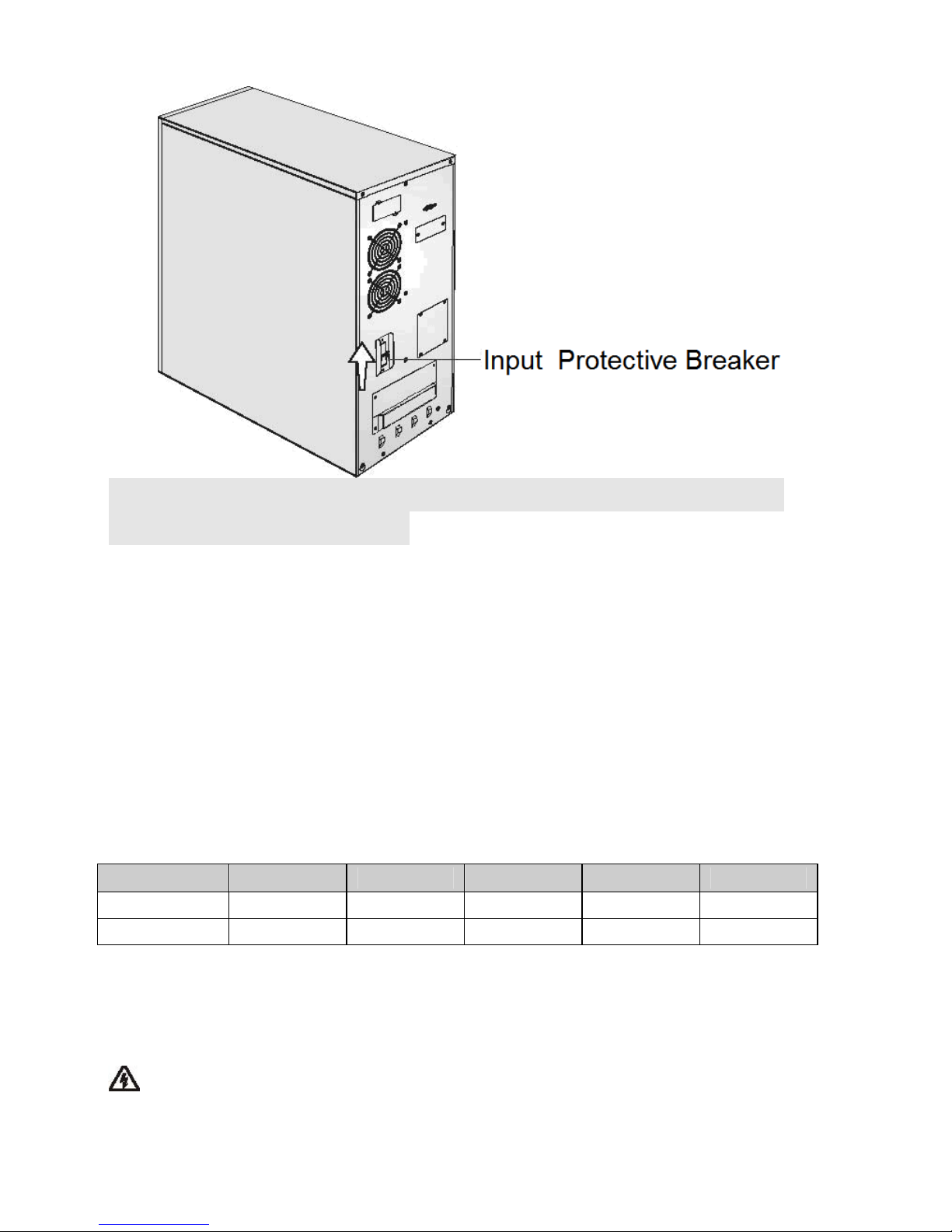

⑤Input Protective Breaker
⑥Maintenance Switch cover plate (Maintenance bypass switch is just
available for professional rev)
⑦Terminal Blocks Cover
⑧Self-locking frame
⑨EPO (Just available for professional rev)
Remarks:
1. About the model with parallel card and maintenance switch please
remove the cover of ④and ⑥, and then you can see parallel card
and maintenance switch.
2. The appearances above are available for standard rev and
professional rev.
1.4 Product Specification
Model EX6K EX6KL EX10K EX10KL EX3110KL EX3115KL EX3120KL
Dimension(
W×D×H)
248×
500×
616
240×
500×
460
248×
500×
616
240×
500×
460
248× 500× 616
Net
Wight(kg)
57 18 67.5 20 27 35 35
Power
Apparent
Power
/Active
Power
6KVA/4.8KW 10KVA/8KW 15KVA/
12KW
20KVA/
16KW
Mains
Voltage
Range
120VAC～275VAC
Current 33A
MAX
37A
MAX
55A
MAX
59A
MAX
86A
MAX
112A
MAX

7
Frequenc
y Range
46Hz～54Hz
Power
Factor
0.99 0.95
Output
Voltage 220VAC×（1±1%）
Current 27A 45A 68A 91A
Frequenc
y
46Hz~54Hz (Line Mode. Same as input frequency), 50Hz×(1±0.1%)(Battery Mode)
Power
Factor
0.8
Overload
Capability 105%～125%,1 minutes minimum, then transfer to bypass and alarm,Bypass over
load > 30 minutes then turn off output；
125%～135%，30 seconds minimum, then transfer to bypass and alarm. Bypass over
load > 1 minutes then turn off output;；
>135%，0.5 seconds minimum, then transfer to bypass and alarm.
Crest Factor 3：1
THD THD<2% ( Linear Load)
Battery(High ambient temperature shortens the battery’s lifetimes）
Backup Time4minutes
(Full Load)
Depend on
the capacity
of external
battery
3minutes
(Full Load)
Depend on the capacity of external battery
Recover
Time
<7 Hours
Comeback
to 90%
Depend on
the capacity
of external
battery
<7 Hours
Comeback
to 90%
Depend on the capacity of external battery
*. The maximum input current is got at input 187V, full load and full
charge current.
Model
EX6K
EX6KL
EX10K
EX10KL
EX3110KL
EX3115KL EX3120KL
EMC
ESD IEC61000-4-2 Level 4
RS IEC61000-4-3 Level 3
EFT IEC61000-4-4 Level 4
Surge IEC61000-4-5 Level 4
Operating
Temperature
0℃～40℃

8
Storage
Temperature
-25℃～55℃
Humidity 20%～90% (Non condensing)
Altitude <1000m
High altitude area load=rated power × derating coefficient (corresponding
to altitude)
Altitude(m) 1000 1500 2000 2500 3000 3500 4000 4500 5000
Derating
coefficient
100% 95% 91% 86% 82% 78% 74% 70% 67%
Note: if the UPS is installed or used in the place where the altitude is
above than 1000m, the output power must be derated in using, please
refer to the above table.
2. Installation
Dangerous: For safety, please cut off the mains power switch before
installation, the battery breaker also need to be cut off if it is a long backup
time model (“L” model)
Note: 1. Installation and wiring must be performed in accordance with
the local electric code and the following instructions by professional
people.
2. Suggest installing on ground directly.
2.1 Unpacking Inspection
1. Inspect the appearance of the UPS to see if there is any damage
during transportation. Do not turn on the unit and notify the carrier
and dealer immediately if there is any damage or lacking of some
parts.
2. Unpack the packaging and check the package contents. The
shipping package contains:
A UPS
A user manual
Ten connection terminals

9
Recycle: The packing material is recycled, please reserve packing
material for using in the future.
2.2 Wiring Table
Note：The diameter of connection wire depend on rated power of
UPS
In the below table, for single phase model, “L” represents line wire, for
three phase model, “L” represents the wire of L1,L2,L3 and the diameter
of three phase is the same.
Model EX6K EX6KL EX10K EX10KL EX3110KL EX3115KL EX3120KL
In
pu
t
G
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
N
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
L
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
Ba
tt
er
y
+
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
-
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
G
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
Ou
tp
ut
L
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
N
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
G
10AWG
6m㎡
10AWG
6m㎡
8AWG
10m㎡
8AWG
10m㎡
8AWG
10m㎡
6AWG
25m㎡
6AWG
25m㎡
2.3 UPS Connection
Dangerous: The rated current of mains breaker installed by user must bigger than
input current of UPS, or the mains breaker may be damaged.(About maximum input

10
current please refer to 1.4)
1. Select proper wire according to wiring table
2. Open the terminal block cover①on the back panel of UPS
3. Connect the input and output wires to the corresponding input and output
terminal, if need connect batteries then connect the battery cables to the battery
input terminal.
4. Lock input, output and battery wire on self-locking frame②by self-locking cable,
regulate the position of self-locking cable and fix it.
Note: you must make sure that the input and output wires and the input and output
terminals are connected tightly.

11
Single phase model terminal block:
EX6K/EX10K (BAT Input terminal is useless) EX6KL/EX10KL
Three phase model terminal block:
EX3110KL/EX3115KL/EX3120KL
5. Install the terminal block on back panel and screw tighten it.
6. After connecting wires, turn on main power, and then turn on UPS input
protective breaker and UPS.

12
2.4 Operation Procedure of External Battery for Long
Backup Time UPS
The nominal DC voltage of external battery pack is 192VDC. Each battery
pack consists of 16 pieces of 12V maintenance free batteries in series. To
achieve longer backup time, it is possible to connect multi-battery packs,
but the principle of “same voltage, same type” should be strictly followed.
The procedure of battery connection and installation is very important; the
procedure of installing battery bank should be complied with strictly.
Otherwise you may encounter the hazardous of electric shock. Please
comply with below procedure.
1. A DC breaker must be connected between the battery pack and the
UPS. The capacity of breaker must be not less than the data specified in
the general specification.
16 pieces batteries 192VDC
Model EX6K(L) EX10K(L) EX3110KL EX3115KL EX3120KL
BAT Voltage 192VDC 192VDC 192VDC 192VDC 192VDC
BAT Current 34A. max 56A. max 56A. max 83A.max 112A. max
2. Set the battery pack breaker in “OFF” position and connect the 16
pieces of batteries in series, select proper battery wire to connect batteries
and UPS (refer to 2.2 wiring table).
Dangerous: You must connect the external battery cable to the battery
first, if you connect the cable to the UPS first, you may encounter the

13
hazardous of electric shock.
3. To complete the connection by connecting the external battery cable
with corresponding terminal on terminal block of the UPS. Do not attempt
to connect any load to the UPS now. You should connect the input power
wire to the right position first. And then set the breaker of the battery pack
in the “ON” position. After that, set the mains input protective breaker in
the “ON” position. The UPS begins to charge the battery packs at the time.
Note: The battery protective earth ground of UPS is case ground on
the right of terminal block of UPS, The symbol is .
2.5 Connect to Computer interface
Computer interface: The type of signals, serial command (RS232), is
provided by the UPS to communicate with a host computer, User can use
WinPower software to monitor the UPS through the port.
1. Connect the RS232 communication cable to serial command port of
computer.
2. Connect the RS232 communication cable to serial command port of UPS.
The pin position of computer interface of UPS show as below：

14
2.6 Parallel Card (Optional Accessory)
1. Brief introduction of the redundancy
N+X is currently the most reliable power supply structure. N represents
the minimum UPS number that the total load needs; X represents the
redundant UPS number. The bigger the X is, the higher reliability of the
power system is. For occasions where reliability is highly depended on,
N+X is the optimal mode.
2. Parallel installation
Parallel function is a selectable function, user can buy parallel
function component (consist of parallel card and parallel cable)
then install by professional service person, the maximum
parallel quantity is 3 pieces, N UPS should be supplied by N
battery packs respectively,
1) Take down the parallel cover, connect the parallel cable:
Parallel card is the communication interface between UPSs
in parallel, connect parallel cable between UPSs in parallel
through parallel card

15
2) Connect the output wires of each UPS to an output breaker panel,
and then connect from output breaker panel to load.
Note:
The requirement of the output wiring is as following:
When the distance between the UPSs in parallel and the breaker panel
is less than 20 meters, the difference between the wires of input & output
of the UPSs is required to be less than 20%;
When the distance between the UPSs in parallel and the breaker panel
is greater than 20 meters, the difference between the wires of input &
output of the UPSs is required to be less than 10%.
3) UPS in parallel wiring diagram shows as below, the wiring of every
UPS should comply with wiring requirement of UPS in standalone,
4) Every UPS should be supplied by alone battery pack respectively

16
