Zoom 4380 User manual

Quick Start
English............................................... 3
Español............................................ 20
iHiFi BLUETOOTH HEADSET
and USB ADAPTER
for making SKYPE
™
CALLS

2

3
Making Skype™Calls With This Product
Thank you for choosing Zoom®. Your package includes:
•Zoom Bluetooth®Class 1 USB Adapter
•Zoom iHiFi™Bluetooth Headset
•Cable for charging the headset from a computer's USB
port
•CD-ROM with Adapter warranty and User Guide
You will need:
•A computer running Windows®Vista, XP or 2000 with an
available USB port
•Skype Internet phone service. If Skype is not already
installed on your computer, go to www.Skype.com and
download the free software. (Note to Windows Vista users:
Skype 3.1 works with most Vista installations.)
To set up your system to make phone calls over the Internet,
follow these steps:
1Charge the headset (page 4)
2Install the USB Bluetooth adapter on your Windows PC
(page 5)
3Configure the adapter and then pair your computer with
the headset (page 7)
4Configure Skype to use the iHiFi Bluetooth headset as its
sound device (page 12)
5Make and receive Skype calls using the headset (page 13)

Step 1: Charging the Bluetooth headset
On/Off
switch
Charging
LED
USB charging
jack
Charging
cable
Follow these steps:
aMake sure the computer is turned on and NOT set to go
into sleep mode after a period of inactivity.
bPlug one end of the charging cable into the computer's
USB port and plug the other end of the cable into the
headset's charging jack.
The headset’s charging LED is red during charging. It can
take up to 2 hours for the headset to become fully charged,
at which point the LED turns green.
cWhen the LED is green, unplug the charging cable from
the headset and the computer.
dSwitch off the headset until you're ready to use it.
The fully charged headset typically works for 12 hours.
Note: Zoom offers an optional iHiFi adapter for charging
without a PC. See www.zoom.com for more information.
4

Step 2: Installing the USB Adapter
Important: Install the software before you plug the
adapter into your computer.
aInsert the installation CD into the CD drive. The CD should
start automatically. (If it does not, double-click the
Computer or My Computer icon on your desktop and
then, in the Computer/My Computer window, double-click
the Zoom icon.)
Windows Vista users:At the User Account Control
message, click Continue.
bIn the Language Selection window, choose your
language.
cIn the next window, select Installation Wizard, then
choose Bluetooth USB Adapter.
dIn the Windows Choose Setup Language dialog box,
select the language that will appear in the Adapter
configuration/pairing screens, the online help, and the User
Manual, and click OK.
eIn the InstallShield Wizard dialog box, follow the
prompts to install the software.
5

When the License Agreement dialog box appears, click
I accept the terms . . . and then click Next.
Windows XP and 2000:
In the Custom Settings dialog box, leave the Startup
Shortcut and Desktop Shortcut boxes checked, and
click Next.
fThe installation may take a few minutes. When it is
complete, click Finish to exit.
Note the new Bluetooth icon on your desktop:
gRemove the CD from the DVD/CD drive and restart your
computer.
6

Step 3: Configuring the Adapter and pairing
your computer with the Bluetooth Headset
Pairing is the procedure that establishes a wireless link
between two Bluetooth devices.
To pair the computer and the headset:
aTurn on your computer if it is not already on.
bPlug the Bluetooth Adapter into a USB port on the
computer.
A message tells you that your new hardware is installed
and ready to use.
cIf the software does not start automatically, double-click
the Bluetooth icon on your desktop to open the Bluetooth
main window.
Windows Vista: In the User Account Control
message, click Continue.

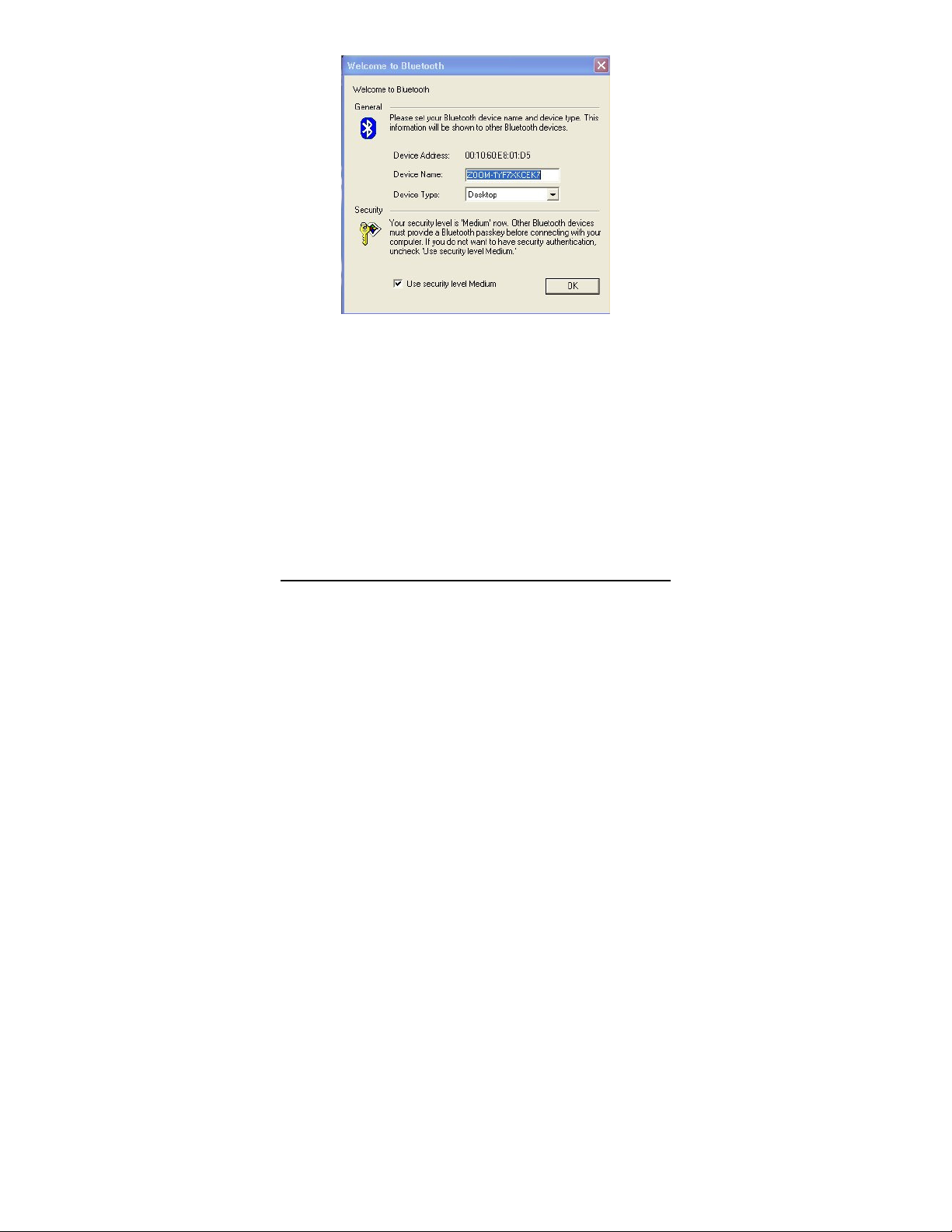

dIn the Welcome to Bluetooth dialog box, you can enter a
different Device Name to be displayed to other Bluetooth-
enabled devices.
Select your computer type from the Device Type list, leave
the Use security level Medium check box selected, and
click OK.
7

eTo start pairing, first turn on the headset and make sure it
is within a few meters of your computer.
The headset automatically goes into discoverable mode
(that is, it becomes visible to other Bluetooth devices) and
its pairing LED flashes red and blue to indicate that it is
searching for another device to pair with.
8

Pairing
LED
fThen open the My Bluetooth menu and select Bluetooth
Device Discovery to see the available devices in the area.
The devices are shown in orbit around the sun, which
represents your computer. Right-click the icon for the BT
AV Headset, and on the popup menu select Pair Device:
9

gWindows XP and 2000: In the Enter Bluetooth
Passkey dialog box, enter 0000, and click OK.
All operating systems: The headset icon becomes
orange to indicate that it is paired with the adapter.
The headset should pair quickly with the computer. When
pairing takes place, the headset's Pairing LED flashes blue
for 10 seconds and then turns off.
Note: If pairing doesn't occur, see the Notes on Pairing
on page 15.
hTo connect the headset to Bluetooth services, first open
the My Bluetooth menu and select Bluetooth Service
Discovery. At the top of the screen, the headphones and
headset services icons are highlighted. You need to
connect to both services. In the main part of the screen,
right-click the BT AV Headset icon and select
Connect→Bluetooth Advanced Audio Service. Then
right-click the icon again and select Connect→Bluetooth
Headset Service.
The BT AV Headset icon and the icons for the two services
become green to indicate that they are connected. In the
main window (shown opposite) you will see a small red ball
travelling on a dotted line between the headset and your
computer.
10

i(Optional) If you want to place connection shortcuts on
your desktop, right-click again on the BT AV Headset icon,
select Save Connection As Shortcut→Bluetooth
Advanced Audio Service. Repeat for Bluetooth Headset
Service.
Now, whenever you want to pair with and connect to the
headset, just turn the headset on and double-click both
shortcut icons:
BT AV Headset
(AV Headphone)
BT AV Headset
(Audio Device)
To unpair and disconnect the headset, see page 17.
11

Step 4: Configuring Skype to Use the Headset
as Its Sound Device
aDouble-click the Skype icon in the Windows system tray.
bFrom the Tools menu, select Options.
cIn the Options dialog box, in the left menu pane, click
Sound Devices.

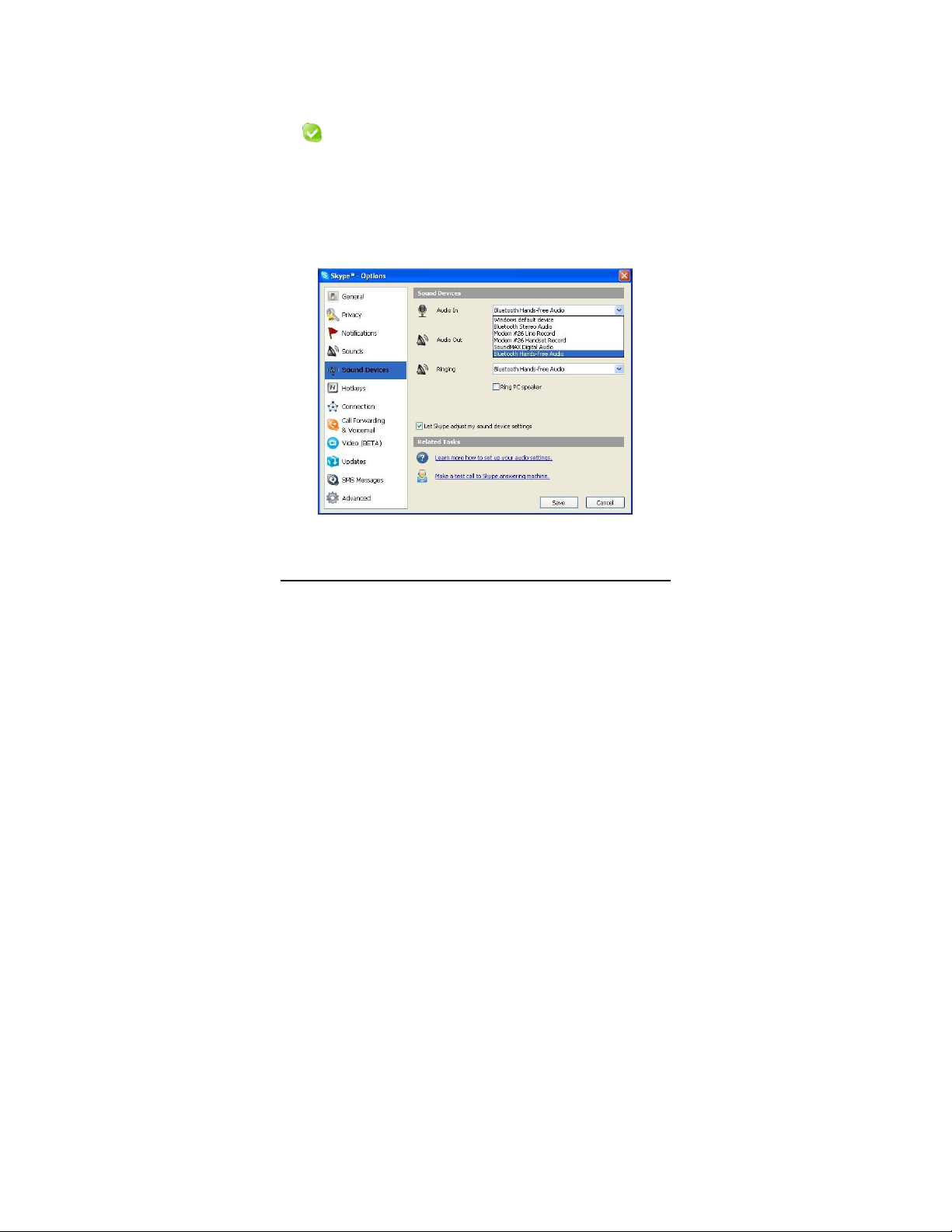

dIn the Sound Devices dialog box, make sure that
Bluetooth Hands-free Audio is displayed in the Audio In,
Audio Out, and Ringing list boxes:
eClick Save and exit the Skype configuration software.
12

Making and Receiving Calls Using the Headset
Volume
Up
Pairing LED
Stop/
Ignore call
Volume
Down
Play/Pause
Back
Forward/
Phone
Microphone
•To make a call, simply open Skype and select a contact
from your Skype Contacts list or click the Dial tab to enter
a number.
•When a Skype call comes in, you will hear the ring over
your headset. Flip down the microphone and press the
headset's Phone button to answer.
If you don't want to take the call, you can reject it by
pressing the Stop button.
•To end a call, press the Phone button.
13

Listening to music through the headset
To listen to tunes stored on your computer, simply go to the
folder where you keep your music downloads and select the
songs.
If a Skype call comes in while your music is playing, you will
hear the ring through the headset. Just press the Phone
button on your headset to take the call, or the Stop button to
ignore the call and continue listening to music.
When the call is over, press the Phone button again to hang
up and return to your music.
Note: The button functions for listening to music on your
computer are shown below in italics.
Button Function
Answer/end
phone call or
Forward
Lets you answer or end a phone call.
In Idle state, hold down 2 seconds to redial
the most recently dialed number.
Plays next song. Press twice to skip ahead
two songs, three times to skip ahead three
songs, etc.
Pairing LED
Flashes red and blue while pairing, flashes
blue when paired, and turns off after 10
seconds.
Back
Plays previous song. To skip back two
songs, press twice; to skip back three,
press three times, etc.
14

Microphone Flips down for phone conversations.
Play/ Pause
Mutes/unmutes the microphone.
Toggles music on and off.
Stop
Rejects an incoming call.
To power off the headset, hold for 4
seconds.
To power back on and re-initiate pairing,
hold again for 4 seconds.
Ends the music.
Volume up
Increases sound volume. System beeps at
maximum.
Volume down
Decreases volume. System beeps at
minimum.
Caution from The American Speech-Language-Hearing
Association (ASHA)
To avoid hearing damage, ASHA counsels headphone
users to turn down the volume, take frequent listening
breaks, and wear headphones like Zoom's that fit over the
ears to block backgroud noise.
Notes on Pairing
•Pairing usually takes only about 10 seconds. However, it
can take up to three minutes if there are other Bluetooth-
enabled devices nearby. Move those devices out of range
or switch them off.
15

16
•The headset stops working if it gets too far away from the
computer – for example, if you move more than 30 meters
(100 feet) away from your computer without taking your
headset off. If this happens, the headset goes into Idle
mode, and the Pairing LED flashes blue intermittently. If
you come back in range within three minutes, the headset
automatically becomes paired with the computer again.
If you don't come back within range within three minutes,
the headset goes into Sleep mode. To restart pairing, turn
the headset off and then on again with the On/Off button.
Pairing should take place within 10 seconds.
Pairing LED Status Explanation
Red/blue alternate
flashing
Searching for a device,
attempting to pair, or pairing
Blue flashing Paired. After 10 seconds, the LED
turns off.
Intermittent blue
flashing
Idle (not paired) or attempting to pair
with most recently paired device.
After three minutes, headset goes
into Sleep mode and LED turns off.
Intermittent red
flashing
Low battery
No indication Paired or in Sleep mode.

17
Disconnecting and Unpairing
•To disconnect, right-click the BT AV Headset icon and
select Disconnect→Bluetooth Advanced Audio Service.
Then right-click the headset icon again and select
Disconnect→Bluetooth Headset Service. The headset
icon turns from green to orange to indicate that it is
disconnected.
•To unpair your computer and the headset, right-click the
BT AV Headset icon and select Unpair. The icon turns
from orange to gray to indicate that it is no longer paired.
(To see the color change to gray, you may have to turn off
the headset, open the My Bluetooth menu, and select
Bluetooth Device Discovery again.)
If You Need Help
For assistance, please go to www.zoom.com and select
Technical Support. From here you can register your product,
contact our technical support experts, use our intelligent
database SmartFacts™, and/or get warranty information.
If you choose to call a Zoom technician, the appropriate
number depends on your country:
US: [phone] UK: 0870 720 0090
Portugal: [phone] Spain: [phone]
Switzerland: [phone] Other (US number):
[phone]

Regulatory Information
U.S. FCC Part 15 Emissions Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity
Déclaration de conformité Konformitätserklärung
Δήλωση Συμμόρφωσης Dichiarazione di conformità
Deklaracja zgodności Declaração de Conformidade
Declaración de conformidade Konformitetsdeklaration
Uyum BeyanatıCam kết vềsựtuân thủởChâu Âu
Manufacturer/Producent/Fabrikant/
Constructeur/Hersteller/Κατασκευαστής/Fabbric
ante/Fabricante/Tillverkare/Üretici/Nhà sản xuất
Zoom Technologies, Inc.,
207 South Street,
Boston, MA 02111, USA
617-423-1072 www.zoom.com
Brand/Varemærke/Merk/Marque/Marke/Μάρκα/
Marchio/Marka/Marca/Märke/Thương hiệu
Zoom Bluetooth Stereo
Headphones/Headset
Type/Typ/Μάρκα/Tipo/Türü/Kiểu mẫu Model 4380
Brand/Varemærke/Merk/Marque/Marke/Μάρκα/
Marchio/Marka/Marca/Märke/Thương hiệu
Zoom Class 1 Bluetooth USB
Adapter
Type/Typ/Μάρκα/Tipo/Türü/Kiểu mẫu Model 4311F
The manufacturer declares under sole responsibility that this equipment is compliant to
Directive 1999/5/EC via the following. The product is CE marked.
Producenten erklærer under eneansvar, at dette udstyr er i overensstemmelse med direktivet
1999/5/EC via følgende. Dette produkt er CE-mærket.
18

De fabrikant verklaart geheel onder eigen verantwoordelijkheid dat deze apparatuur voldoet
aan Richtlijn 1999/5/ EC op grond van het onderstaande. Dit product is voorzien van de CE-
markering.
Le constructeur déclare sous son entière responsabilité que ce matériel est conforme à la
Directive 1999/5/EC via les documents ci-dessous. Ce produit a reçu le marquage CE.
Hiermit erklärt Zoom die Übereinstimmung des Gerätes modem mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EC. Dieses
Produkt ist das gekennzeichnete CE.
Οκατασκευαστής δηλώνει με αποκλειστική του ευθύνη ότι αυτό το προϊόν συμμορφώνεται με
την Οδηγία 1999/5/ΕC μέσω των παρακάτω. Αυτό το προϊόν φέρει τη Σήμανση CE.Il fornitore
dichiara sotto la sola responsabilità che questa apparecchiatura è compliant a 1999/5/EC
direttivo via quanto segue. Questo prodotto è CE contrassegnato.
Producent stwierdza że to urządzenie zostało wyprodukowane zgodnie z Dyrektywą
1999/5/EC. Jest to potwierdzone poprzez umieszczenie znaku CE na urządzeniu.
O fabricante declara sob sua exclusiva responsabilidade que este equipamento está em
conformidade com a Directiva 1999/5/EC através do seguinte. Este produto possui Marcação
CE.
El fabricante declara bajo su exclusiva responsabilidad que este equipo satisface la Directiva
1999/5/EC por medio de lo siguiente. Este producto tiene marca CE.
Bu ürünün imalatçısıtüm sorumluluk kendisinde olmak kaydıyla bu cihazın aşağıdaki tabloda
gösterilen biçimde 1999/5/EC (R&TTE Yönetmeliği) no.lu Yönetmeliğe uygun olduğunu
beyan etmektedir. Bu ürün CE İşareti taşımaktadır.
Nhà sản xuất cam kết với trách nhiệm của mình là thiết bịnày tuân theo Hướng dẫn
1999/5/EC thông qua các mục sau. Sản phẩm này được đánh dấu là CE.
19
73/23/EEC – LVD EN 60950-1:2001
89/336/EEC – EMC
EN 55022: 1998/A1:2001/A2: 2003
EN 301 489-1, v1.4.1: 2002
EN 301 489-17, v1.2.1: 2002
EN 300 328, v1.6.1: 2004
Director, Hardware Engineering /Direktør, Hardware
Engineering /Director, Sustaining Engineering /Directeur,
ingénierie de soutien /Direktør, Sustaining Engineering
/Διευθυντής, Μηχανικής Διατήρησης /Direttore, Hardware
Engineering /Dyrektor, Inżynieria ciągła /Director, Engenharia
de Manutençã /Director, Ingeniería de apoyo /Donanım
Mühendisliği, Müdür /Giám Đốc Kỹthuật Phần cứng
Andy Pollock
23 May, 2007
4386/TF
Boston, MA, USA

20
Como hacer llamadas Skype™ con este
Producto
Gracias por escoger Zoom®. Su paquete incluye:
•Adaptador USB Zoom Bluetooth®Clase 1
•Audífonos Zoom iHiFi™ Bluetooth
•Cable para recargar los audífonos en el puerto USB del
computador
•CD-ROM con la garantía y la Guía del Usuario del
Adaptador
Usted necesitará:
•Un computador con Windows®Vista, XP o 2000, con un
puerto USB disponible
•Servicio telefónico Skype Internet. Si Skype todavía no
esta instalado en su computador vaya a www.Skype.com y
descargue el software gratis.
(Nota para los usuarios de Windows Vista: Skype 3.1
funciona con la mayoría de las instalaciones de Vista).
Para instalar su sistema y hacer llamadas telefónicas por
Internet siga estos pasos:
1Recargue los audífonos (página 21)
2Instale el adaptador USB Bluetooth en su PC de Windows
(página 22)
3Configure el adaptador y luego empareje su computador
con los audífonos (página 24)
4Configure Skype para usar los audífonos iHiFi Bluetooth
como su dispositivo de audio (página 29)
