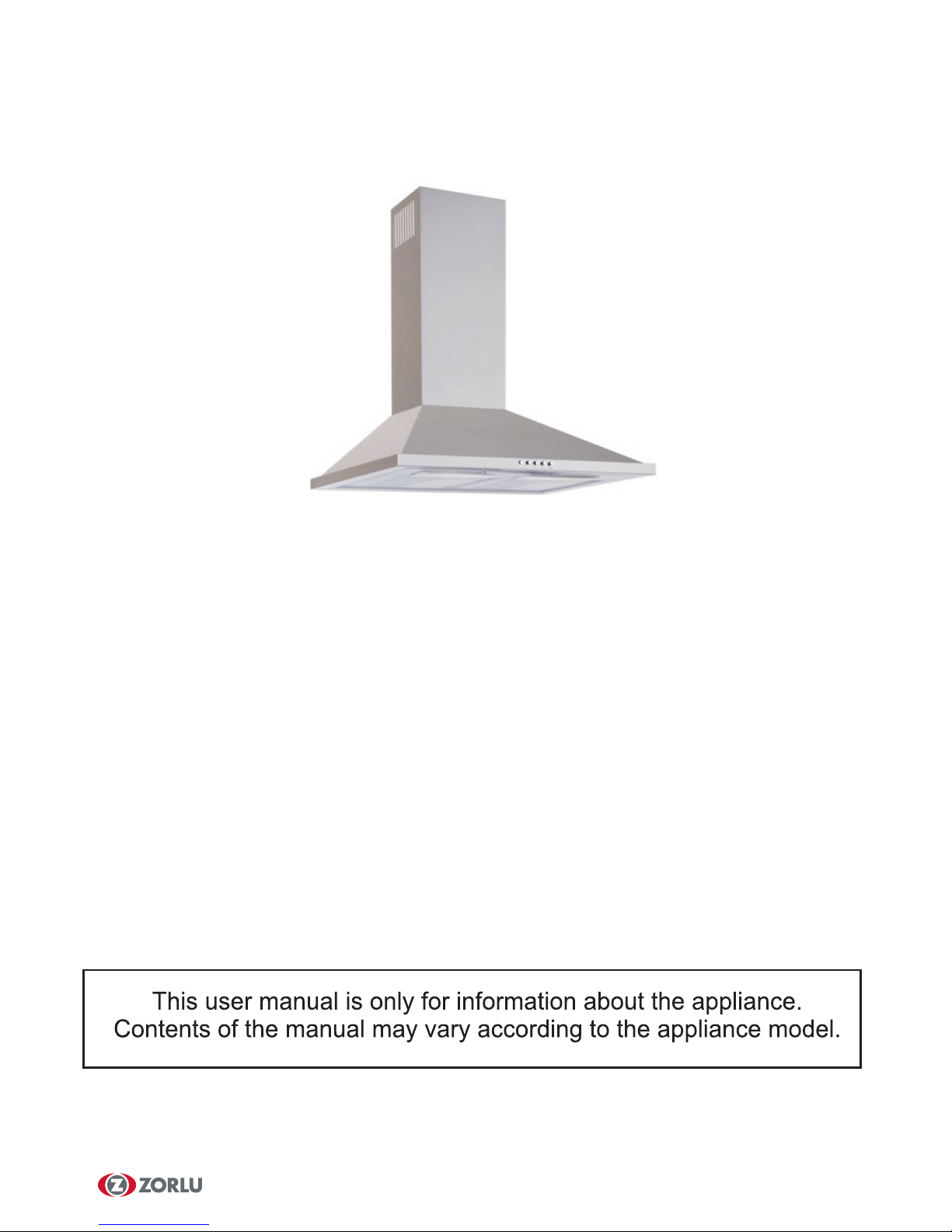

Zorlu ADB-6002 User manual

COOKER HOOD
USER MANUAL

2
r product.

3

6
7
2
4
5
1
3
1.Control switchs
2. Front panel
3. Aluminum casette fitler (dishwasher safe)
4. Lighting
5. Body
6. Internal chimney
7. External chimney
500,600,900
450
23.5
172 500
350
80 24
211
164
M in .6 7 2 M a x .1 0 0 2
20
Picture 1
Figure 1
4
INTRODUCTION OF DEVICE
MODELS
ADB-6002
ADX-6002
ADW-6002
ADX-6001
ADX-9002

*Before you take pot, fry-pan etc. from the hob,
put their lids on.
*Do not leave hot oil on the hob. Pots that have
hot oil in them may cause selfignition.
*Pay attention to curtains and covers during
cooking of meals like frying because oil may
flare up.
*Make sure that filters are changed in
convenience. Filters that are not changed at
appropriate time has risk of causing fire due to
oil that will be gathered on them.
*Do not use filter materials that are not flame
resistant instead of filter.
*Do not operate your product without
aluminum filter; do not remove filters when the
product is on.
*In case of flame, cut power of the product and
the cooking appliances. (Cut power of the
product by plugging it off the socket).
*Your product may cause fire risk if cleaning is
not applied periodically.
*Cut power of the product before maintenance
process. (Cut power of the device by
unplugging it)
*When chimney hood and the appliances
working with energy other than electricity are
operated at the same time, negative pressure
in the room should not be more than 4 Pa (4 x
10 bar)
*If there is an appliance working with fuel or
gaseous fuel at the same place with your hood,
this appliance's exhaust should be isolated
from its volume totally and the appliance
should be hermetic type.
*When chimney connection is applied to your
product, use ducts of 150mm or 120mm
diameter. Duct connection should be as short
as possible and should include few bends.
*This product is designed for usage at
home.
*Your products usage voltage is 220-240
Volts~50Hz
*Grounded plug is used at your product's
electric network cable. This cable should
definitely be plugged in a grounded
socket.
*All electrical networks should be set by a
qualified electrician.
*Installation applied by unauthorized
people may cause the product to operate
at low performance, damage of the
product and accidents.
*Power supply cable should not be
exposed to press or smash during
montage. Network cordon should not be
placed near the cookers; it may cause fire
if it melts.
*Do not plug into the socket before
installation of the product is completed.
*Keep the plug at a reachable place so
that you can unplug it in case of any
danger.
*Do not touch the lamps when they are on
for long time. Lamps may hurt your hand
as they will be hot.
*Kitchen cooker hoods are designed for
usage during normal and home-style
cooking. If it is used for other purposes,
failure risk occurs and it will be out of
warranty.
*Follow applicable rules and directions for
passing out outlet air. (This warning is not
valid for usage without chimney.)
*Flaming foods should not be cooked
under the product.
-5
5
WARNINGS AND SAFETY PRECAUTIONS

*Keep package materials away from
children as they may be dangerous for
them.
*Be sure that your child does not play with
the product. Do not allow kids to use your
product.
*If power supply cable is damaged, this
cable should be changed by its producer or
its service agency or a personnel who is a
specialist at the same level in order to
prevent a dangerous situation.
Warning about Transportation and Carriage
*All the materials used at package of your product are suitable for recycling.
*Please comply with the signs on the product's box during transportation.
*Hold the holders placed at sides of the box in order to carry your product.
If you need transportation;
*Keep the original box.
*Carry your product in its original box; comply with the carrying signs on the product's box.
If there is no original package;
*Do not put heavy material on the chimney hood.
*Keep the external surface from bash.
*Pack your product to avoid damages.
Installation, taking off your product from its package:
*Check if there is any deformation on your product.
*Transportation damages and failures should immediately be reported to the transportation
responsible.
*If you notice any damage please report to the seller.
*Do not allow children to play with packing material!!!
*In case of flame, cut power of the cooker
hood and the cooking appliances, cover the
flame. Never use water in order to
extinguish it.
Use “MAX 6 A” fuse at cooker hood
installment for your security.
“CAUTION: Accessible parts may become hot when used with cooking appliances”
''The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction''
6

Place of the Product:
After installation of your product, distance between
range hood and electrical hob should be at least 65
cm and gas hobs at least 75cm. Figure 2
Installation, taking off your product from its package:
*Check if there is any deformation on your product.
*Transportation damages and failures should immediately be reported to the transportation
responsible.
*If you notice any damage please report to the seller.
*Do not allow children to play with packing material!!!
ASSEMBLY UNDER CLOSET
4 Holes are bored on the wooden plate under yhe closet by using assembly pattern.
Achimney outlet hole larger 130 mm is bored on this wooden plate by using assembly pattern.
Paste the montage scheme to the surface where you would like to install your product and drill
holes with a Ø8 mm screw machine from the points ( A,B,C,D) . To install chimney part, use Ø4
mm driller by taking reference of min./max. height dimensions.
Feeding Voltage 220-240 V 50Hz
Motor Isolation Class
Isolation Class
F
CLASS I
7
INSTALLATION OF THE CHIMNEY HOOD
TECHNICAL SPECIFICATIONS

A,B = Ø8
AB
min.650-max.750mm min.750-max.800mm
ELECTRICITY GAS
150
183
Nailing Dowels
Nail the Ø10 mm dowels to the (A,B,C,D) holes for the
hanging screws .
For chimney part, fix 2x6 mm dowels to the holes drilled
with Ø4 mm . Picture 2
AB
Fixing of the Hanging Screws
Fix the 5,5x45 screws to the Ø8 dowels (A,B) that you
already fixed to the wall.
The distance between wall and screw top should be 5mm.
Picture 3
Picture 2
Picture 3
8

Fixing of the chimney hood

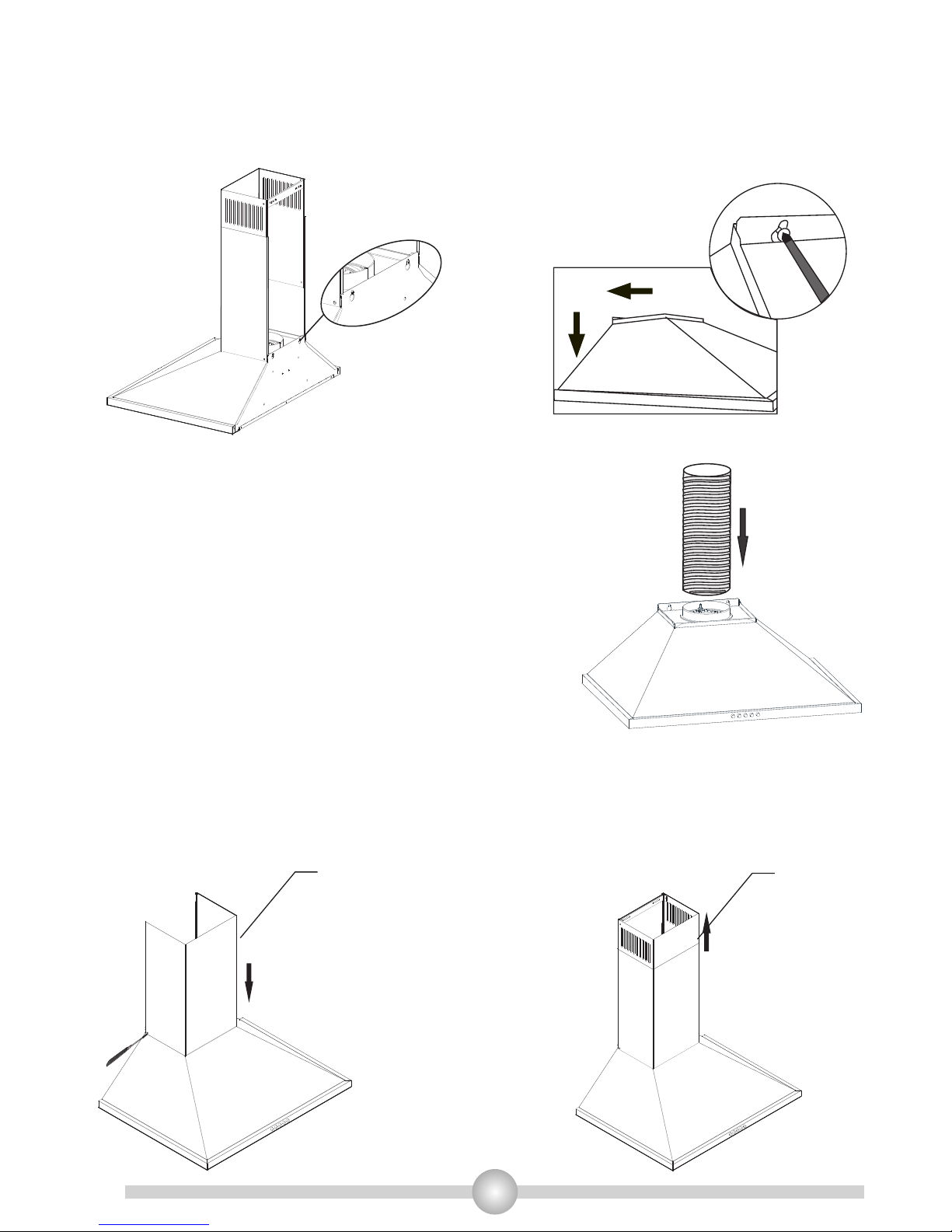

This model is not available with hanging plate. Install your product from the slot on the
backwards and then fix the screws. Figure 3-3a
Fixing of the aluminium pipe
Connect aluminum flexible pipe to outlets on the product
and kitchen wall. Ensure connection will not lose while your
product is operated on maximum airflow level. Figure 4
Place chimneys over body.
To fix the chimney on body use 3,9x x 9,5 RYSB screws. Figure 5-5a
External
chimney
Internal
chimney
Figure 3
Figure 3a
Figure 4
Figure 5 Figure 5a
9

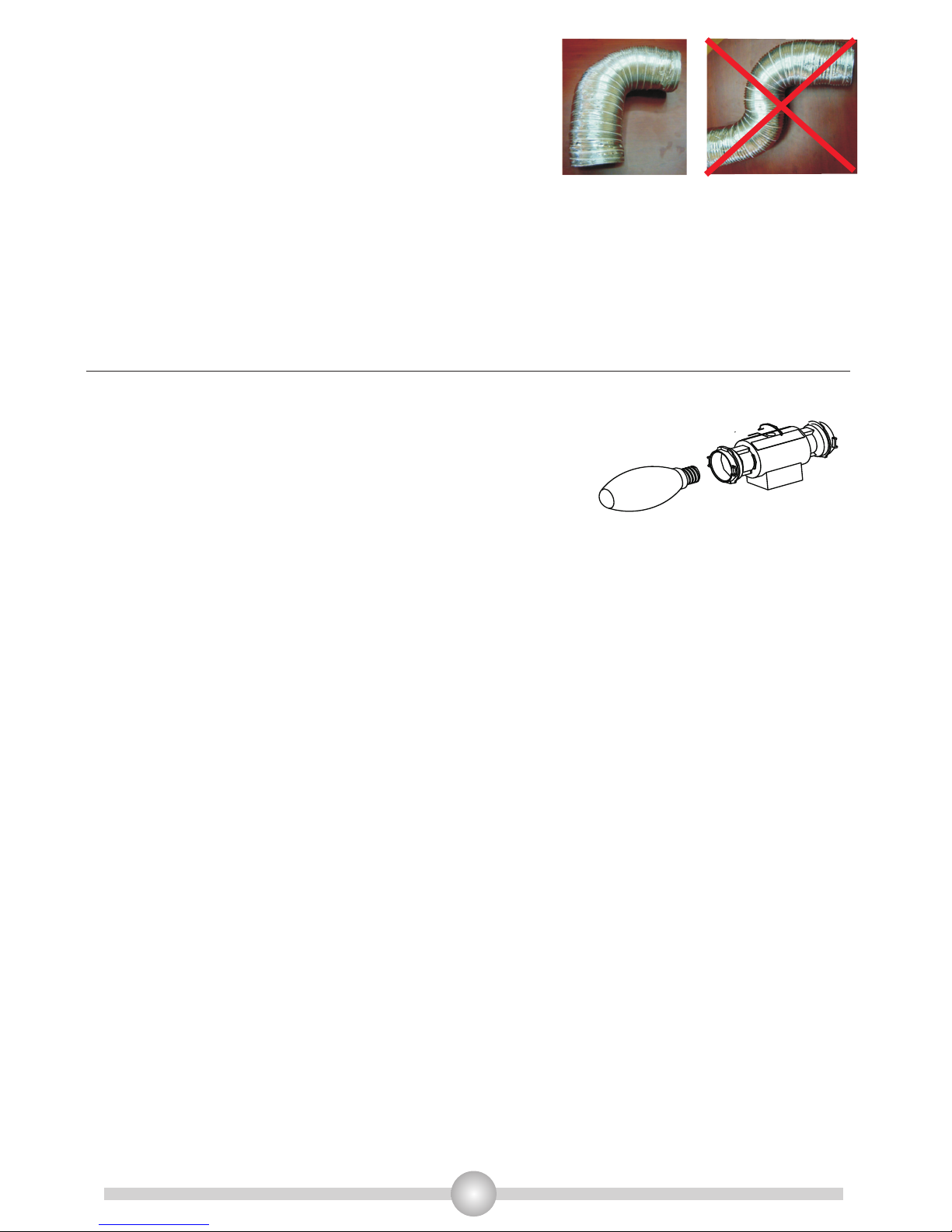

Flections and bends at the aluminium pipe reduce the
air absorbtion power, because of that use less flections
and bends as possible. Picture 4
Correct False
Replacing the Lamps
Cut off the connection of the cooker hood with electricity. Take off the aluminum cassette filter.
Take off the failed lamp and replace it with a new one that is of the same rating. (Please wait for the
lamps to cool as they might hurt your hand.)
Note: You may purchase the lamps from authorized sellers and after sales services
Replacing bulb
In order to change the bulb, turn it anti-clockwise and take it
off. Replace it with a new one in the same value by turning it
in clockwise.Figure 6
Functions of the Product
Your hood is compatible for use with our without chimney.
Usage with chimney
The product should be connected to a chimney that will direct the air out during usage with
chimney. In order to achieve best performance, pay attention that the duct system follows the
shortest way for connection to the chimney. Your product is produced as it will be appropriate for
usage with chimney.
Attention!!!
Outlet of the product should not be connected to air canals that have other smoke as well.
Active Carbon Filter
To provide air recirculation where product's chimney air outlet cannot be connected to exterior, it
is necessary to use active carbon filter with your product. You may purchase this accessory from
authorized sellers and after sales services.
Picture 4
Figure 6
10

Carbon Filter Usage
Your product is compatible with one type of carbon filter.
You may see following information on how to use carbon filters.
Before installing or replacing carbon filter, first you should cut your product's power off.
Carbon filters should be replaced with a new one each 3-5 months because it is used at kitchens
that does not have chimney outlet.
Carbon filter should never be washed.
Grease filters should be installed on the product even when carbon filter is not in use. Do not use
your product without grease filter.
Replacing Carbon Filter
It is necessary to install 2 carbon filters to your product.
To place the carbon filter, place your filter on connection channels on motor and turn it clockwise.
In order to remove filter, turn it anti-clockwise. Figure 7
Figure 7
11

Efficient Ventilation
In order to ensure correct ventilation, keep your kitchen windows closed.
IMPORTANT NOTE
Please pay attention when the product is operated at the same time with a product which operates
using air and fuel (for instance; heater, water heater etc. which operates using gas, diesel fuel,
coal or wood), since cooker hood may affect burning negatively as it directs the air out.
This warning is not valid for usage without chimney.
12
MAINTENANCE
*Disconnect electricity connection before maintenance and
cleaning process.
*Aluminum cassette filter holds the dust and the oil in the air.
*Metal filter should be washed once in a month with hot and
soaped water or, if possible, at dishwasher (60C).
*Take off aluminum cassette filter pressing on springy
latches on end point. After cleaning, do not replace before it
dries.
*Outer surface of the cooker hood should be wiped with a
wet cloth that is wetted with water or alcohol.
*Please avoid contact of electronic parts with water or
similar materials.
*Using Inox cleaning and maintenance products available in
the market will help your product to perform longer.
Warning: Aluminum filters may be washed in the
dishwasher. Color of aluminum filters may change after
several washings. This is normal and it is not necessary to
change the filters.
Washable Aluminum
Cassette Filter

Illumination
Your product has one lamp and a buton to control illumination. Press on lamp button in order
to start illumination.
Usage of the Control Panel
Speed Selection
You device has 3 levels of ventilation . Depending on the cooking and frying steam , you should
run the device with low- medium or high speed. To run the device , on the front panel there are
motor switch and lamp switch. Please select the desired ventilation speed.
Illumination
There are two lamps and one switch that controls the illumination on the device. To turn the lamps
on please pres on to the indicated position.
13

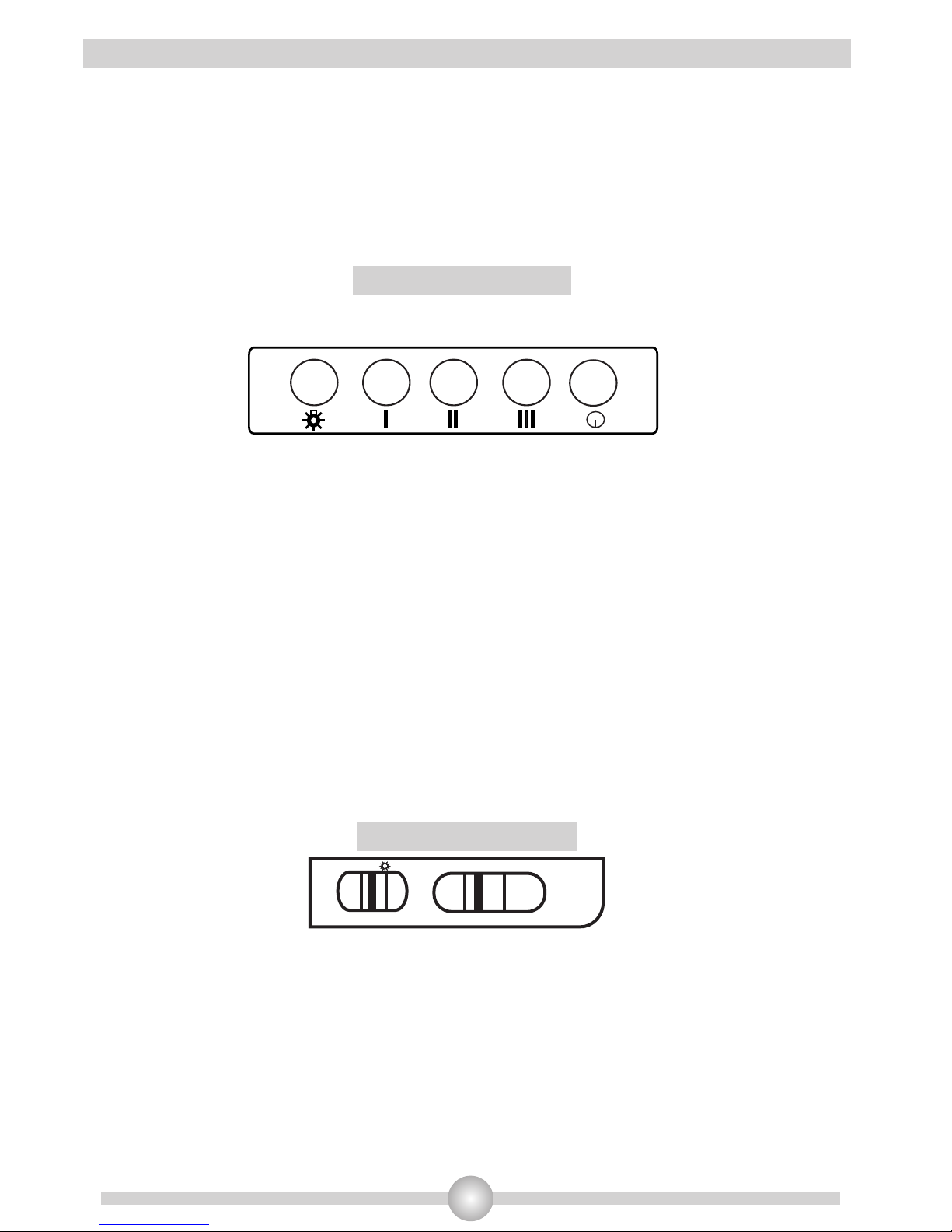

0 1 2 3
0
Button Positions
Slider Positions
Usage of the Control Panel
Speed Selection:
Your product has 3 ventilation speed level. Depending on the cooking and frying steam , you may
use your device with low- medium or high speed.
To operate product, press on motor control buttons on the front panel. Press on OFF button on the
control panel to switch the device off. It is advised to run the device and the hob simultaniously so
that an air flow could be formed. With this method , the absorbtion power will be affected
positively. Keep your hood on for a some longer to ensure odour and steam is absorbed.

If the product does not work:
Before you contact the technical service:
Make sure that the product is plugged in and the electric fuse of the electric wiring is running. Do
not take any action that will damage the product. Before you contact with technical service, check
your cooker hood according to Table 1. If the problem goes on, contact the seller or the most
authorized service.
Check electric connection(Voltage of the
electric network should be between 220-240V, cooker hood should be connected to grounded
Check motor switch (Motor switch should be at
on position)
Check motor switch (Motor switch should be at
on position)
Check aluminum filter(Aluminum Cassette
Filter should be washed once a month at
normal conditions.)
Check lamps(Lamps should be firm.)
Check outlet (Outlet should be open) Check Carbon Filter (Carbon filter should be
replaced with a new one each 2-3 months at the
models with Carbon Filter at normal
conditions)
Cooker-hood does not work
Illumination Lamp does not work
Cooker-hoods air suction is weak
Cooker-hood does not direct air out
(at places without chimney)
In order to use the cooker hood efficiently;
*Use ducts of 120mm diameter and as few bends as possible when you make the chimney
connection.
*Pay attention to aluminum filters' cleaning periods and changing periods of carbon filters.
*Use the product at middle speed if high suction power is not necessary.
* In order to ensure that ventilation occurs correctly, windows of the kitchen should be kept
14

15

16

17
