1. Introduction
ZTE CDMA 1X card fits into a standard Type II PC Card slot (available on most notebook PCs)
and can function as a wireless network card, a modem, and a mobile phone. This card allows you
to connect to the Internet, send and receive SMS messages, and make phone calls, without the
need of a network cable or phone line.
With the design of the R-UIM card separate from the body, ZTE CDMA 1X card can make the
operation more flexible.
2. Specifications
Model
Item MC315 MC315+ MG166 MG466
Transmit Frequency 824~849MHz 824~849MHz 1850~1910MHz 452.5~457.5MHz
Receive Frequency 869~894MHz 869~894MHz 1930~1990MHz 462.5~467.5MHz
Freq. Stability FA±300Hz
Dimension 86*54*5 mm
Weight 33g
Data Transmission MAX 153.6 kbps
Voltage 3.3V from PCMCIA Slot
Current Dormancy: 90mA Maximum: 850mA
Transmitter Power 200mW
3. Care for your card
¾Protect the card from liquids, dust, and excessive heat.
¾Optimal signal strength is usually obtained when the antenna is perpendicular to the card.
The antenna should bend easily. Do not forcefully bend the antenna or plugs the antenna in
and out ZTE CDMA 1X card frequently. ZTE shall not be held responsible for the loss due to
user’s disoperation.
¾The ZTE CDMA 1X card should fit easily into your PC slot. Forcing the card into a slot may
damage connector pins.
¾Do not operate the ZTE CDMA 1X card near any equipment which may be susceptible to
electromagnetic interference.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page2 http://www.zteit.com
4. Features
Your ZTE CDMA 1X card may need R-UIM card. Contact your provider to get the information
about if your ZTE CDMA 1X card need or need not the R-UIM card. Please insert the R-UIM
card to your ZTE CDMA1X card if it needs.

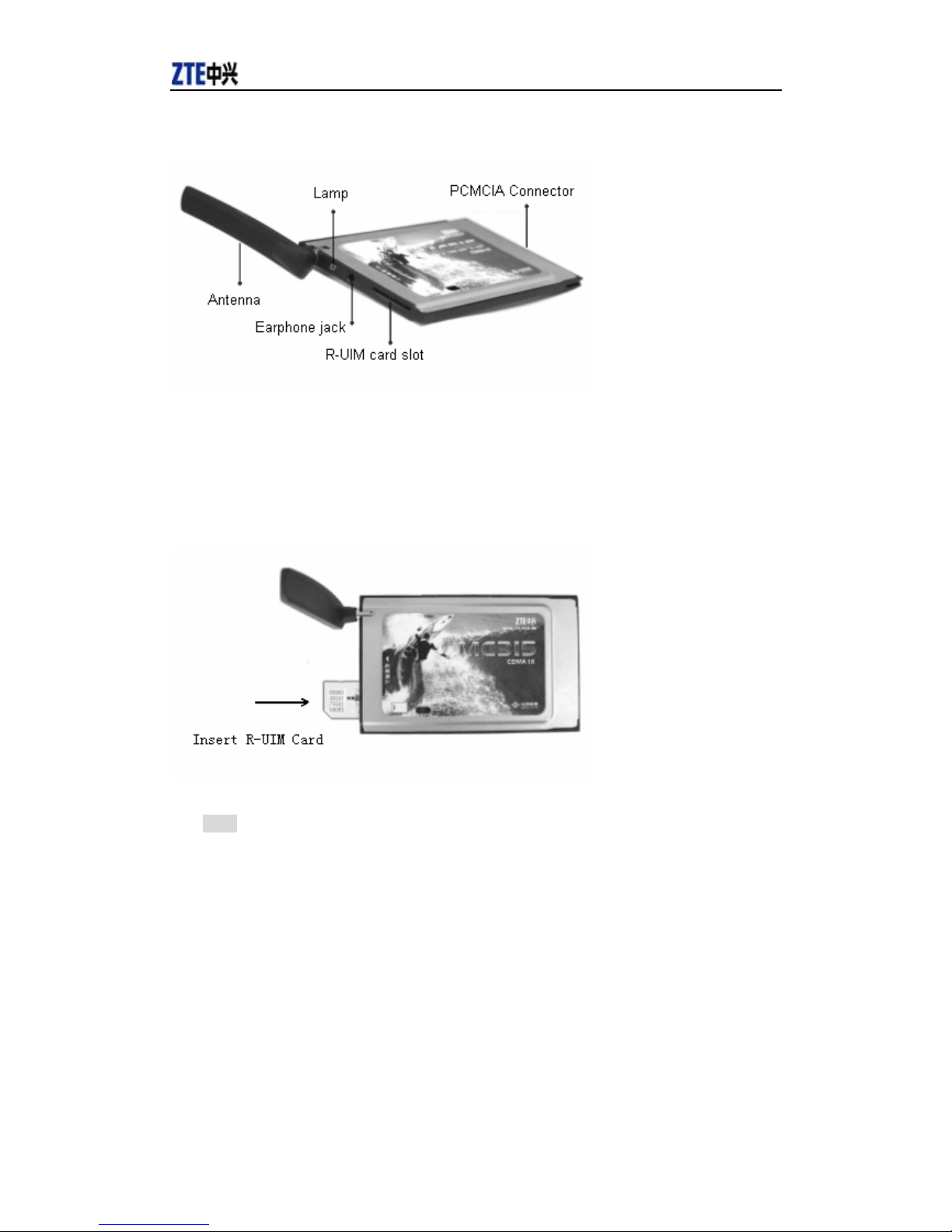

Insert R-UIM card to ZTE CDMA1X card (only for those who need R-UIM card)
Note:
When ZTE CDMA 1X card is started, the lamp is in YELLOW. After a few seconds, the ZTE
CDMA 1X card will ready to work, the lamp is in GREEN.
If you want to remove ZTE CDMA 1X card from your computer, press the ejector to remove
ZTE CDMA 1X card from the slot,do not pull the card out by the antenna.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page3 http://www.zteit.com
5. Setup and Uninstall
5.1 System Requirements
The ZTE CDMA 1X card is supported on:
• Windows 98
• Windows 2000
• Windows Me
• Windows XP
To install the ZTE CDMA 1X card, you will require these system resources at the minimum:
CPU Pentium-II/233MHz
Card Slots 1 Type II PCMCIA (PC Card) Slot
Disk Drive CD-ROM (for installation only)
Memory 64 MB
Disk Space 30 MB
5.2 Setup for Windows 2000
5.2.1 Setup
Note:
Don’t insert the ZTE CDMA1X card before setup.

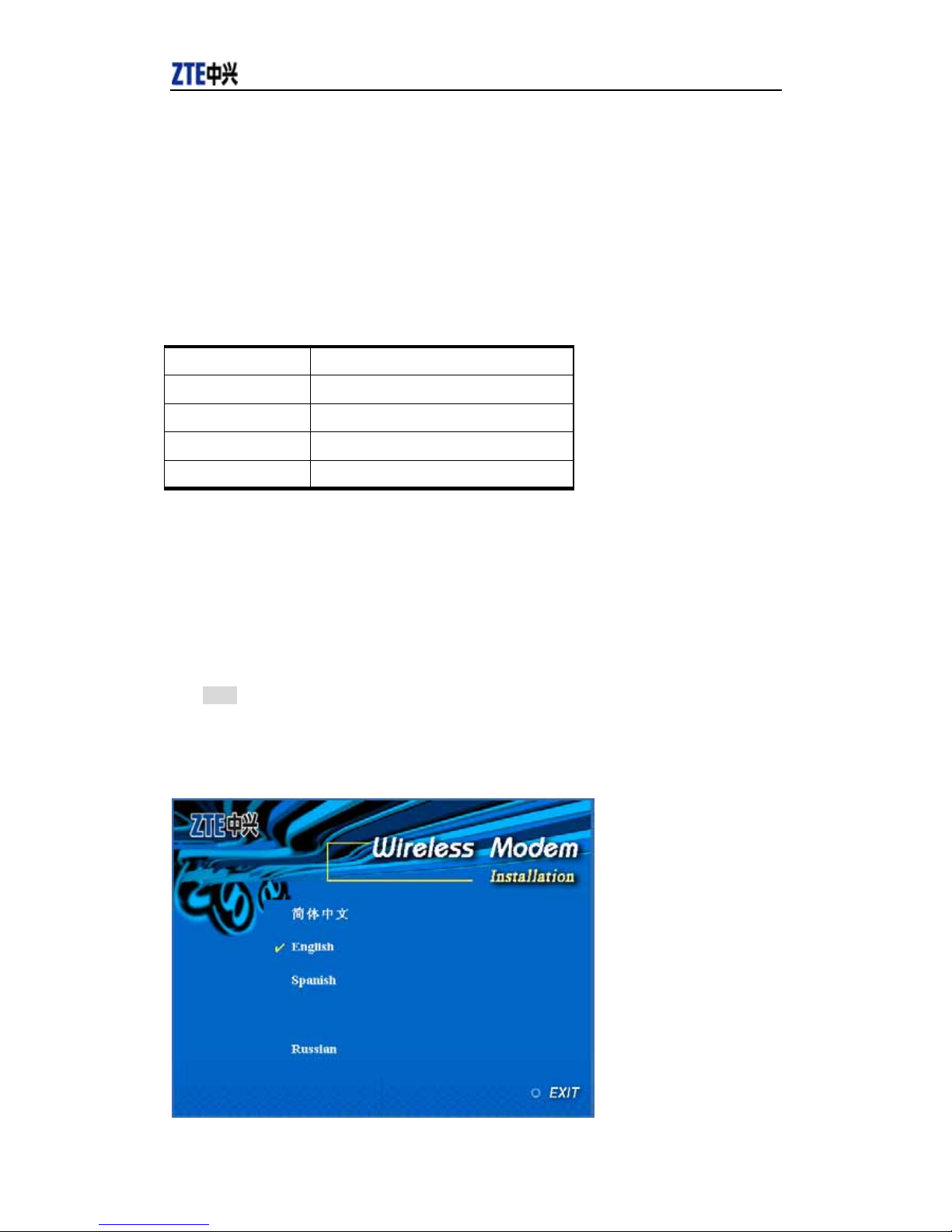

1. Please find “autosetup.exe” first in ZTE CDMA 1X card CD, and double click the icon of
autosetup.exe, then choose “English” when the picture displayed in the screen.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page4 http://www.zteit.com
2. When you see this window, please click “Next”.
3. Select the location where the program is to be installed, then click “Next”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page5 http://www.zteit.com

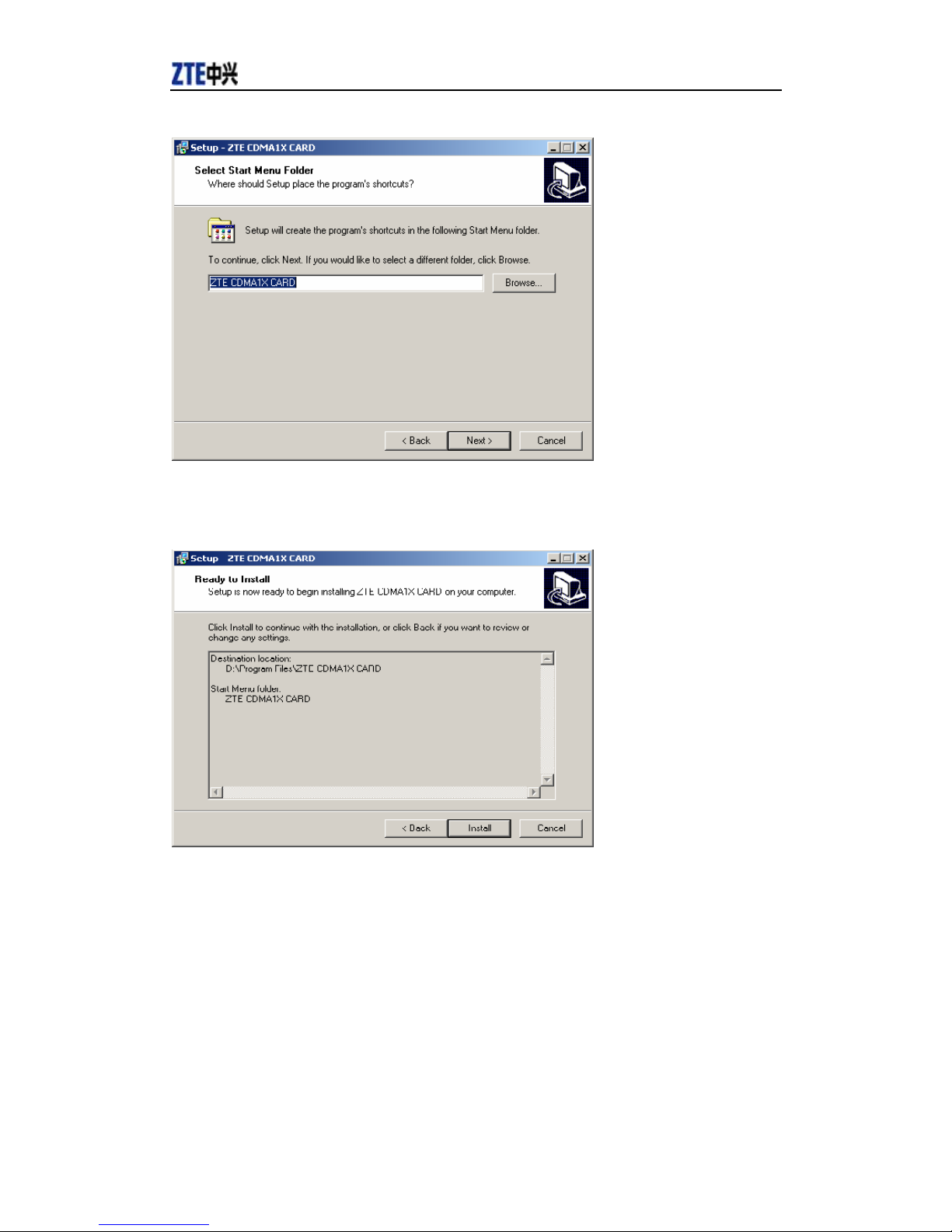

4. Select start menu folder, then click “Next”.
5. When you see this window, please click “Install”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page6 http://www.zteit.com
6. Please wait.
7. Please insert the ZTE CDMA1X card. (If your card is in the slot, please insert the card again)
8. Please wait for updating the driver.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page7 http://www.zteit.com
9. You can see the window when driver installed successfully. Click “OK”.
10. Click “Finish” to close the last screen of the wizard. Now you can start the application for ZTE
CDMA 1X card.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page8 http://www.zteit.com
5.2.2 Uninstall

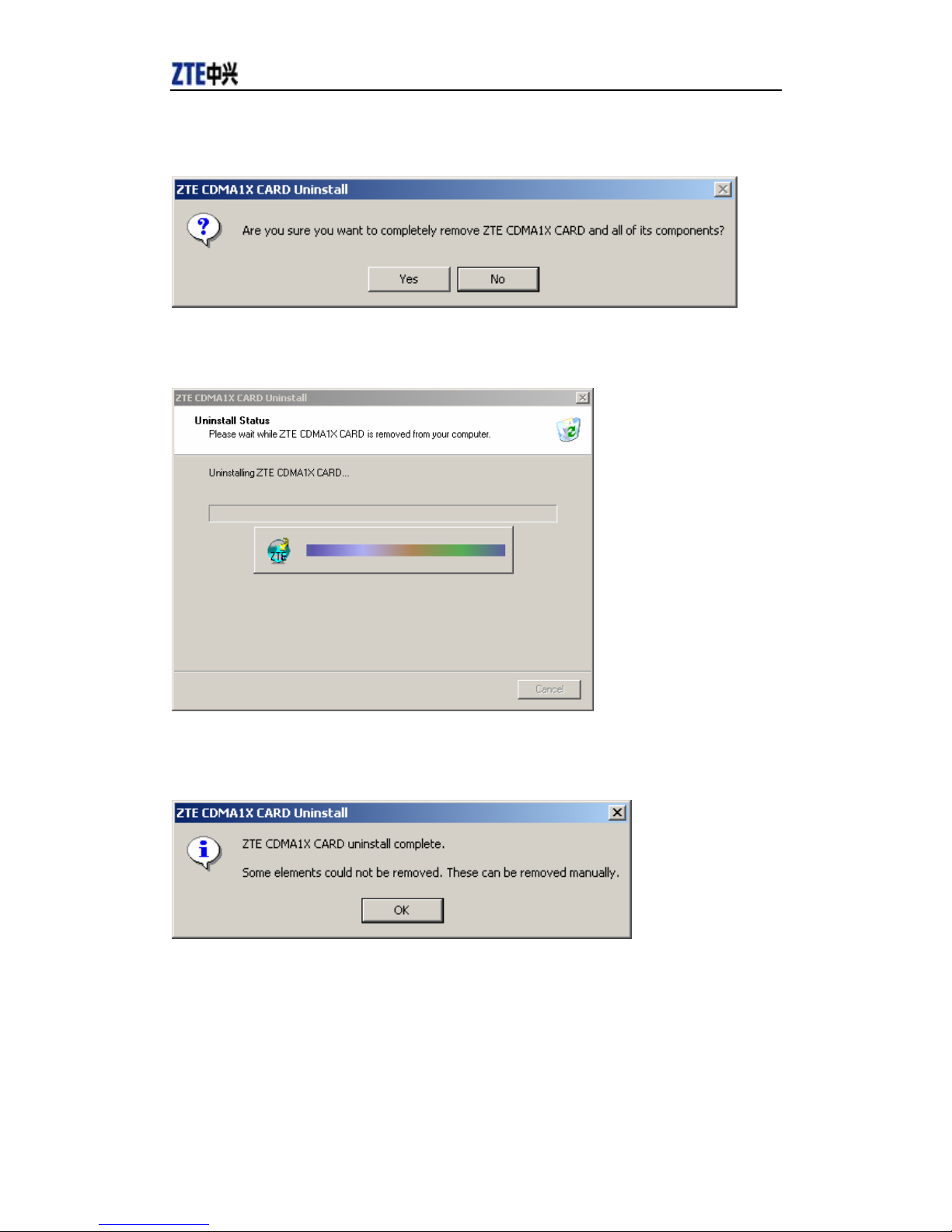

1. Select Start -> Programs -> ZTE CDMA1X CARD -> Uninstall ZTE CDMA1X CARD. You
will be asked if uninstall the card. Click “Yes”.
2. Please wait.
3. Click “OK” when you are notified that uninstall is complete.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page9 http://www.zteit.com
5.3 Setup for Windows XP
5.3.1 Setup
Note:
Don’t insert the ZTE CDMA1X card before setup.
1. Please find “autosetup.exe” first in ZTE CDMA 1X card CD, and double click the icon of
autosetup.exe, then choose “English” when the picture displayed in the screen.
2. When you see this window, please click “Next”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page10 http://www.zteit.com
3. Select the location where the program is to be installed, then click “Next”.
4. Select start menu folder, then click “Next”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page11 http://www.zteit.com
5. When you see this window, please click “Install”.
6. Please wait.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page12 http://www.zteit.com

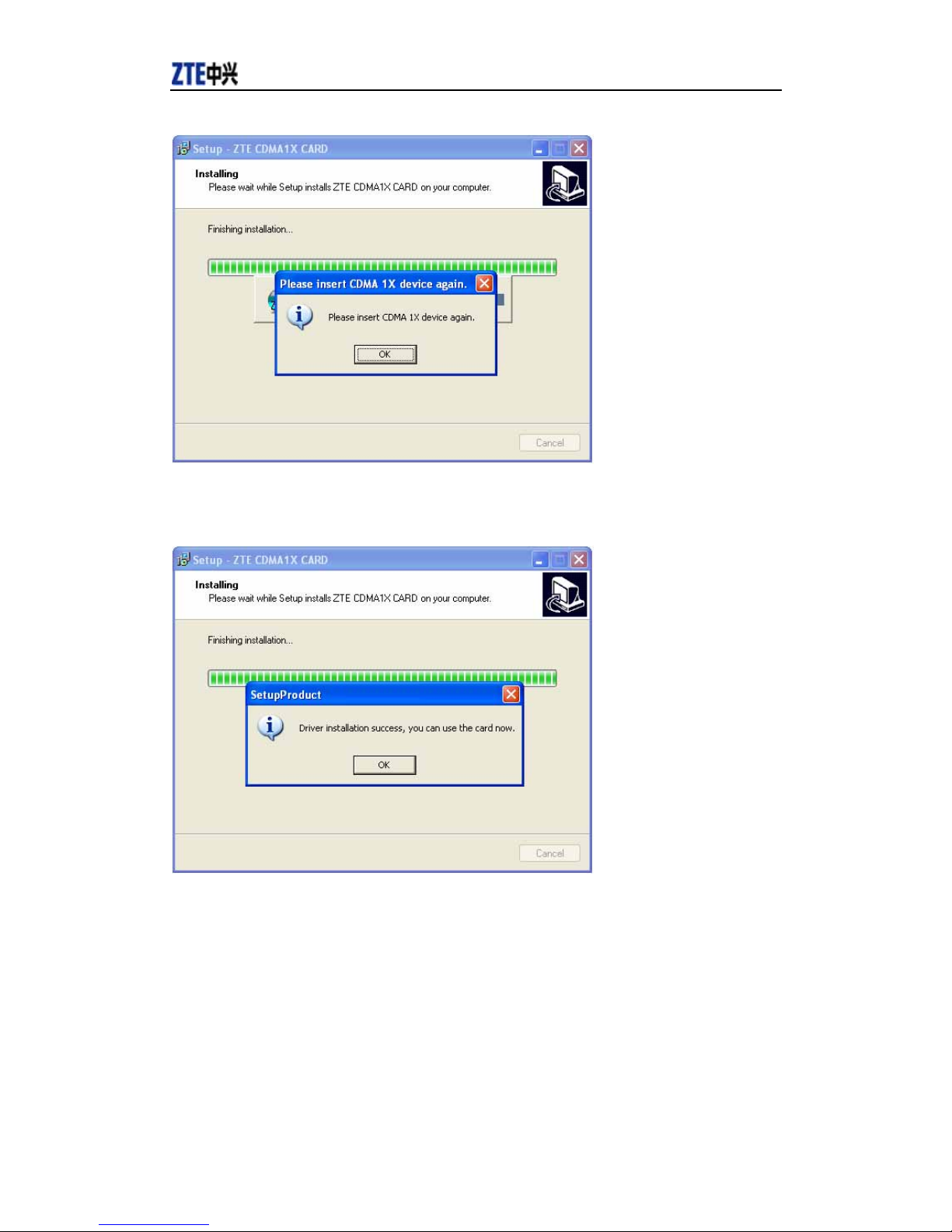

7. Please insert the ZTE CDMA1X card. (If your card is in the slot, please insert the card again)
8. Please wait for updating the driver until this window appears. Click “OK”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page13 http://www.zteit.com

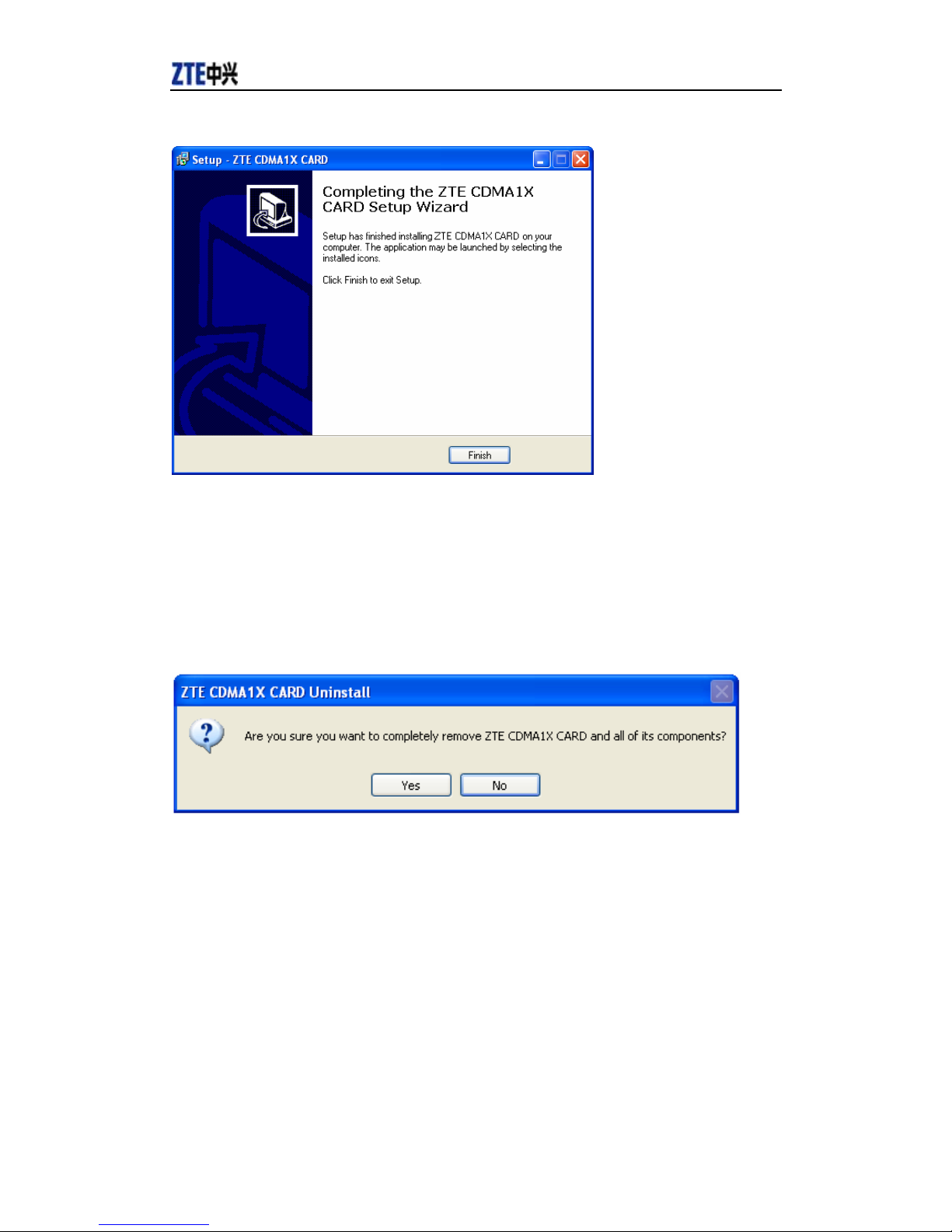

9. Click “Finish”. Now you can start the application for ZTE CDMA 1X card.
5.3.2 Uninstall
1. Select Start -> Programs -> ZTE CDMA1X CARD -> Uninstall ZTE CDMA1X CARD. You
will be asked if uninstall the card. Click “Yes”.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page14 http://www.zteit.com
2. Please wait.
3. Click “OK” when uninstall is complete.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page15 http://www.zteit.com
6. The Main Window and Icons
You can launch the program by:
zDouble click , the icon of application for ZTE CDMA 1X card in the
desktop.
zOr selecting Start -> Programs -> ZTE CDMA1X CARD -> ZTE CDMA1X CARD.
After initialization, the main window of the application will be displayed in the screen.
There are icons in the top of the main window. That indicates:
Connect/Disconnect
Connection record
Voice call
Call history
Write SMS
Read SMS
Phone Book
Settings
Help
Some features like Voice call , Call history , Write SMS , Read SMS , Phone Book may not be
supported by your ZTE CDMA1X card , the corresponding icons will not appear in the main
window. Please contact your provider or agent.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page16 http://www.zteit.com
7. Connect/Disconnect
Connect to network:
1. Click “connect/disconnect” icon in main window.
2. Click “connect” button.
Disconnect:
1. Click “disconnect” button.

ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page17 http://www.zteit.com
8. Connection Record
Note:
Connection Record is not official data. It's only for users’reference.

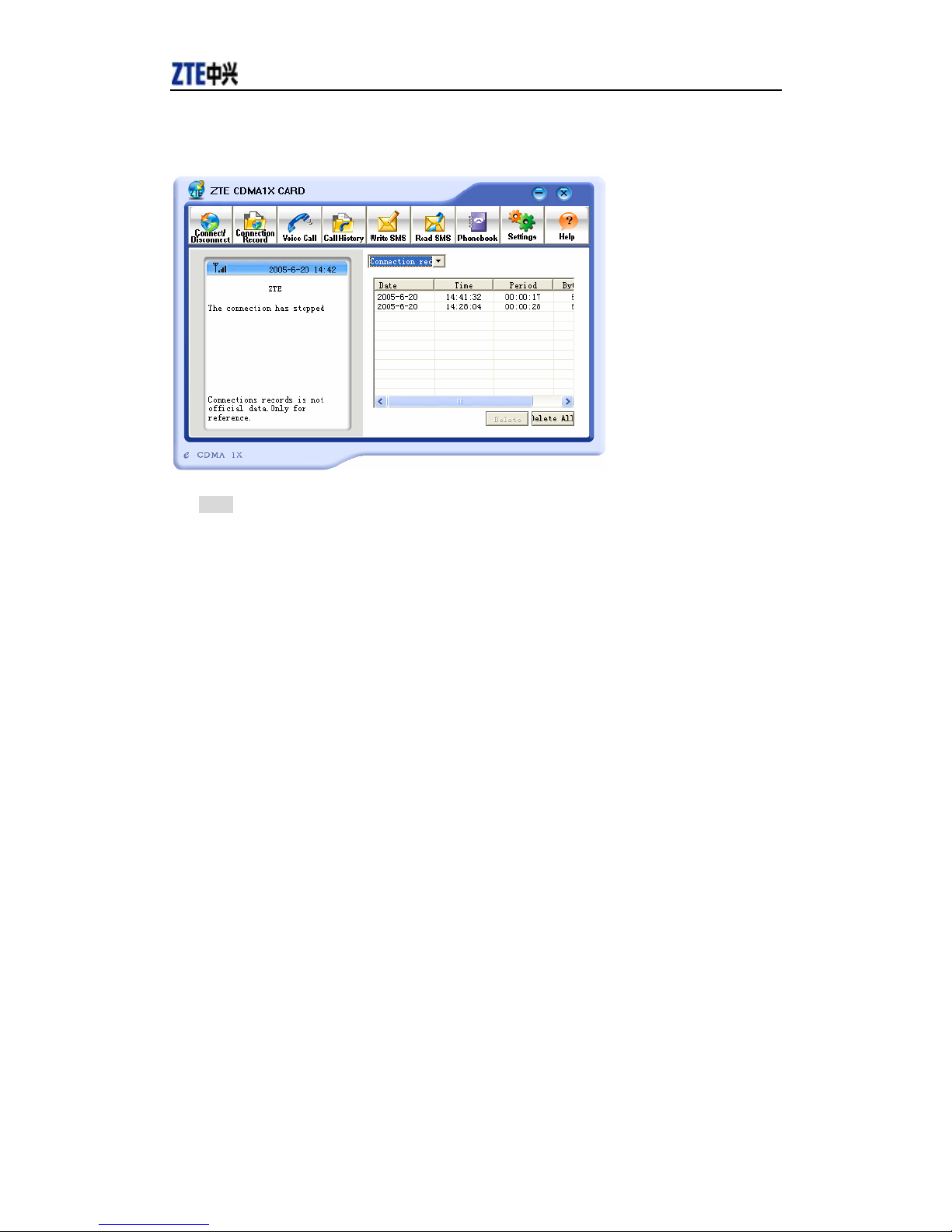

The connection record is displayed when you click the “Connection record” icon.
It records connect time and upload/download bytes for each connection. And it lists the
monthly statistics.
