Zumtobel LUXMATE CIRIA Installation manual
LUXMATE
CIRIA
Instructions for
start-up and use
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 3
Legal information
Trademark
LM-CIRIA® is a registered trademark of Zumtobel Lighting GmbH, Dornbirn, Austria.
Copyright
Copyright © Zumtobel Lighting GmbH. All rights reserved.
Manufacturer
Zumtobel Lighting GmbH
Schweizerstrasse 30
6850 Dornbirn
Austria
Tel. +43-(0)5572-390-0
Fax +43-(0)5572-390-699
www.zumtobel.com
Version
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 4
Manual orientation
We are pleased that you have chosen this Zumtobel product. So that you can get the most from this
manual, the following information will be set out in this section:
• Target groups
• Manual structure
• Characters and symbols in this manual
• Other helpful information
Target groups
This manual is directed at specific target groups. The target groups that will find this manual most
useful are:
• Users
• Service personnel
Manual structure
Safety instructions Section 1, page 8 Users, service personnel
Introduction Section 2, page 10 Users
LM-CIRIA control unit Section 3, page 14 Users, service personnel
Operation Section 4, page 17 Users, service personnel
Configuring the LM-CIRIA control unit Section 5, page 34 Service personnel
Commissioning the field level Section 6, page 82 Service personnel
Appendix Appendix, page 116 Users, service personnel
Characters and symbols in this manual
The following characters and symbols are used in this manual:
Individual steps in the instructions are numbered.
= After a step has been described, a description of the expected results will follow. Results are indi-
cated by = at the beginning of the line.
– Requirements which need to be checked before carrying out a step are indicated by –.
• Individual information to note is indicated by •. This information is also labelled with the word "Note".
Notes are given in grey boxes.
Other helpful information
Detailed information on the setup and function of your Zumtobel system can be found in our product
and system documentation and in the instructions supplied with the system.
If you should have any further questions, please contact your contract partner.
General information on our products can be found on our homepage
www.zumtobel.com.
Manual orientation
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 5
Table of contents
Legal information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Manual orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 Dangers associated with the operation of this system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.5 Declaration of CE conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.1 Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 LM-CIRIA control unit icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4 Colour temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.5 Tunable White . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.6 Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.7 Time-linked automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8 Automated scene sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.9 Daylight linking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 LM-CIRIA control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2 Touchscreen function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3 Touchring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.4 On/off key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 Target group-oriented structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Recalling a scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Adjusting the lighting throughout the room using scene icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.1 Adjusting the lighting throughout the room using building service icons. . . . . . . . . . . . 20
4.3 Operating the blinds throughout the room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.1 Completely opening or closing the blinds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.2 Positioning the blinds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.3 Completely opening or closing the slats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.4 Positioning the slats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4 Opening or closing all windows in the room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.5 Opening or closing all curtains in the room. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.6 Moving the screen upwards or downwards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.7 Switching the ventilation on or off (air exchange). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.8 Increasing or decreasing the room temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.9 Switching luminaire groups on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.10 Adjusting the lighting for luminaire groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.11 Changing the colour temperature of a luminaire group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.12 Completely opening or closing groups of blinds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.13 Positioning groups of blinds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5 Configuring the LM-CIRIA control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.1 Logging in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.2 Selecting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.3 Displaying the software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.4 Assigning the address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Table of contents
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 6
Table of contents
5.5 Configuring the touchring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.5.1 Configuring touchring behaviour when switched on . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.5.2 Assigning building service types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.5.3 Configuring the action click . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.6 Configuring the on/off key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.6.1 Assigning a presence or absence scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.6.2 Assigning the fade speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.6.3 Assigning the building service type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.6.4 Configuring on/off key behaviour when switched on . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.7 Configuring the on/off key LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.7.1 Configuring LED behaviour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.7.2 Configuring intensity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.8 Locking/enabling the scene saving function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.9 Configuring the entry level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.9.1 Scene icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.9.2 Building service icons (manual) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
5.9.3 Group icons (manual) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
5.9.4 Bus address icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5.9.5 Group and building service icons (automatic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
5.9.6 Group numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.9.7 Footer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
5.9.8 Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
5.9.9 Room temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
5.10 Configuring the touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
5.10.1 Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
5.10.2 Screensaver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
5.10.3 Action click . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
5.10.4 Touch reaction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
5.11 Setting the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5.12 Setting return timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.13 Resetting to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
6 Commissioning the field level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6.1 Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.1.1 Addressing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.1.2 Checking addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
6.1.3 Re-grouping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
6.2 Assigning and configuring inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
6.3 Deleting addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
6.4 Assigning fade speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
6.5 Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
6.6 Setting the date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
6.7 Saving scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
6.8 Configuring the LM-ZSM time control device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
6.8.1 Creating switch entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
6.8.2 Editing switch entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
6.8.3 Deleting switch entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
6.9 Configuring the LM-ZSQ sequencer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
6.9.1 Creating scene sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
6.9.2 Editing scene sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
A Description of selection and settings levels (service menu) . . . . . . . . . . . . . . . . . . . . . . . . . 118
A 1 INTERNAL selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
A 1.1 CONFIGURATION selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
A 1.2 OPERATION selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
A 1.3 GROUPS selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 7
Table of contents
A 2 EXTERNAL selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
A 2.1 ASSIGN ADDRESS... selection level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
A 2.2 DELETE ADDRESS selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
A 2.3 LM-ZSM selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
A 2.3 LM-ZSQ selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
B Scene icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
C Building service icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
D Error messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
E Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
F Questions and answers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
G List of figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
H List of tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
I Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
J Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Safety instructions
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 8
1 Safety instructions
The instructions in this chapter have been compiled to ensure that operators and users of this
Zumtobel system are able to detect potential risks and can take necessary measures as soon as pos-
sible before any damage is done. The operator must ensure that all users fully understand these in-
structions and adhere to them. This device may only be installed and configured by suitably qualified
personnel.
1.1 Intended use
Proper use
• Operating and commissioning the Zumtobel system field level
• The device may only be used for its intended purpose.
Improper use
• Outdoor use
• Extensions and modifications to the product
• Use of third-party components and accessories that have not been specifically approved by
Zumtobel
Warning
Improper use could result in injury, malfunction or damage to property. The operator must inform all
users of the potential risks associated with the use of the equipment and about protective counter-
measures.
Environment
Not to be used in corrosive or explosive environments.
1.2 Dangers associated with the operation of this system
Danger of electrocution
Countermeasures:
Disconnect the power to the entire Zumtobel system before working on the lighting system.
Risk of damage caused by condensation
Countermeasures:
Prior to commissioning the system, wait until the LM-CIRIA control unit is at room temperature and
completely dry.
Risk of damage caused by humidity
Countermeasures:
Only use the LM-CIRIA control unit in dry rooms and protect it from humidity.
Safety instructions
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 9
1.4 Disposal
For disposal in accordance with the WEEE Directive:
• Return the device to Zumtobel.
• Dispose of electrical device in accordance with national regulations.
• Do not throw out the device with non-recyclable waste.
• Do not burn the device.
1.5 Declaration of CE conformity
Zumtobel confirms that the LM-CIRIA control unit complies with the
relevant EU Directives.
Note:
• Clean the product using a soft, damp cloth.
• Dry the product using a soft towel.
• Corrosive and abrasive cleaning agents may damage the surface.
• Do not use any cleaning agents which contain chlorine or acid, or which are abrasive or corrosive.
Instead use only mild cleaning agents and water.
• Complaints resulting from the improper use of cleaning agents will be disregarded.
1.3 Cleaning
You have selected a Zumtobel product with a high-quality surface. To ensure that your product lasts,
observe the following instructions.
SCHREIBTISCH BESPRECHUNG BEAMER
Figure 1: Cleaning
Introduction
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 10
2.1 Basic functions
• Recall up to 21 scenes
• Configure up to 21 scenes
• Operate up to 10 building services
• Configure up to 10 building services
• Operate up to 15 groups
• Configure up to 15 groups
• Operate up to 15 outputs
• Configure up to 15 outputs
• Switch on/off and brighten/dim lighting manually
• Change the colour temperature of the lighting
• Move blinds manually
• Open and close windows manually
• Change room temperature
• Display room temperature
• Address outputs
• Assign inputs and control units
• Configure the LM-CIRIA control unit
• Configure fade speeds
• Configure time-linked automation (LM-ZSM time control device)
• Configure automated scene sequence (LM-ZSQ sequencer)
• Configure daylight-linked automation
2 Introduction
2.2 LM-CIRIA control unit icons
Scene
Scenes are displayed as buttons using scene icons. Selecting a button recalls that scene.
Figure 2: Scene icons
Scene temporarily changed
Recalled scenes can be changed using the touchring. The upper right-hand corner of the correspond-
ing scene icon is marked to show the change of scene.
Figure 3: Scene icon when scene has been manually changed
Introduction
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 11
Scene automated for daylight linking
Scenes can be automated for daylight linking. A daylight-linked automated scene is indicated by an
arrow pointing to the bottom right-hand corner of the corresponding scene icon.
Figure 4: Scene icon when scene has been automated for daylight linking
Automated scene sequence
A scene sequence can be started by recalling a scene. The sequence is indicated by the text SEQU in
the header.
Figure 5: SEQU for scene icon when scene sequence has been automated
Building service
Building services are displayed as buttons using building service icons. Selecting a button chooses that
building service for operation.
Figure 6: Building service icons
Groups
Building services can be separated into their own groups. The building services in each group can then
be operated together.
If there are multiple groups for a building service, these groups are numbered. The group number is
displayed in the lower right-hand corner of the group icon. Building service groups can be accessed by
selecting GROUPS.
Figure 7: GROUPS (entry level)
Figure 8: Building service group icons (selection level)
Figure 9: Operating buttons (settings level)
Introduction
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 12
Time display
The time is displayed in the upper left-hand corner of the touchscreen.
Figure 10: Time display
Notes
• The time will only be displayed if the system has an internal clock.
• The time display can be enabled or disabled (factory setting: enabled).
Room temperature display
The room temperature is displayed in the upper right-hand corner of the touchscreen.
Figure 11: Room temperature display
Notes
• The room temperature will only be displayed if there are actuators available that support this func-
tion.
• The room temperature display can be enabled or disabled (factory setting: disabled).
Notes
• Group control values (in %) will only be displayed if all building services within the group have the
same control value.
• Control values will only be displayed on the touchscreen if there are actuators available that support
this function.
Introduction
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 13
2.3 Dimming
Smooth adjustment of a lamp's luminous flux. Dimming can refer to both increasing and decreasing the
luminous flux.
Brighten: increasing a lamp's luminous flux. A luminaire can be brightened from any position (except
100 %), but can only be dimmed on from 0 %.
Dim: decreasing a lamp's luminous flux. A luminaire can be dimmed to any position, but can only be
dimmed off to 0 %.
Dim on: increasing a lamp's luminous flux from a dimmed off state (0%) to a set control value.
Dim off: decreasing a lamp's luminous flux from its current position until the lamp is completely off
(0 %). The scene remains active.
2.4 Colour temperature
(Unit: kelvin)
The temperature that a “black body” must have in order for its light to be perceived as the same colour
as the actual existing light source. A black body is a theoretically ideal body that absorbs rather than
reflects all of the electromagnetic radiation it encounters regardless of the wavelength. If these black
bodies are heated, they change their colours from black to red to yellow to white to blue. The lower the
temperature of the black body, the “warmer” or more yellow the light. The higher the temperature, the
“cooler” or more blue the light.
2.5 Tunable White
“Tunable White” describes the option to dynamically change the light of an LED luminaire in the white
light range. The colour temperature of Tunable White luminaires from Zumtobel can be changed in the
white light range from 2700 to 6500 kelvin.
Figure 12: Colour temperature range of Tunable White luminaires
2.6 Scene
A scene is a set of defined settings for luminaires, blinds, etc. which meet a specific requirement within
an area. These settings can be dynamically aligned and include different types of automation.
A scene can be recalled manually (e.g. by pressing a key) or automatically (e.g. by time-linked automa-
tion). Examples of scenes are: Desk, Presentation, Break.
2.7 Time-linked automation
A type of automation for which time is the triggering factor.
Example of time-linked automation: in an individual office, an absence scene is recalled every working
day at 20:00.
Introduction
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 14
2.8 Automated scene sequence
A type of automation that recalls specific scenes at specific times in a set sequence.
2.9 Daylight linking
A type of automation for which daylight is the triggering factor in the control of luminaires and/or blinds.
The amount of available daylight is detected by a sky scanner.
This type of automation includes daylight utilisation, glare protection with appropriate lighting control
and daylight tracking.
LM-CIRIA control unit
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 15
3 LM-CIRIA control unit

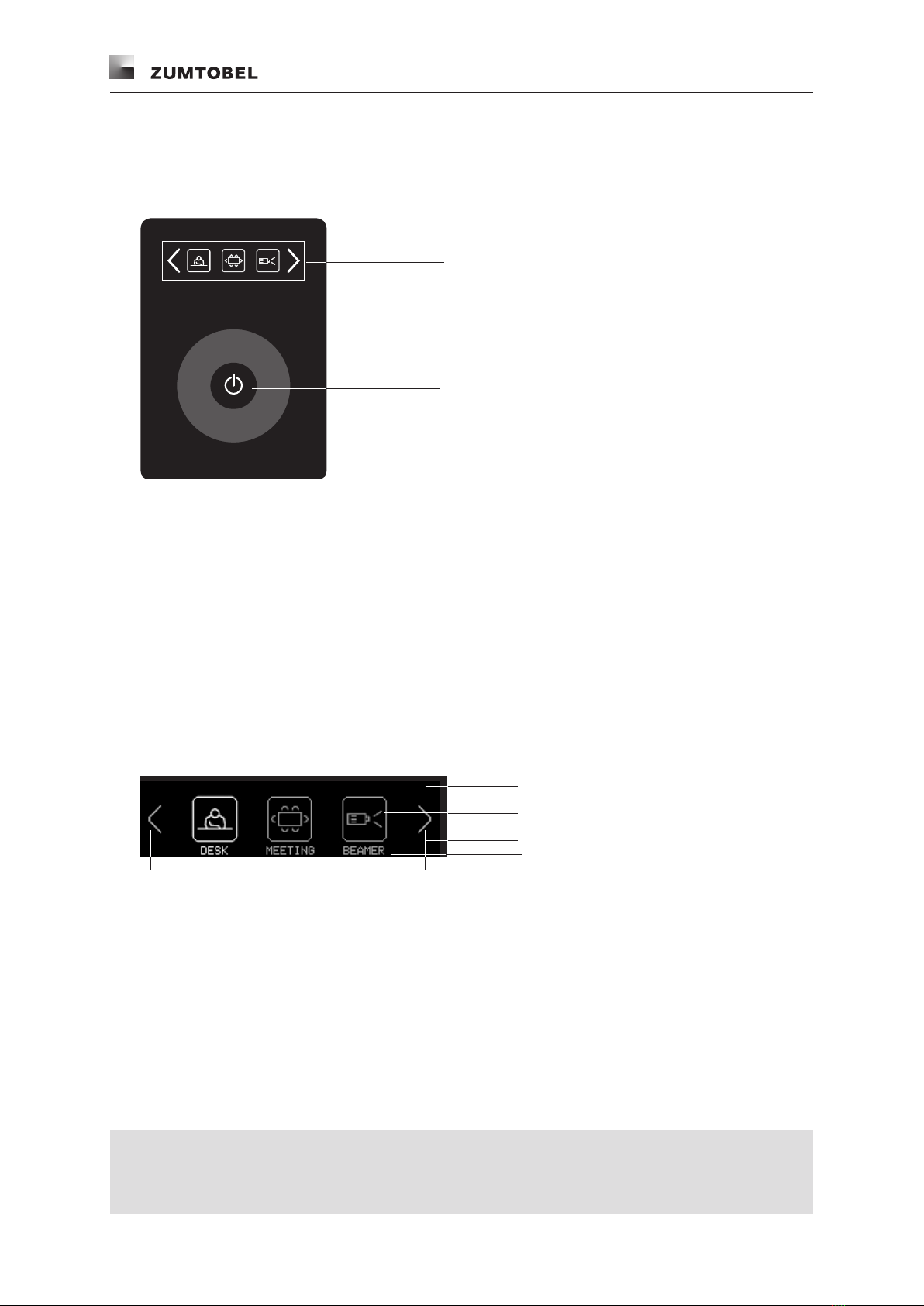

3.1 Overview
1 Touchscreen
The touchscreen is used to recall scenes and navigate within selection and settings levels.
2 Touchring
The touchring is used to manually adjust the lighting, move blinds and navigate to desired values in
the settings levels.
3 On/off key
The on/off key is used to recall a presence or absence scene.
DESK MEETING BEAMER
3
Figure 13: LM-CIRIA control unit
1
2
3.2 Touchscreen function
1
2
3
4
1 Header
2 Buttons
3 Navigation buttons
4 Footer
The touchscreen is used to recall scenes and navigate within entry, selection and settings levels.
Touching a button on the touchscreen selects its corresponding function. The button illuminates as
confirmation that it has been selected. The selection can also be confirmed with an audible action click
(factory setting: action click is disabled).
Note
• If a button is not selected within a specific time (return timeout), the touchscreen display switches
automatically to the entry level. The return timeout is set when the system is commissioned.
• If the area between two selections is touched on the touchscreen, no function is selected.
Figure 14: Touchscreen
LM-CIRIA control unit
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 16
3.3 Touchring
3.4 On/off key
The touchring is used to change scenes temporarily (changes are not saved) and to navigate to de-
sired values in the settings levels. The touchring is touch-sensitive; to use it, run your finger along the
ring. When the touchring is touched or when you remove your finger from it, the touchscreen display
changes.
The on/off key is used to recall a presence or absence scene. The scene to be used for presence or
absence scenes is set when the system is commissioned and then assigned to the on/off key. If the
absence scene is enabled, the on/off key LED is illuminated white to enable the control unit to be found
in the dark. If a presence scene is recalled, the on/off key LED goes out. The behaviour of the on/off
key LED is set when the system is commissioned.
Figure 15: Touchring
Figure 16: On/off key
LM-CIRIA control unit
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 17
3.5 Target group-oriented structure
The LM-CIRIA control unit is designed in a way that best meets the requirements of each target group.
The functions relevant for a particular target group are displayed in a clear and compact way. These
functions can be accessed easily and directly using the touchscreen.
1 Entry level
2 Selection level
3 Settings level
Entry level
The entry level is the first level shown on the touchscreen of the LM-CIRIA control unit. This level con-
tains all functions relevant for daily use. Using this level, the appropriate scene for a particular activity
can be recalled. Selecting scenes is made easier thanks to scene icons that are easy to understand.
Other operating options can be displayed using the and navigation buttons.
The number and type of icons (scene, building service, group) displayed depends on how the control
unit has been configured.
Selection levels are accessed from the entry level.
Selection level
In a selection level, functions can be selected from several options. Other selection options are dis-
played using the and navigation buttons.
Other selection levels or settings levels are accessed from a selection level. The previous level can be
accessed using the navigation button.
Settings level
From settings levels, no further levels can be accessed on the touchscreen of the LM-CIRIA control
unit. In settings levels, building services are operated and functions are configured.
Other setting options can be displayed using the and navigation buttons.
The previous level can be accessed using the navigation button.
1
2
3
DESK MEETING BEAMER
Figure 17: Entry level – selection level – settings level
Operation
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 18
4 Operation
In this section, the operating options available to a user of the LM-CIRIA control unit are described.
These operating options depend on the room's technical equipment.
4.1 Recalling a scene
– Start point: entry level
1. Select the desired scene icon.
= The scene icon illuminates.
= The scene is recalled.
Figure 18: Recalling DESK scene
Note
• The LM-CIRIA control unit is optimally configured for the room's use when the system is commissioned. This
configuration should only be changed by service personnel authorised by Zumtobel.
Operation
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 19
Notes
• Brighten: run your finger clockwise along the touchring.
• Dim: run your finger anti-clockwise along the touchring.
This is the factory setting; this setting is defined when the system is commissioned (TOUCHRING DIR
parameter).
• Stop lighting adjustment: pause finger or remove from touchring.
• The adjustment of the luminaires is temporary. If the same scene is recalled again, the luminaires
assume their set scene values once more.
4.2 Adjusting the lighting throughout the room using scene icons
– Start point: entry level
– Touchring has been assigned to the building service BRIGHTNESS (factory setting).
1. Select the desired scene icon, e.g. DESK.
= The scene icon illuminates.
= The scene is recalled.
Figure 19: Recalling DESK scene
2. Run your finger along the touchring.
Figure 20: Touchring
= BRIGHTNESS display appears.
Figure 21: BRIGHTNESS display
= Luminaires are brightened or dimmed.
= The upper right-hand corner of the scene icon is marked.
Operation
LM-CIRIA operating and commissioning manual 2.0 | 06. 2012 | en 20
Notes
• Brighten: run your finger clockwise along the touchring.
• Dim: run your finger anti-clockwise along the touchring.
This is the factory setting; this setting is defined when the system is commissioned (TOUCHRING DIR
parameter).
• Stop lighting adjustment: pause finger or remove from touchring.
• The adjustment of the luminaires is temporary. If the same scene is recalled again, the luminaires
assume their set scene values once more.
4.2.1 Adjusting the lighting throughout the room using building service icons
– Start point: entry level
1. Touch the navigation buttons until the building service icons are displayed.
= Building service icons are displayed.
Figure 22: Building service icons
2. Select the desired building service icon, e.g. BRIGHTNESS.
= Settings level appears.
Figure 23: BRIGHTNESS display
3. Run your finger along the touchring.
Figure 24: Touchring
= BRIGHTNESS display appears.
Figure 25: BRIGHTNESS display
= Luminaires are brightened or dimmed.
